Mastering Flex Cable Handling: Protecting and Connecting with Precision

Flex cables (also known as ribbon cables) are the lifeline of modern smartphones. They connect key components—screens, batteries, cameras, and fingerprint sensors—with the logic board. Mishandling these delicate parts can lead to malfunctions like touch issues, display failure, or fingerprint reader faults. In this guide, we’ll walk through the critical steps for safely handling, protecting, and reconnecting flex cables, ensuring professional-level repairs.

1. Safe Disassembly Techniques for Flex Cables
Use the Right Tools: Always rely on plastic pry tools or suction cups to separate the screen or battery, reducing the risk of damaging delicate connectors.
Identify Fragile Areas: Check the smartphone’s service manual or teardown guides to locate flex cables near the battery, display, or motherboard.
Avoid Force: Pry gently along the edges. Flex cables are thin and sensitive—too much force can tear them or damage connectors.
Pro Tip: On phones like the iPhone, flex cables for Face ID and Touch ID are extremely delicate. Breaking them may disable key features and require expensive replacements.

2. How to Protect Flex Cables During Repairs
Antistatic Precautions: Use an ESD (Electrostatic Discharge) wrist strap and mat to avoid damaging the logic board or flex cables with static electricity.
Cable Management Tips: Secure disconnected flex cables away from working areas using tape or tweezers, preventing accidental pulls or tears.
Gentle Handling: Avoid bending the cable excessively. Creasing or folding flex cables can create microfractures, leading to intermittent or complete failure.
Common Mistake to Avoid: Some technicians pull on cables while opening devices. This can break fragile connectors. Instead, always release connectors by lifting the latch carefully.

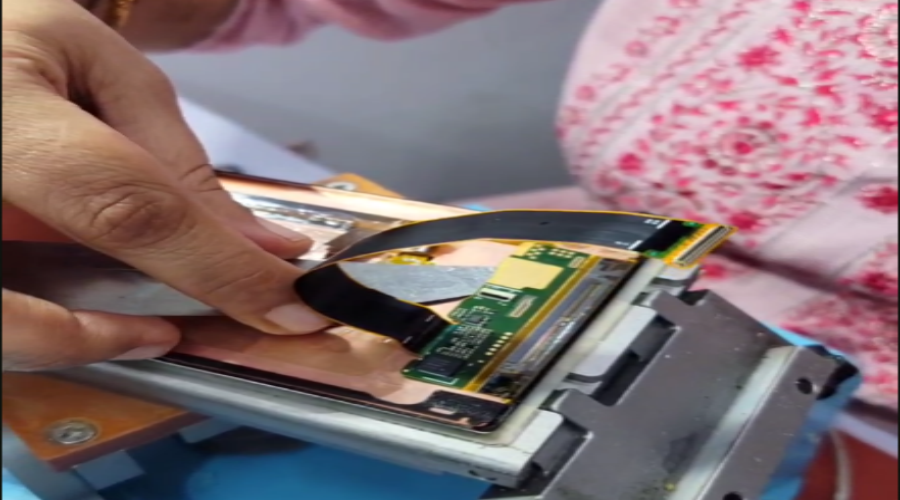

3. Proper Connection Techniques for Flex Cables
Aligning Connectors: Ensure the connectors are perfectly aligned before applying pressure. Misalignment can damage both the cable and the connector on the logic board.
Gentle Pressure: Use even, light pressure when pressing the cable into place. Over-tightening or pressing too hard can cause connector pins to bend.
Check for Clicks: Many flex cables (especially for displays) “click into place” when properly connected. Listen and feel for this subtle click to ensure a secure connection. If there’s resistance, stop and realign the cable before proceeding.

4. Testing and Troubleshooting After Reassembly
Even when everything appears properly connected, issues may still arise. Follow these steps to confirm that all flex cables are functioning as intended:
Preliminary Power Test: Turn on the device before fully reassembling it to check for touch response, display functionality, and button inputs. This avoids the need to dismantle it again if issues are found.
Recheck Connections: If something doesn’t work—such as the display not lighting up or a button not functioning—disconnect and reconnect the relevant flex cable. Sometimes, connectors need to be reseated for proper contact.
Diagnostic Tools: Use multimeters or specialized diagnostic tools to verify the continuity of cables and identify potential faults. Some flex cables can also be tested using software diagnostics.
Pro Tip: iPhones have built-in diagnostics that can detect loose or faulty Face ID or Touch ID cables. Run these tests to confirm your repairs.

5. How to Prevent Long-term Flex Cable Damage
Proper Reassembly: Avoid pinching or trapping flex cables between components when closing the device. Trapped cables can lead to short circuits or future malfunctions.
Use Original or High-Quality Replacement Parts: Cheap replacement cables may not align perfectly or fit snugly, increasing the risk of damage during installation.
Temperature Considerations: Avoid exposing flex cables to excessive heat from soldering irons or heat guns. High temperatures can weaken the cable’s structure.
Long-term Tip: If frequent repairs are expected, consider investing in anti-static tweezers and high-quality ribbon cable holders to improve handling efficiency and reduce accidental damage.

Mastering the art of handling flex cables requires precision, patience, and practice. Whether you’re performing routine repairs or complex motherboard replacements, proper handling techniques can make the difference between a successful fix and a costly mistake. By using the right tools from China Phonefix （professional phone repair tools provider）, protecting cables during disassembly, and ensuring secure connections, you can achieve professional-level repairs that restore smartphones to full functionality.
