2024 New Upgrade Battery Health Repair With KC02S Battery Tester

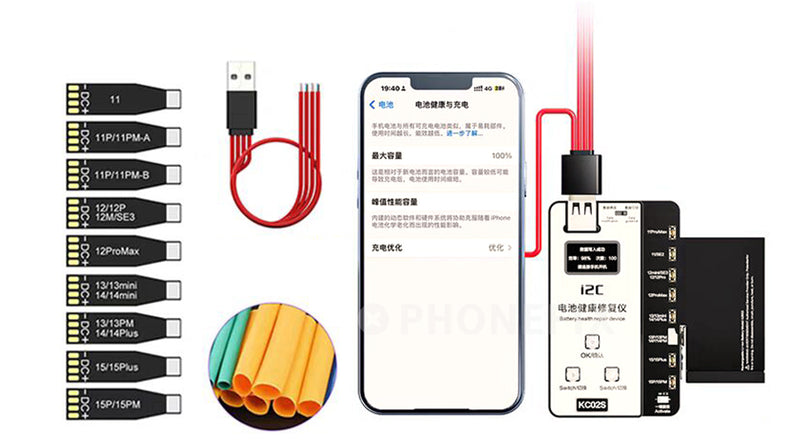

Have you also encountered battery damage and don't know how to fix it. And there are many types of battery damage, one of the most common is battery popping problem. Here Phonefix will introduce you a tool-i2C KC02S Battery Repair Tester.

Can modify the battery health data and charge cycles of iPhone 8-15 Pro Max without battery cable. It can also reset 100% battery capacity and 0 cycles in one click and eliminate "Important Battery Information" pop-up window on iPhone without external battery cable.

Dual Mode Data Modification Procedure

Single Modification Mode

1. Snap the iPhone battery into KC02S
Remove the battery of the cell phone to be modified. and snap it into the KCO2S battery repairer holder according to the model number.

2. Selection of modification mode
Press the confirmation button to select the single modification mode, set your desired efficiency.

  • Single modification mode
  • Batch mode

    3. Lead-in pop-ups

    KC02S mode switch gear, switch to the data guide gear, use the distribution of the boot cable, one end connected to the phone's motherboard, the other end connected to the USB socket on the KC02S, the phone will appear in the "Unknown Component Reminder" to turn off the phone ".

    4. Important Battery Information Alert

    The "Important Battery Information" reminder pops up in your phone's settings, so turn off your phone.

    5. Data modification

    Switch the KC02S mode switch gear to the data modification state directly to the cell phone again, power on to complete the efficiency settings.

    Batch modification 1

    Select the batch modification mode, set the efficiency to be written in batch and press the confirmation key to write and save, the device will save the set efficiency and the number of charge times, and when you use it again, you only need to press the write key to complete the batch modification.

    Batch modification 2

    Repeat steps 3 and 4 of the Single Modify mode to complete batch modification.

    Above is the two modes of KC02S Battery Tester operating steps, dual mode data modification, support for iPhone 8-15PM boot pop-up, support for 11-15PM stand-alone computer-free arbitrary operation. Also a video of the operation for your reference.

    Comparison of KC01, KC02, KC02S and external cable functions

    Model             KC01                   KC02                 KC02S            i2c Battery Cable
    Supported        8-14PM               11-15PM            11-15PM        X-15PM
    Bottom data     6-XSMax              Not                     Not                   Not
    Run Cycle        11-14PM              Not                     Not                   Not
    Battery Health    Not                    Supported          Supported       Supported
    Battery Change  Not                   Not                     Supported       Supported

    Above is can i2c series products respective function, if you are a brand new customer, it is recommended that you can buy KC02S battery tester. Because it can directly support 11-15PM data modification efficiency.

    Note: the power-on wires need to be soldered by the user, the A cable needs to be soldered with 4 wires, and the B cable main needs to be accessed with two wires for positive and negative poles.

    When in use, both AB rows need to be snapped onto the phone or it won't turn on.

     You must pay attention to this, never connect the wrong, otherwise the consequences are still quite serious. You can always pay attention to diyfixtool, we will continue to update the details of each product, so that you can operate more easily and conveniently.
