Description

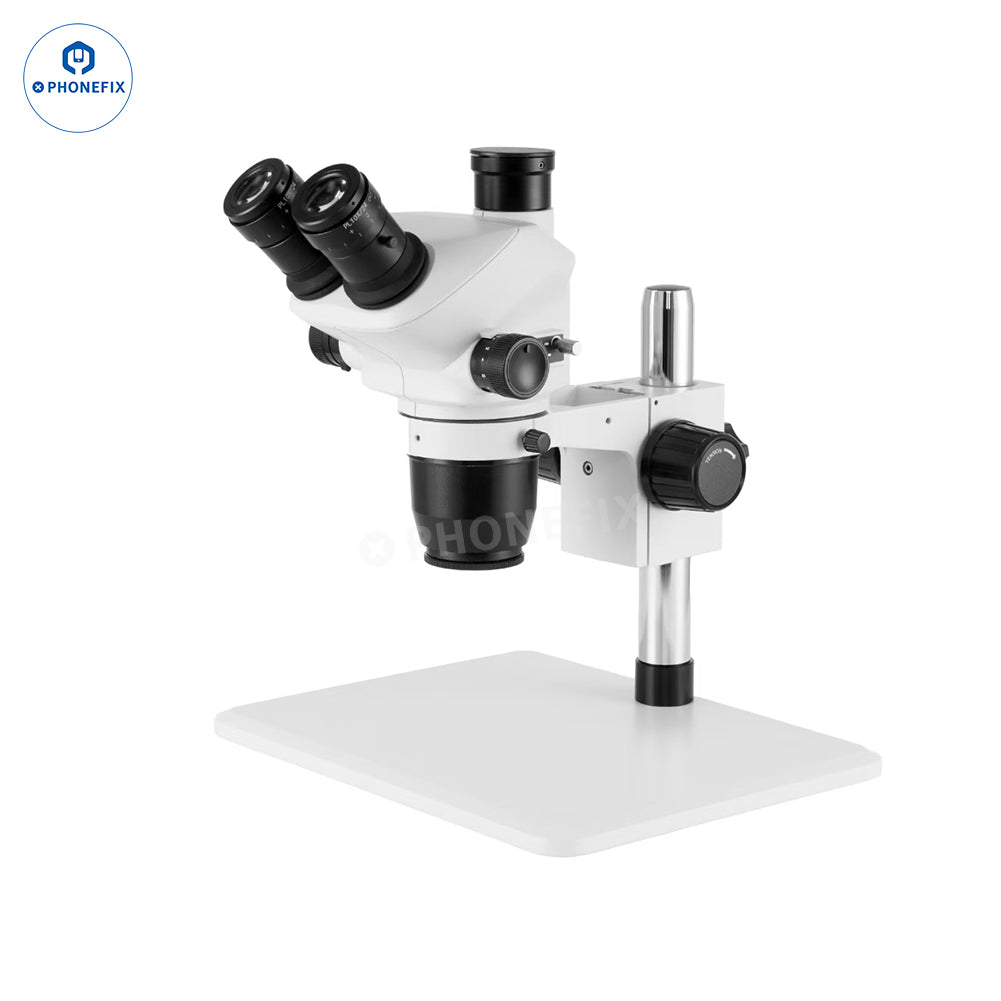

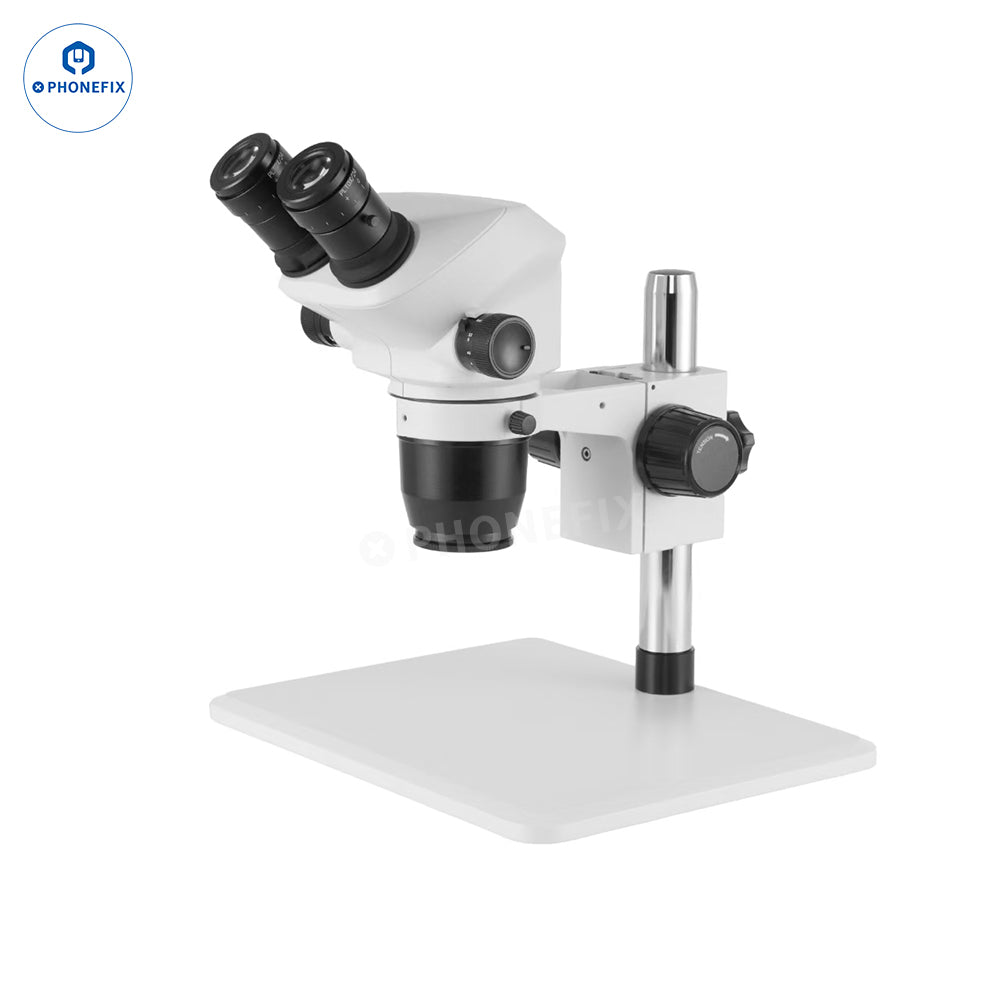

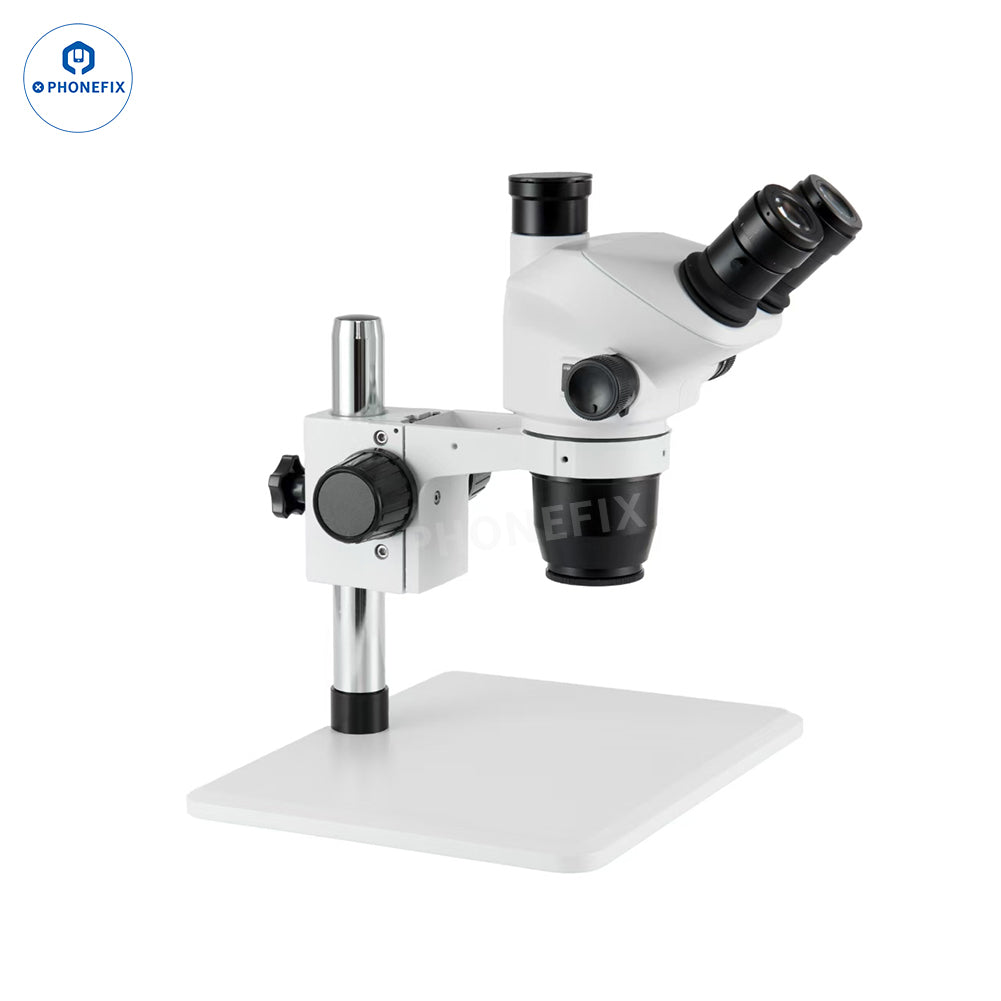

Greenough ZM-6552TH 0.65X-5.2X Binocular/Trinocular Stereo Zoom Microscope for mobile phone motherboard/electronic circuit board CPU BGA soldering repair, jewelry identification and restoration, laboratory observation, academic research, etc. ZM-6552TH 0.65X-5.2X stereo continuous zoom microscope can be used with different auxiliary lens, HDMI camera, eyepiece, C-mount adapter, and metal iron base, etc.

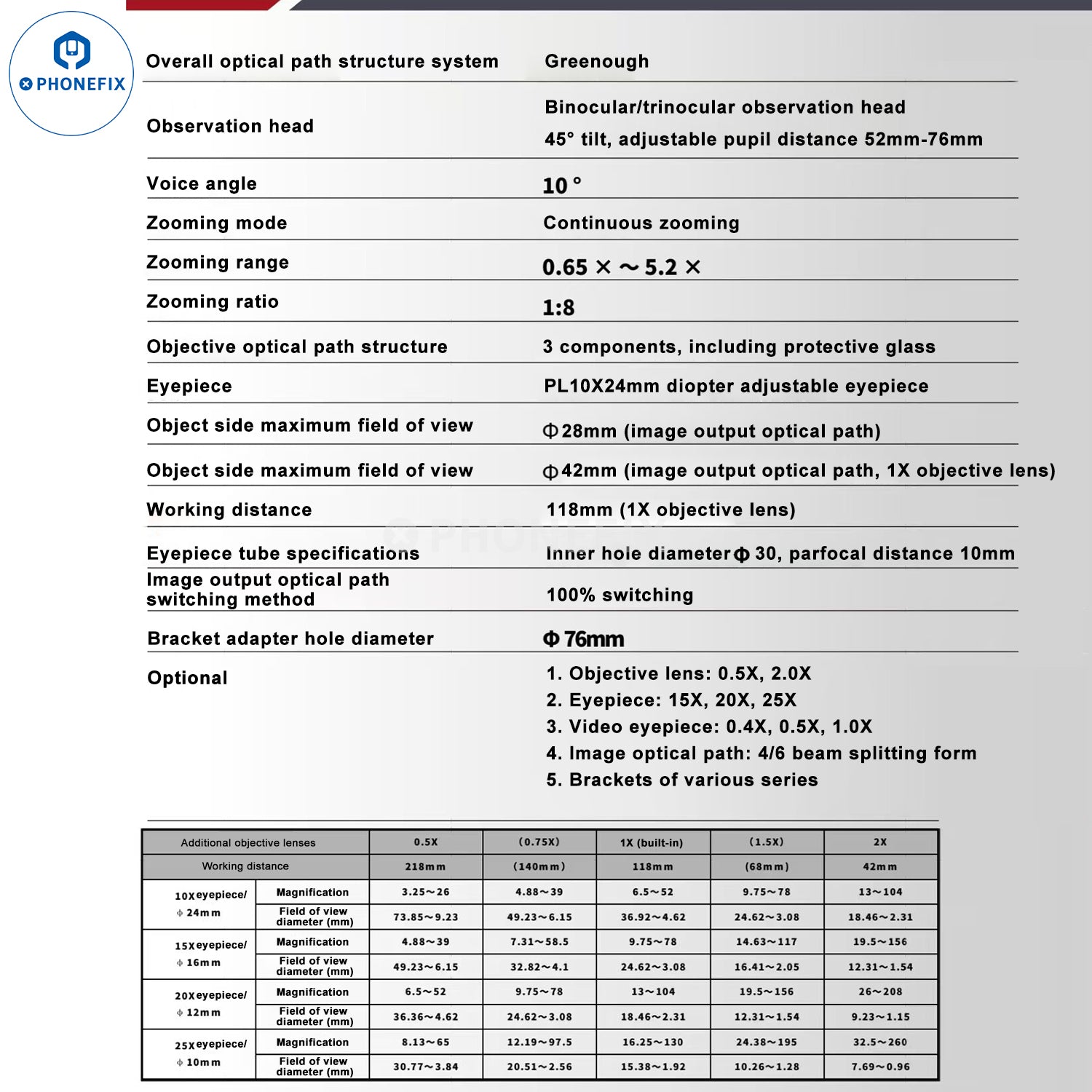

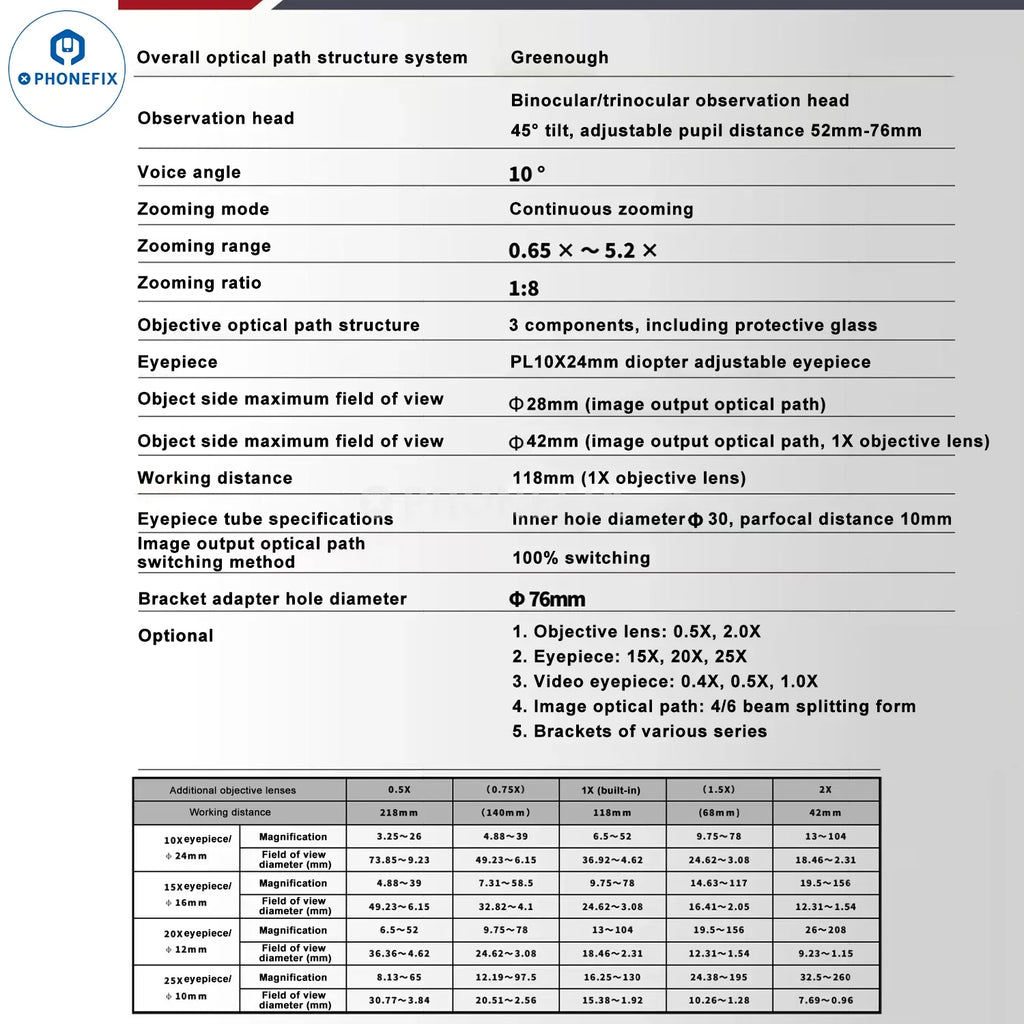

Specification:
Overall optical path structure system: Greenough.
Observation head: Binocular / trinocular observation head, 45° tilt, adjustable pupil distance 52mm-76mm.
Voice angle: 10°.
Zooming mode: Continuous zooming.

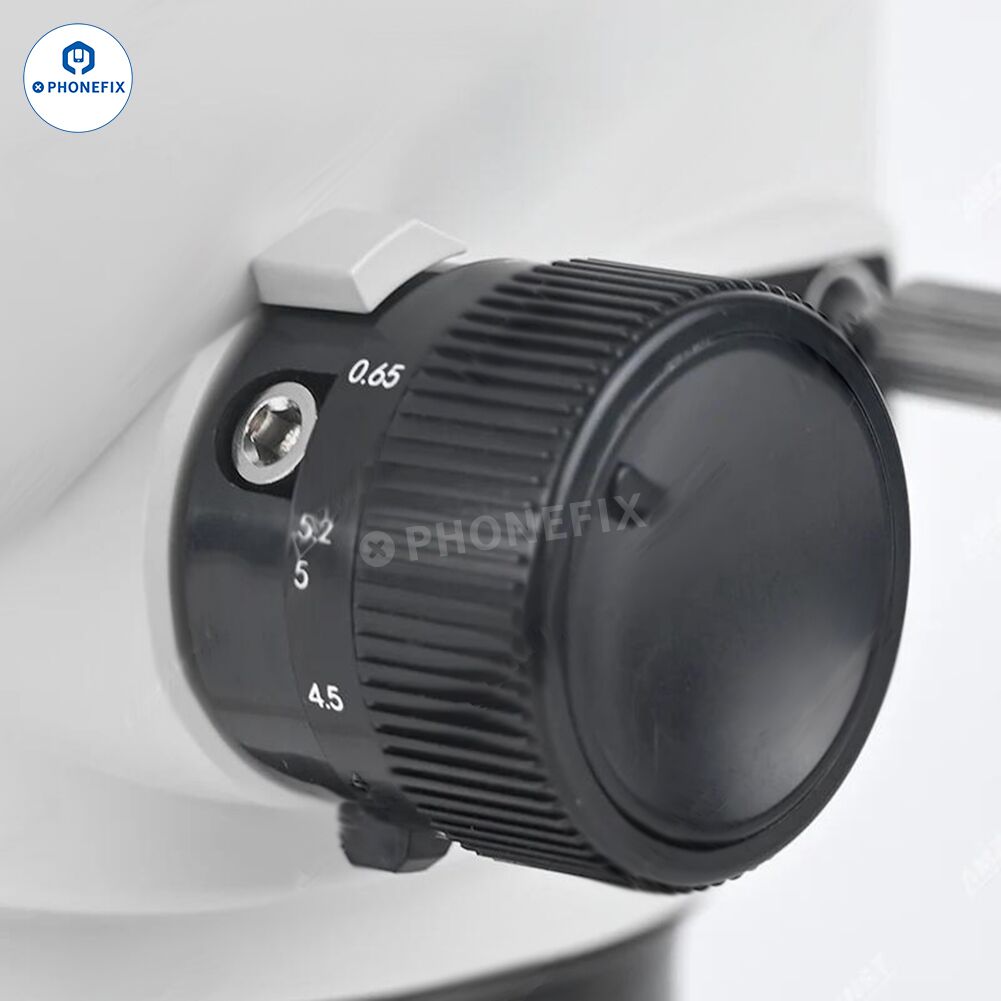

Zooming range: 0.65X~5.2X.
Zooming ratio: 1:8.
Objective optical path structure: 3 components, including protective glass.

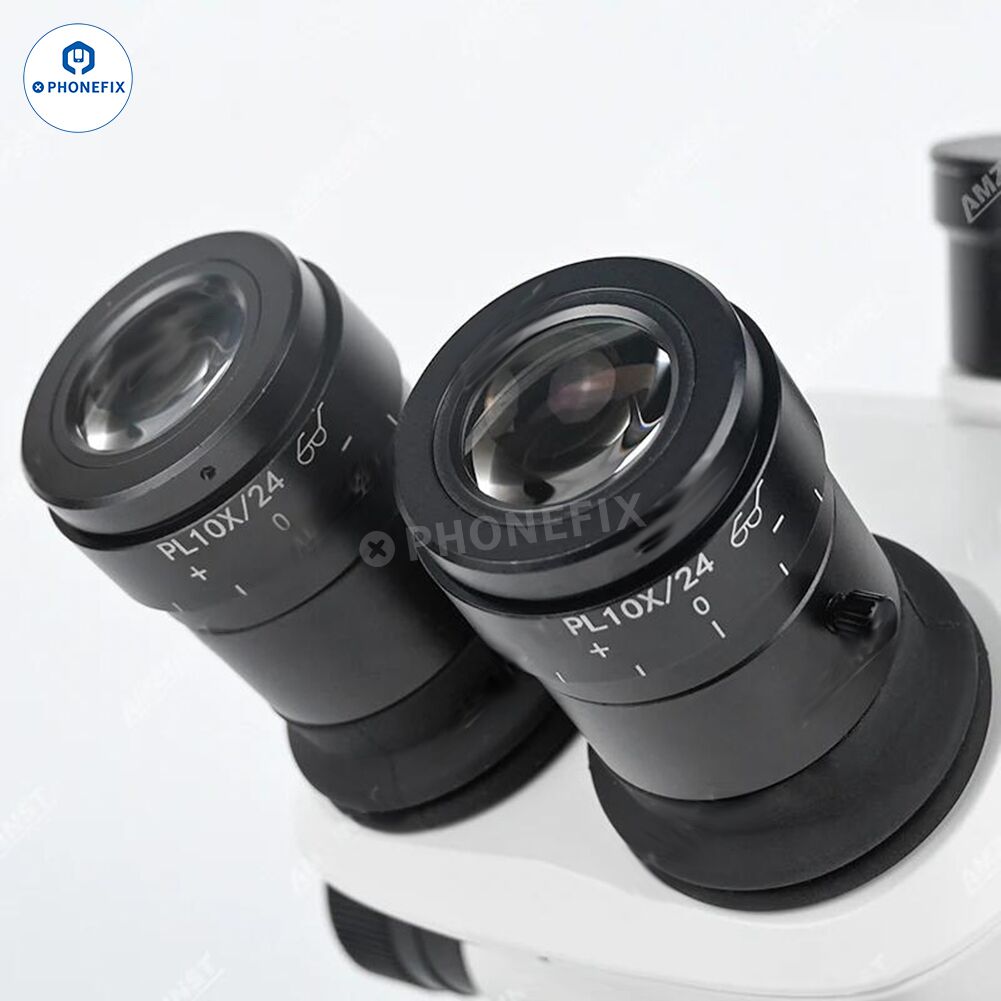

Eyepiece: PL10X24mm diopter adjustable eyepiece.
Working distance: 118mm (1X objective lens).
Eyepiece tube specifications: Parfocal distance 10mm.

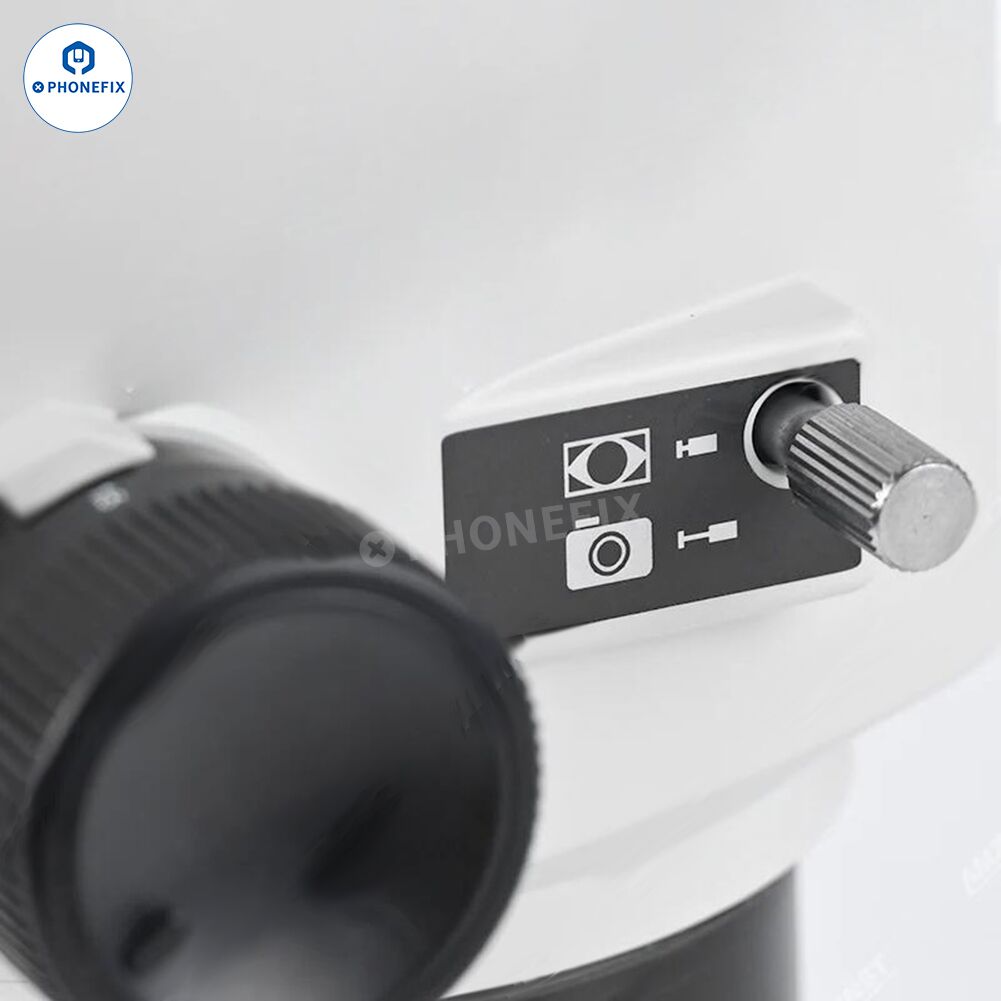

Image output optical path switching method: 100% switching.
Optional:
1. Objective lens: 0.5X, 2.0X.
2. Eyepiece: 15X, 20X, 25X.
3. Video eyepiece: 0.4X, 0.5X, 1.0X.
4. Image optical path: 4/6 beam splitting form.
5. Brackets of various series.
6. Additional objective lenses: 0.5X, (0.75X), 1X (built-in), (1.5X), 2X.
7. Working distance: 218mm, (140mm), 118mm, (68mm), 42mm.
10X 15X 20X 25X eyepiece magnification and field of view diameter:
