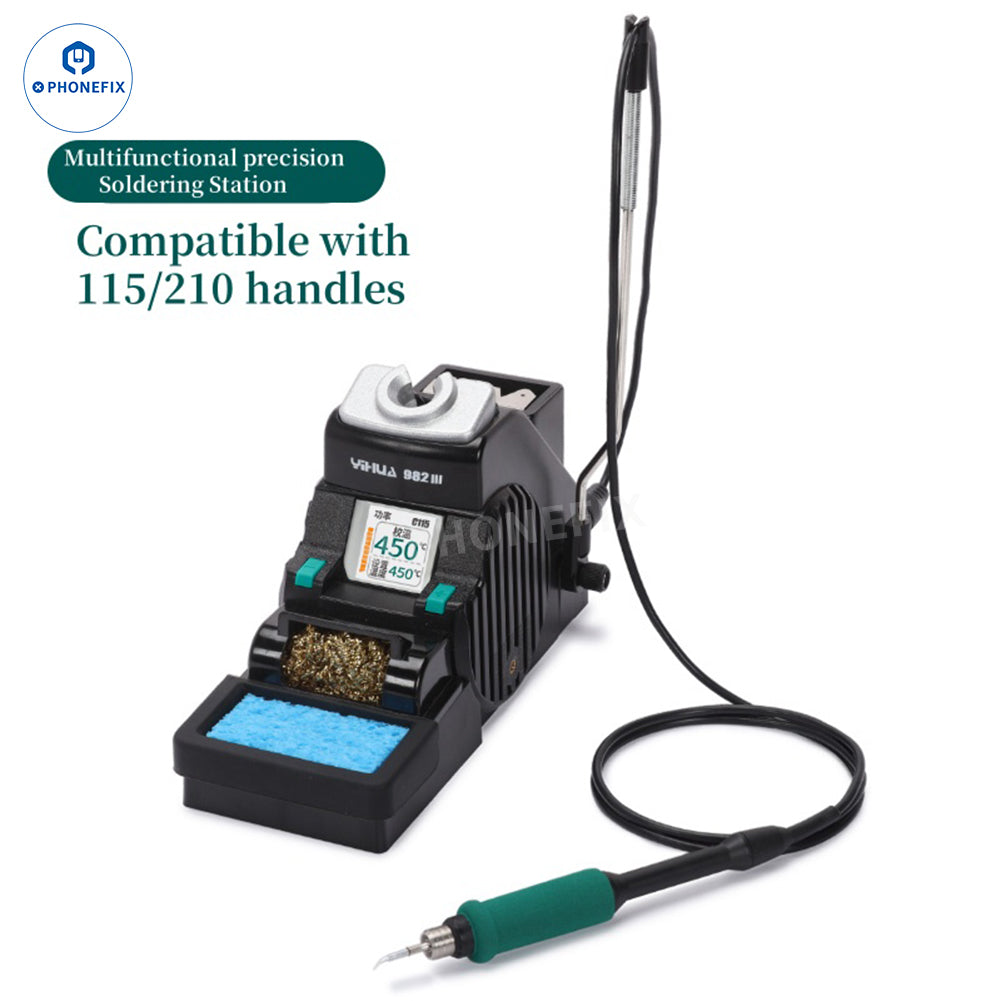

YIHUA 982-III portable precision soldering station with 2 help hands clamp, compatible with T115 T210 handle C210 C115 soldering iron tips for Phone PCB circuit board BGA chip micro-soldering and precision soldering.
Features:

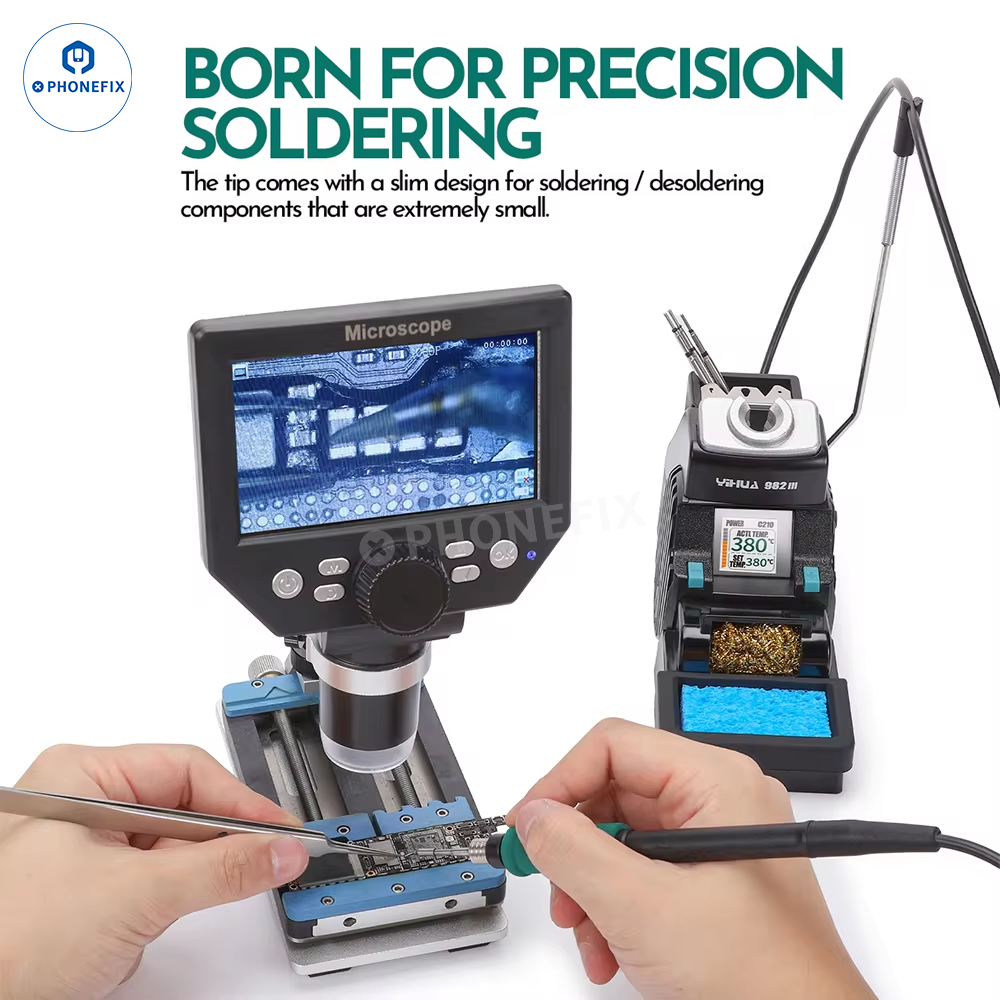

1. 1 second heating, 2 seconds tinning (limited to T210 handle), 3 seconds heating for T115 handle. Designed for soldering and desoldering of extremely small components.

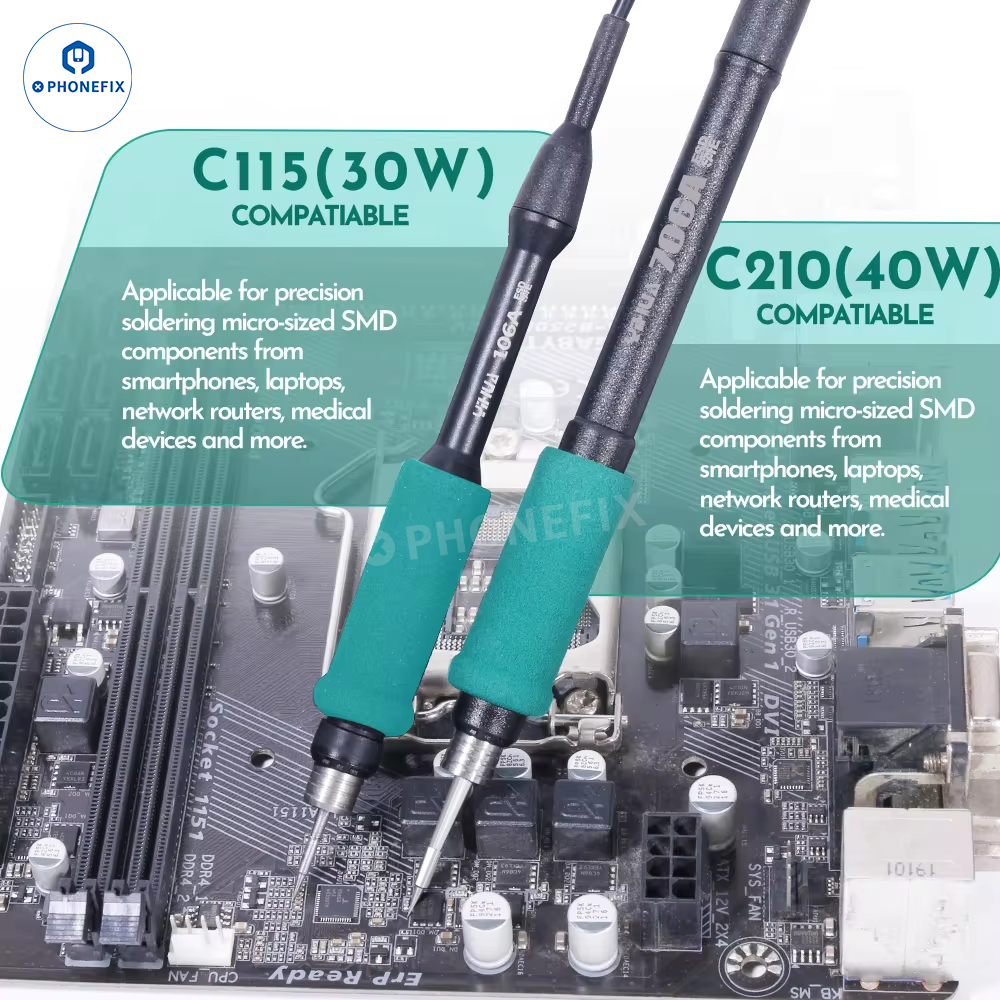

2. Compatible with T115/T210 handles, a variety of heating cores in different shapes (C210/C115 series soldering tips), suitable for different scenarios.
3. Dynamic color screen display, intuitive power bar. The output power is displayed in real time in the form of a bar, allowing users to easily monitor the status of the soldering iron.

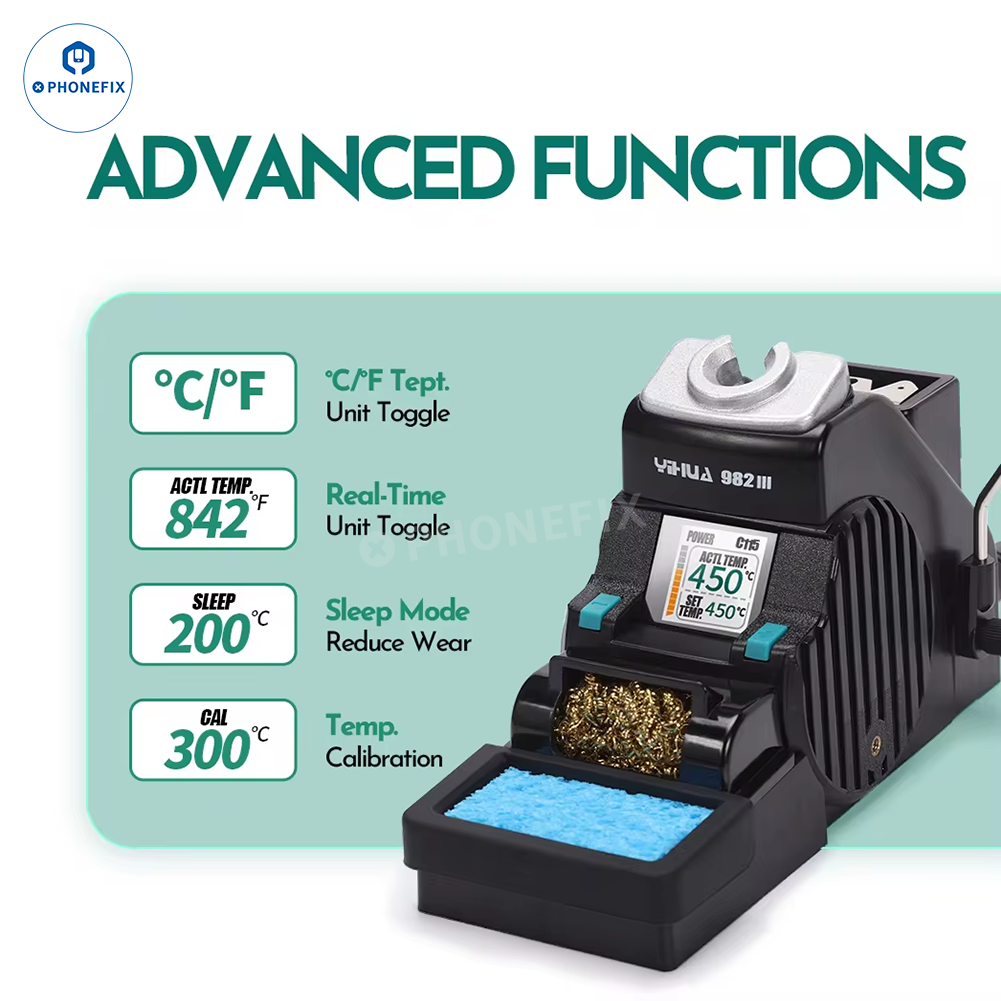

4. 3-level temperature correction, digital temperature correction function can effectively improve work efficiency.
5. Energy-saving and environmentally friendly low-consumption sleep mode. When the soldering iron handle is put back into the soldering iron stand, the soldering station will enter a low-energy sleep mode. Effectively extend the life of the soldering iron, more energy-saving and environmentally friendly.

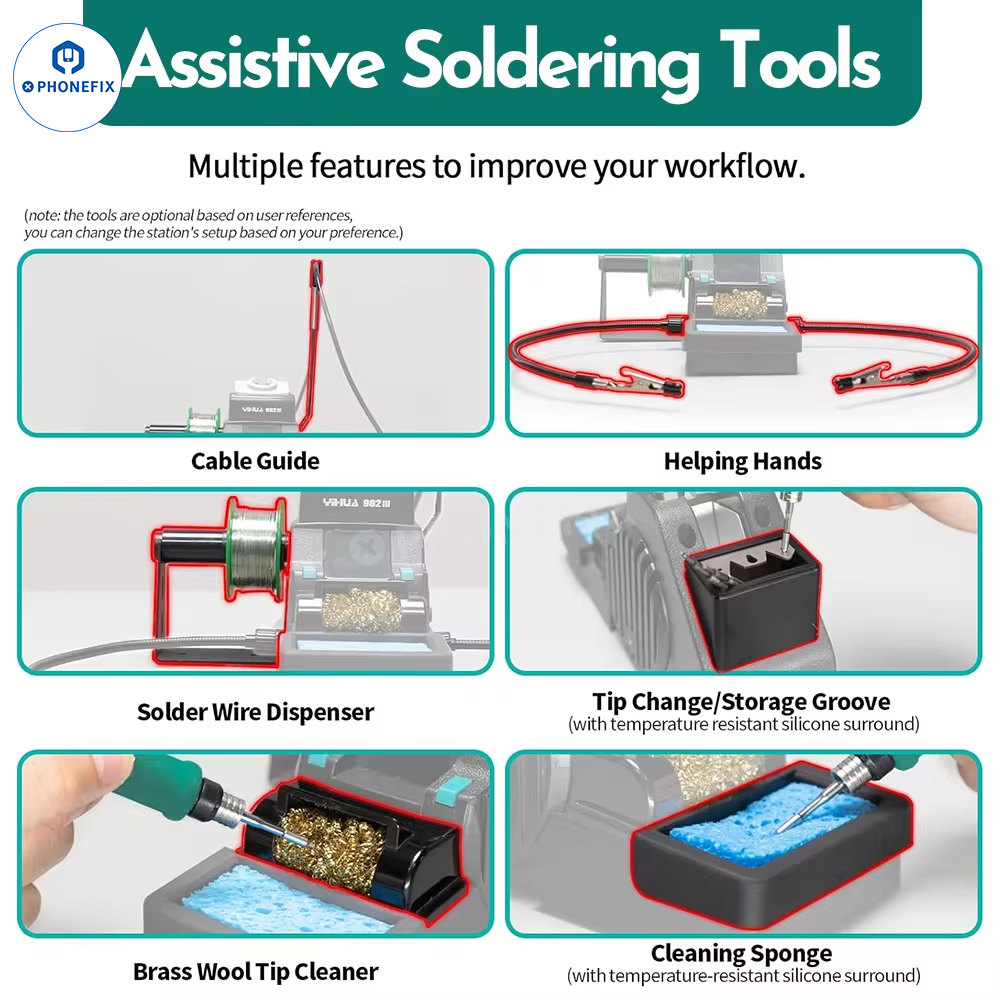

6. Soldering iron tip replacement and storage slot. The soldering station is equipped with a metal replacement slot, which can be easily replaced by simply pulling out and inserting.
7. Simple operation, easy switching, Chinese and English language switching. Press and hold the temperature plus button on the right + restart the power switch.
Please note:

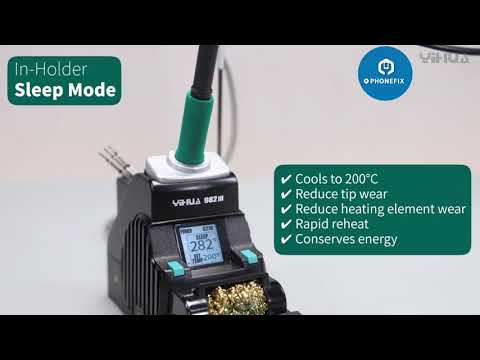

1. When the soldering iron is placed back into the holder,the soldering iron will enter sleep mode.
2. When the set temperature is 200℃/392℉ or higher, the temperature will cool to 200℃/392℉.
3. When the set temperature is below 200℃/392℉, the temperature will remain unchanged.
4. If the soldering enters sleep mode after 5 minutes, the soldering station will enter stand-by mode. Pick up the soldering iron to wake the station.
Option:

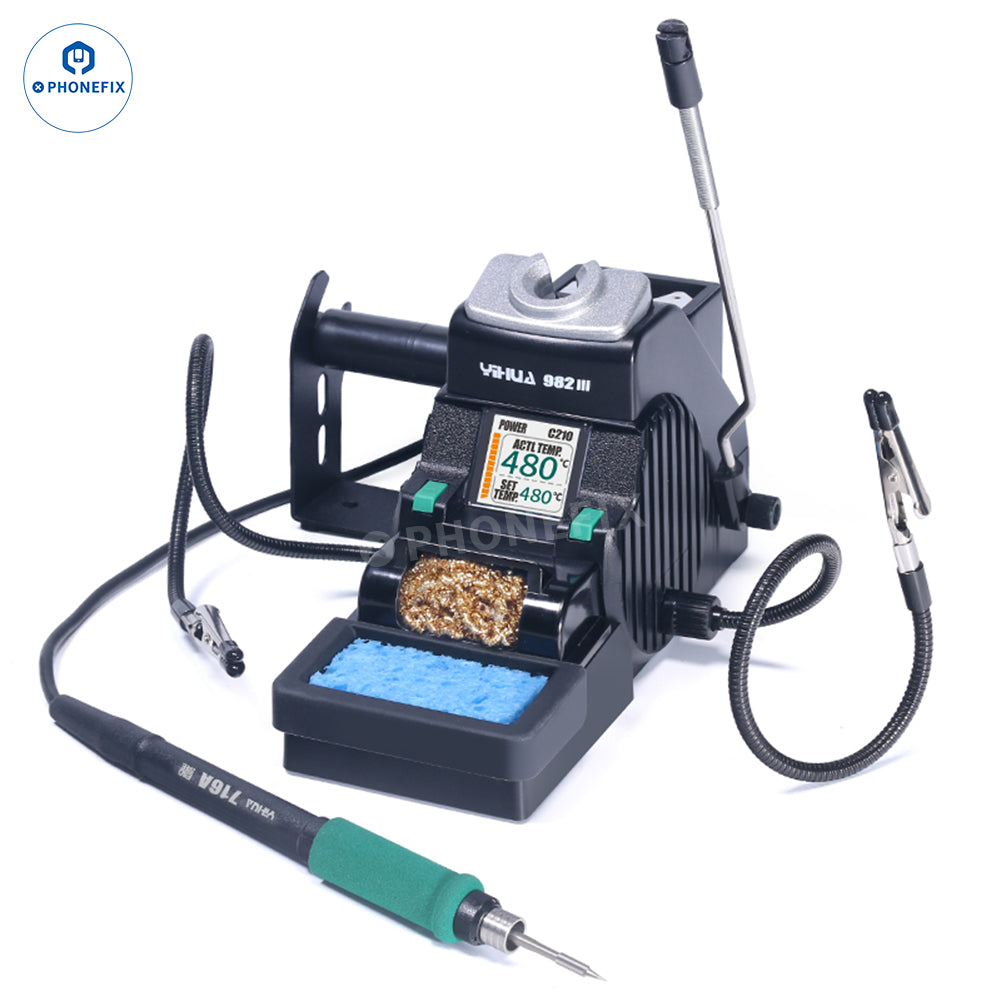

1. YIHUA 982-III T210 handle + 1x C210 iron tips.

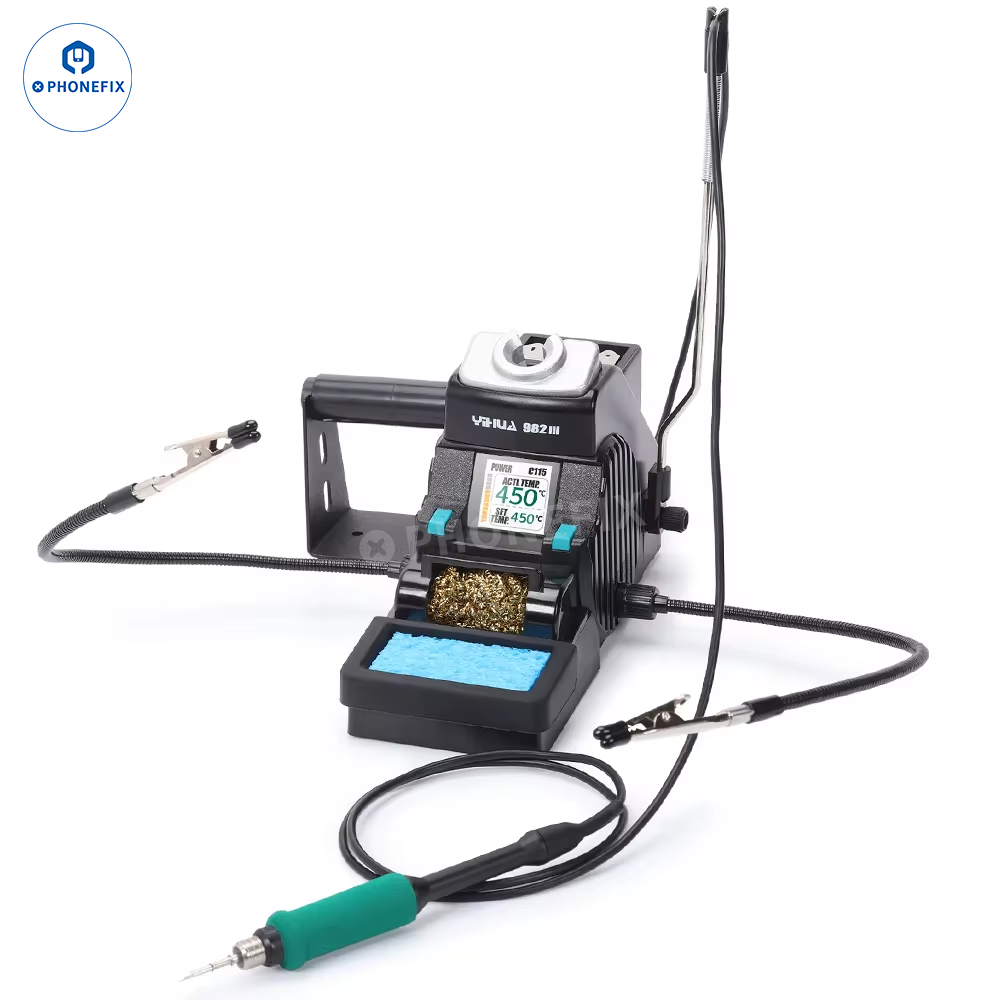

2. YIHUA 982-III T115 handle + 1x C115 iron tips.

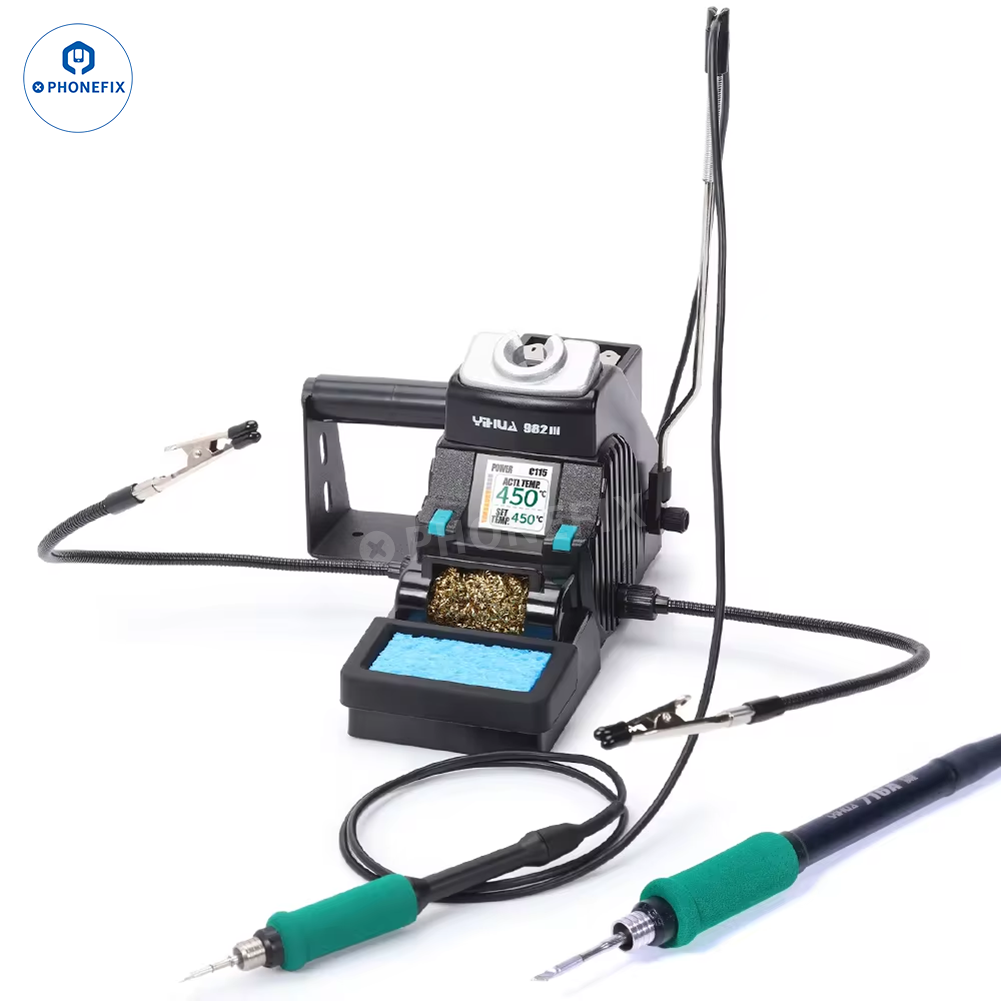

3. YIHUA 982-III T210+T115 handle + 1x C210+1x C115 iron tips.

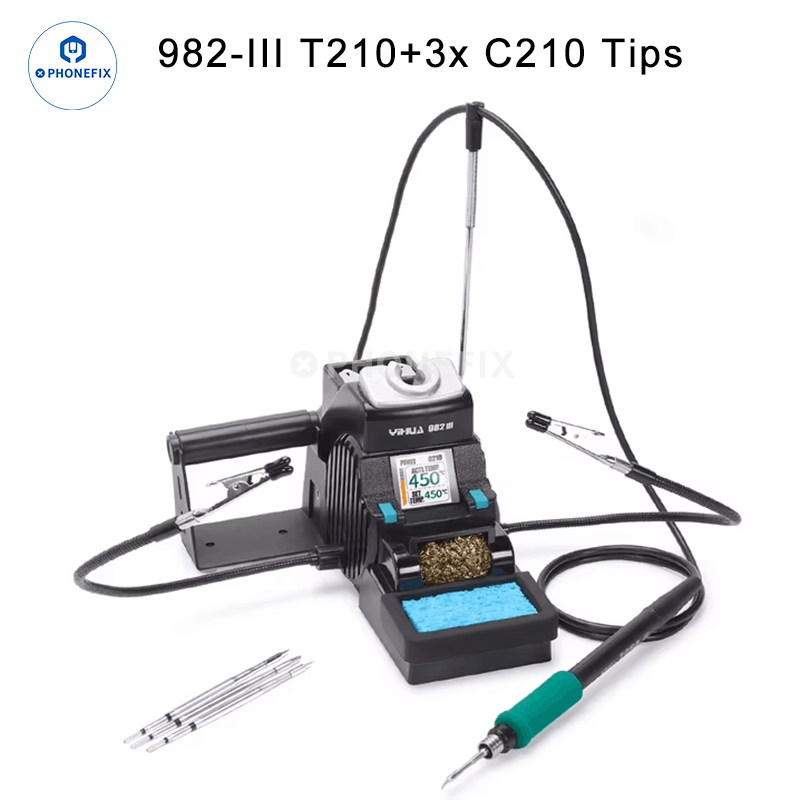

4. YIHUA 982-III T210 handle + 3x C210 iron tips.

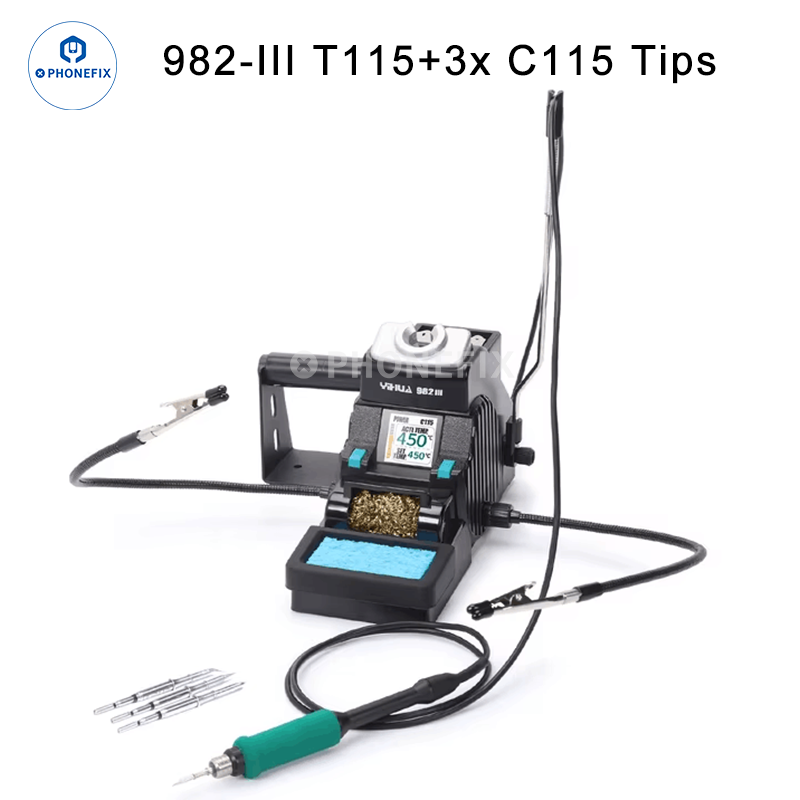

5. YIHUA 982-III T115 handle + 3x C115 iron tips.

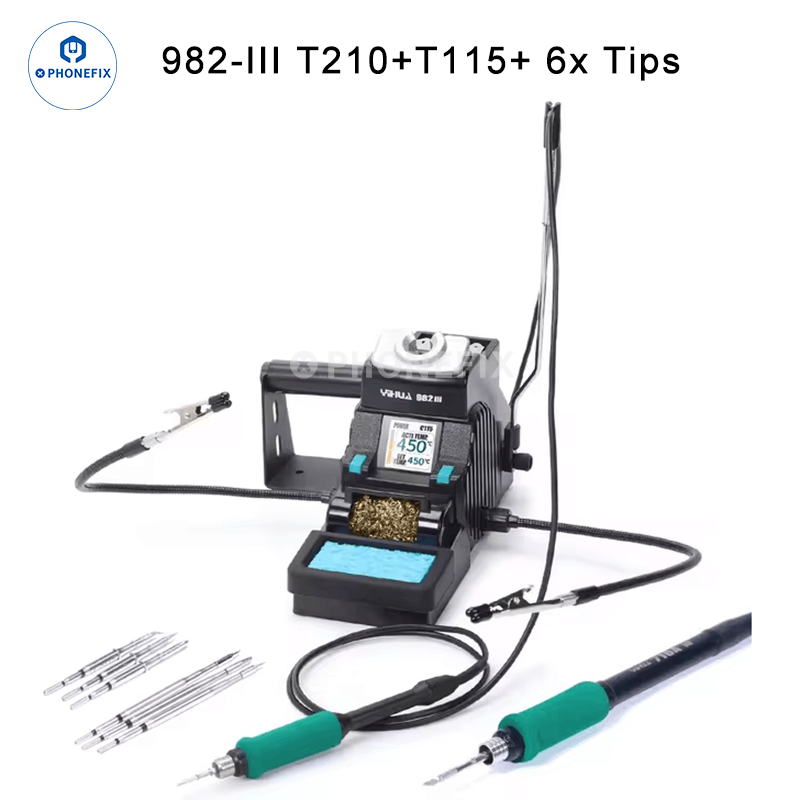

6. YIHUA 982-III T210+T115 handle + 3x C210+3x C115 iron tips.

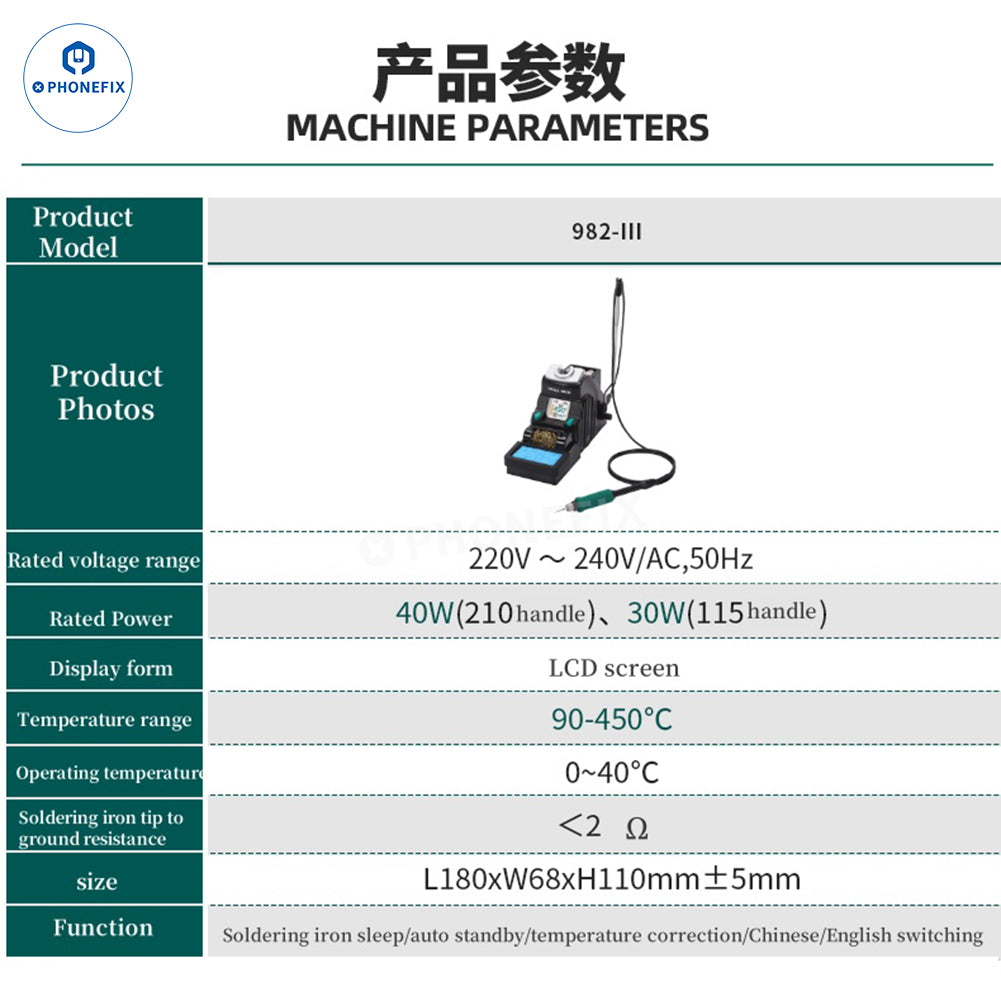

Product Paraments:
Product Model: YIHUA 982 III.
Rated voltage range: 220V~240V/AC,50Hz
Rated Power: 40W(T210 handle), 30W(T115 handle).
Display form: LCD screen.
Temperature range: 90-450℃.
Operating temperature: 0~40℃.
Soldering iron tip to ground resistance :<2Ω.

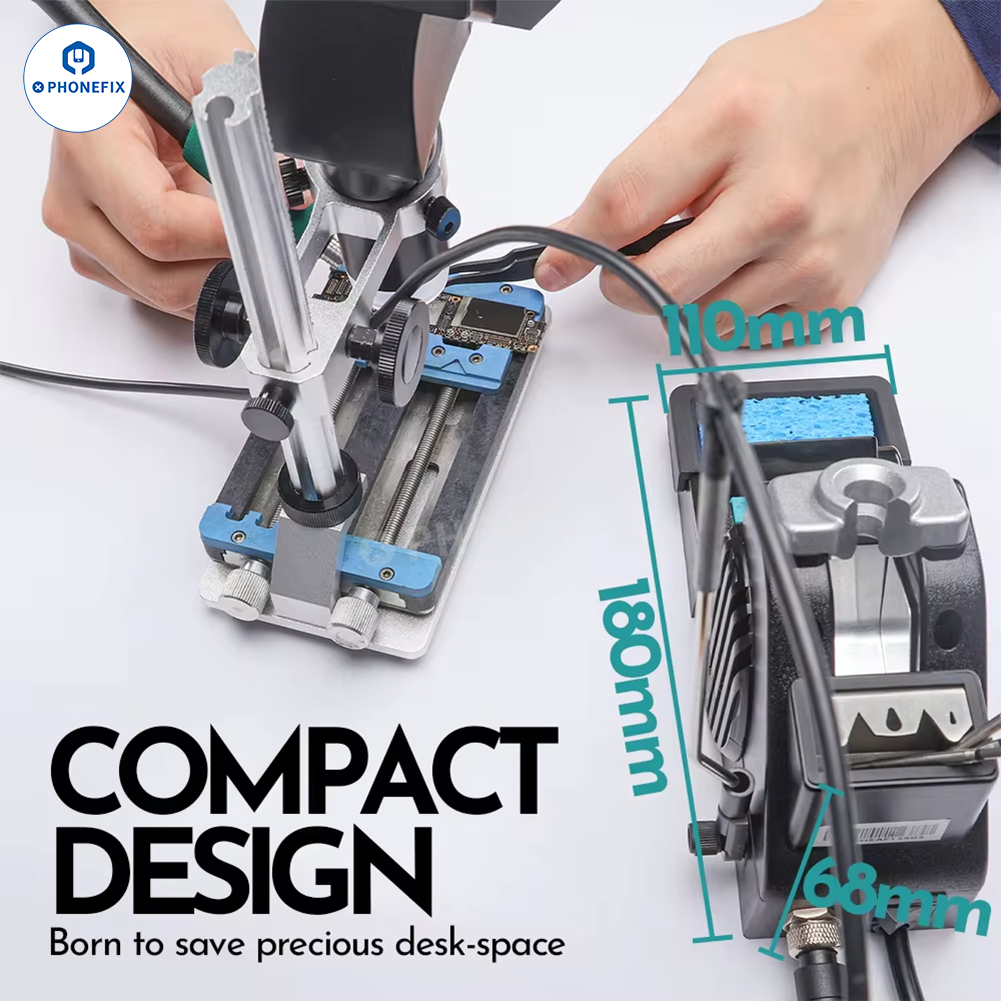

Size: L180xW68xH110mm±5mm.
Function: Soldering iron sleep/auto standby/temperature correction/Chinese/English switching.
