Qianli LT2 30V 5A Individual Power Supply DC Diagnosis Meter with YCS Curve Ammeter for Mobile Phone/Electronics Repair. Read the current curve in real time, mechanical pointer meter, automatic/manual 3-speed current range adjustment, 4 current ranges, 3 expansion card slots correspond to USB ports.

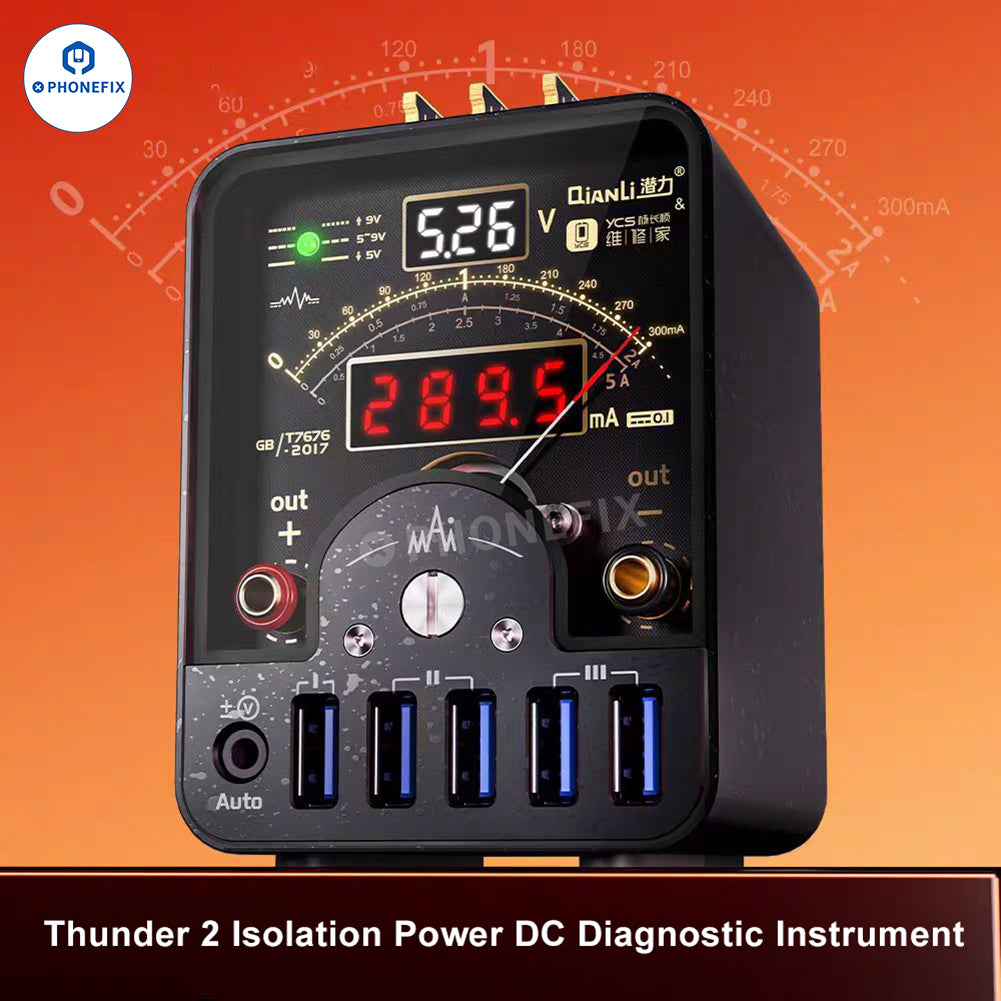

Qianli LT2 Thunder 2 Isolation Power DC Diagnostic Features:

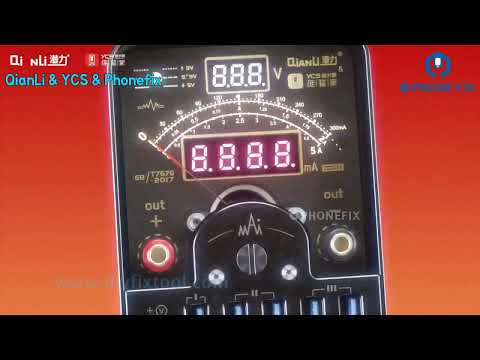

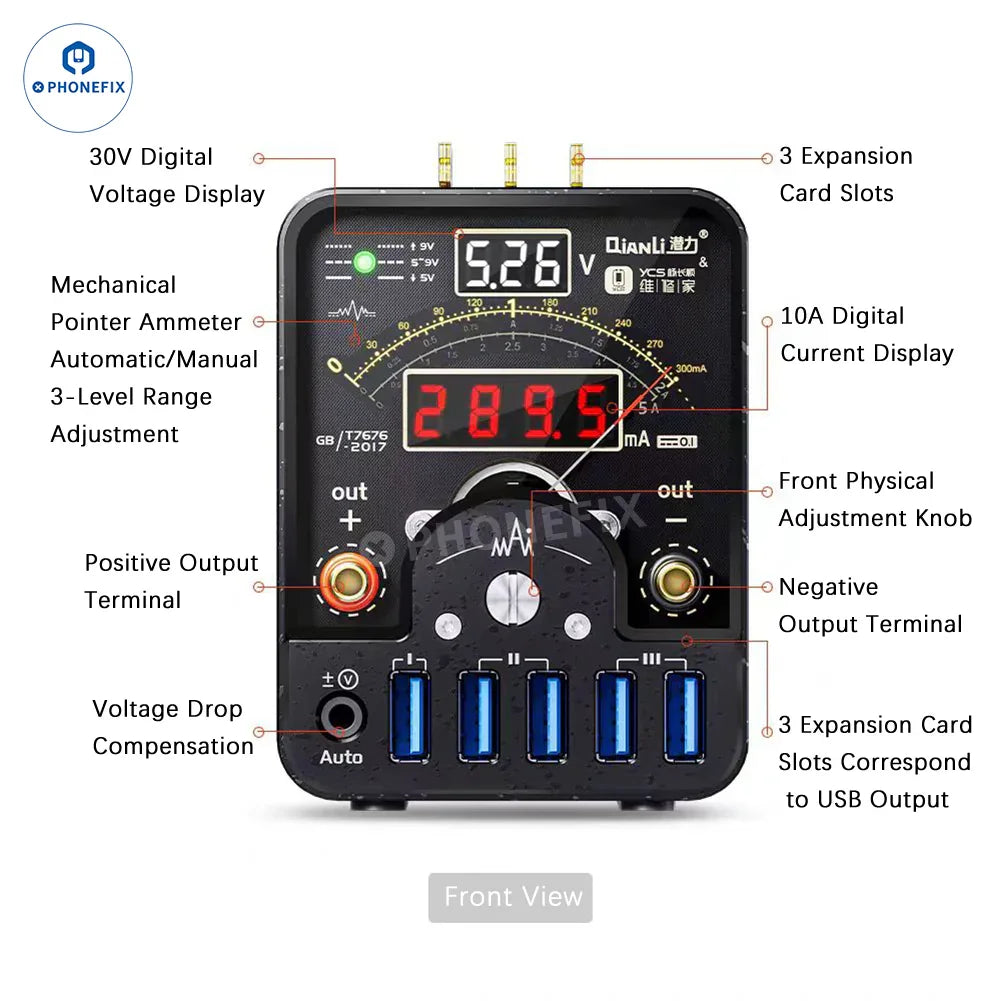

Dual Display: Real-time monitoring with a 0-30V/0-10A digital display and a 300mA/2A/5A mechanical pointer display.

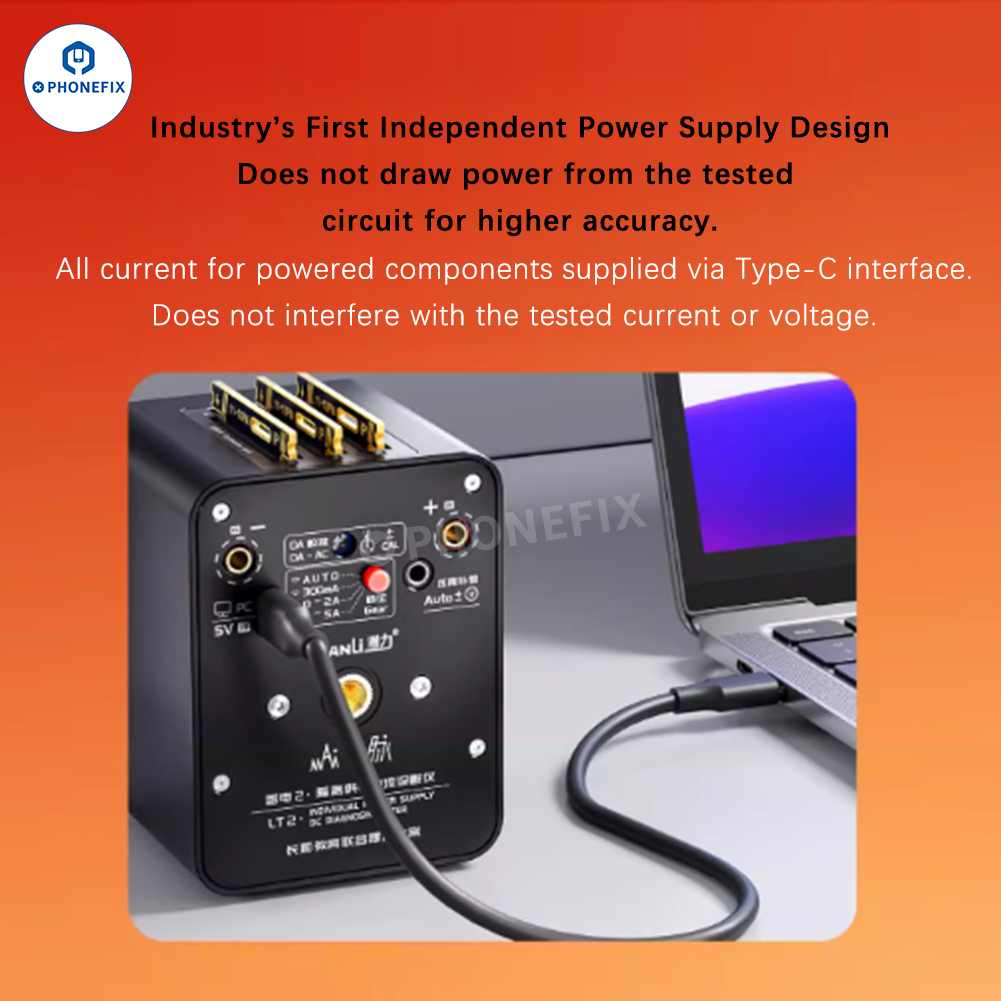

Independent Power Supply: Powered via Type-C, ensuring accuracy without drawing from the tested circuit.

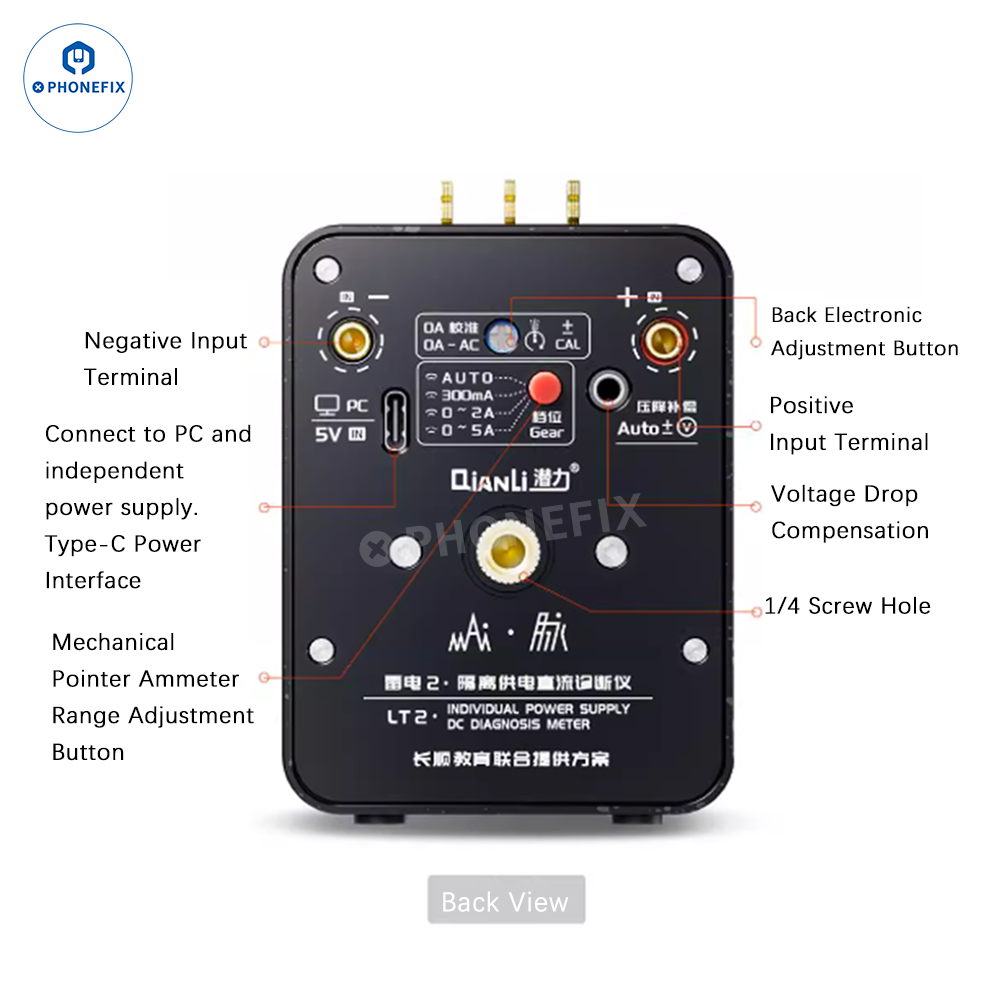

Adjustable Range: Manual or automatic range adjustment (300mA/2A/5A) for different diagnostic scenarios.
Voltage Drop Compensation: Pre-reserved 3.5mm interface to stabilize measurements.

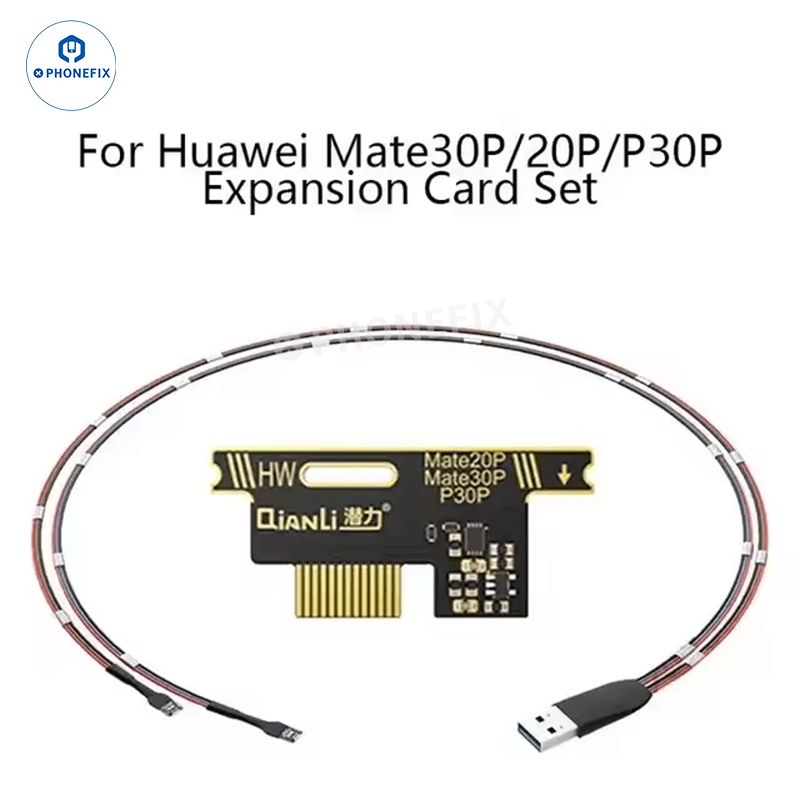

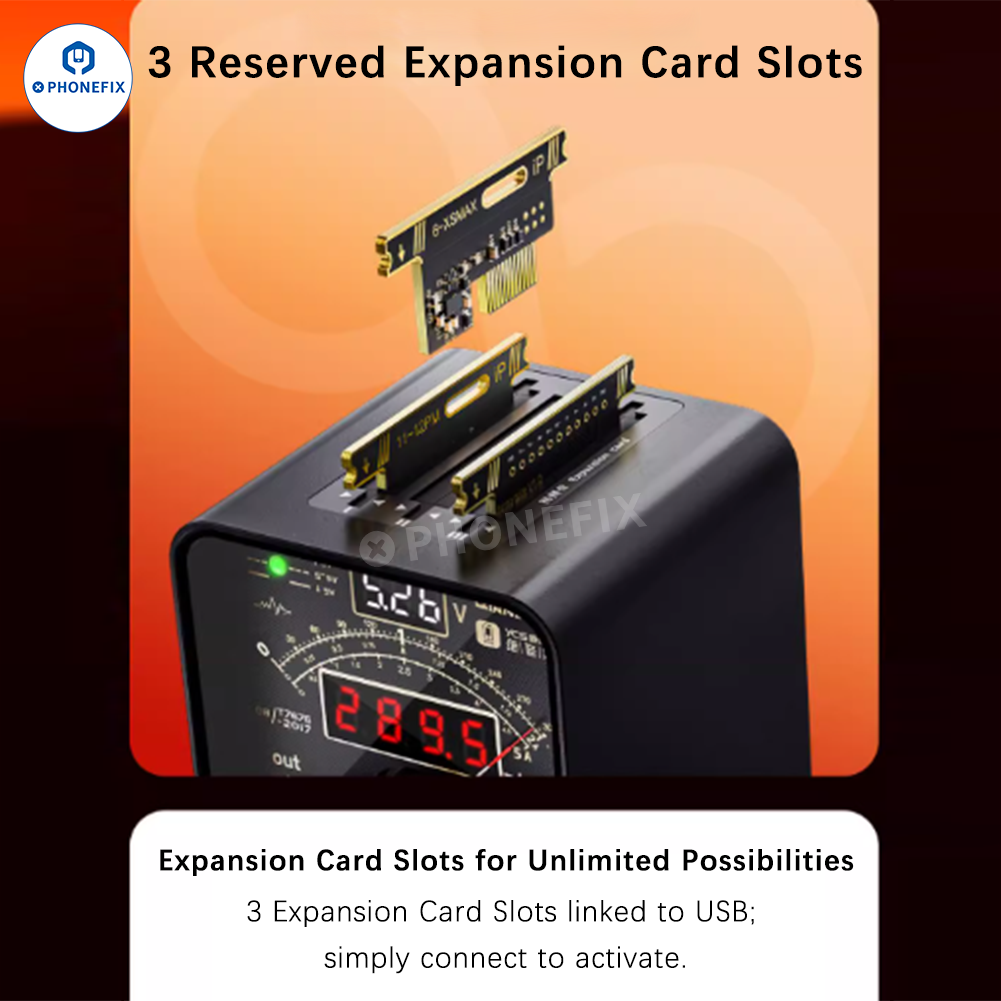

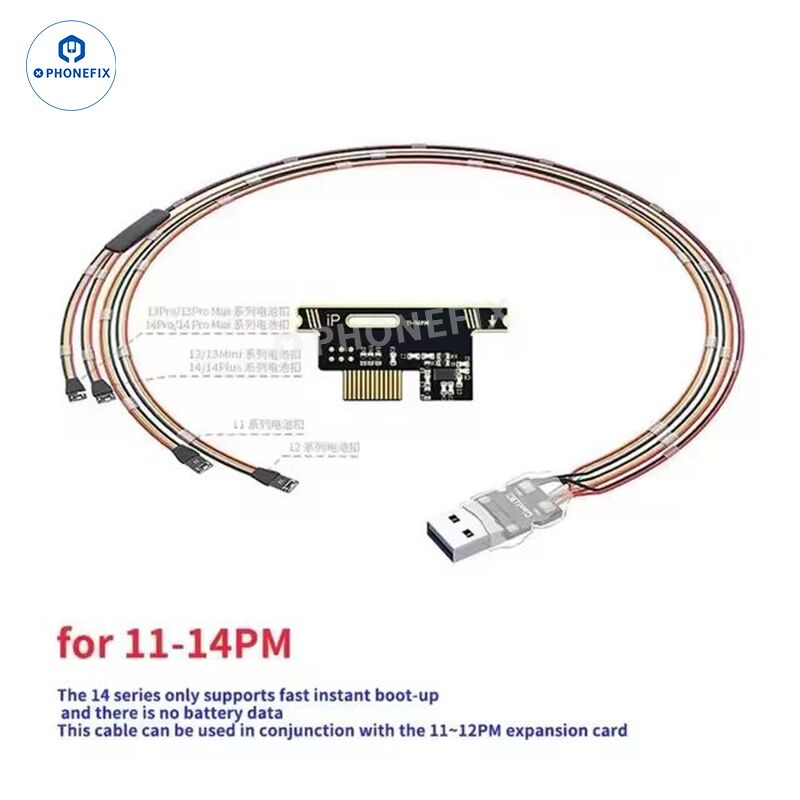

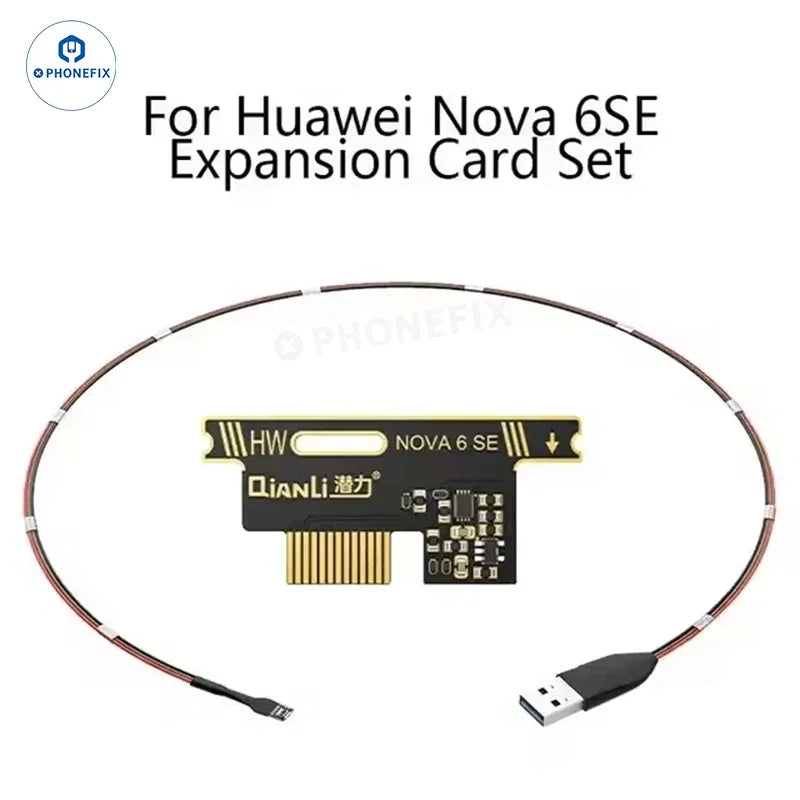

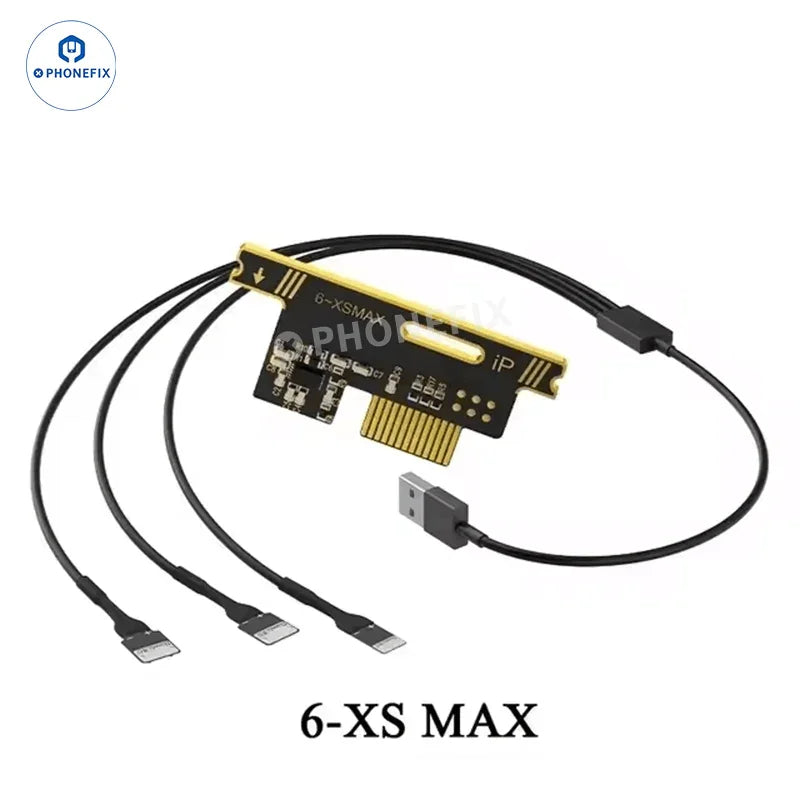

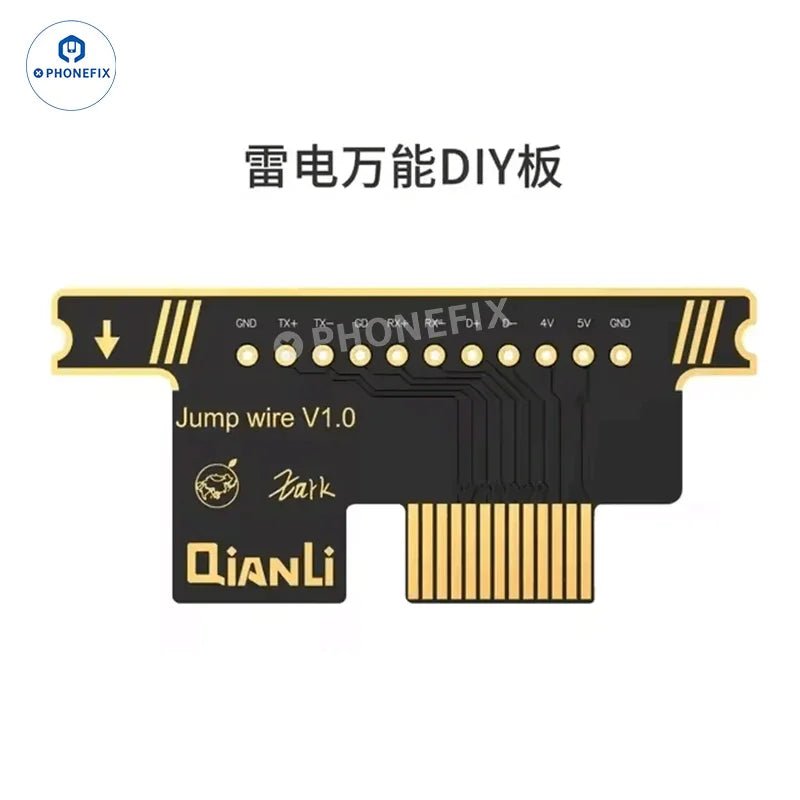

Expansion Card Slots: Three slots for additional functionality; activate automatically upon connection.

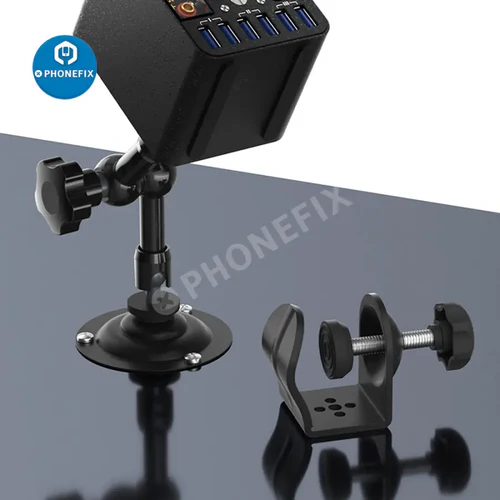

Compact Design: Minimal footprint with options for desk mounting, wall mounting, or stand installation using a 1/4-inch screw hole.

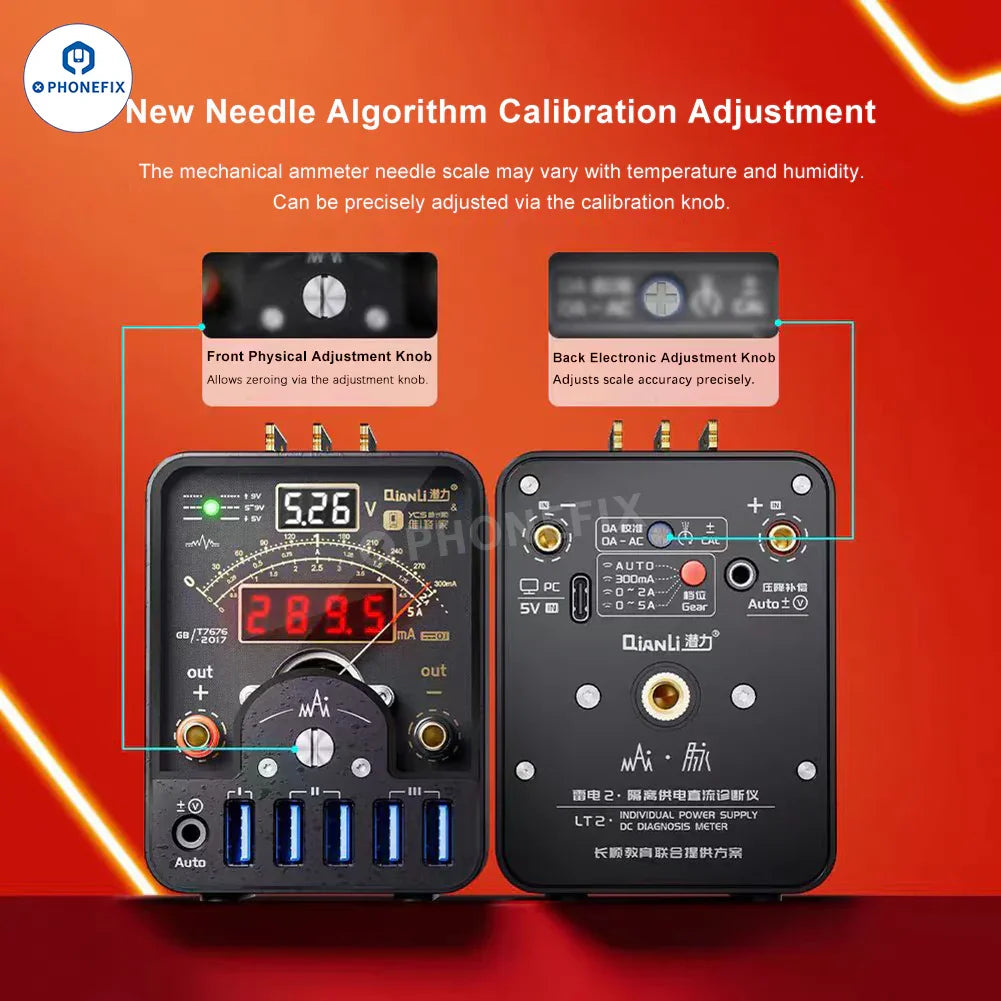

Enhanced Accuracy: Upgraded permanent magnet for the analog meter ensures stability against impact and temperature changes.

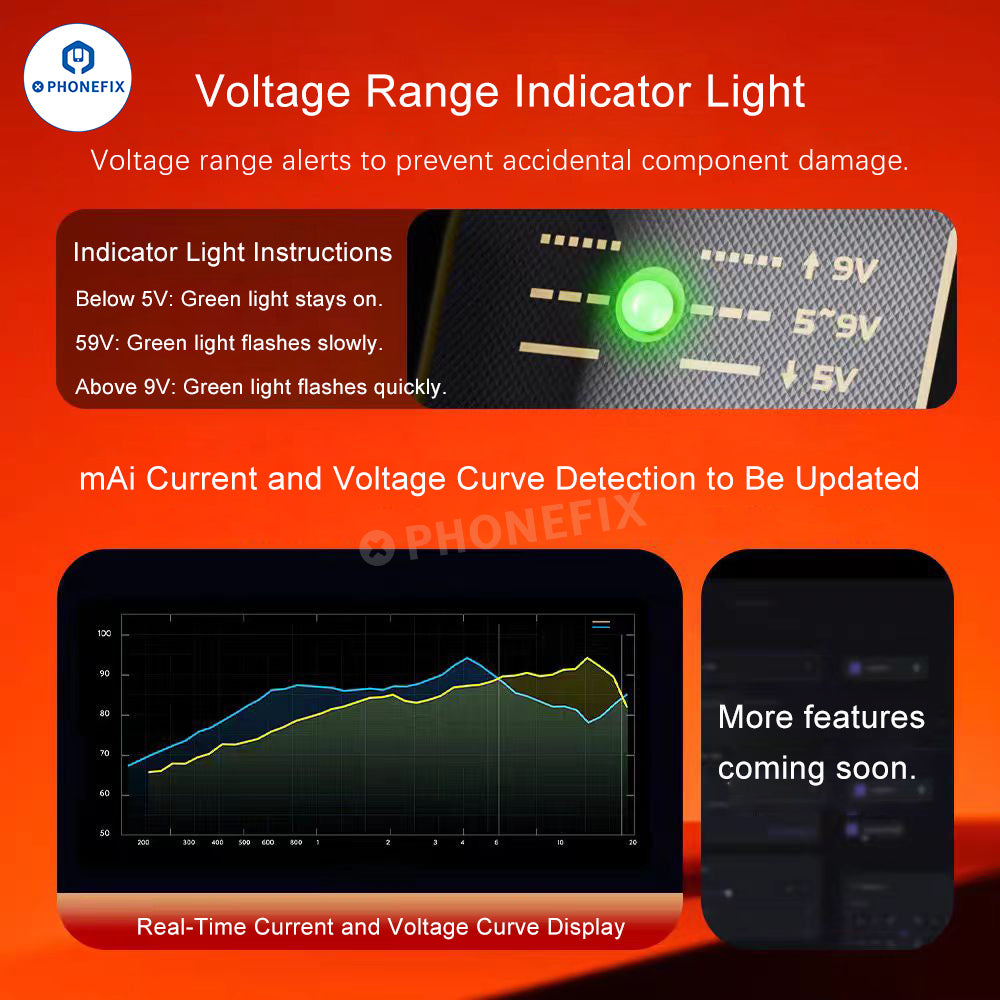

Voltage Indicator Lights: Visual alerts for different voltage ranges:
Below 5V: Green light steady.
5-9V: Green light flashing.
Above 9V: Green light fast flashing.
Certified Safety: CE and FCC certified, tested for global export standards.
Durable Build: Magnetic core ensures lasting performance, even during transport.

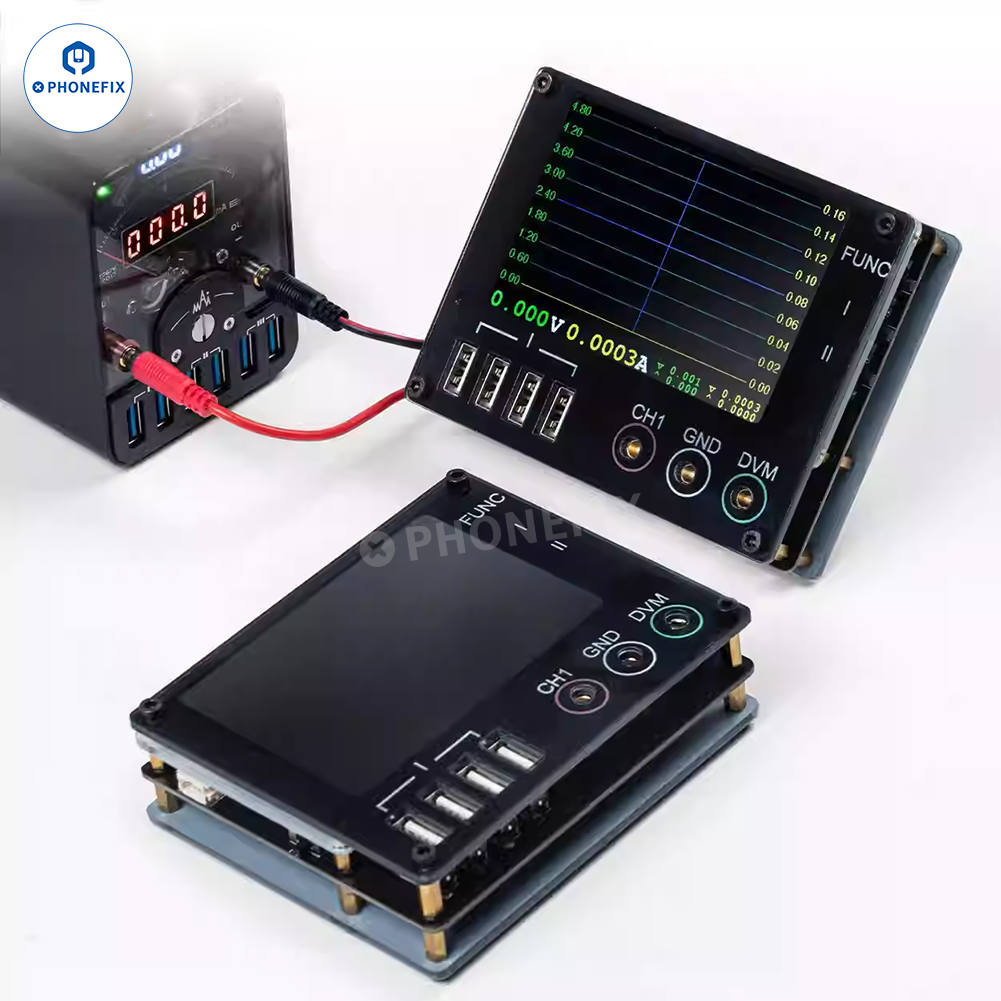

YCS Diagnostic Ammeter Features:
Dual Connection Modes: Flexible options to connect with Thunder Diagnostic Instrument:

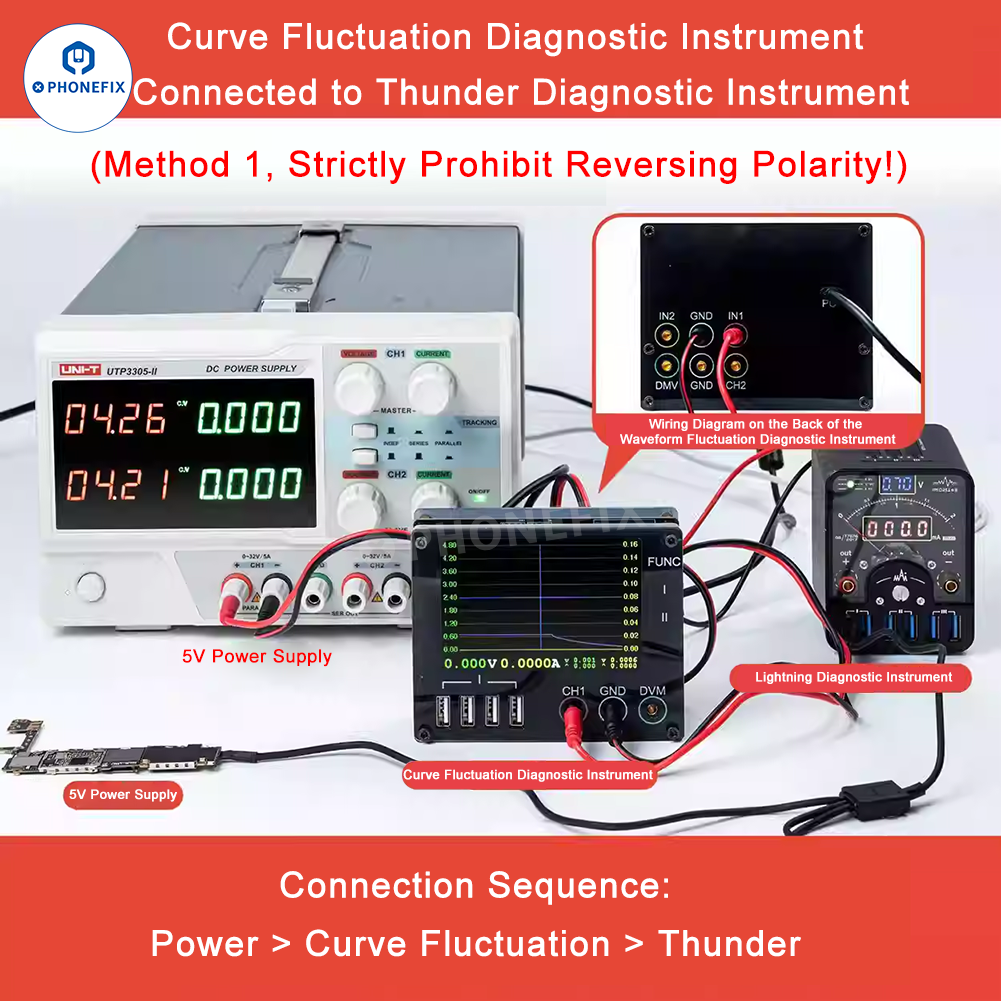

Mode 1: Power > Thunder > Curve Fluctuation

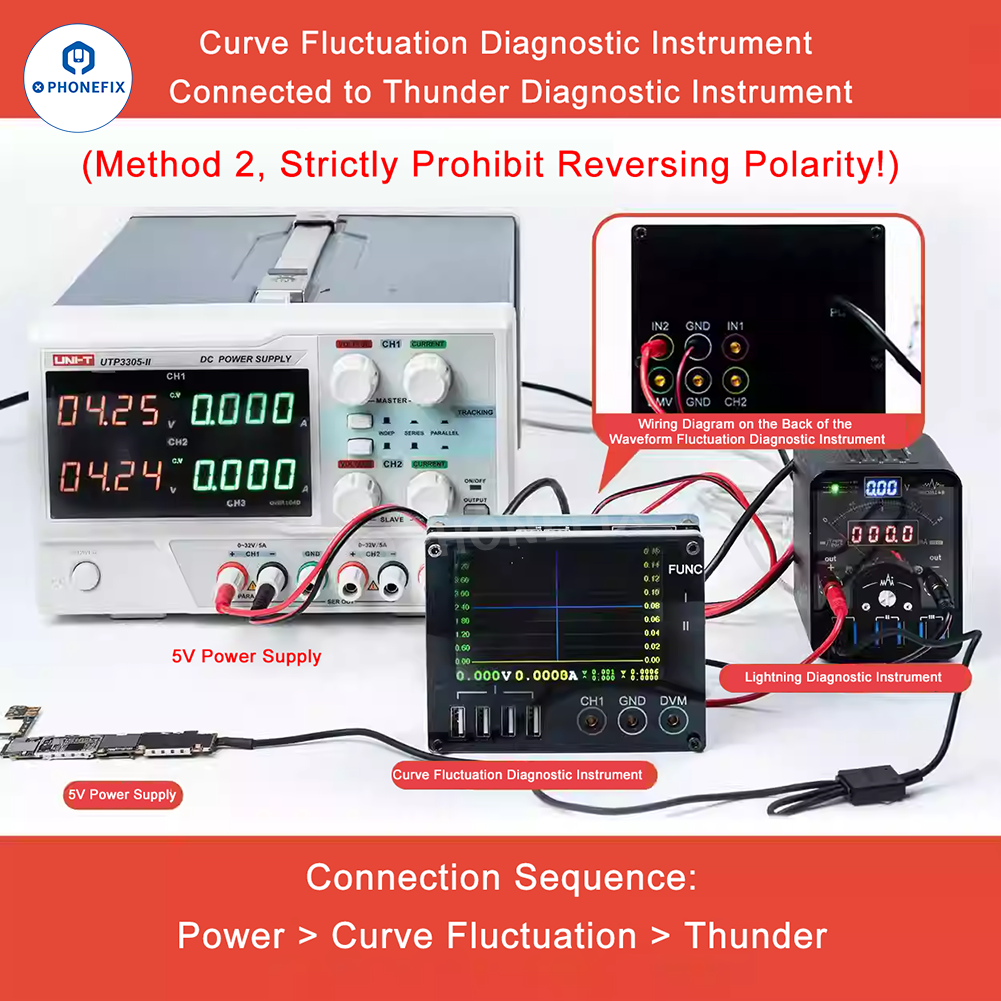

Mode 2: Power > Curve Fluctuation > Thunder
(Note: Strictly follow polarity guidelines to prevent damage).

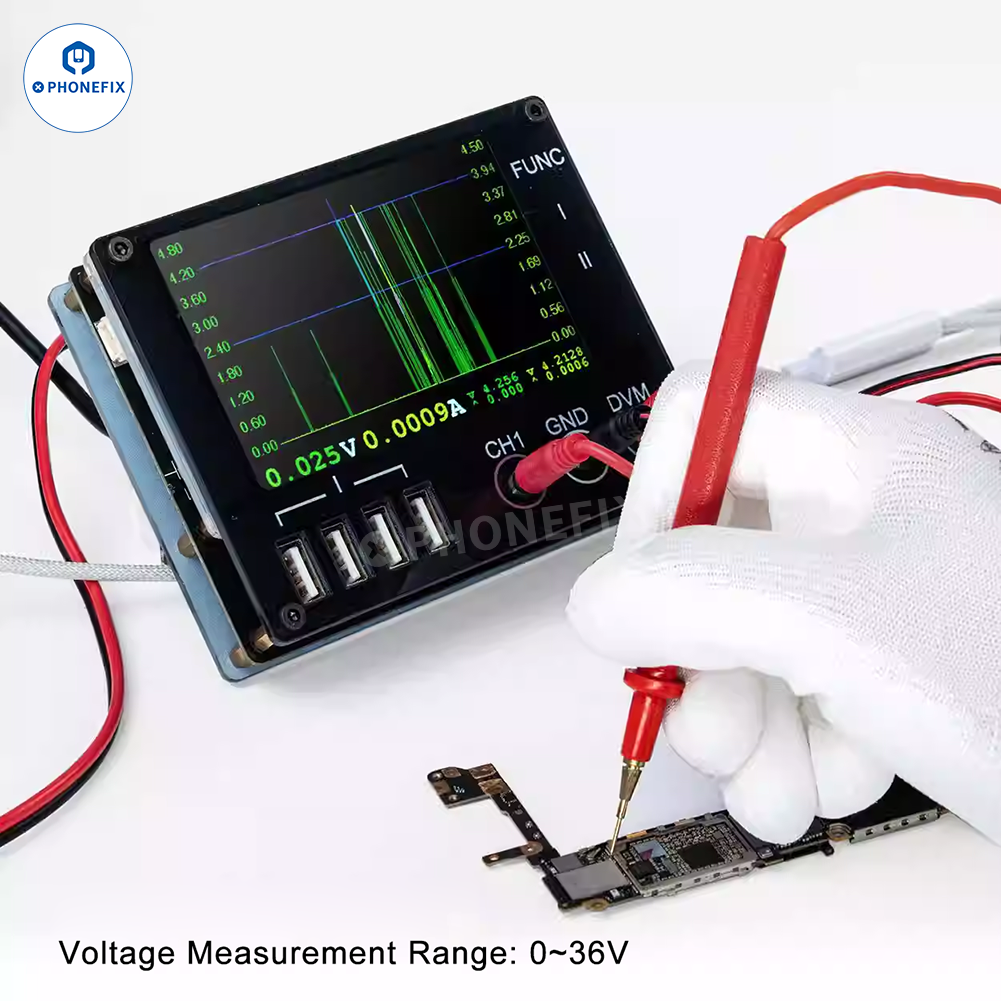

Voltage Measurement Range: Supports testing from 0 to 36V for versatile applications.

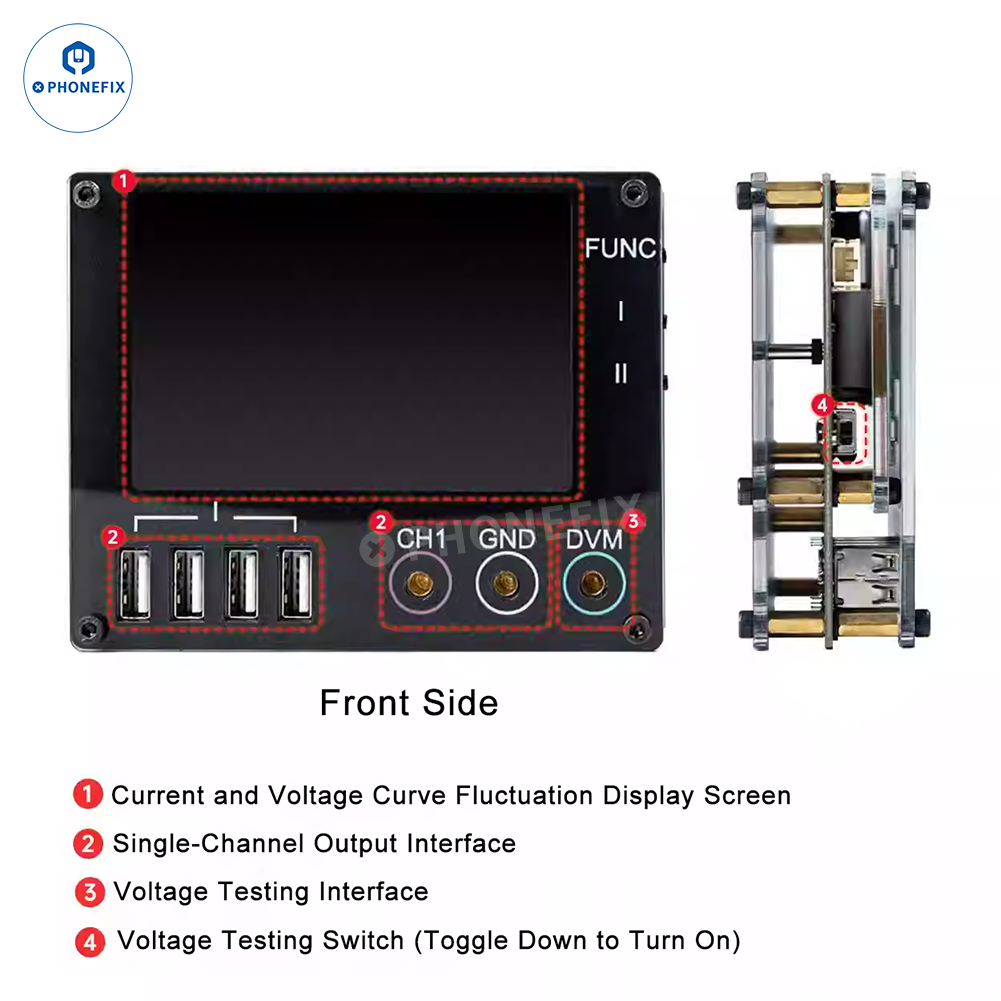

Clear Display: Front panel features a real-time current and voltage curve fluctuation screen.
Input/Output Interfaces:

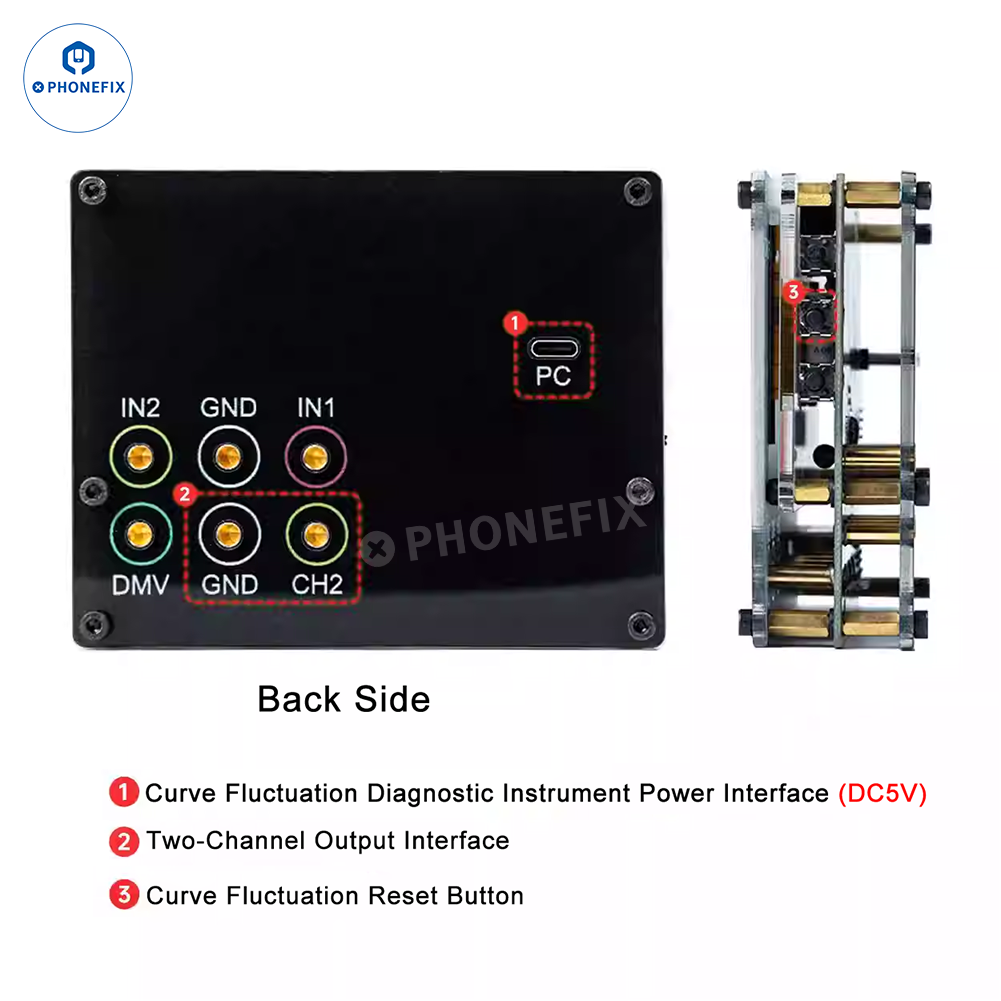

Back: Two-channel output, DC5V power input, and reset button.
Front: Single-channel output and voltage testing interface with toggle switch.
Easy Operation: Reset button and toggle switch for quick setup and control.
LT2 Packing List:
QianLi LT2 Main Unit x1
ual-Head Banana Cables x2
USB Type-C Power Cable x1
User Manual x1
Note: Cables shown are for demonstration purposes; final contents are subject to actual delivery.
