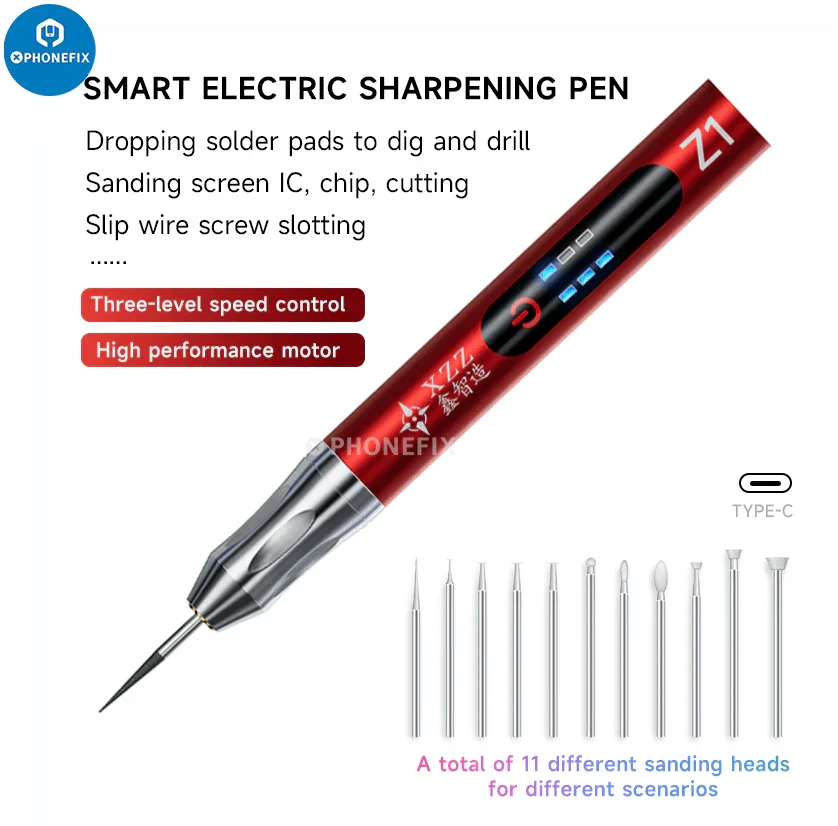

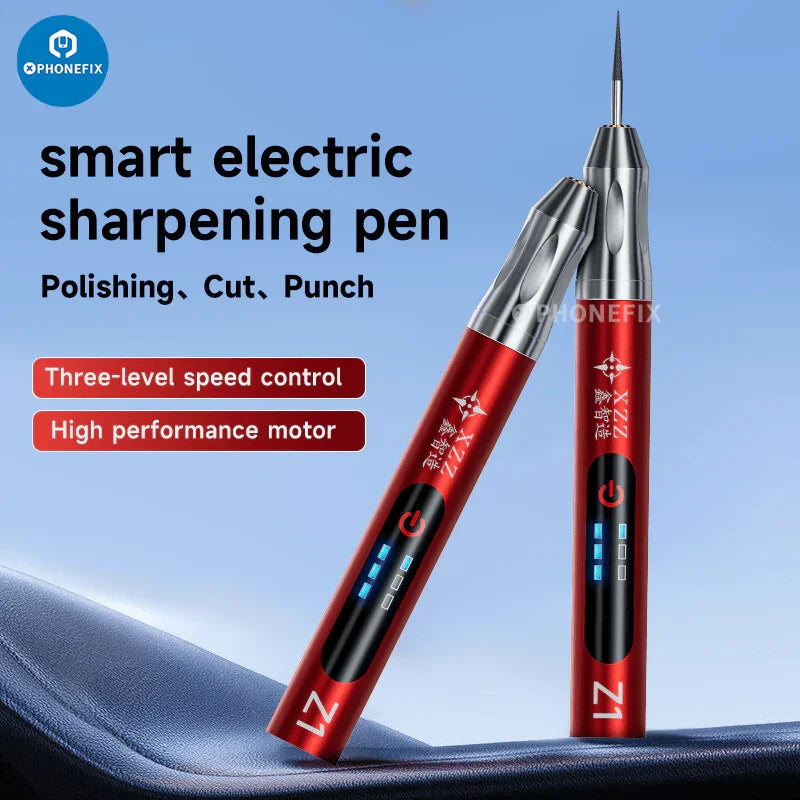

XZZ-Z1 Electric CPU Grinding Pen Phone IC Engraving Polishing Repair

XZZ-Z1 Smart Electric Sharpening/Engraving Polishing Pen for Phone LCD Screen Residue OCA Glue Adhesive Remover Cutter Shovel Clean Repair Tool.

Multi-Function XZZ-Z1 IC Chip Grinding Glue Smart Polishing Pen Electric Drill Grinding Rotary Tool for grinding, polishing, lettering, rust phosphating, cutting, carved, CPU recovering, ect.

Features:

1. RPM Gear Display: Battery status display, aluminum material, light weight, easy to operate, easy to cope with a variety of scenarios.
2. High Concentricity and Smooth Working: Concentricity vibration is low, which can make the sanding pen more durable, while the sanding effect is more stable and flatter.
3. Universal Type-C Lightning Fast Charging: The universal Type-C charging interface, the same as the Android smartphone charging port, shared charging cable, charging more convenient.
4. High Quality Collet: Precise engraving. The chuck holds firmly, with a tightly connected spindle and low amplitude, and can hold 2.5mm grinding heads for precise carving of fingertip art.
5. Powerful and Efficient: Equipped with a high-performance powerful motor, the speed of up to 20,000 r/min, with the grinding head, you can play as much as possible to improve efficiency and immerse yourself in the joy of making things.
6. Compact Size and Long-Lasting Battery Life: The diameter of the main body of the pen is only 15mm, the weight of the machine is only 60g, lightweight and flexible, the front cut surface design to fit the finger shape, comfortable grip, built-in rechargeable battery, full power, long life.

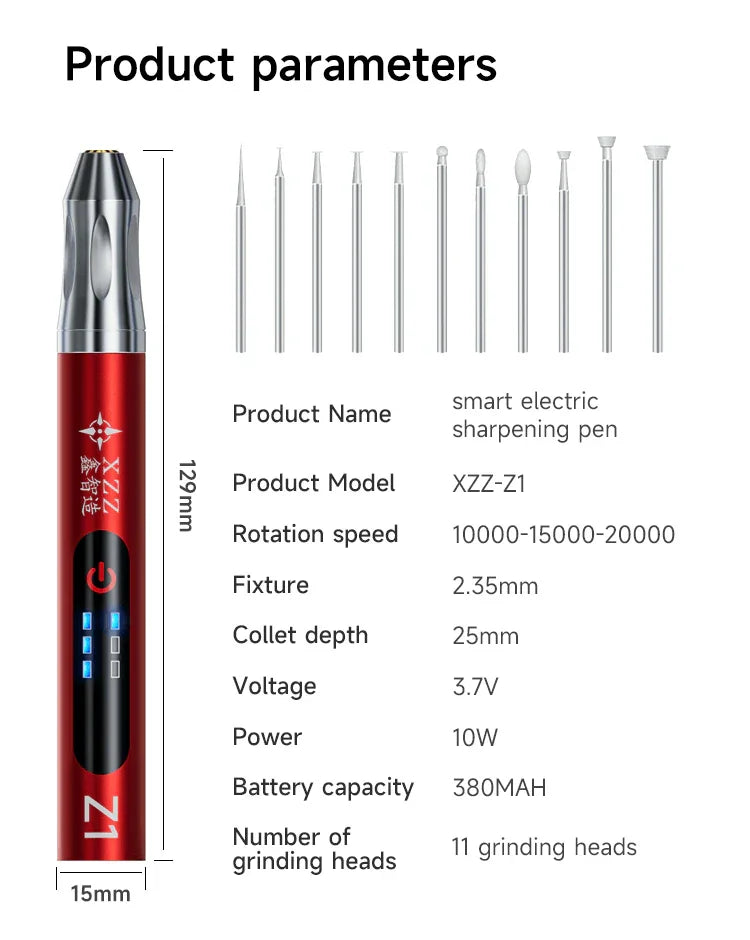

Specification:

• Product Name: Smart electric sharpening pen
• Product Model: XZZ-Z1
• Rotation speed: 10000-15000-20000
• Fixture: 2.35mm
• Collet depth: 25mm
• Voltage: 3.7V
• Power: 10W
• Battery capacity: 380mAh
• Number of grinding heads: 11 grinding heads

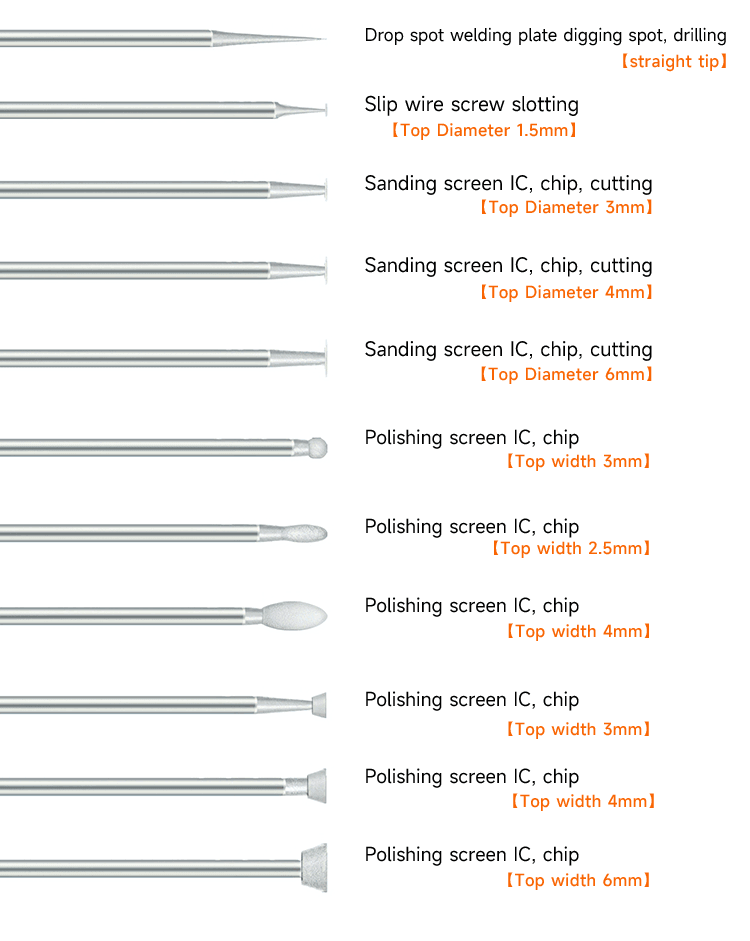

11 Grinding Heads: (Equipped with different sanding heads for different scenes, which can be replaced at any time)

1. Straight Tip: Drop Spot Welding Plate Digging Spot, Drilling
2. Top Diameter 1.5mm: Slip Wire Screw Slotting
3. Top Diameter 3mm: Sanding Screen IC, Chip, Cutting
4. Top Diameter 4mm: Sanding Screen IC, Chip, Cutting
5. Top Diameter 6mm: Sanding Screen IC, Chip, Cutting
6. Top Width 3mm: Polishing Screen IC, Chip
7. Top Width 2.5mm: Polishing Screen IC, Chip
8. Top Width 4mm: Polishing Screen IC, Chip
9. Top Width 3mm: Polishing Screen IC, Chip
10. Top Width 4mm: Polishing Screen IC, Chip
11. Top Width 6mm: Polishing Screen IC, Chip

Note: Generally, built-in batteries will be removed due to customs issues, or will be sent by special mail.

For Safe Use:

1. When you finish using the unit, switch off the motor and ensure that all moving parts have come to a complete standstill.
2. In case of electrical or mechanical malfunction, immediately switch off the tool.
3. Store tools in locations where temperature will not exceed 50 degrees Celsius.
