XZZ FX-210 / SUGON T26D Soldering Station With JBC C210 Soldering Iron Tip Lead-free BGA Rework Station. XZZ FX-210 Precision Soldering Station Lead-free 2S Rapid Welding Tool For Mobile Phone Tablets Electronic Logic Board BGA CPU SMD Chip soldering desoldering repair. XZZ FX-210 Lead-free Soldering station - 2S to 350℃.

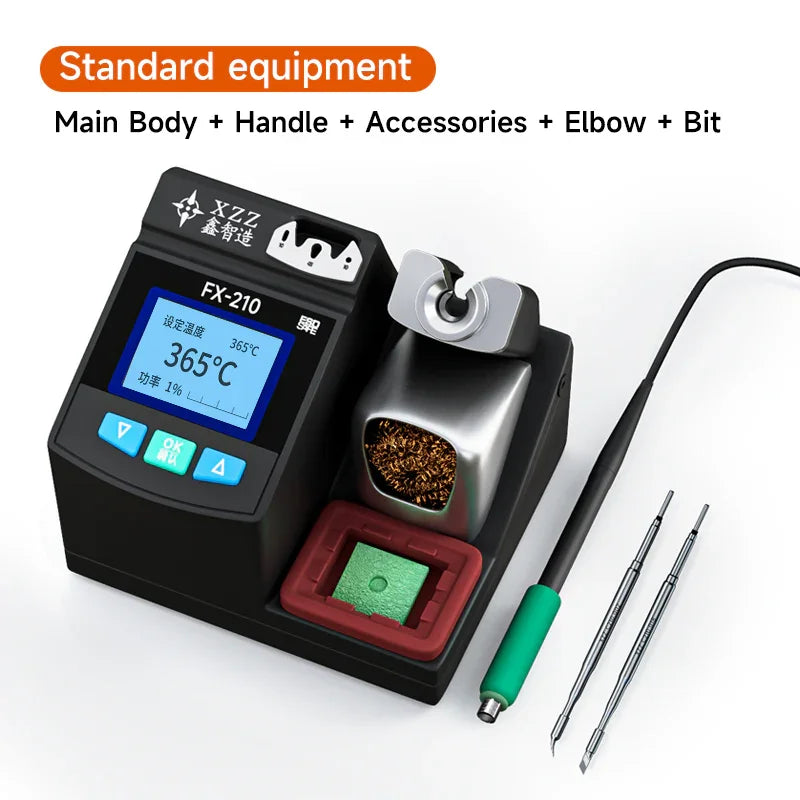

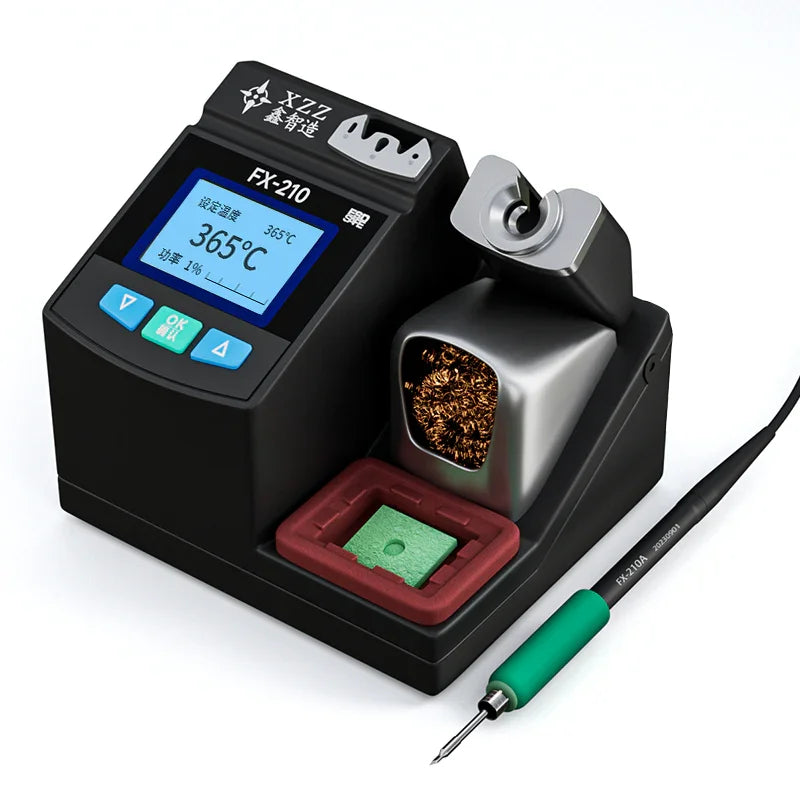

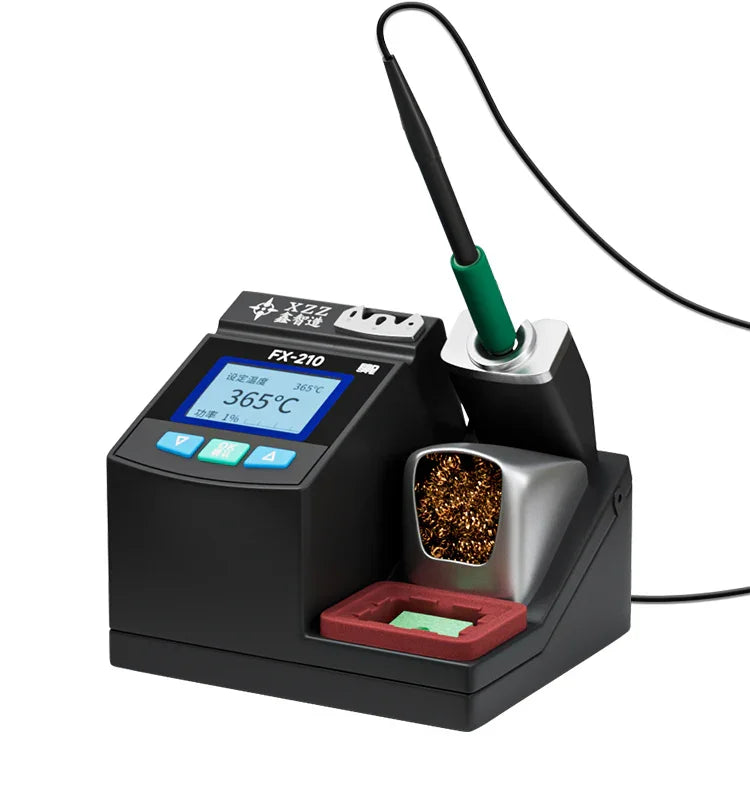

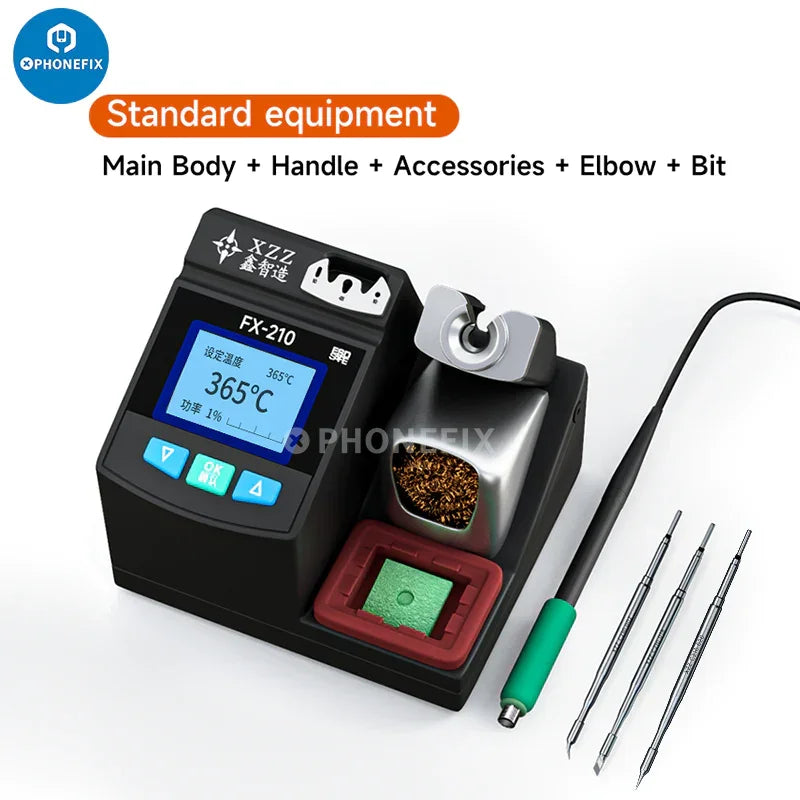

XZZ FX-210 Specification: Product Name: XZZ FX-210 lead-free soldering station (with 2 iron tips). Power: 30W Fuse: 2A Voltage: AC 110V/220V Output Voltage: 12+12V Dual Power Supply Maximum ambient temperature: 40℃ Temperature range: 50℃~520℃ Temperature stability:±2℃ (Under Still Air)
XZZ FX-210 Features: XZZ FX-210 soldering station, pure copper transformer, fast temperature return. 2 seconds to 350°C/Dual circuit powered heating system/Rapid rewarming. Millisecond temperature compensation/Quick change soldering iron tip/Intelligent Sensor Hibernation. Pure copper transformer, sufficient power, stable temperature, anti-magnetic interference. The use of a dual-channel power supply heating system, so that the thermal efficiency of the welding station, temperature response speed, and heat performance have increased dramatically. Adopts 210 soldering iron tip, efficient and stable, low heat storage, and high rewarming speeds dramatically increase weld speeds and weld quality. The handle will automatically enter the standby sleep state when it is put into the bracket of the welding table, which really achieves low consumption.

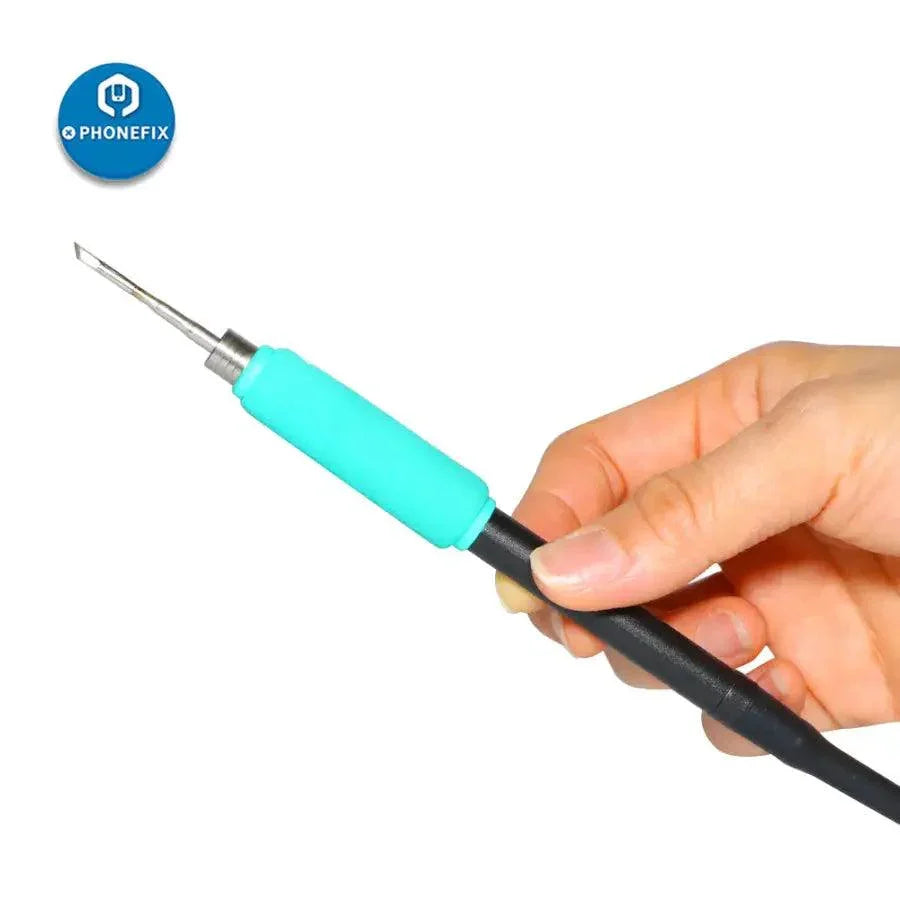

Features: 1. Precision integrated welding platform, suitable for JBC T210 soldering handle and JBC C210 series soldering iron tips. 2. 2S rapid welding, it can be turned on for two seconds to turn tin, pick up and use quickly. 3. Three memory channels are CH1, CH2, CH3, and the temperature of each channel can be set separately for storage and recall 4. Easy real-time operation,it immediately goes into sleep mode when the handle is placed on the holder. 5. The single-chip microcomputer control system can make the temperature of the soldering iron head rise rapidly, which means that the user can operate at a lower temperature and improve the soldering quality and working efficiency. When the soldering iron is in the sleep state, it can prolong the life time of the heating element.

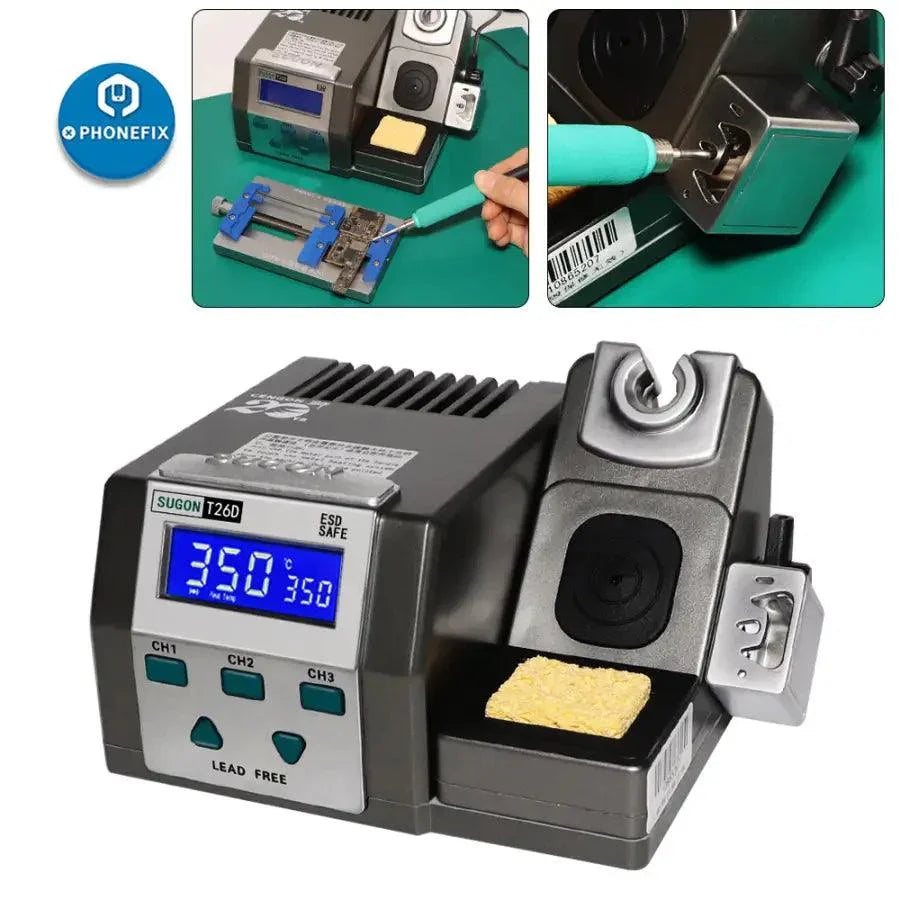

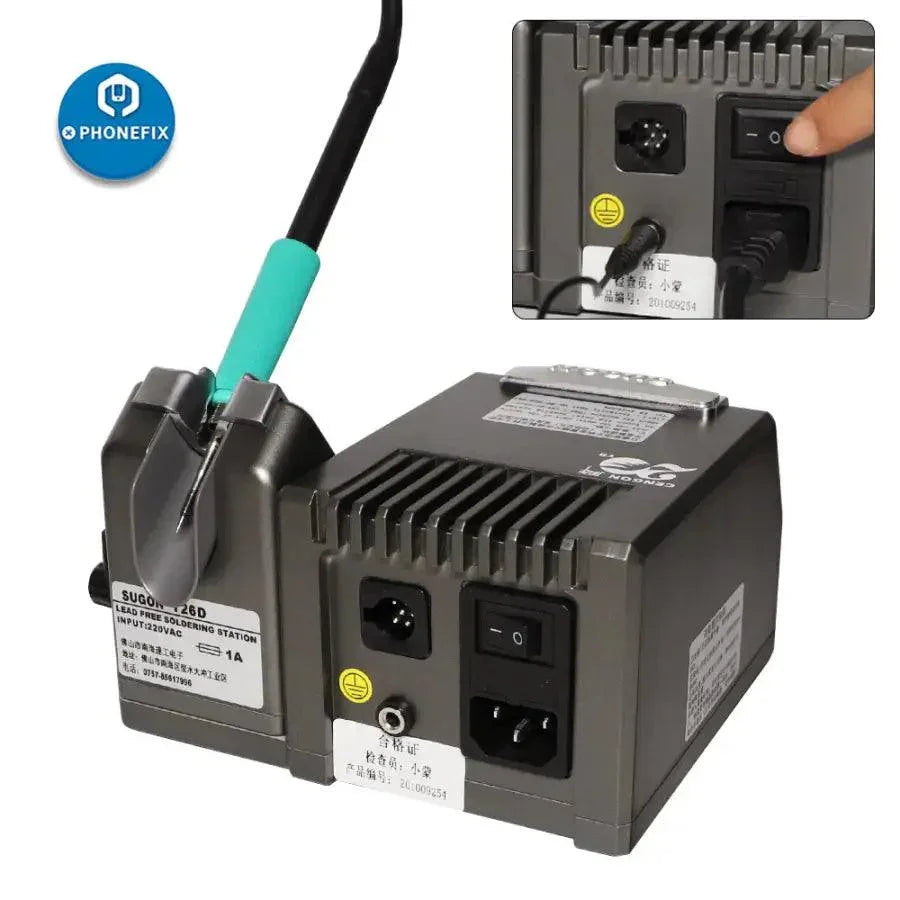

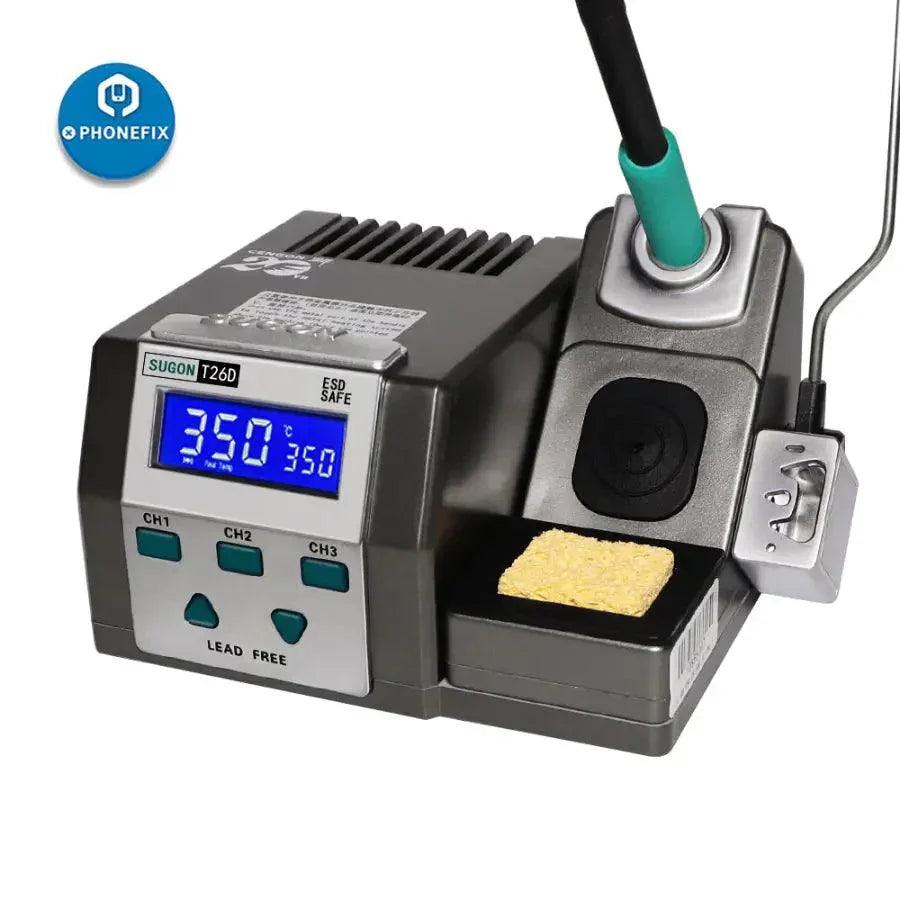

Parameter: Model: SUGON T26D. Power Consumption: 120W. Input Voltage: AC 110V / AC 220V. Range of Temperature: Decide by working mode 200℃-500℃（232℉-932℉). Temperature Stability: ±2℃/Without air flow and no load. Tip to Ground Resistance: <1Ω(DC). Tip to Ground Potential: <25mV(True RMS).

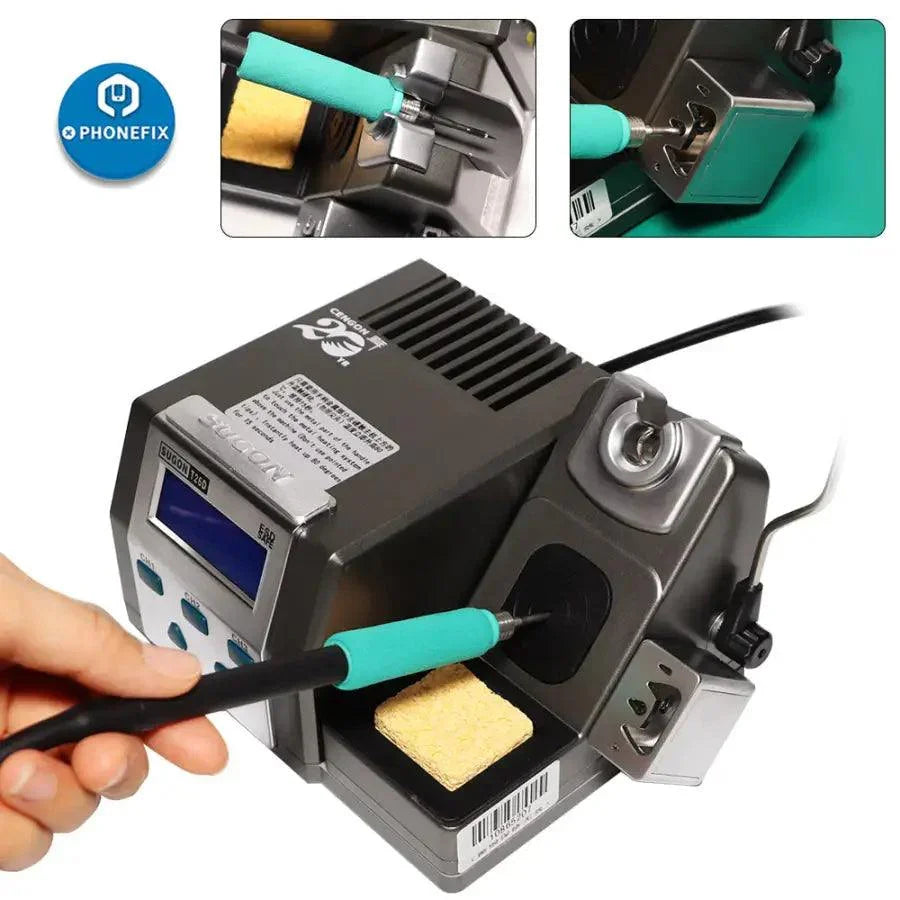

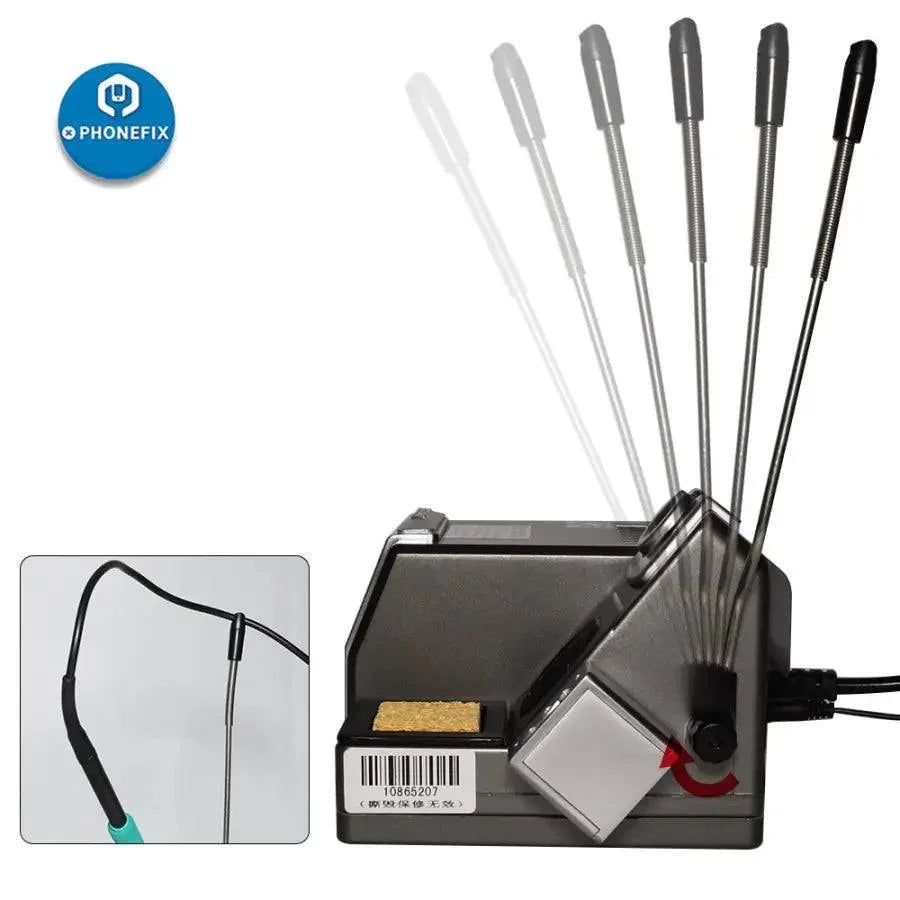

Operating characteristics: When encountering a large solder joint, tap the bracket twice with the handle, and the soldering station will increase the temperature at the original set temperature by 80℃ for 15 seconds, until the end, it will automatically recover, convenient and practical, no longer needed Adjust the temperature manually.
Celsius and Fahrenheit temperature display conversion: Press at the same time in the power-on state Hold the "UP" and "LOW" keys, that is Can switch between Celsius or Fahrenheit degree.The unit displays Celsius "℃" Fahrenheit "℉".
Calibration temperature: - Set the temperature of the machine to 350℃, and when the temperature is stable, place the soldering iron tip on the soldering iron to measure the temperature. At the probe position of the meter, when the temperature tester shows stability, write down the reading value. - Press and hold the "CH1" and "CH3" keys at the same time until the display 350 flashes and the display shows "CalTemp" and the machine enters the temperature calibration mode.
Buzzer settings: Press and hold the "CH1" key and the "CH2" key at the same time in the power-on state to turn off or enable the buzzer sound. When enabled, the machine will display "symbols" and beep. The beeper symbol is not displayed when it is off.
Note: The model of the JBC soldering iron tip in the standard kit is random(C210002/018/020). If you want to specify the model, please leave a message or contact us.

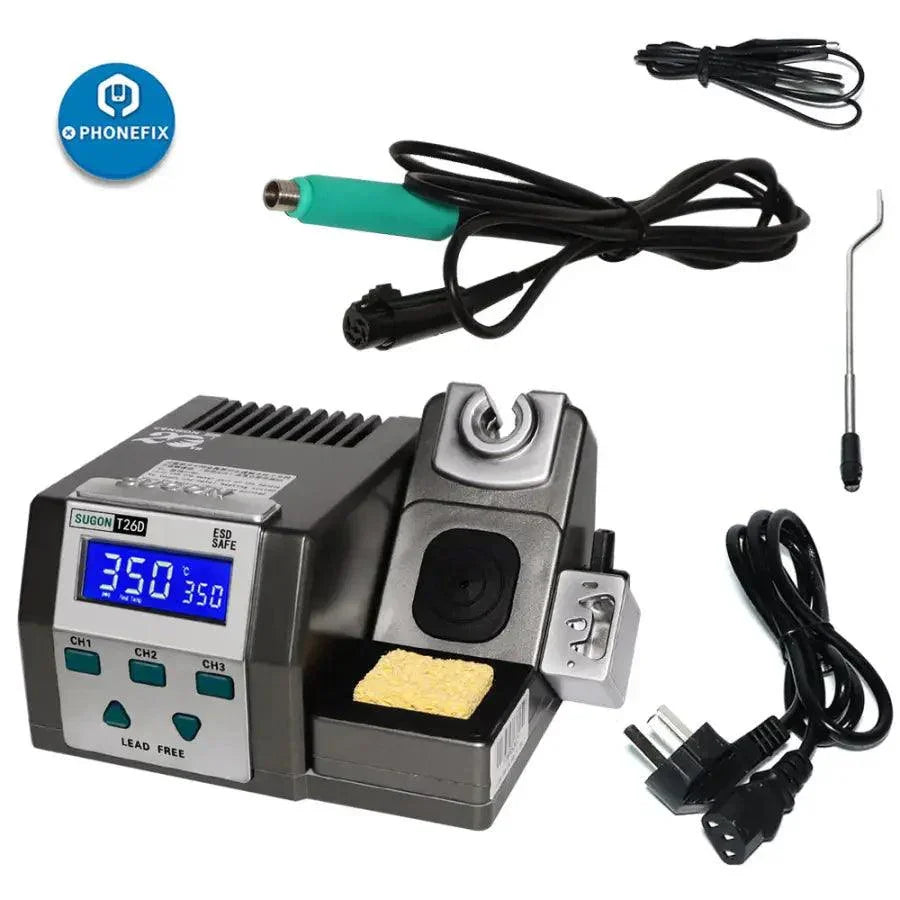

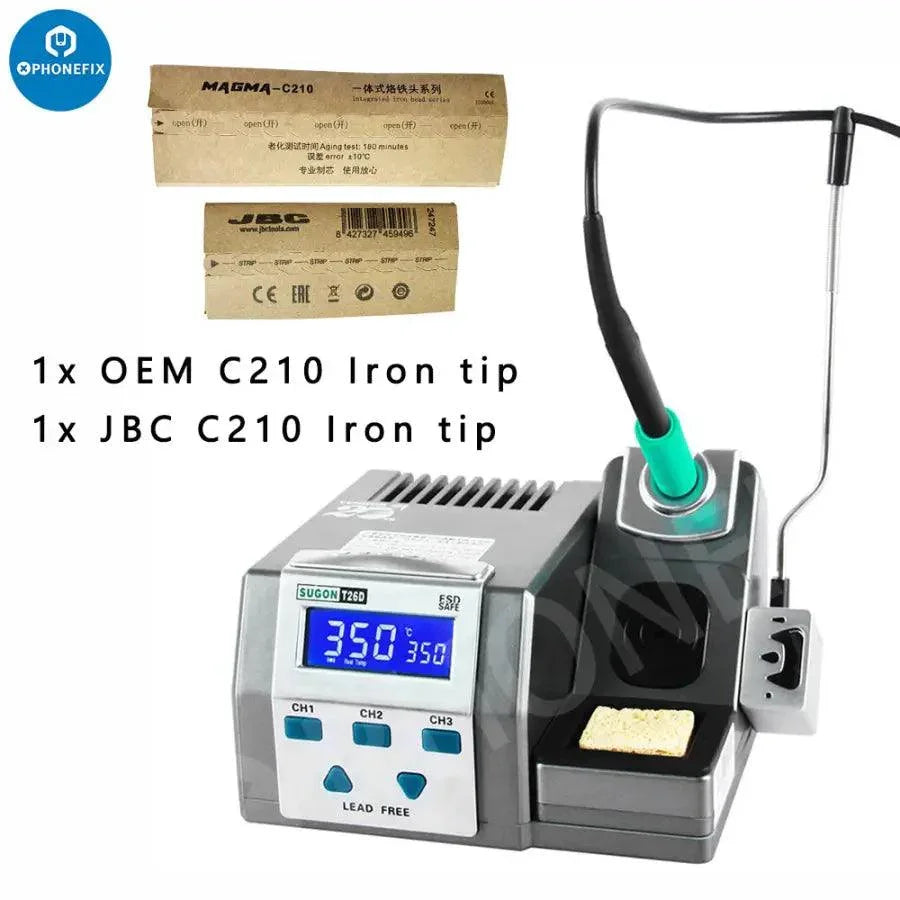

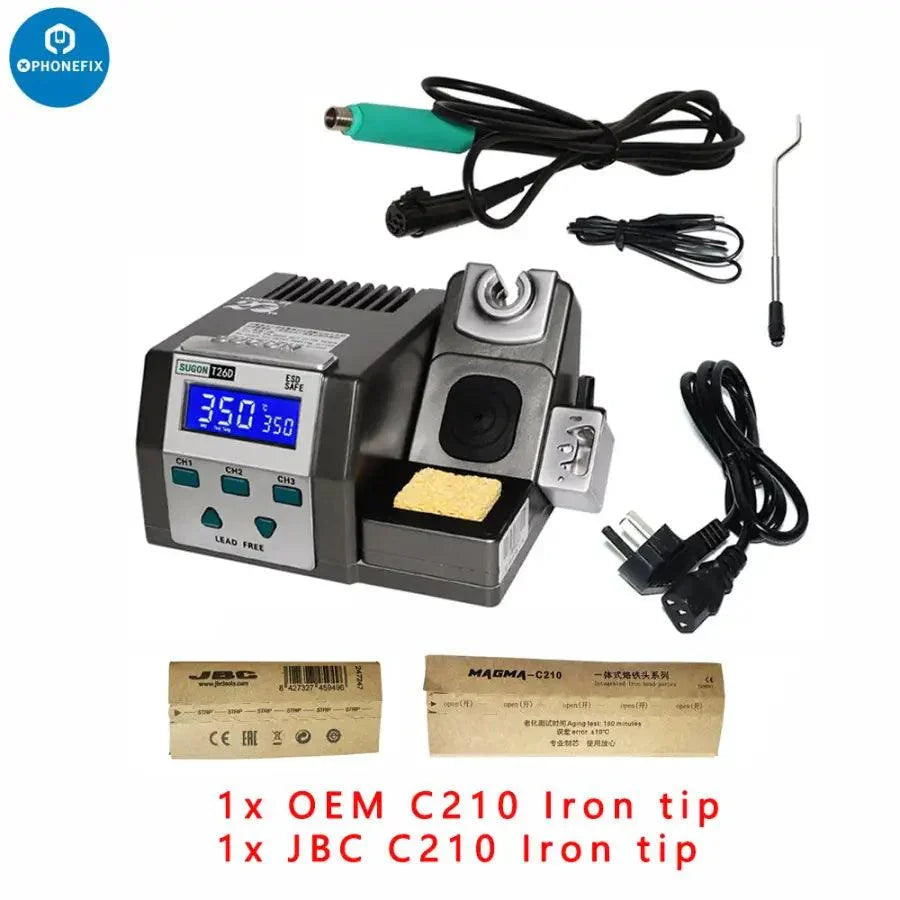

Sugon T26D Standard set: 1x Sugon T26D Soldering Station. 1x Sugon T26D welding handle. 1x Power Cable. 1x Original JBC C210 iron tip (random model). 1x OEM C210 iron tip.

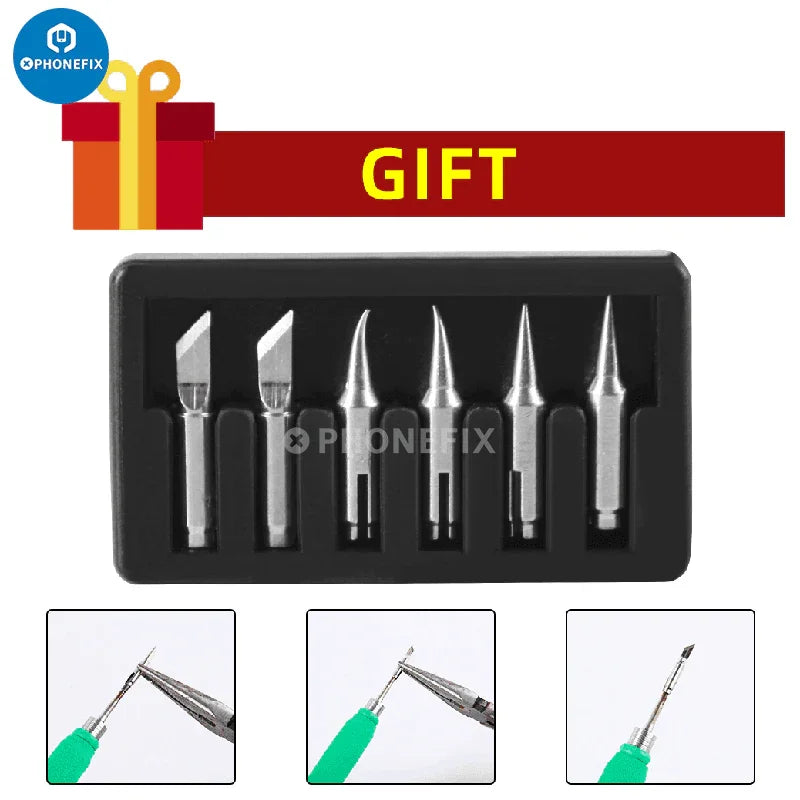

Optional: - JBC C210-002 soldering iron tip. - JBC C210-018 soldering iron tip. - JBC C210-020 soldering iron tip.
