Wanptek GC305H GC3010H GC605H GC1203H GC1602H 0-10A 0-120V Adjustable DC Voltage Regulator with USB display for cell phone and laptops tablets repair, battery fast charging (including iPhone battery/car battery), ect. Wanptek GC series DC power supply with four-window double-color digital display, it has overload protection and OCP short-circuit power failure alarm.
Model:

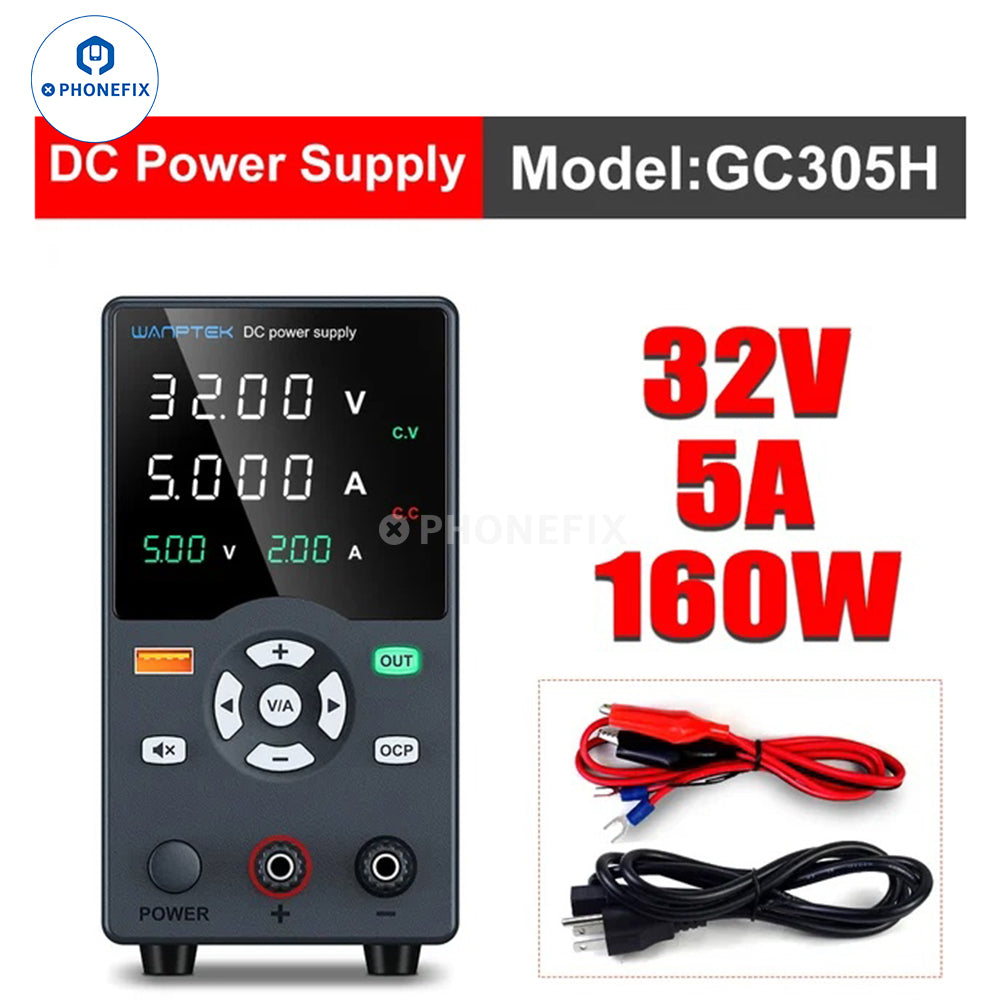

GC305H: 0-32V, 0-5A, 160W.

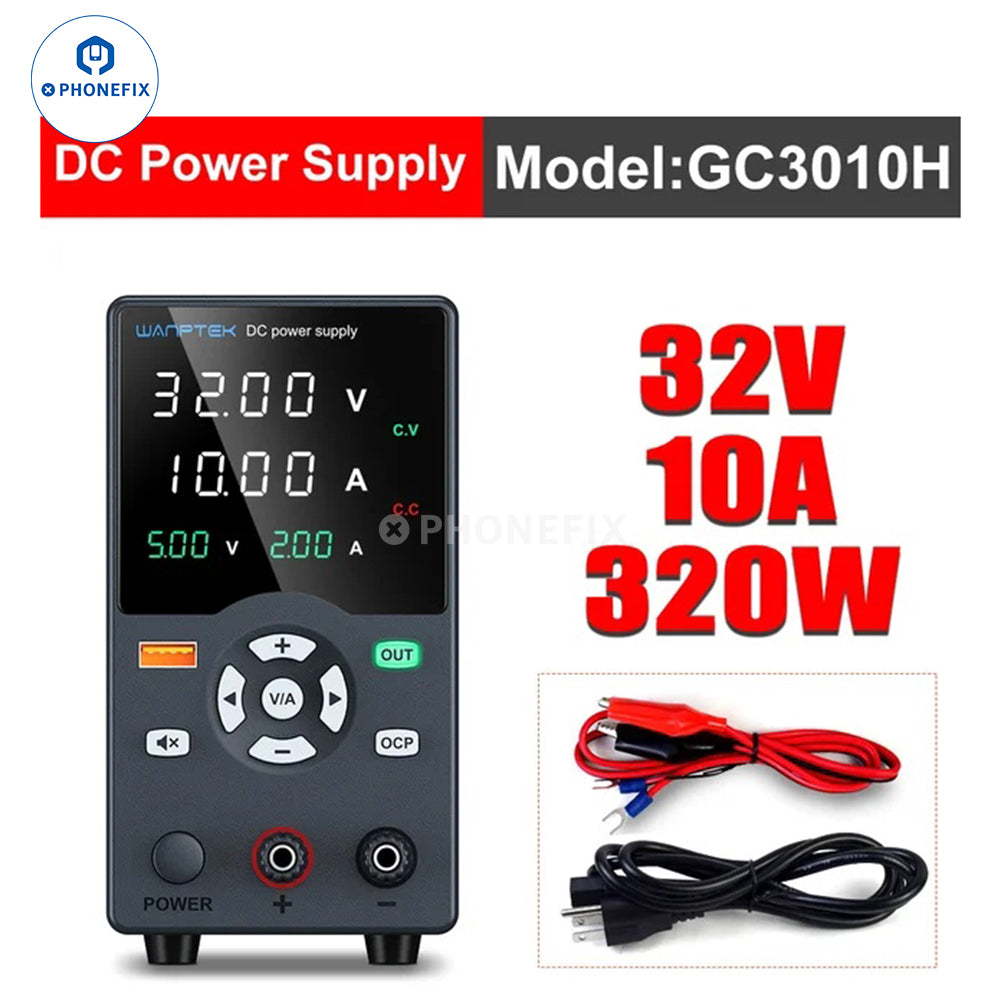

GC3010H: 0-32V, 0-10A, 320W.

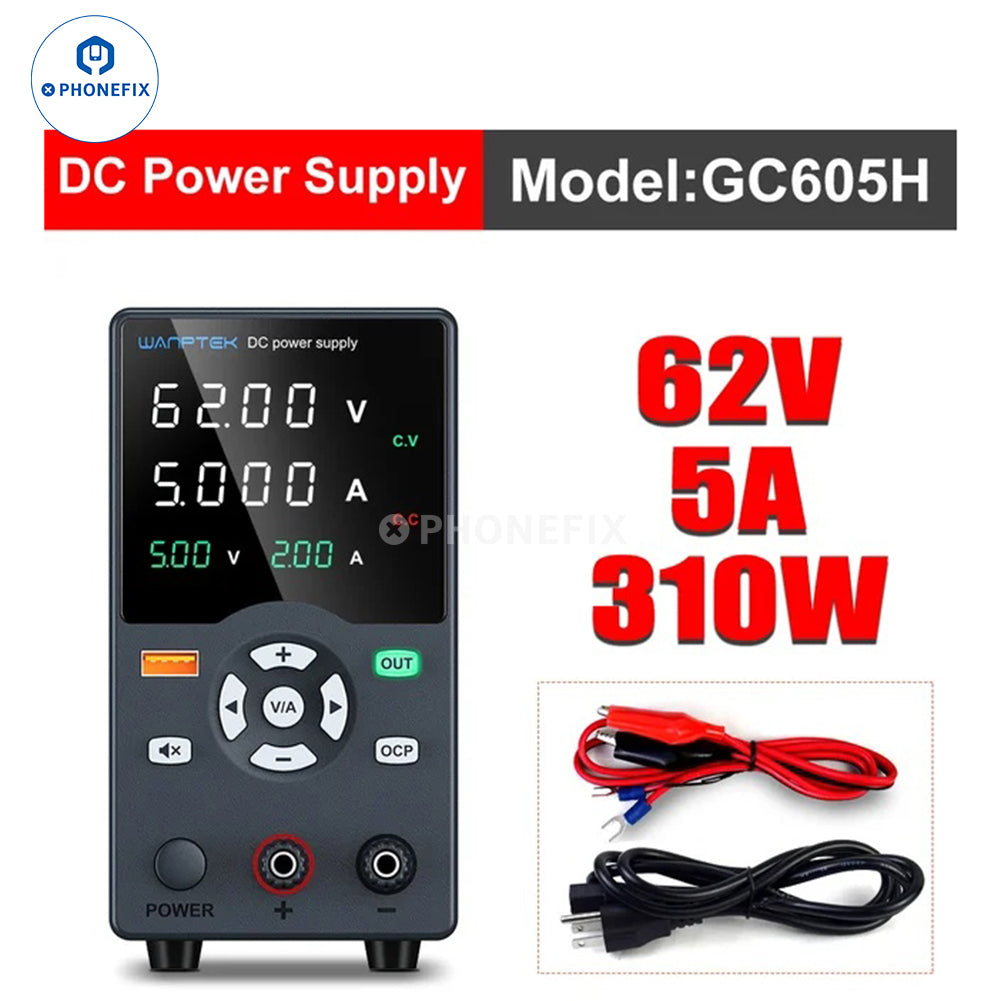

GC605H: 0-62V, 0-5A, 310W.

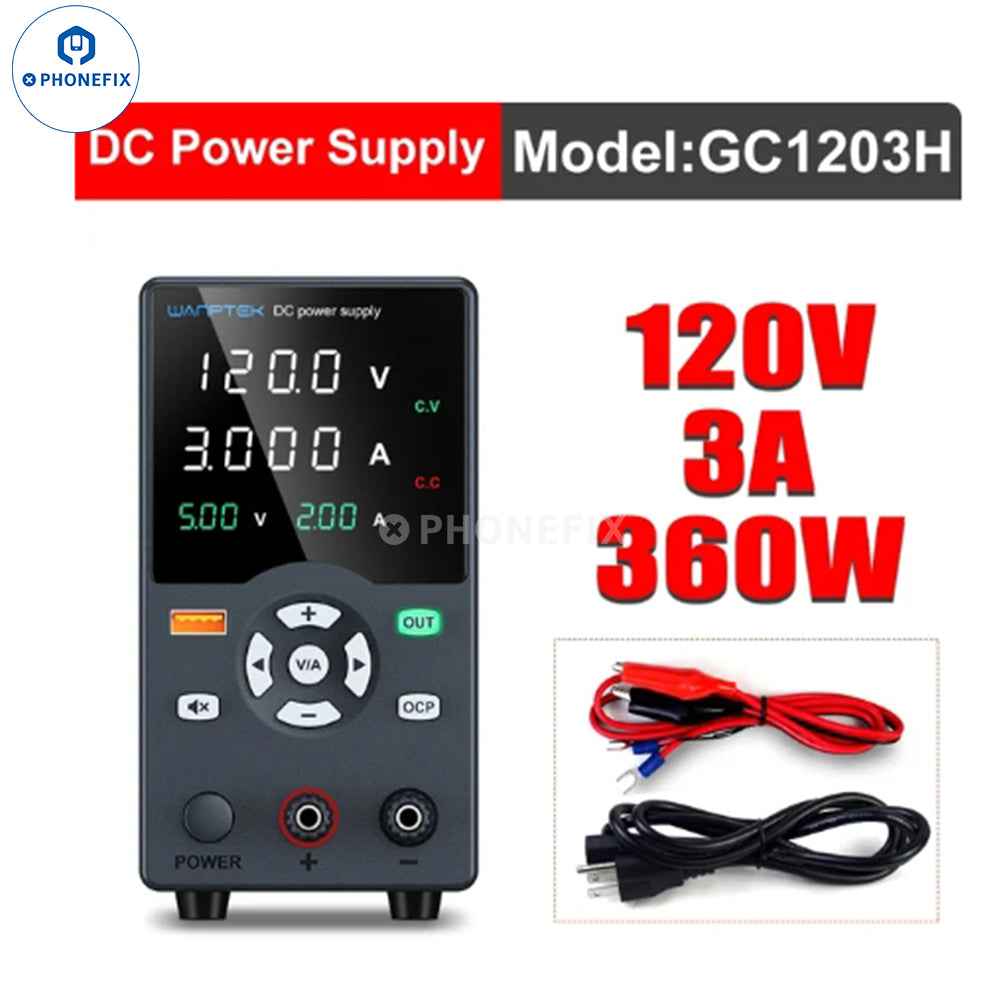

GC1203H: 0-120V, 0-3A, 360W.

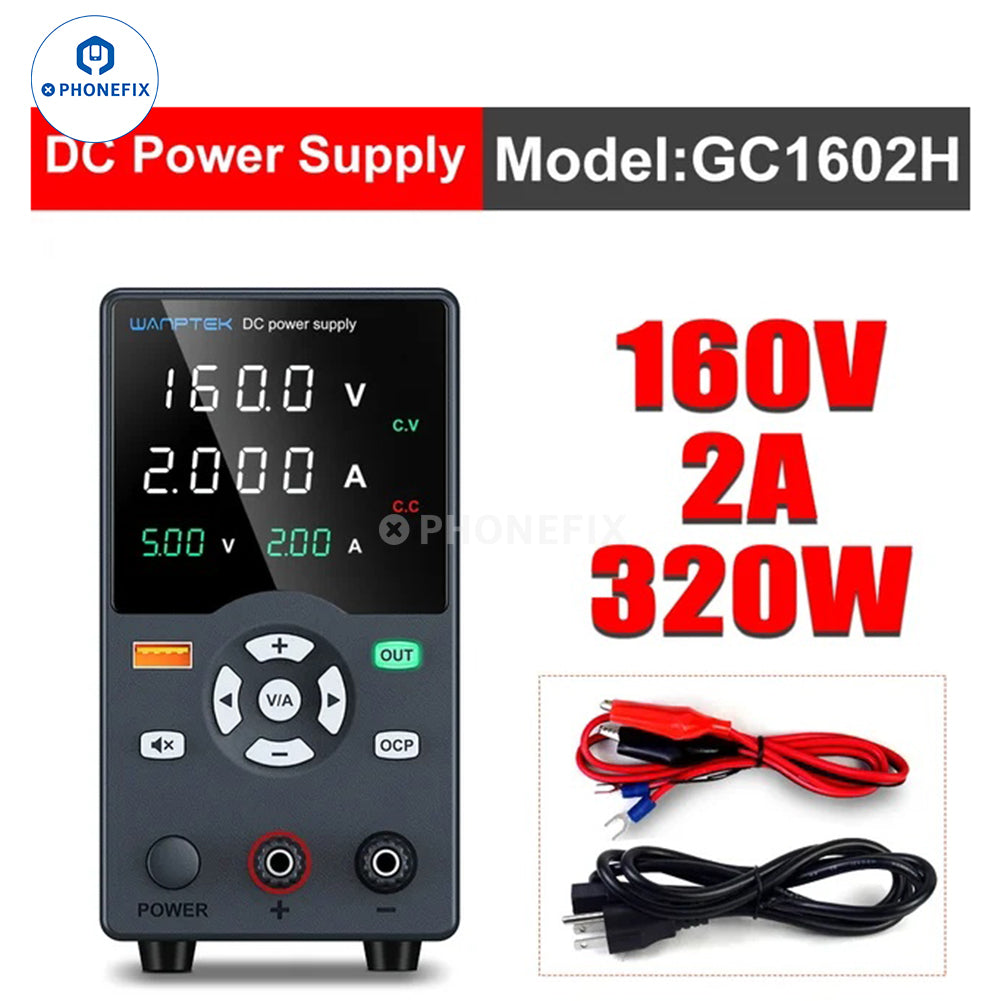

GC1602H: 0-160V, 0-2A, 320W.
Features:
1. Constant voltage, constant current automatic switching overload protection, OCP short circuit power failure alarm temperature-controlled fan cooling, low noise, long service life.

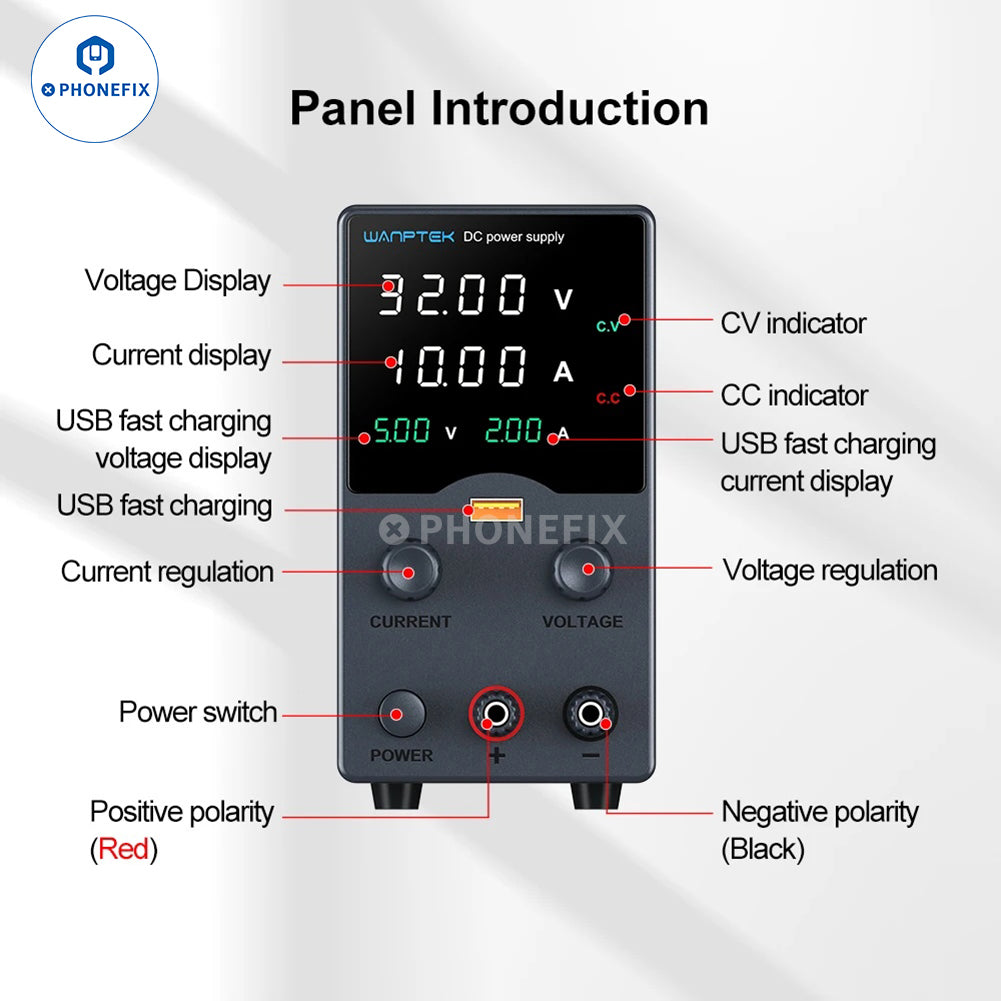

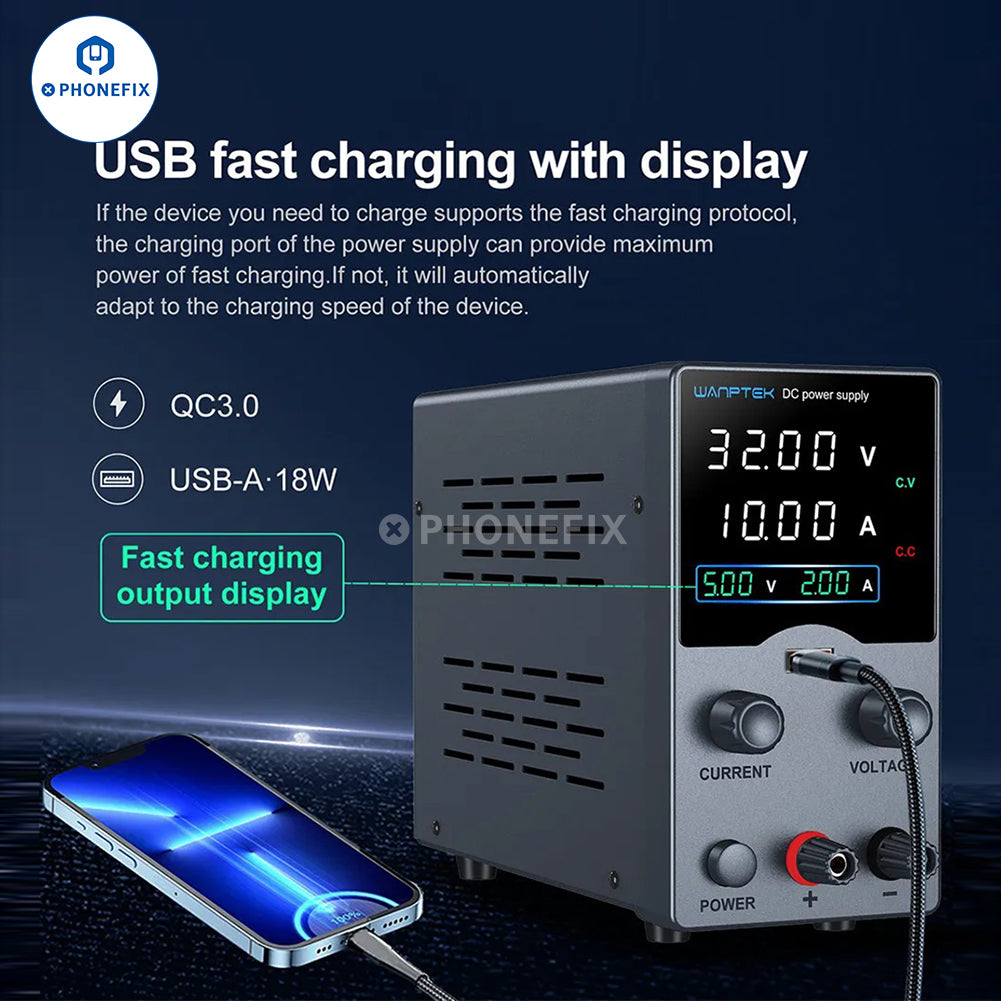

2. Voltage, current, four-window dual-color display, high precision USB fast charging function with output display, support multiple fast charging protocols.

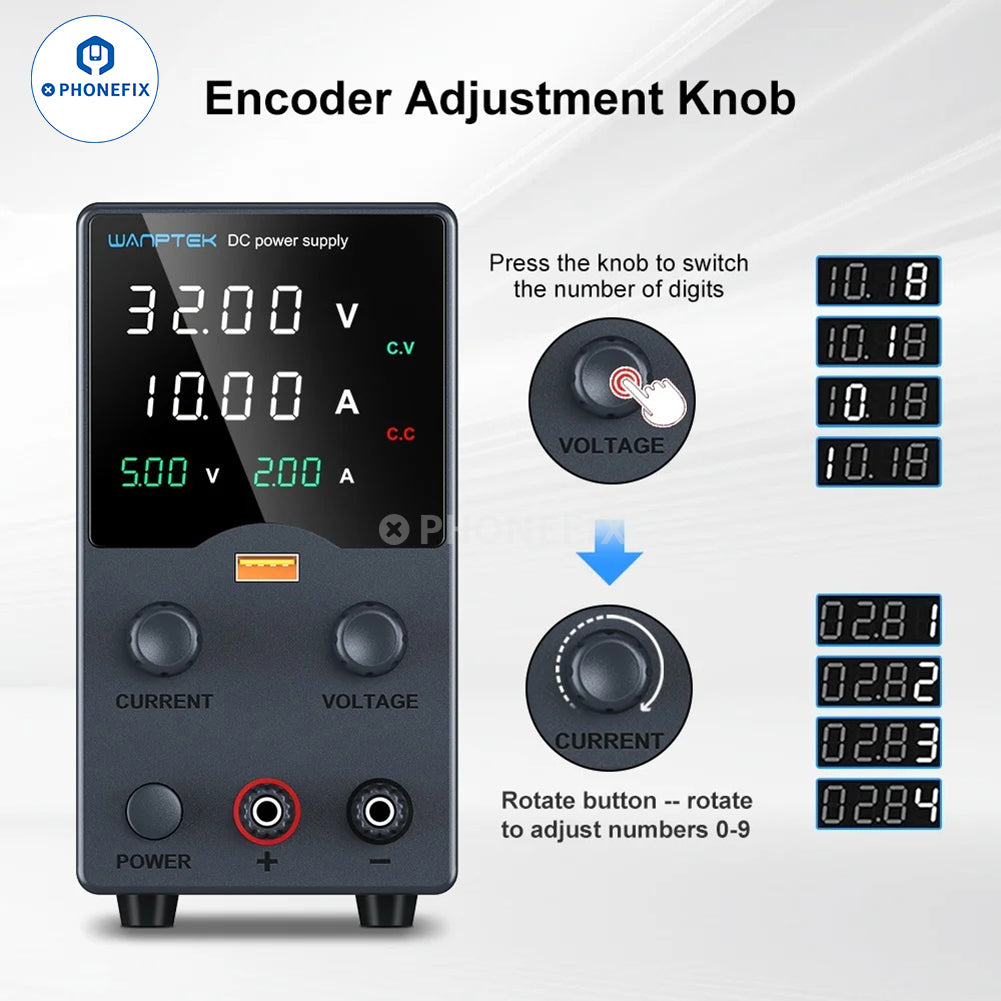

3. Voltage and current can be set using the full range of buttons, and the set values can be displayed in advance.
4. The output voltage and current can be adjusted continuously between 0 and the nominal value by using the full key adjustment, and the set.
5. Value can be pre-displayed, which is convenient to use and adjust. This machine has a USB fast charging interface with an output display.
6. Support a variety of fast charging protocols. It has a perfect short circuit protection function.
7. The stability and ripple coefficient of the power supply are very good, small size, light weight, beautiful design, easy to operate, full load can work for a long time.
Please note:
1. The GA and GC series power supply can display USB A charging voltage and current.
2. The DPS APS and EPS series cannot display USB A or USB C charging voltage and current.

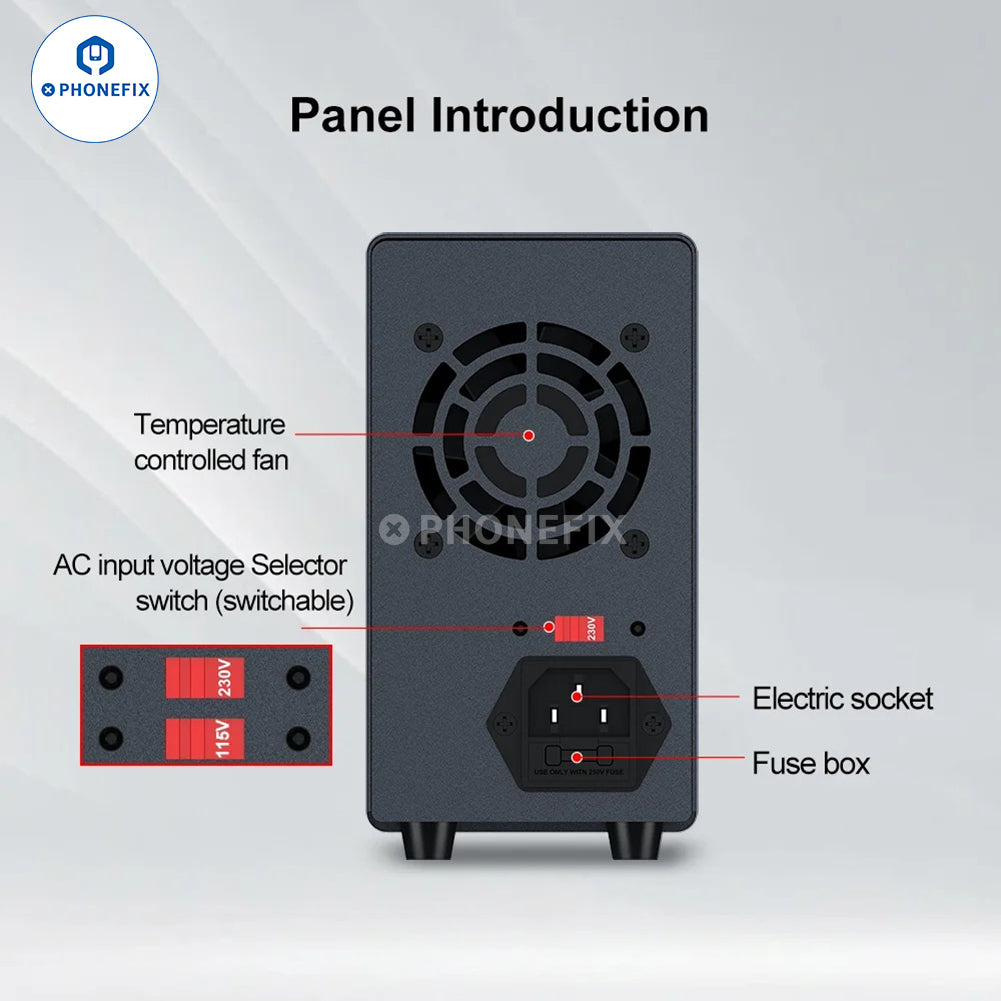

3. The fan inside the power supply is intelligently temperature controlled. The fan will only rotate when the temperature inside the power supply is above 50 degrees Celsius. When the temperature inside the power supply is below 50 degrees Celsius, the fan will not rotate. This is to effectively save energy and reduce noise.
Working Environment:
Input voltage: AC 230V/115V±10%, 50Hz/60Hz.
Working temperature: 0℃~40℃, Relative humidity: <80%RH.
Storage temperature: -10℃~70℃, Relative humidity: <70%RH.
Regulated State:
Voltage stability: 0.5%±3mV.
Load stabillity: 0.5%±3mV.
Ripple voltage: ≤0.5%Vp-p.
0 to rated voltage continuously adjustable.
Steady Flow State:
Current stability: 0.5%±3mA.
Load Stability: 0.5%±3mA.
Ripple current: ≤0.5%Vp-p.
Recovery time: ≤500μs.
Temperature coefficient: ≤100ppmc.
Continuously adjustable from 0 to rated current.
Table Header Display:
0.4-inch white light four bits two sets /0.25-inch green light three bits two sets of display.
Display Accuracy: 0.5%±5words.
Display Resolution: Voltage 0.01V,current 0.001A.
Product Features:

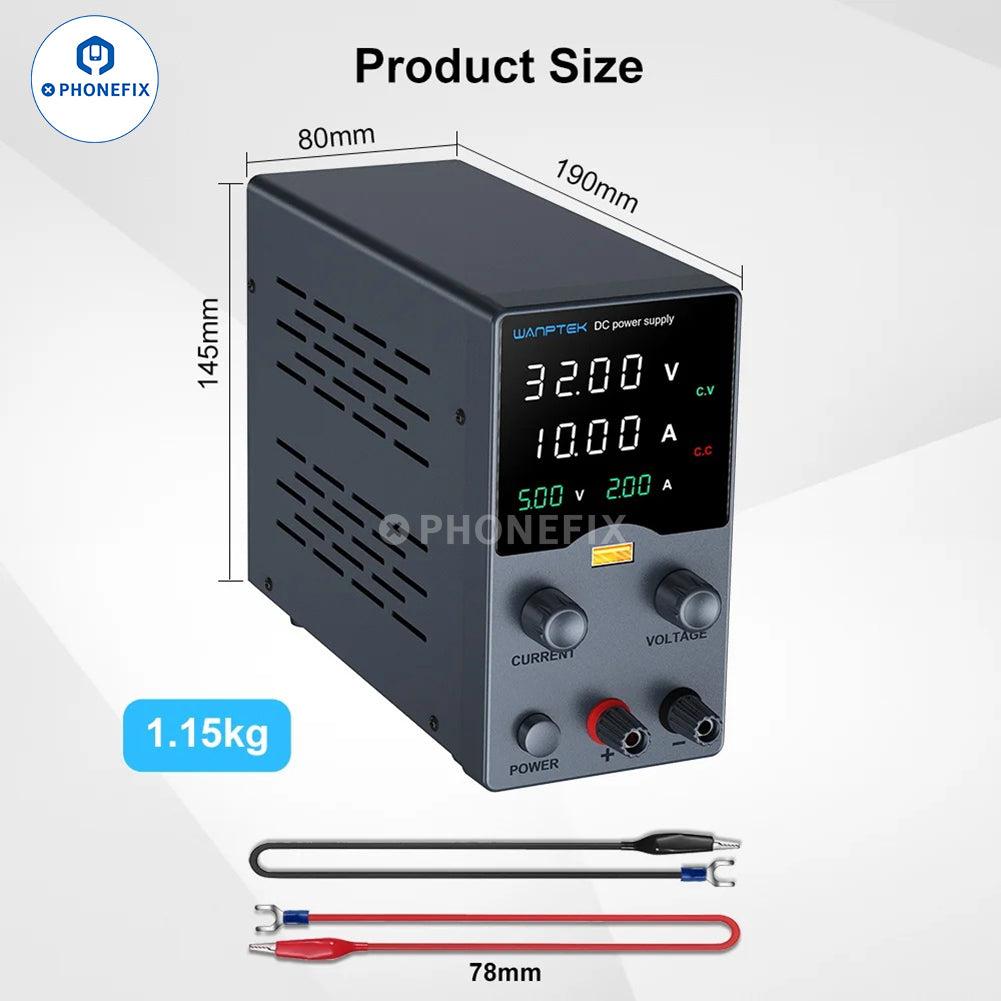

Product size: 190(L)"80(W)*145(H)mm.
Package size: 270(L)*116(W)*195(H)mm.
Bare machine weight 1.15kg Weight with packaging accessories: 1.5kg
8 units/whole piece, weight: 12.75kg Whole box size:500*285*432mm.
Applications:
1. Production Line Testing.
2. Laboratory, research and teaching.
3. Mobile phone,computer, electrical appliances maintenance.
4. Product aging,plating,battery charging.
5. Other applications requiring DC regulated power.
Random Accessories:
AC power cord *1( National Standard,American Standard,European Standard,British Standard,etc.) Operation manual*1 Output test line*1.
