Wanptek GA305H GA3010H GA605H GA1203H GA1602H Power Supply 0-120V 0-10A Adjustable DC Voltage Regulator With USB Display for mobile phone and computer repair, battery charging, product aging, plating, production line testing, research and teaching, ect. Wanptek GA series DC power supply has USB fast charging, short circuit protection, overload protection and other functions.
Models:

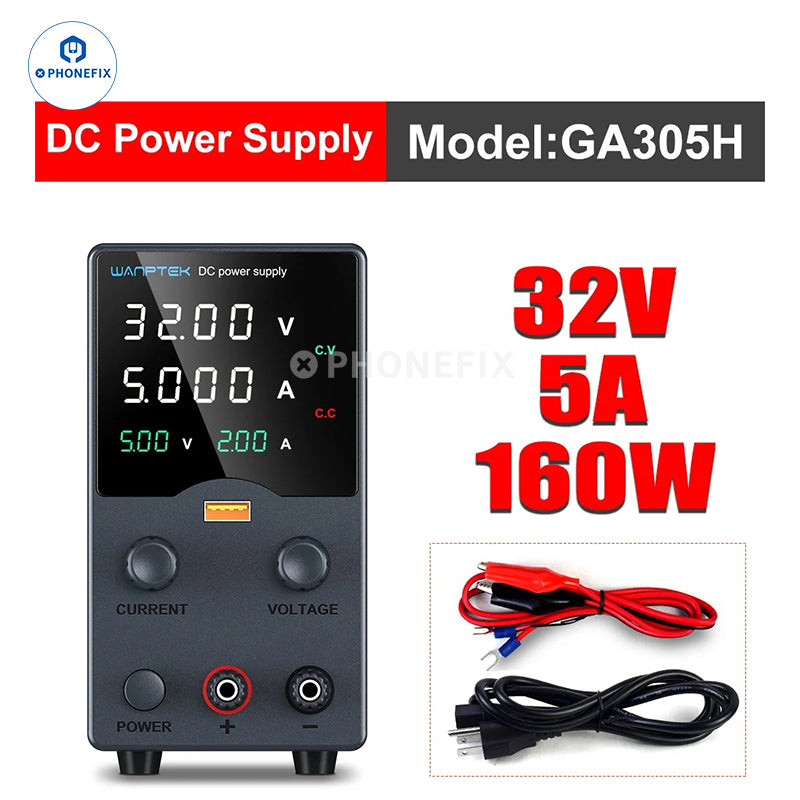

1. GA305H: 0-32V, 0-5A, 160W.
2. GA3010H: 0-32V, 0-10A, 320W.

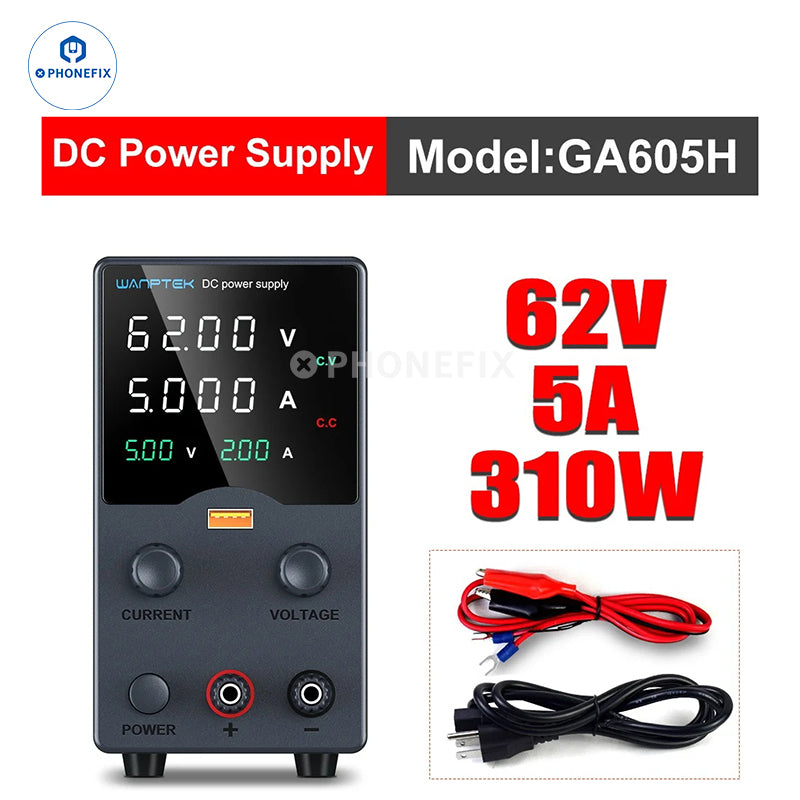

3. GA605H: 0-62V, 0-5A, 310W.

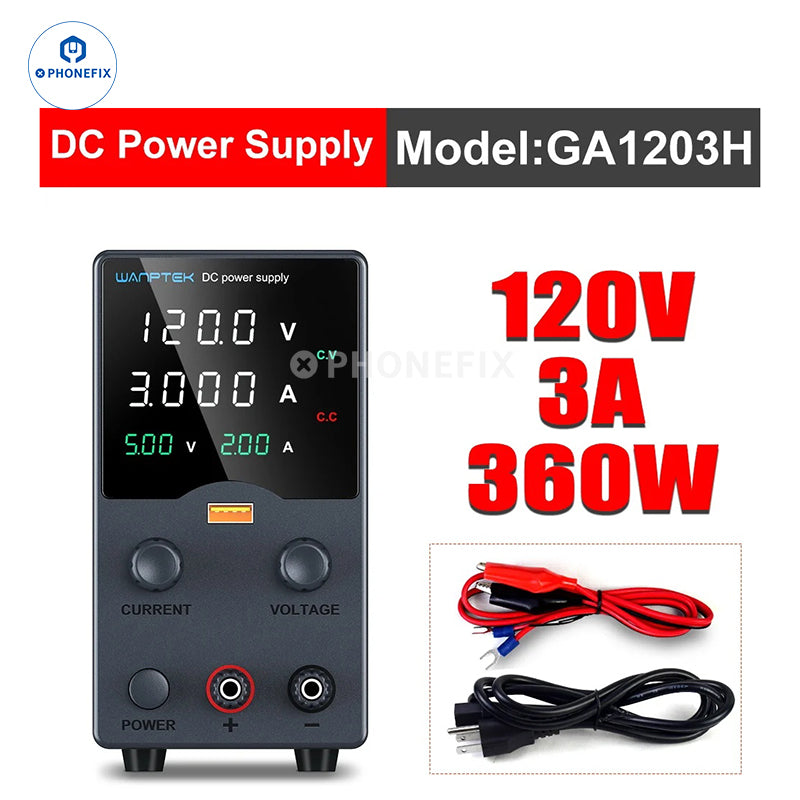

4. GA1203H: 0-120V, 0-3A, 360W.

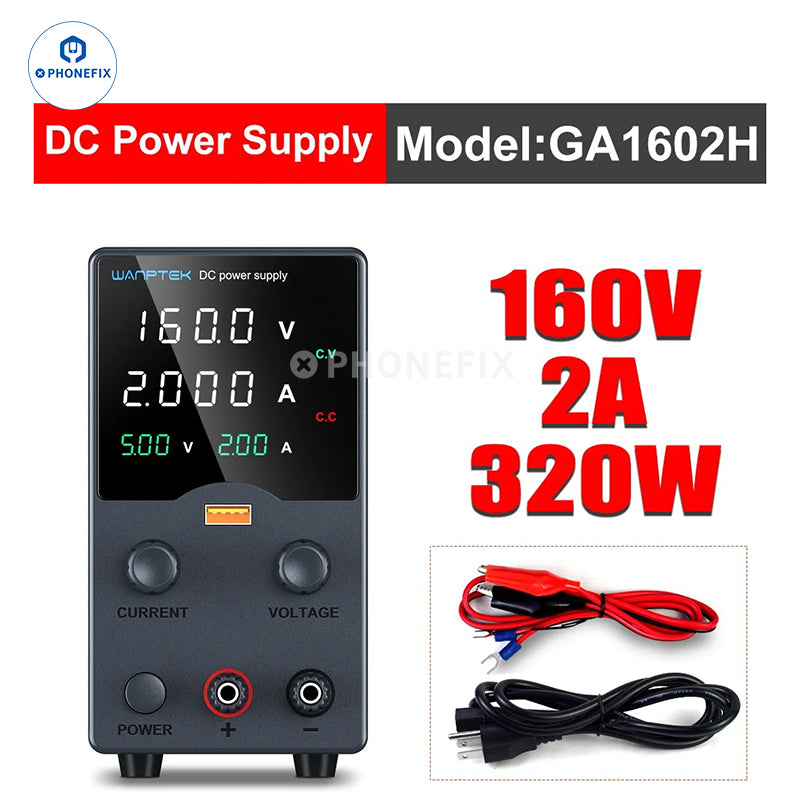

5. GA1602H: 0-160V, 0-2A, 320W.
Features:

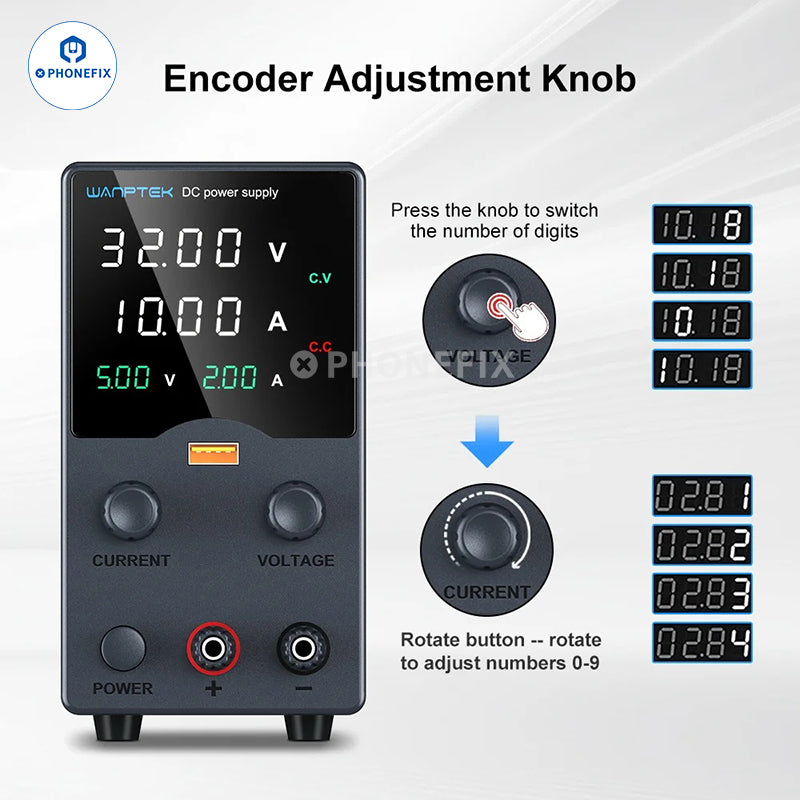

1. The output voltage and current can be controlled and adjusted through encoder adjustment, making the adjustment of voltage and current more convenient and accurate.

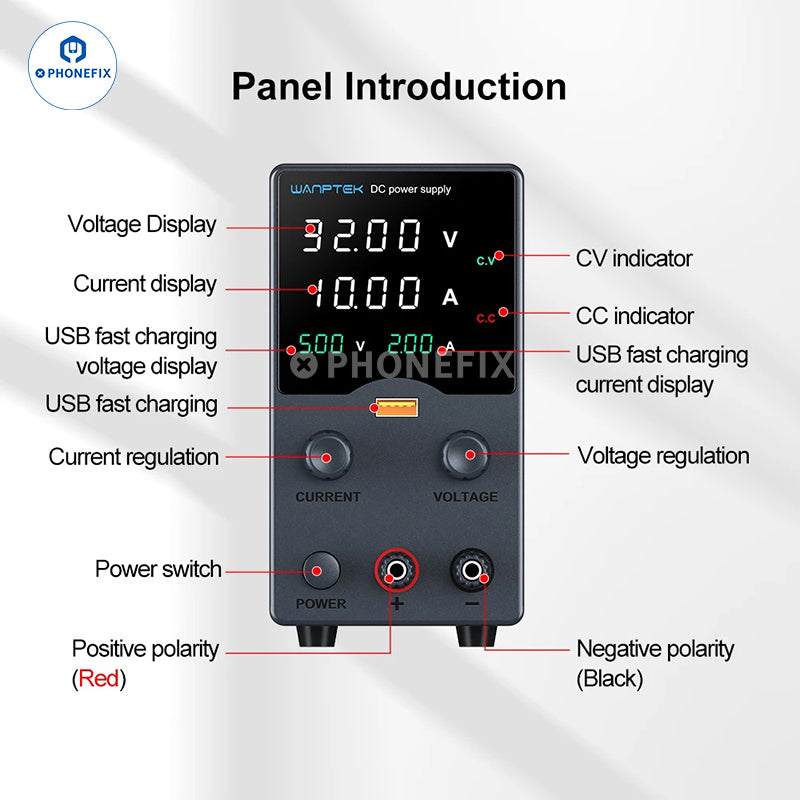

2. The panel also provides high-precision two / three-window digital tubes to display voltage, current, and power (optional), allowing users to intuitively see the current usage status and various parameters of the machine.
3. The GA series power supply can display USB A charging voltage and current, voltage, current, and power LED display (optional), with high accuracy, and has the characteristics of voltage stabilization, current limiting, and simple operation.
4. Small size, light weight, high power density, automatic switching between constant voltage and constant current.
5. Output voltage and current are adjustable: output voltage and output current are continuously adjustable.
6. With overvoltage protection (OVP), overcurrent protection (OCP), and overtemperature protection.

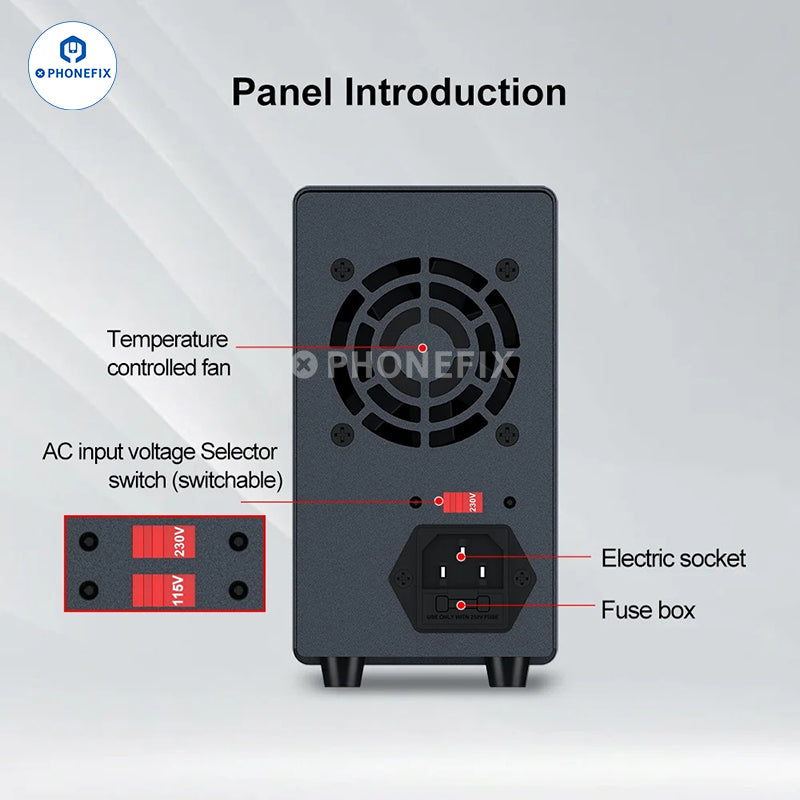

7. Temperature-controlled fan cooling, low noise and long life.
8. Dual voltage input, easy to choose.
9. The output voltage / current is continuously adjusted from 0 to rated voltage / current.

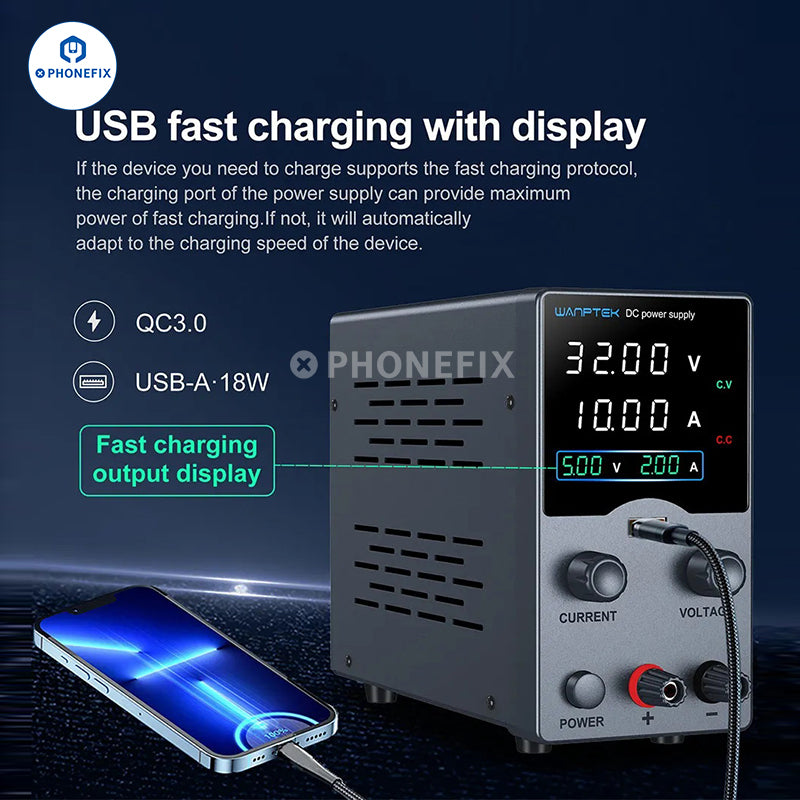

10. USB fast charging with display If the device you need to charge supports the fast charging protocol, the charging port of the power supply can provide maximum power of fast charging. lf not, it will automatically adapt to the charging speed of the device.
Specification:
Input voltage: AC 230V/115V±10%; 50Hz/60Hz.
Working temperature: 0℃～40℃.
Relative humidity: <80%RH.
Storage temperature: -10℃～70℃.
Relative humidity: <70%RH.
Constant Voltage CV:
Voltage stability: 0.1%±3mV.
Load stability: 0.2%±3mV.
Ripple voltage: ≤0.5% Vp-p.
0 to rated voltage continuously adjustable.
Constant Current CC:
Current stability: 0.1%±3mA.
Load stability: 0.2%±3mA.
Ripple current: ≤0.5% Vp-p.
Recovery time: ≤500μS.
Temperature coefficient: ≤100ppm/℃.
0 to rated current continuously adjustable
Display:
LED digit display.
Display accuracy: 0.5%±digits.
Display resolution: voltage 0.01V, current 0.001A.
Please note:
1. The GA and GC series power supply can display USB A charging voltage and current.
2. The DPS APS and EPS series cannot display USB A or USB C charging voltage and current.
3. The fan inside the power supply is intelligently temperature controlled. The fan will only rotate when the temperature inside the power supply is above 50 degrees Celsius. When the temperature inside the power supply is below 50 degrees Celsius, the fan will not rotate. This is to effectively save energy and reduce noise.
Packing list:
1x DC power supply.
1x Power cord.
1x Output line.
1x Manual.
