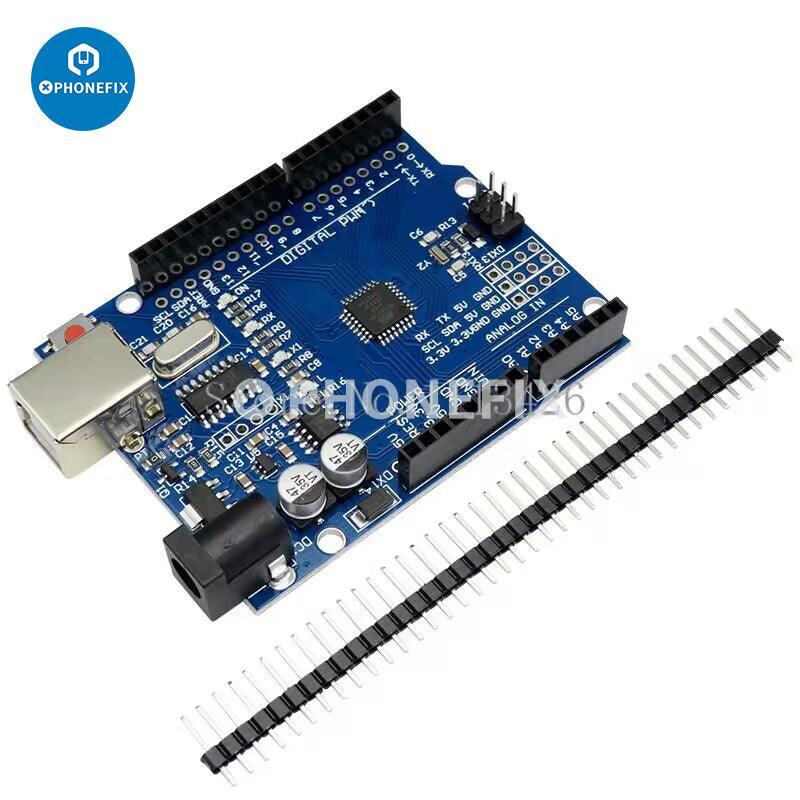

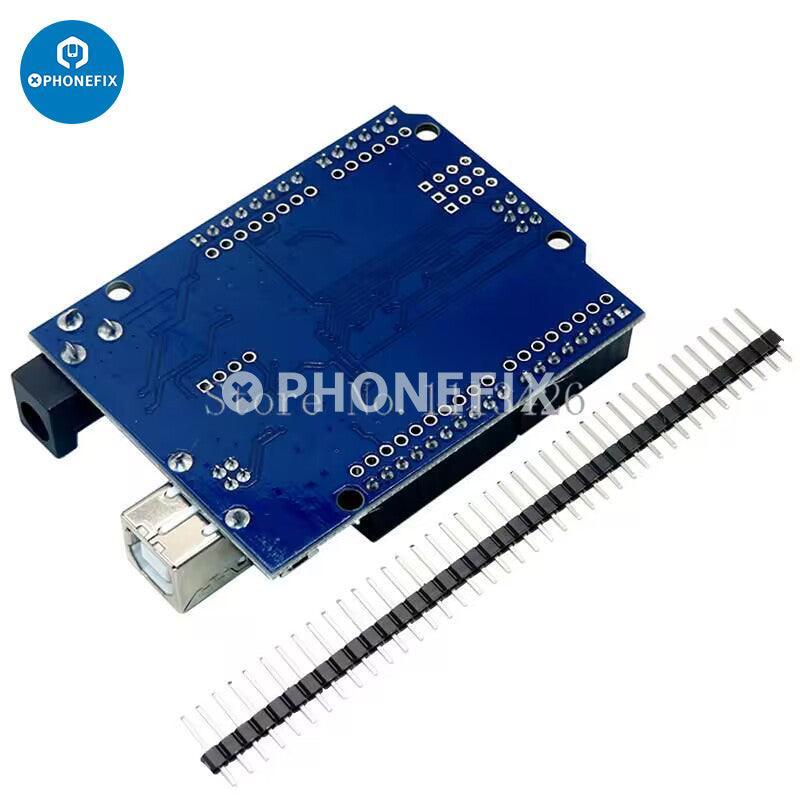

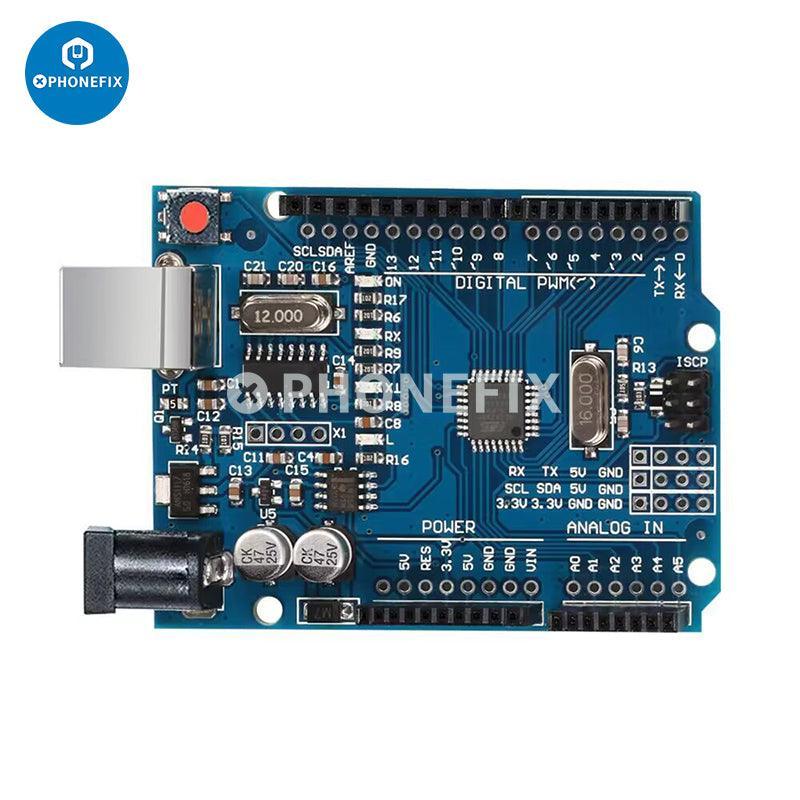

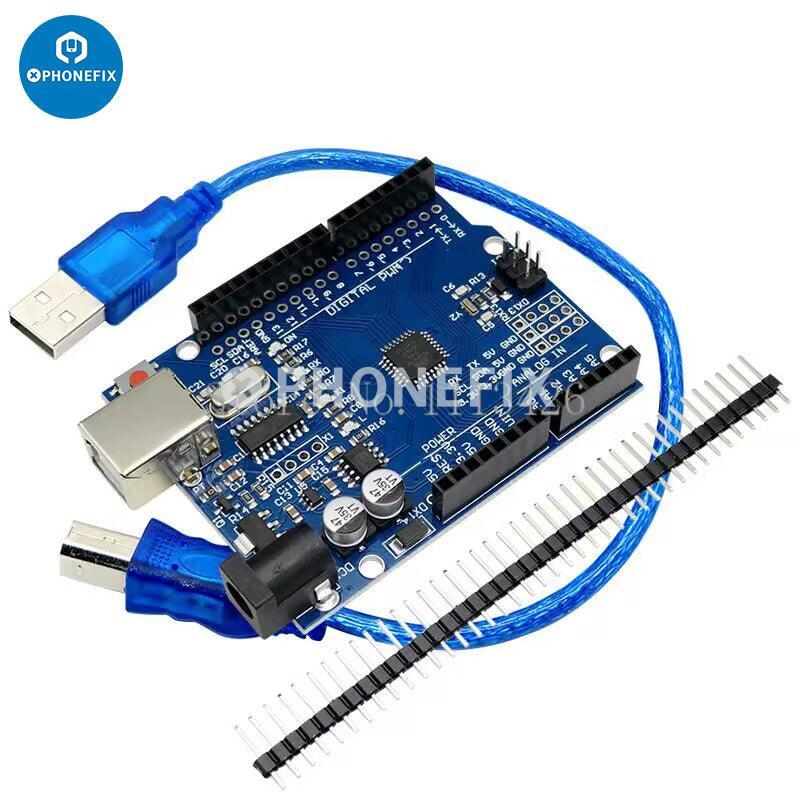

UNO R3 Development Board ATmega328P CH340 CH340G For Arduino UNO R3 With Straight Pin Header with Cable. Support Google Android ADK USB HUB.
Features:
Simple I/O platform based on open-source code.
Easy to understand using Processing/Wiring development environment similar to Java and C language.
Development environment interface is based on the open-source principle, allowing for free download, use and development of more interactive works.
Circuit diagram of the original design is open to modification according to individual needs.
The development board has been optimized for foreign customers on product quality and functional requirements of the case of high design.
Increased pin socket for easy use of DuPont line.
Allows for simple and convenient program download.
Advantages:
Completely solve the traditional UNO board win7 and win8 system is not compatible with the above instability. Especially in the pirated 64-bit WIN7 system, the official board cannot be installed driver, and this version is very simple and easy to install.
Increase the pin socket, easy to use DuPont line.
Replace the 16u2, so that the cost reduced to half, consumers get the most benefits
Download the program simple and convenient. You can simply use the sensor, a variety of electronic components connected (such as: LED lights, buzzers, buttons, photoresistors, etc.), to make all kinds of interesting works.
The use of high-speed microprocessor controller (ATMEGA328), the development of user interface and environment are very simple, easy to understand, and very suitable for beginners to learn.
Performance Description
I / O digital input / output terminals 0 ~ 13.
I / O analog input / output terminals 0 ~ 5.
Support ISP download function.
Input voltage: connected to the computer USB without external power supply, external power supply 5V ~ 9V DC voltage input.
Output voltage: 5V DC voltage output and 3.3V DC voltage output.
Using Atmel Atmega328 microprocessor controller
How To Work:
Download address of USB Chip Driver: http://pan.baidu.com/s/1dDzXOcx
After plugging in the UNO development board, the driver will be installed automatically.
Select the board "UNO" in the die.
Select the COM port, which can be queried in "My Computer", the port in your "UNO" development board just now.
