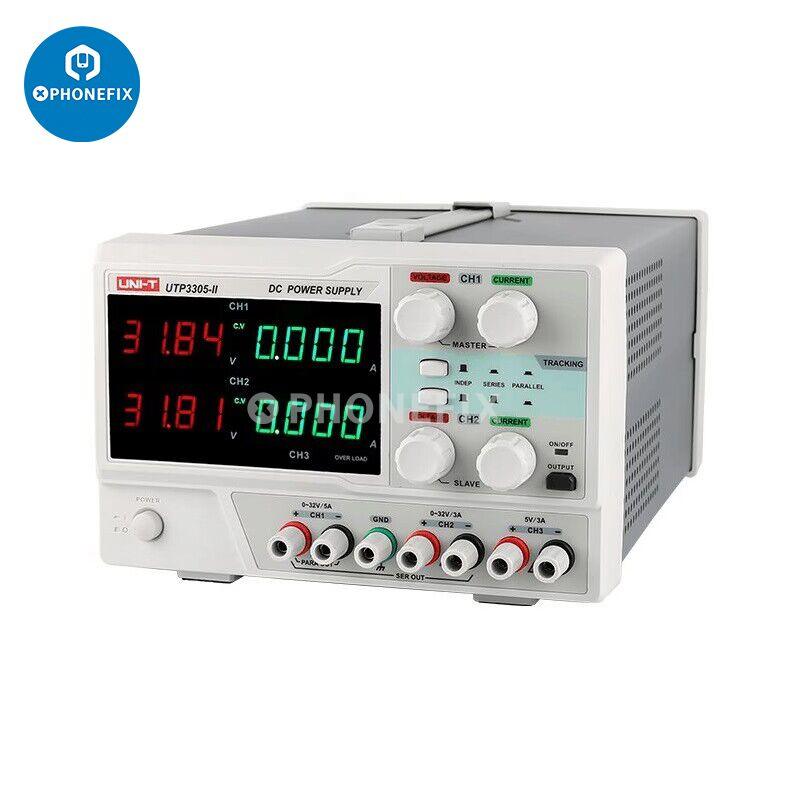

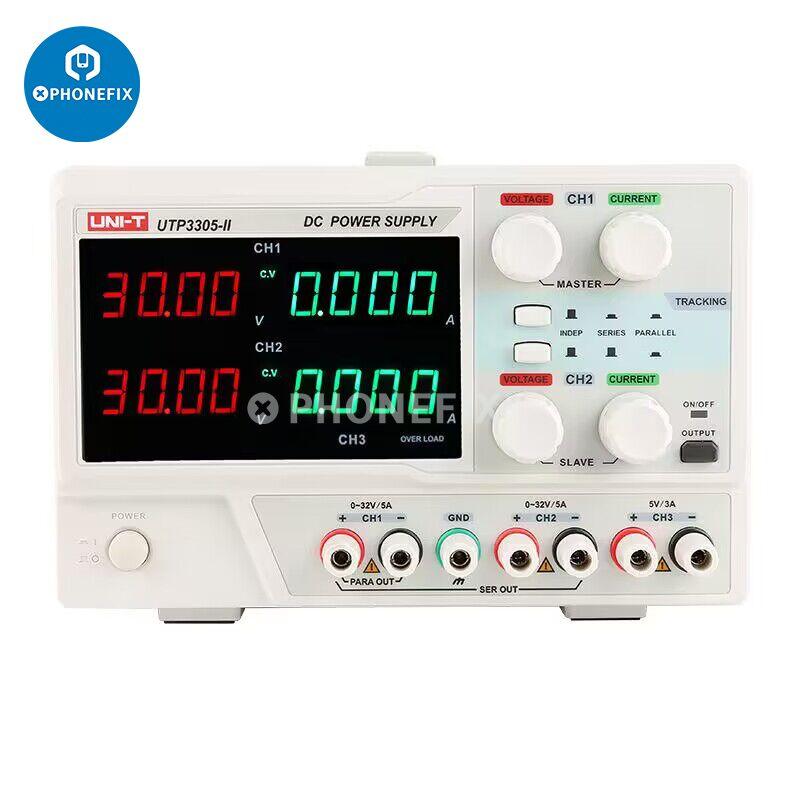

UNI-T UTP3305 Precision DC Power Supply 32V 5A Dual Channel

UNI-T UTP3305 Dual channel DC Power Supply 32V 5A Precision Variable. UNI-T UTP3305-II power supply with two adjustable channels of 160W power ranging from 0-32V and 0-5A and a fixed channel with fixed outputs of 5V and 3A.

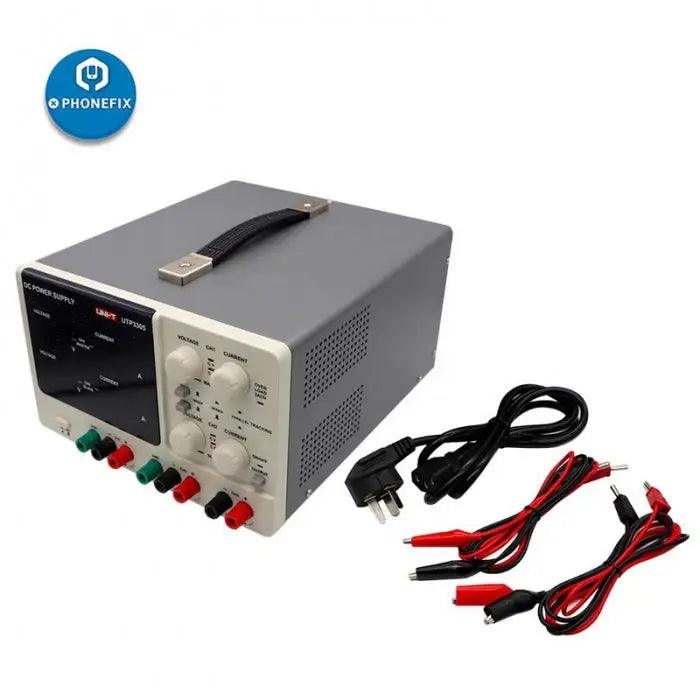

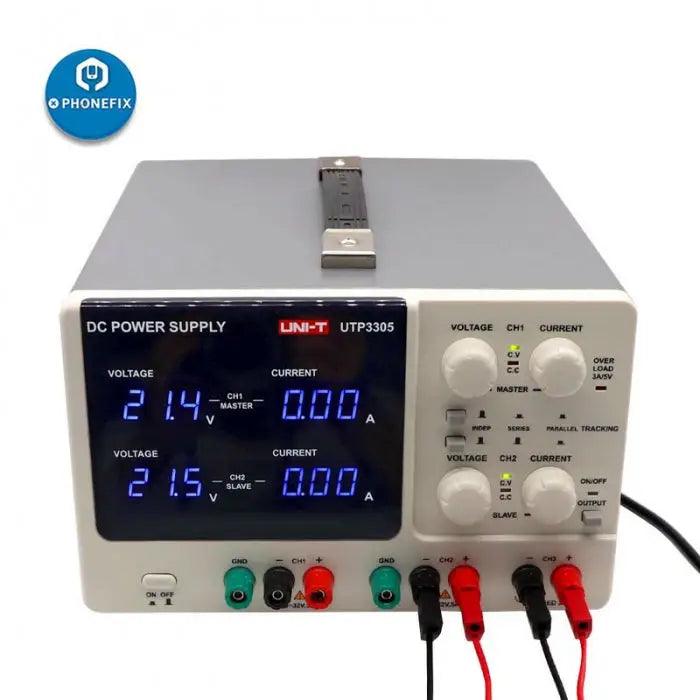

Note: UNI-T UTP3305 has been discontinued, now it's the upgraded version UNI-T UTP3305-II.

Parameters:
Model: UTP3305-II.
Output voltage: CH1/CH2: 0-32V, CH3: 5V.
Output current: CH1/CH2: 0-5A, CH3: 3A.
Output power: 335W.
Load regulation: CV<0.01%+3mV，CC≤0.2%+3mA.
Ripple and noise: CV≤1mVrms; CC≤3mArms.
Output regulates resolution CV: 10mV (typical), CC: 1mA (typical).
Tracking bias: ±(0.1% of reading+30mV).
CC:±(0.3% of reading+10mA).
Reliability MTBF(e): ≥2000hrs.

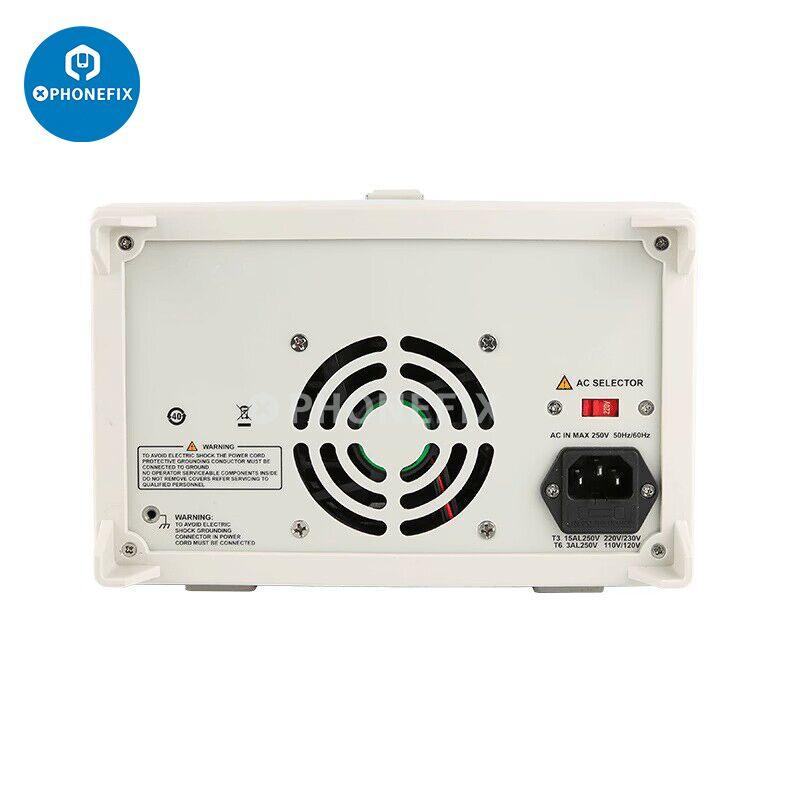

Power Input voltage: 115V AC/230V AC; Frequency: 47Hz-63Hz.
Product color: White and grey.
Product size (W×H×D) 319mm×146mm×226mm.
Product net weight 10.5kg.

Features:
1. High-precision four-digit voltage and current display, 10mV/1mA.
2. Low rippleise.
3. Constant voltage/current, OVP, OCP, OTP, reverse polarity protection.
4. Parallelries output function.
5. Output on/off control.
6. Intelligent temperature control fan.
7. Display 4 windows, LED.
8. Display mode 4-bit voltage and current dual display.
9. CH1 and CH2 master-slave tracking in series.
10. UNI-T UTP3305-II Three-channel linear DC power supply featuring tracking, constant voltage/current, series/parallel output, temperature controlled cooling fan, and over voltage/current protection.
