UNI-T UTP1310 32V / 10A 4-Digits Display Adjustable DC Regulator Power Supply with LED 4 digits display screen and 8 USB ports for mobile phone, iPad, MacBook, other electronic devices repair.

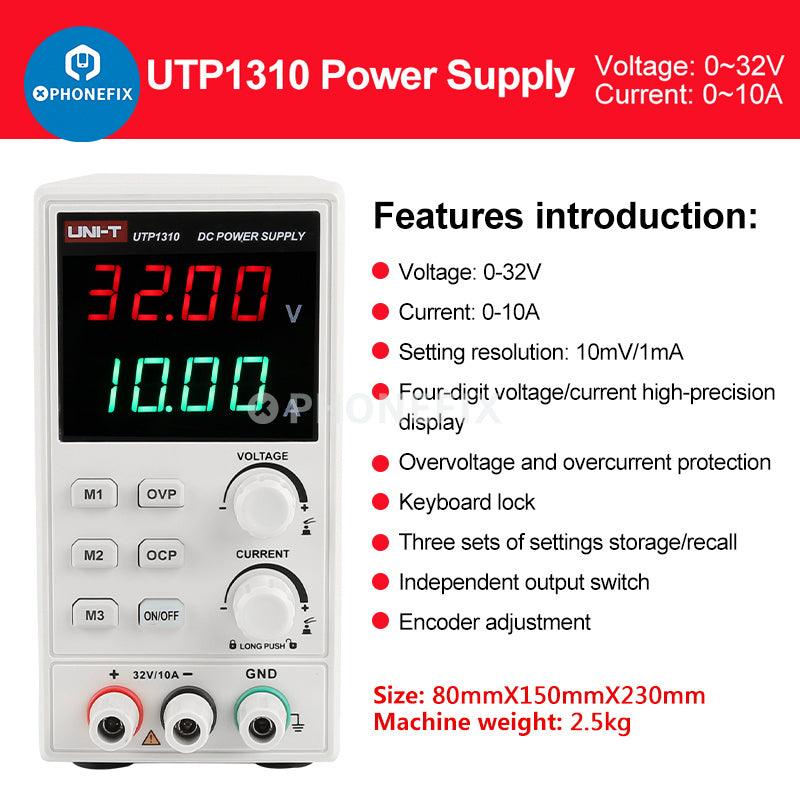

Features:

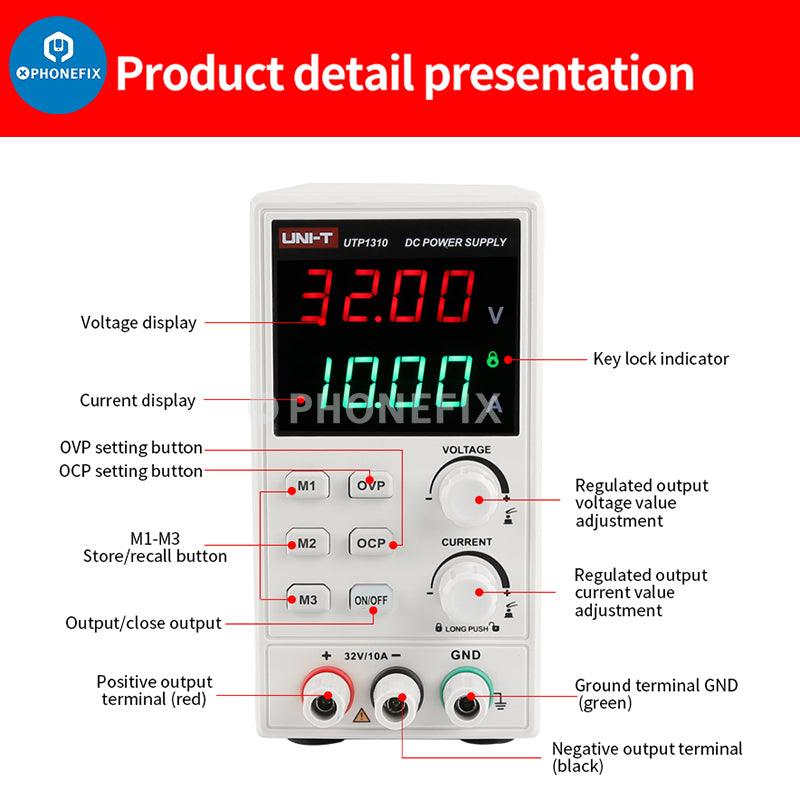

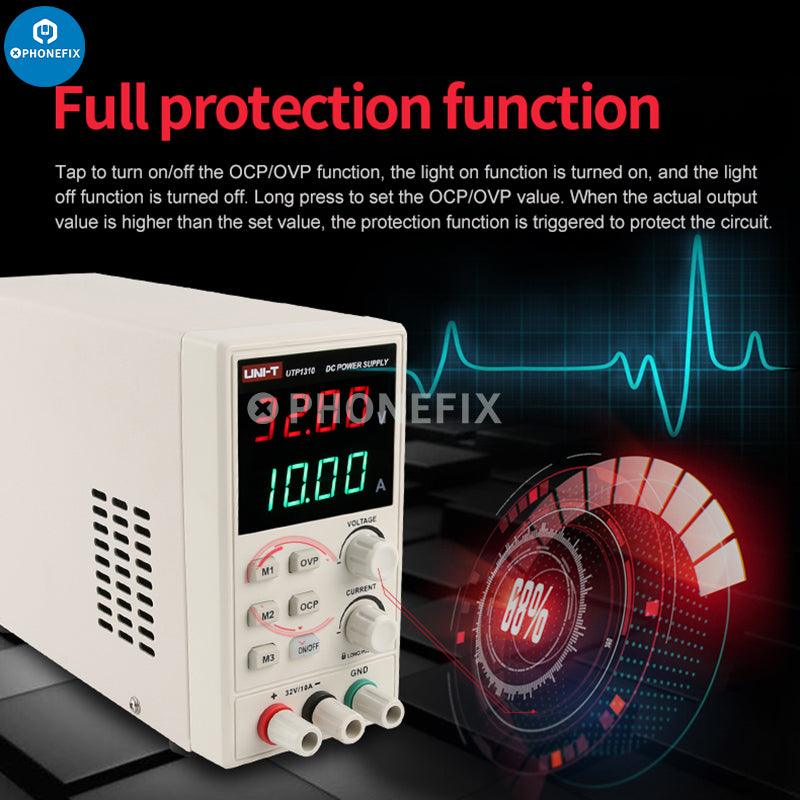

- The OCP/OVP function can be turned on/off with a tap, and the OCP/OVP value can be set with a long press.
- It is an economical DC power supply, with a four-digit large screen display that shows clear numbers for the current voltage.
- Long press the current adjustment knob can unlock/lock the button, and the key lock mode only allows the ON/OFF button to be used.
- The UTP1310 has overvoltage/overcurrent/over temperature protection functions, as well as three sets of stored values. There are three groups of storage/retrieve data, with "M1-M3" store/recall buttons.
- The protection function is triggered when the actual output value is higher than the set value, and the independent output switch ensures stable output with pure output and excellent performance indicators.

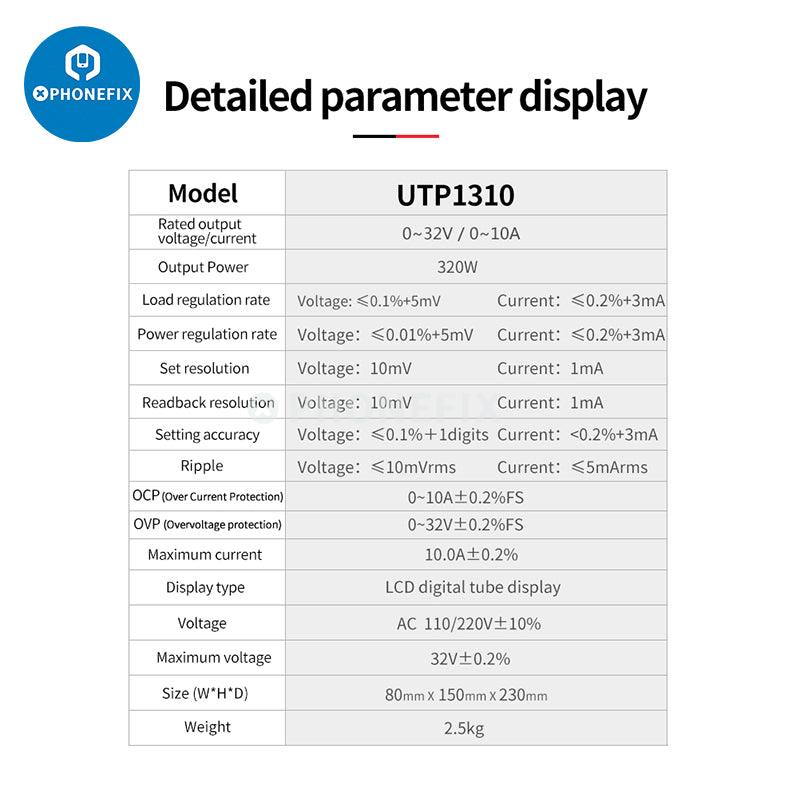

Specifications:
- Model: UTP1310
- Rated output voltage/current: 0~32V/0~10A
- Output Power: 320W
- Load regulation rate: Voltage:≤0.1%+5mV; Current:≤0.2%+3mA
- Power regulation rate: Voltage:≤0.01%+5mV; Current:≤0.2%+3mA
- Set resolution: Voltage: 10mV; Current: 1mA
- Readback resolution: Voltage: 10mV; Current: 1mA
- Setting accuracy: Voltage:<0.1%+1digits; Current:<0.2%+3mA
- Ripple: Voltage:≤10 mVrms; Current:≤5mArms
- OCP(Over Current Protection): 0~10A±0.2%FS
- OVP(Overvoltage protection): 0~32V±0.2%FS
- Maximum current: 10.0A±0.2%
- Display type: LCD digital tube display
- Voltage: AC110/220V±10%
- Maximum voltage: 32V±0.2%

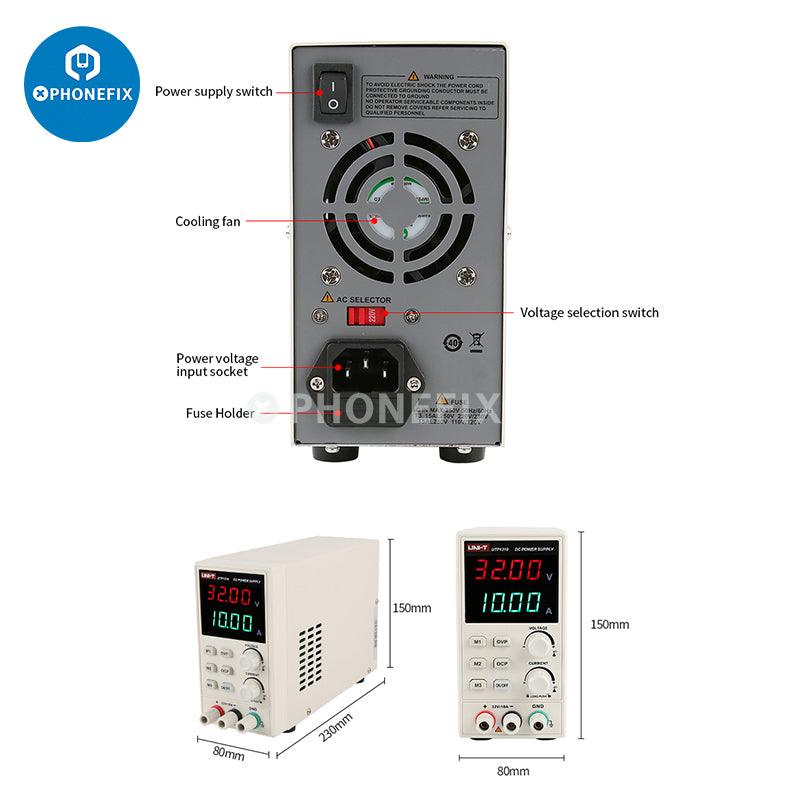

- Size(W*H*D): 80*150*230mm
- Weight: 2.5kg

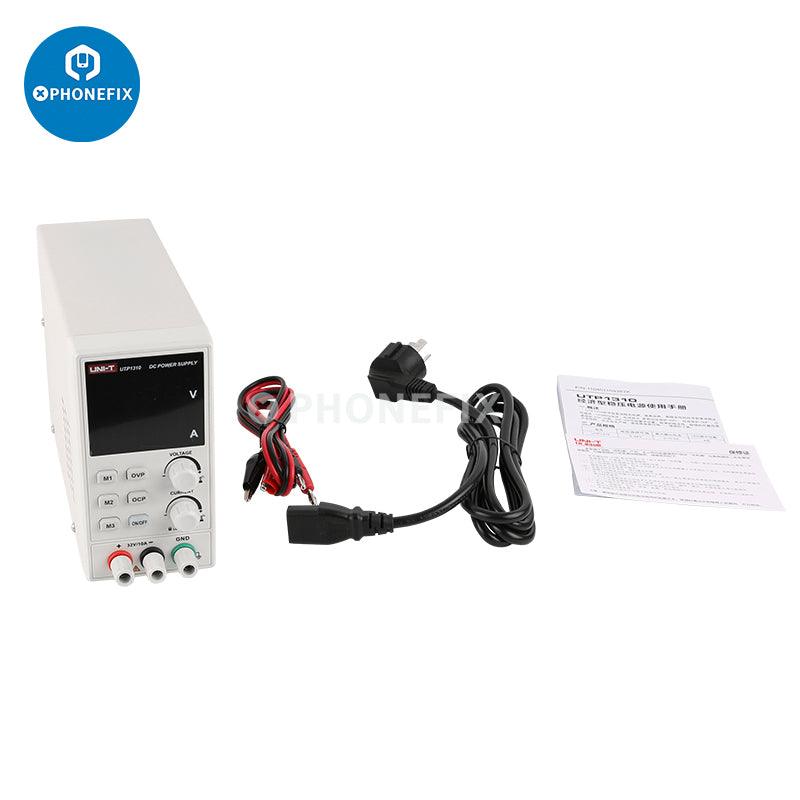

Package Includes:
- 1 x Power Supply
- 1 x Power Cable
- 1 x Test Line
