Description

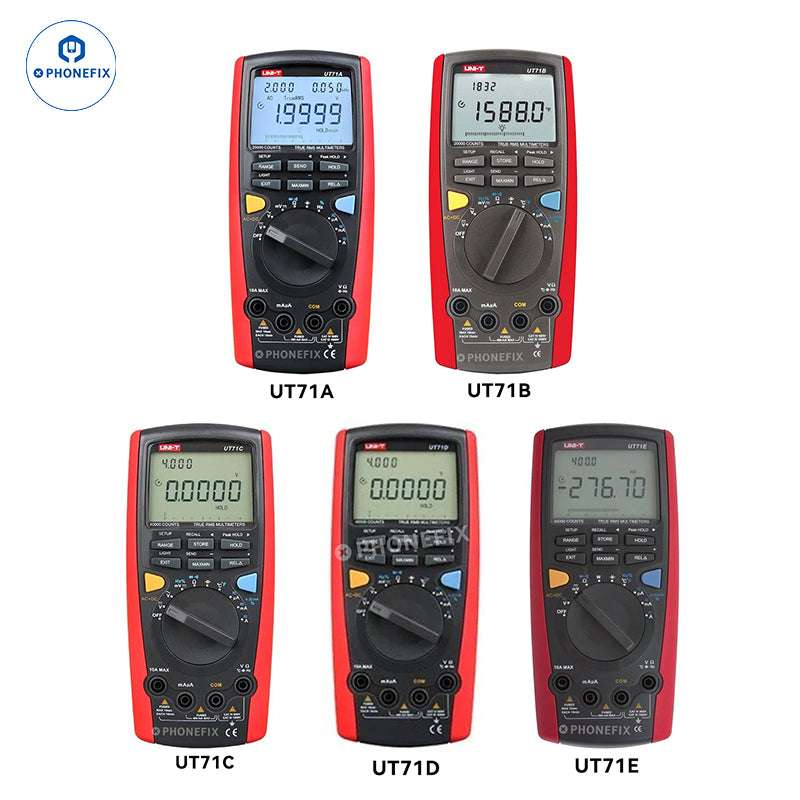

UNI-T UT71A UT71B UT71C UT71D UT71E intelligent digital multimeter AC/DC current voltage USB interface true RMS Auto Range tester, suitable for mobile phone and electronic repair. 20Hz-400MHz frequency, LCD backlight automatic and manual range optional, quickly solve complex problems in electronics, factory automation, power distribution and electronic engineering equipment.
Features:

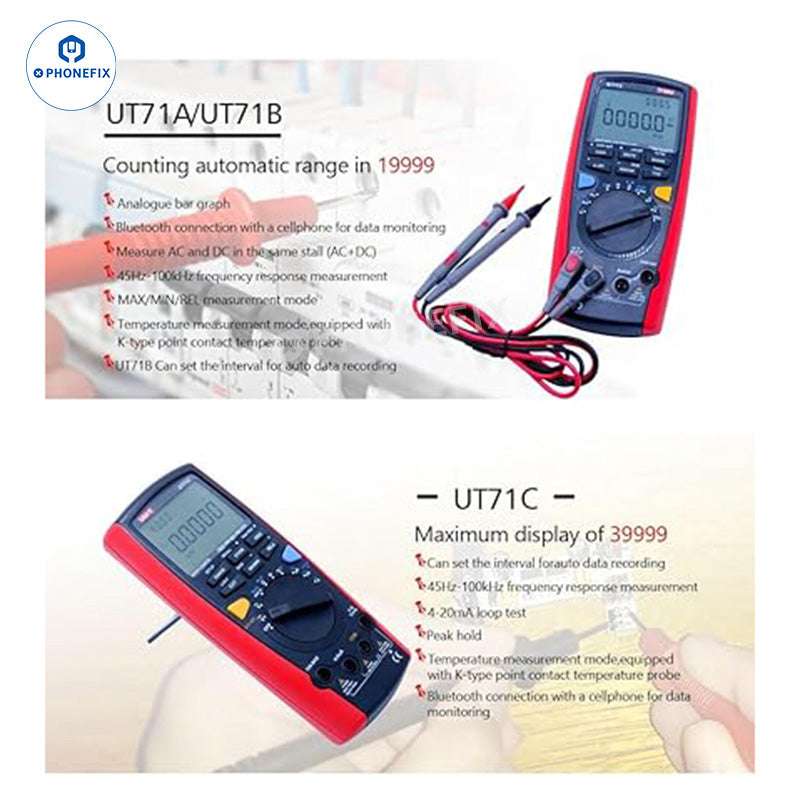

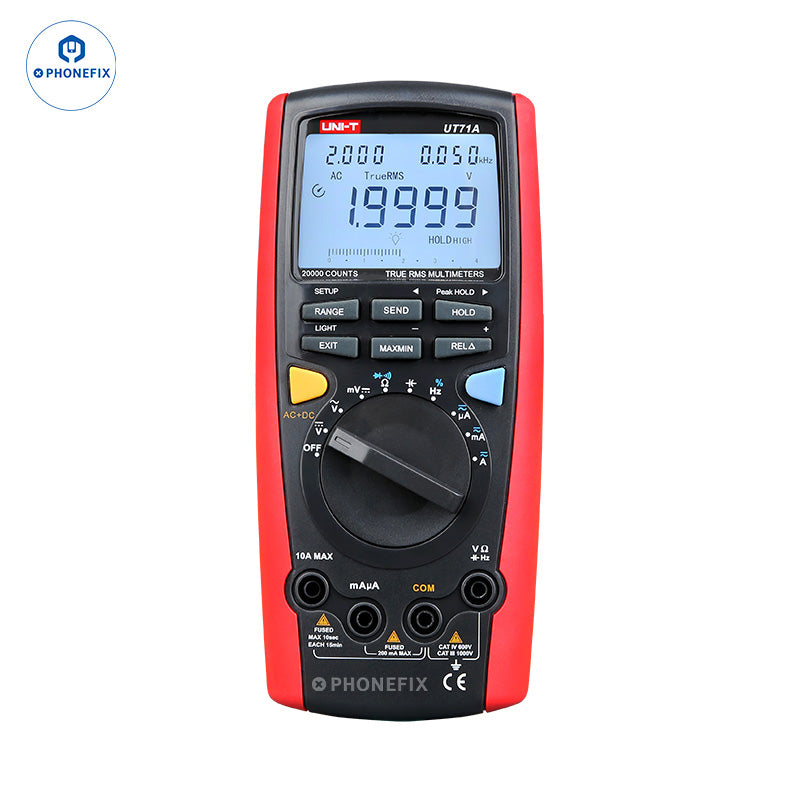

1. Digital Mutltimeter UT71A/B is a 20000 counts and 4 1/2 digits.
2. Digital Mutimeter UT71C/D/E is a 40000 counts and 4 3/4 digits.
3. UT71 series is a true RMS auto-range multifunction multimeter with dual backlight display.
4. Instruments with stable operation, stylish structure and auto-range. Can not only measure AC voltage and current, DC voltage and current, resistance, capacitance, temperature, frequency.
5. MAX/MIN/REL mode with data storage, data call, AC true RMS.
5. Auto and manual range optional.
Characteristics:
Power: 9V battery (6F22).
Display: 73mmx50mm.
Color: Red and grey.
Net weight: 384g.

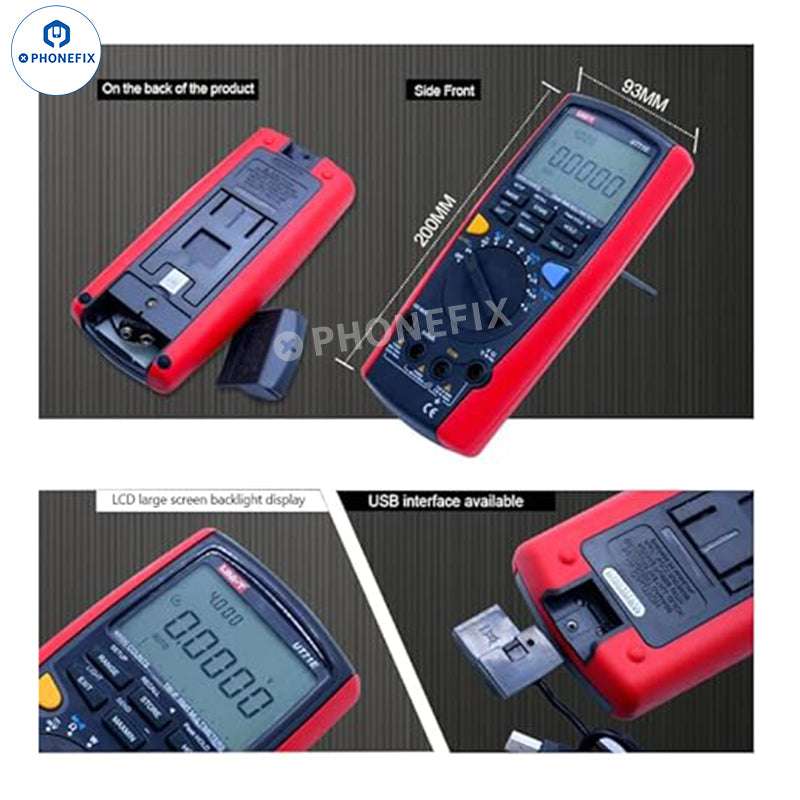

Product sizel: 200x93x40mm.
Standard individual packing: Gift box, English manual.
Standard quantity per carton: 10pcs.
Standard carton measurement:
UT71A/UT71B/UT71C/UT71D: 515x380x205mm.
UT71E: 540x360x275mm.
Standard carton gross weight:
UT71A/UT71B/UT71C/UT71D: 9kg.
UT71E: 12.5kg.

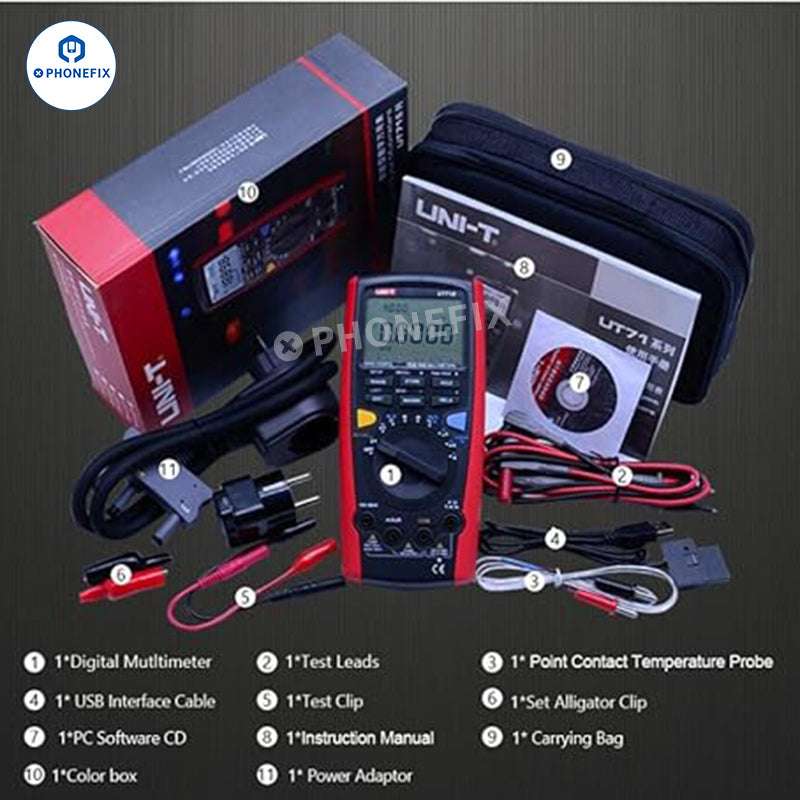

Packing List:
1x Digital Mutltimeter.
1x Test Leads.
1x Point Contact Temperature Probe.
1x USB Interface Cable.
1x Test Clip.
1x Set Alligtor Clip.
1x PC Software CD.
1x Instruction Manual.
1x Carrying Bag.
1x Color box.
1x Power Adaptor.
Specifications of UT71 Series Intelligent Digital Multimeters:
