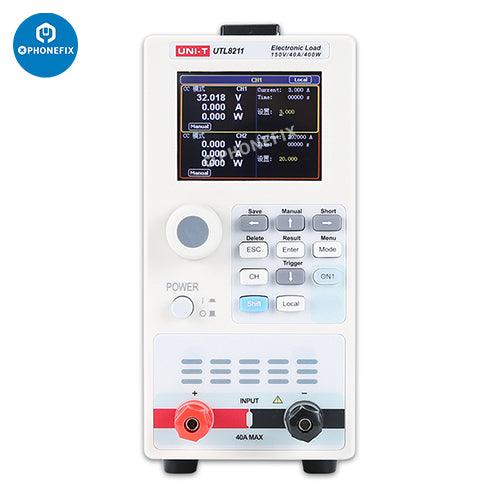

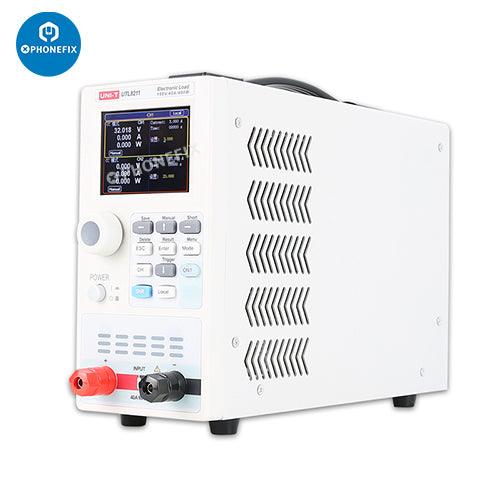

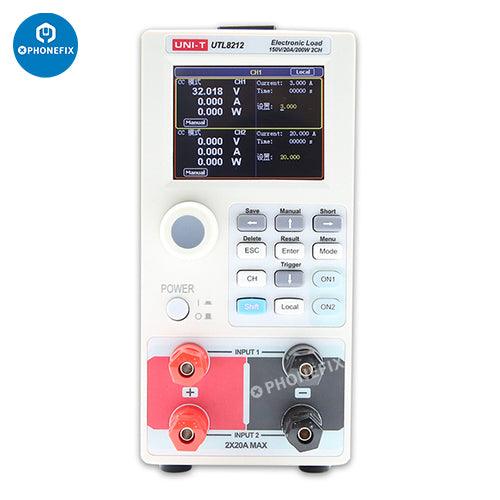

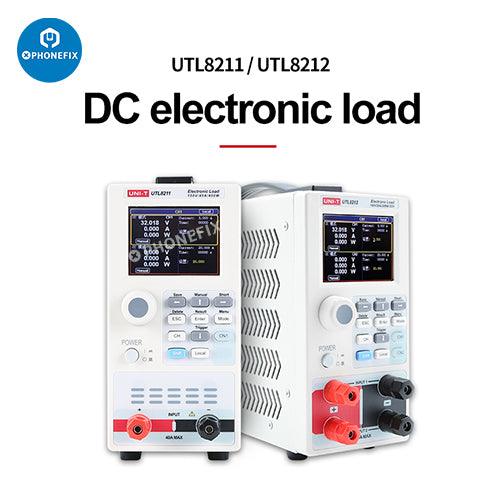

UNI-T Series UTL8211 UTL8212 150V 20A Electronic Load Programmable Digital DC Load Mobile Phone Battery Tester Power Supply Current Test Tool.
Features:
- The UTL8200 Series is designed for users requiring a DC load with a compact form factor which is widely used in basic applications.
-
Small size with a 2.8-inch large screen LCD display, easy operation, rich testing functions and modes: It is made for dual-channel independent testing, and meets your diversified test requirements.
-
A wide range of power measurement: voltage and current measurement speed up to 40kHz, test resolution up to 1mV/1mA,the UTL8200 series is a cost-effective DC load with performance specifications that rival any instrument in its class.
-
Multiple protection functions: Various protections such as over voltage, low voltage, over current, over power, over heat, anti-reverse connection, etc.
-

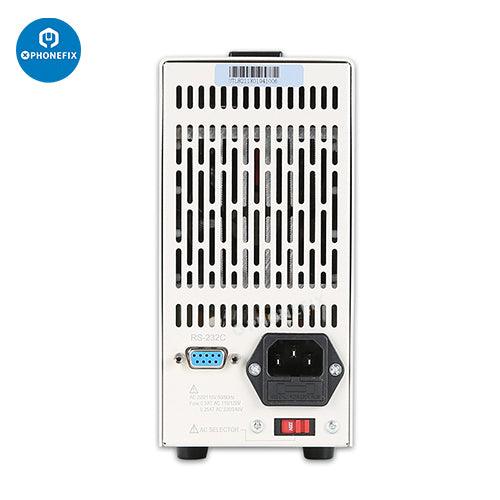

RS-232C communication interface, intelligent temperature control fan, new power-off memory function: the interface supports PC software to realize remote operation; the control fan can effectively reduce noise and help prevent the instrument from overheating; power-off memory: power on again to restore the last saved setting value.
-
Built-in 7 test working modes: CC/CV/CR/CP/dynamic/list/battery modes.
Product Parameters:
- Test resolution: 1mV/1mA
- Voltage test range: 0~150V
- Current test range: 0~40A (UTL8211), 0~20A (UTL8212)
- Power test range: 0~400W (UTL8211), 0~200W (UTL8212)
