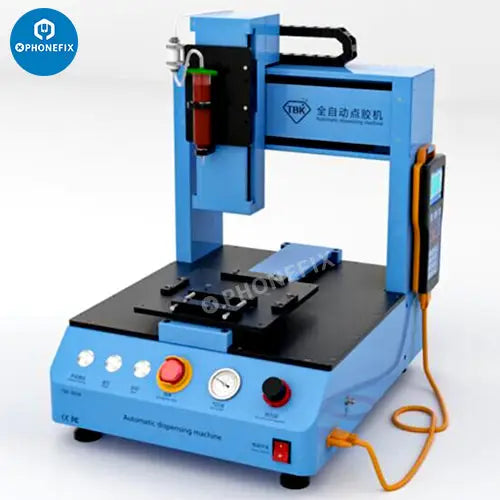

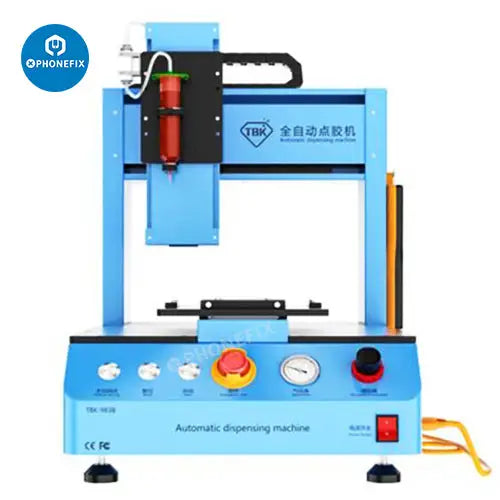

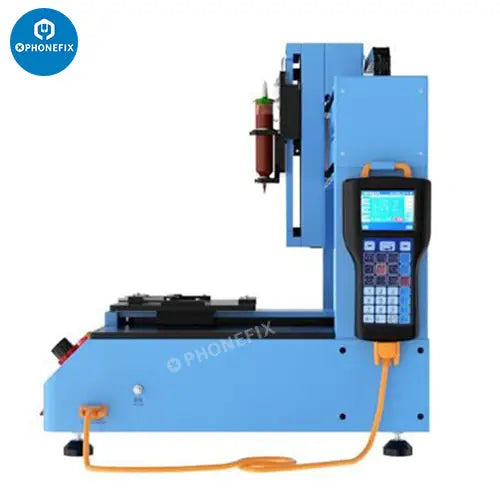

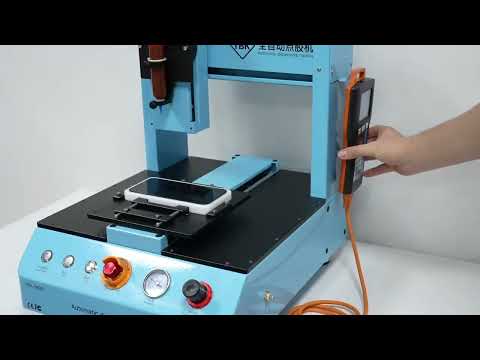

TBK-983B Automatic Glue Dispenser Machine Glue Dispensing Tool

Save $53.44
PHONEFIXSKU: TBK983B

Price:
Login to view price

Shipping calculated at checkout

Stock:
In stock

Description

TBK-983B Multifunction Automatic Glue Dispenser Machine Automatic Glue Dispenser Machine Suitable UV Glue/PUR Hot Melt Adhesive/Solder Paste For Mobile Phone PCB Board Dispenser.

Features:
  • Full automatic dispensing machine, suitable for gluing various dispensing products.
  • The dispensing accuracy is 0.02MM and the dispensing amount is 0.01ML.

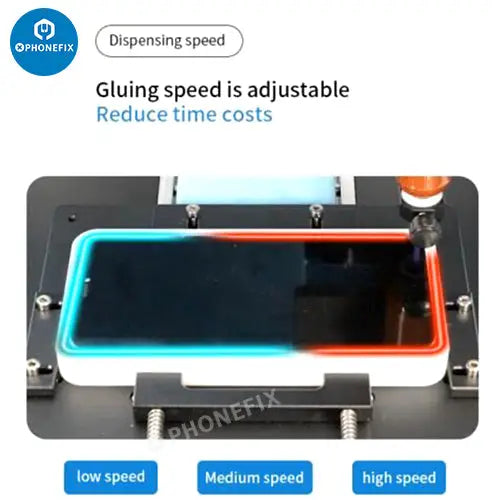

  • The size, thickness, and speed of glue can be adjusted, and powerful process control, no wire drawing, no glue leakage, no glue dripping.

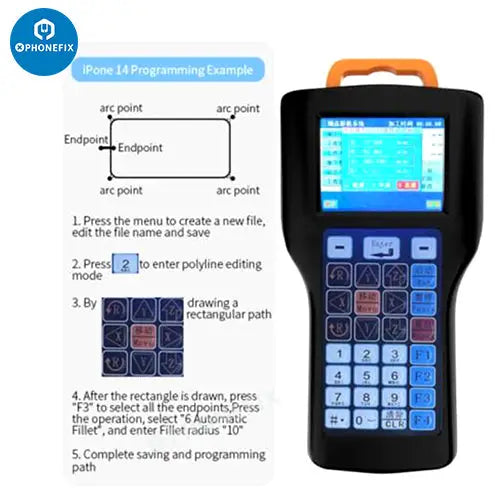

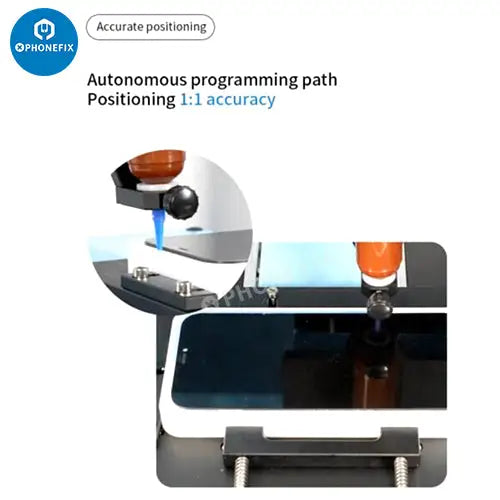

  • Autonomous programming path, positioning 1:1 accuracy.

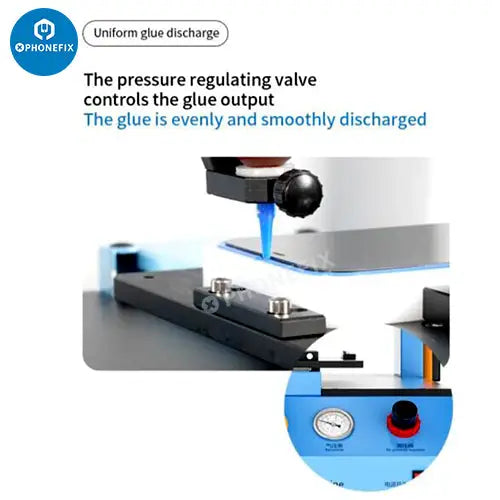

  • The pressure regulating valve controls the glue output, the glue is evenly and smoothly discharged.
  • Simple operation of autonomous programming.

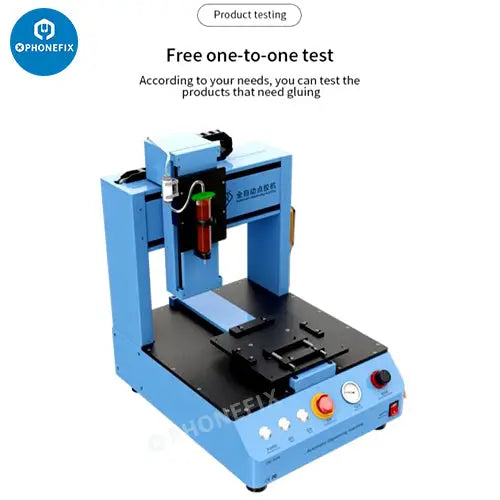

  • Free one-to-one test, according to your needs, you can test the products that need gluing.

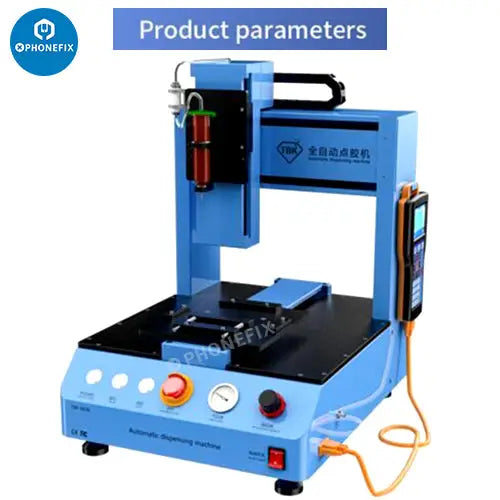

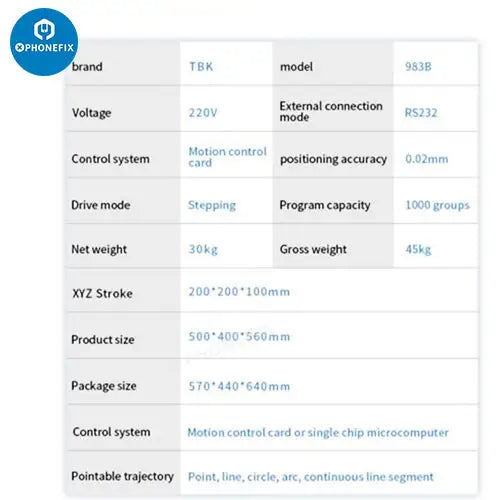

Specification:
Brand: TBK
Model: 983B
Voltage: 110V/220V
External connection mode: RS232
Control system: Motion control card
Positioning accuracy: 0.02mm
Drive mode: Stepping
Program capacity: 1000 groups
Net weight: 30kg
Gross weight: 45kg
XYZ Stroke: 200*200*100mm
Product size: 500*400*560mm
Package size: 570*440*640mm
Control system: Motion control card or single-chip microcomputer

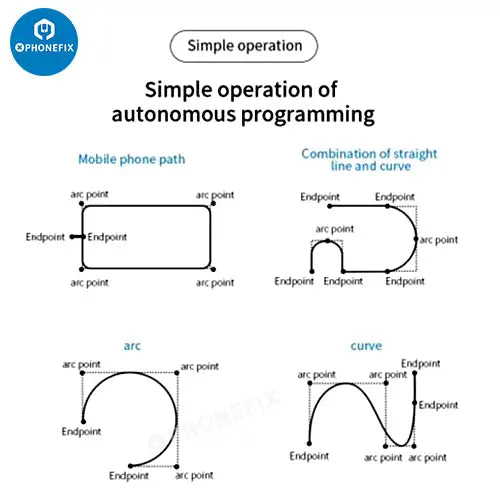

Pointable trajectory: Point, line, circle, arc, continuous line segment

Package includes:
1 x TBK-983B Automatic Dispensing Machine
1 x Power cable
