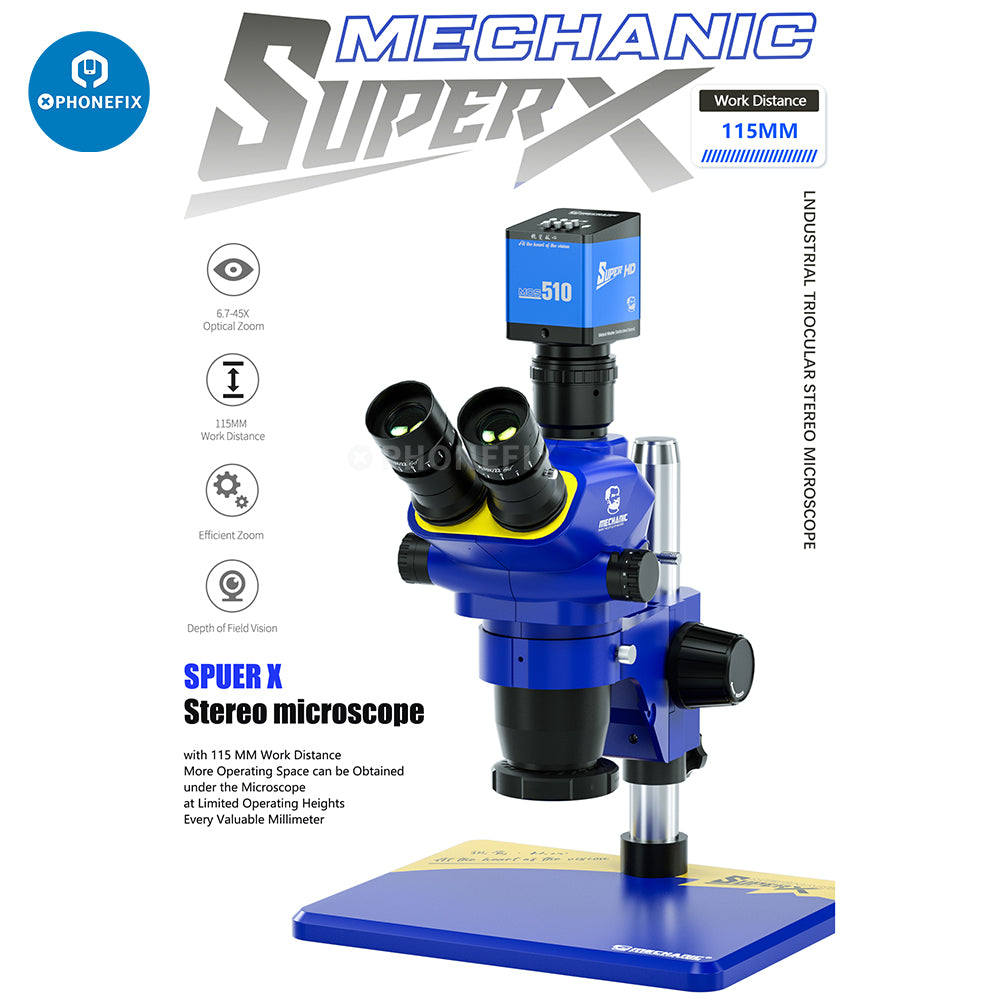

Super X-B11 6.7X-45X Trinocular Stereo Microscope Mechanic

Mechanic Super X 6.7-45X Trinocular Stereo Microscope For Mobile Phone, Watch, Laptop, Tablet, Computer And Precision Part Repair. Mechanic Super X-B11 360° rotation trinocular microscope HD imaging, video recording and measurement for electronic item motherboard PCB BGA SMD soldering repair, biological observation, jewelry art observation, academic research, item quality inspection, etc.

Mechanic Super X 6.7X-45X Trinocular Microscope Features:
1. 6.7X-45X continuous zoom, synchronous trinocular microscope, objective magnification ratio 1:6.7, ensure image alignment.

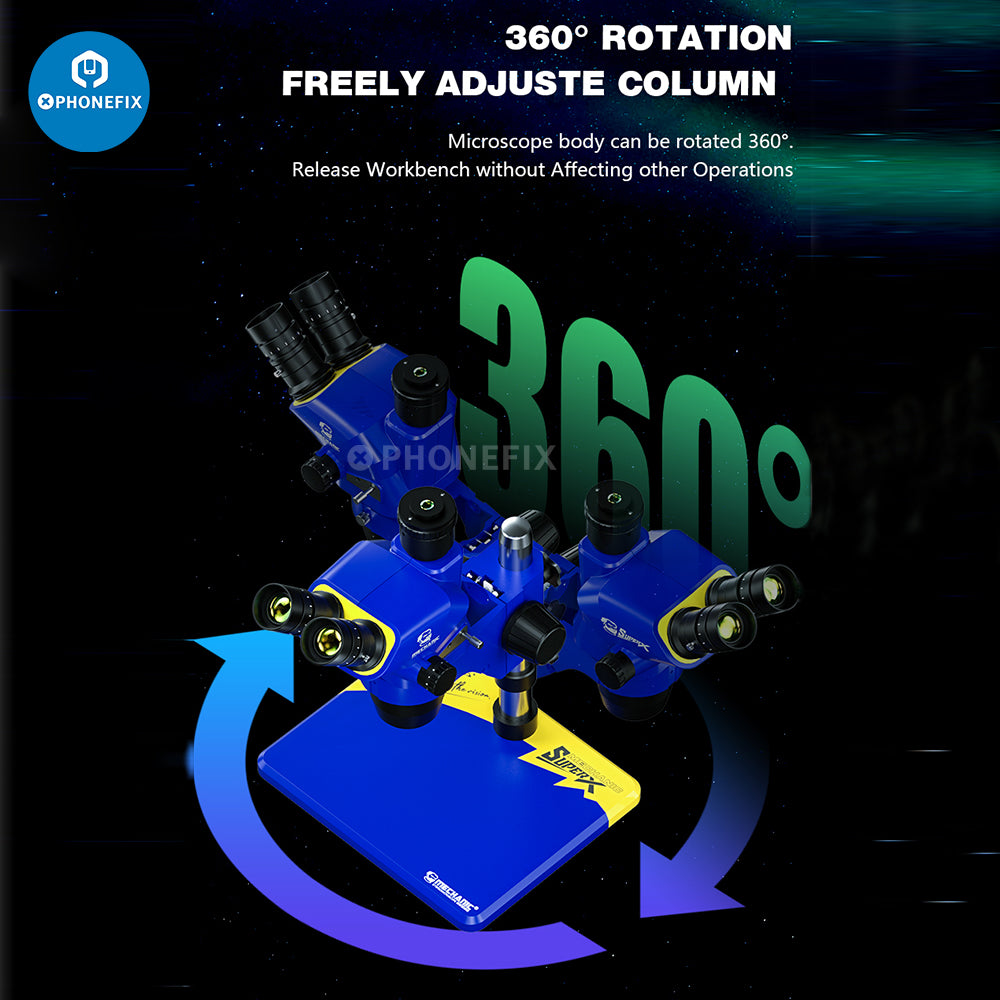

2. The microscope head can be tilted 45° and rotated 360°, the interpupillary distance adjustment range is 52-76mm.
3. Built-in interlocking mechanism, fixed eyepiece barrel, with fixed magnification mechanism and magnification limit function design.
4. High-definition optical objective lens, focus adjustment arm.
5. High eye point large and flat field eyepiece PL10X/20mm with adjustable visual field.
6. LED lamp height adjustment, adjustable brightness size, spotlight does not leave a shadow, low power safety quality.
7. Standard with B11 column type large plate, other mats optional.

Mechanic Super X Parameters:
Microscope Head: 45-Degree Inclined, 360-Degree rotate, pupil distance 52-76mm, bilateral visual adjustment ±5.
Magnification: 6.7X to 45X Continuous Zoom.
Standard Eyepiece: WF10X/22, two pairs of rubber eye guards.
Standard lens: dust-proof mirror.
Working Distance: 110MM(standard), with other lenses: 287mm, 217mm, 177mm, 120mm, 47mm, 26mm.
Objective: 6.7X-45X zoom range, objective magnification ratio 1:6.7, ensure image alignment.
Camera Connector(C-mount): CTV 2/5 Adapter (Monitor Eyepiece Synchronous Zoom).
Focus arm: 76mm diameter, 32mm pole size.
Base: B11 column type large base (standard), other holder base can be selected.
Illumination: LS3 LED light, other microscope ring lamps can be selected.
Optional Eyepiece: WF15X/15MM, WF20X/10MM, WF25X/9MM.
Optional Auxiliary lens: 0.3X, 0.4X, 0.5X, 0.75X, 1X, 1.5X, 2X.
Optional C-mount adapter: 0.35X, 0.5X, 0.65X, 1X, C type connector.

Option:

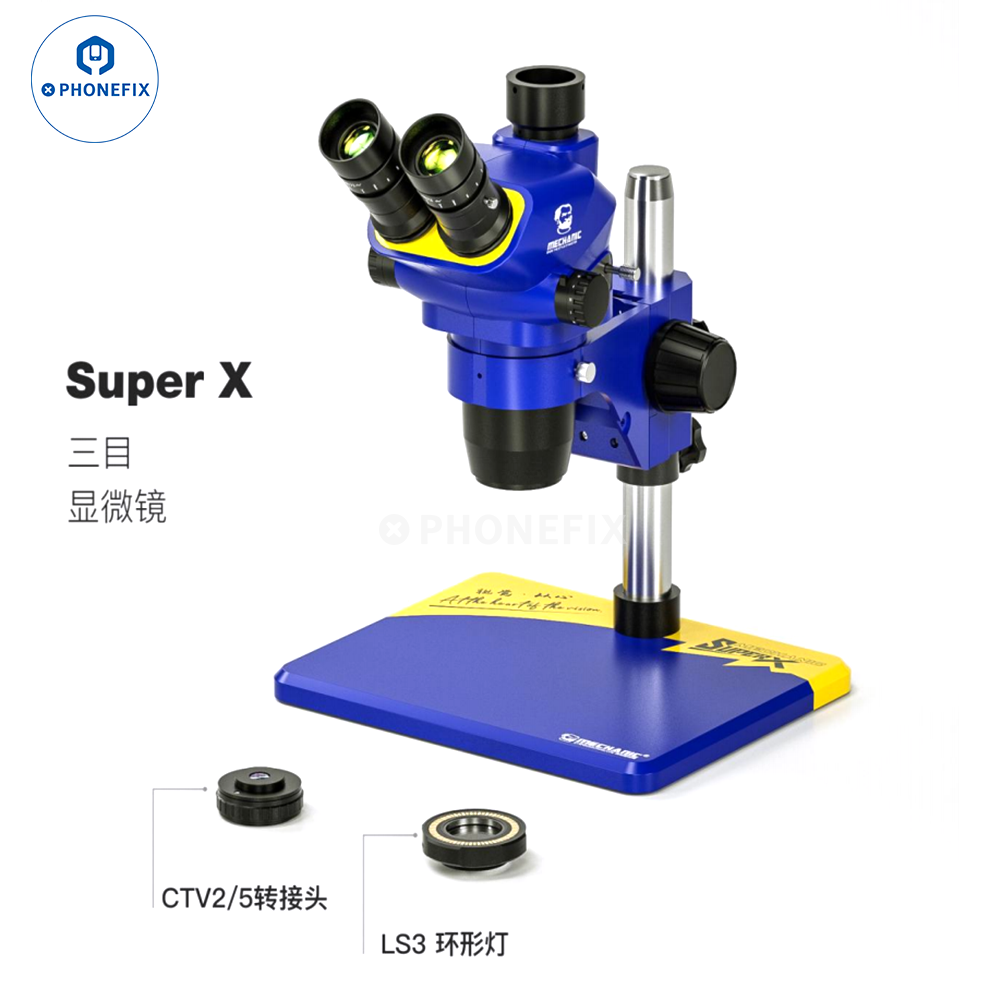

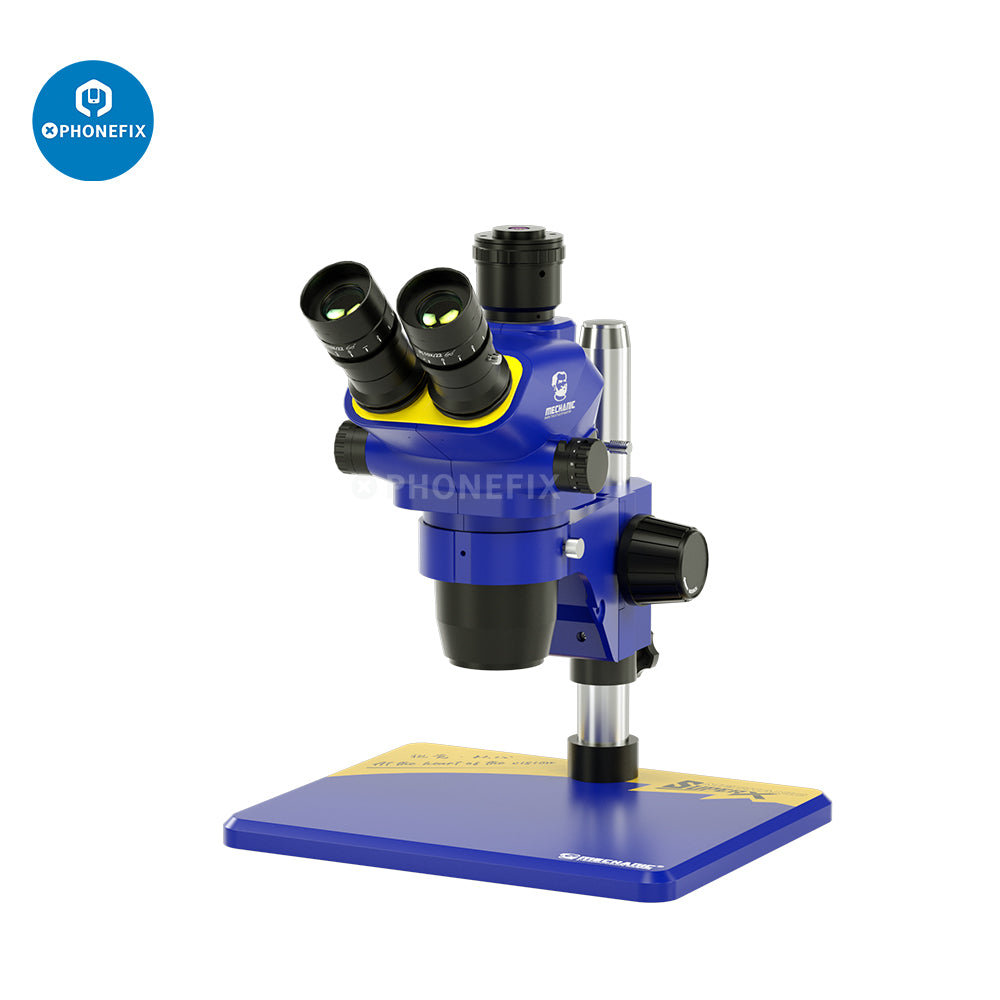

1. Mechanic Super X-B11 set: 6.7X-45X Trinocular Microscope + B11 base.

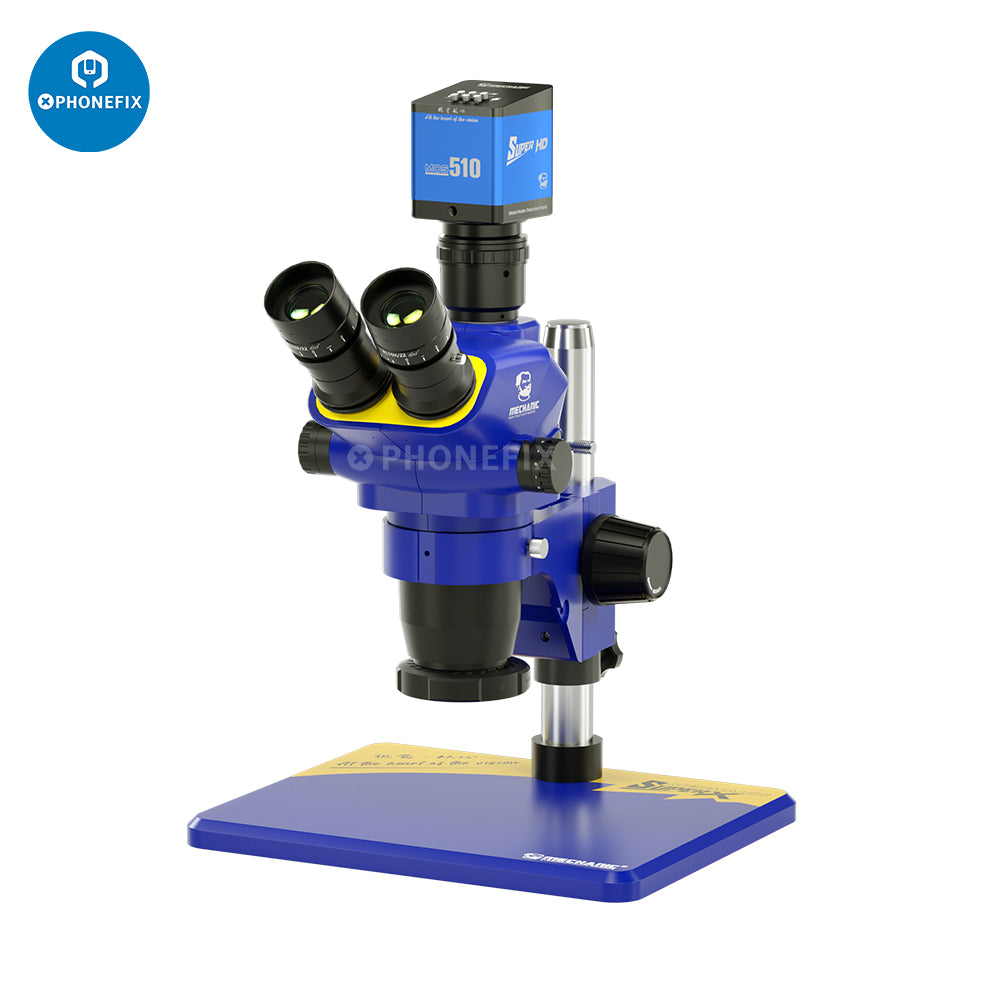

2. Mechanic Super X-B11+MOS-510 set: 6.7X-45X Trinocular Microscope + B11 base + MOS-510 camera.

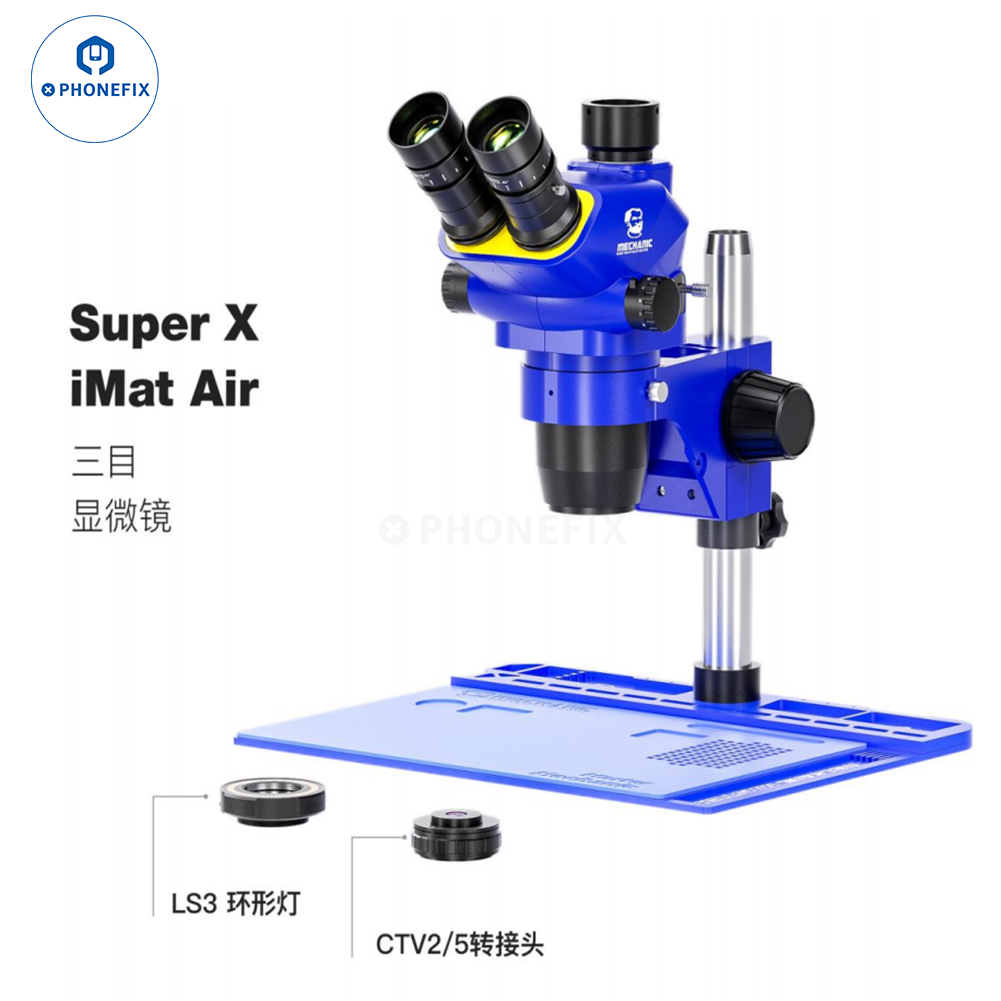

3. Mechanic Super X-iMat Air set: 7X-60X Trinocular Microscope + iMat Air Aluminum Base(380*300*16mm).
