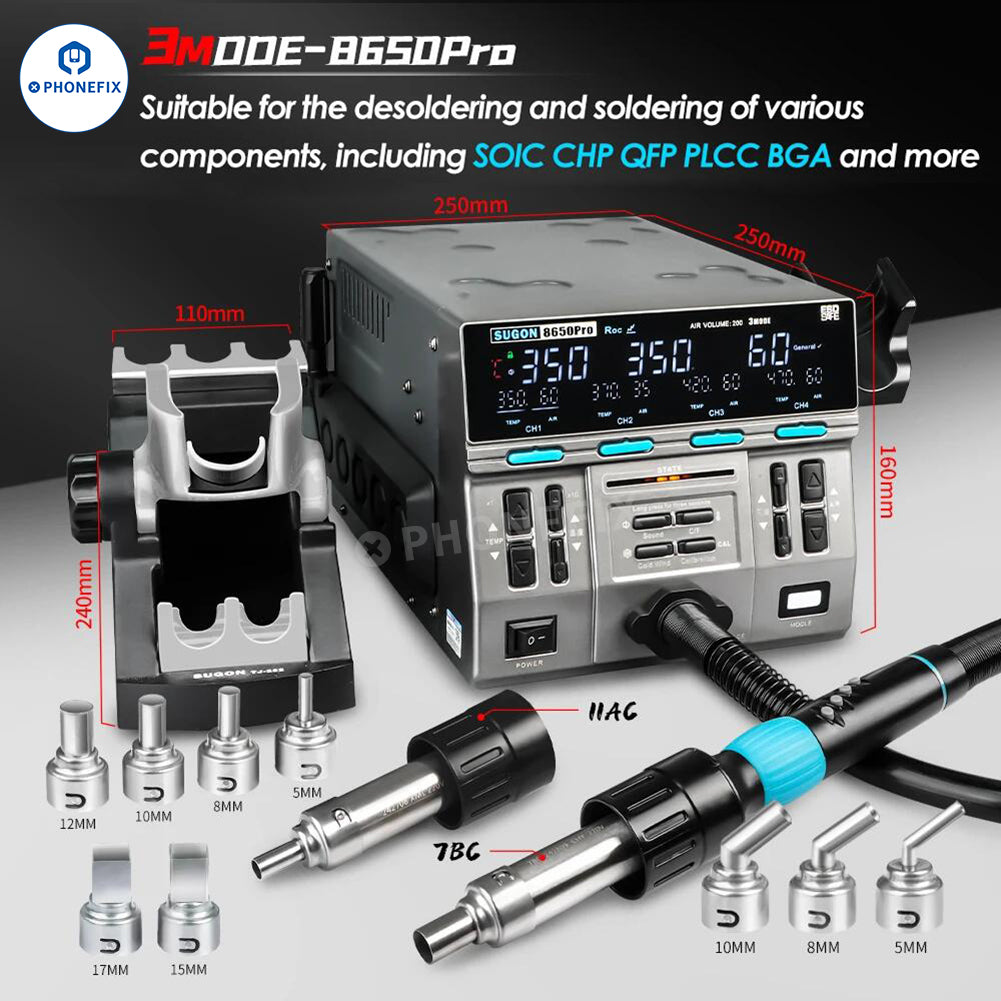

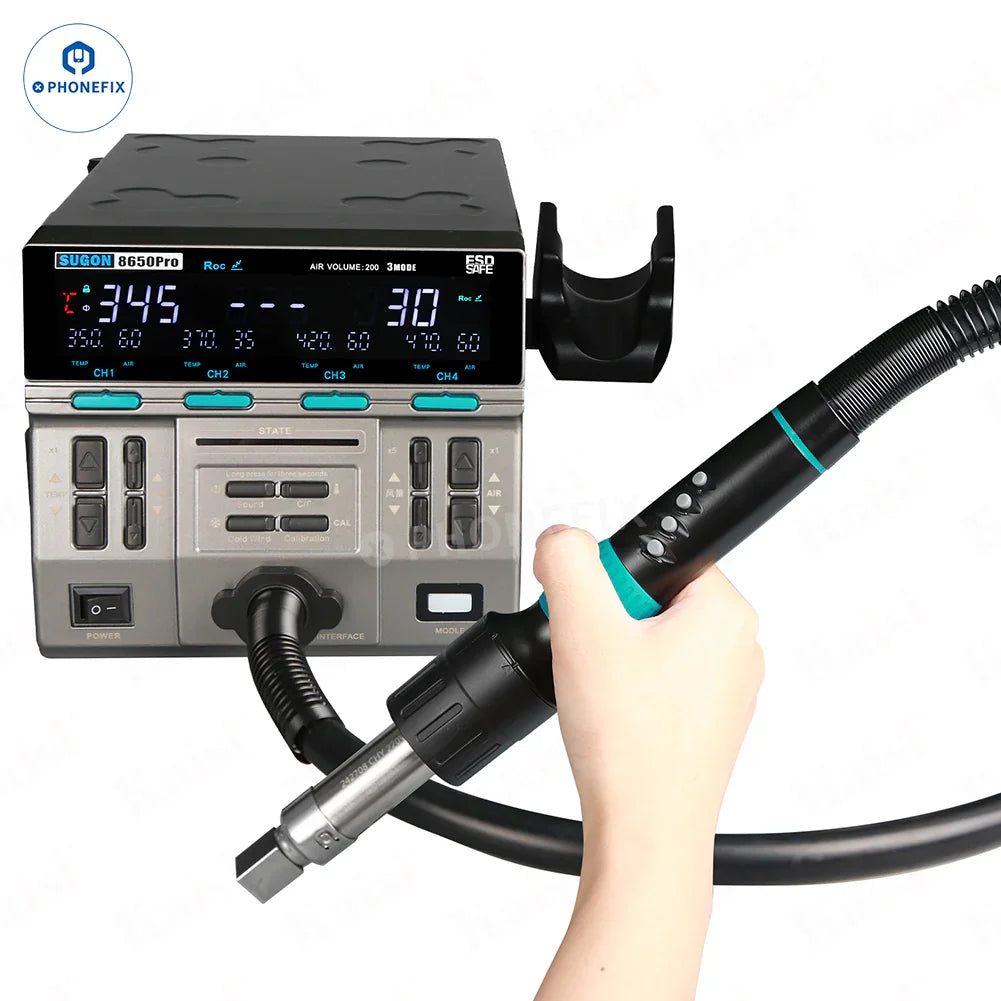

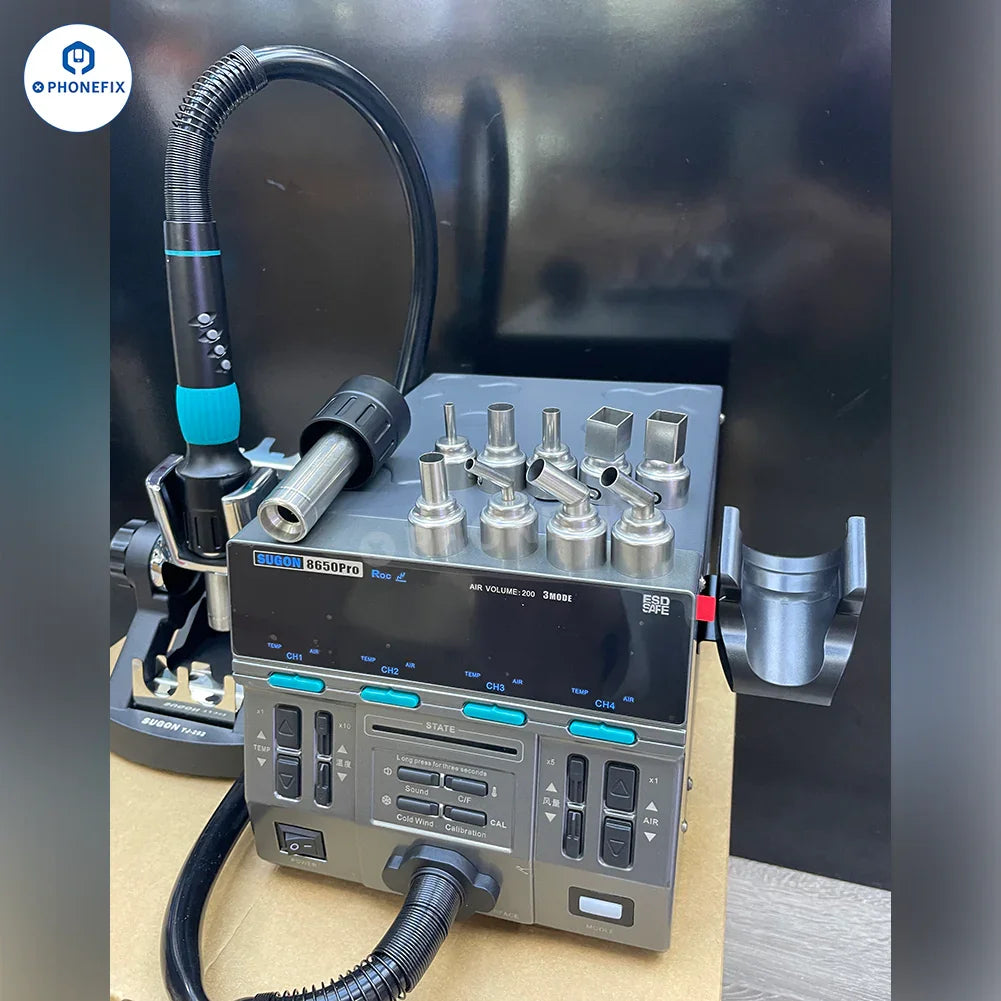

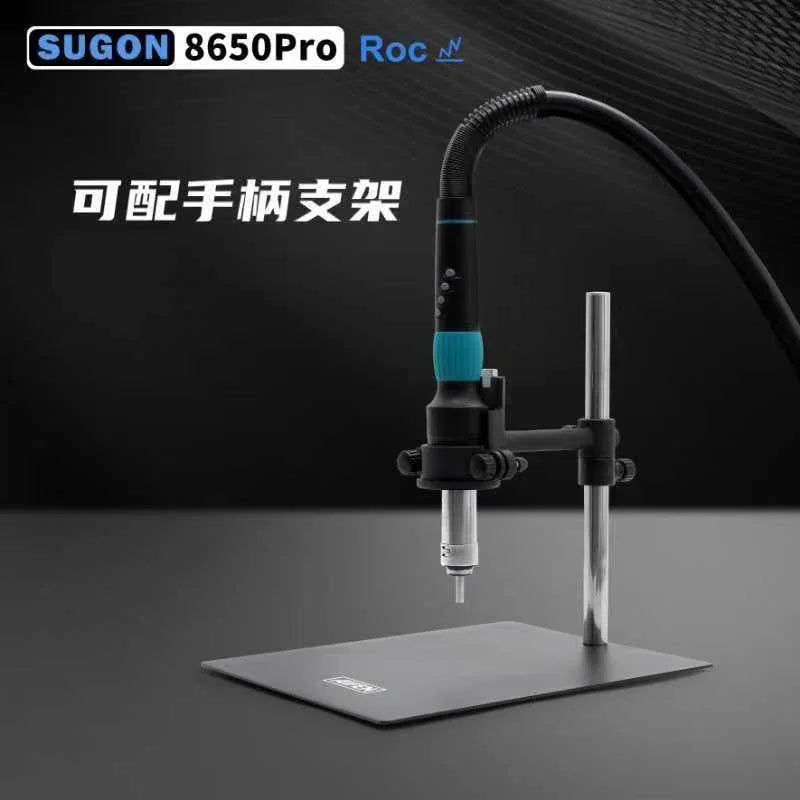

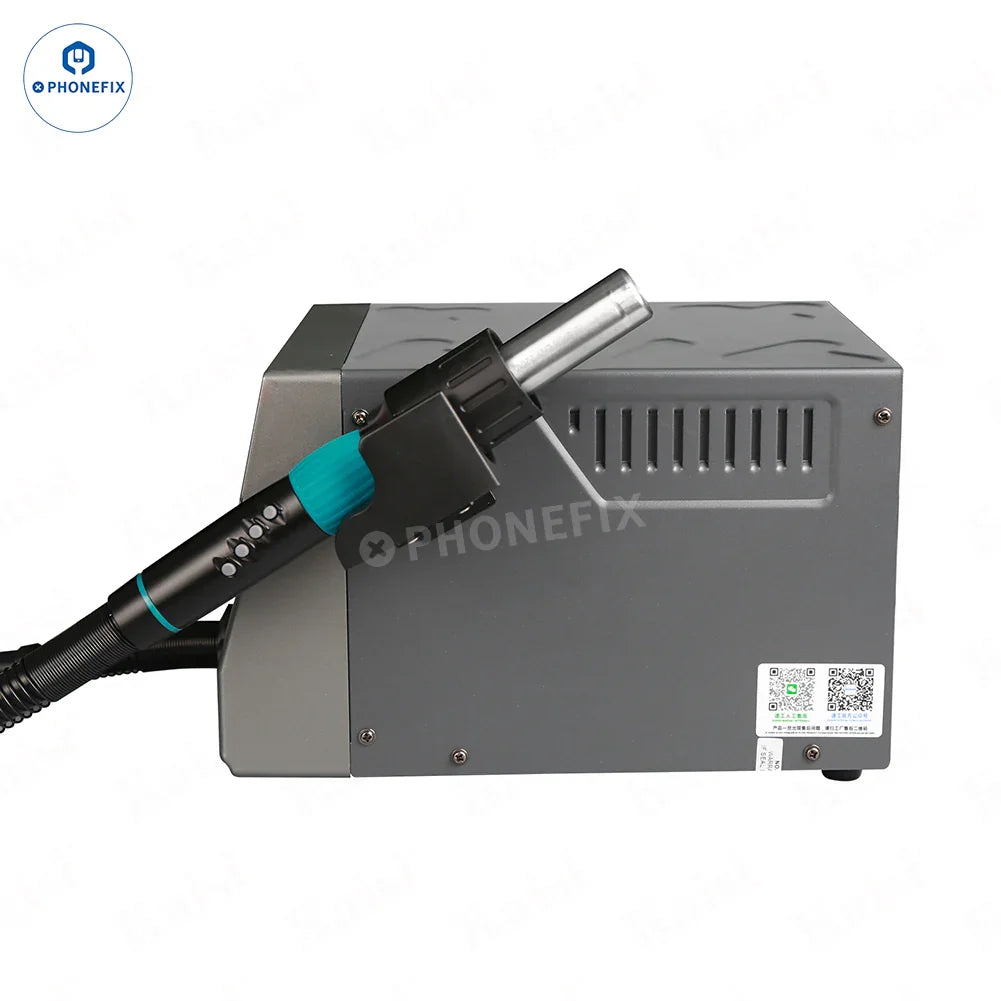

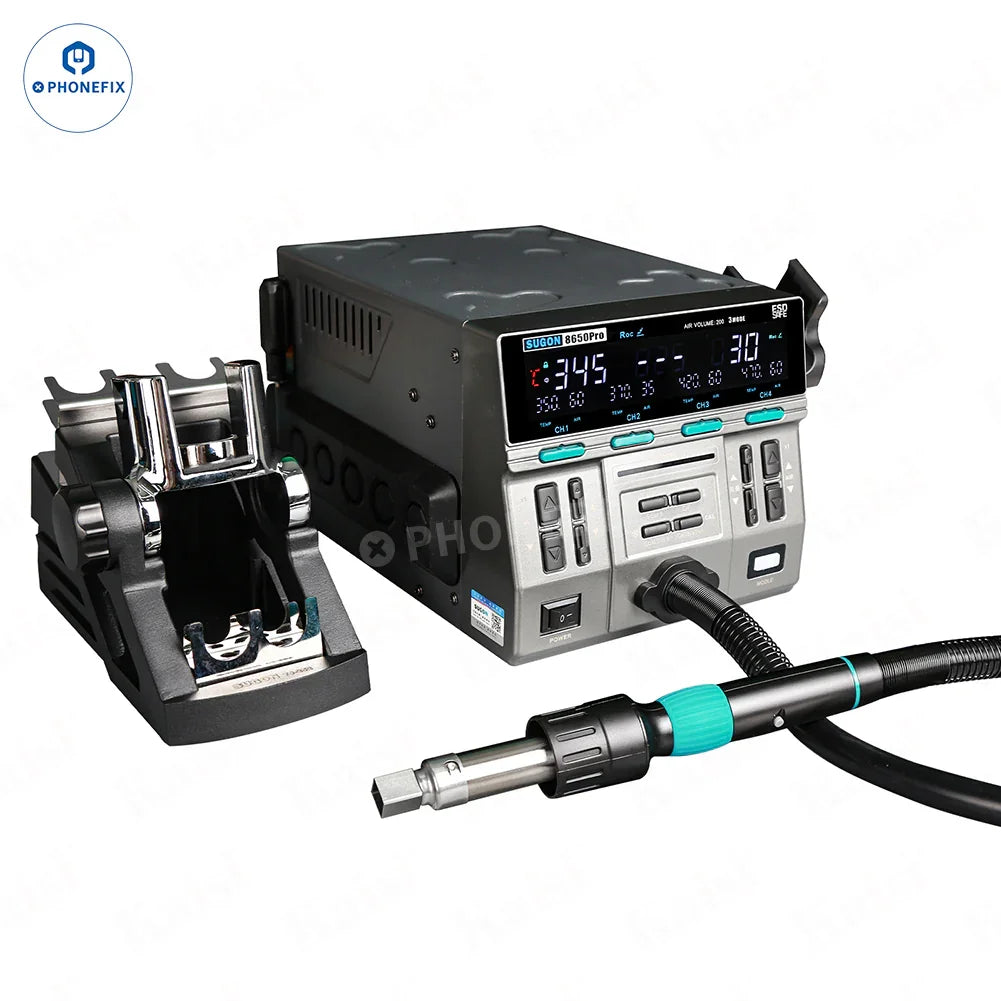

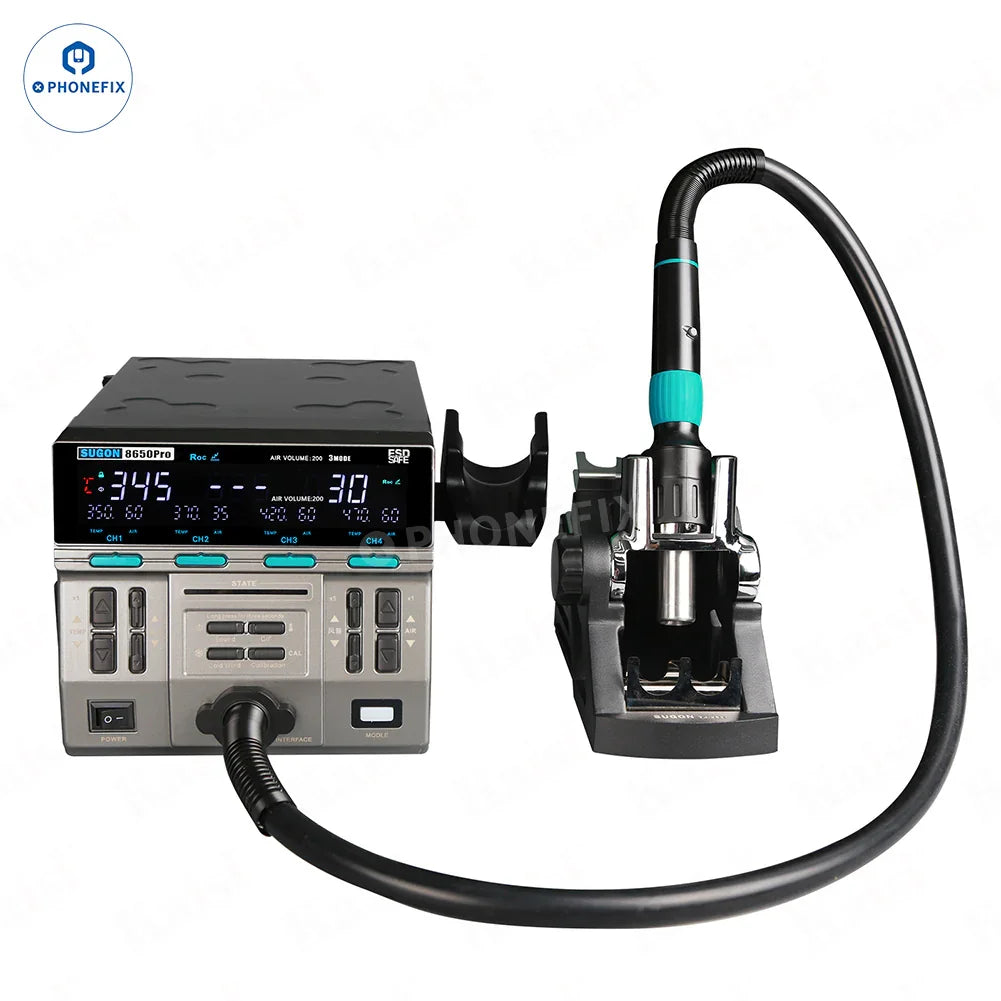

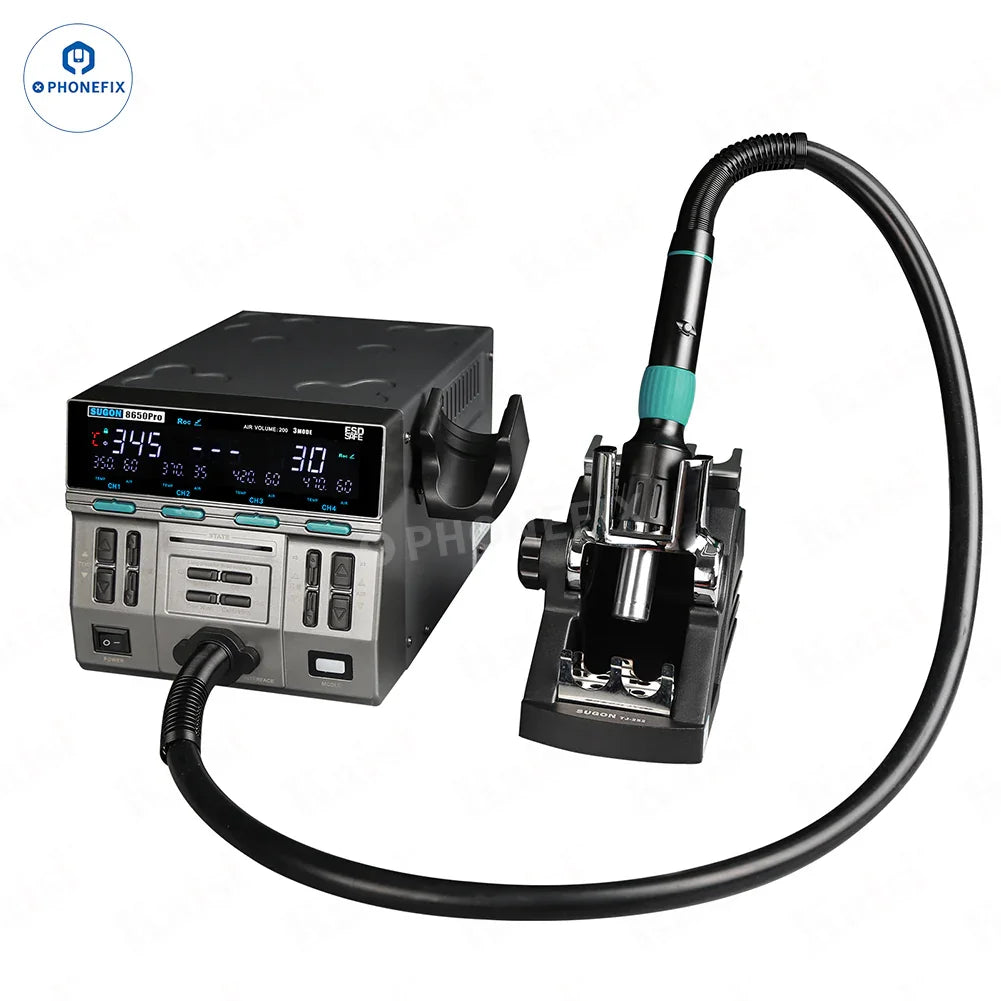

SUGON 8650 PRO 1300W Hot Air Gun upgraded the curve heating mode and 9 nozzles (straight, elbow and new square nozzle) for mobile phone PCB BGA soldering desoldering repair. SUGON 8650PRO curved heat gun digital soldering rework station upgraded version supports three heating modes, and the curved mode can be used with a bracket to free your hands.
Features:
1. SUGON 8650Pro upgraded with curve heating mode and 9 hot air nozzles, new wire control, hot-swappable heating core, more uniform air flow and higher thermal efficiency.
2. Upgraded knob heating element, no need for screws to fix, can be unlocked and replaced by hand, comes standard with one 7A and one 11b heating element each.

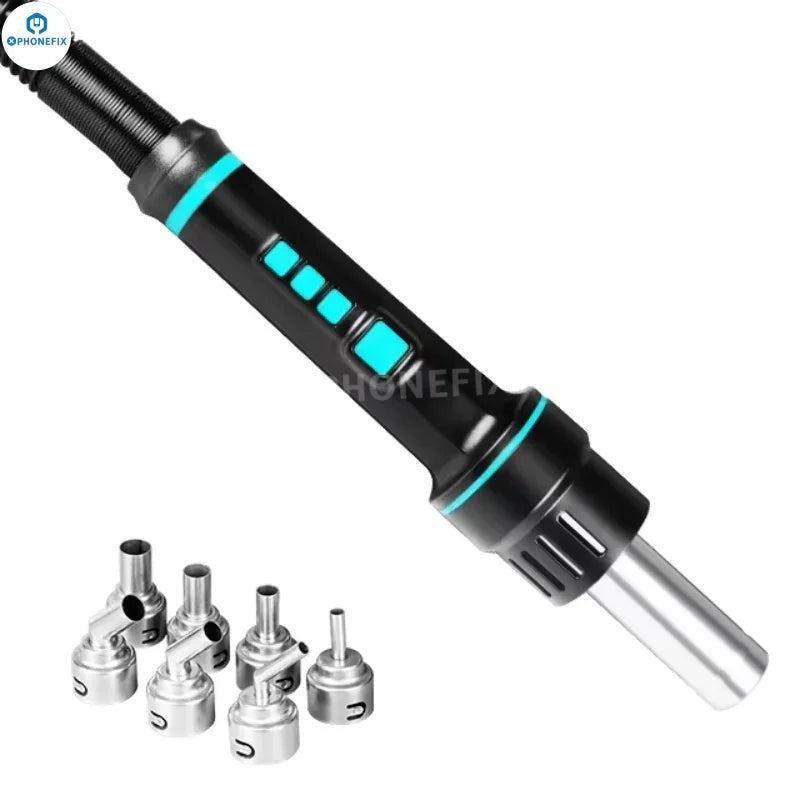

3. Upgrade the handle of the new air gun, with a significantly improved appearance compared to the original version, smaller buttons, and the addition of a wire control function while retaining the original 4 sets of working memory. 4. Specifically, in curve mode. The handle buttons ch1/ch2 are used for temperature settings, ch3/ch4 are used for air volume settings, and the cold air button is the kev to turn on the curve mode. Long press for 3 seconds to restore the cold air function.

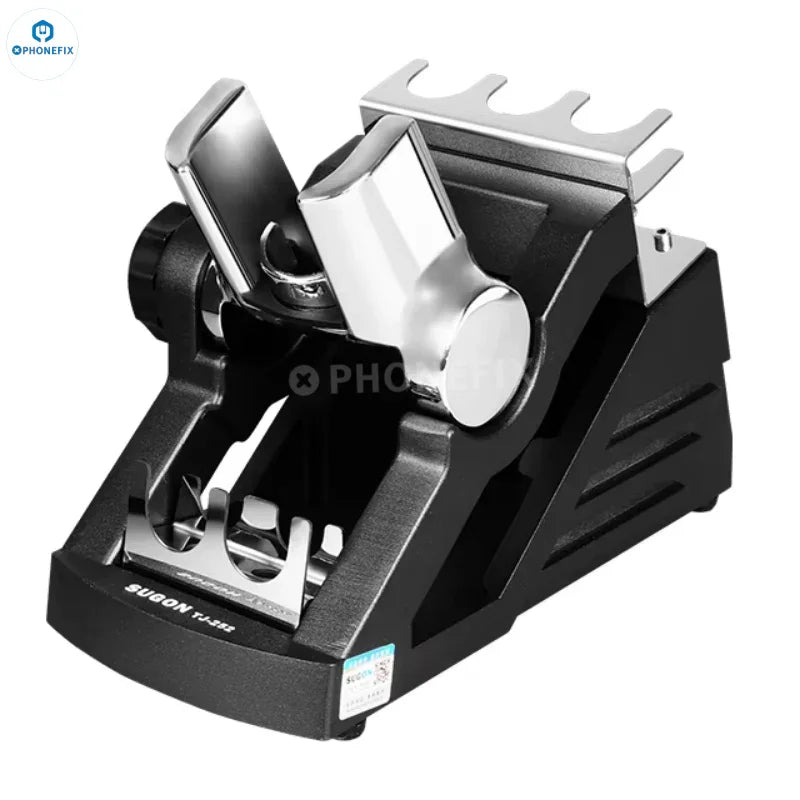

4. Upgrade the 252 rack to have an additional front plug socket compared to the 251.
5. Upgrade the heating element giant 8650 pro professional version, which is not universal.
6. The host can set four sets of blowing and soldering temperature and air volume values, and the wired handle can directly call the data.

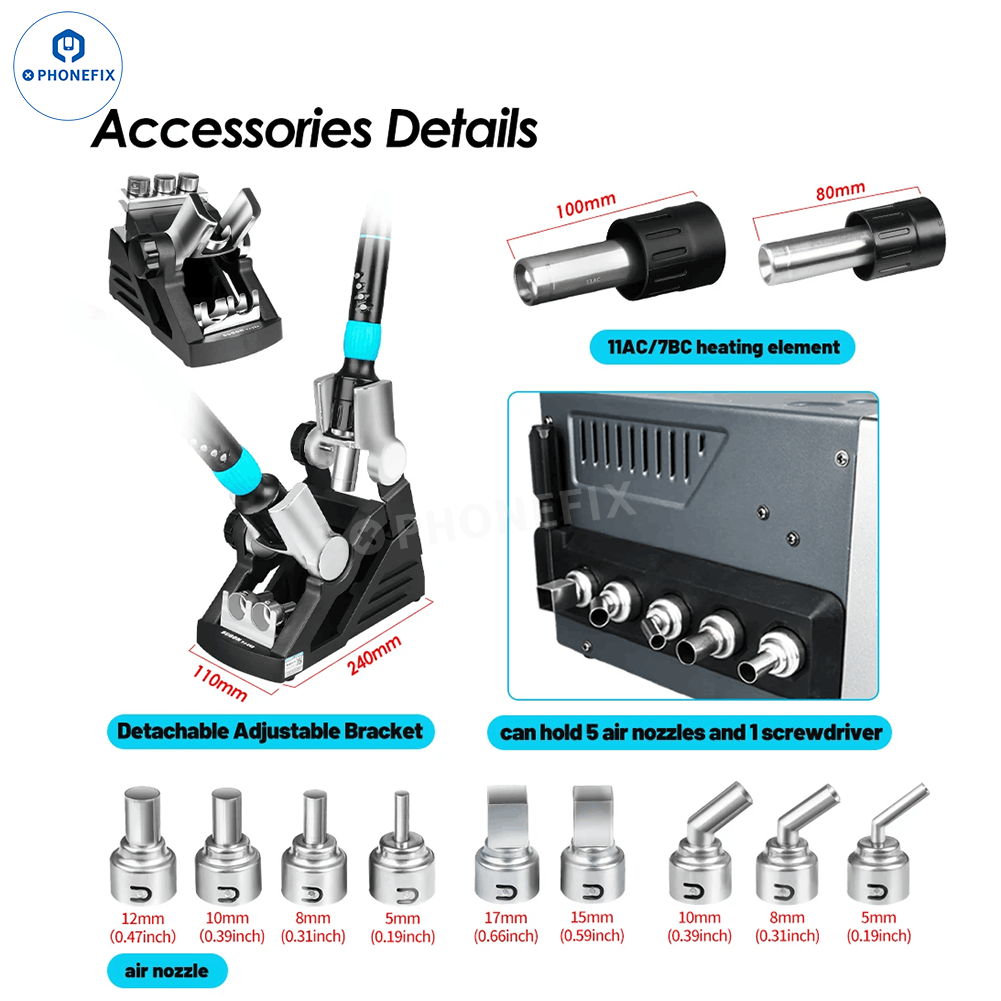

7. Add one 15 * 15mm and one 15 * 17mm air nozzle each, combined with a dedicated air gun holder, for more precise and convenient disassembly and soldering of the motherboard.
Product Parameters:
Model: SUGON 8650 PRO.
Power: 1300W
Inner box weight: 8.7kg

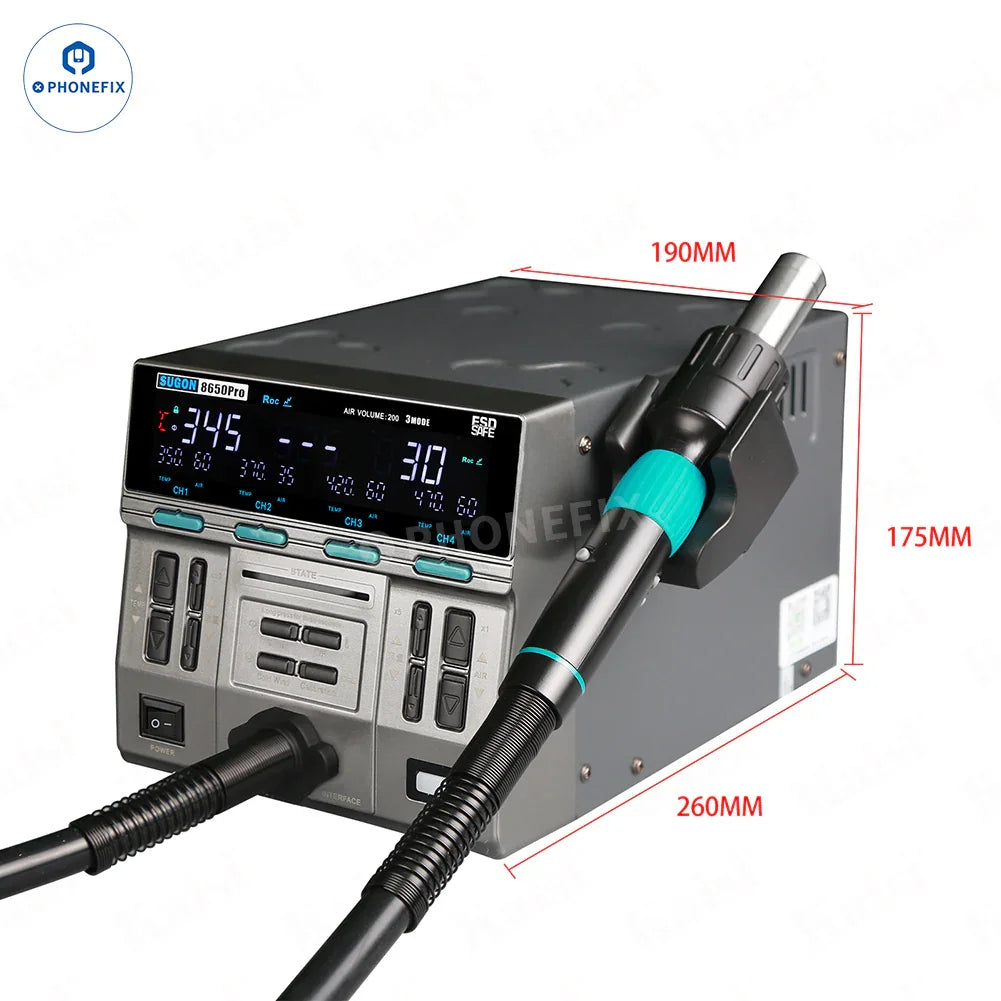

Size: 190x 260x170mm
Carton size: 25cm*25cm*16cmmm
Temperature range: 100℃-550℃

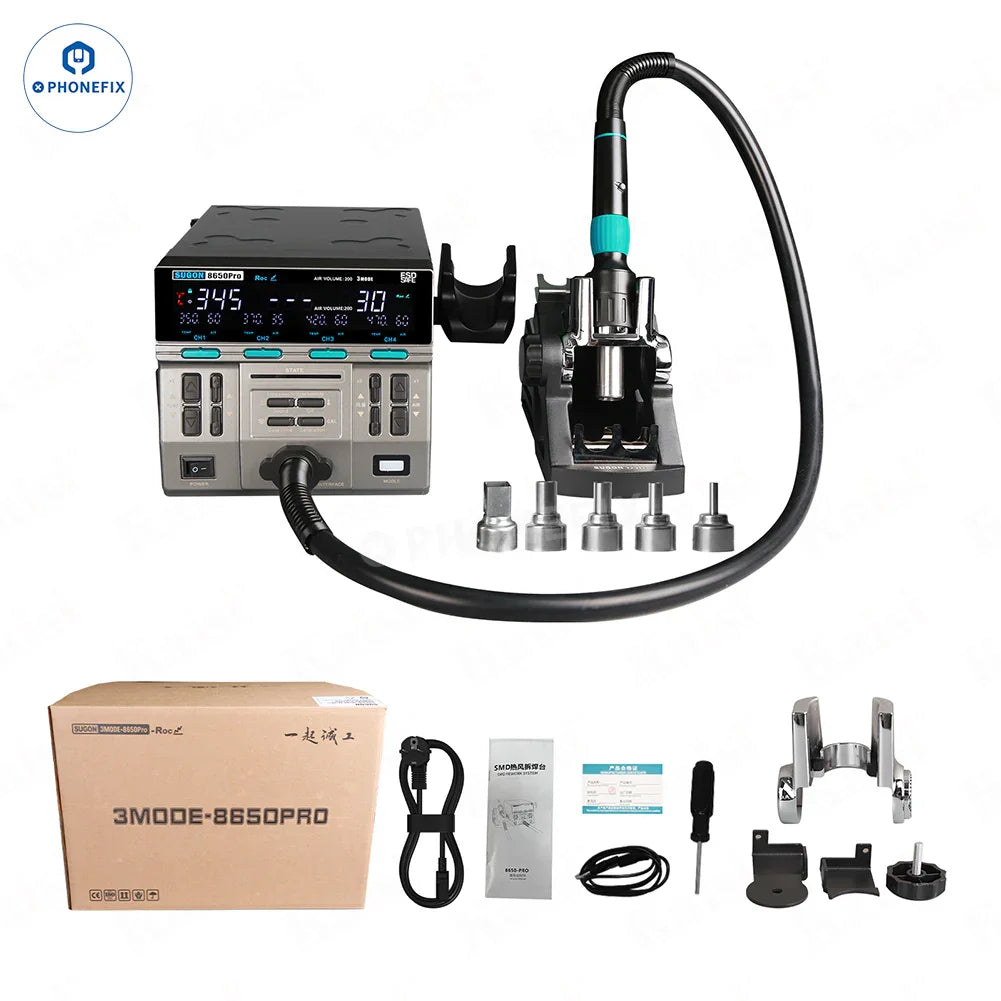

Package Lists:
Power cord x1
252 bracket x1
Wind nozzle x 6
8650pro host x 1
Wind nozzle gasket x2
11b integrated core x 1
Instruction manual x1
252 Wind Gun Rack Assembly Conversion Parts x 4
