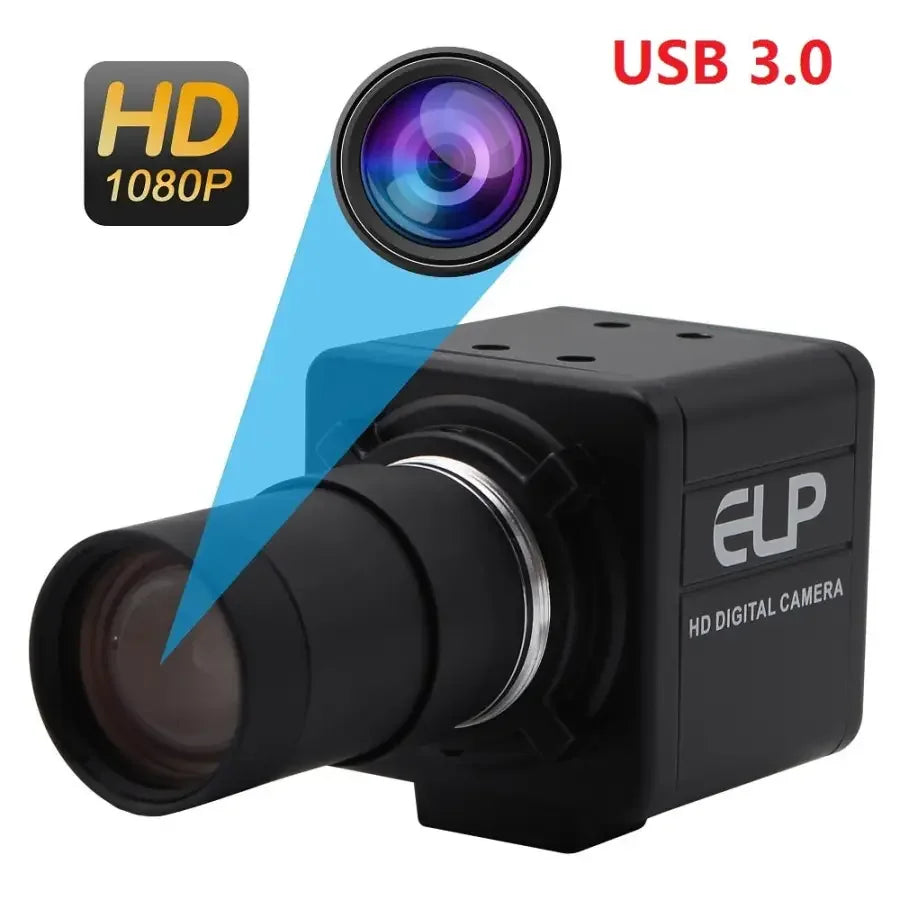

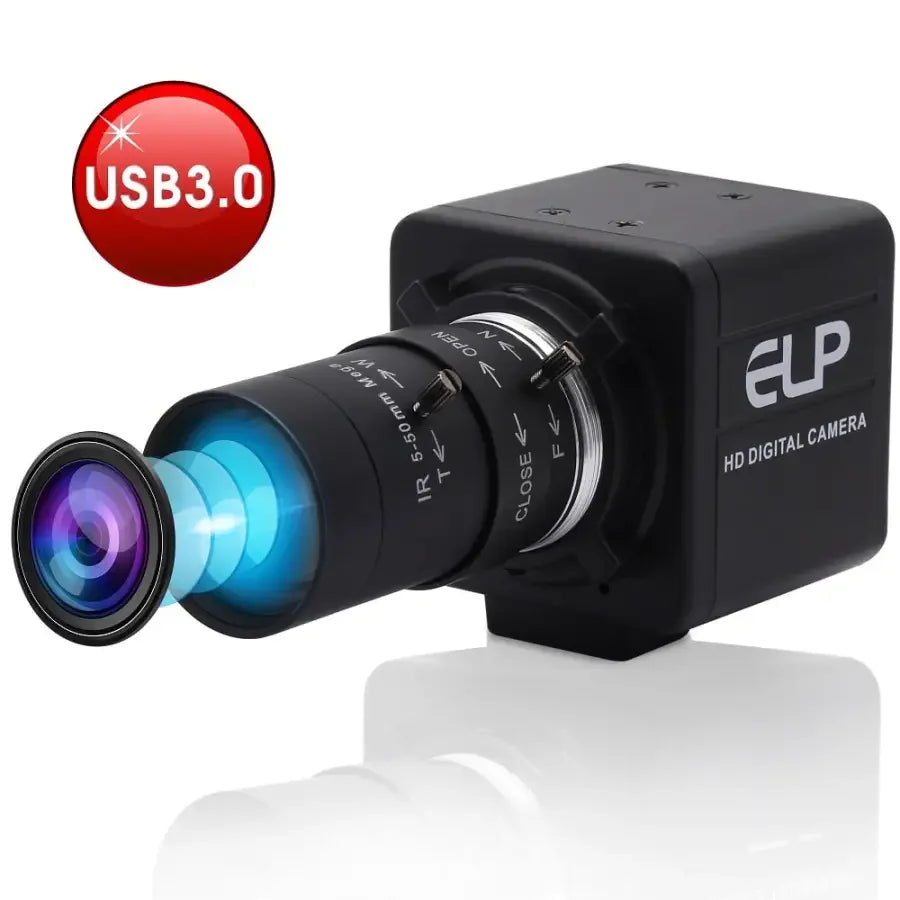

IMX291 Sony USB 3.0 Webcam, 50fps 2MP High Speed USB Camera for PC Computer with Manual Zoom Varifocal Lens webcam, Varifocal Lens USB Webcam USB High Speed Camera 50fps 2MP CMOS
Package includes:

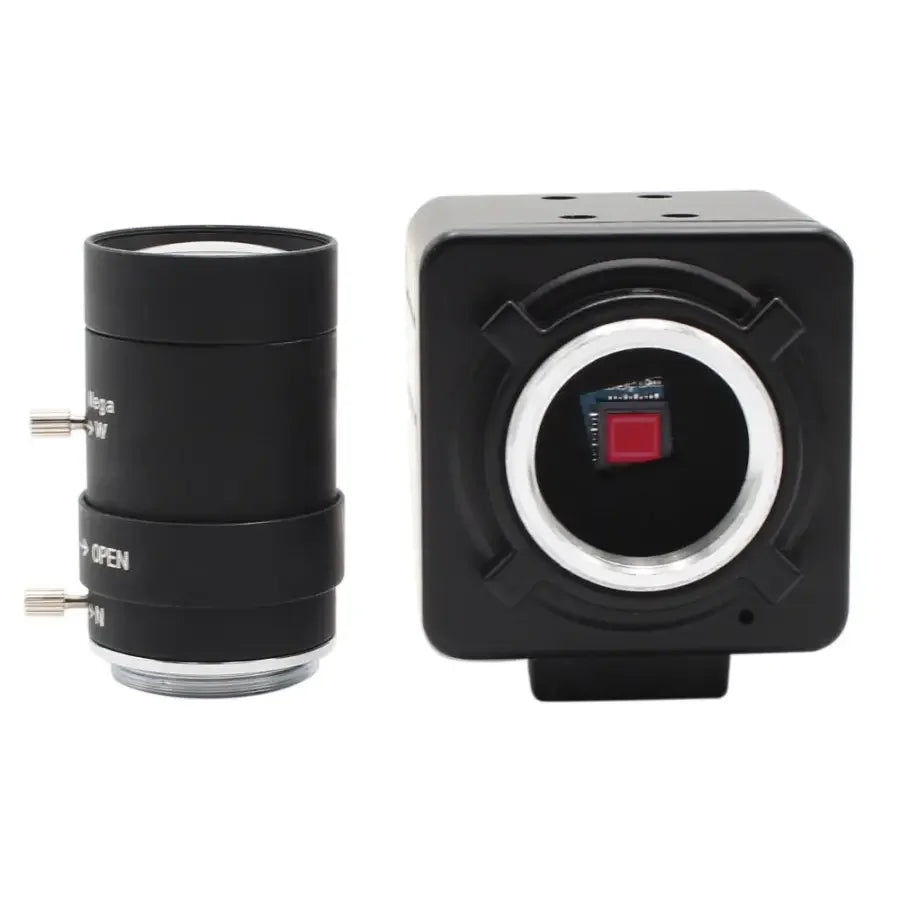

1) 1PC 2mp usb3.0 camera module with 2.8-12/5-50mm CS lens

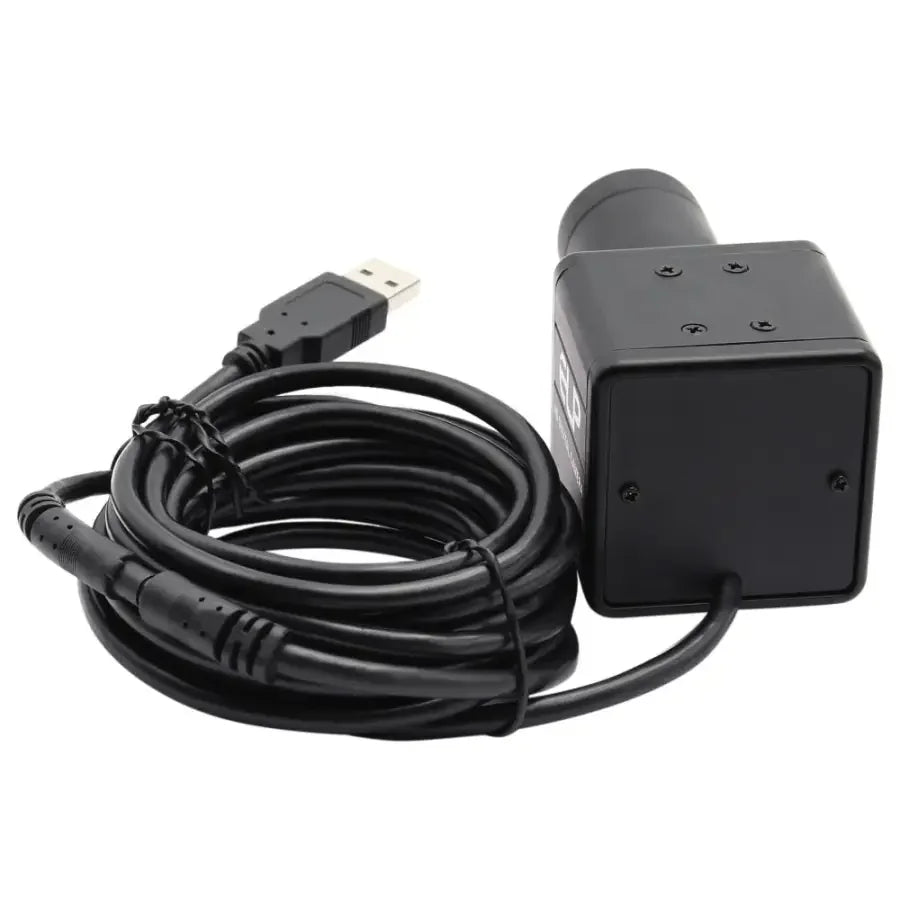

2) 1PC 1m usb cable (2m optional)
1.Features:
*2.0Megapixel USB 3.0 Camera Module
*High quality 1/2.8 SONY IMX291 Color CMOS Sensor
*High speedUSB 3.0 interface.
*High frame rate- deliver MJPEG /YUY250 fpsin 1080 /720P /480P resolution.
*Super small outline 38*38mm and thin profile for embedded applications.
UVC compliance for use in OS Windows,Linux, Android
*Operating system request : Win8 or above , Linux with UVC(above linux-2.6.26),MAC-OS X 10.4.8 or later , Android 4.0 or above with UVC
*6mm(2.1/2.8/3.6/8/12/16mm lens, fisheye optional )
*OTG Support
2. Main Specifications
|
Model
|
ELP-SUSB1080P01-MFV
|
|
Sensor
|
IMX291
|
|
Lens Size
|
1/2.8 inch
|
|
Pixel Size
|
2.9µm X 2.9µm
|
|
Max. Resolution
|
1920(H)X1080(V)
|
|
Compression format
|
MJPEG / YUV2(YUYV)
|
|
Resolution & frame
|
1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps
1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps
640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps
|
|
S/N Ratio
|
40dB
|
|
Dynamic Range
|
65dB
|
|
Sensitivity
|
1900mV/lux-sec@550nm
|
|
Mini illumination
|
0. 01lux
|
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB3.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class(UVC)
|
|
AEC
|
Support
|
|
AEB
|
Support
|
|
AGC
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
|
|
Lens Parameter
|
2.8-12/5-50mm lens optional
|
|
Power supply
|
USB BUS POWER
|
|
Operating Voltage
|
DC5V
|
|
Working current
|
170mA~210mA
|
|
Working temperature
|
0-70 degree
|
|
Board size /Weight
|
38*38mm board
|
|
Cable
|
Standard 3M
|
|
Operating system request
|
Win8 or above
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
|
3.Applications:
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system,teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system,Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope,Medical auxiliary equipment, etc.
