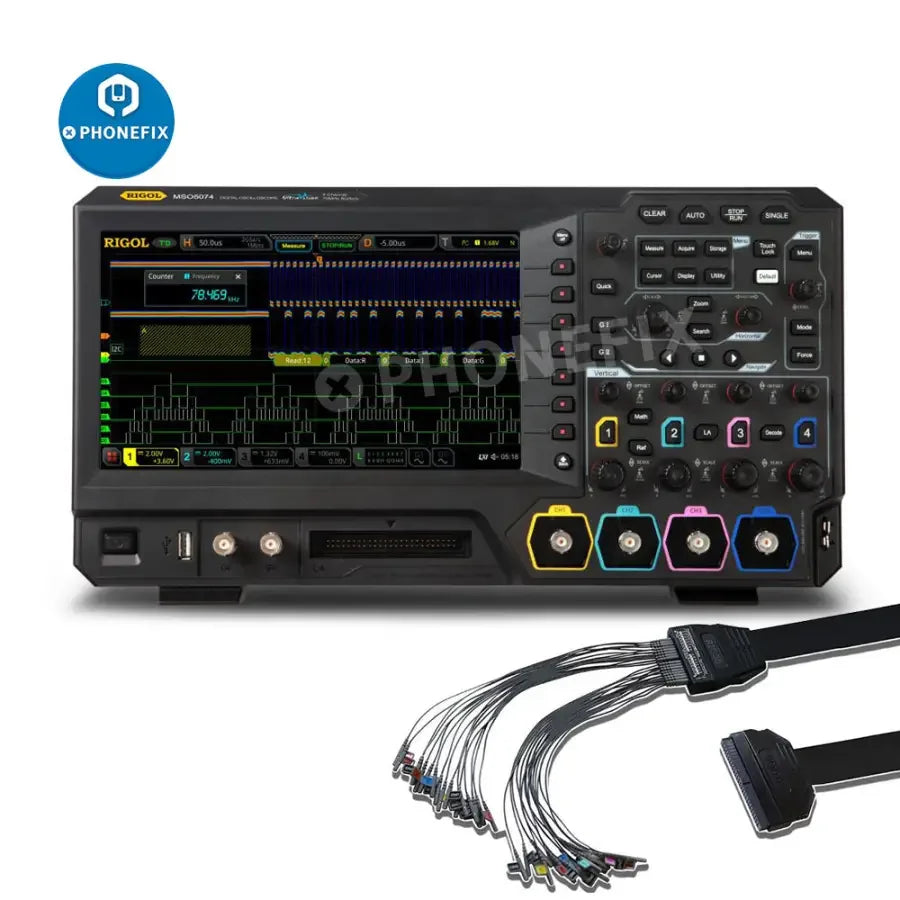

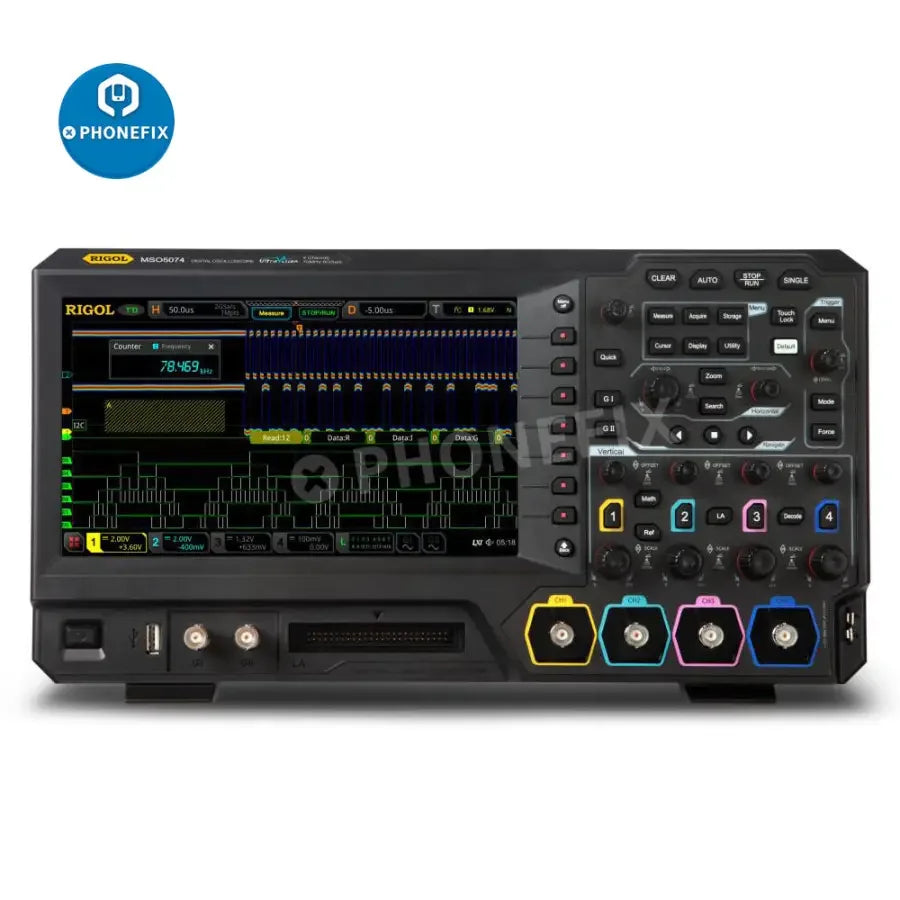

Rigol MSO5074 oscilloscope has 4 channels 70 MHz mixed signal 8GSa/s sample rate and 100M point memory. Original high quality Rigol MSO5074 digital oscilloscope can be upgraded easily, it features a 100 Mpts memory depth which is upgradable to 200 Mpts via software key code. It also includes 16 digital channels as a standard feature - simply add the optional PLA2216 logic probe to operate.
Features: 1. Four channels, 70 MHz digital / mixed signal oscilloscope 2. Up to 8 GSa/s real-time sample rate 3. 100 Mpts memory depth, optional memory depth up to 200 Mpts 4. 16 digital channels included - requires optional PLA2216 logic probe to operate 5. High waveform capture rate (over 500,000 wfm/s) 6. Multiple interfaces available: USB HOST DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB 7. Remote wireless control software - migrate instrument control and waveform analysis to PC 8. Auto measurement of 41 waveform parameters; full-memory hardware measurement function 9. Up to 450,000 frames of hardware real-time and ceaseless
