RIGOL DP900 Series DP932E DP932U DP932A Three-channel Programmable linear DC power supply, low ripple noise, fast transient response, one-key series parallel, high accuracy, color digital display, suitable for mobile phone motherboard repair/electronic equipment or circuit characteristics analysis and troubleshooting.
RIGOL DP932A Economical 3-channel DC programmable linear power supply. Equipped with 32V/3A, 32V/3A, 6V/3A, 3 groups of outputs, total power 210W. Standard color touch screen, support CH1/CH2 series and parallel output functions. Standard 1mV/1mA resolution and ARB/List function.
RIGOL DP932E Economical 3-channel DC linear programmable power supply, with 30V/3A 30V/3A, 6V/3A, 3 groups of outputs, 198W total power. Standard color touch screen, supports CH1/CH2 serial/parallel output function. Standard 10mV/10mA resolution, optional high-resolution kit to 1mV/1mA resolution.
RIGOL DP932U economical 3-channel programmable linear DC power supply. With three independent isolated output channels (32 V/3A, 32 V/3A, 6 V/3A, total power 210W). Internal series/parallel connection of CH1 and CH2. University safety socket.

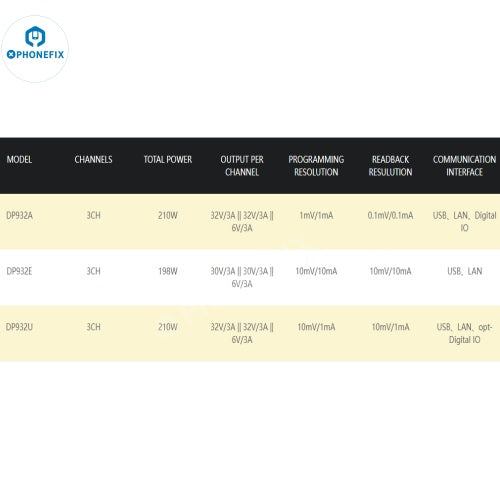

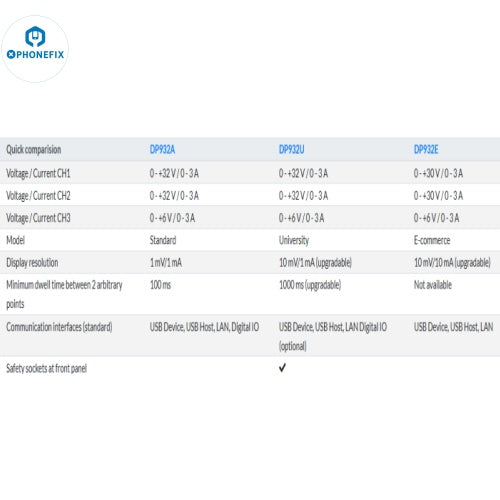

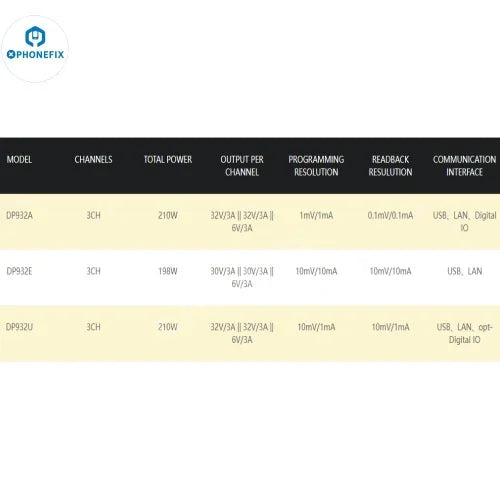

Option:
1. DP932A: 3 channels 210W, 32V/3A, 32V/3A, 6V/3A.
2. DP932E: 3 channels 198W, 30V/3A, 30V/3A, 6V/3A.
3. DP932U: 3 channels 210W, 32V/3A, 32V/3A, 6V/3A.
Features:
1. Rigol DP900 is a programmable laboratory power supply with 3 electrically isolated independent channels and a maximum total power of 210W.
2. The DP900 series programmable linear DC power supply also provides a variety of functions such as general analysis, pulse current analysis, monitoring, triggering, etc., and is compatible with the standard SCPI command set.
3. The DP900's channel 1 and channel 2 have added a one-button serial-parallel function, which can achieve serial 64V or parallel 6A output, saying goodbye to the cumbersome external wiring and software switching, and helping your test efficiency.

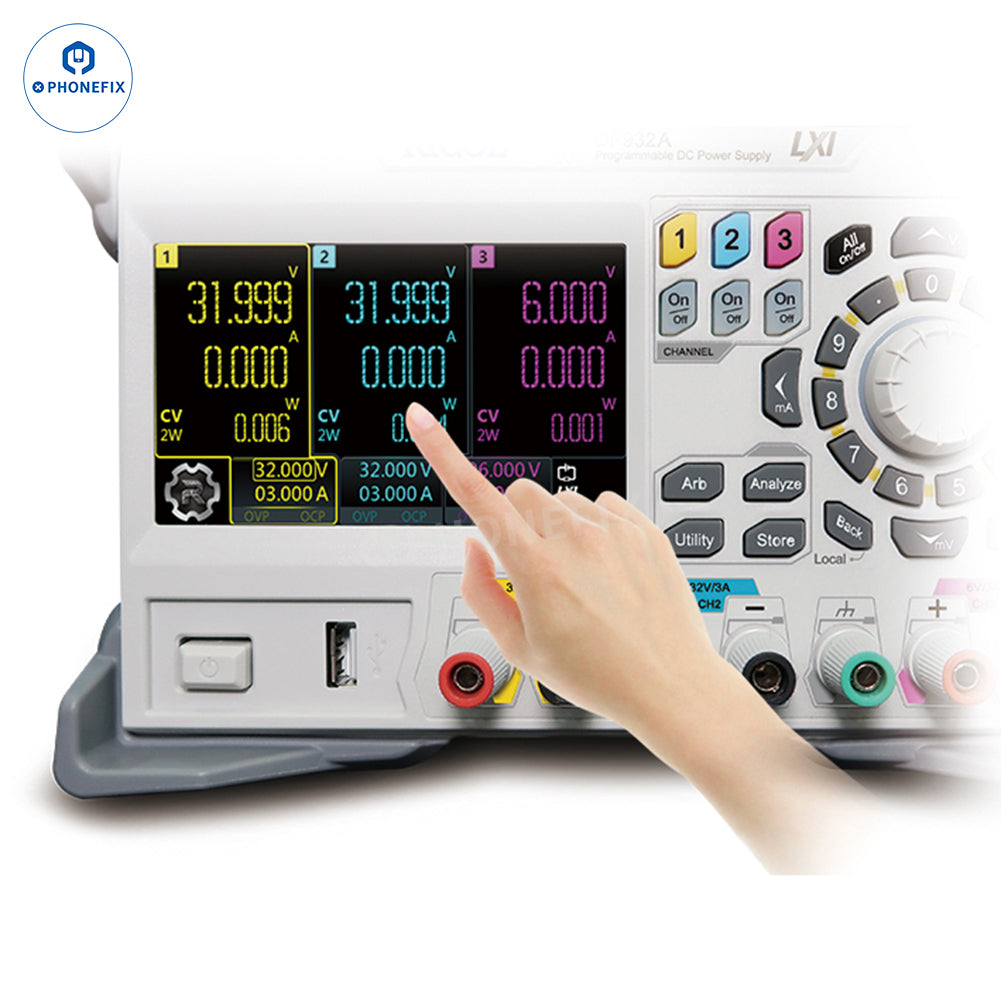

4. The 3-inch color touch screen supports both touch screen and non-touch screen working modes, and the smooth touch interaction brings you a better test experience.
5. The minimum dwell time of Arb of DP900 is increased to 100ms, with a variety of basic waveforms built in, supporting free waveform editing and generation, and simulating different application scenarios for testing.
6. DP900 has a transient response capability of less than 50us, which meets the user's needs for fast-changing voltage waveforms and ensures smooth testing.
7. One of the advantages of linear DC power supply: pure output. Within the bandwidth of 20Hz-20MHz, the ripple noise index of DP900 is less than 350μVrms or 2mVpp. The ultra-low noise design makes the output purer, minimizes any interference to the load, and provides high-purity signals.

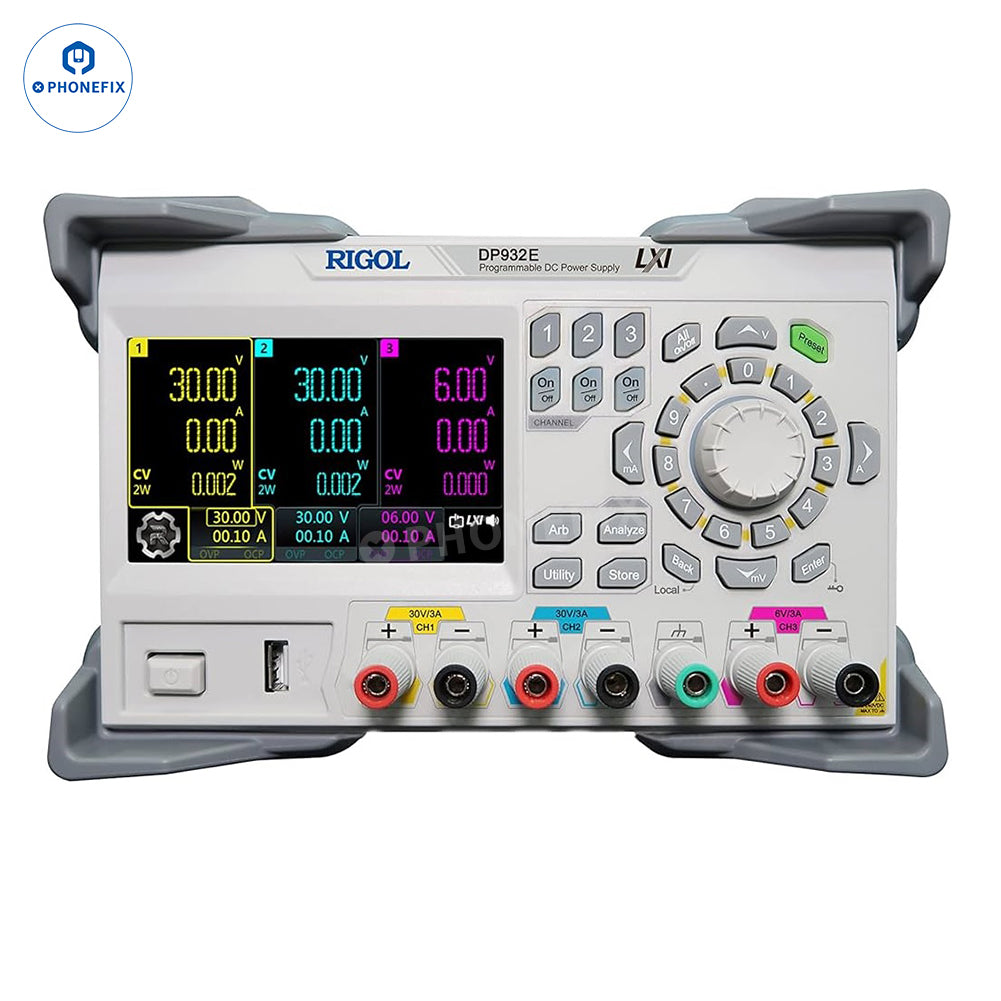

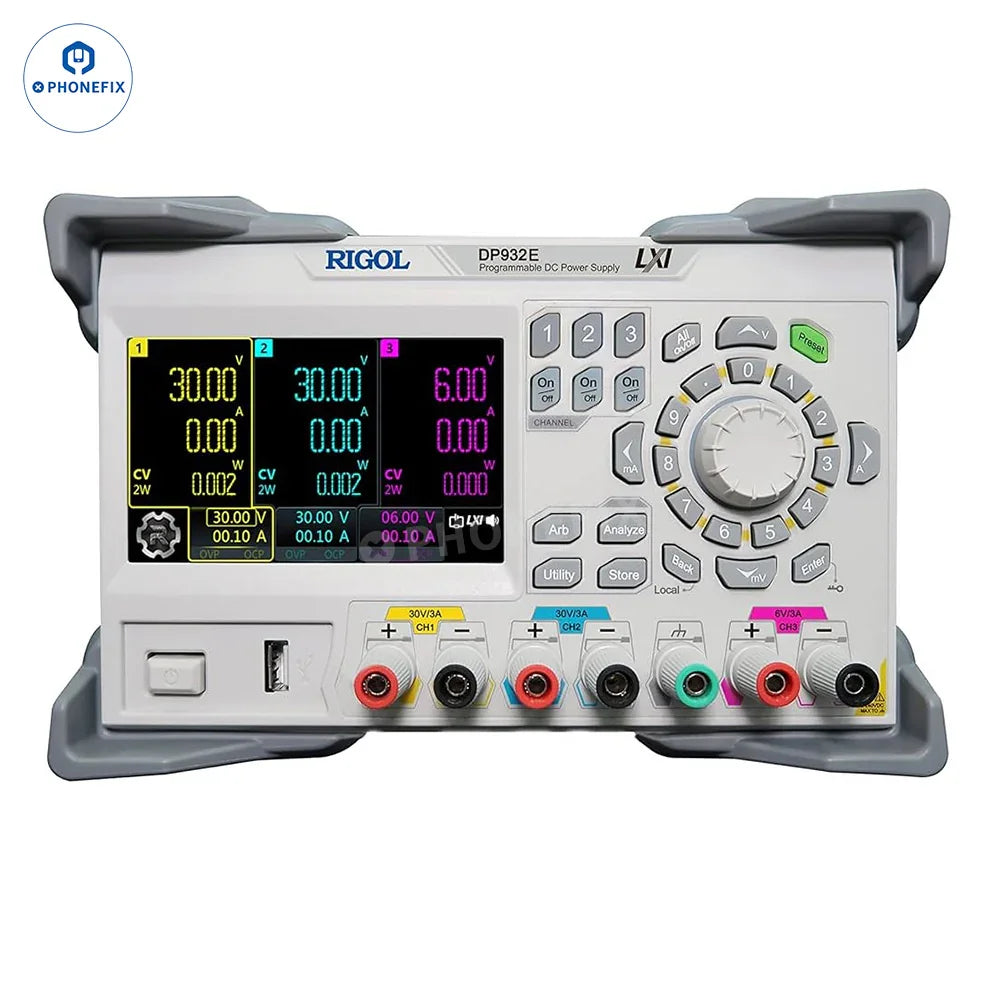

Rigol DP932E Programmable Linear DC Power Supply:
1. 3 independent channels: 30V/3A || 30V/3A || 6V/3A, standard voltage / current resolution 10mV/10mA, optional high-resolution kit to 1mV/1mA.
2. Transient response time <50 μs, low output ripple and noise <350 μVrms/2 mVpp, command processing time <10 ms.
3. 4.3-inch LCD color touch screen; supports internal series / parallel connection of CH1 and CH2, excellent programming/readback accuracy.
4. Supports remote control, overvoltage / overcurrent / overtemperature protection, standard USB, LAN interface.

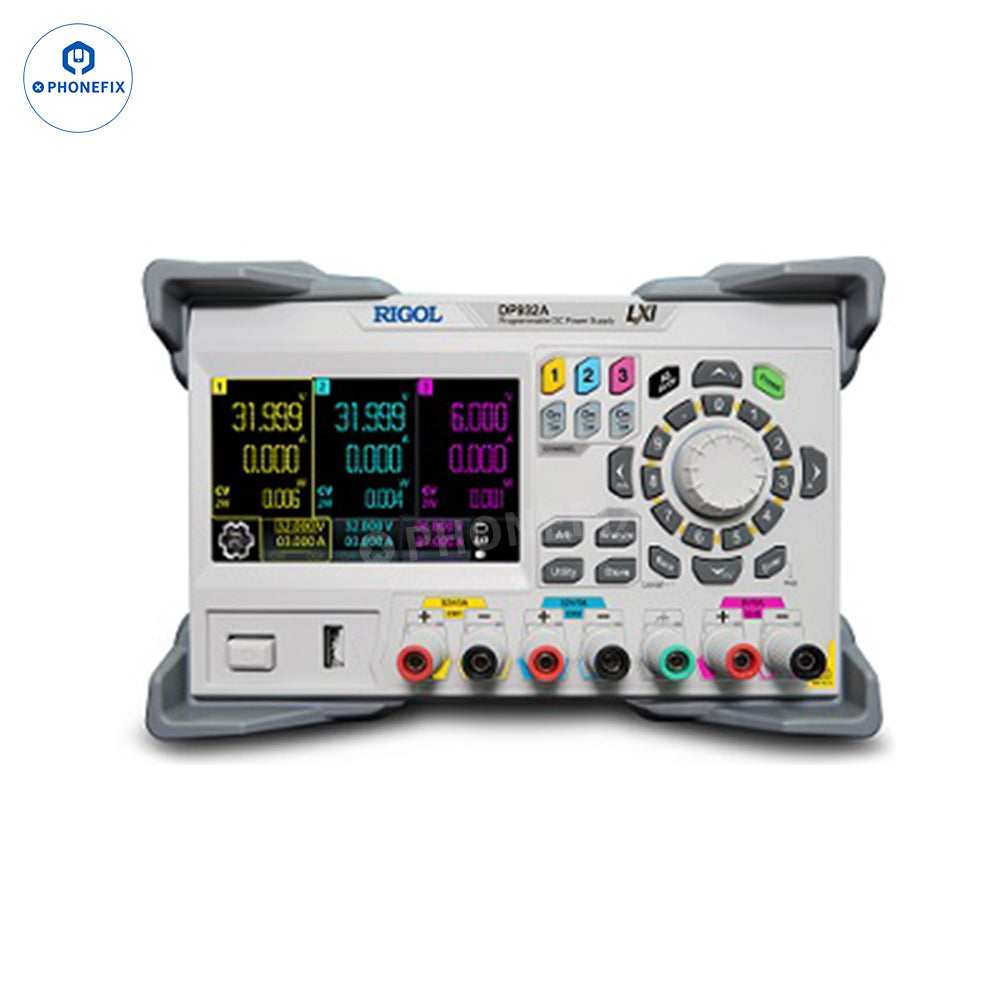

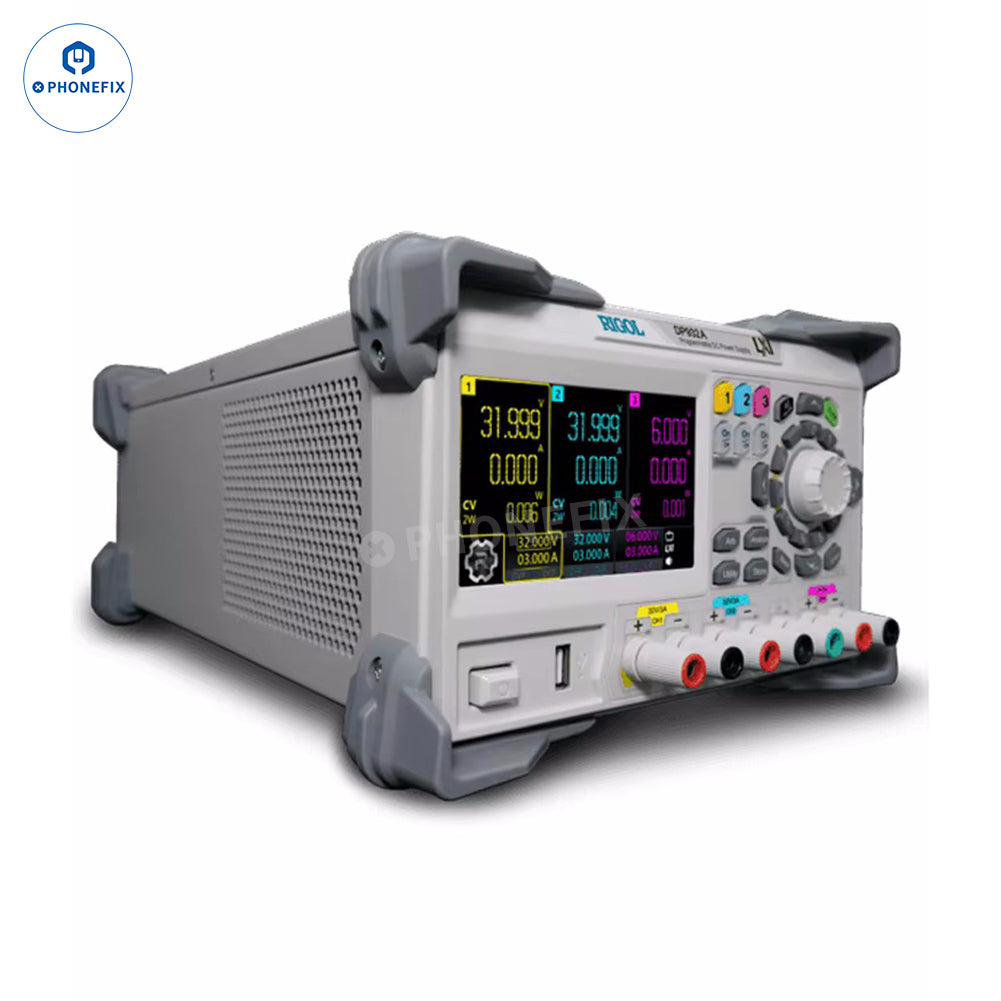

RIGOL DP932A Programmable Linear DC Power Supply:
1. Electrical isolation between 3 channels, independent output, maximum output power 210W, standard voltage / current resolution 1mV/1mA.
2. 3-inch LCD color touch screen operation, supports internal series and parallel output functions of CH1 and CH2, excellent program control and readback accuracy.
3. Fast transient response time: <50 μs, low output ripple and noise: <350 μVrms/2 mVpp, command processing time <10 ms, 10 times faster than the old model.

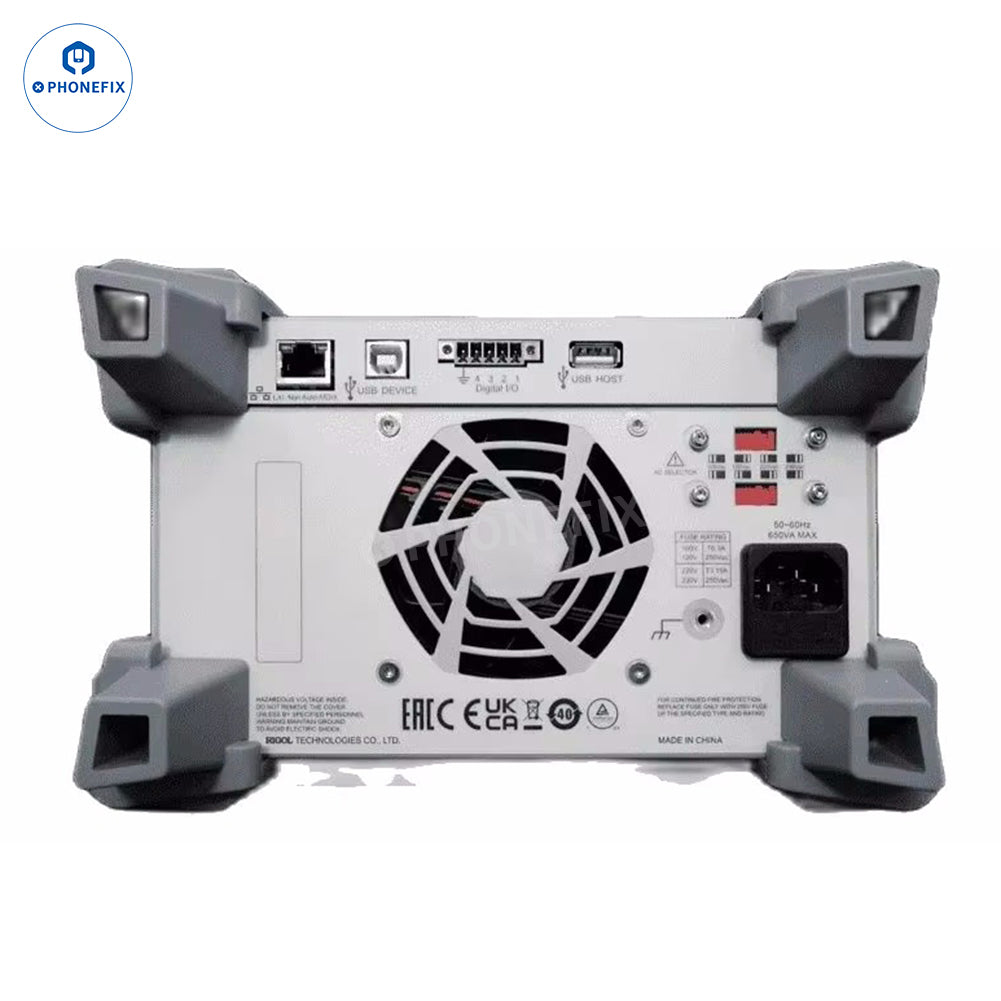

4. Standard 3U rack height, supports remote control, overvoltage/ overcurrent / overtemperature protection, standard USB, LAN, digital I/O interface.

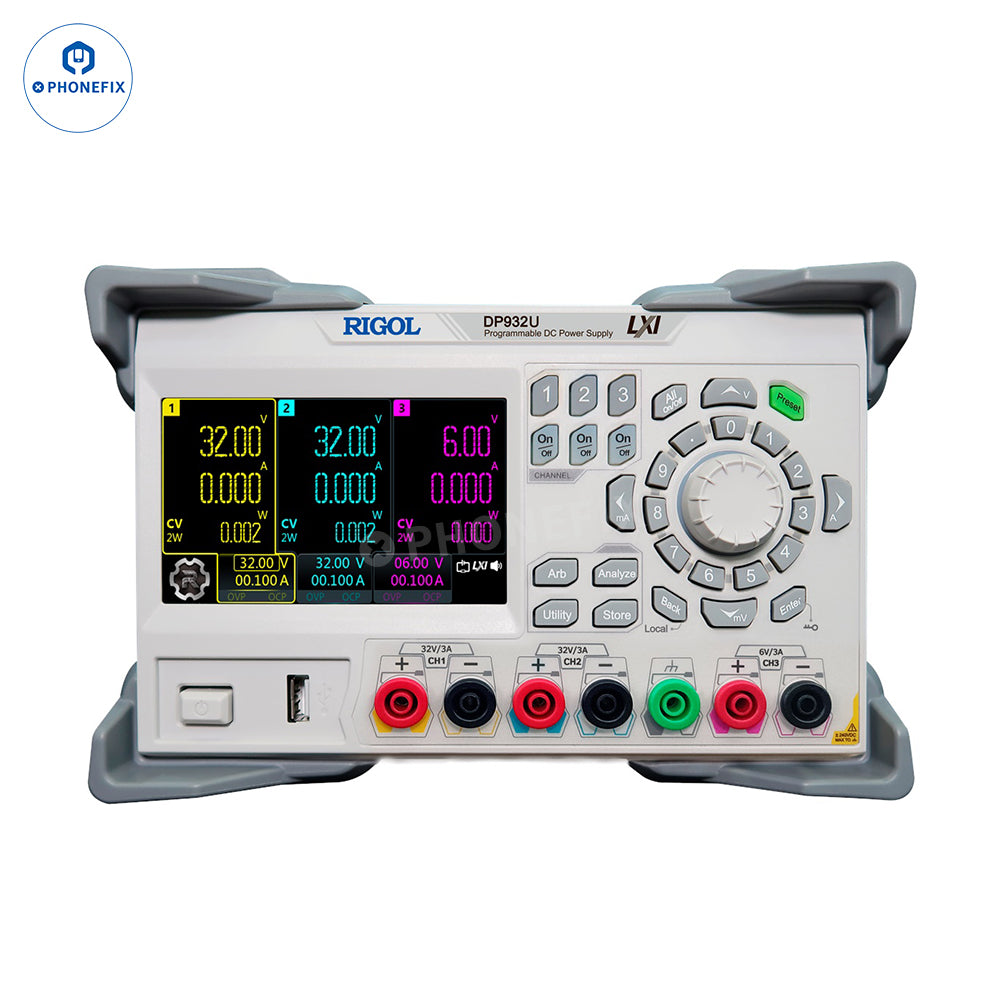

RIGOL DP932U Programmable Linear DC Power Supply:
1. The Rigol DP932U has a relatively large (10.92 cm/4.3 inches) and easy-to-read LCD color touch screen.

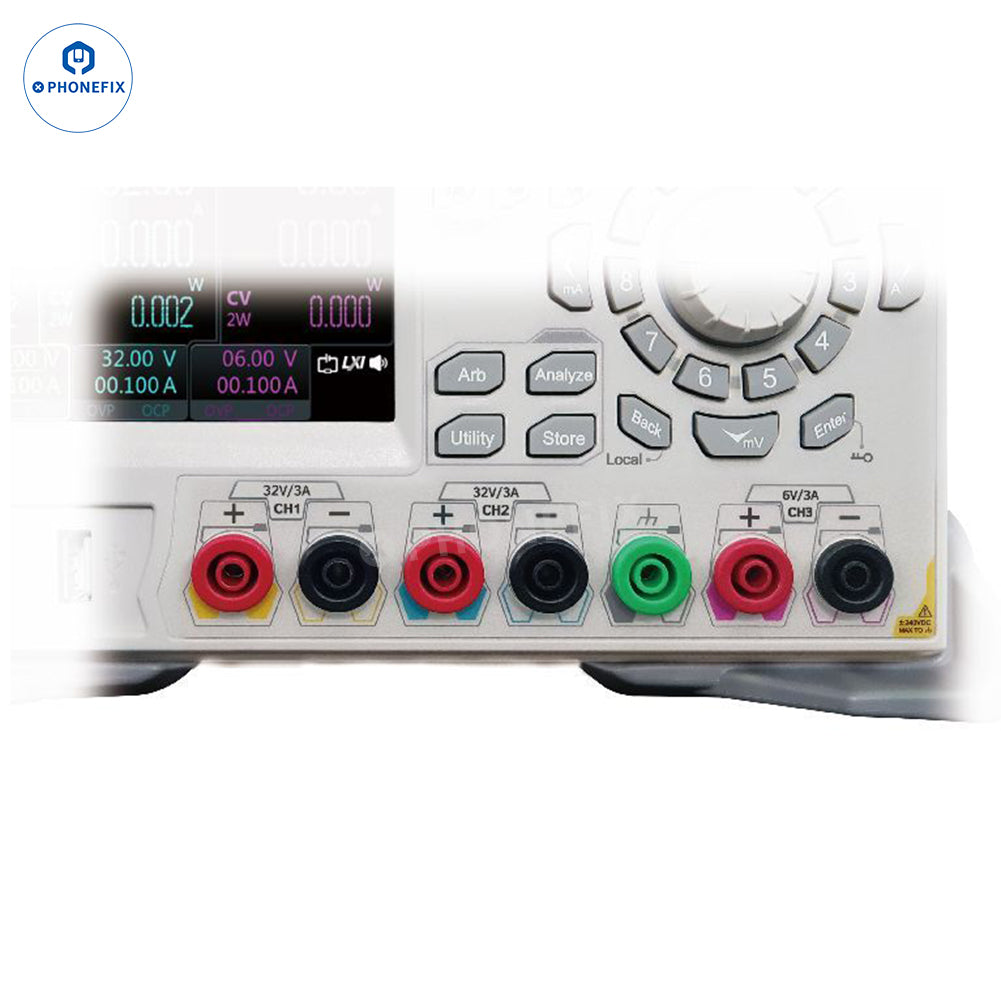

2. With front panel safety socket; 4.3-inch touch screen.
3. Minimum arbitrary waveform dwell time 1000 milliseconds, ripple and noise: < 350uVrms, communication interface: USB host, USB device.
Package includes:
1x RIGOL DC Power Supply.
