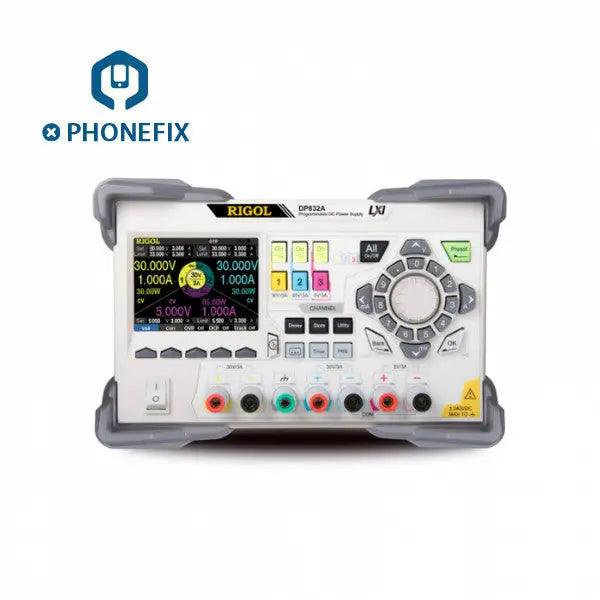

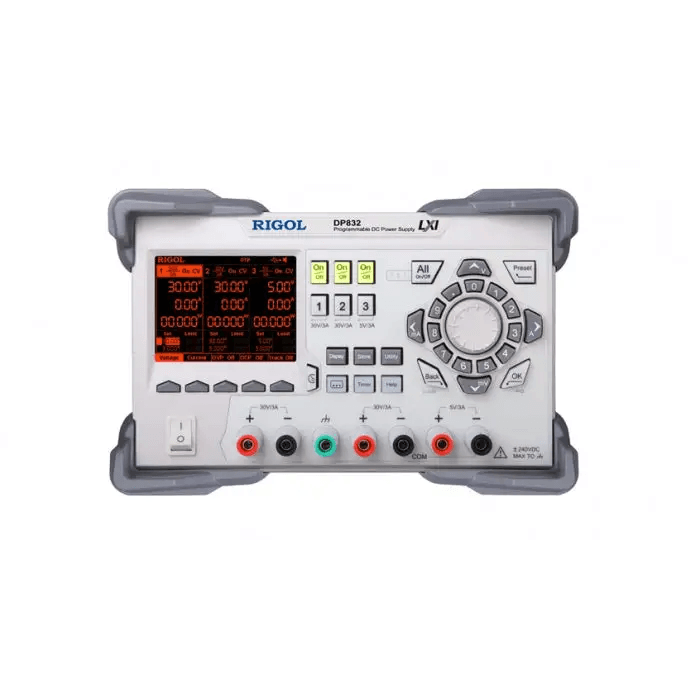

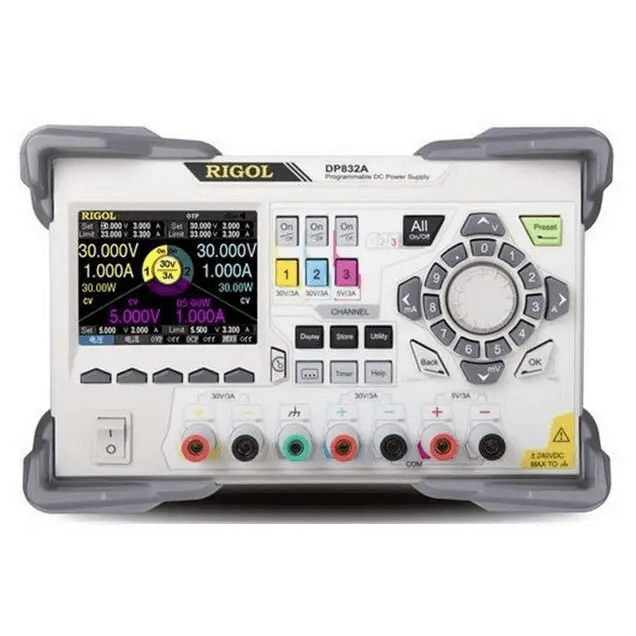

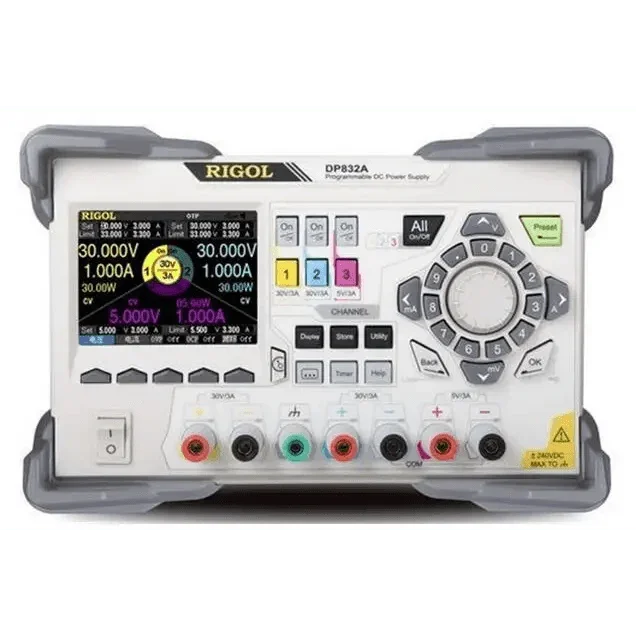

Rigol DP832 DP832A lab. DC power supply for cell phone repair 3 channels for phone repair, Rigol DP832 DP832A programmable linear DC regulator power supply, lab. general purpose tester for device or circuit characterization and troubleshooting. Built in V, A, W measurements and waveform display, support for output delay, analysis, monitor, and preset function, 3.5-inch TFT display.
Rigol DP832 DP832A Laboratory Programmable Liner DC Power Supply for Phone Repair Tool
Optional Types:
- Option 1: DP832 - Popular (54*36*28CM)
- Option 2: DP832A - Professional 3 Channels Programmable Linear DC Power Supply
3 Channels RIGOL DP832 DP832A Programmable Linear DC Power Supply, Channel Isolation Built in V,A,W Measurements and Waveform Display
Typical Applications:
- R&D Iab General purpose testing
- Automotive electronic test
- Quality Assessment inspection
- Production testing
- Bias power for RF/MW circuits
- Device or circuit characterization and troubleshooting
Feature and Benefit :
- 3 Outputs, Max. Total Power up to 195W
- Low Ripple Noise: <350 uVrms/2mVpp
- Excellent Linear Regulation Rate and Load Regulation Rate
- Fast Transient Response Time: <50us
- Channel isolation: CH1 || CH2,CH3
- Standard OVP/OCP/OTP protection functions
- Standard Timing function

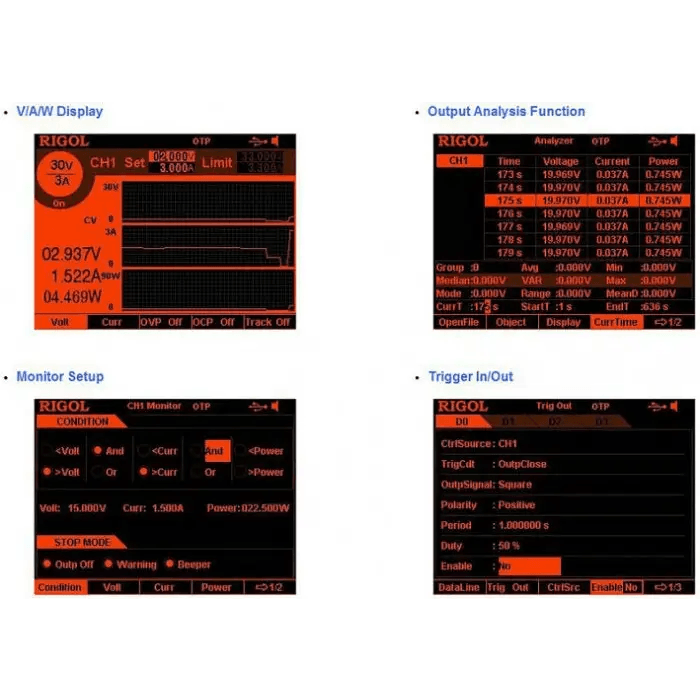

- Built in V, A, W measurements and waveform display

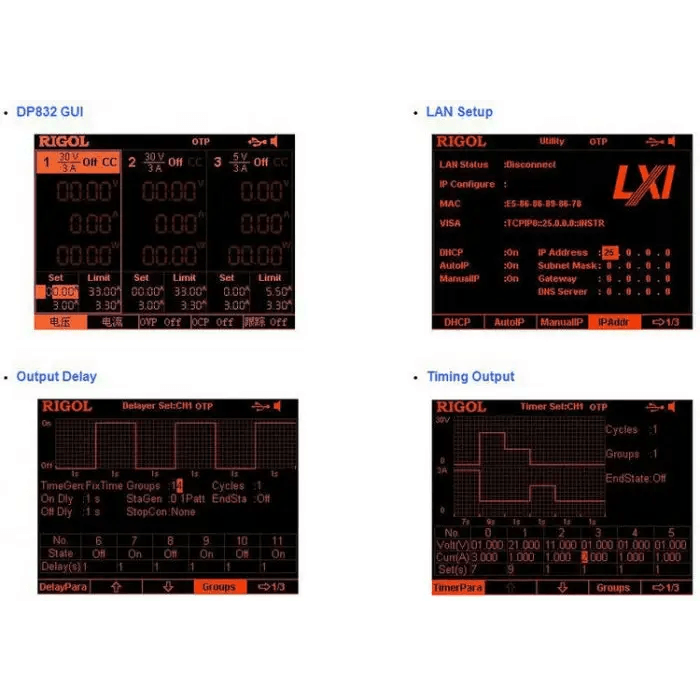

- Support Output Delay, Analysis, Monitor, Preset functions
- Independent control for each channel
- 3.5 inch TFT Display
- Connectivity: USB Host& Device, LAN(LXI Core Device 2011), RS232,Digital IO
DP832 interface: USB device, USB Host.
DP832A interface: USB device, USB Host, LAN, RS232, Digital IO, USB-GPIB.
Package includes :
- 1pcs x RIGOL DC Power Supply
