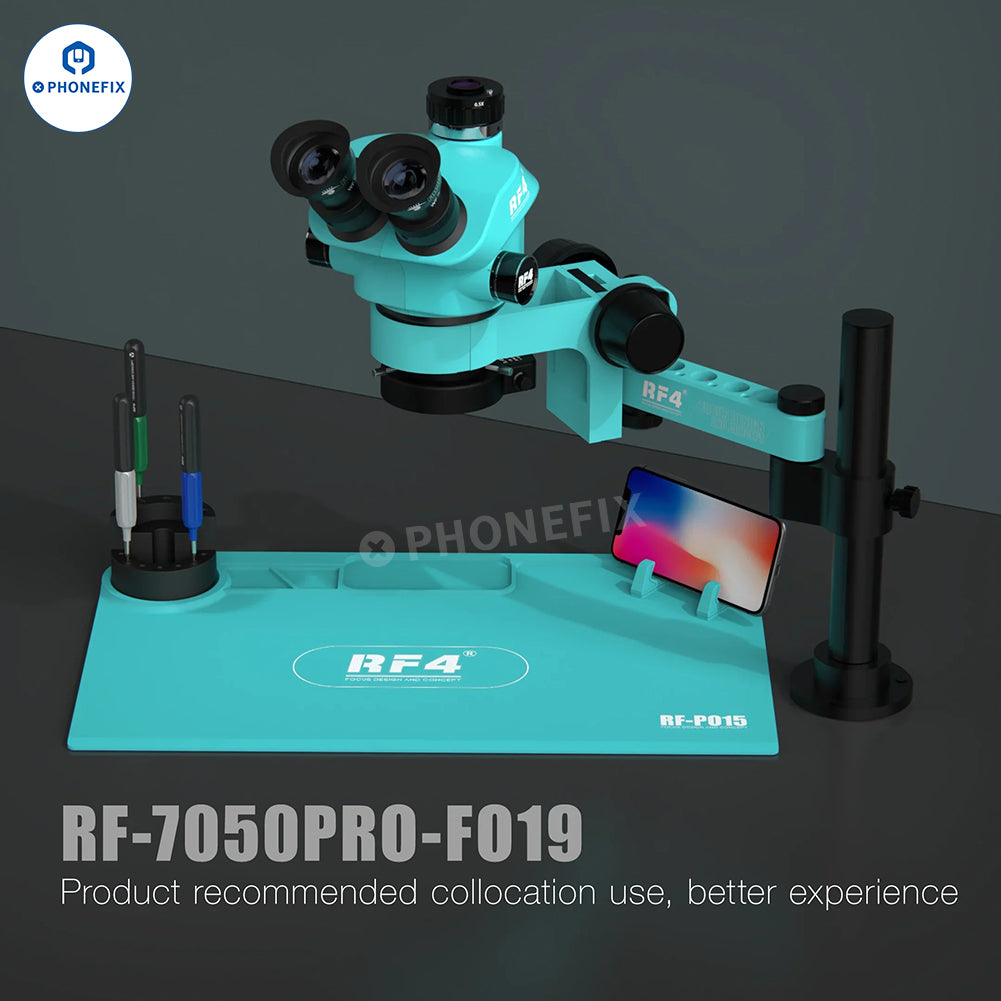

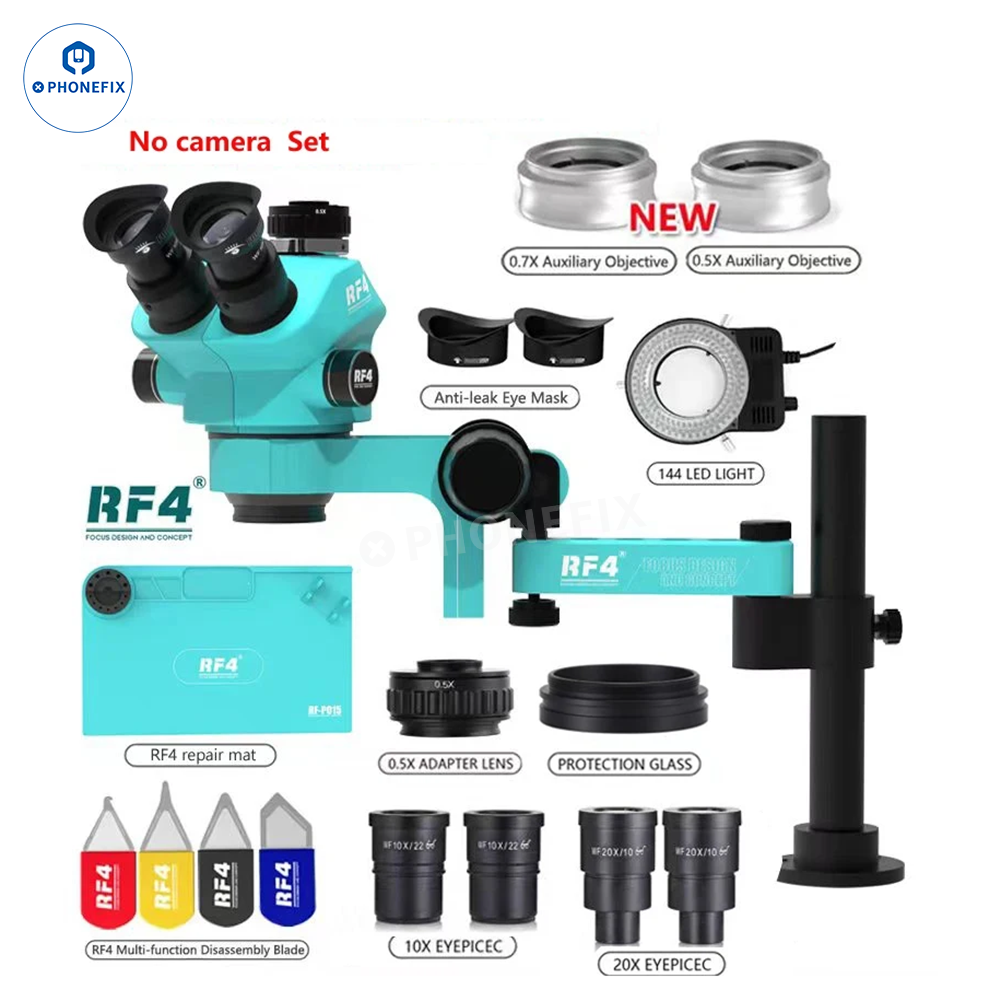

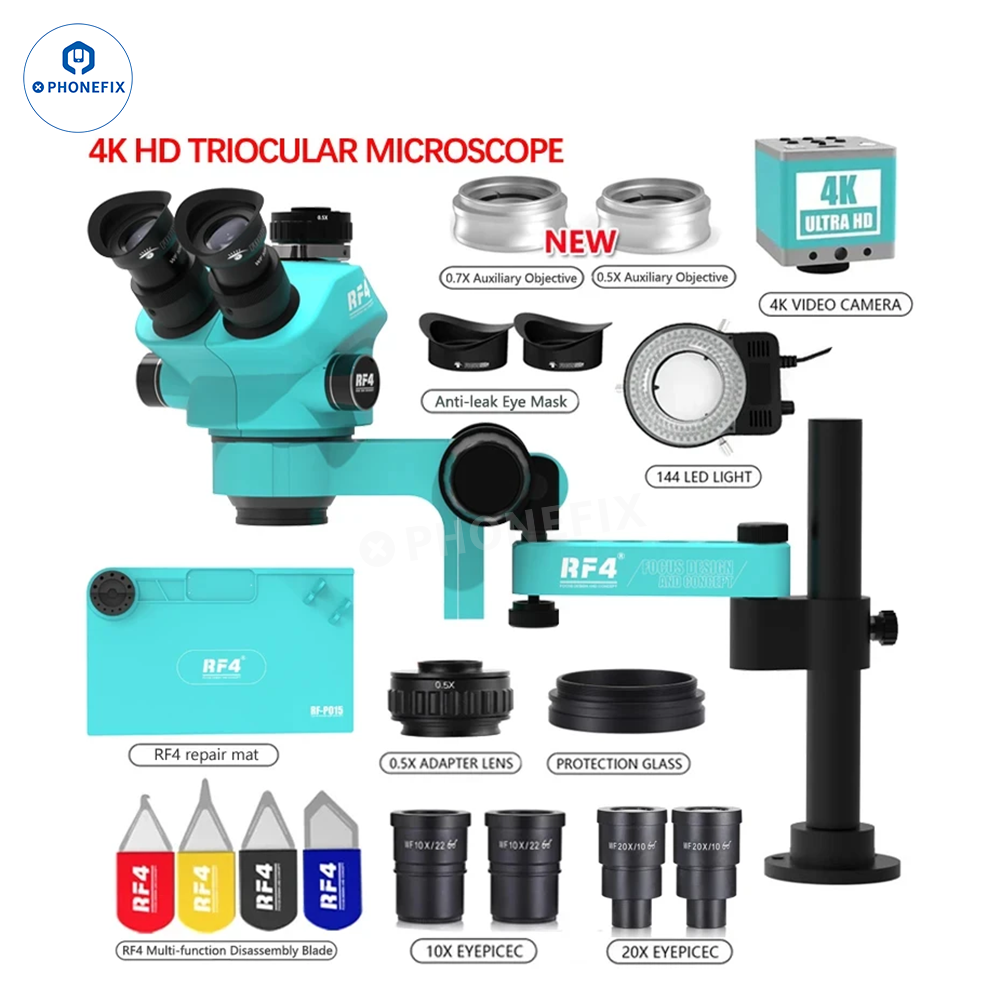

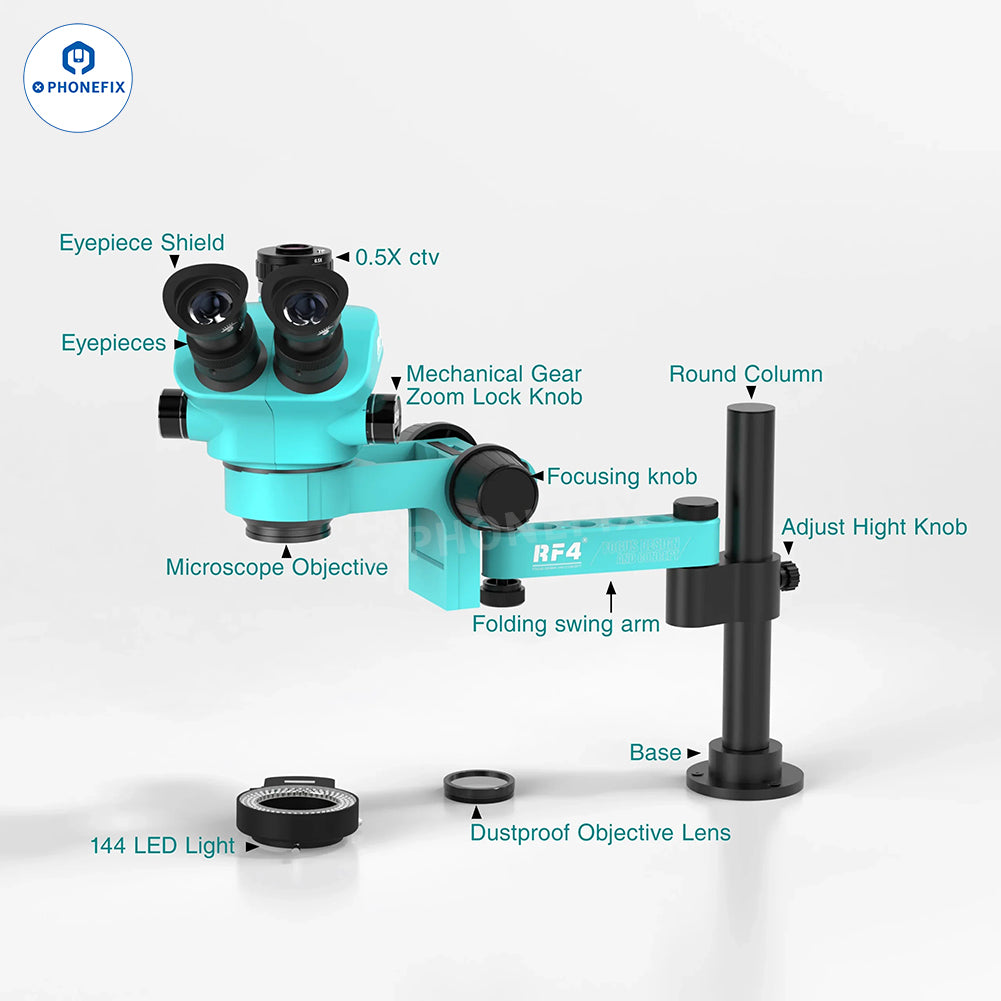

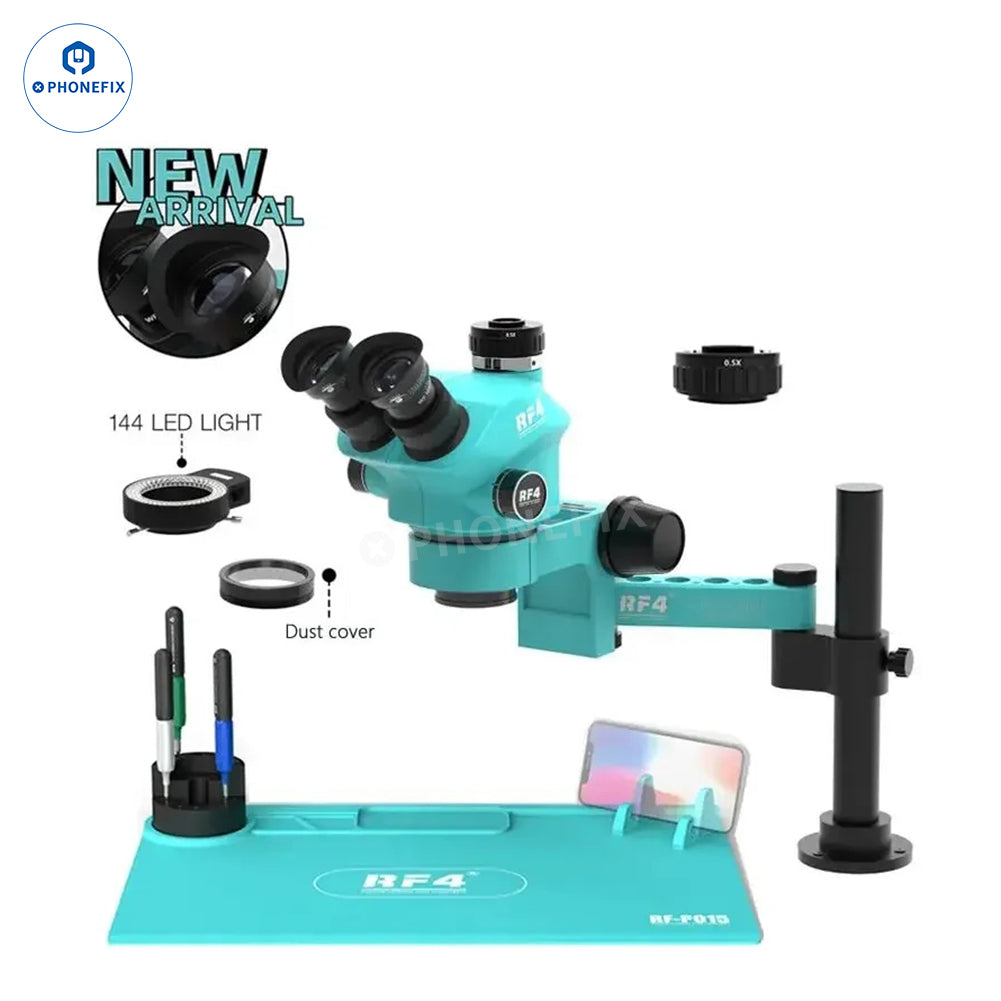

RF4 RF7050PRO FO19 Trinocular Stereo Microscope With Folding Swing Arm and 2K/4K Camera for phone PCB repair. RF4 RF-7050 PRO-F019 7-50X Trinocular Microscope with 6 mechanical gear zoom locking knobs, 360° adjustable swing arm, silicone pad, 10X/20X eyepiece, 0.5X C-mount adapter, 0.5X/0.7X barlow lens, 144 LED light, and disassembly blade set for mobile phone motherboard repair, PCB board inspection, and electronic component analysis.
Features:

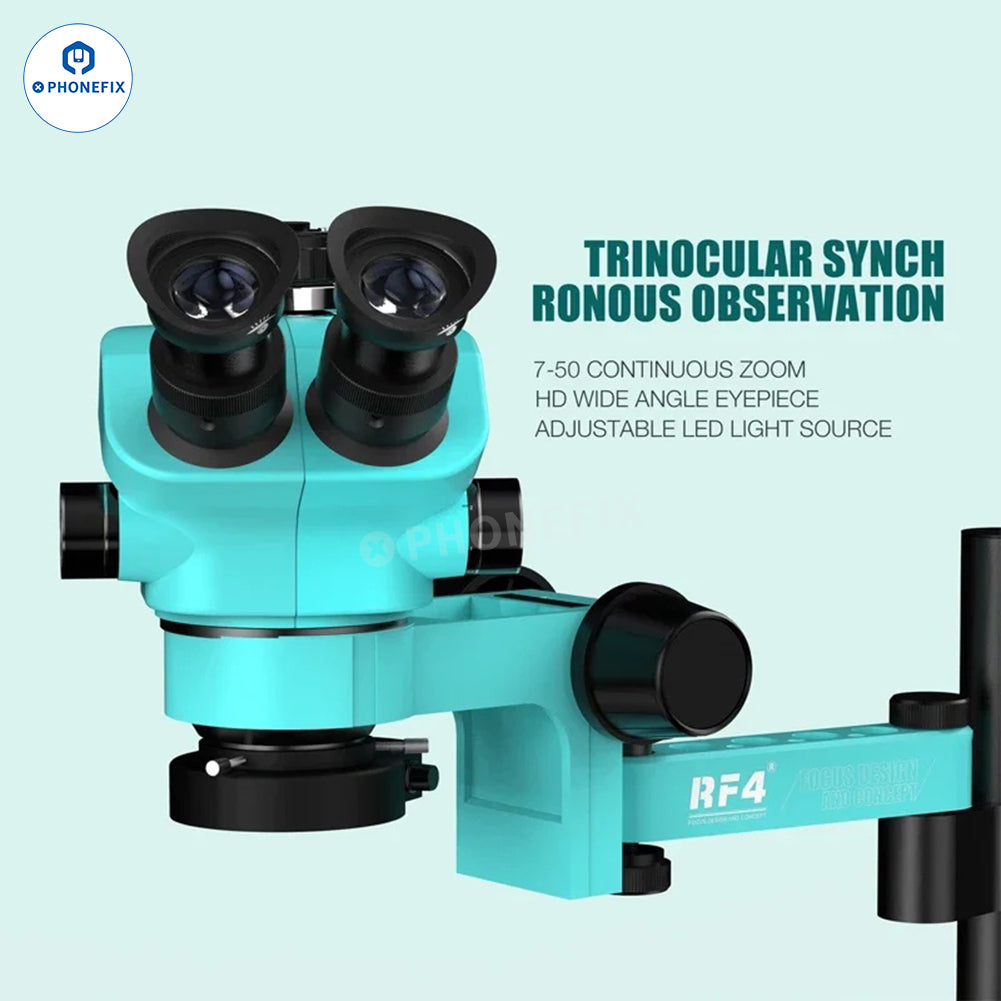

1. The head mount rotates 360° for viewing in any direction. 7-50x continuous zoom, HD wide-angle eyepiece adjustable LED light source.

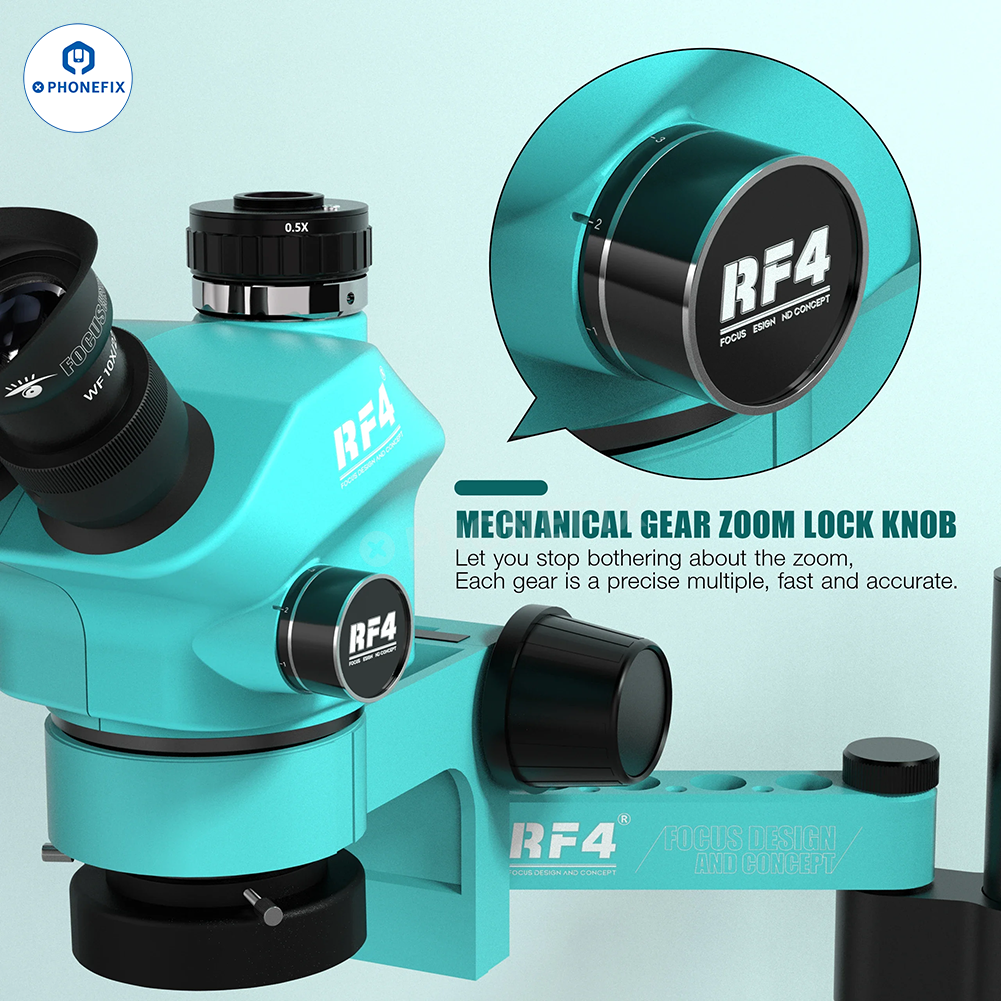

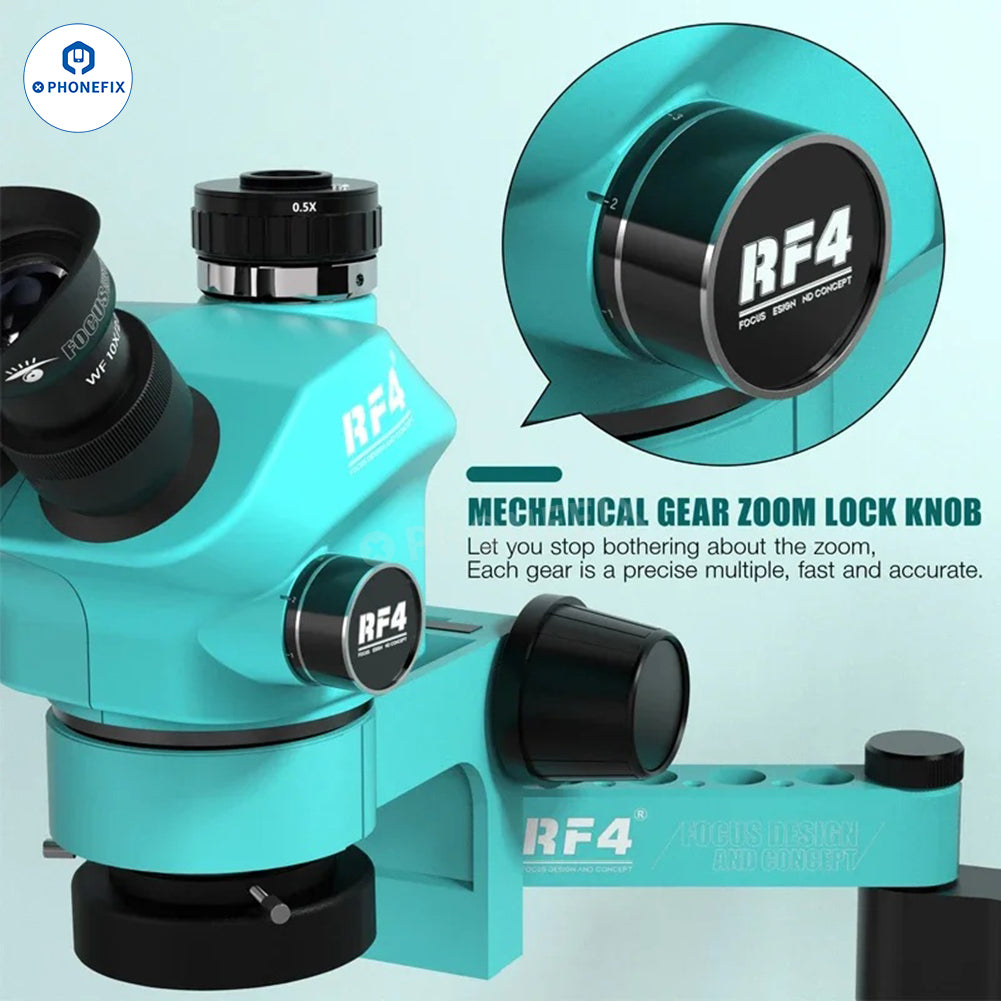

2. Mechanical gear zoon lock knob let you stop bothering about the zoom, each gear is a precise multiple, fast and accurate.

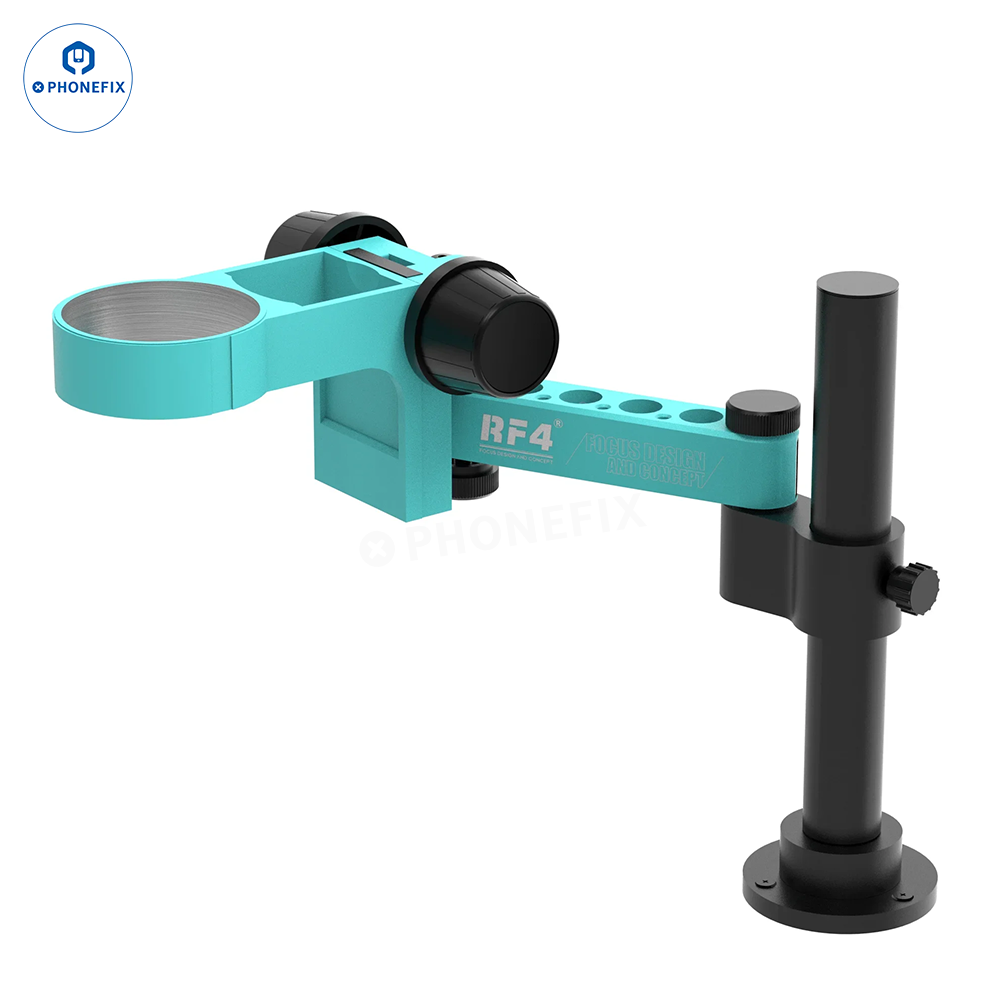

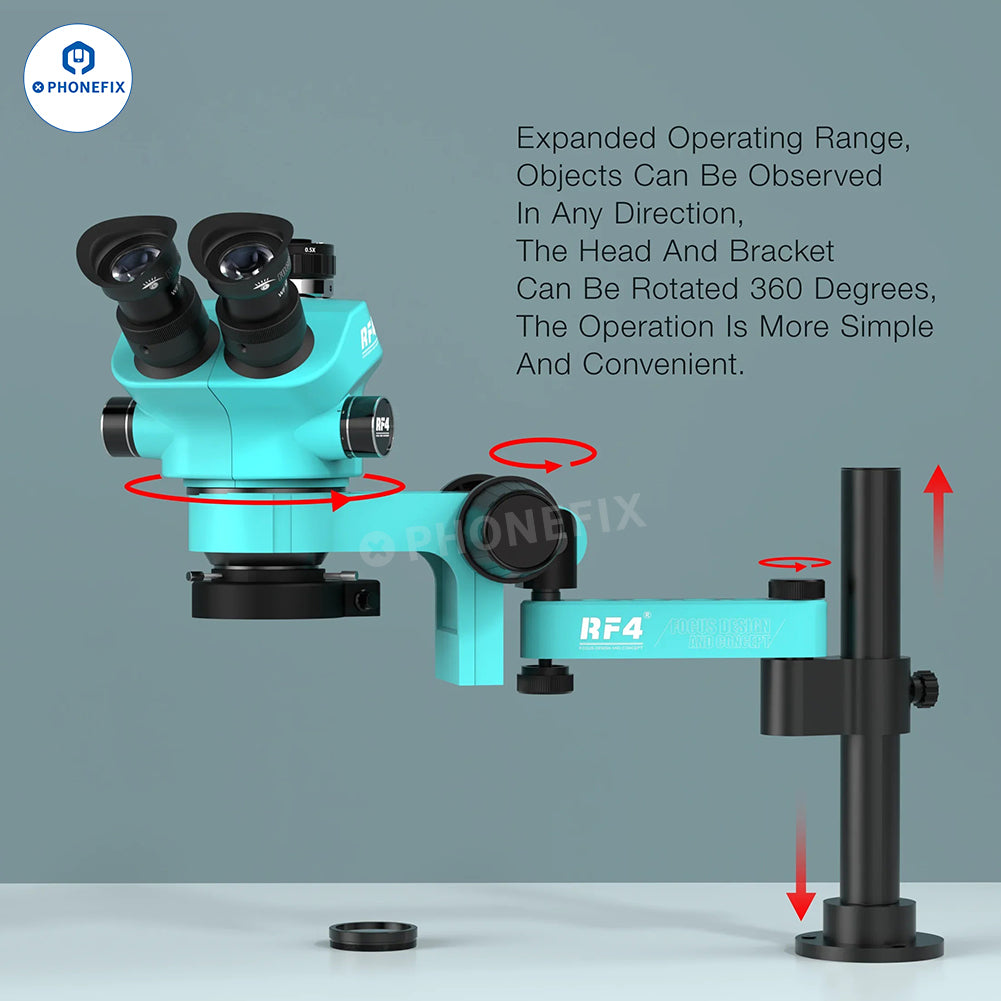

3. It expanded operating range, objects can be observed. In any direction, the head and bracket can be rotated 360 degrees, the operation is more simple and convenient.
4. Suitable for mobile phone repair, PCB board, electronic components, collection identification, anatomy, etc.
5. With a new ergonomic design to prevent light leakage and reduce fatigue. Ensure that residual light is not disturbed and the image remains visible even if the operator's eyes move.
Product Parameters:

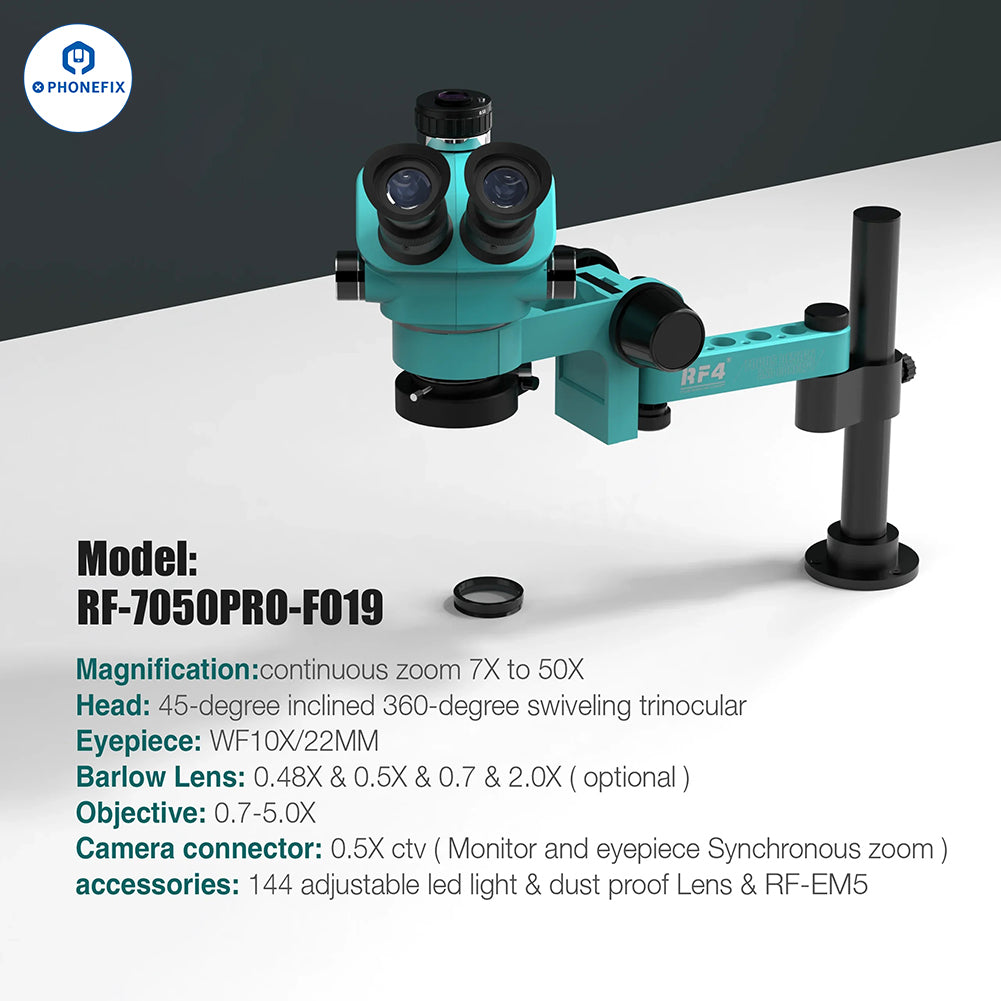

Model: RF4 RF7O50PRO-FO19
Magnification:continuous zoom: 7X to 50X.
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: WF10X/22MM
Barlow Lens: 0.48X & 0.5X & 0.7 & 2.0X ( optional)
Objective: 0.7-5.0X
Camera connector: 0.5X ctv( Monitor and eyepiece Synchronous zoom )
accessories: 144 adjustable led light & dust proof Lens & RF-EM5
Specification:
Magnification: Continuous zoom 7X to 50X
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: WF10X/22MM
Objective: 0.7-5.0X
Camera connector: 0.5X
Monitor and eyepiece: Synchronous zoom

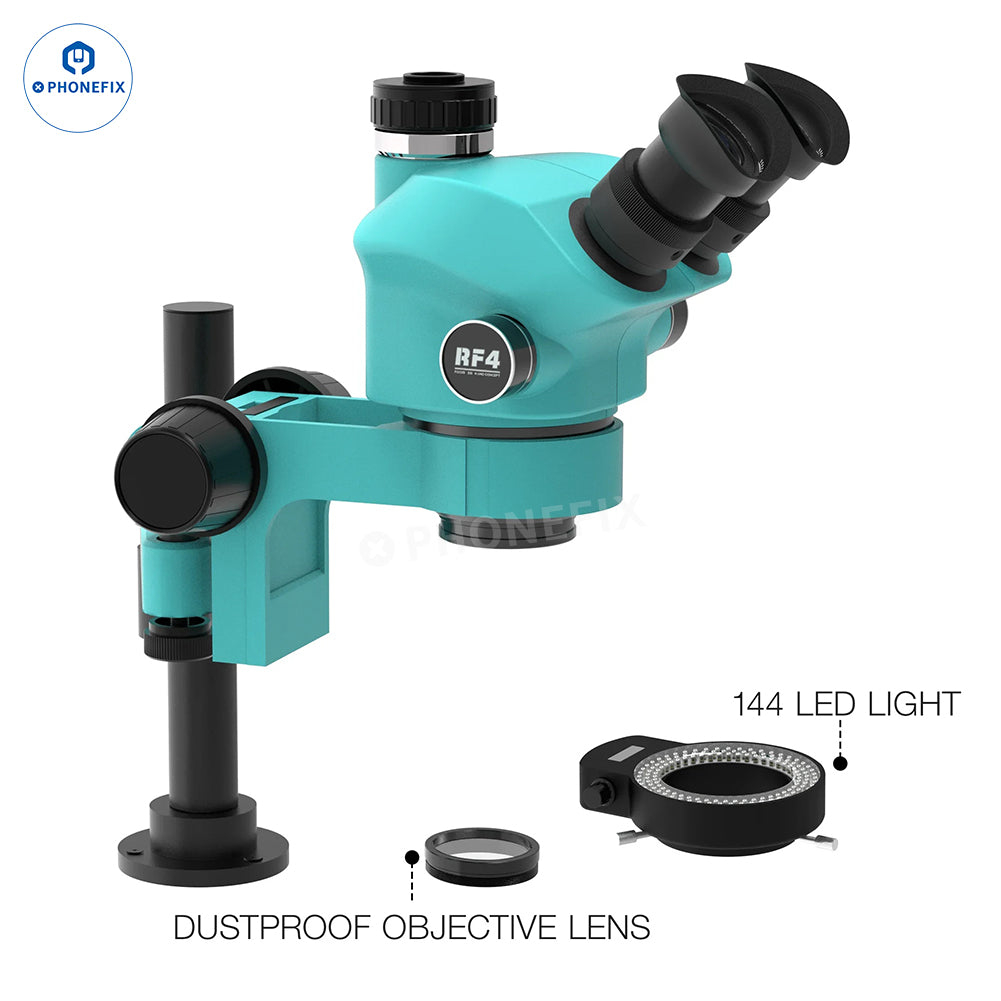

Accessories: 144 adjustable led lights & dust proof Lens
Wide-angle Eyepieces: 10X/22:
Magnification: 10X
Wide field of view 22mm
Matching size: 30mm
Applicable models: Stereoscopic, fixed, and continuous magnification microscopes
0.5X CTV Len:
The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet
The adapter ring can use LCD to focus, this kind of focus method is manual focus
The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming

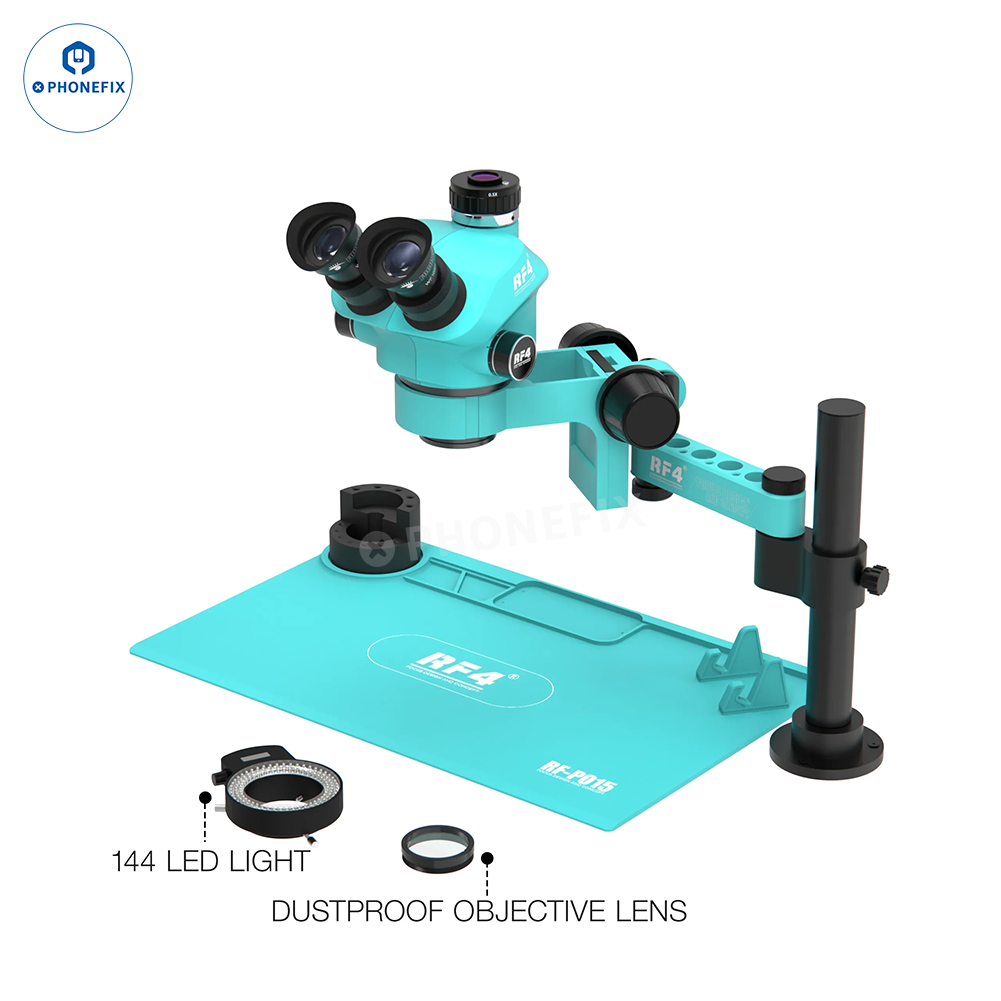

144 LED Ring Light:
Input: AC 100~240V 50/60Hz
Output: DC 12V, Max 700mA
Light color: White
Number of lights: 144 LEDs
Inside diameter: 60mm
