RF4 High-Definition Trinocular stereo continuous zoom industrial microscope for mobile phone PCB BGA repair. 2023 New RF4 RF7050 Pro 7-50X Synchronous Zoom Trinocular Stereo Microscope. RF4 RF7050TV RF7050TVW RF7050TVP 7X-50X Trinocular Microscope. RF4 RF6565TV RF6565TVW RF6565TVP RF6565R
6.5X-65X trinocular microscope. RF4 RF-6555TVP RF-6555PRO RF-6555PRO MAX RF6565PRO-D2 6.5-55X Synchronous Zoom Trinocular Stereo Microscope With Aluminum Alloy Base.

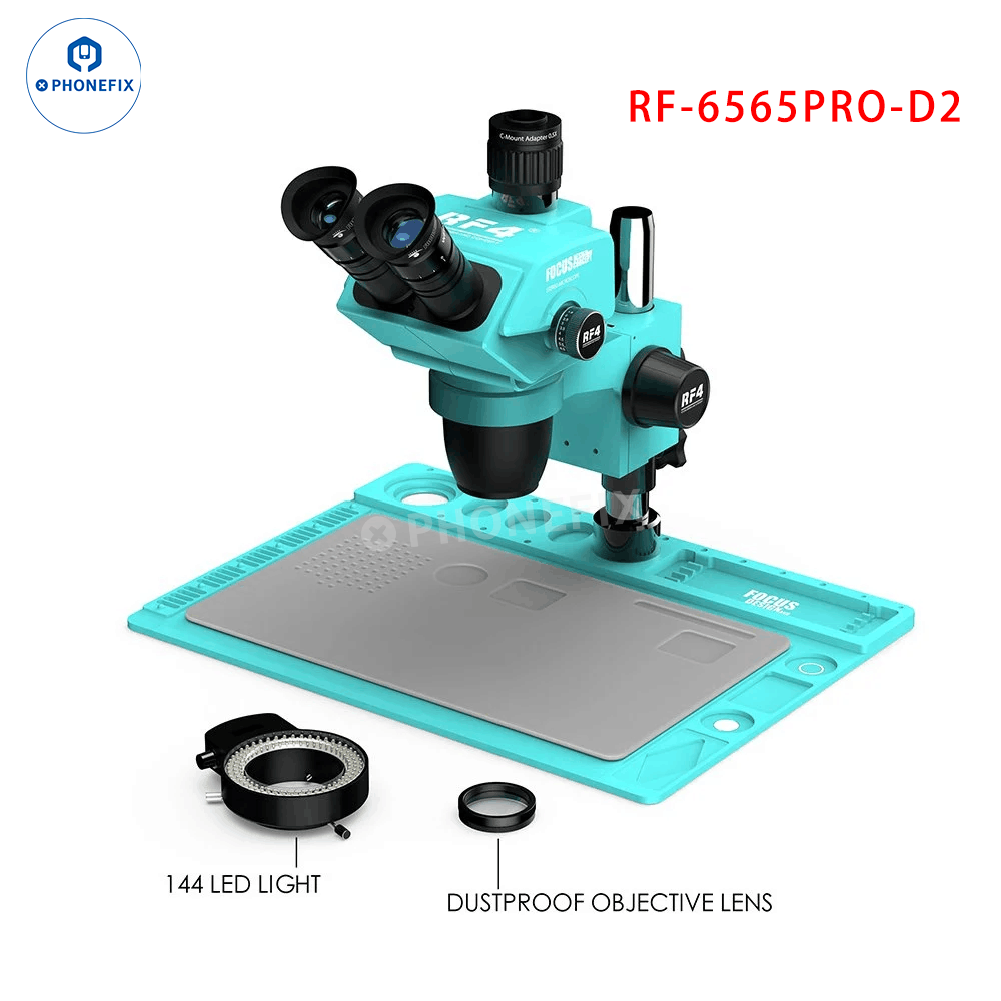

RF4 RF-6565PRO-D2 6.5-65X Trinocular Stereo Microscope:
- Magnification: Continuous zoom 6.5X to 55X.
- Head: 45-degree inclined 360-degree swiveling trinocular.
- Eyepiece: WF10X/22MM adjustable.
- Objective: 0.65-5.5X.
- Zoom Knob: Metal knob 7 gear zoom.
- Camera connector:0.48PRO CTV (Monitor and eyepiece Synchronous zoom).
- Accessories: 144 light dustproof lens Limit lock Leak-proof eye cup.
- Column aperture: Φ32mm.
- Lens aperture: Φ76mm.
- Center distance: 155mm.
- Lifting range: 50mm.
- Wide-angle Eyepieces 10X/22: 10X Magnification, wide field of view 22mm, 30mm matching size.
- 0.5X CTV Len.
- 144 LED Ring Light.
- RF-D2 Aluminum Alloy Base.

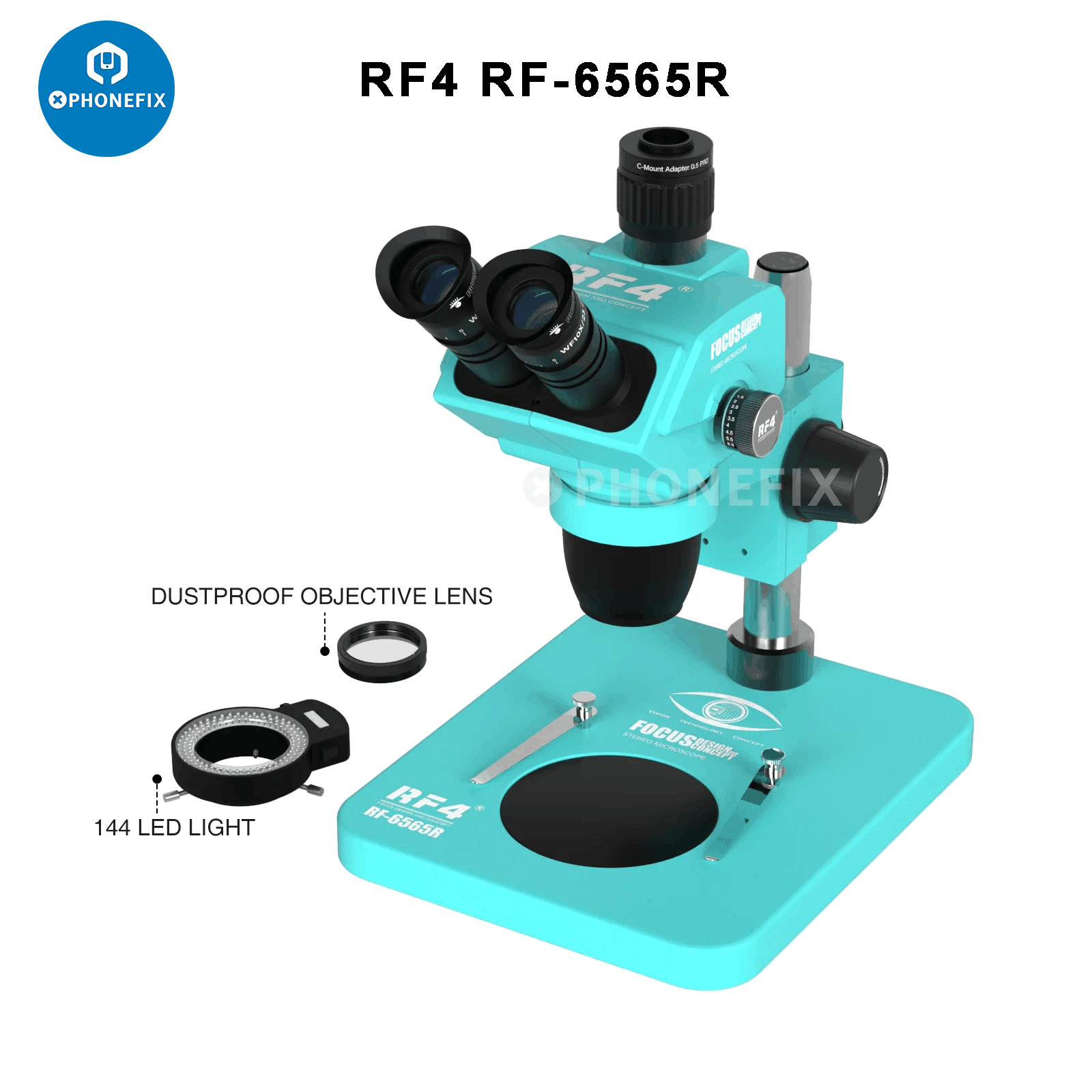

RF4 RF-6565R Trinocular Microscope Features:
- Magnification: Continuous zoom 6.5X to 65X.
- Head: 45-degree inclined 360-degree swiveling trinocular.
- Eyepiece: WF10X/22MM.
- Objective: 0.65X-6.5X.
- Camera connector: 0.5X.
- Monitor and eyepiece: Synchronous zoom.
- Accessories: 144 adjustable LED lights + dust proof Lens.
- Column aperture: Φ32mm.
- Lens aperture: Φ76mm.
- Center distance: 155mm.
- Lifting range: 50mm.
- Magnification: 10X.
- Wide field of view 22mm.
- Matching size: 30mm.
- Applicable models: Stereoscopic, fixed, and continuous magnification microscopes.
- 144 LED Light: DC 12V, Max 700mA, 60mm inside diameter, AC 100-240V 50/60Hz.

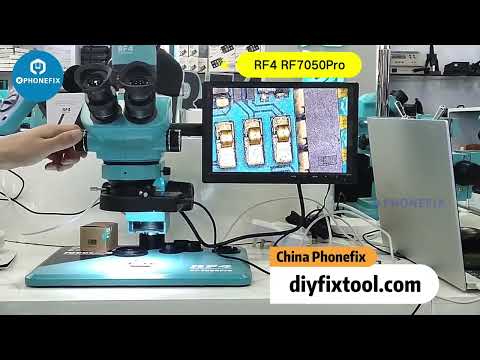

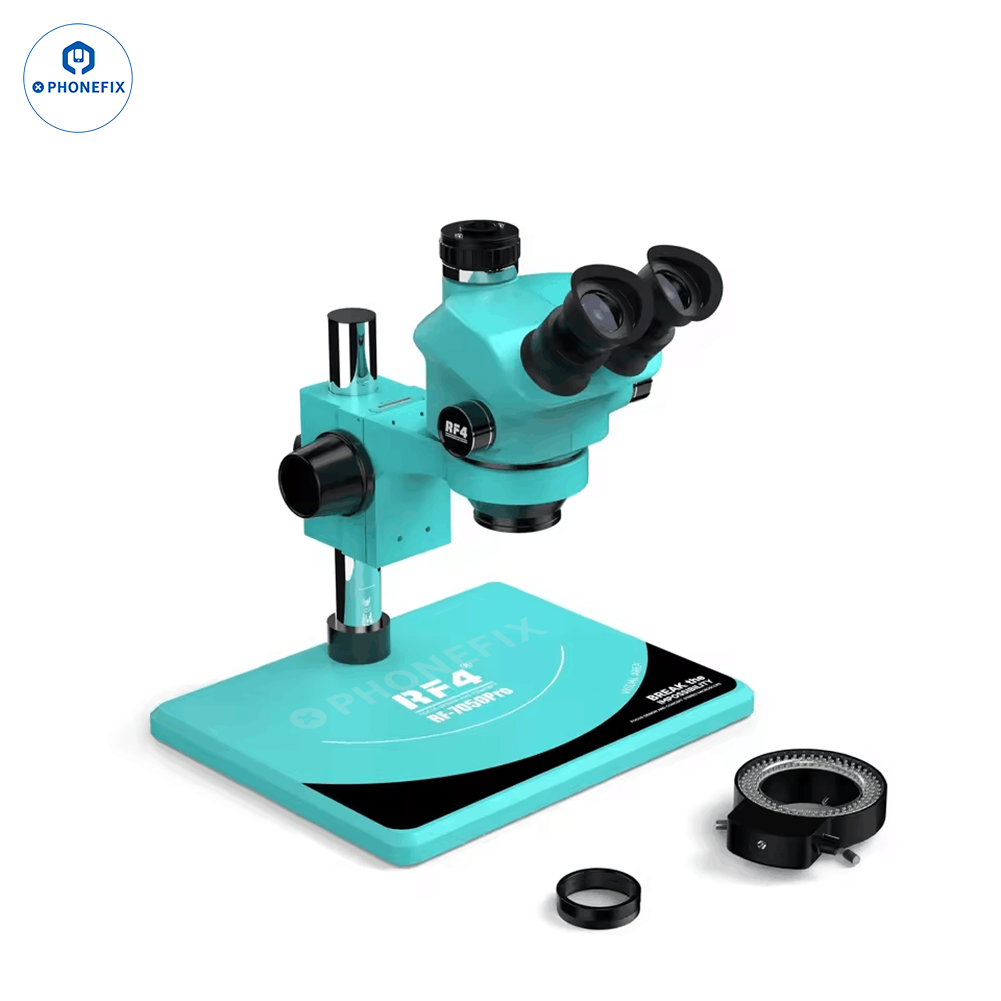

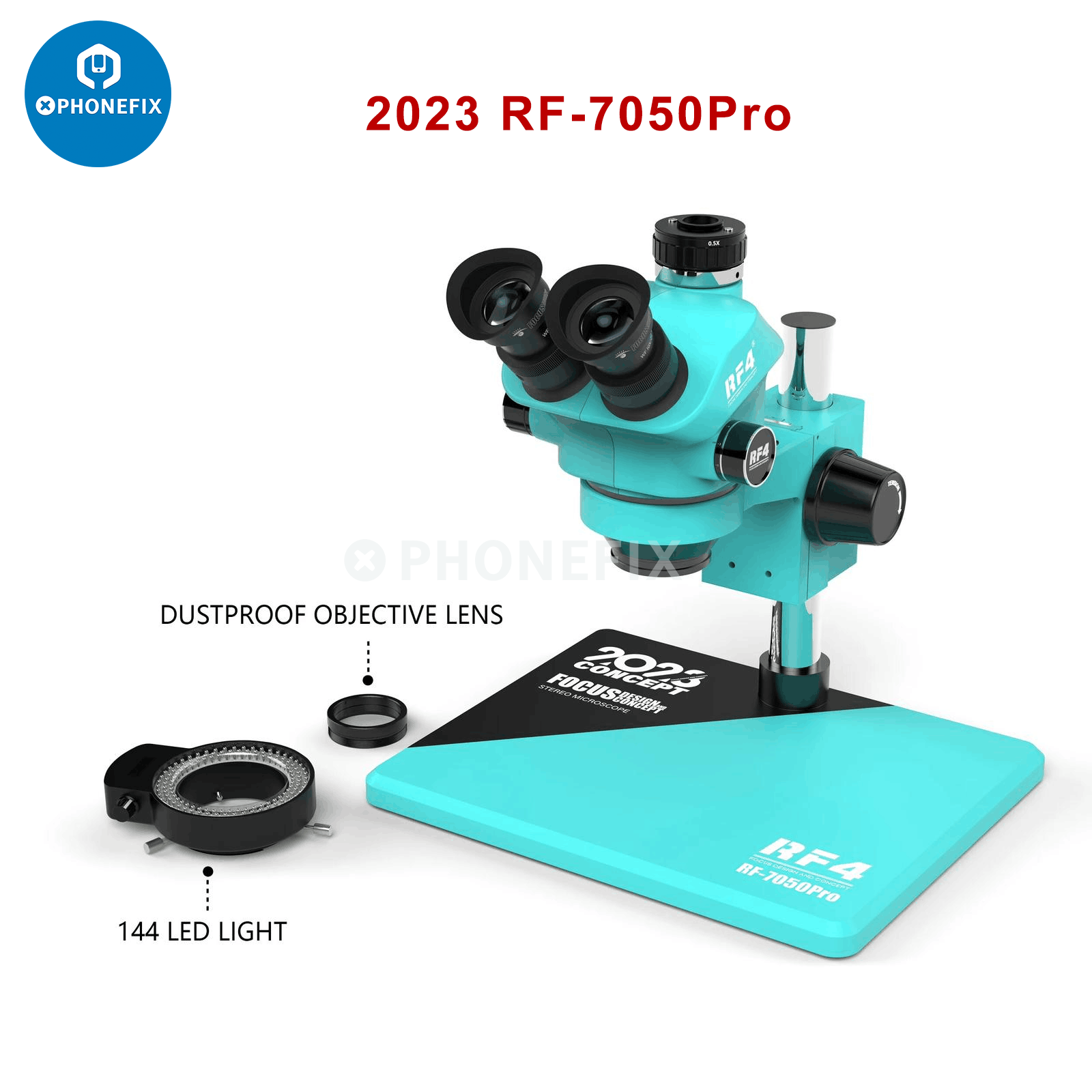

2023 RF4 RF-7050 Pro 7-50X Trinocular Microscope Features:
- Magnification: Continuous zoom 7X to 50X.
- Head: 45-degree inclined 360-degree swiveling trinocular.
- Eyepiece: WF10X/22MM.
- Objective: 0.7-5.0X.
- Camera connector: 0.5X.
- Monitor and eyepiece: Synchronous zoom.
- Accessories: 144 adjustable led lights & dust proof Lens.
- Column aperture: Φ32mm
- Lens aperture: Φ76mm
- Center distance: 155mm
- Lifting range: 50mm
- Wide-angle Eyepieces 10X/22: 10X magnification, wide field of view 22mm, 30mm matching size.
- Applicable models: Stereoscopic, fixed, and continuous magnification microscopes
- 0.5X CTV Len: The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet. The adapter ring can use LCD to focus, this kind of focus method is manual focus. The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming.
- 144 LED Ring Light: DC 12V, max 700mA, 60mm inside diameter.

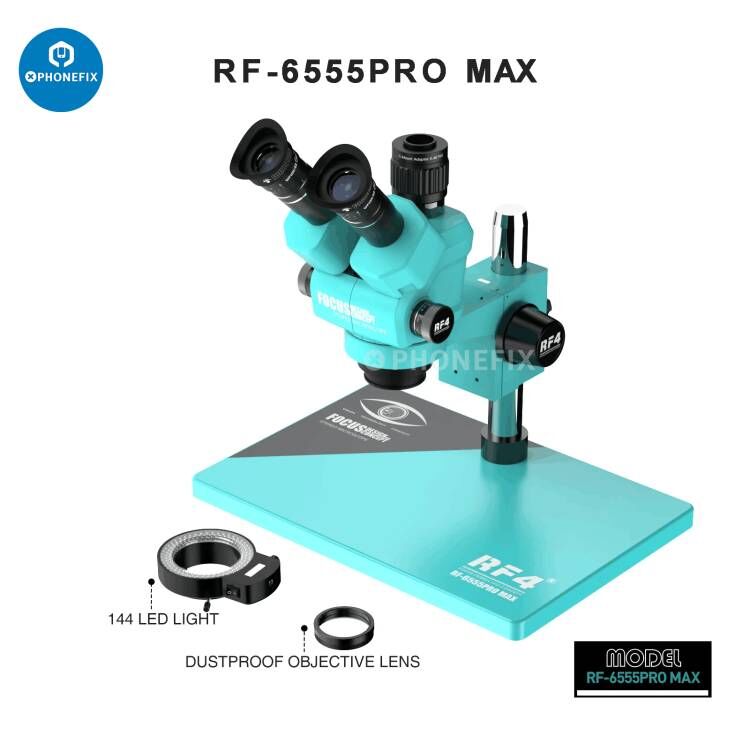

RF4 RF-6555PRO MAX Trinocular Microscope Features:
- Magnification: Continuous zoom 6.5X to 55X.
- Head: 45-degree inclined 360-degree swiveling trinocular.
- Eyepiece: WF10X/22MM adjustable.
- Objective: 0.65-5.5X.
- Zoom Knob: Metal knob 7 gear zoom.
- Camera connector:0.48PRO CTV (Monitor and eyepiece Synchronous zoom).
- Accessories: 144 light dustproof lens Limit lock Leak-proof eye cup.
- Column aperture: Φ32mm.
- Lens aperture: Φ76mm.
- Center distance: 155mm.
- Lifting range: 50mm.
- Wide-angle Eyepieces 10X/22: 10X Magnification, wide field of view 22mm, 30mm matching size.
- 0.5X CTV Len.
- 144 LED Ring Light.
- Aluminum Alloy Plate.

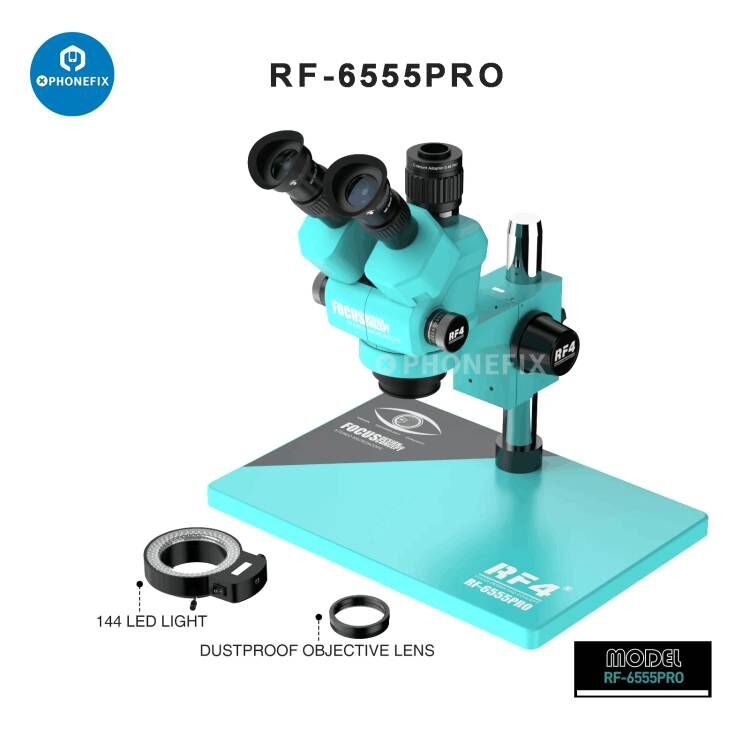

RF4 RF-6555PRO Trinocular Microscope Features:
- Magnification: Continuous zoom 6.5X to 55X.
- Head: 45-degree inclined 360-degree swiveling trinocular.
- Eyepiece: WF10X/22MM adjustable.
- Objective: 0.65-5.5X.
- Zoom Knob: Metal knob 7 gear zoom.
- Camera connector:0.48PRO CTV (Monitor and eyepiece Synchronous zoom).
- Accessories: 144 light dustproof lens Limit lock Leak-proof eye cup.
- Column aperture: Φ32mm.
- Lens aperture: Φ76mm.
- Center distance: 155mm.
- Lifting range: 50mm.
- Wide-angle Eyepieces 10X/22: 10X Magnification, wide field of view 22mm, 30mm matching size.
- 0.5X CTV Len.
- 144 LED Ring Light.
- Aluminum Alloy Plate.

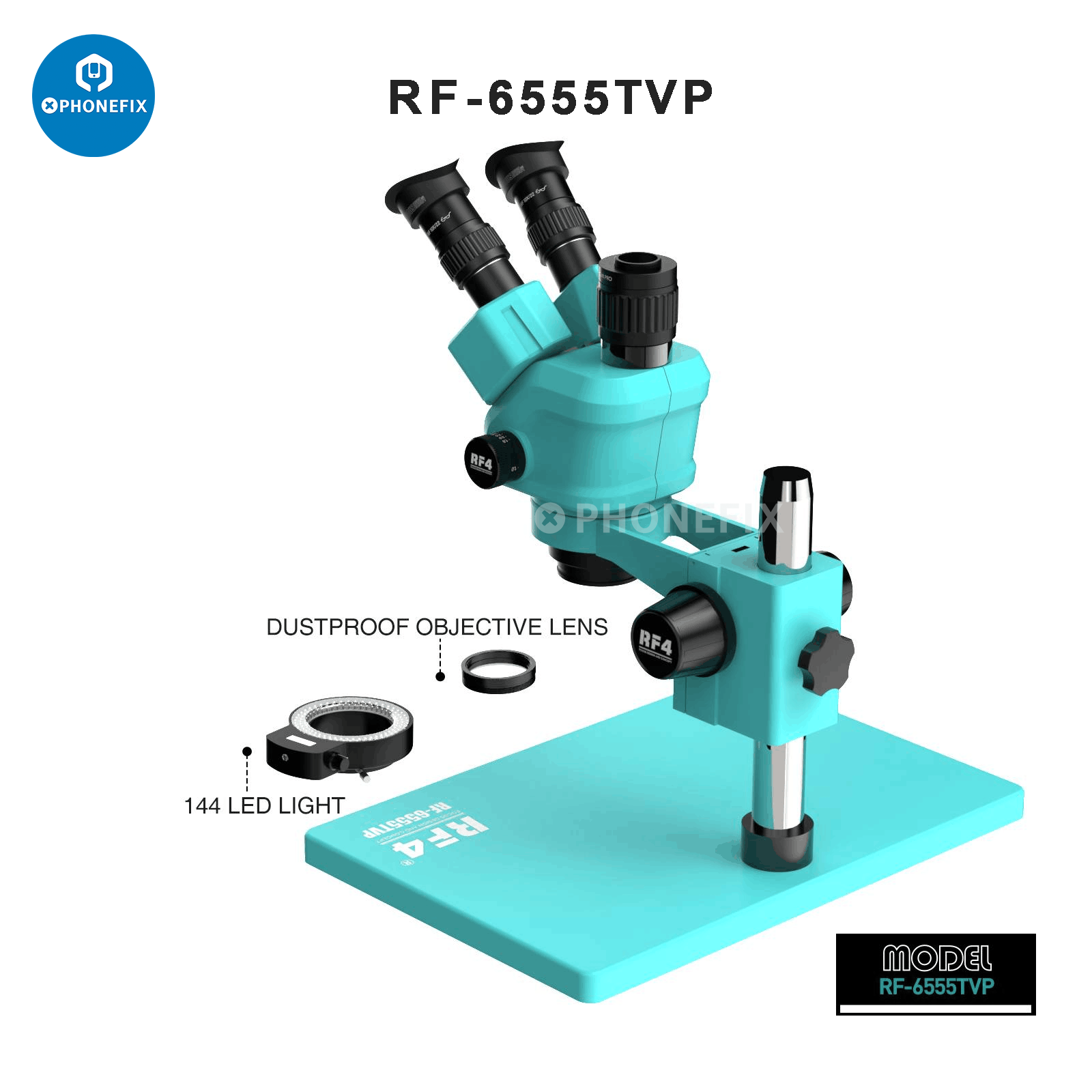

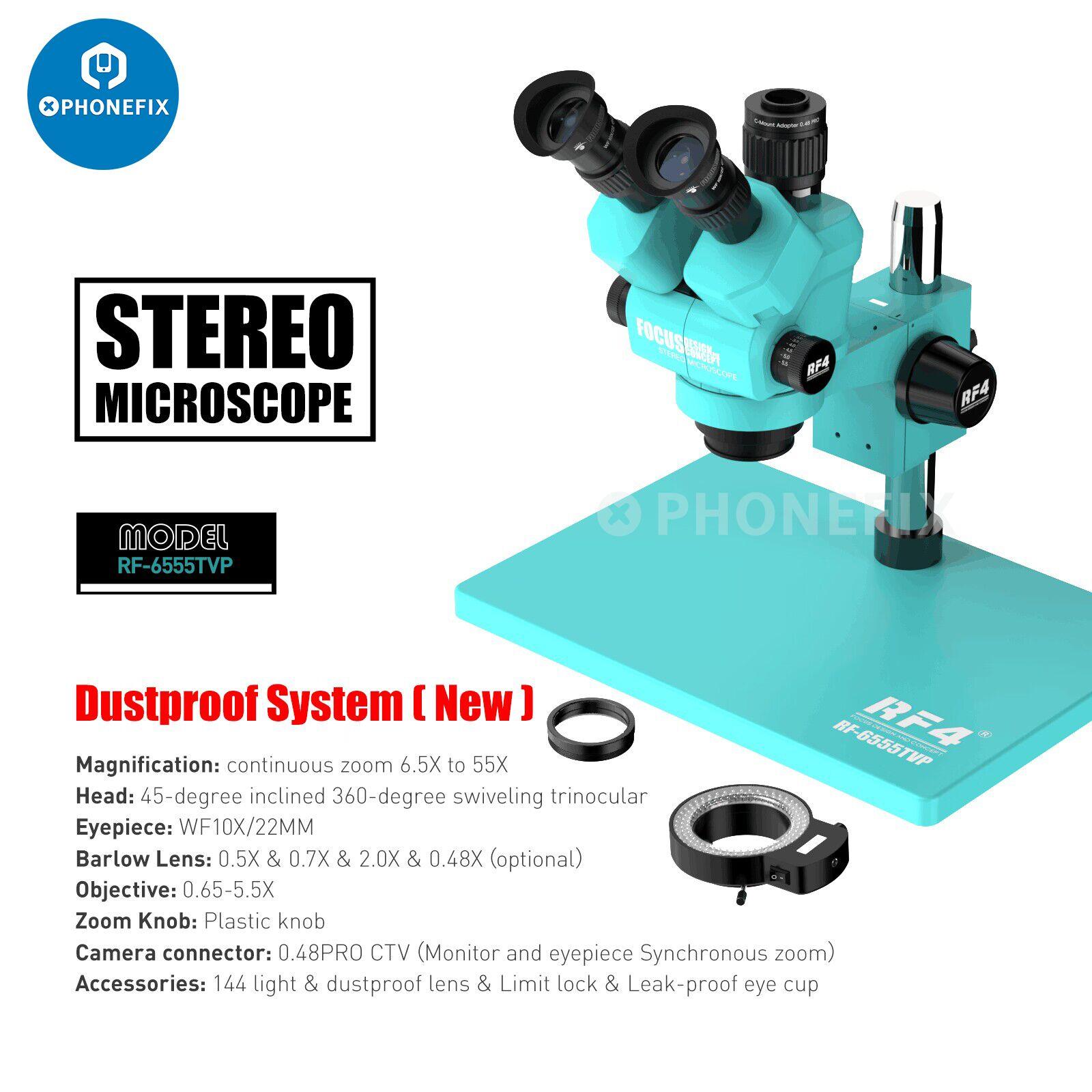

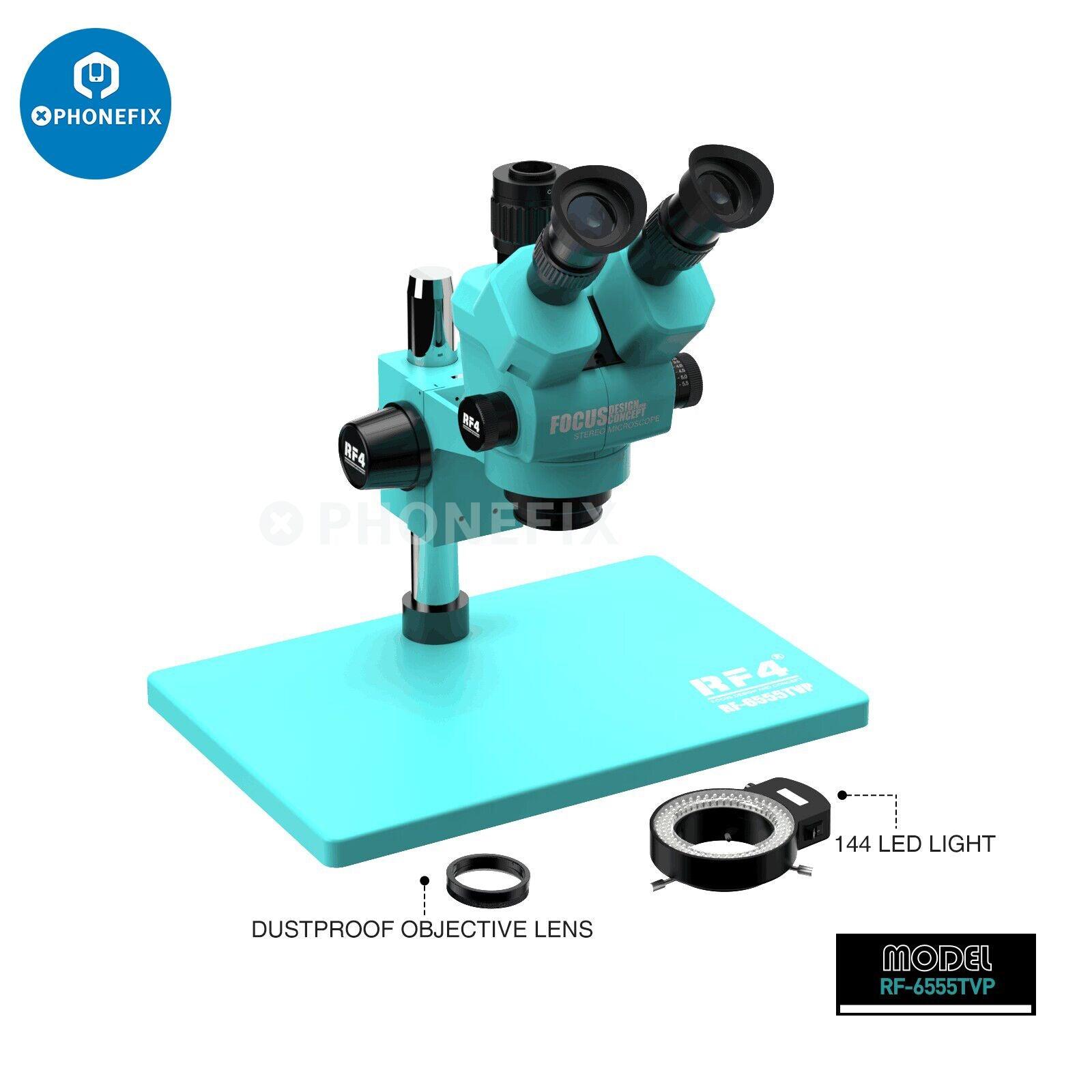

RF4 RF-6555TVP Trinocular Microscope Features:
- Magnification: Continuous zoom 6.5X to 55X.
- Head: 45-degree inclined 360-degree swiveling trinocular.
- Eyepiece: WF10X/22MM adjustable.
- Objective: 0.65-5.5X.
- Zoom Knob: Metal knob 7 gear zoom.
- Camera connector:0.48PRO CTV (Monitor and eyepiece Synchronous zoom).
- Accessories: 144 light dustproof lens Limit lock Leak-proof eye cup.
- Column aperture: Φ32mm.
- Lens aperture: Φ76mm.
- Center distance: 155mm.
- Lifting range: 50mm.
- Wide-angle Eyepieces 10X/22: 10X Magnification, wide field of view 22mm, 30mm matching size.
- 0.5X CTV Len.
- 144 LED Ring Light.
- Aluminum Alloy Plate.

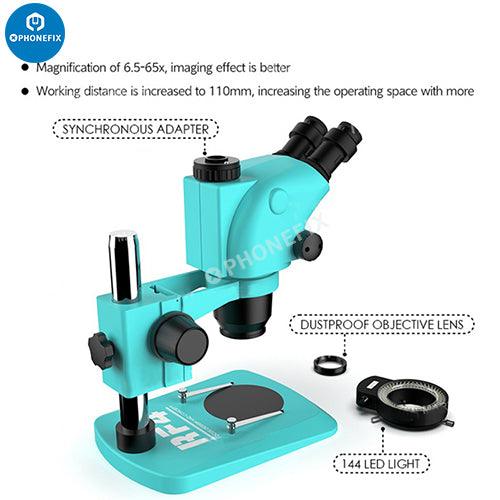

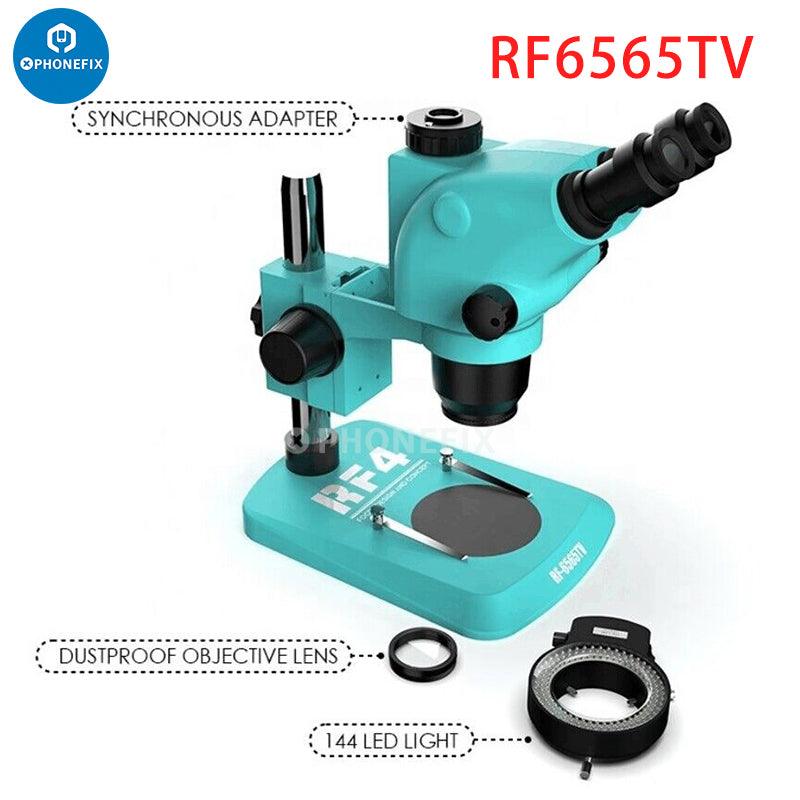

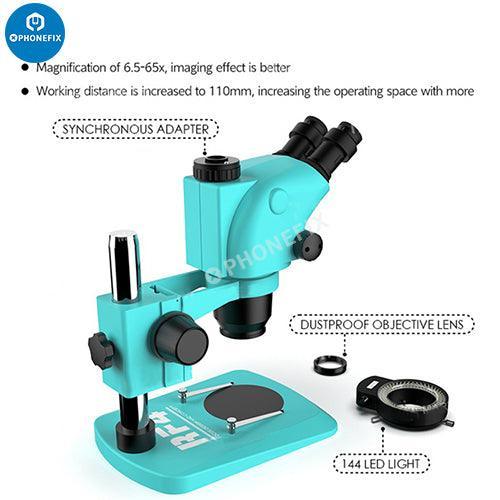

RF4 RF-6565TV Optical Trinocular Microscope Features:
- Magnification: Big continuous zoom 6.5X to 65X.
- Head: 45-degree inclined 360-degree swiveling trinocular.
- Eyepiece: WF10X/22MM Adjust the focal.
- Barlow Lens: 0.5X, 0.7X, 2.0X(optional).
- Objective: 0.65-6.5X.
- Camera connector：1/2CTV.
- Monitor and eyepiece. Synchronous zoom.
- Camera: Different models optional.
- Boom Stand: 250mm φ32mm pillar, 200mm*255mm base with White/Black Round Plastic Plate.
- Accessories: 144 adjustable led light, dustproof Lens, standard base.

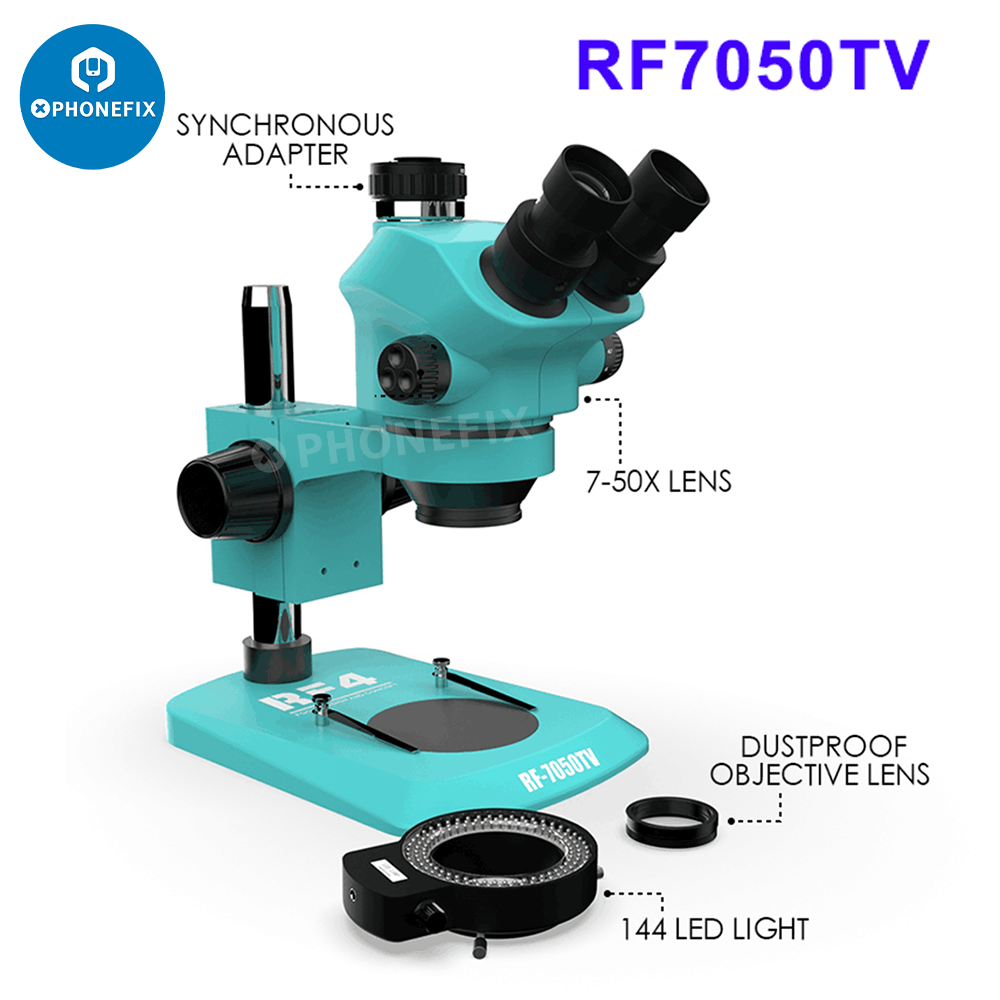

RF4 RF-7050TV 7X-50X trinocular microscope features:
- Magnification: Continuous zoom 7X to 50X.
- Head: 45-degree inclined 360-degree swiveling trinocular.
- Eyepiece: WF10X/22MM.
- Barlow Lens: 0.5X, 0.7X, 2.0X(optional).
- Objective: 0.7-5.0X.
- Camera connector：0.5x ctv adapter.
- Monitor and eyepiece. Synchronous zoom.
- Camera: Different models optional.
- Boom Stand: 250mm φ32mm pillar, 200mm*255mm base with White/Black Round Plastic Plate.
- Accessories: 144 adjustable LED light, dust-proof Lens, standard base.
- Input: AC 100-240V, 50/60Hz.
- Output: DC 12V, max 700mA.
- Max output: 4.5W-6W.
- Illumination: Over 30000-35000 Lux.
- Color Temperature: 6000-7000K.
- Light color: white.
- Inside diameter: 60mm.

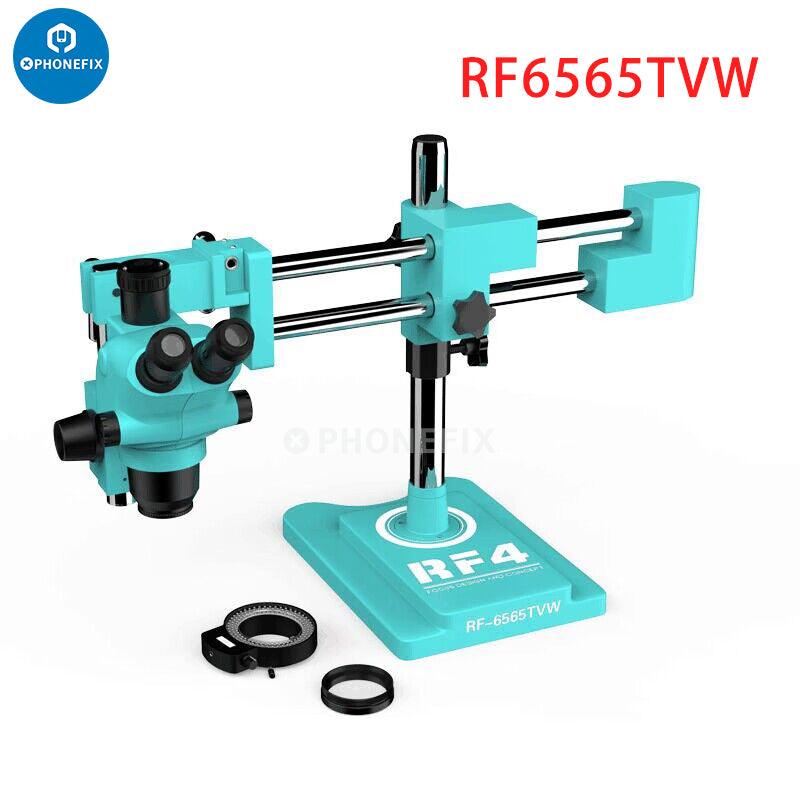

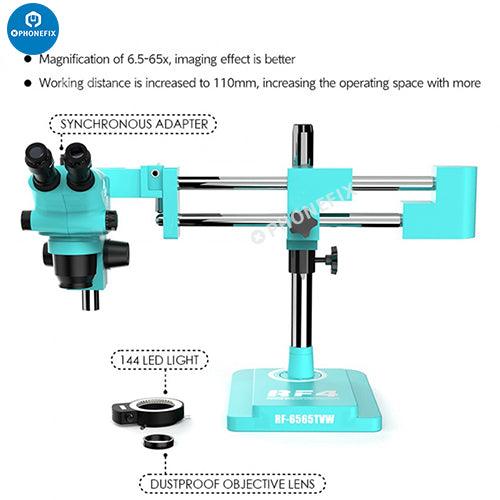

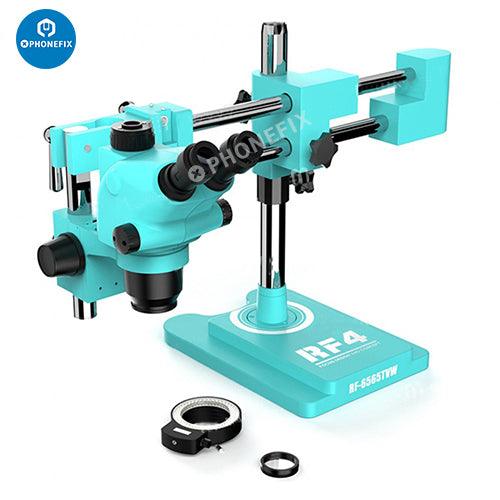

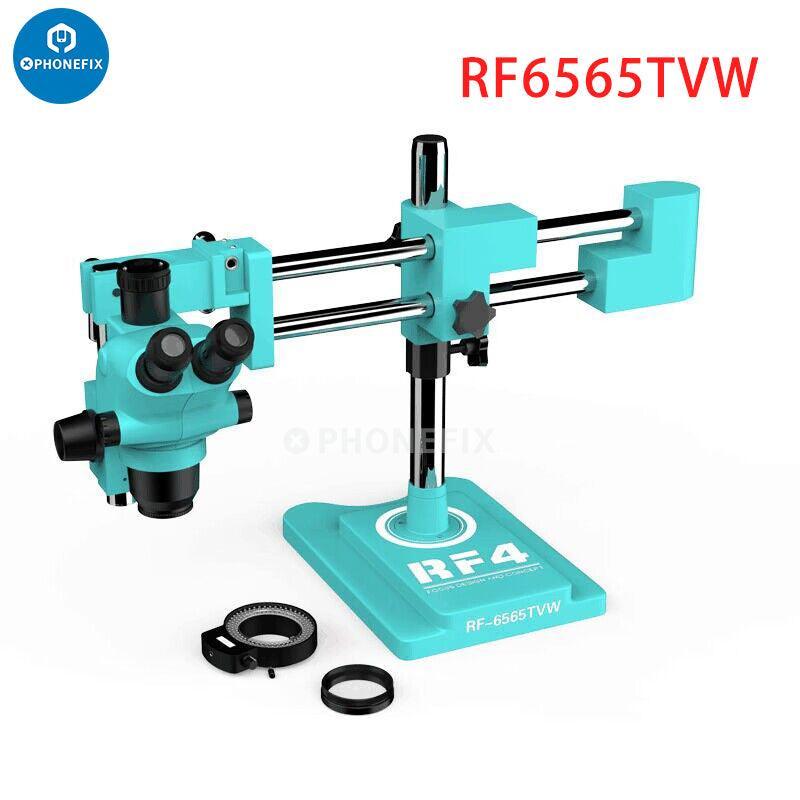

RF4 RF-6565TVW Trinocular Microscope Features:
- Magnification: big continuous zoom 6.5X to 65X.
- Head: 45-degree inclined 360-degree swiveling trinocular.
- Eyepiece: WF10X/22MM Adjust the focal Barlow Lens: 0.5X & 0.7&2.0X(optional)
- Objective: 0.65-6.5X.
- Camera connector：1/2CTV.
- Monitor and eye the piece. Synchronous zoom Camera: Different models optional
- Boom Stand: 51cm double-arm (overall length: 76cm) 41cm high pillar, 200mm*245mm solid cast steel base
- Accessories: 144 led light, dustproof Lens, STL2 double-arm boom stand.
- 0.5X CTV
- The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet
- The adapter ring can use LCD to focus, this kind of focus method is manual focus
- The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming

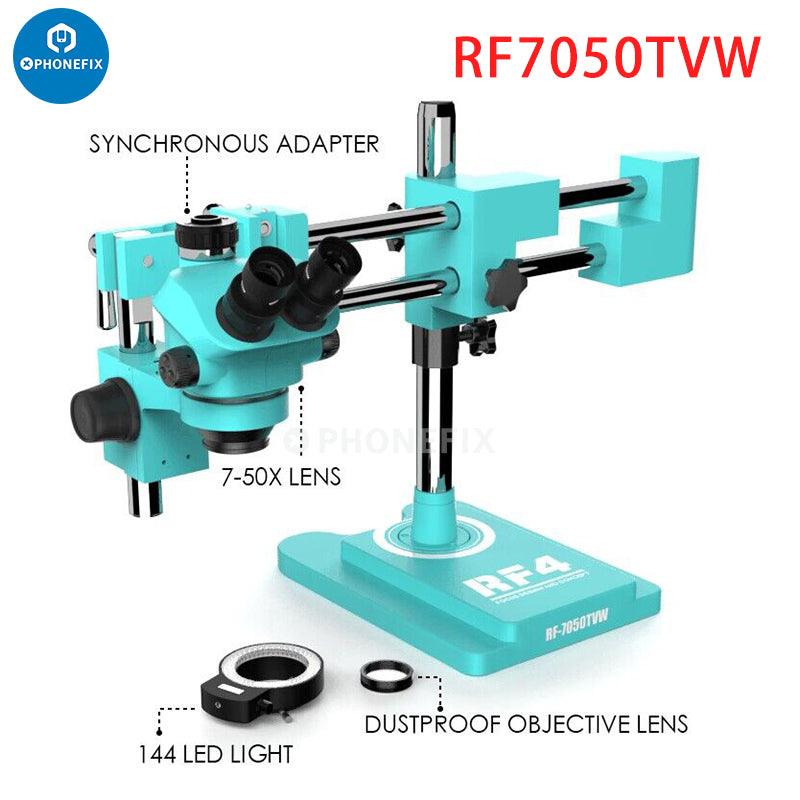

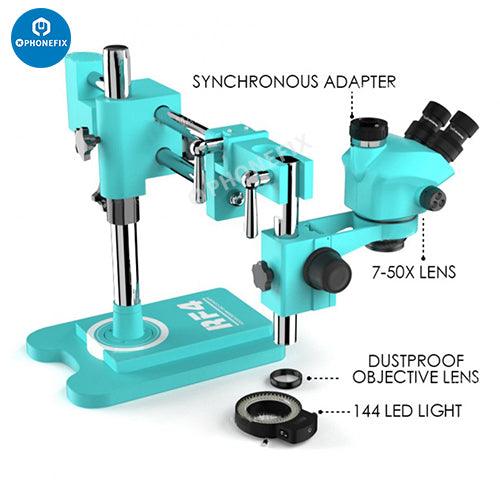

RF4 RF-7050TVW 7-50X Trinocular Microscope Features:
- Magnification: Continuous zoom 7X to 50X
- Head: 45-degree inclined 360-degree swiveling trinocular
- Eyepiece: WF10X/22MM
- Barlow Lens: 0.5X & 0.7&2.0X(optional)
- Objective: 0.7-5.0X
- Camera connector：1/2CTV
- Monitor and eyepiece. Synchronous zoom
- Camera: Different models optional
- Boom Stand: 51cm double-arm (overall length: 76cm)
- 41cm high pillar, 200mm*245mm solid cast steel base
- Accessories: 144 led light, dustproof Lens, STL2 double-arm boom stand.
- Input: AC 100-240V, 50/60Hz.
- Output: DC 12V, max 700mA.
- Max output: 4.5W-6W.
- Illumination: Over 30000-35000 Lux.
- Color Temperature: 6000-7000K.
- Light color: white.
- Inside diameter: 60mm.

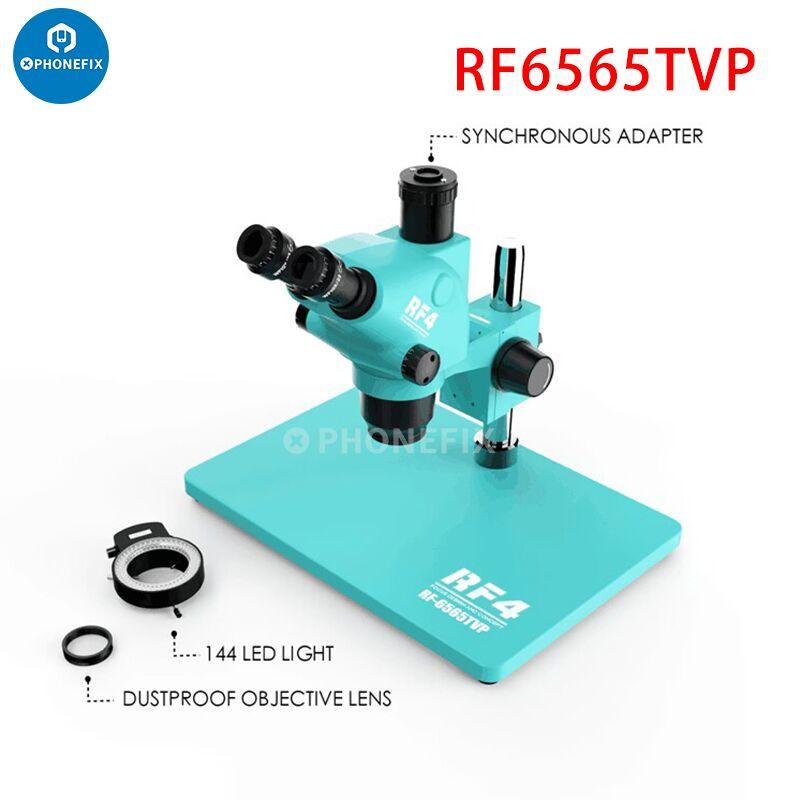

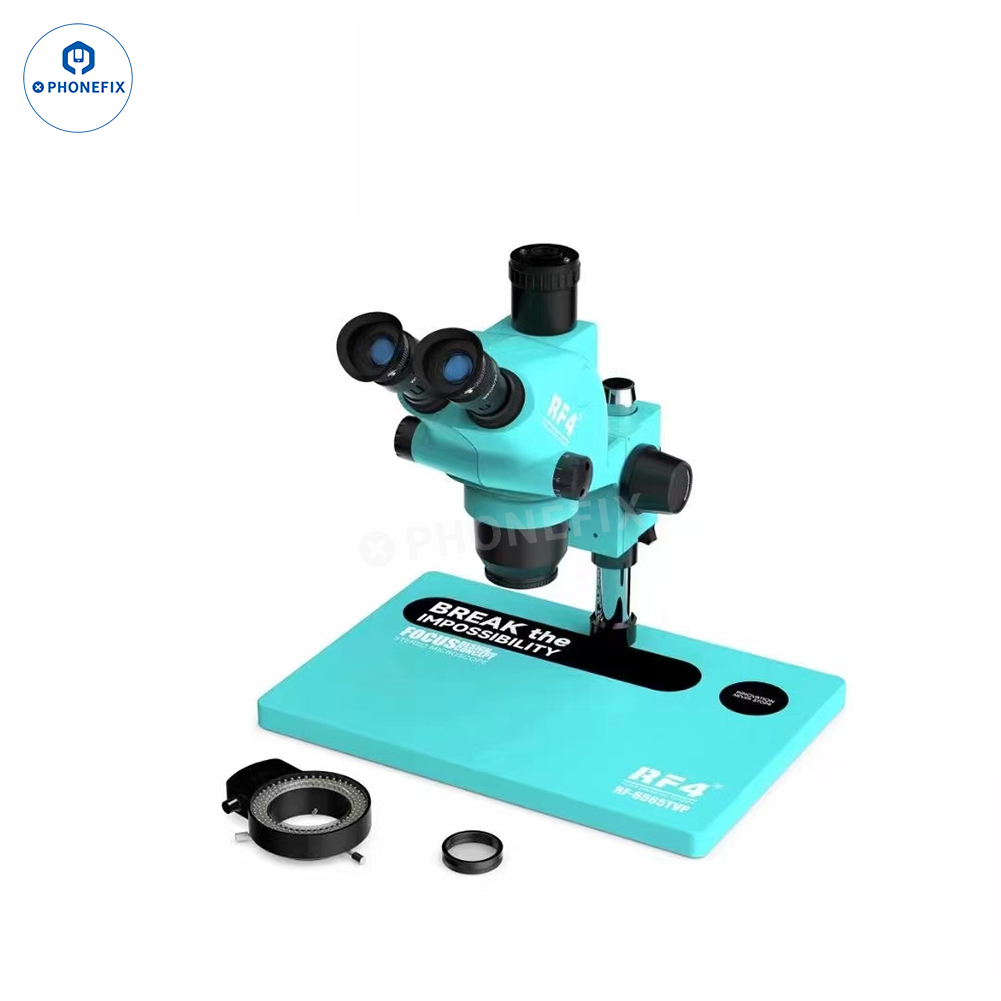

RF4 RF-6565TVP trinocular microscope features:
- Magnification: Big continuous zoom 6.5X to 65X.
- Head: 45-degree inclined 360-degree swiveling trinocular.
- Eyepiece: WF10X/22MM Adjust the focal.
- Barlow Lens: 0.5X, 0.7X, 2.0X(optional).
- Objective: 0.65-6.5X.
- Camera connector：1/2CTV.
- Monitor and eyepiece. Synchronous zoom.
- Camera: Different models optional.
- Boom Stand: 250mm φ32mm pillar, 200mm*255mm base with White/Black Round Plastic Plate.
- Accessories: 144 adjustable led light, dustproof Lens, 260*380mm big base.

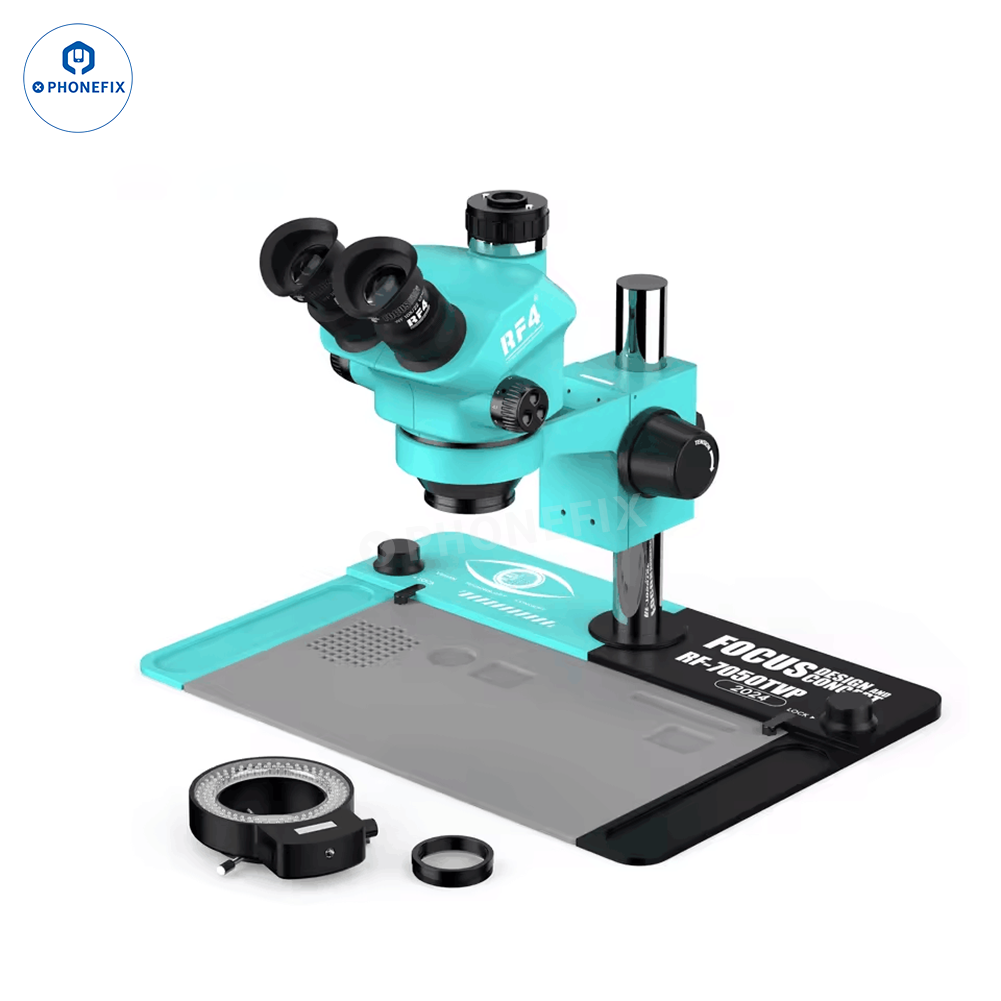

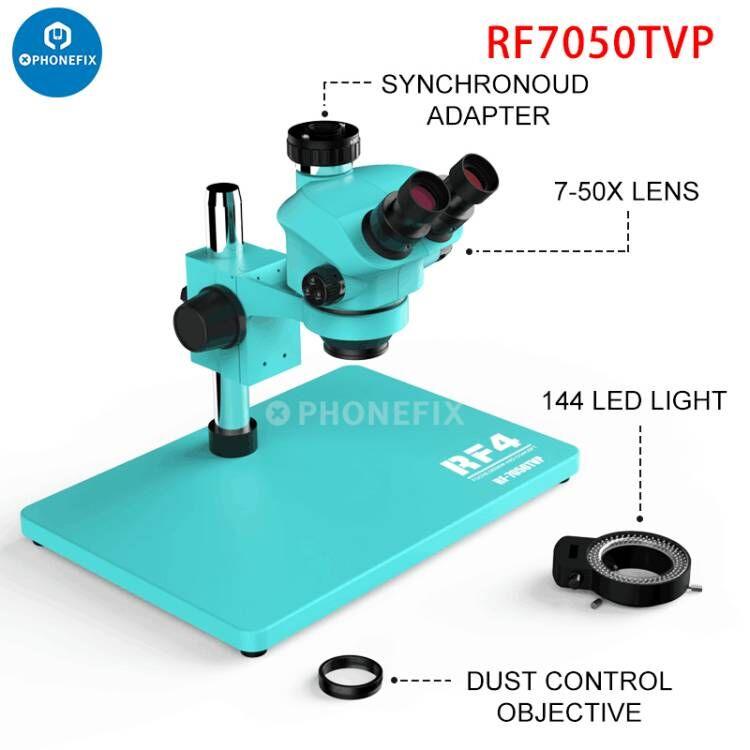

RF4 RF-7050TVP trinocular microscope features:
- Magnification: continuous zoom 7X to 50X.
- Head: 45-degree inclined 360-degree swiveling trinocular.
- Eyepiece: WF10X/22MM.
- Barlow Lens: 0.5X, 0.7X, 2.0X(optional).
- Objective: 0.7-5.0X.
- Camera connector：0.5x ctv adapter.
- Monitor and eyepiece. Synchronous zoom.
- Camera: Different models optional.
- Boom Stand: 250mm φ32mm pillar, 200mm*255mm base with White/Black Round Plastic Plate.
- Accessories: 144 Adjustable LED light, dust-proof Lens, 260*380mm big base.
- Input: AC 100-240V, 50/60Hz.
- Output: DC 12V, max 700mA.
- Max output: 4.5W-6W.
- Illumination: Over 30000-35000 Lux.
- Color Temperature: 6000-7000K.
- Light color: white.
- Inside diameter: 60mm.

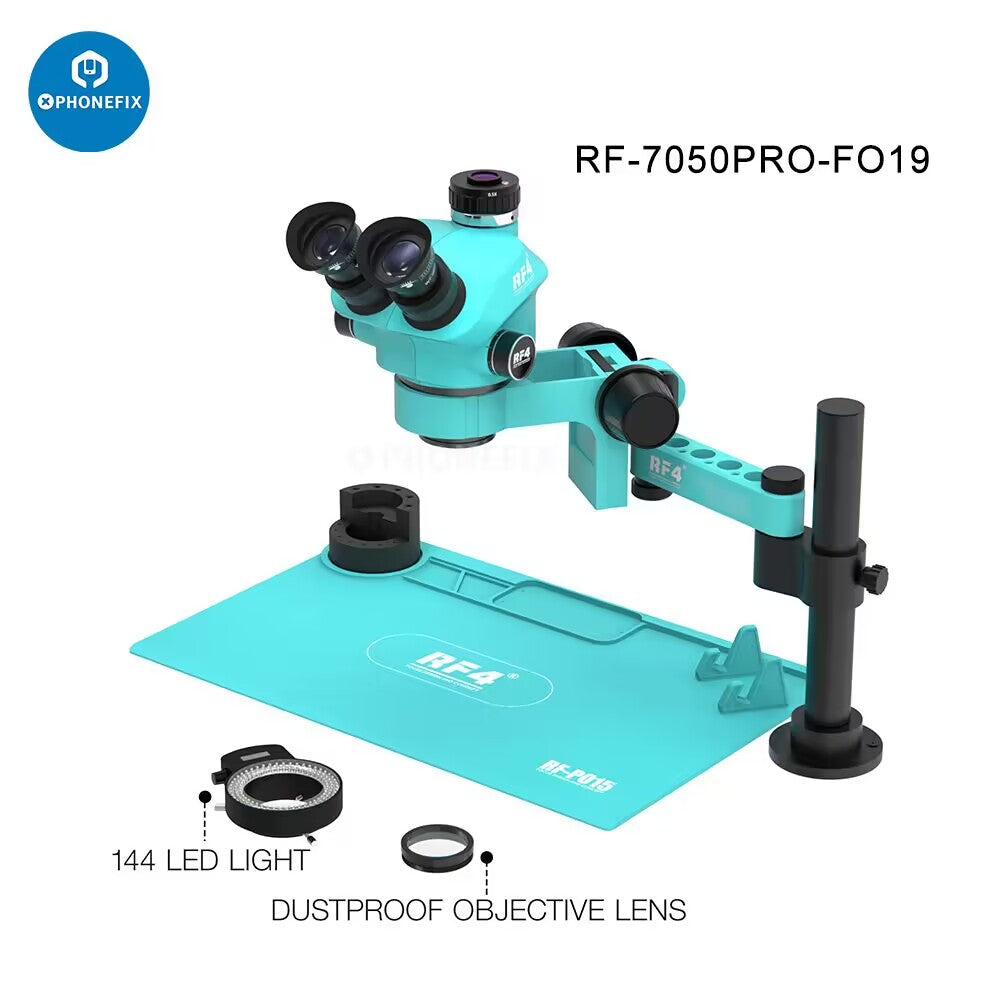

RF4 RF-7050PR0-F019 trinocular microscope features:
- Magnification: Continuous zoom 7X to 50X
- Head: 45-degree inclined 360-degree swiveling trinocular
- Eyepiece: WF10X/22MM
- Barlow Lens: 0.48X & 0.5X & 0.7 & 2.0X ( optional )
- Objective: 0.7-5.0X
- Camera connector: 0.5X CTV ( Monitor and eyepiece Synchronous zoom )
- accessories: 144 Adjustable LED light & dust proof Lens & RF-EM5
Package includes:1 x Trinocular microscope (Magnification optional)
1 x Dust mirror
1 x Focus bracket
1 x Support bar
1 x 144LED Ring Light
1 x 0.5X CTV connector
1 x Double arm bar (optional)
1 x Base (optional
