REFOX FM40 Curved/Flat Screen Refurbishment Machine integrates LCD heating separation, screen lamination, defoaming, built-in air compressor and vacuum pump 5-in-1 functions, supports refurbishment and repair of mobile phone/iPad/tablet screens up to 12.9 inches. REFOX FM-30 3-In-1 LCD Laminating Separating Bubble Remover Machine for Phone/Tablet Built in Vacuum Pump.
Option:
1. REFOX FM40 Desktop Laminating Machine (Upgraded).
2. REFOX FM-30 Laminating Machine.
REFOX FM40 Features:

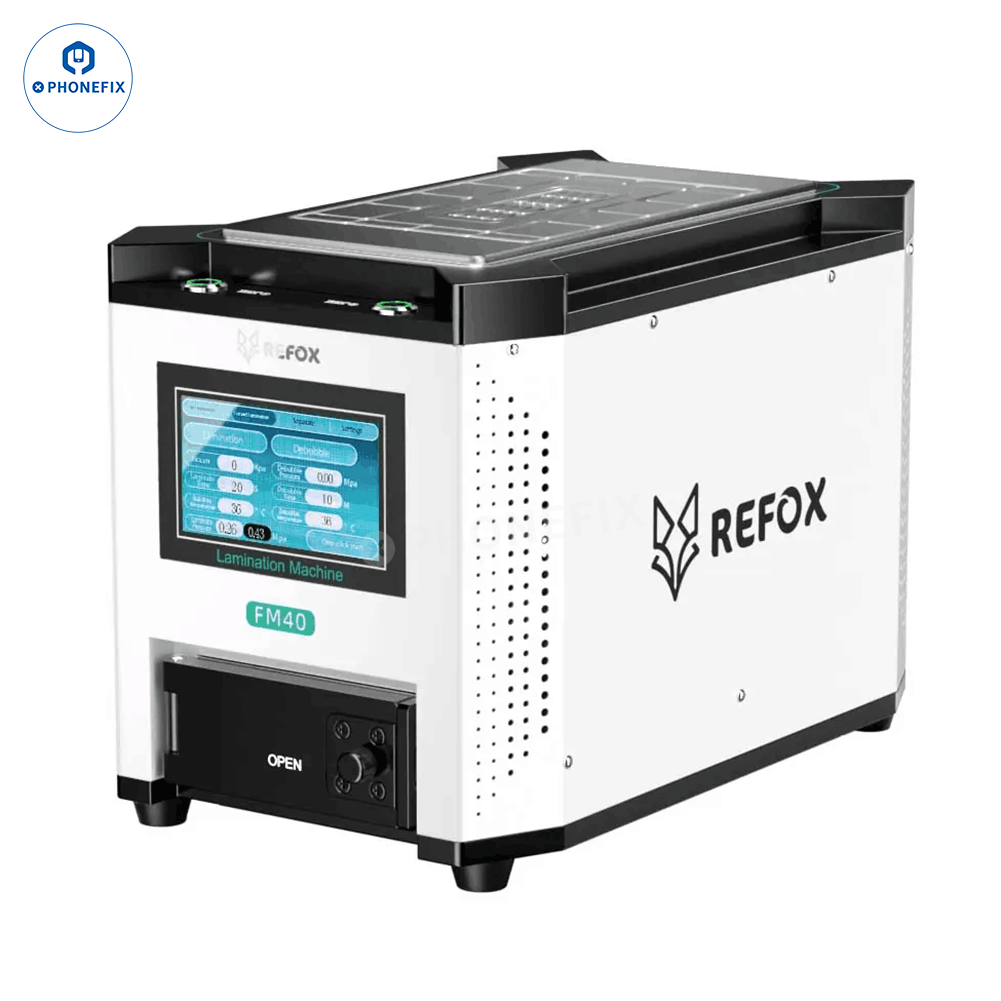

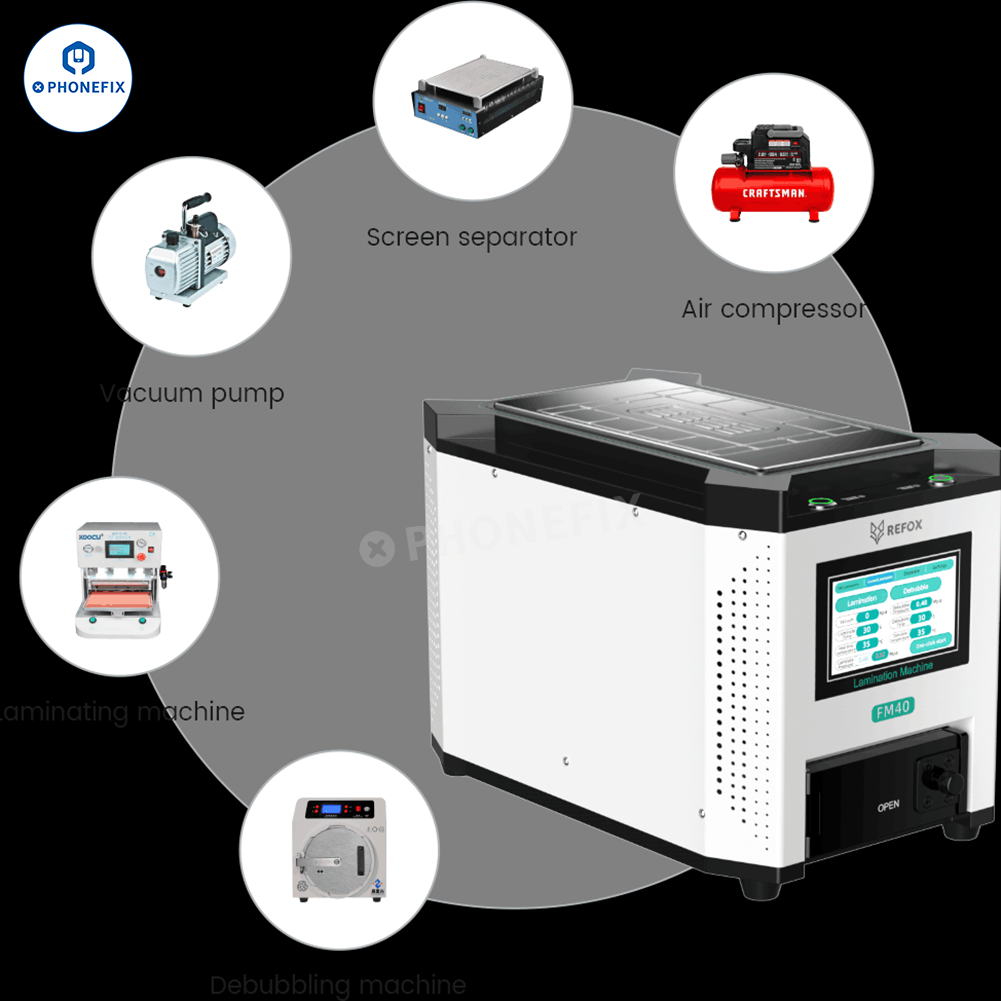

1. REFOX FM40 is an upgraded desktop laminating machine that combines screen separation, screen bonding laminating, bubble removal, air compressor and vacuum pump 5-in-1 functions.

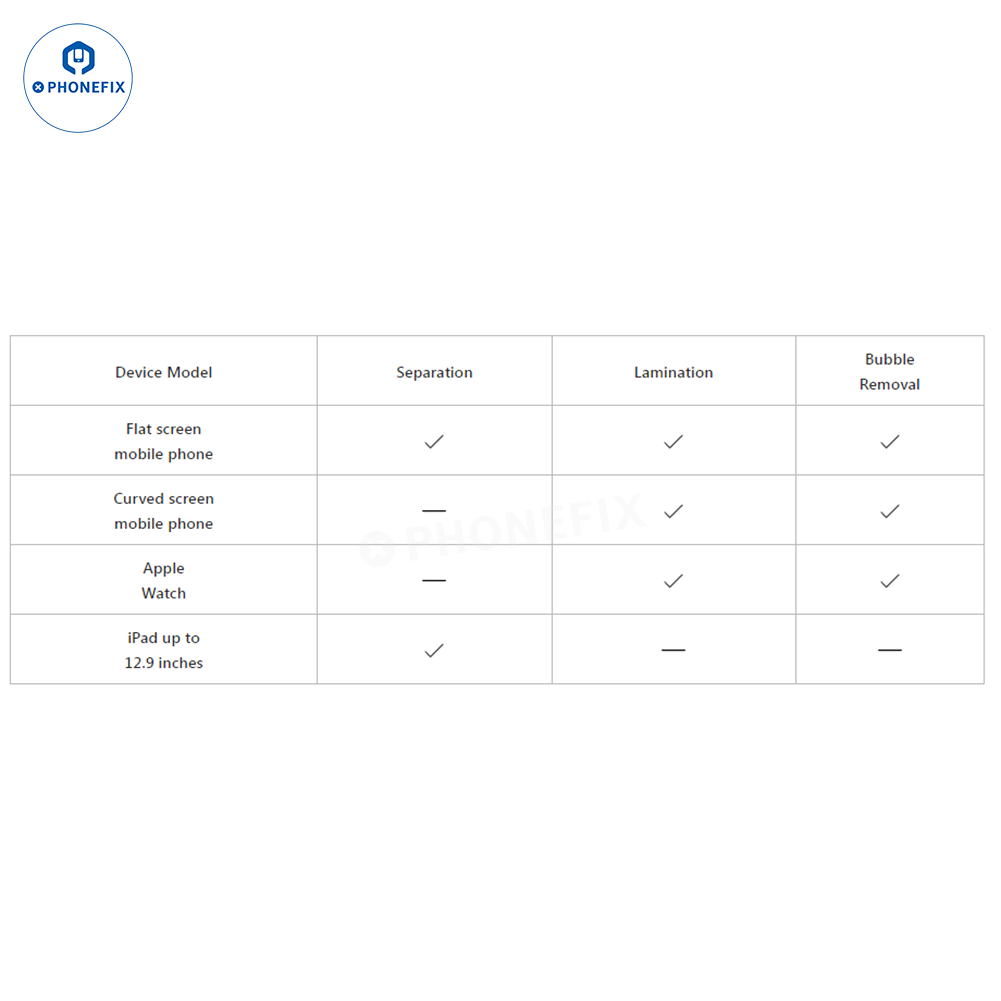

2. REFOX FM40 is usually used for screen refurbishment tasks such as mobile phone/tablet screen separation, front glass lamination, OCA bonding and bubble removal.

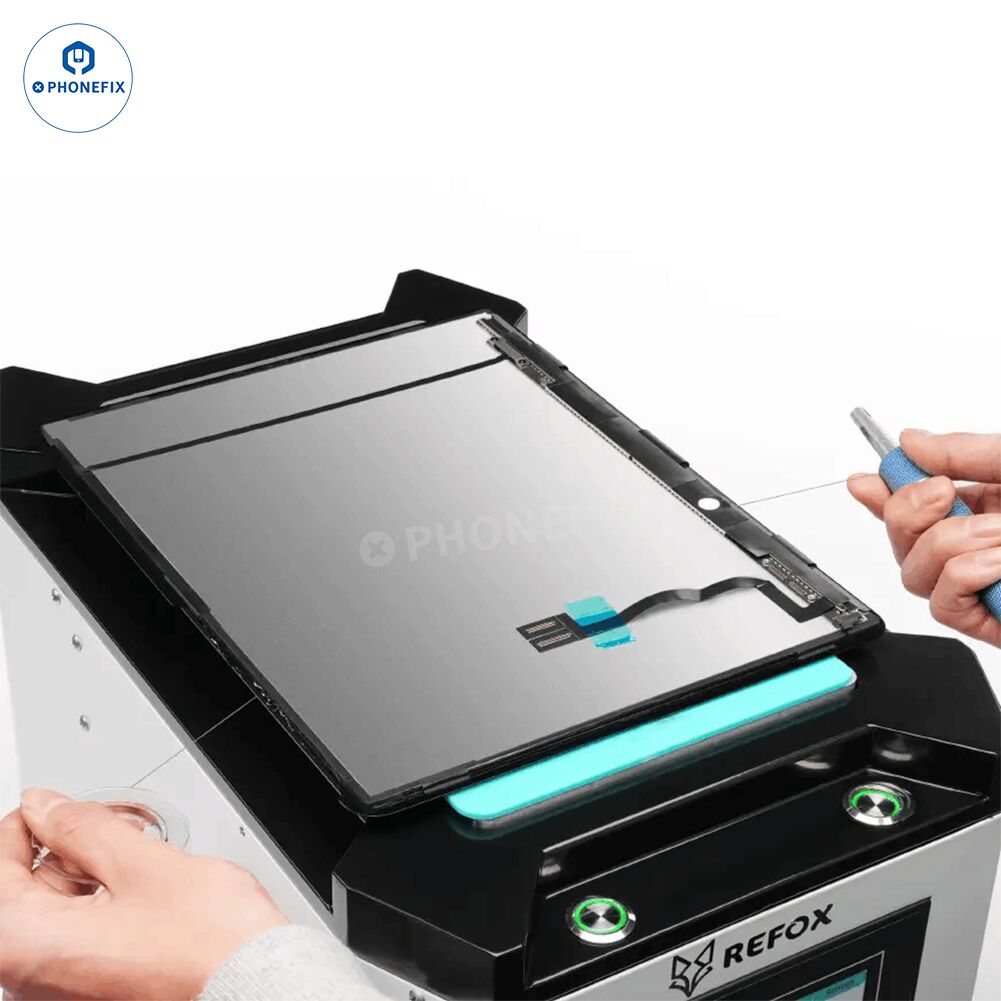

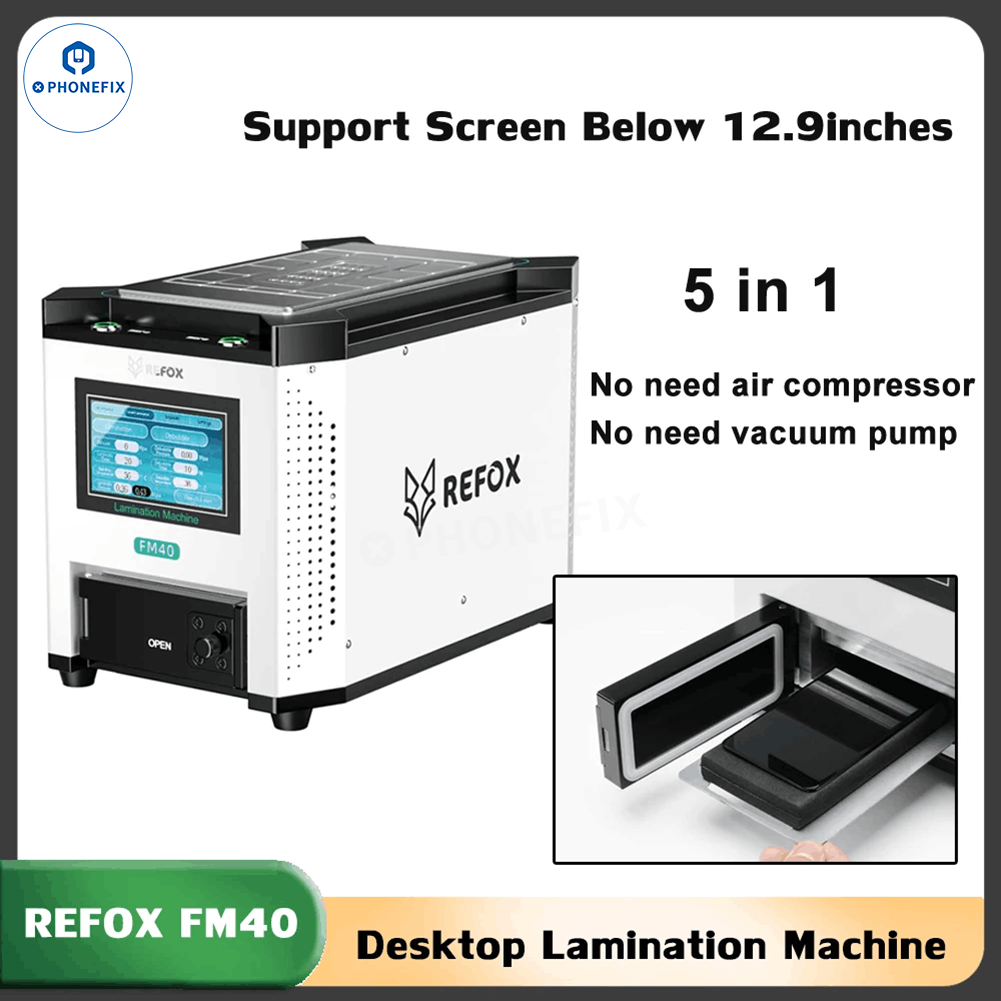

3. With an expanded top space and powerful suction capabilities can separate flat screens up to 12.9 inches.
4. Laminating and defoaming function suitable for Phone flat/edge screens up to 7 inches.

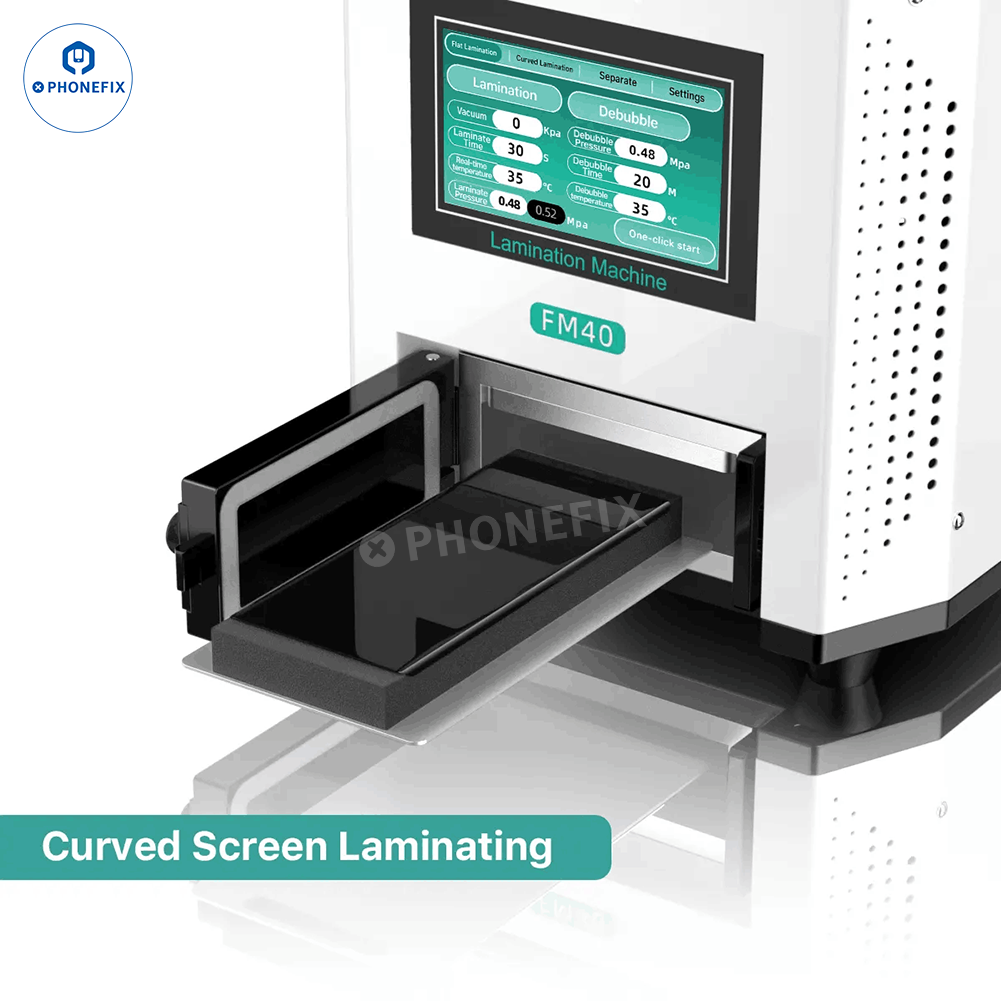

5. Built-in air compressor and vacuum pump, ensuring accurate lamination of both curved and flat screens.
6. Automatic vacuuming function ensures that the screen and components fit accurately during the repair process, eliminates bubbles, and improves the quality of repair.
7. Applicable to all types of mobile phones and tablets, including the iPhone 6-16 Pro Max and mobile phones with curved screen, to meet diverse repair needs.

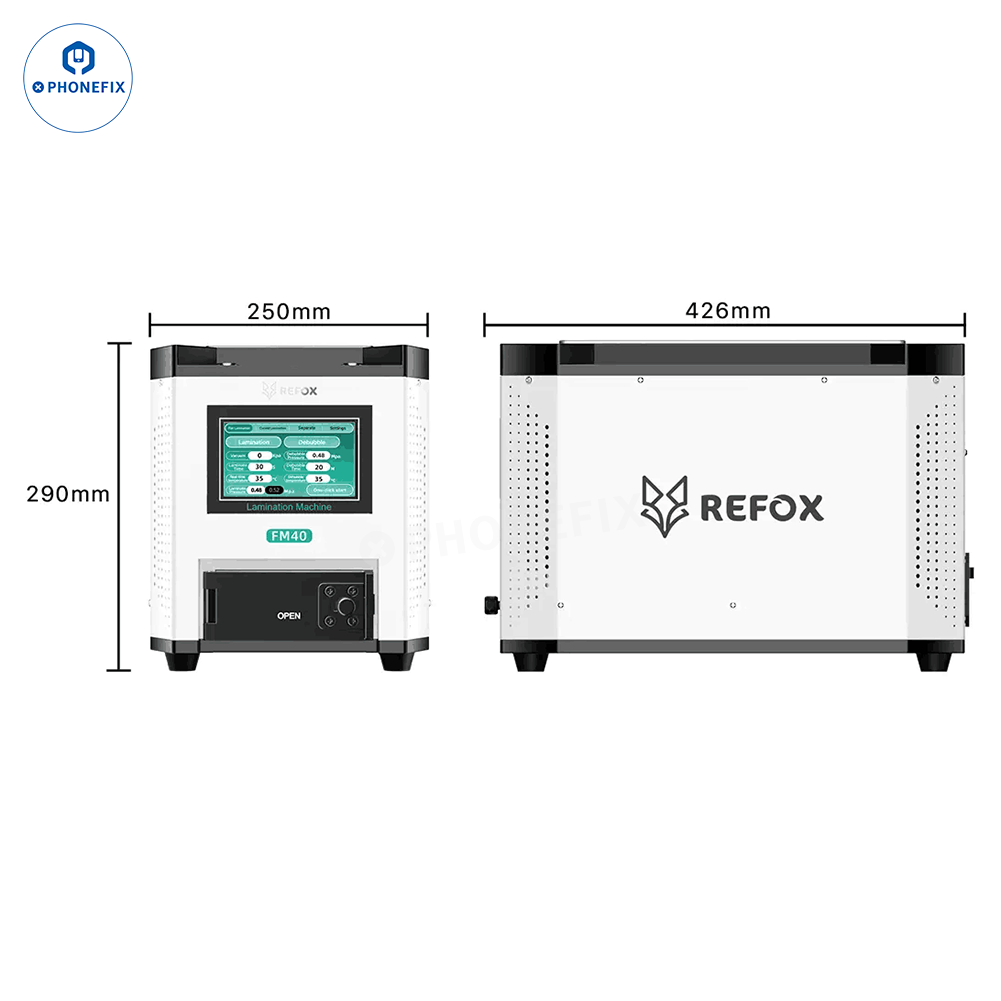

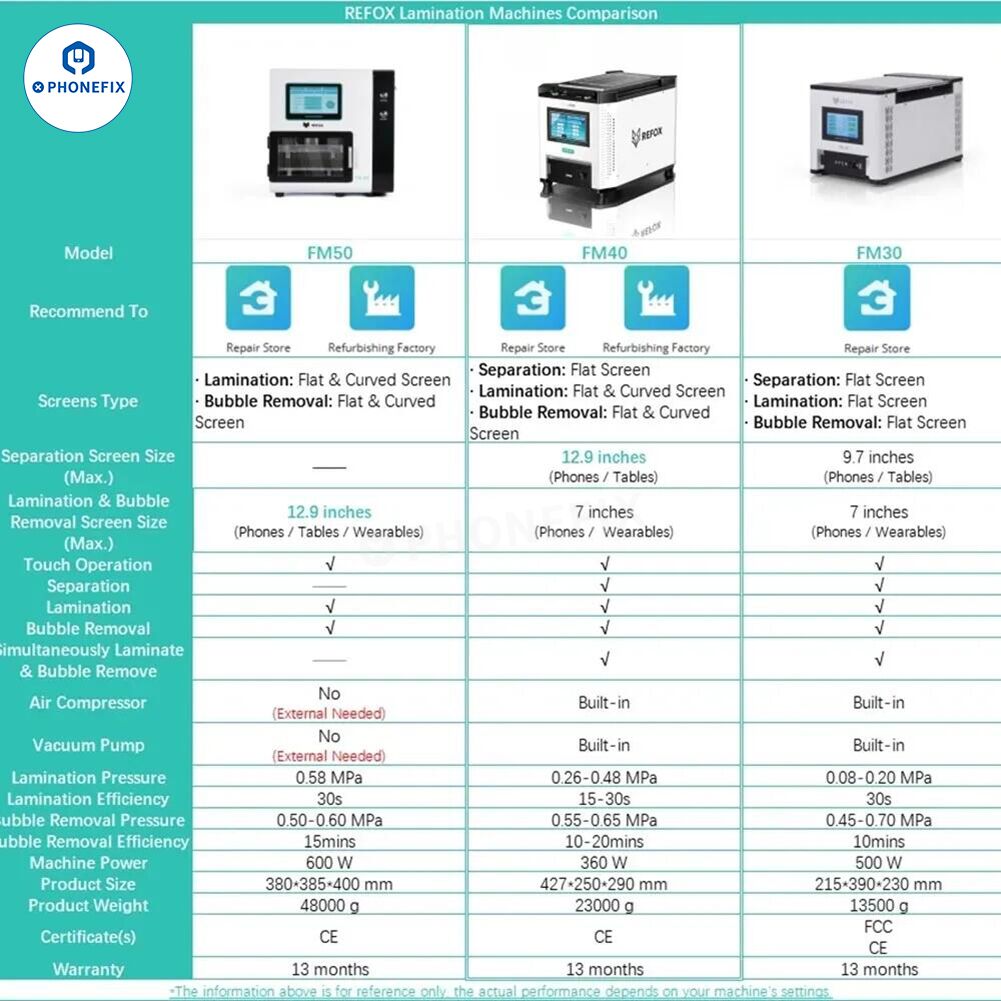

REFOX FM40 Parameters:

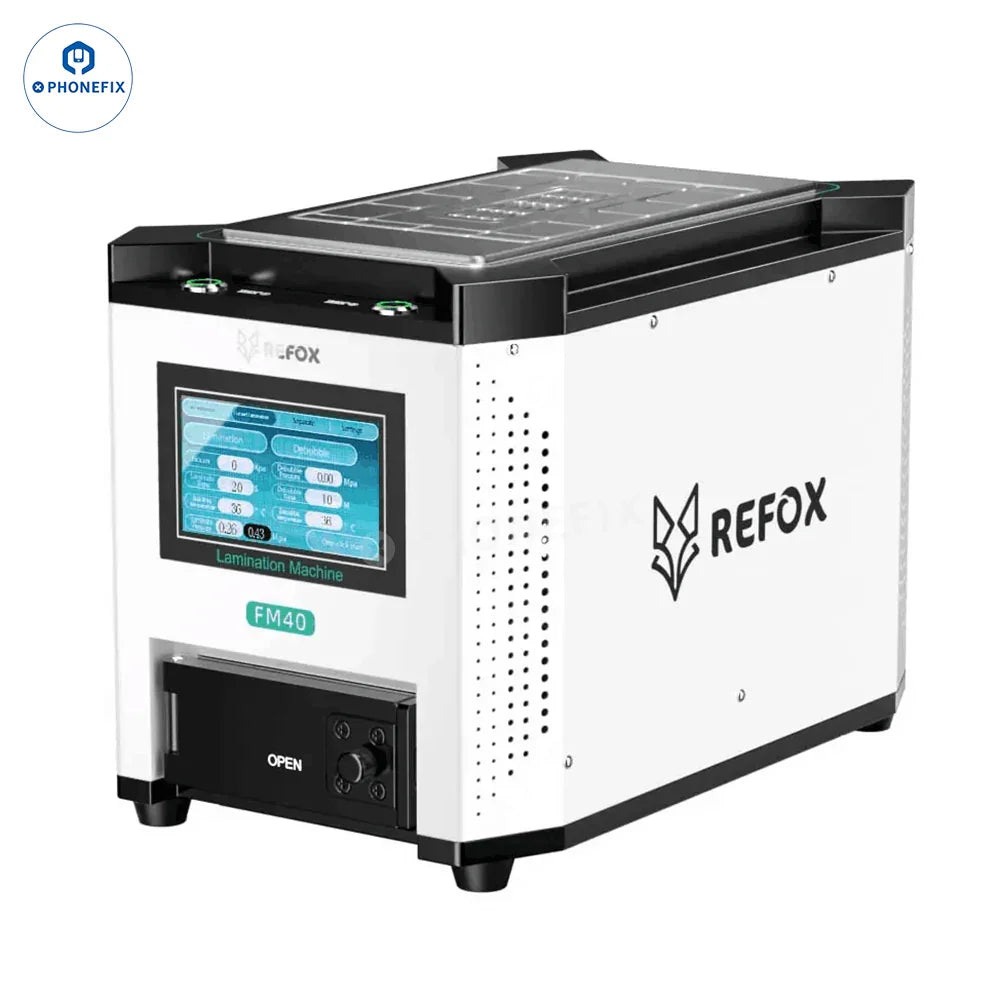

Model: REFOX FM40 5-In-1 screen laminating bubble removal machine.
Power: 360W.
Screen Separation size: up to 12.9 inches.
Lamination/bubble removal size: up to 7 inches.
Air compressor: Built-in.
Vacuum pump: Built-in.
Lamination pressure: 0.15-0.30 MPa.
Lamination efficiency: 40s.
Bubble removal pressure: 0.55-0.65 MPa.
Bubble removal efficiency: 10-20mins.

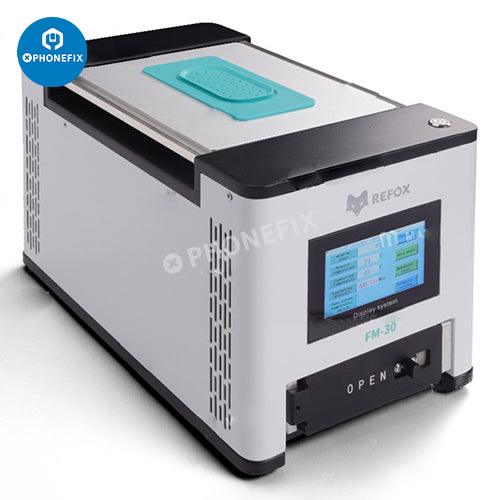

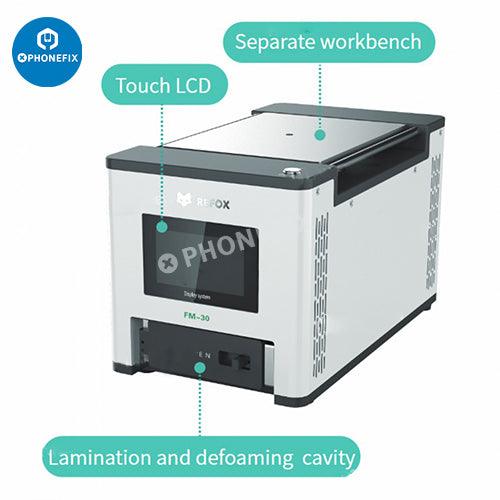

REFOX-FM-30 Features:

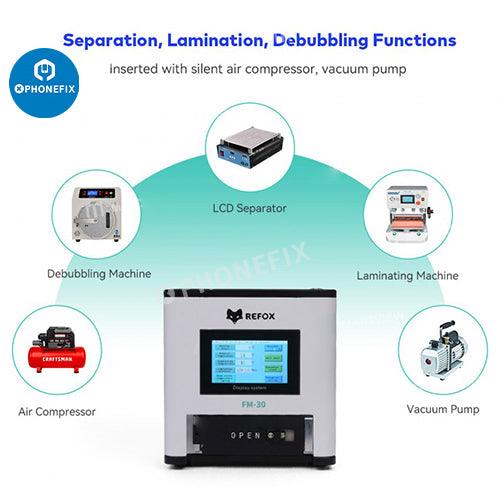

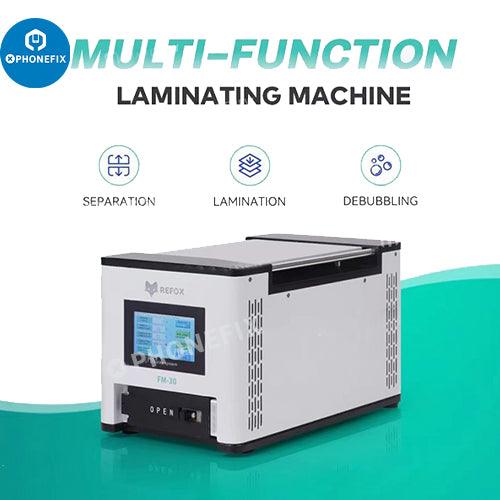

1. Integrated with separation, lamination, defoaming functions.
2. Small size, light weight, strong and durable.
3. Built-in silent air compressor, vacuum pump, low operating noise.
4. Support separation of mobile phones and tablets under 9.7 inches.

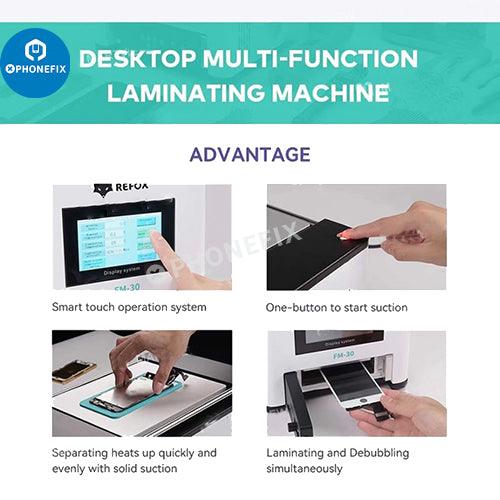

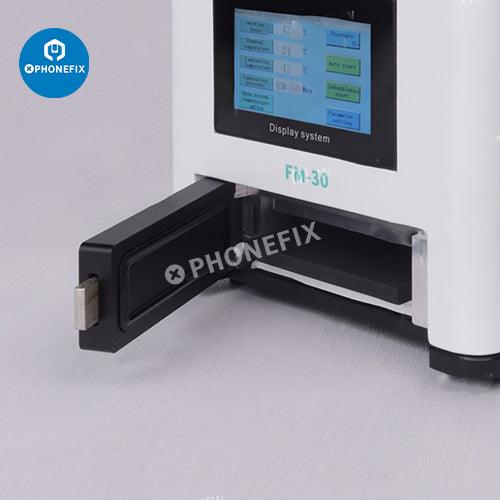

5. Intelligent touch operating system, pressure/time/temperature can be adjusted.
6. The separator heats up quickly, heats evenly, and has strong suction
7. Efficient lamination without bubbles, lamination and defoaming can be carried out at the same time.
8. Simple operation, one key to start.

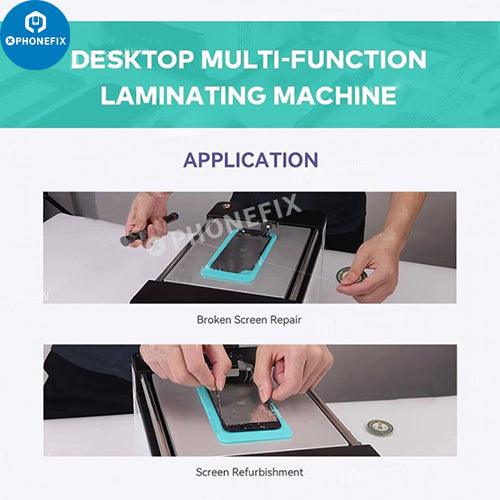

Applications:
- Broken Screen Repair: If the outer glass of the screen is seriously damaged or the touch layer is damaged, you can use this machine to replace the cover.
- Screen Refurbishment: When the outer glass is damaged and the LCD is in good condition, use this machine to replace the glass layer to repair the screen.
- Separate/Laminate/Defoam the flat screen.
Notice:
- This device does not support curved screen laminating.
- After receiving the machine, it is recommended to run the test with an empty machine first.
- Before laminating, the oil, dust, and water on the surface of the object should be cleaned.
- Do not set the pressure value of laminating too high to prevent the screen from bursting; if the parameter is too high or if it is too low, it may affect the quality of the mobile phone screen fit.
- Do not press the "exhaust" switch when the machine is in use.
- Before defoaming, pay attention to check whether the door of the defoaming machine is locked. Because the machine works under high pressure, you must pay attention to the safety of use.
- Do not set the temperature in the defoaming machine too high. If the temperature is too high, the greater the chance of back-bubbling.
- Wipe and clean the machine regularly to ensure that it is clean and free of debris and dust accumulation.
