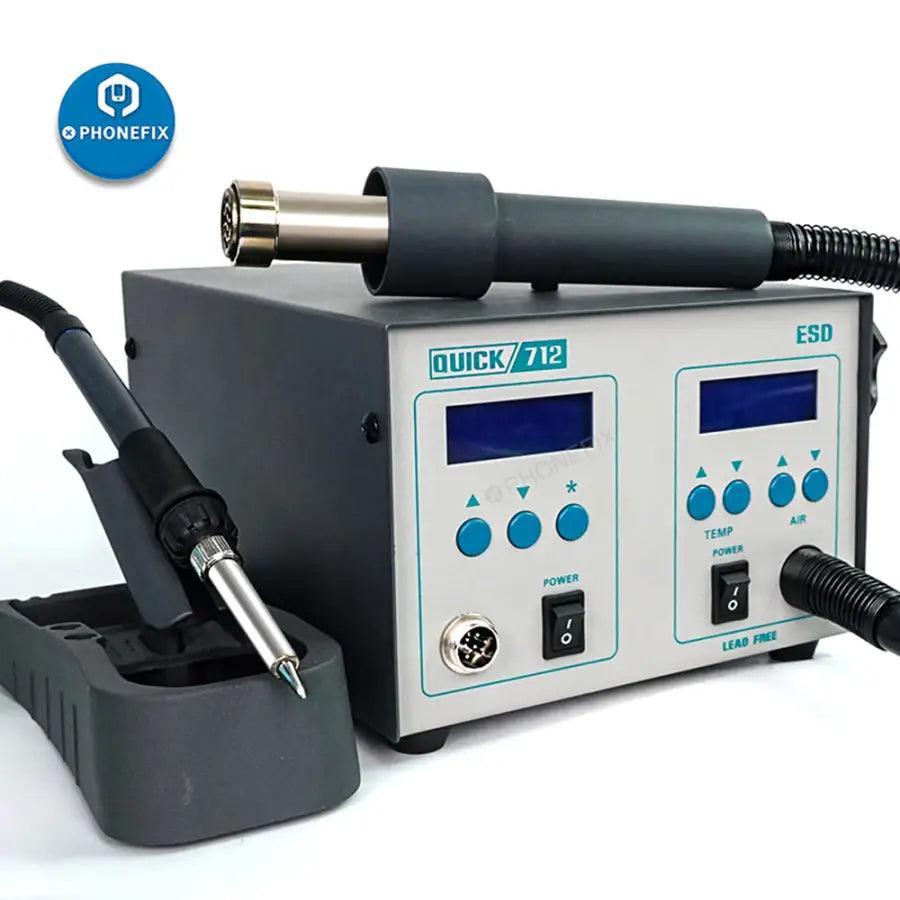

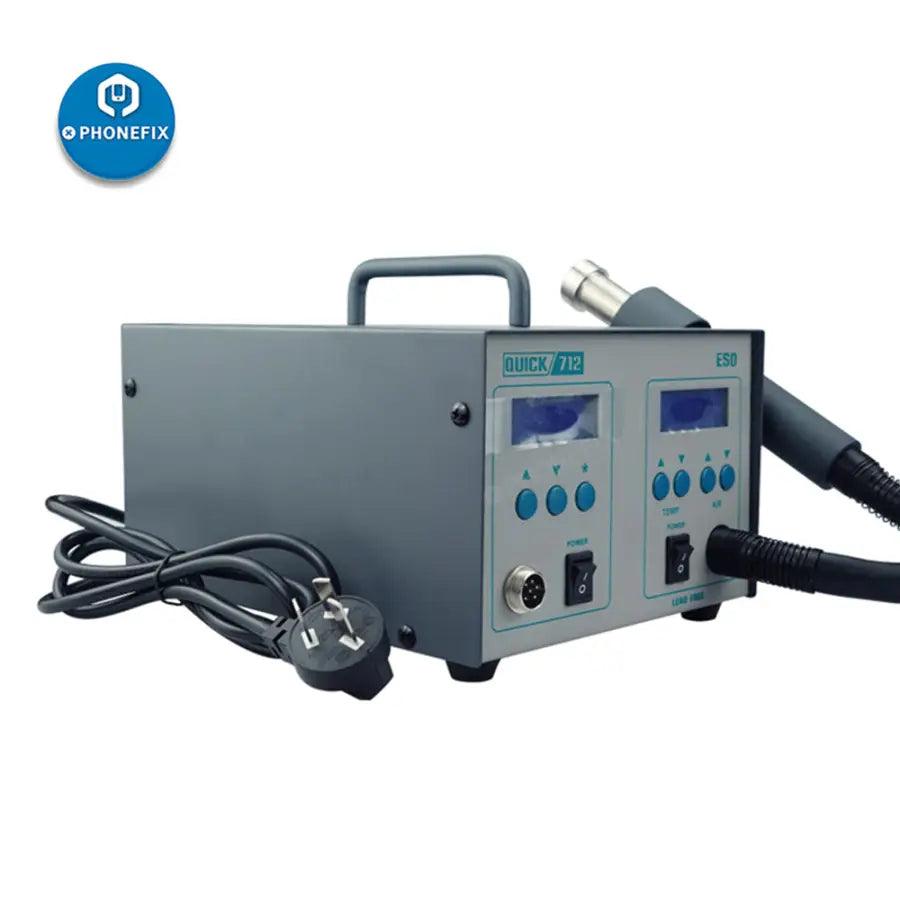

QUICK 712 2 in 1 intelligent ESD hot air gun soldering station ( 862DW + 203H ) for mobile phone base plate welding desoldering tool, Quick 712 2 in 1 digital display rework soldering station adjustable soldering iron for PCB repair. QUICK Double Soldering Station Maintenance System Welding & Desoldering (861DW + 203H ).

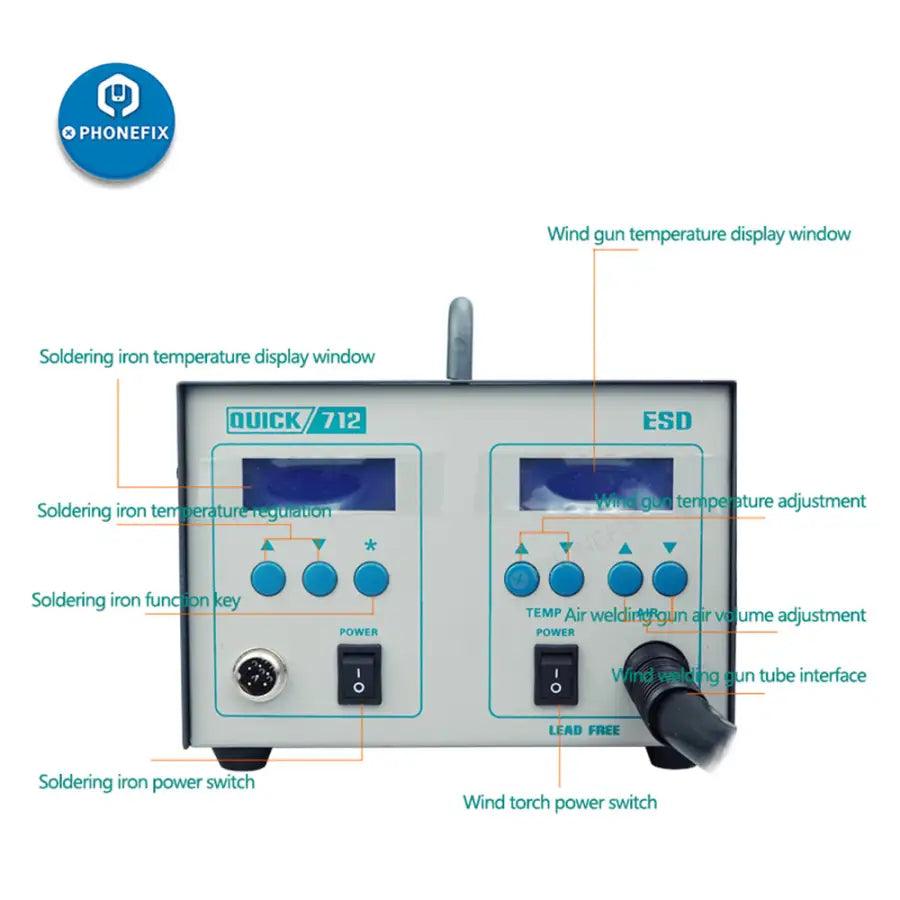

QUICK 712 Maintenance Station Features :
- Special for mobile phone repair
- Air gun with 861DW, 1000W high power, especially suitable for mobile phone chip repair
- The soldering iron with 203H, and the temperature rise and temperature return are extremely fast, realizing lead-free soldering.
- Password lock, automatic sleep, easy to operate, accurate temperature
- Push-button temperature control with automatic sleep/shutdown function.
- Adopt digital temperature calibration for easy operation.

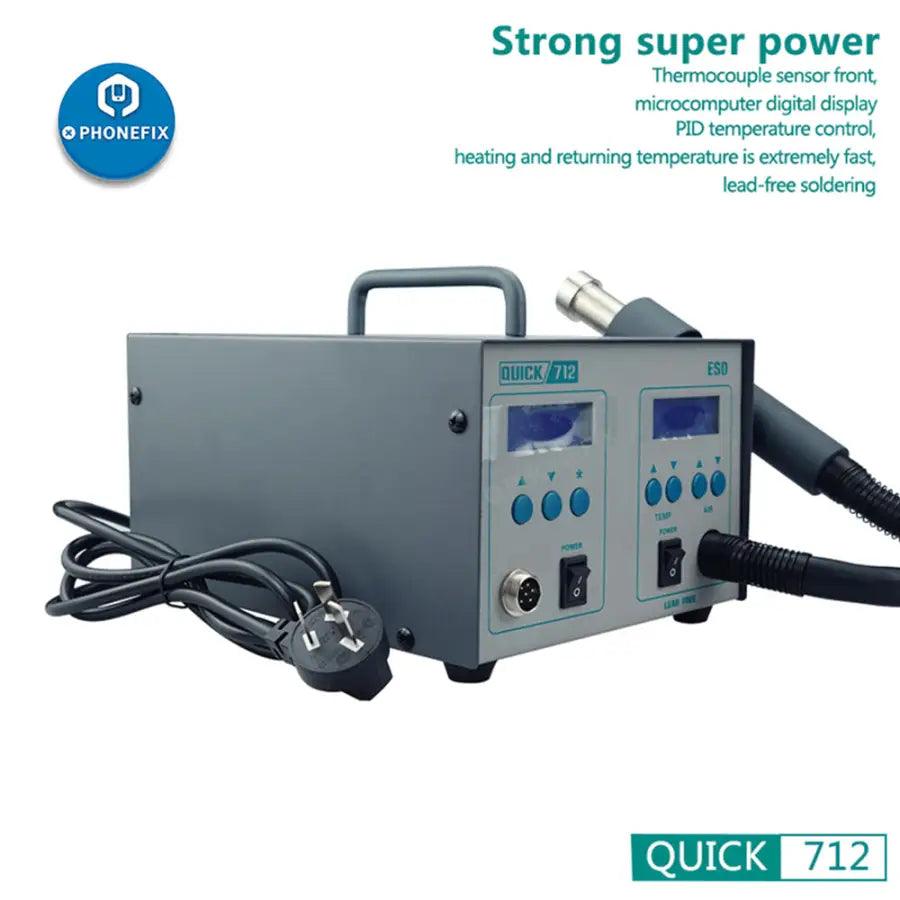

- High power, thermocouple sensor front, micro computer digital display, PID temperature control. The temperature rise and temperature recovery are extremely fast, and true lead-free soldering is acheved.
- A password lock function is provided to facilitate management and control.
- Button temperature adjustment, automatic sleep/shutdown.
- The upper and lower limits of the temperature can be set, and the alarm can be over- standard alarm according to the need.
- Digital temperature calibration far easy operation.
- The handle is light and comfortable to use.
Product Parameters :
- Brand: QUICK
- Product Name: Double station maintenance system welding & desoldering
- Model: 712
- Product Size: 18.5*24.5*13.5cm
- Package Dimensions: 38.5*33.5*22.5cm
- Net Weight: 3.48kg
- Gross Weight: 5.35kg
- What can be used: Welding & Desoldering
Soldering Station Part Parameters :
- Power: 90W
- Soldering station temperature range: 50℃-500℃Sleep temperature range:
- 50℃-250℃
- Sleep time range: 0-250minute
- Shutdown time range: 0-250minute
- Temperature stability: ±2℃ ( still air without load )
- Maximum ambient temperature: 40℃
- Soldering iron head grounding resistance: <2Ω
Desoldering Station Part Parameters :
- Power: 1000W
- Hot air temperature range: 100℃-500℃
- Air volume: 1-120 level (120L/min)
- Maximum ambient temperature: 40℃
- Temperature stability: ±2℃

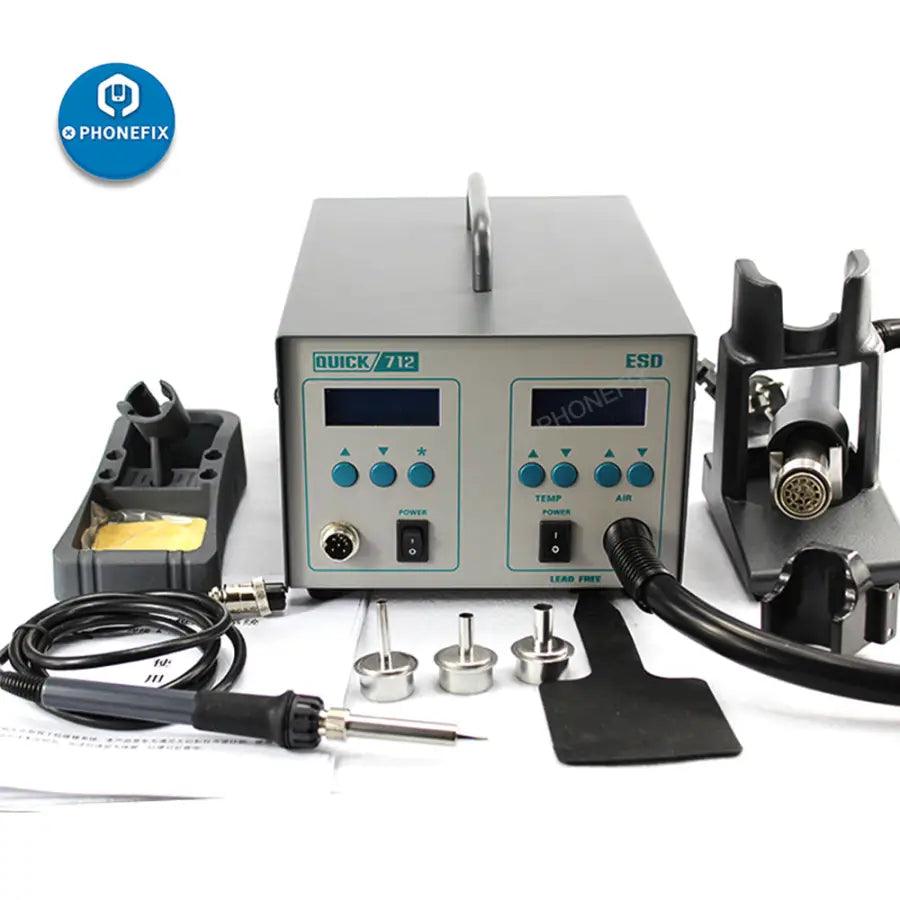

Package List :
- 1pcs x QUICK 712
- 1pcs x Hot Air Gun

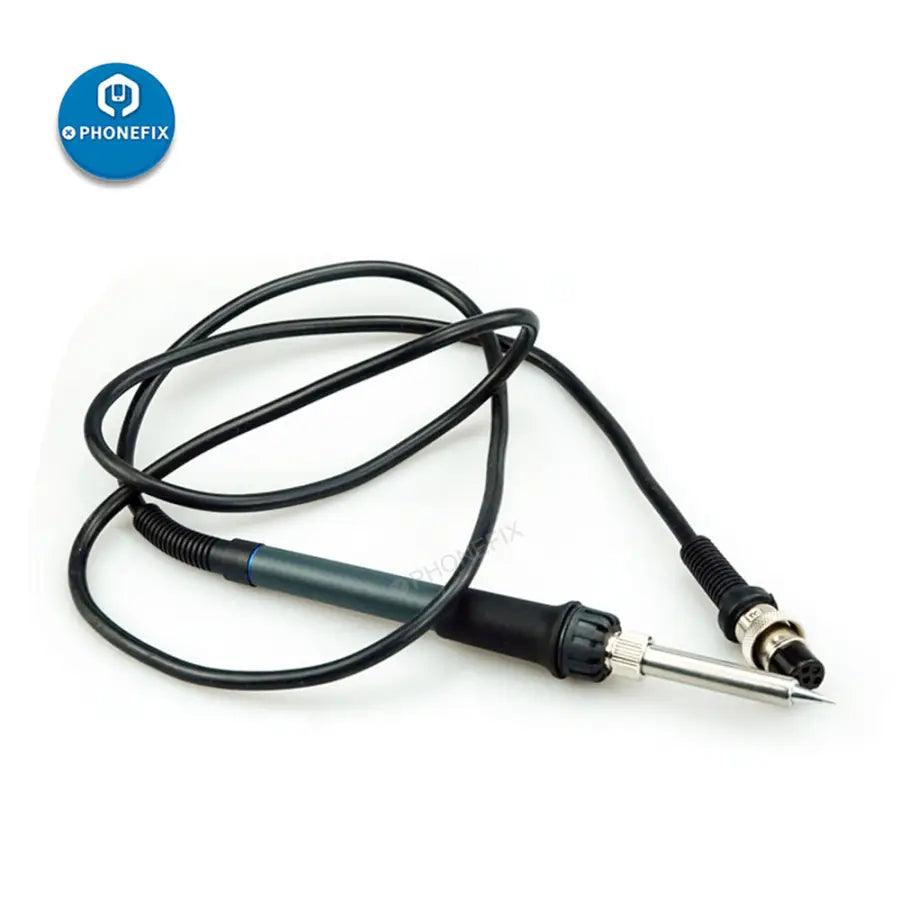

- 1pcs x Solder iron handle

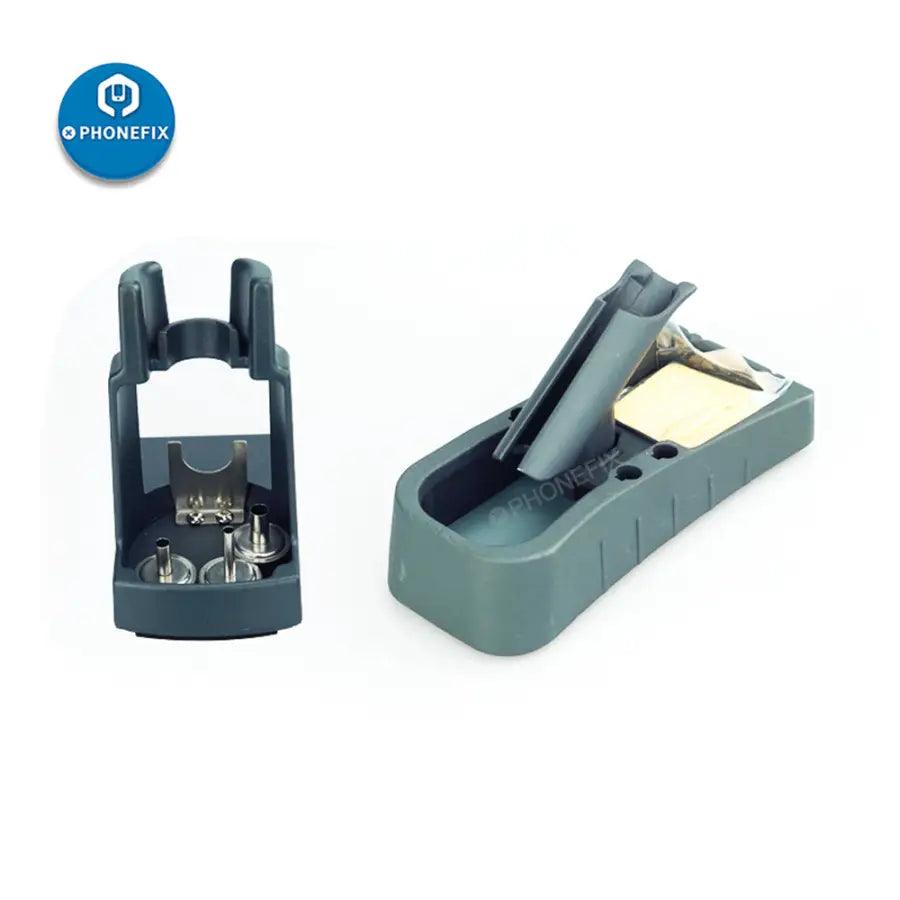

- 1pcs x Air gun stand
- 1pcs x Soldering iron stand

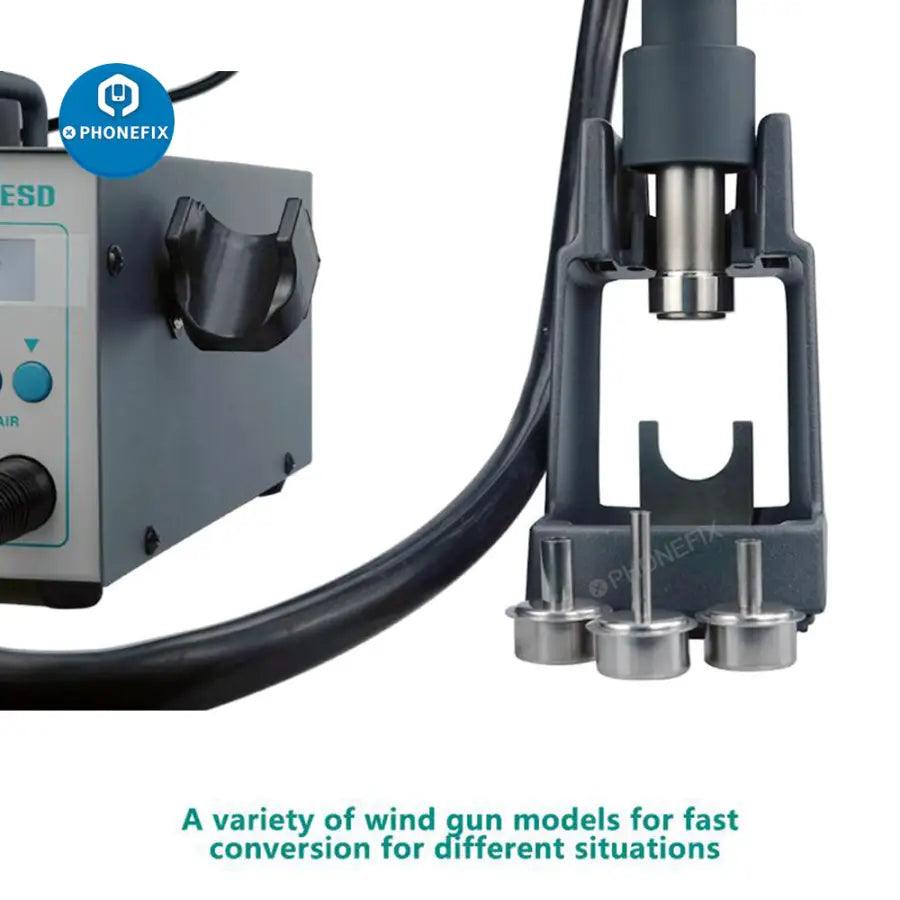

- 3pcs x Nozzle
- 1pcs x Power Cable
- 1pcs x Manual
