2023 QIANLI MEGA-IDEA Super IR Cam 2S Pro 3D Infrared Thermal Camera Motherboard Fault Diagnosis Tool. Upgraded MEGA-IDEA Super IR Cam 2S Pro Thermal Imaging Analyzing Camera PCB Short Circuit Fault Quick Detector. 2023 MEGA-IDEA Super IR Cam Mini S Thermal Camera dedicated to microscope. Qianli Mega-idea Super IR Cam Mini S Microscope thermal imager motherboard fault detection tool.
Mechanic 3D STI-08 Thermal Imager Camera.

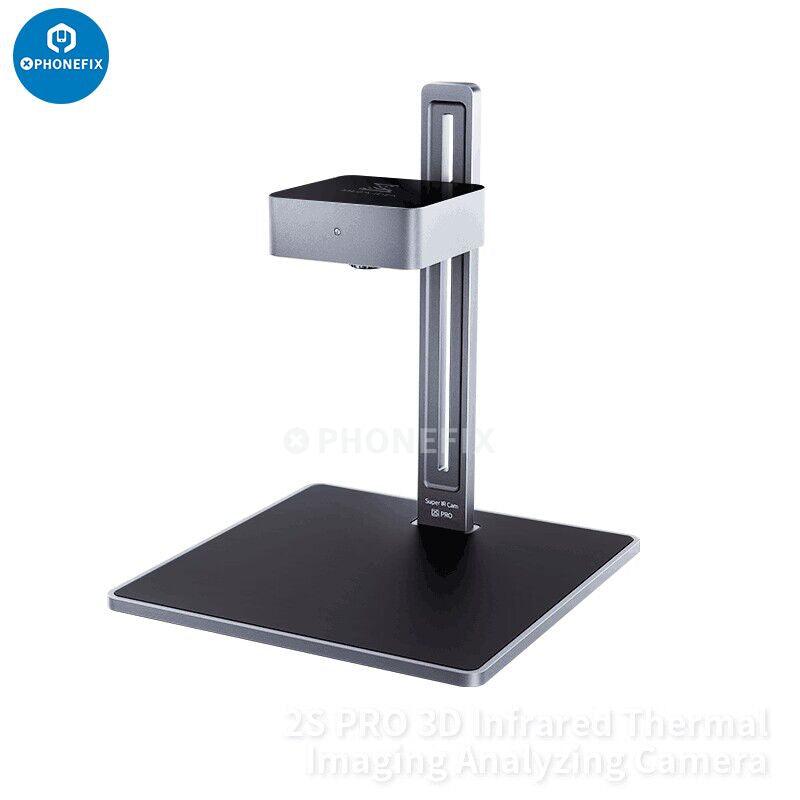

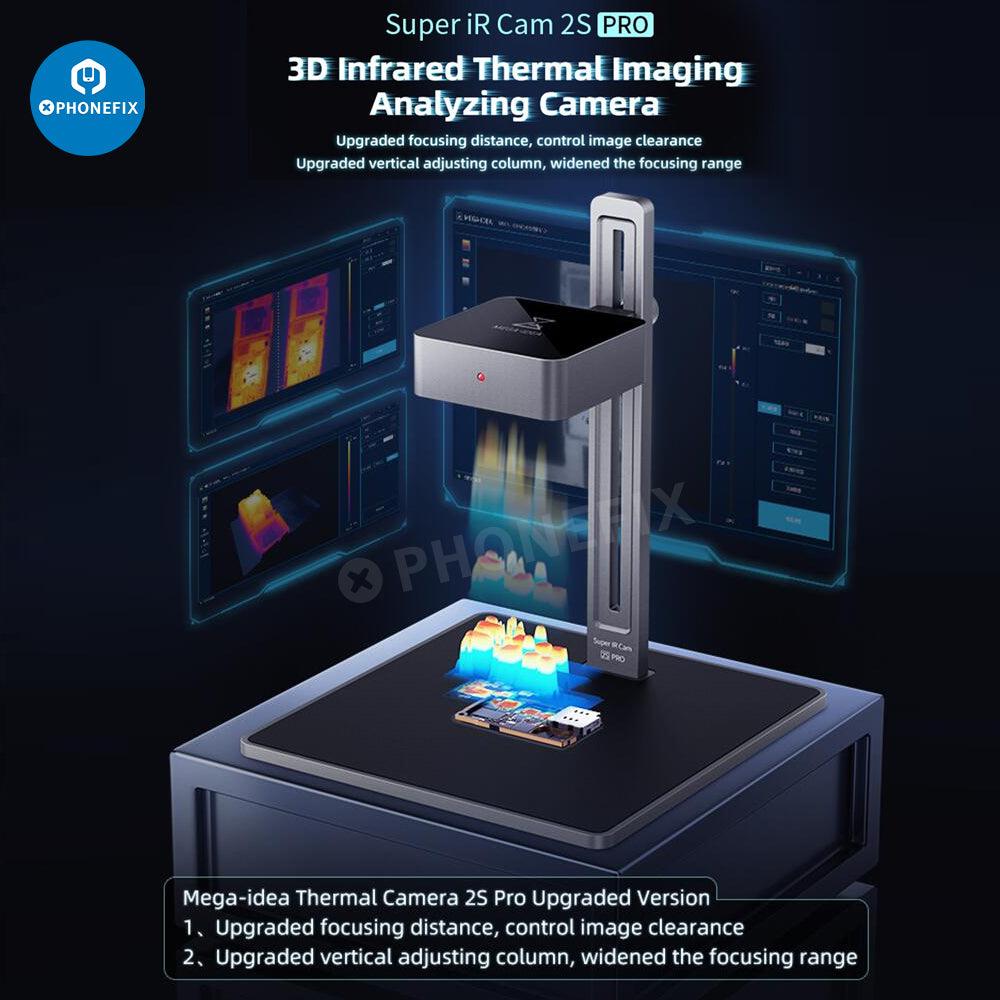

Mega-idea thermal camera 2S Pro Upgraded version:
1. Upgraded focusing distance, control image clearance.
2. Upgraded vertical adjusting column, widened the focusing range.

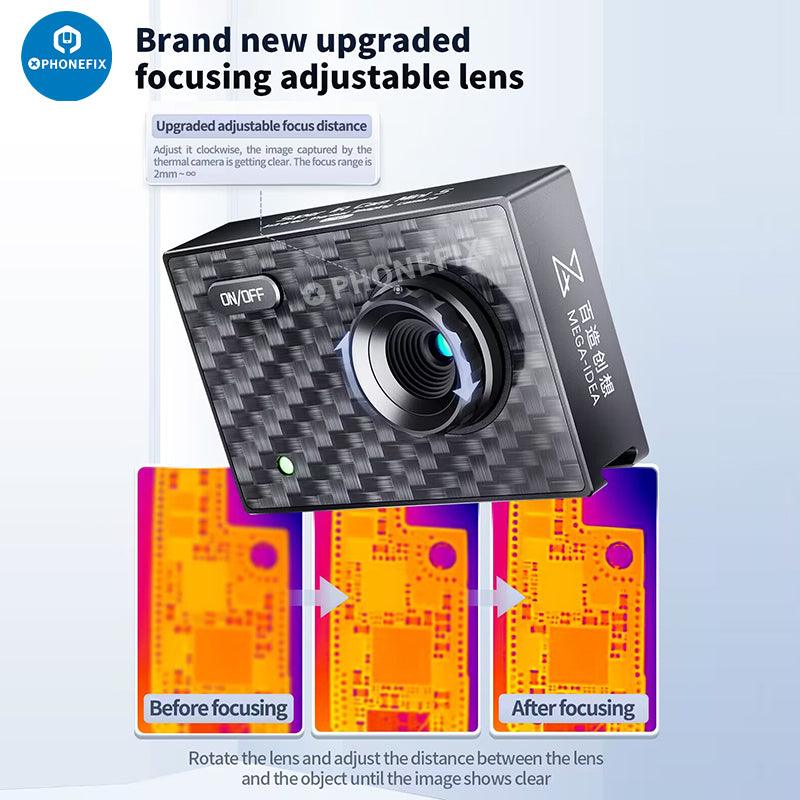

Upgraded focusing distance: part of the image may go blurry since the sizes of the components are different on the board. Users can adjust the distance from the lens to the object and control the image clearance.
Mega-idea thermal camera 2S Pro thermal imager main features:
1. Upgraded version electricity leakage, quick check.
2. 3D thermal field distribution analysis.
3. High definition.
4. High temperature alarm tracking.
Super IR Cam Mini S Thermal Camera Features:

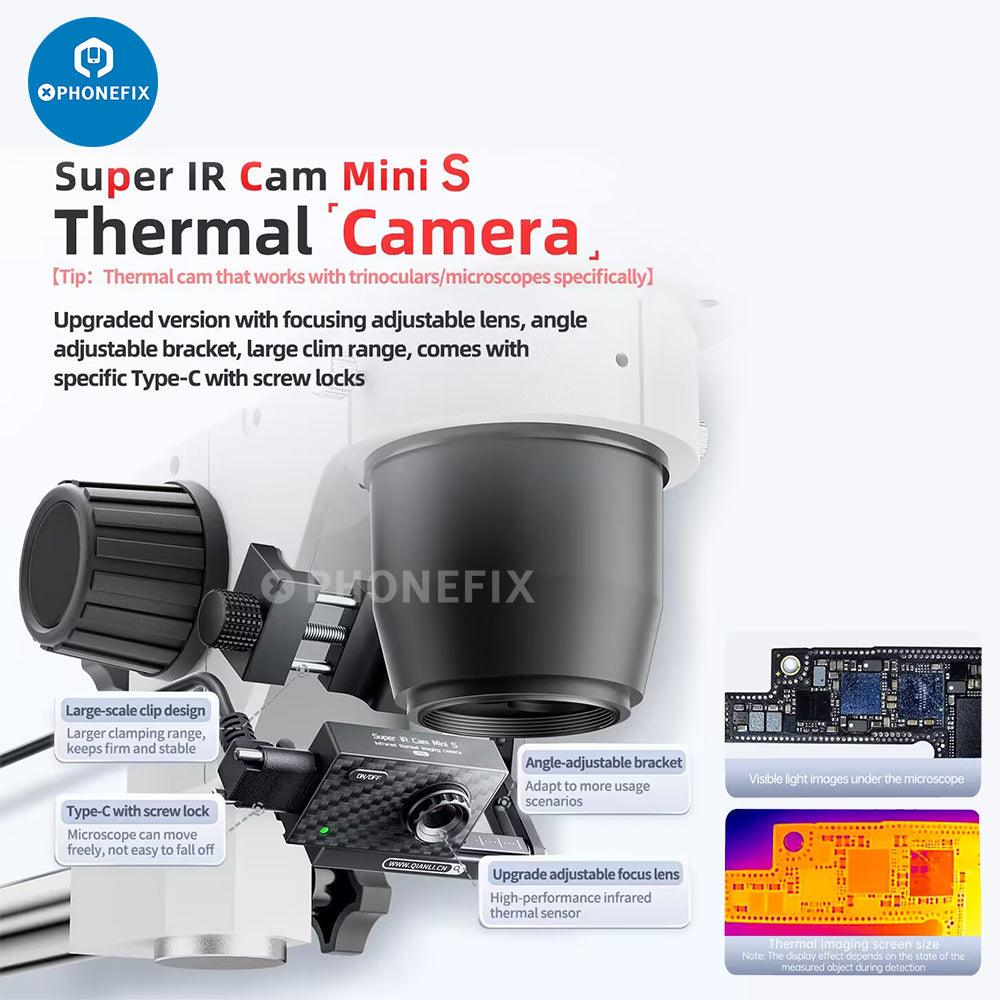

1. With focusing adjustable lens.

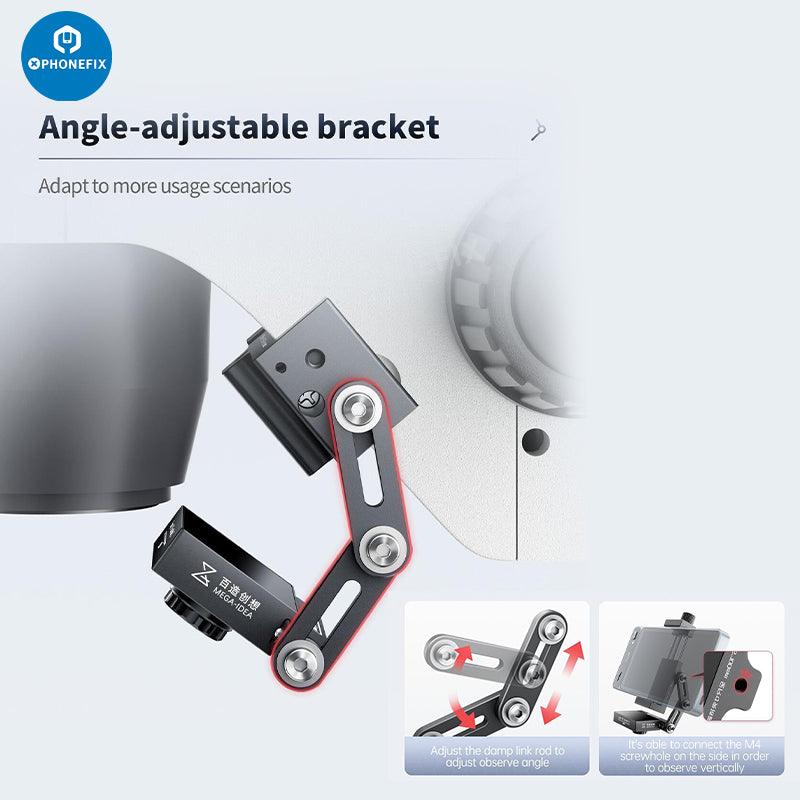

2. Angle-adjustable bracket, large clim range, adapt to more usage scenarios.

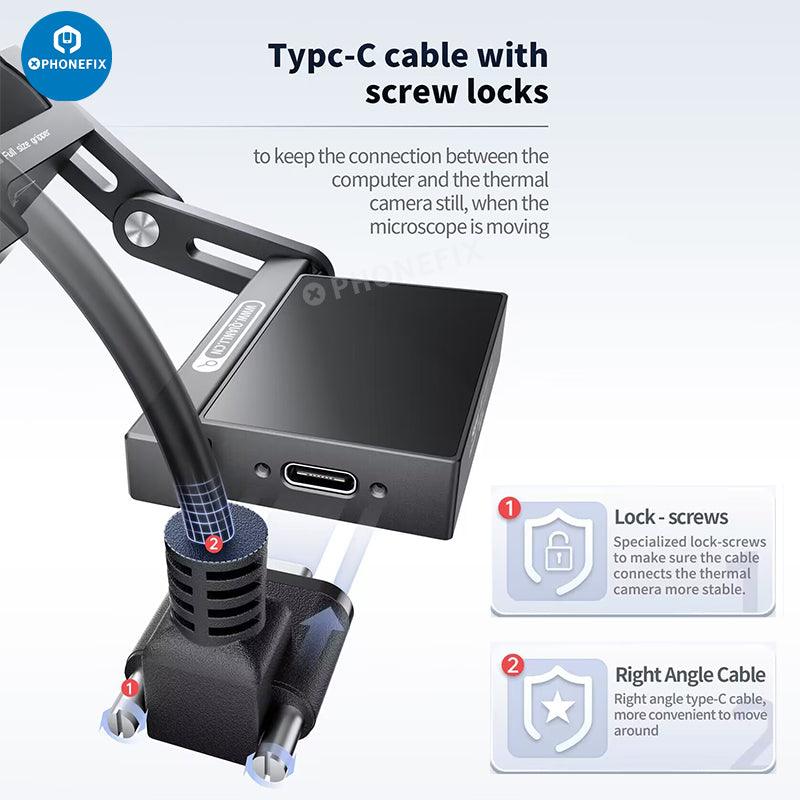

3. With specific Type-C with screw locks.
Super IR Cam Mini S Thermal Camera Parameters:
Model: Mega-idea thermal camera SuperIR Cam Mini S.
Input power: 5V.
Focus range: 2mm-∞.
Temperature detection range: -20-120
Resolution: 49152 temperature detect points.
Lens: manual focus.
Please note: Recently, the website has been slow to update. Please do not go to the website to download software. Instead, use the built-in USB flash drive to install the software. Please be sure to install the pop-up driver.
Comparison of Mega-ldea iR 2 and iR 2s
1. Upgraded Software, two added optional compulsory augmented image algorithms.
2. Upgraded Chips Plan, guaranteed stable supply under the circumstances of global chip shortage.
3. Upgraded lens focusing plan, wide focal length 8-18 cm for regular repair application range free yourself from focusing.
Super IR Cam 2S Parameter:
Frame frequency: 25Hz.
Image Storage Format: JPG(640X480).
Video Storage Format: MP4.
Wavelength range: 8-14um.
Resolution: 256x192.
Temperature: 95% Relative Temperature.
Temperature measurement: Full frame temperature measurement.
Input voltage: 5V DC.
Port type: USB Type C.
Display model: Infrared Thermal Imaging.
Features:
1. 3D Effect- Available for evaluators, the 3D effect mode can better display the heat distribution.
2. Comparison- Available for R&D personnel, the rectangular area curve is divided into multiple areas to view the display of different heat bands.
Description:

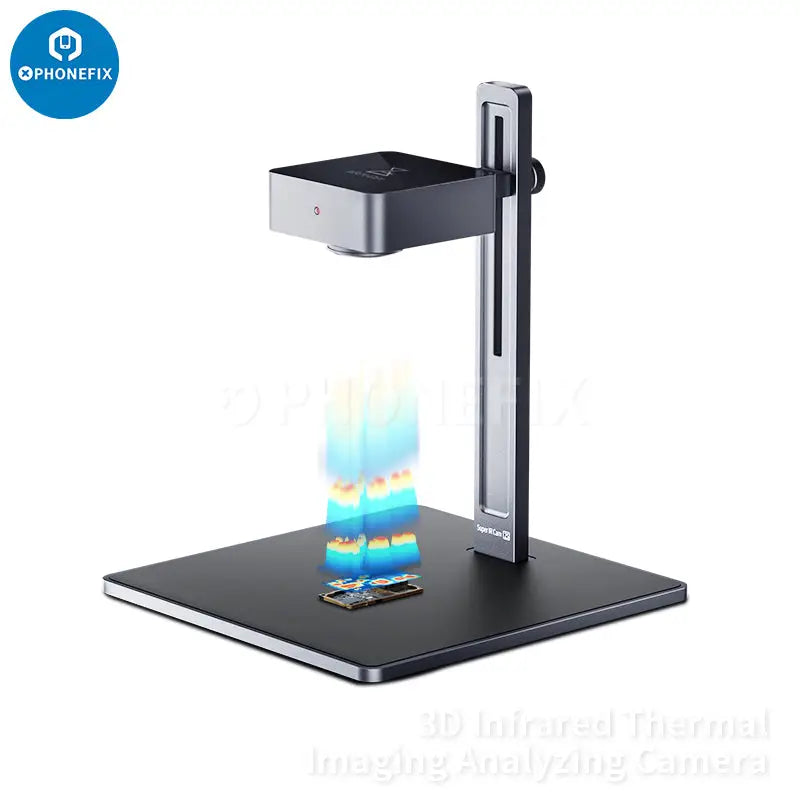

1. Super iR Cam2S 3D Infrared Thermal Imaging Analyzing Camera: Professional motherboard testing device, to help improve work efficiency. Say goodbye to out of dated and complicated motherboard testing methods.
2. Location of Electricity Leakage Quick Check PCBA Electricity Leakage Defects.
Electricity Leakage Quick Check is to quickly locate the abnormal temperature according to the real-time temperature, by adjusting the temperature range to troubleshoot the defect in detail.
3. High temperature alarm Detection of temperature changes.
When the high temperature alarm switch is turned on and the temperature threshold number is set, so when the temperature at any point in the home screen exceeds the threshold, the alarm will sound and the home screen will flash with a red frame.

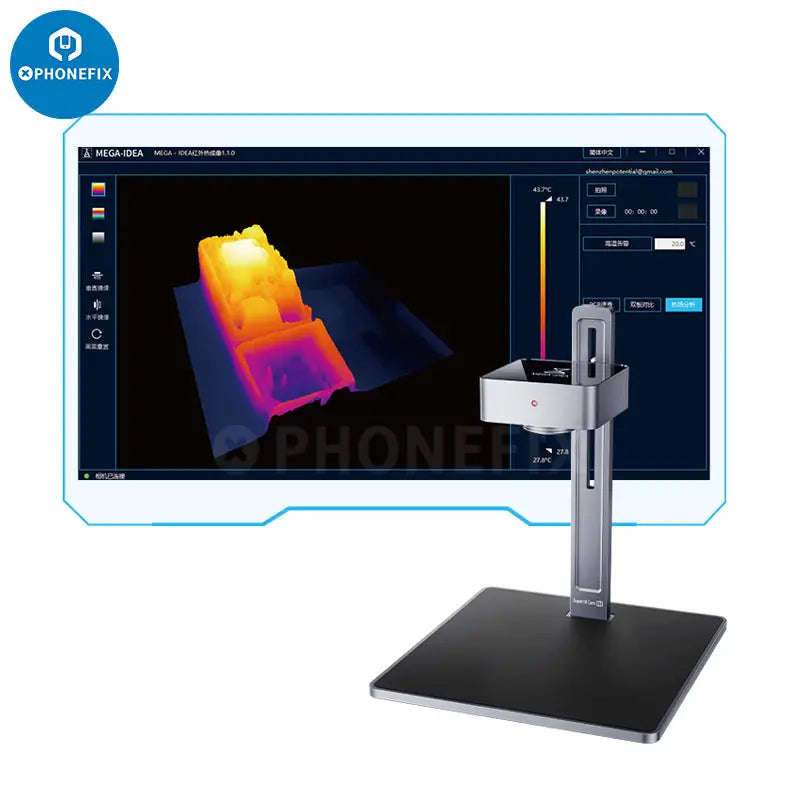

4. 3D thermal field distribution.
Professional mode focuses on product evaluation and heat distribution analysis, Such as the rationality analysis of the thermal structure design of the circuit board, and the design of the heat dissipation efficiency of the product, etc.
5. Temperature range adjustment and location.
When there is a very small current leakage or large interference source nearby, the "Electricity Leakage Quick Check" cannot easily locate the leakage component.
Adjust the temperature range to change the image contrast to locate the leakage component.
6. Quickly adjust the location of the camera.
Adjust the height of camera quickly according to requirements Stable structure, quick and convenient.
7. Suitable for multiple applications.
Electricity Leakage Quick Check is to quickly locate the abnormal temperature according to the real-time temperature, by adjusting the temperature range to troubleshoot the defect in detail.
Mega-Idea Super IR Cam Mini:
- Infrared heat sensor, effective temperature measurement at 48640 points (256*190) with a protective cover that can be blocked if not used
- Do not block the lens, compatible with different high and low microscope light sources

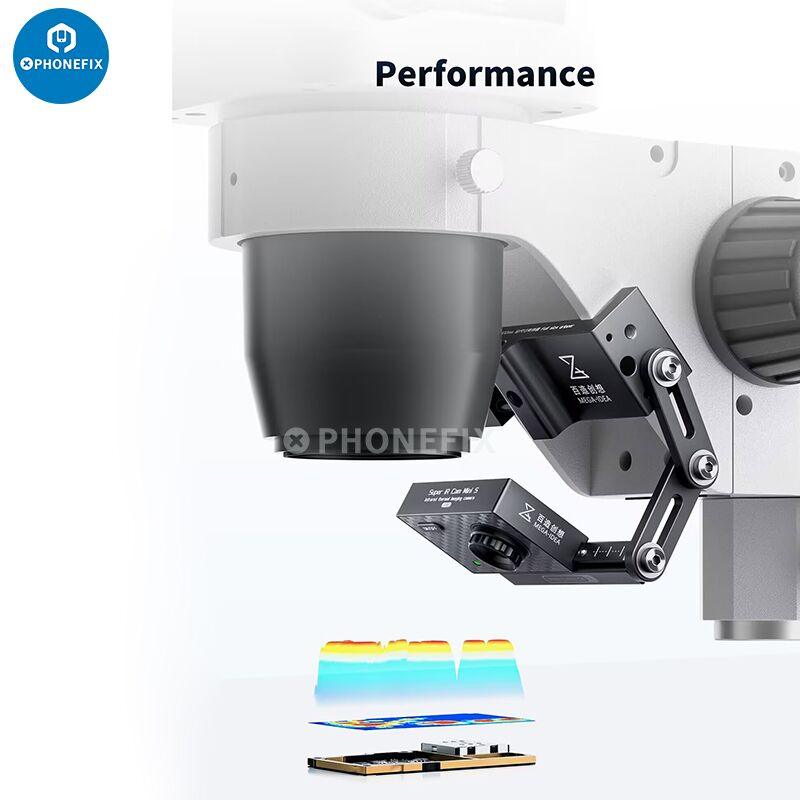

- The rotating mechanism can be adjusted to provide any angle of rotation, adapt to different microscope heights, and make the images more synchronized

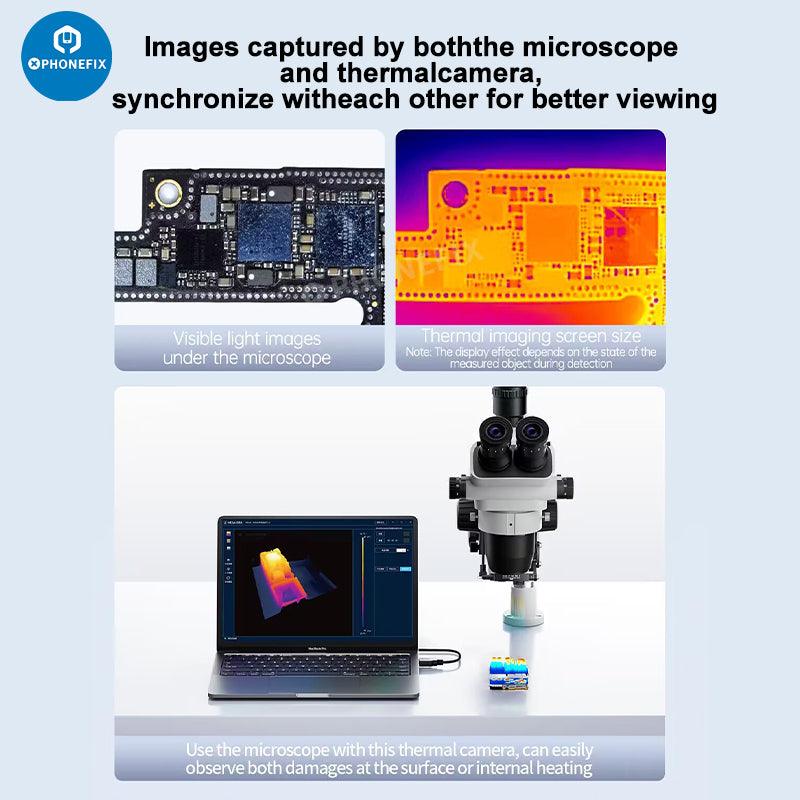

- Detection is more intuitive, visible light/thermal imaging images in the same position, more intuitive

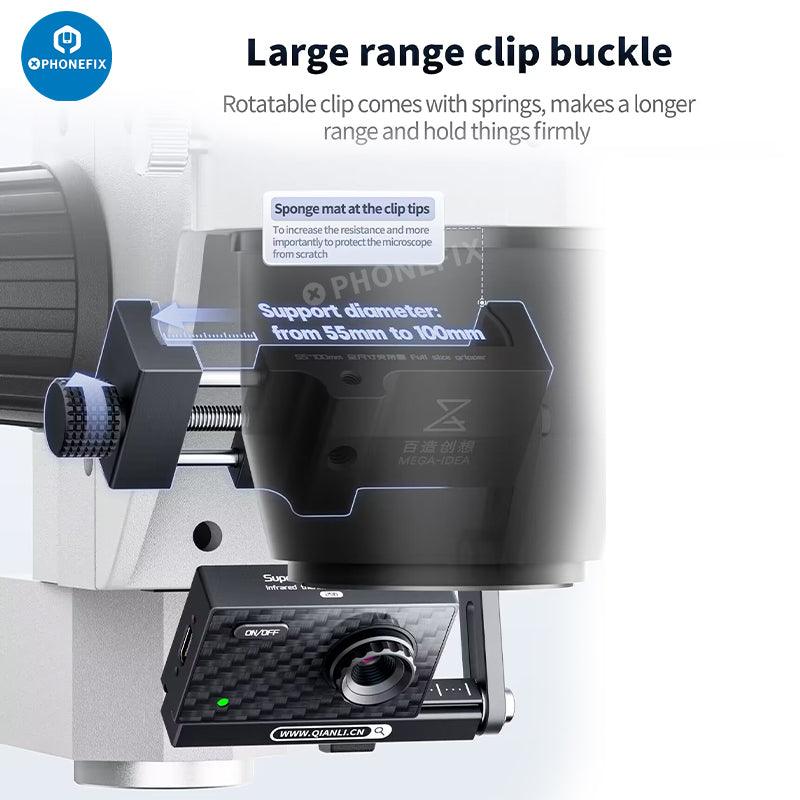

- Separate expansion bracket compatible with more models
- Compatible with a variety of thermal imaging, other models of thermal imaging can also be modified
- Suitable for multiple applications
- Electricity Leakage Quick Check is to quickly locate the abnormal temperature according to the real-time temperature, by adjusting the temperature range to troubleshoot the defect in details
- PCBA quick diagnosis, available for technicians, with function of electricity quick check, to find defect location more quickly and accurately
- 3D Effect, available for evaluators, the 3D effect mode can better display the heat distribution
Mega-Idea Super IR Cam Mini Package includes:
1 x Super IR Cam Mini
1 x Stand vertical fixing rod
1 x Extension bracket
1 x Type-C data cable
1 x L-shape hexagon wrench H3.0
1 x L-shape hexagon wrench H1.3
1 x Hexagon socket screw
