QIANLI Mega-Idea PCB 3D Infrared Thermal Imaging Camera

QIANLI Mega-Idea PCB 3D Infrared Thermal Imaging Analyzing Camera Mainboard detection analyzer One-key leakage quick check, rapid diagnosis instrument for smart phone repair.

Features:

1. Upgraded version of one-key quick check/accurate lens focusing/regional temperature curve recording/Type-C direct connection to PC.
2. 3D thermal field distribution analysis/high-temperature alarm tracking/reserved camera screw holes/52000-point full-frame temperature measurement.

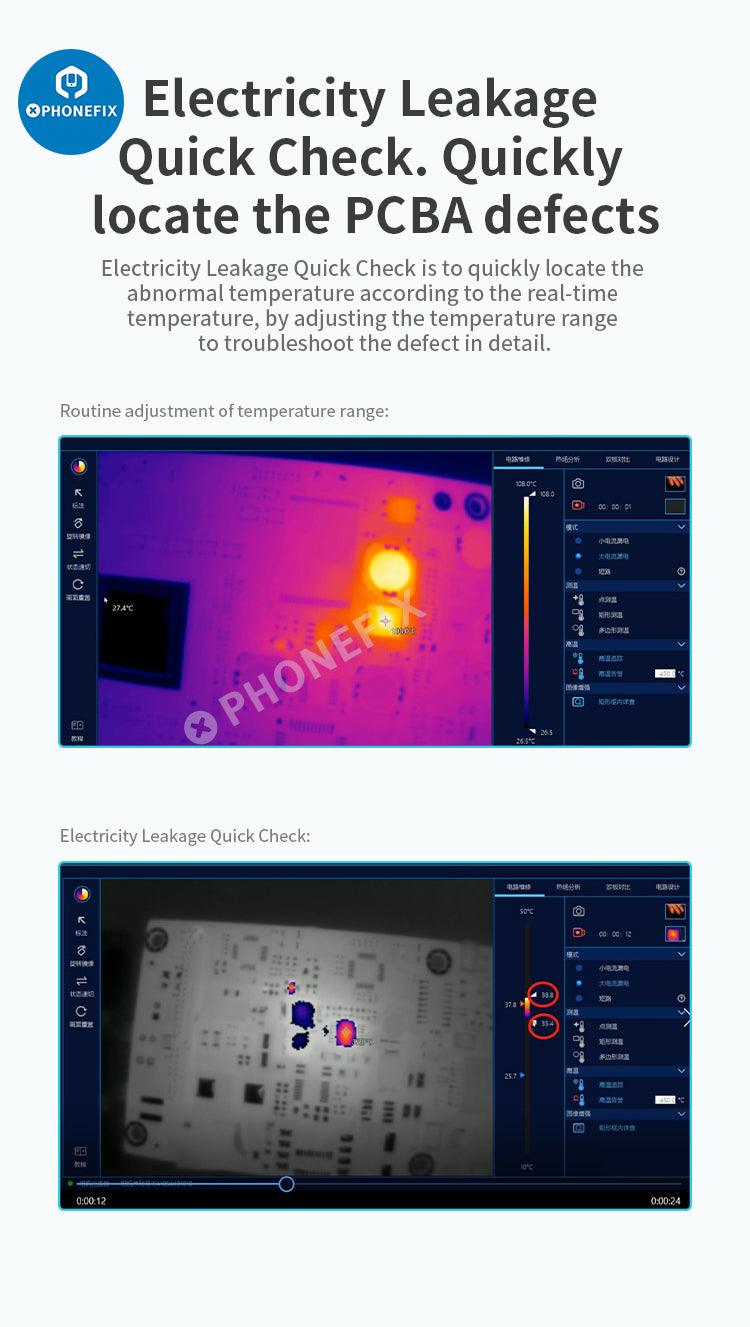

3. One-click leakage check quickly locates the fault of the motherboard, quickly locates the abnormal temperature point according to the real-time temperature, and makes detailed troubleshooting by adjusting the temperature range.

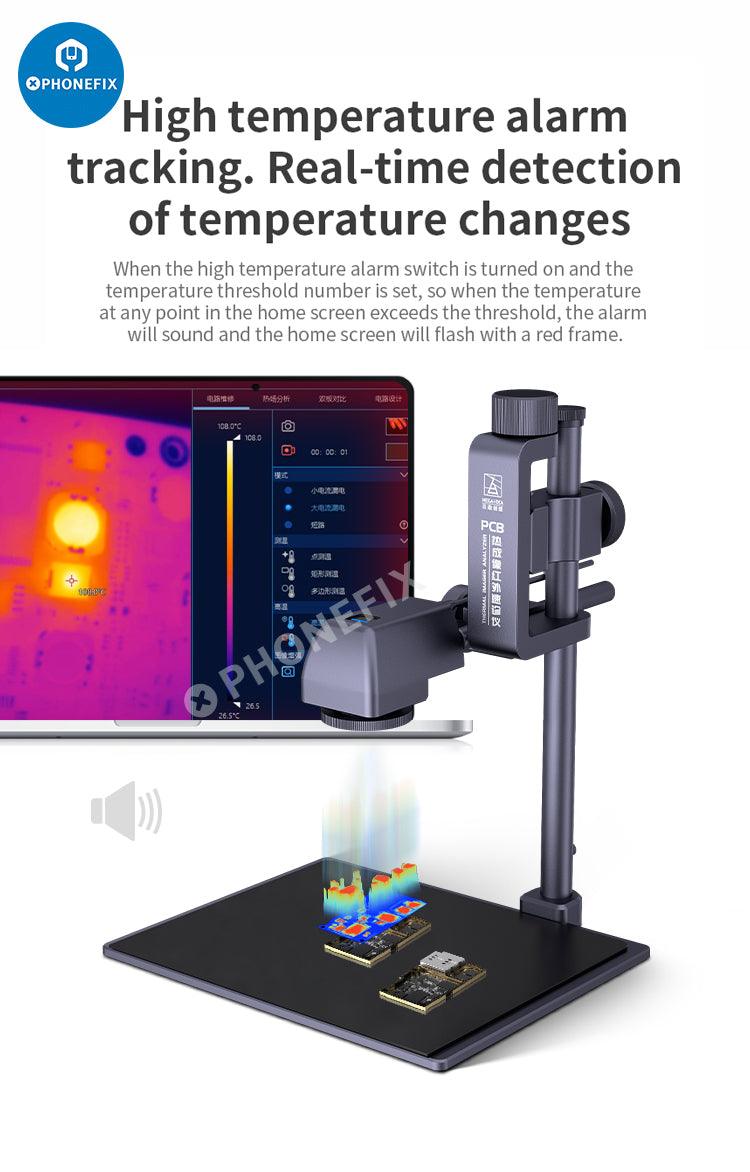

4. High-temperature alarm tracking: real-time detection of temperature changes, when the high-temperature alarm switch is turned on and the temperature threshold number is set, when the temperature at any point on the main screen exceeds the threshold, the software will issue an alarm sound, and the main screen frame will have a red border flashing.

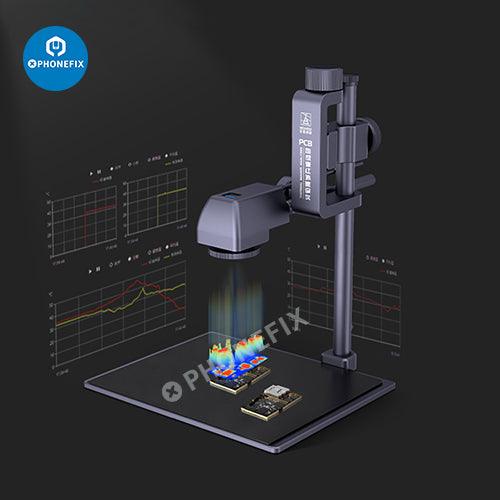

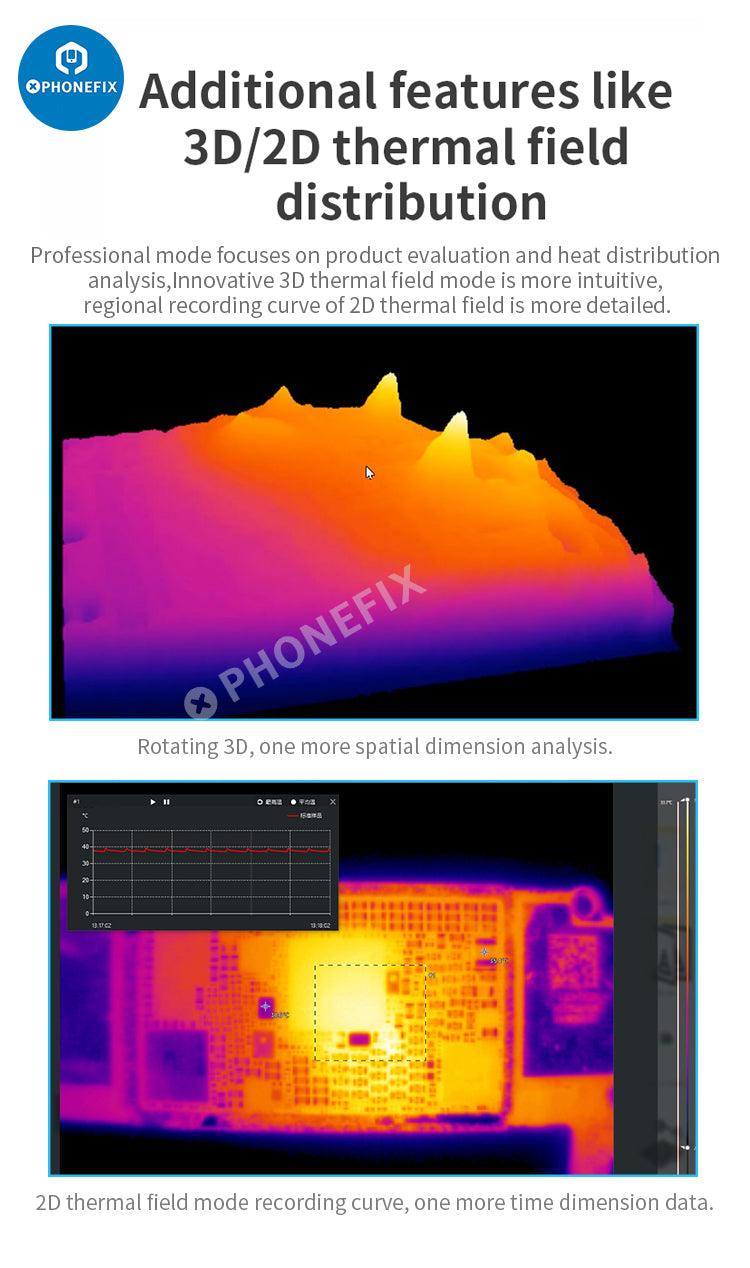

5. Added 3D/2D thermal field distribution function: a special mode for product evaluation and thermal distribution analysis, the innovative 3D thermal field mode is more intuitive, and the 2D thermal field area curve record is more detailed.
6. Double-Board Comparison: regional temperature, curve comparison record, design optimization for heat distribution, fault differentiation comparison verification, regional temperature curve comparison record, superposition comparison, etc.

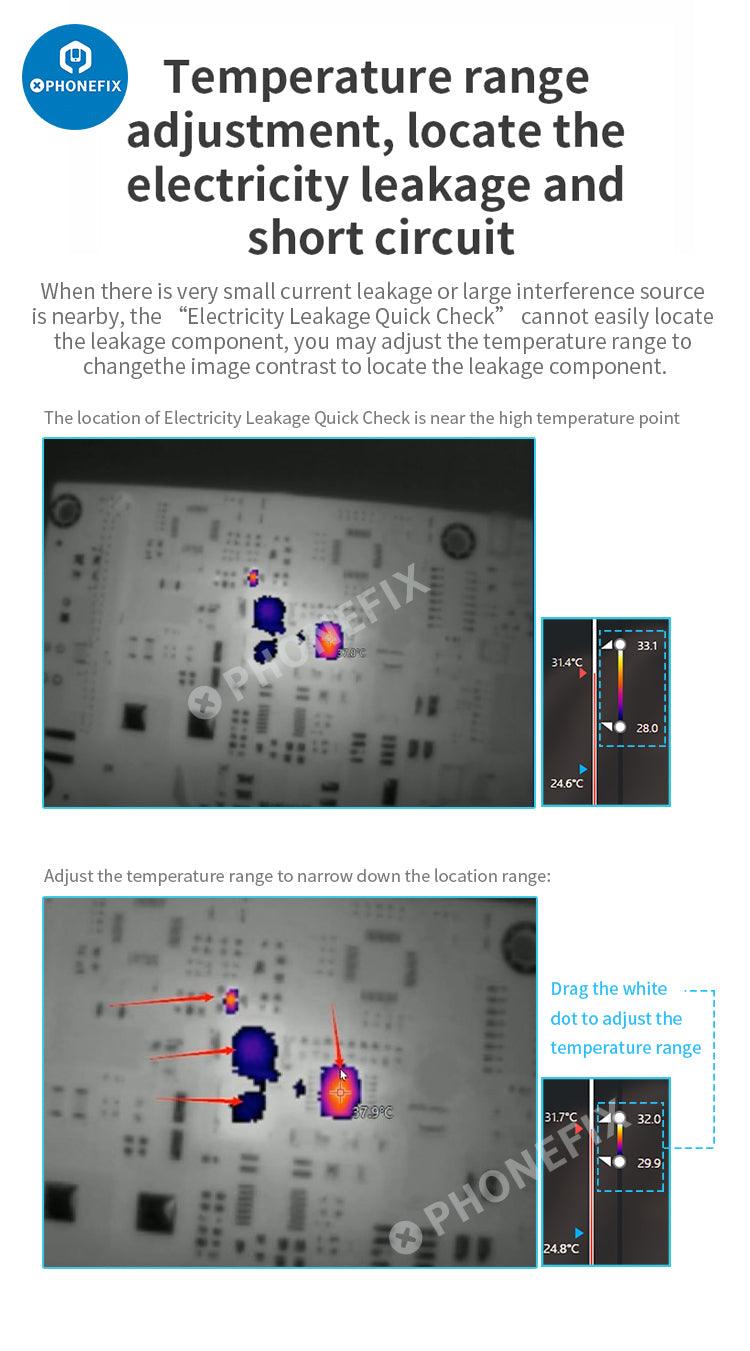

7. Temperature width adjustment: positioning, weak leakage short circuit that is not easy to detect, in the case of weak leakage or interference sources, the leakage point cannot be directly located through the leakage current quick check function, and the image contrast can be adjusted by pulling the temperature width point for precise positioning.

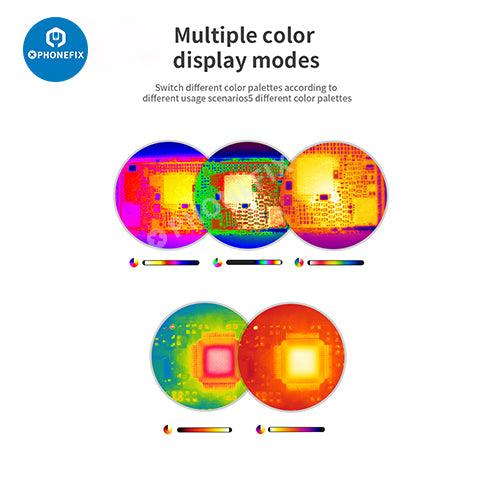

8. A variety of color display modes switch different color boards according to different usage scenarios, 5 different development color boards
9. Multiple software modes: corresponding to different usage scenarios

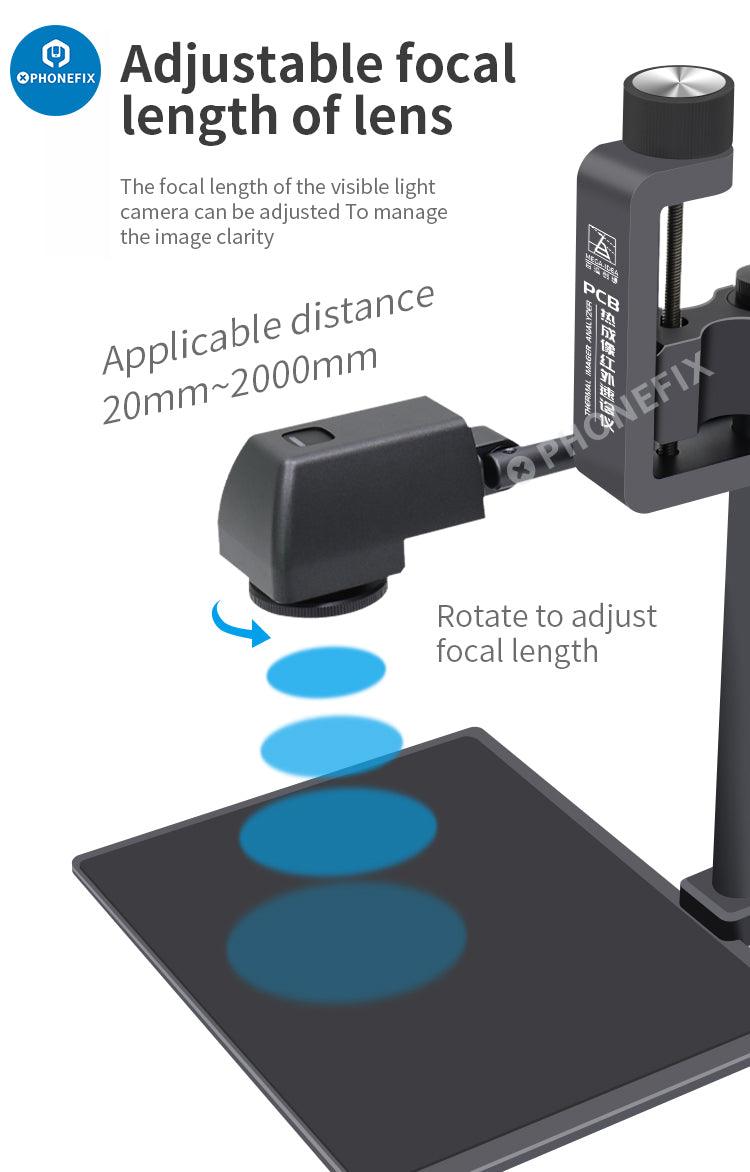

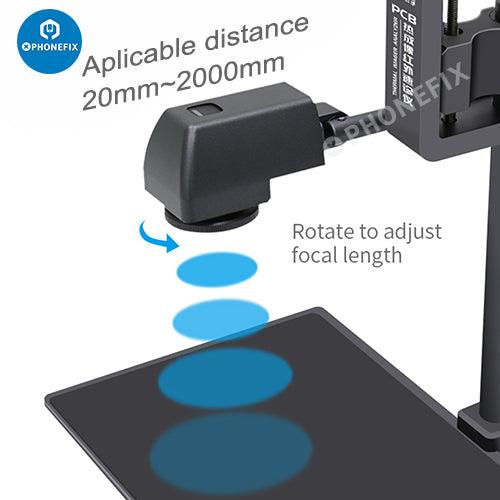

10. The focal length of the lens can be adjusted, and the image clarity can be controlled by adjusting the focal length of the visible light camera
11. Software: https://drive.google.com/file/d/1xULuz6Nwm4fy3hHojXQ_Gebf8V3o_cLr/view?usp=drive_link

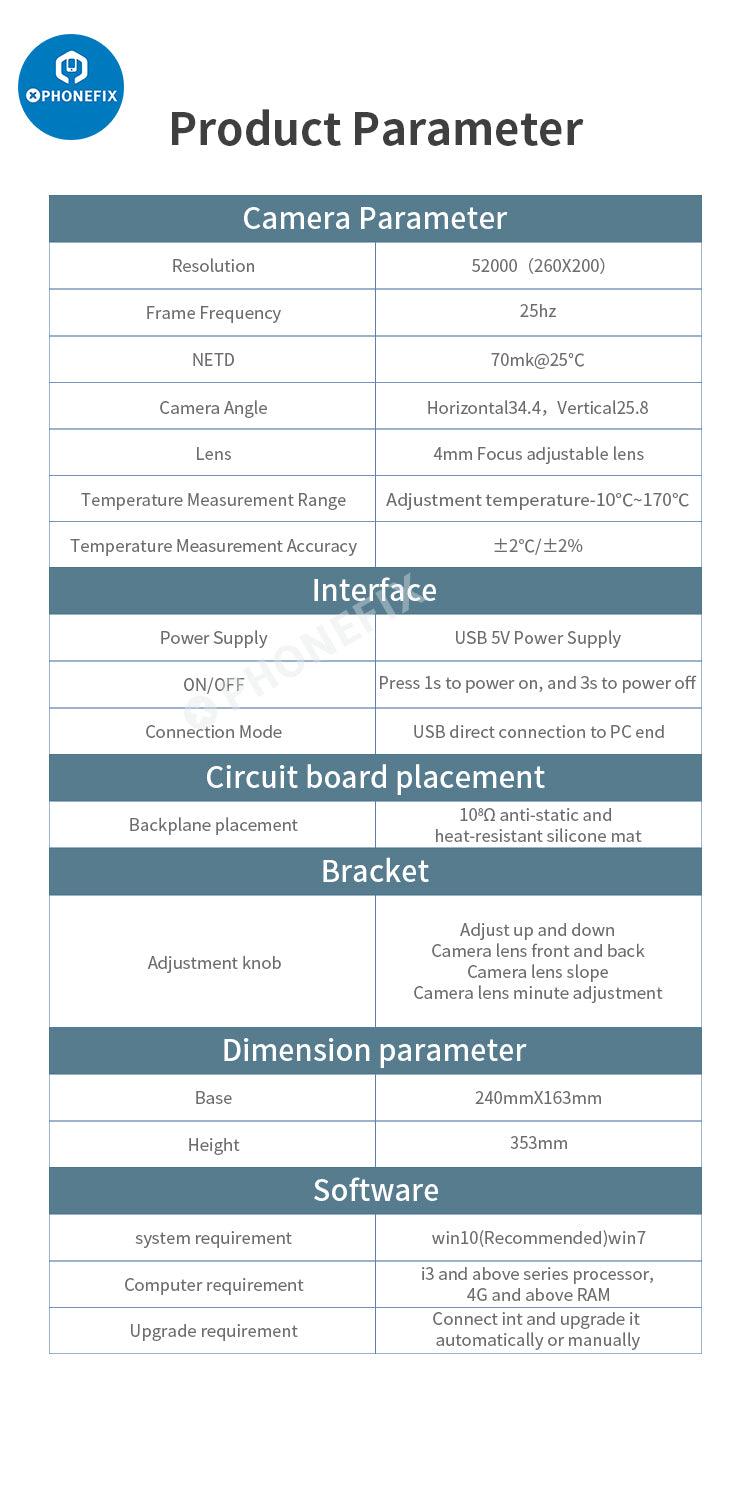

Specification:

• Brand: Mega-Idea
• Lens: 5200(260X200)
• Name: PCB infrared thermal imaging rapid diagnosis instrument
• Frame rate: 25HZ
• Packing: 3*7*5*46*36(mm)
• Temperature measurement range: -10℃~170℃
• Product: 240*163(mm)
• Connection method: USB to PC
• Power supply: USB 5V power supply

Package includes:

• 1 x Thermal Imaging Infrared Rapid Diagnosis Instrument
