ChargerLAB POWER-Z MF001 MFI cable tester and Power-Z MF003 Apple PD Charger Tester. MF003 POWER-Z PD Charger Tester Charging Head Network Tester Voltage Current Detection. POWER-Z MF001 MFI Cable Tester with voltage and current meter funciton. POWRE-Z MF001 MFI cable tester has 2 Lightning ports, 2 Type-C ports (IN & OUT), 1 micro USB port for charging and PC connection, 3 navigation buttons. It provides detailed information for lighting cables. Professional Apple data cable/voltage current/transformer testing.

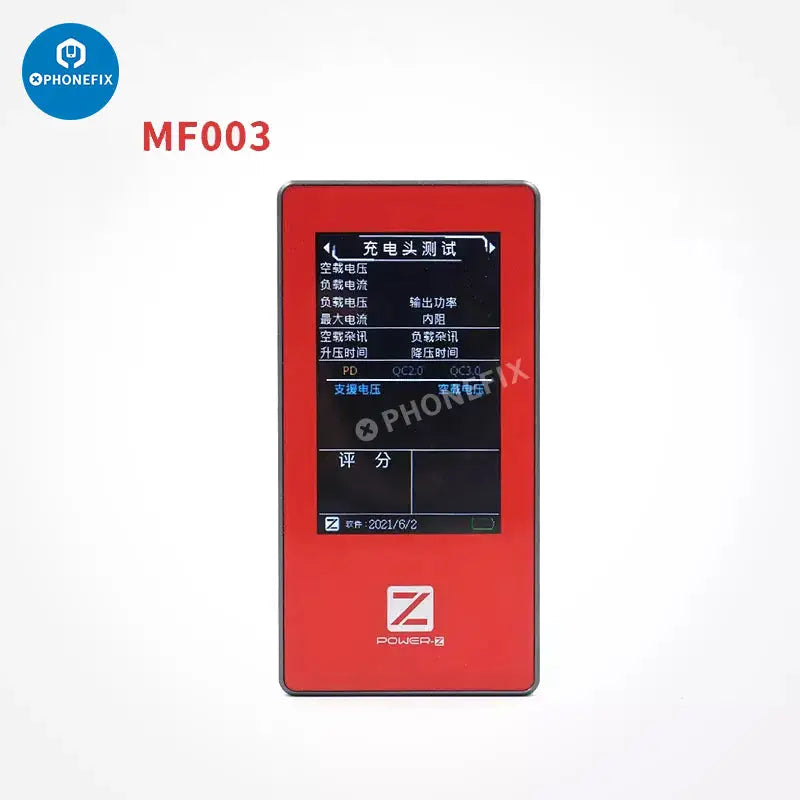

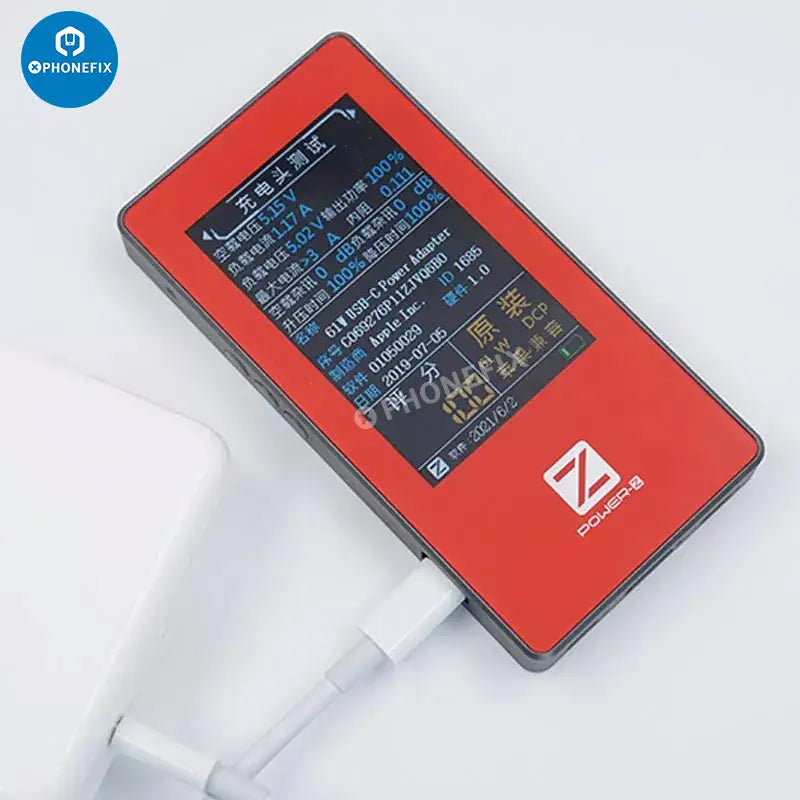

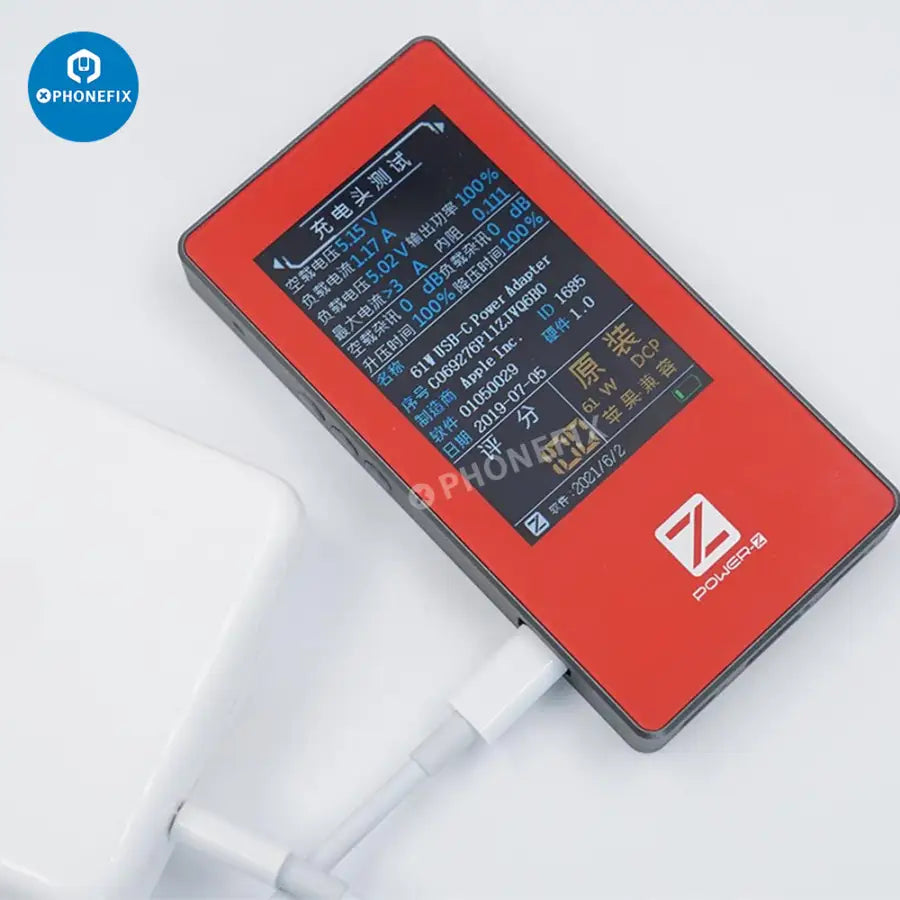

Power-Z MF003 Features:

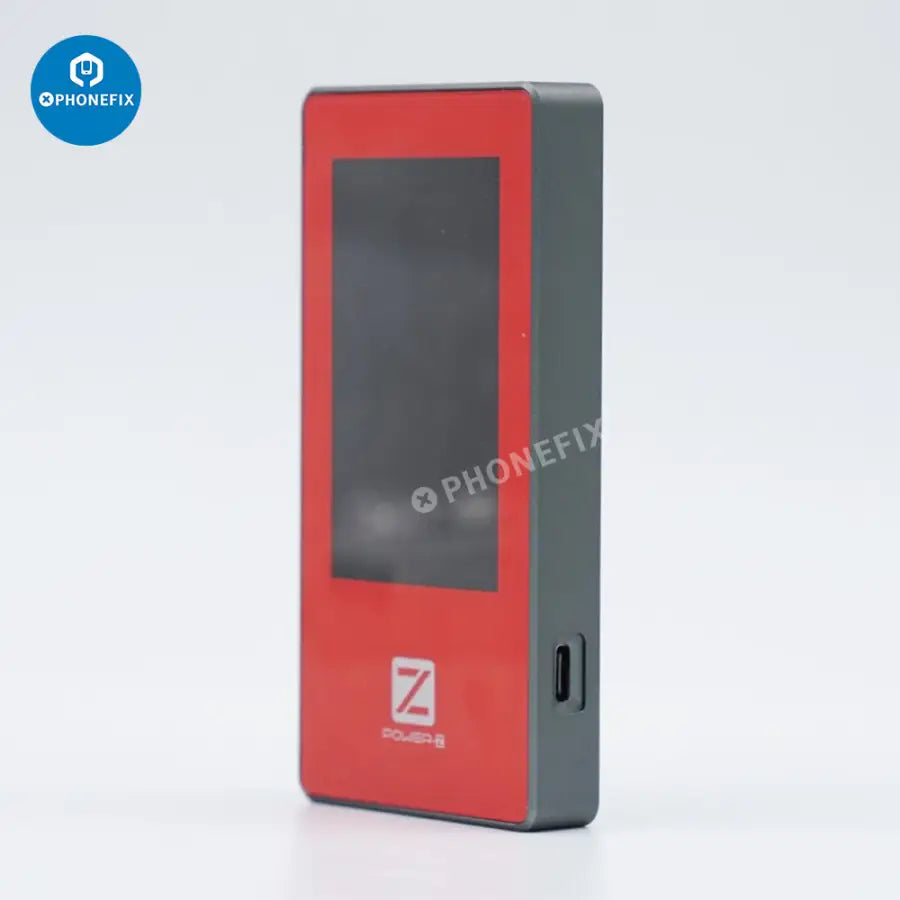

1. The ChargerLAB POWER-Z MF003 main housing part of ChargerLAB POWER-Z MF003 is made of a single piece of aluminum alloy and is made by one-piece molding process.
2. Currently, only current less than 3A is supported during power measurement. Built in 1020mAh battery is convenient for immediate use, and an indicator light is on when charging.

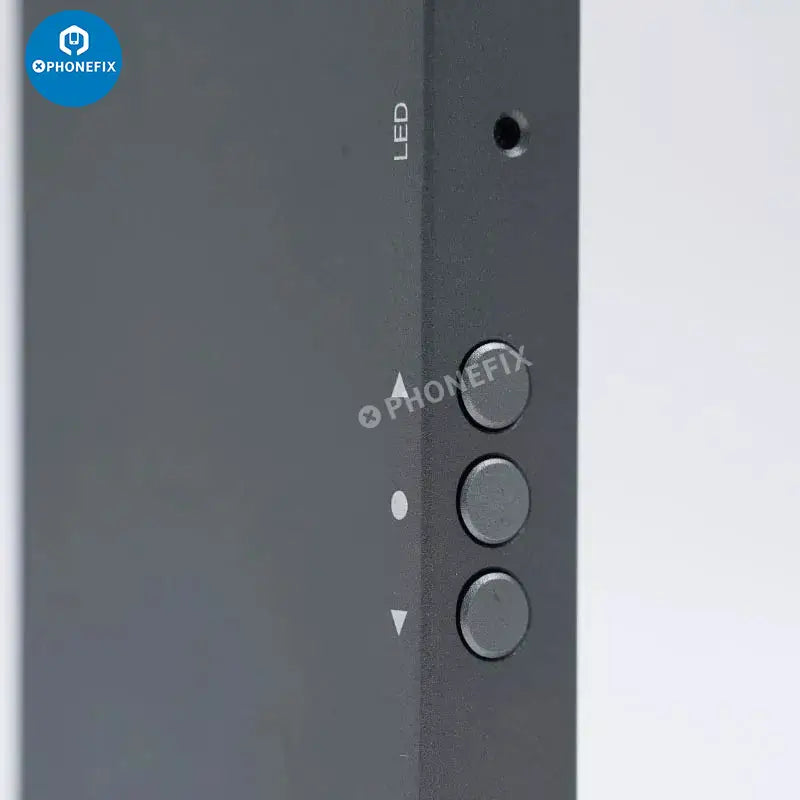

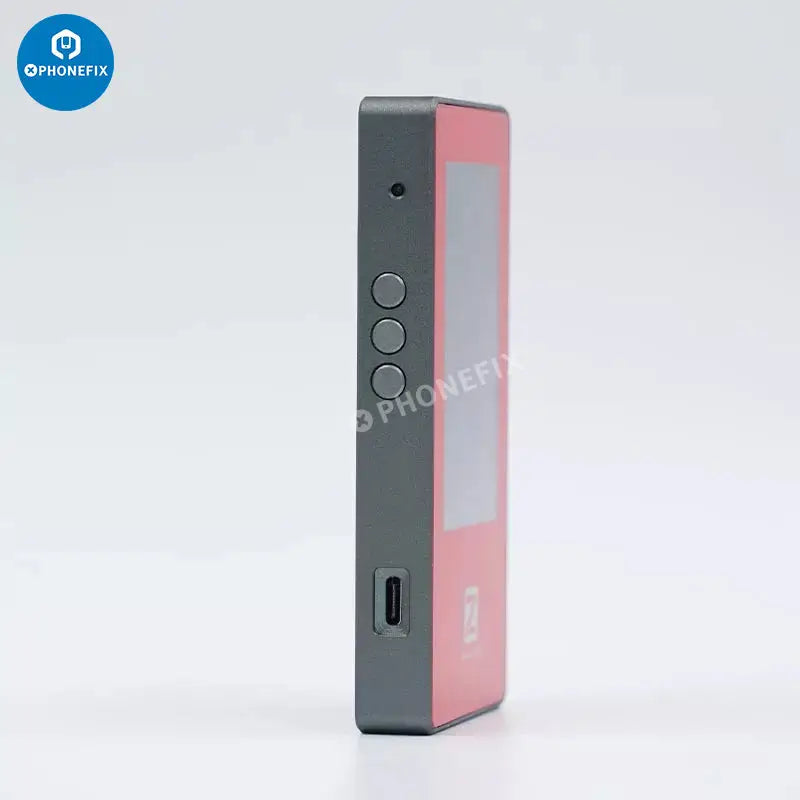

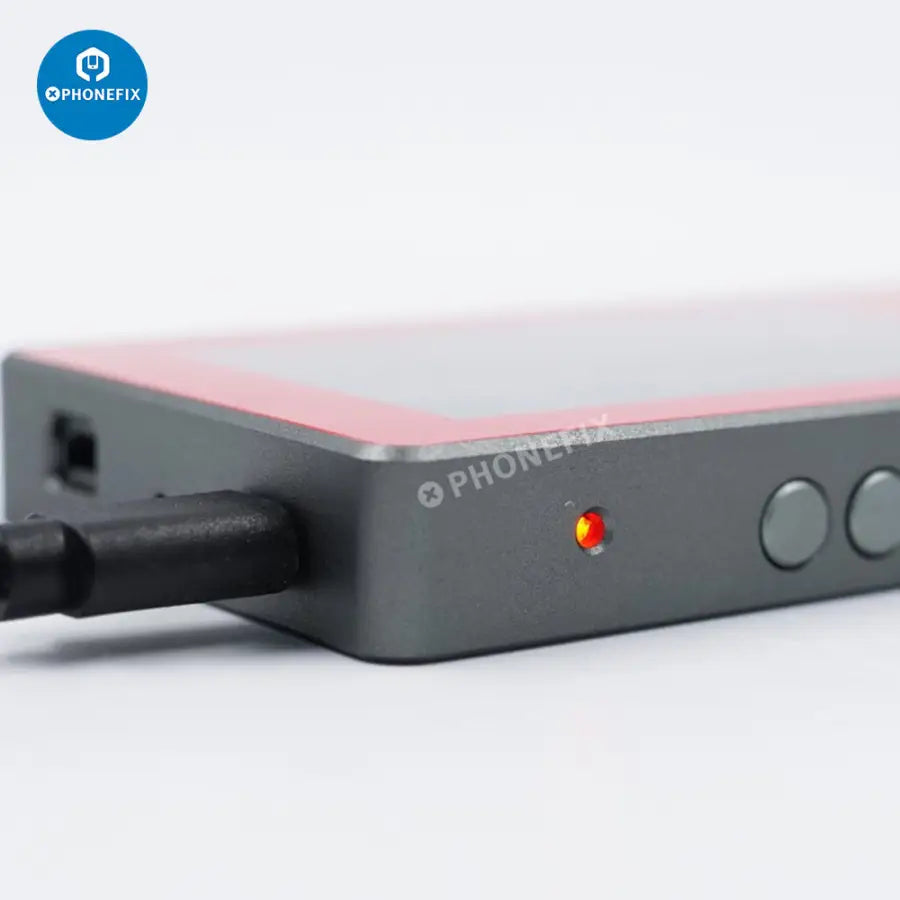

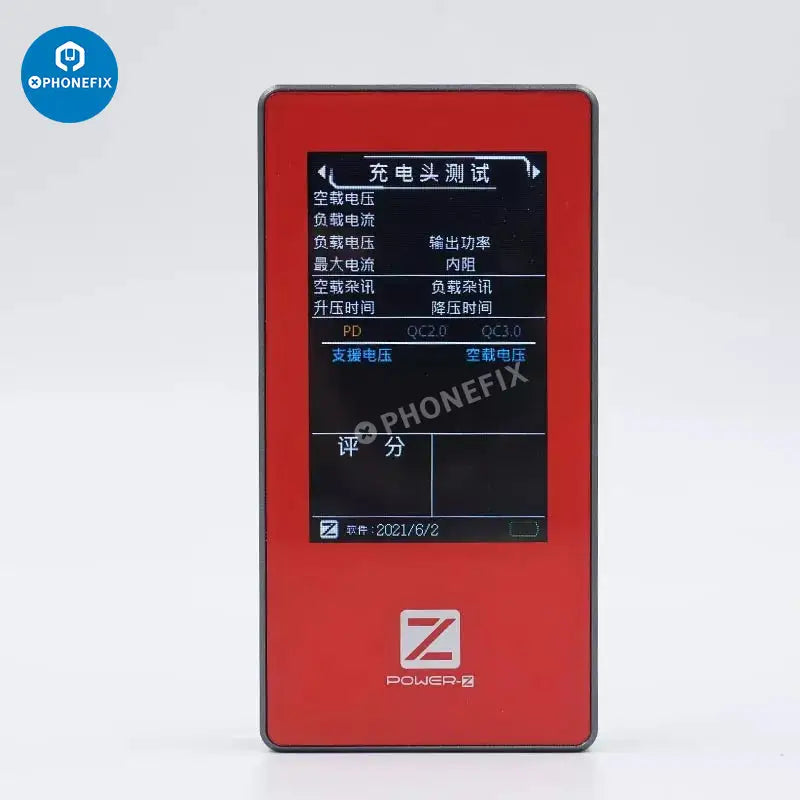

3. The large-screen display can show users more and more complete products. On the side, there are the charging status indicator, three function selection buttons, and the USB-C input interface.

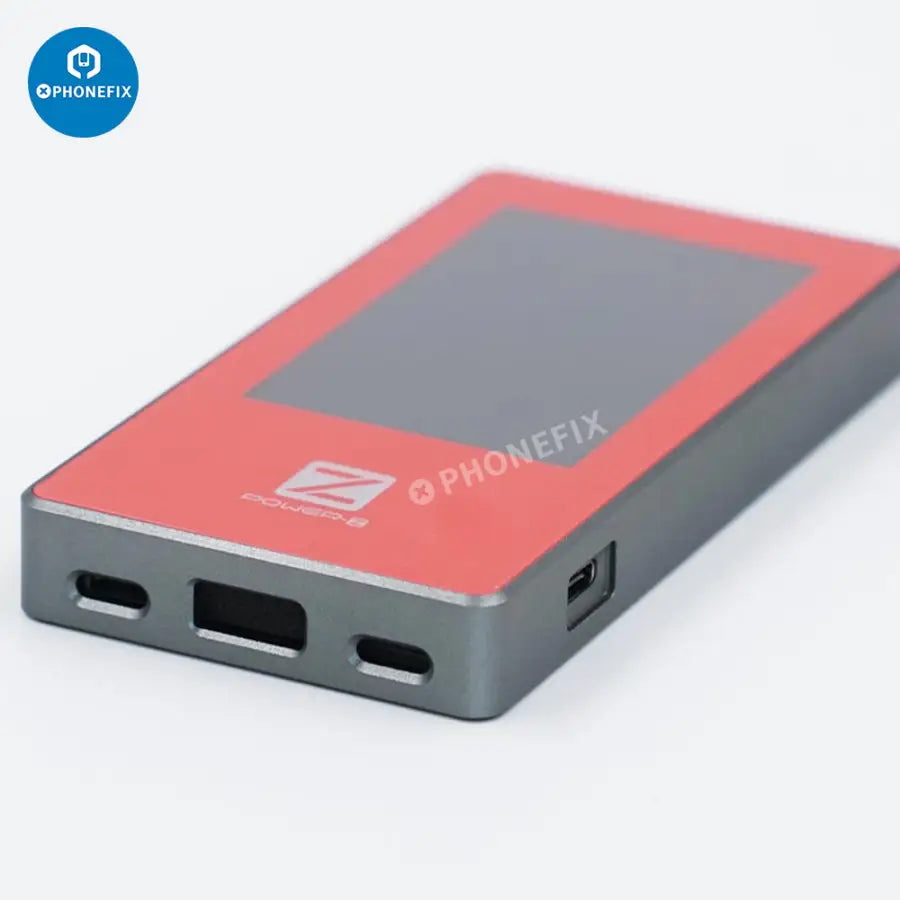

4. On the top of the POWER-Z MF003 are a switch, a buzzer and a Micro USB port, which can be used to charge the device or connect to a computer for firmware update.
5. There is a port for light on the button and one Type-C port on the side.
Power-Z MF003 Firmware June 21, 2024 Update log (cannot return to old firmware after update):
https://drive.google.com/file/d/19PRauHSmH7Zxxhl4_eBSB3FHvbq3xr0w/view?usp=drive_link
If the tester does not respond when connected to the computer, check the following steps:
1. Check whether the connected interface is correct;
2. Replace the cable, some cables have no data transmission function,
3. Replace the USB port.
4. Replace the computer, the software only supports Windows10, not other operating systems.

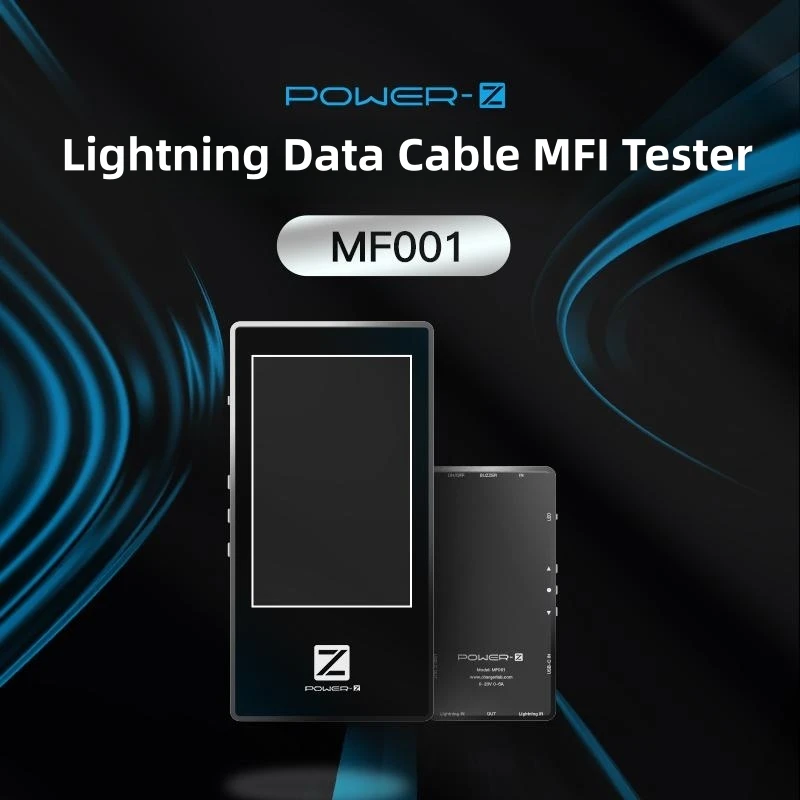

POWER-Z MF001 Features:
1. ARM BASE high-speed MCU processor, high-definition display and sound prompt function, provide power saving mode, increase standby time.
2. It can detect the voltage and current supported by various charging transformers, detect the power consumption of mobile phones, insert DUT to start the product test mode, and provide test results in time.
3. The voltage and current detection interface can test voltage and current and display the corresponding curves.
4. The transformer test interface currently supports QC2.0 protocol and USB PD protocol testing.
5. MF001 has a switch, buzzer, and micro USB interface, which can be used to charge the device or connect to a computer for firmware update.
6. The bottom is two Lightning interfaces and USB-A interfaces. The Lightning interface is mainly used to test MFi cables, and the USB-A interface can be used to connect loads and other test functions.
7. The charging status indicator, three function selection keys, USB-C input interface, and the other side is the USB-C output interface. The interface can display the authentication serial number type, authentication chip type, switch chip, score and other information of the Lightning head.
8. Currently, this test function can support the testing of Lightning heads such as Apple Lightning head, platform system Lightning head, counterfeit Lightning head, C100, C48, C52, C68, E75, etc. The test range is very wide and the accuracy is very high.
9. The front is equipped with a large LCD screen with a length of 64.5mm and a width of 39mm. The large screen display can show users more and more complete test information.
10. You can connect the computer to the POWER Z official website to download the latest version of the software for online upgrade. It is small in size, of high quality and easy to carry.
11. The front is a pure black design style, the outer layer is an acrylic panel, and the main part of the shell is made of a whole piece of aluminum alloy. The shell is anodized and frosted, with a delicate feel, non-slip and scratch-resistant.
12. When the product leaves the factory, a protective film is attached to the front, which can be torn off according to needs when used.
