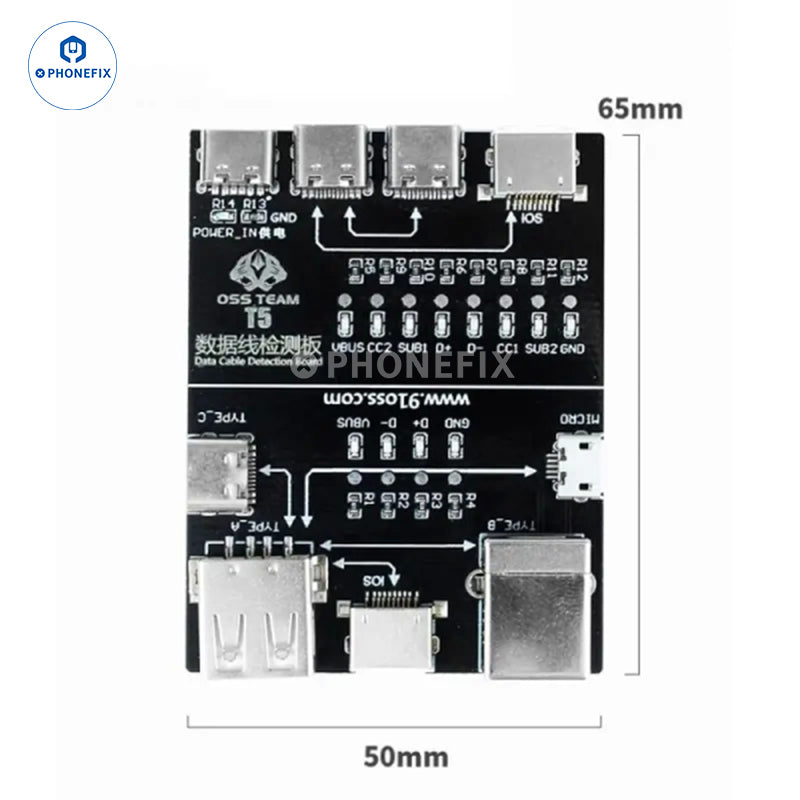

OSS T5 Data Cable Detection Board quickly detect abnormal data cable issues, it can be connected to 5V power supply, computer or other USB port for power supply. OSS T5 abnormal direct detection board is suitable for Lightning/Type-C/Micro/USB data cable testing.
Features:
1. The power supply of the OSS T5 data cable detection board can be connected to a 5V power supply, computer, or other USB port for power supply.
2. Using OSS T5 abnormal direct detection board, the light on the line indicates normal, and no light indicates abnormal data cable.
3. OSS T5 data cable detection board, quickly detects abnormal data line problems.
Steps:

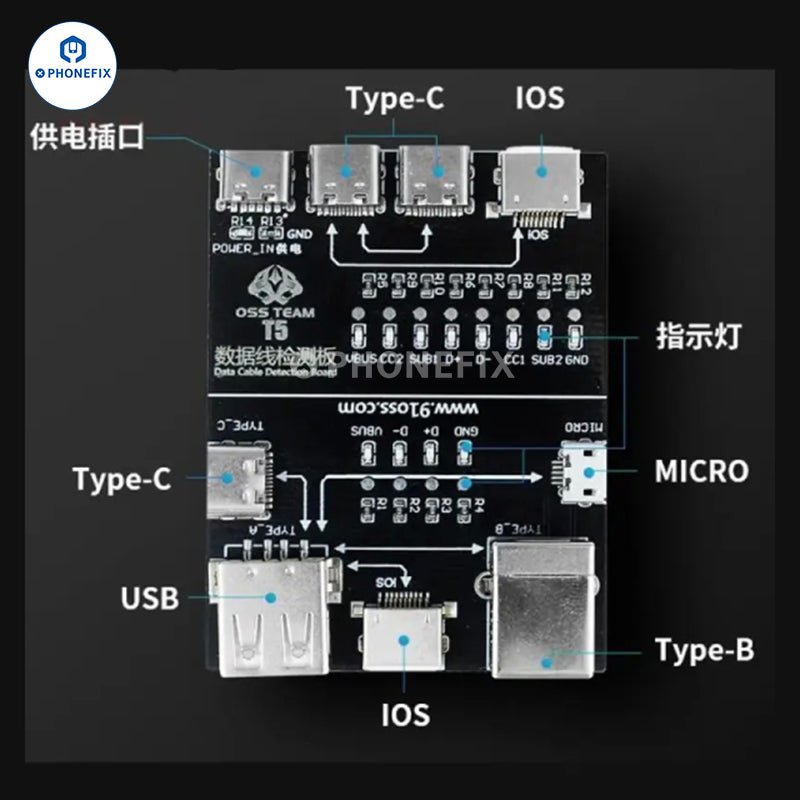

1. Plug the data cable to be tested into the corresponding output port on the charger.
2. Plug the data cable into the corresponding input port on the phone.
3. Use the Type-C charging cable to plug into the power port to power the board.

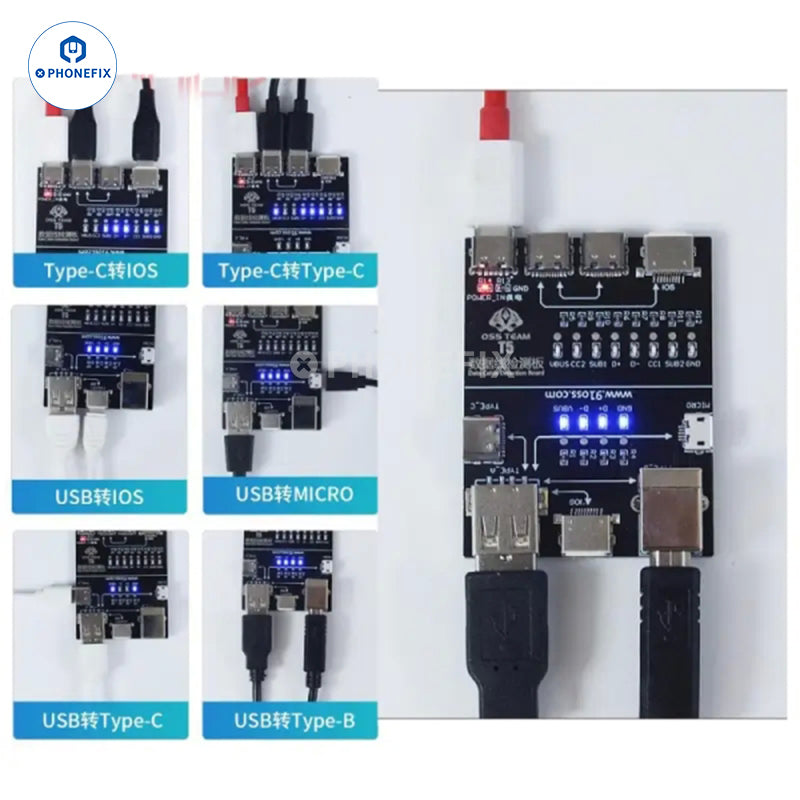

4. Type-C to IOS data cable detection: indicator light Type-C to IOS data cable detection (blue light on means the line is normal, no light means the data cable is abnormal).
Note: When testing, in addition to the power supply socket, data cable input and output sockets inserted into a total of three sockets, can not be inserted into other sockets in other data cables, otherwise it will affect the test.
Package includes:

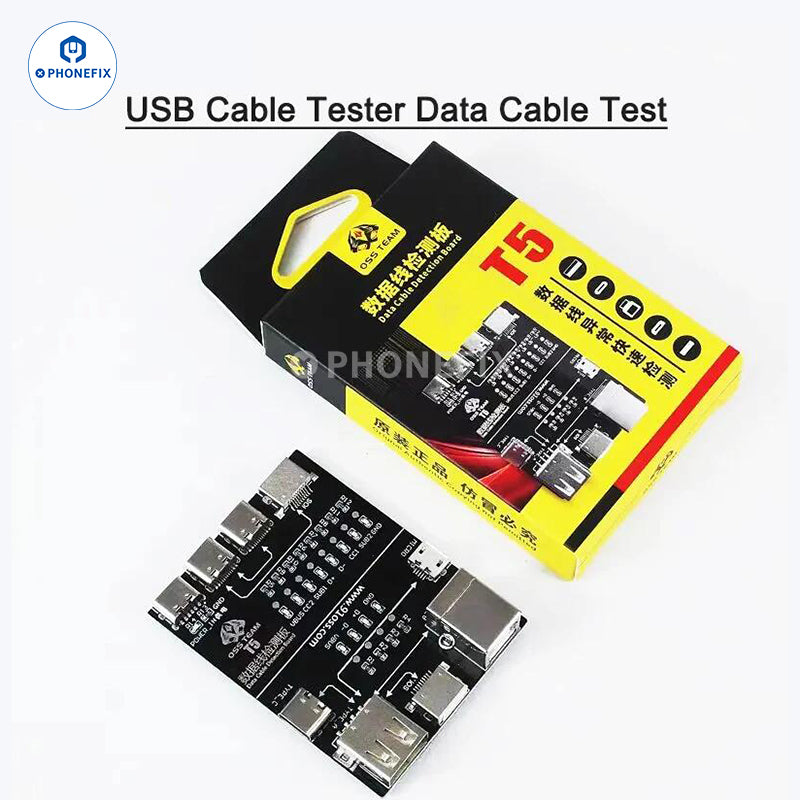

1* OSS T5 Detection Board.
