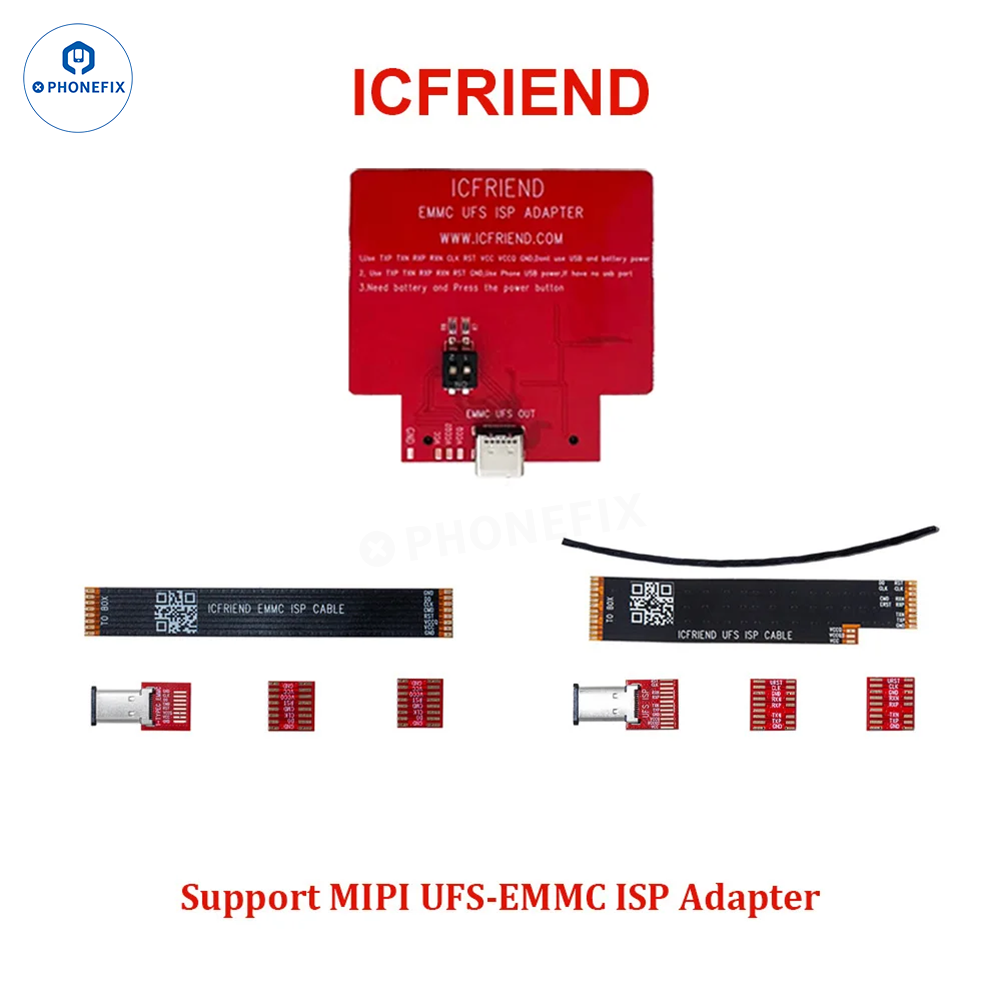

2025 MIPITESTER MIPI PRO Tester for reading and writing user data on UFS and eMMC chips. MiPiTester MiPi Pro Tester can be used with EMMC-UFS-ISP-NB1 Adapter, EMMC UFS ISP Cable, NB-UFS 4-in-1 Adapter, UFS BGA153, UFS BGA254, and UFS BGA297 socket. It can also be used with ICFriend NB EMMC BGA 13 IN 1 for direct EMMC memory chips connection with the wide range of supported BGA types.
Option:
1. MiPi Pro (Standard Version): MiPi Pro+EMMC-UFS-ISP-NB1 Adapter+EMMC UFS ISP Cable.
2. MiPi Pro (Simplified Version): MiPi Pro+EMMC-UFS-ISP-NB1 Adapter+EMMC UFS ISP Cable+NB-UFS 4-in-1 Adapter (254/153/297).
3. MiPi Pro (Enhanced Version): MiPi Pro+EMMC-UFS-ISP-NB1 Adapter+EMMC UFS ISP Cable+NB-UFS-BGA153 Adapter+NB-UFS-BGA254 Adapter+NB-UFS-BGA297 Adapter
4. For Old MiPi Tester eMMC/UFS ISP Adapter: eMMC/UFS ISP B1 Adapter+EMMC UFS ISP Cable+2pcs ISP PCB Connectors.

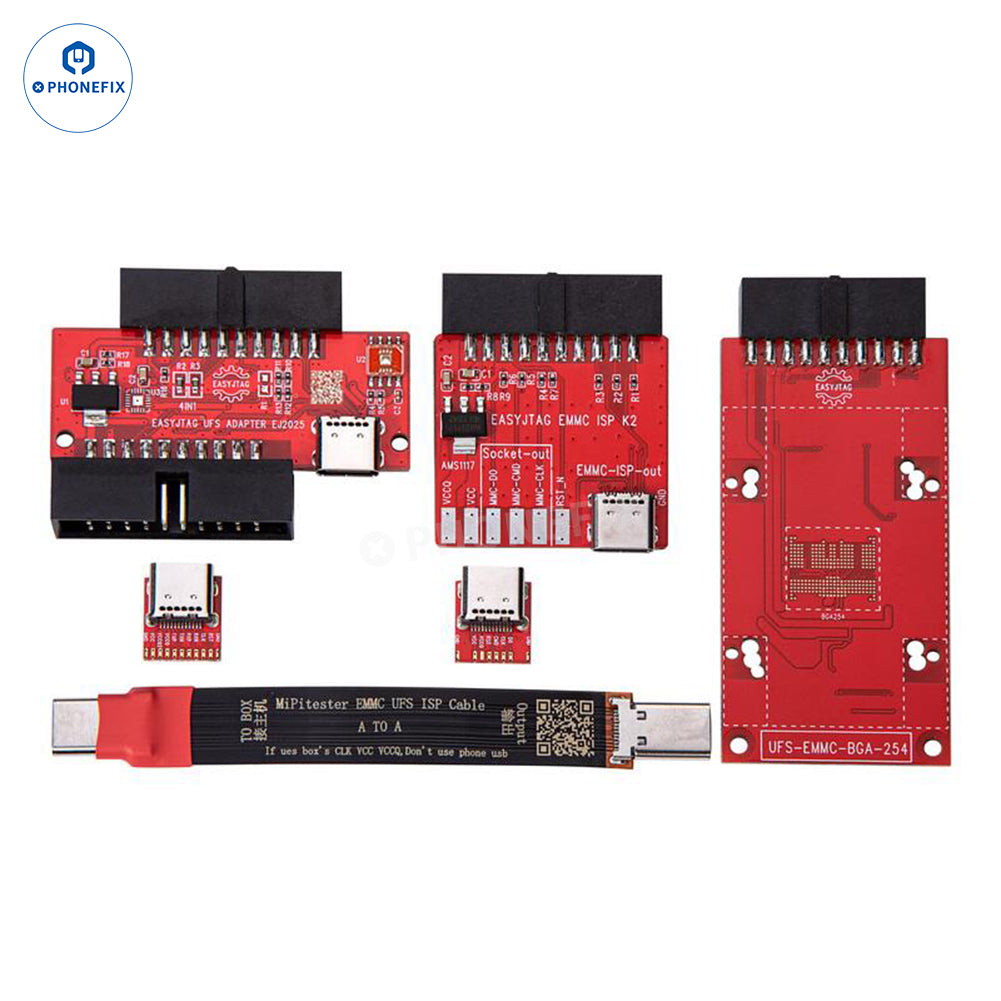

5. Easy UFS BGA 254 ISP Adapter: for old users with an encryption chip.
6. For EASY UFS 3-in-1/4-in-1/6-in-1.
7. For MINI & GEAR 2.
8. Easy UFS EMMC UFS ISP kit: including encryption chip.

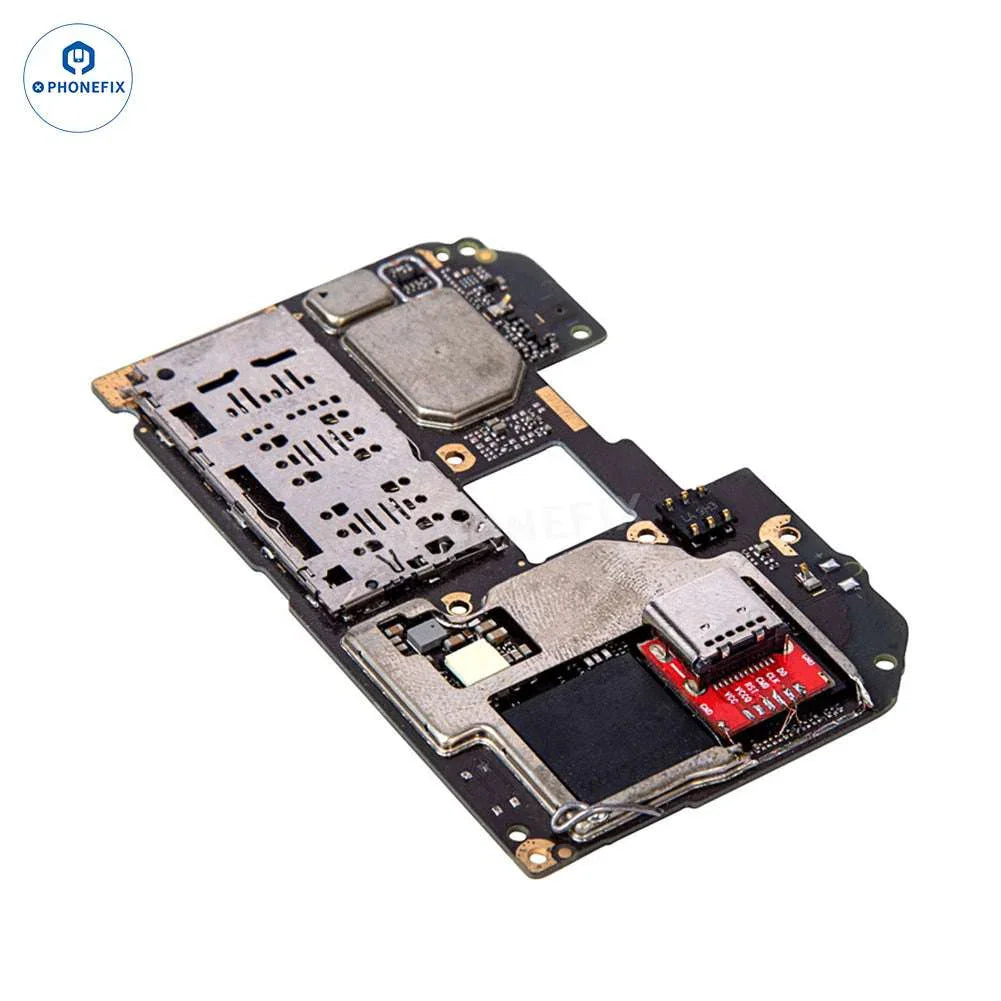

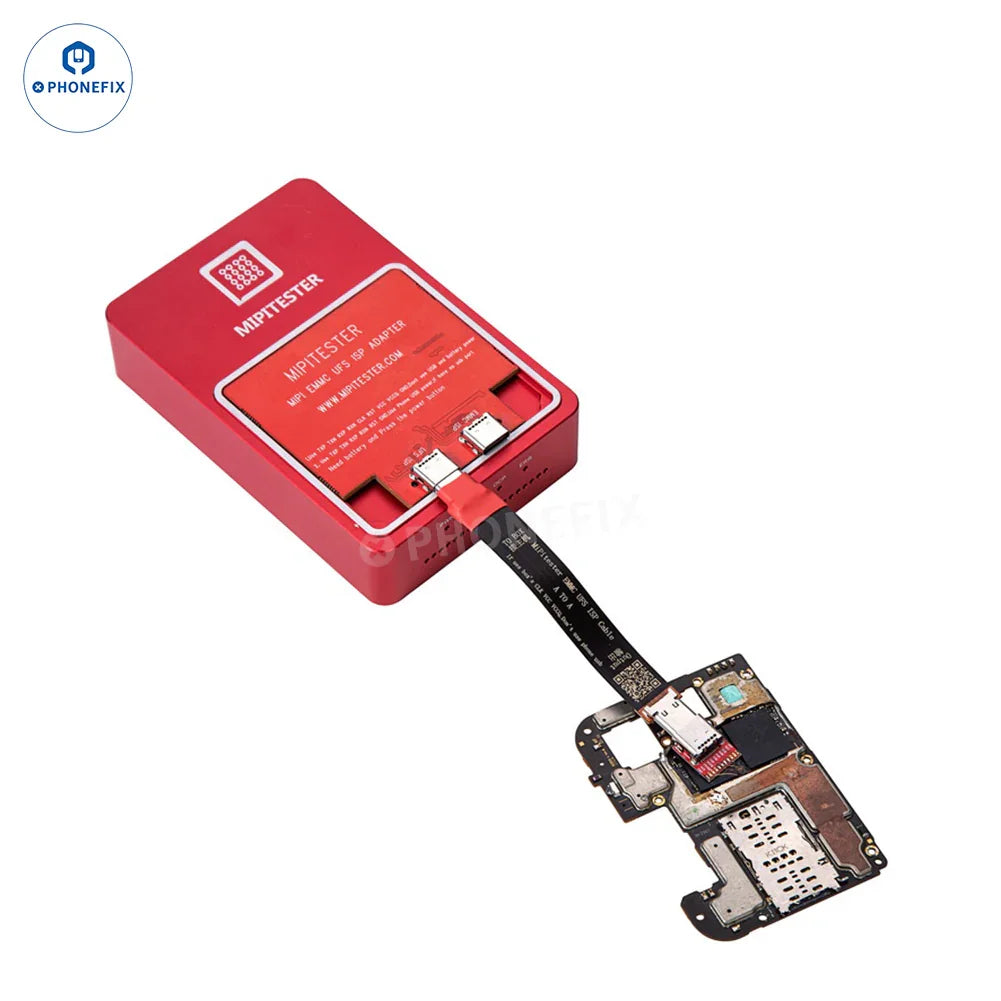

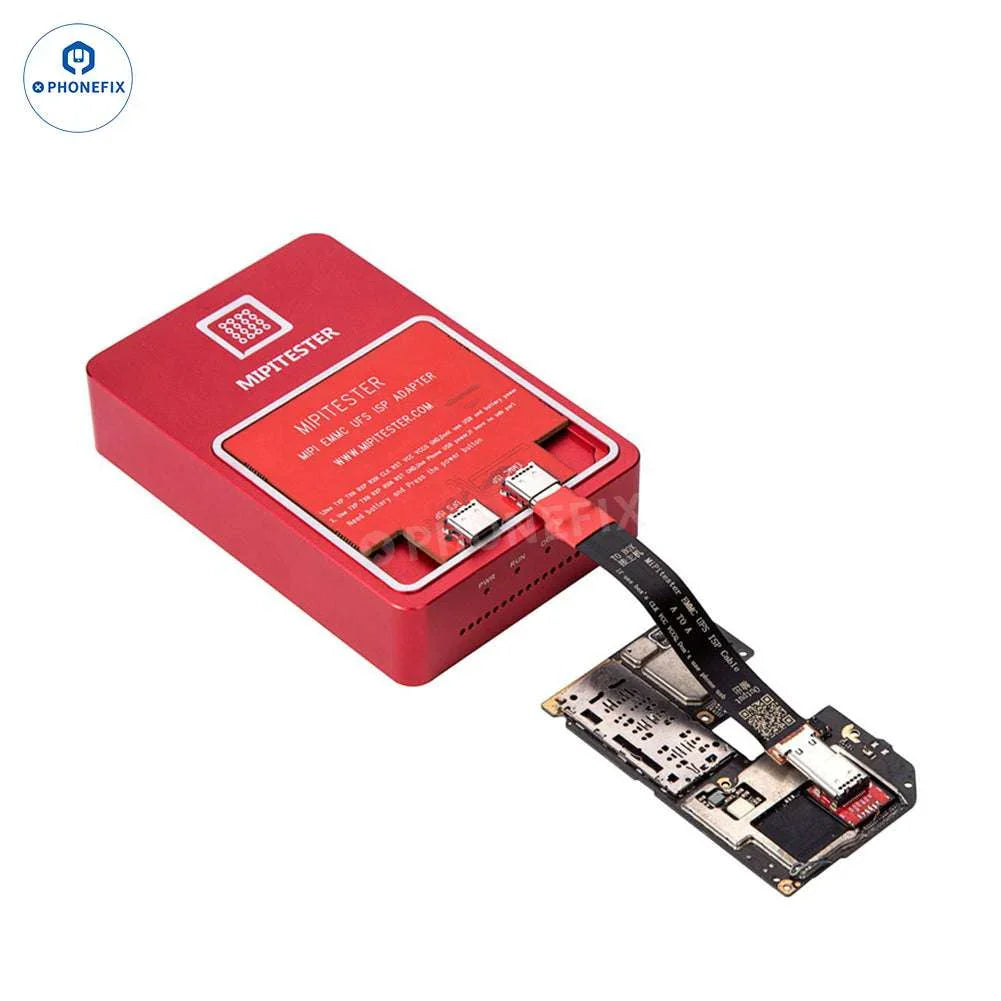

MiPi Tester eMMC/UFS ISP Adapter allows you to service any device with ISP pinouts via UFS/eMMC interface, intended for MiPi Tester Box.
Please note: Due to the rapid development of technology and in order to meet the needs of each customer, the supplier reserves the right to change certain positions in the list of cables and accessories included with the product. Therefore, the packaging contents provided above are tentative. More detailed information on this matter can be obtained from our sales manager.
MiPi Tester Pro Features:
1. Read and Write UFS memory chips
2. Read and Write eMMC memory chips
3. Supports ISP (In-System Programming)
Package Content:

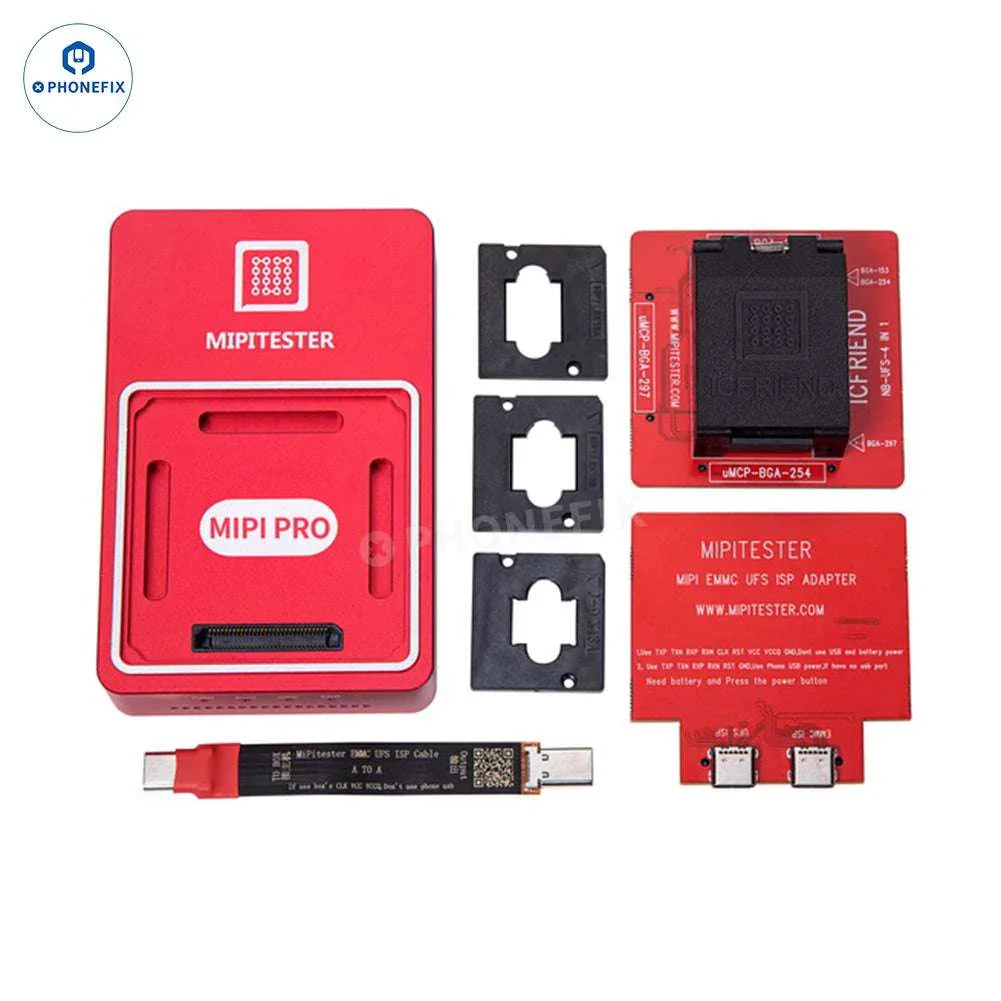

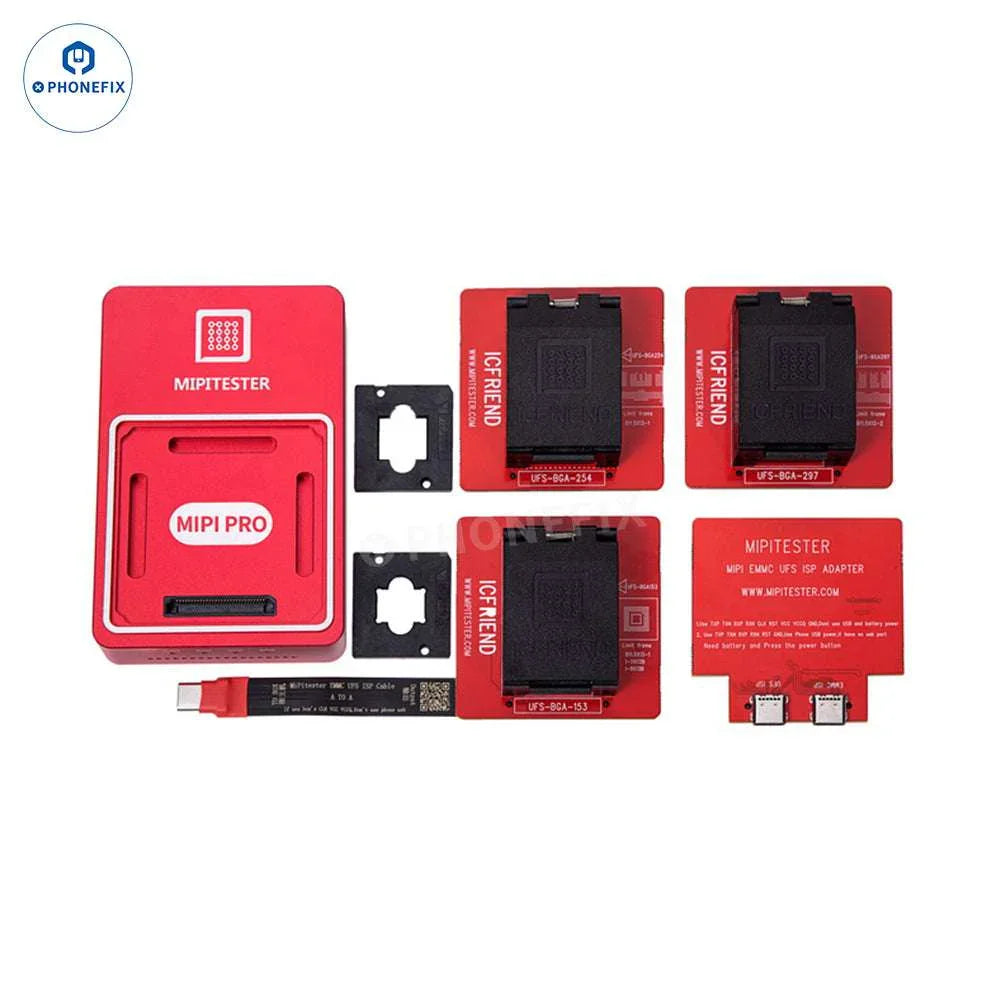

MIPI PRO+UFS153+254+297+ISP Cable (Enchanced Version):
1x MiPiTester MiPi Pro.
1x NB-UFS-BGA153 Adapter.
1x NB-UFS-BGA254 Adapter.
1x NB-UFS-BGA297 Adapter.

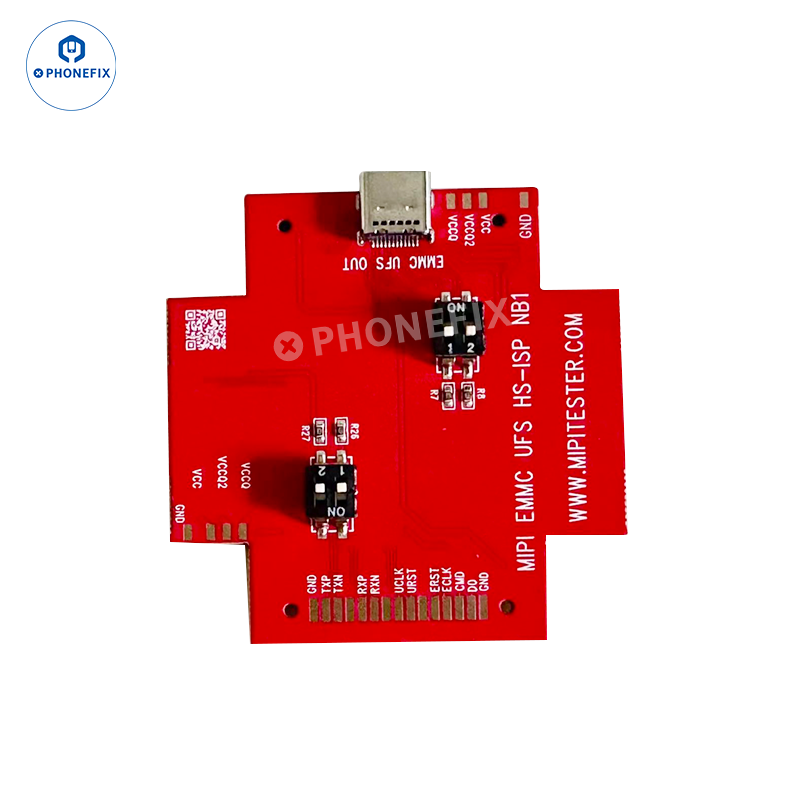

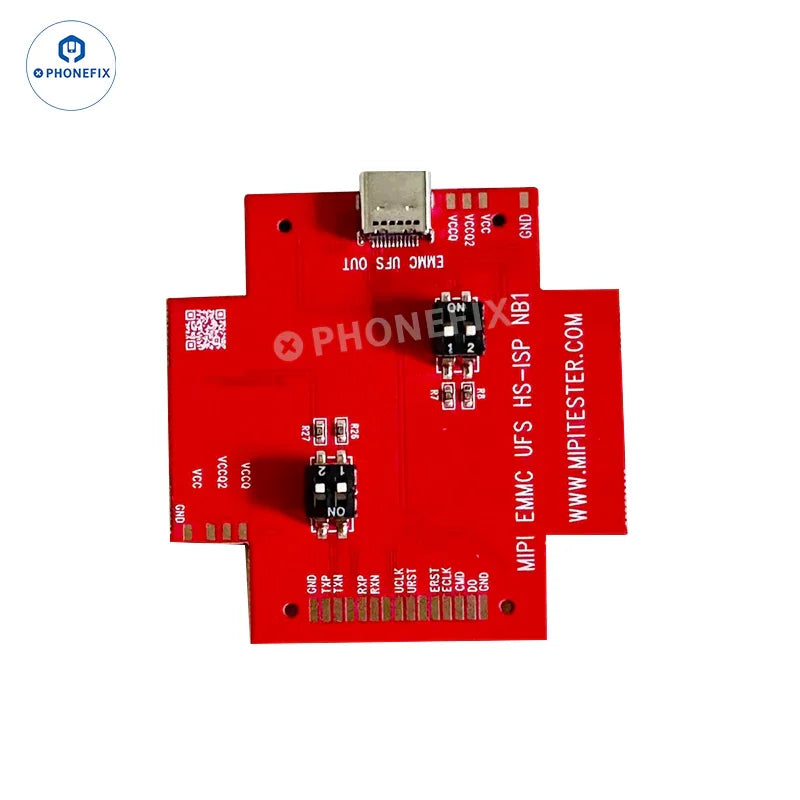

1x EMMC-UFS-ISP-NB1 Adapter.
1x EMMC UFS ISP Cable.
MIPI PRO+UFS4IN1+ISP Cable (Simplified Version):
1x MiPiTester MiPi Pro.
1x NB-UFS 4-in-1 Adapter.
1x EMMC-UFS-ISP-NB1 Adapter.
1x EMMC UFS ISP Cable.

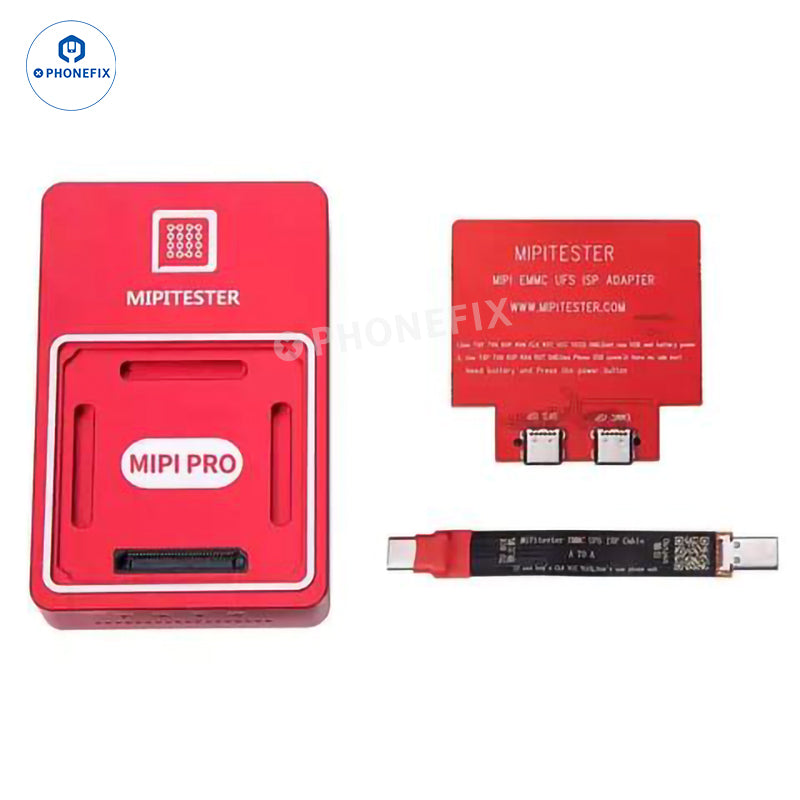

MIPI PRO+ISP Cable (Stardard Version):
1x MiPiTester MiPi Pro.
1x EMMC-UFS-ISP-NB1 Adapter.
1x EMMC UFS ISP Cable.

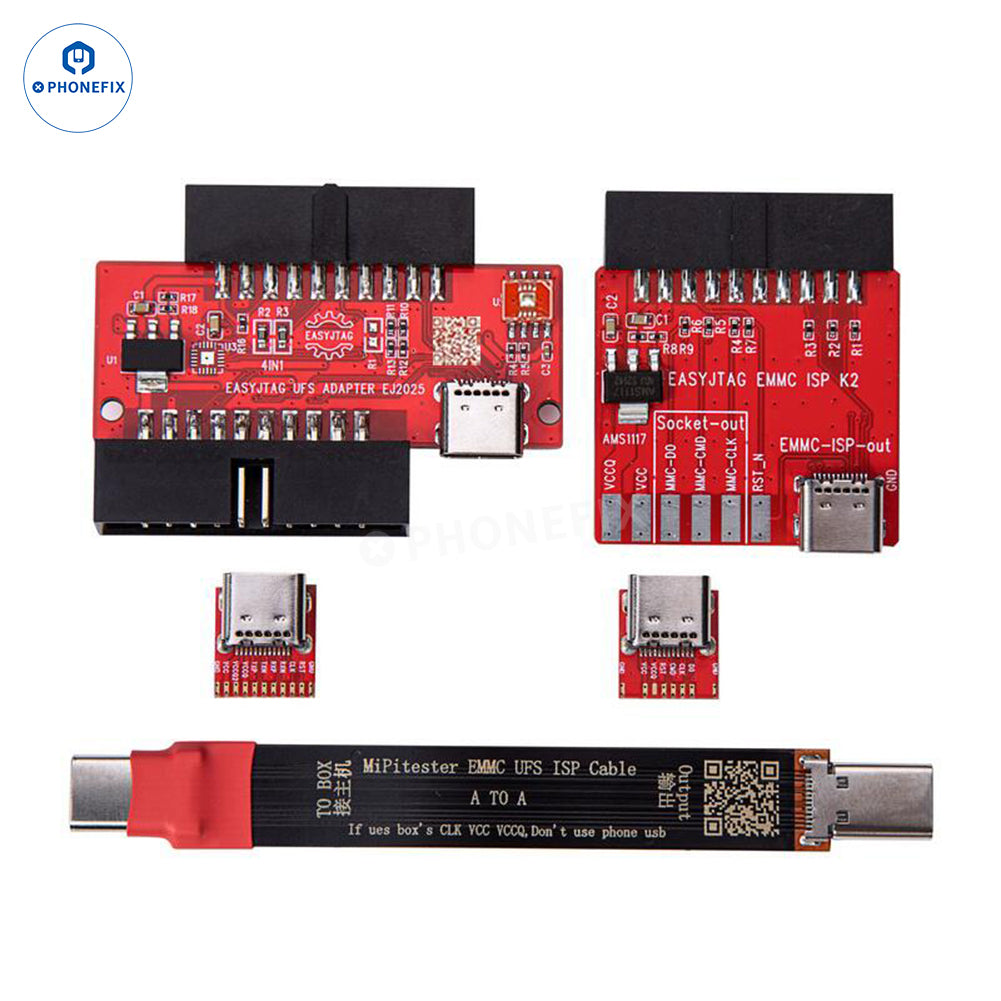

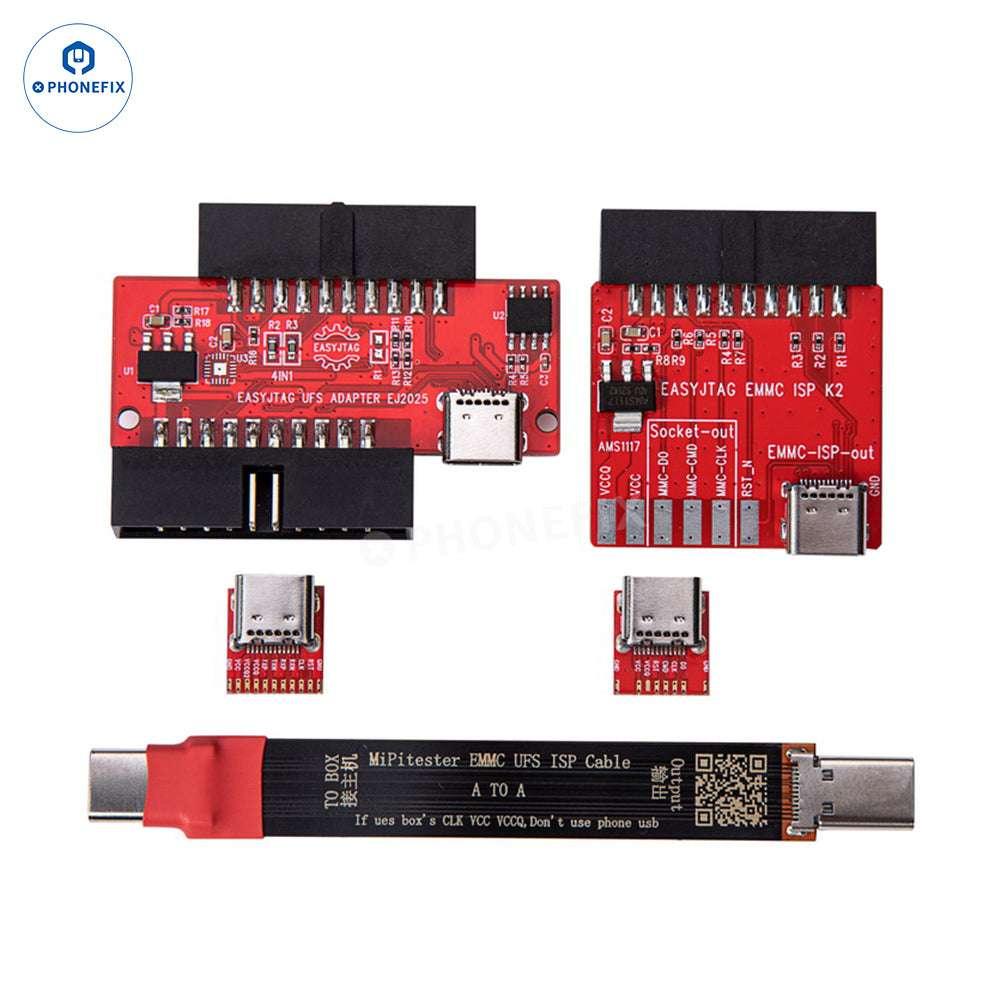

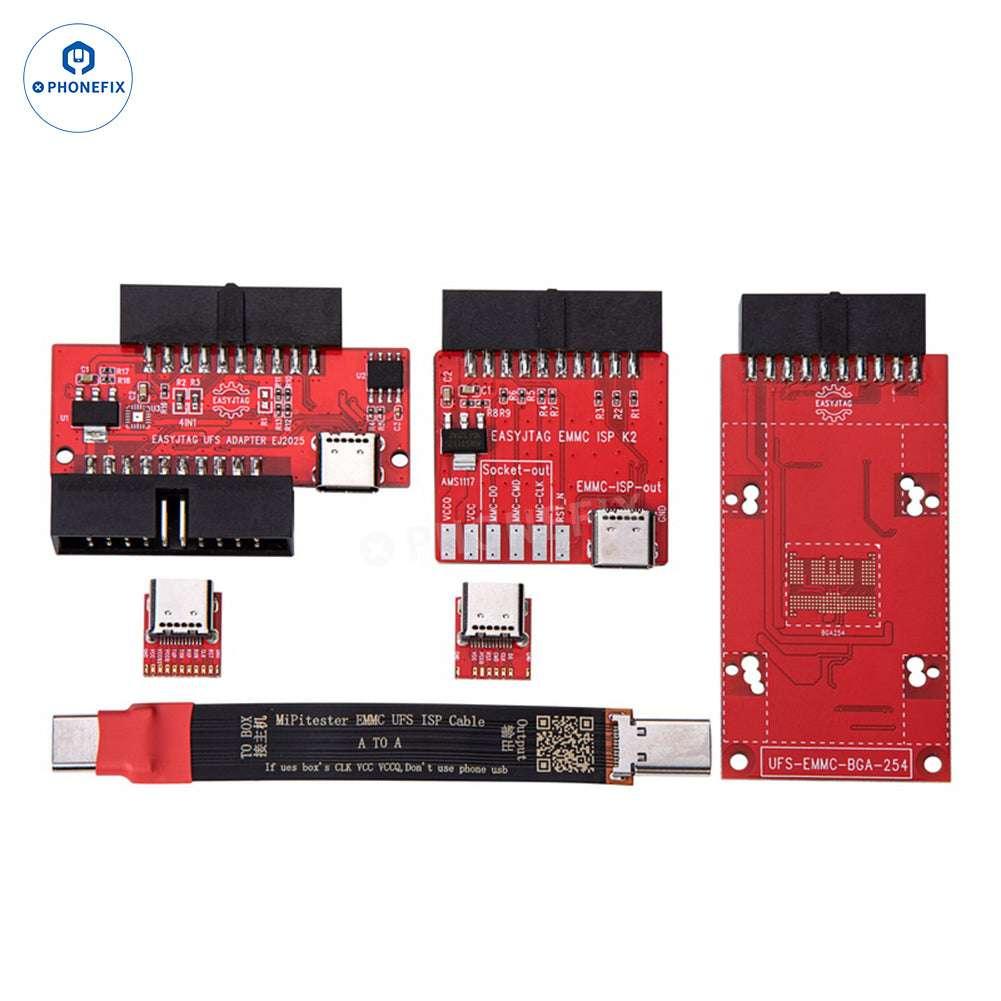

For Easy UFS 3IN1 & 4IN1 & 6IN1:
1x MiPi Easy JTAG UFS Adapter EJ2025 (without encryption chip).
1x MiPi Easy EMMC ISP K2.
1x MiPi EMMC UFS ISP Cable.

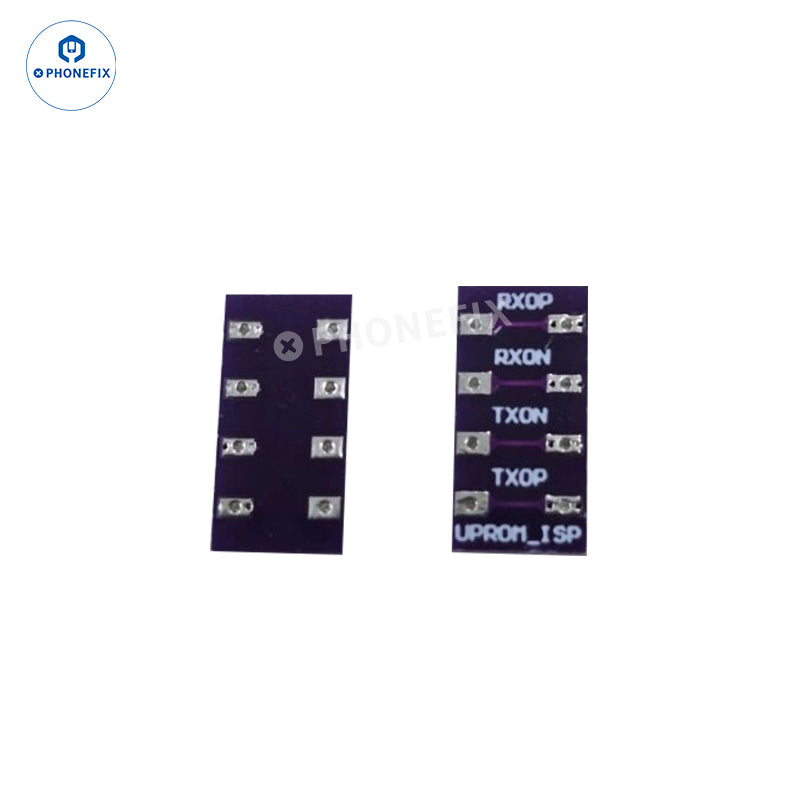

2x ISP PCB Connectors.

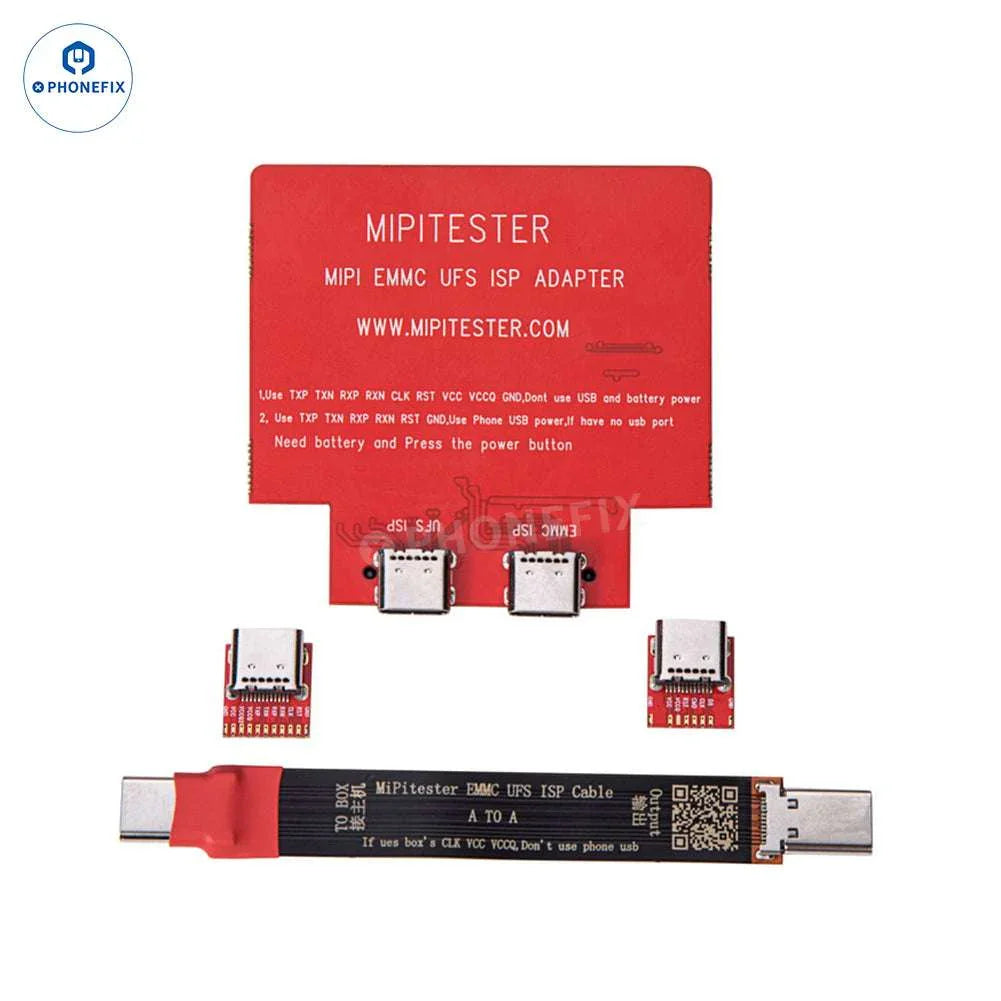

For MINI & GEAR2:
1x MiPi eMMC / UFS ISP Adapter.
1x MiPi EMMC UFS ISP Cable.
2x ISP PCB Connectors.

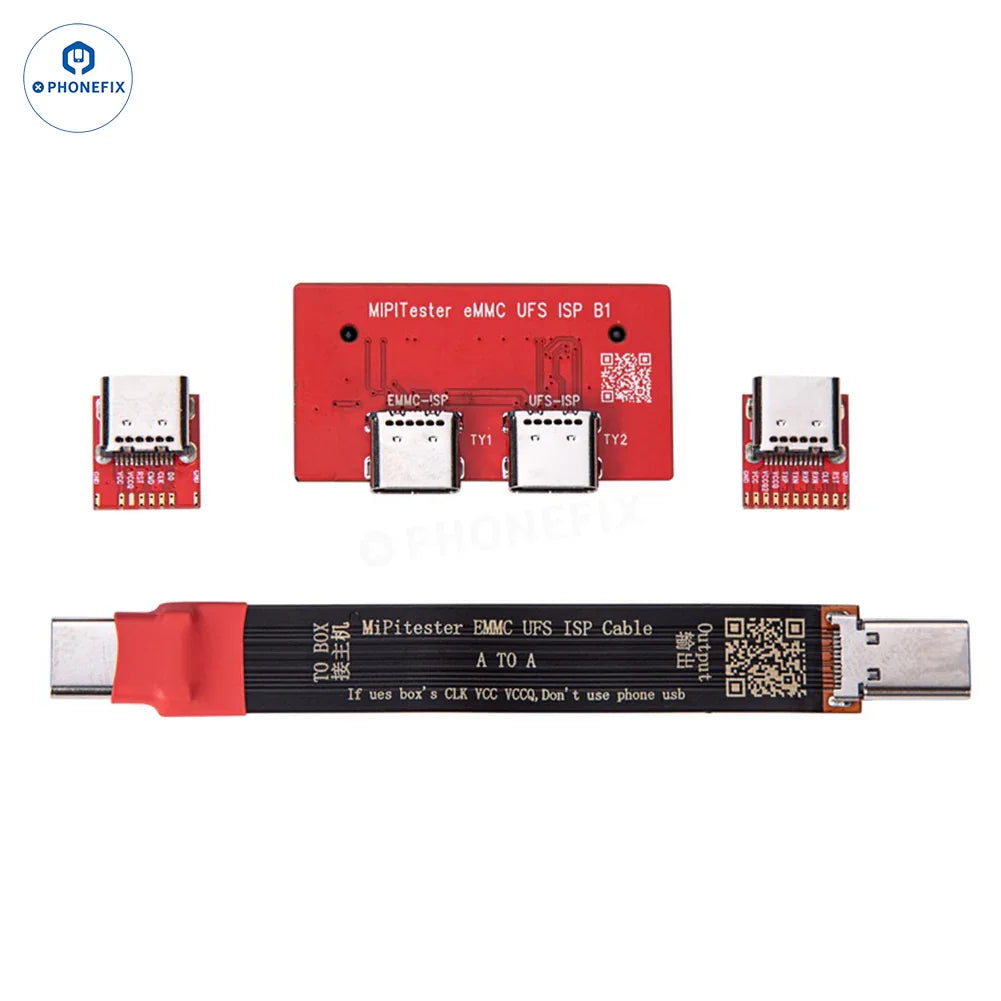

For old Mipi tester ISP:
1x MiPi eMMC / UFS ISP B1 Adapter.
1x MiPi EMMC UFS ISP Cable.
2x ISP PCB Connectors.
Note:

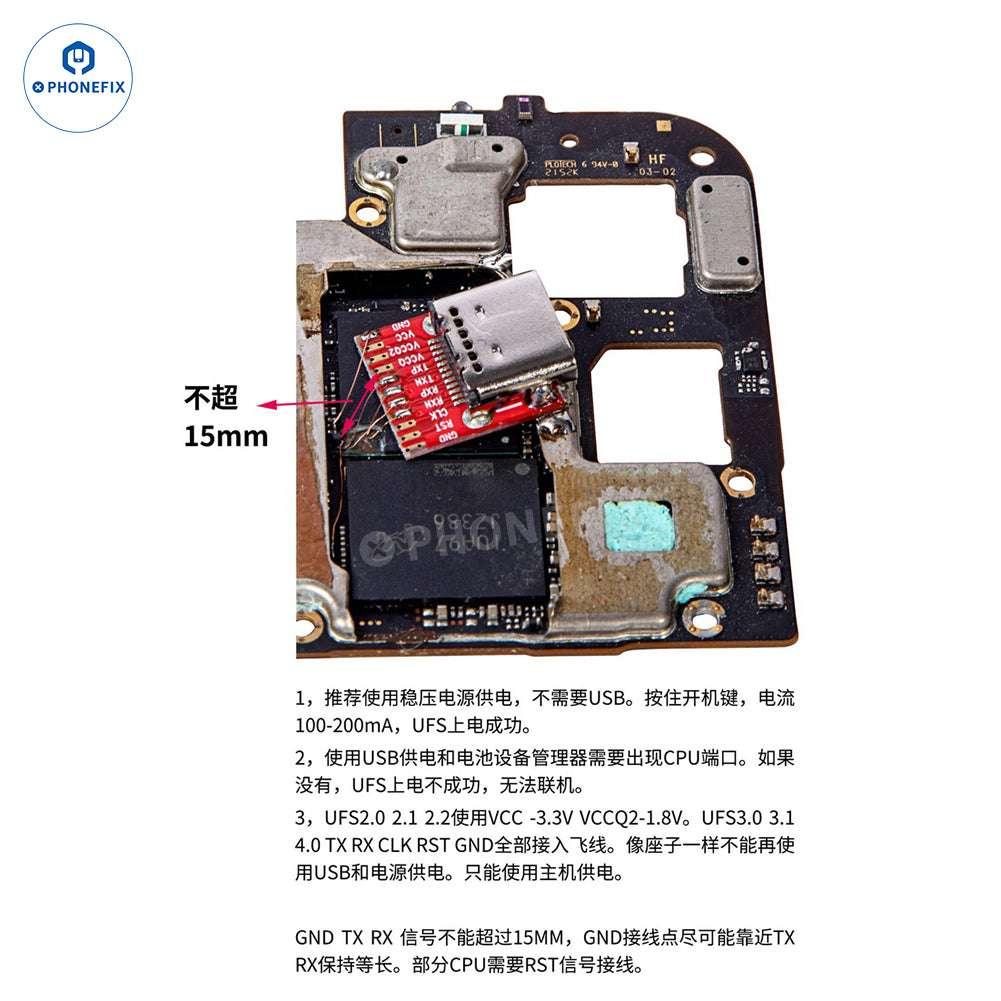

1. We recommend using a regulated power supply and the USB is not required. Press and hold the power button. If the current is 100-200mA, the UFS is successfully powered on.
2. If Using USB power and battery device Manager, the presence of a CPU port is necessary. Otherwise, the UFS fails to be powered on and cannot be connected.
3. UFS2.0 2.1 2.2 should use VCC-3.3V VCCQ2-1.8V. UFS3.0 3.1 4.0 TX RX CLK RST GND all connected to Jump wire. Similar to the socket, it can no longer use USB and power supply. But it can only use the host power supply.
4. The GND TX RX signal cannot exceed 15MM. The GND wiring point should be close to TX RX as possible. Some CPU require RST signal for wiring. TX and RX must not touch the wire.
