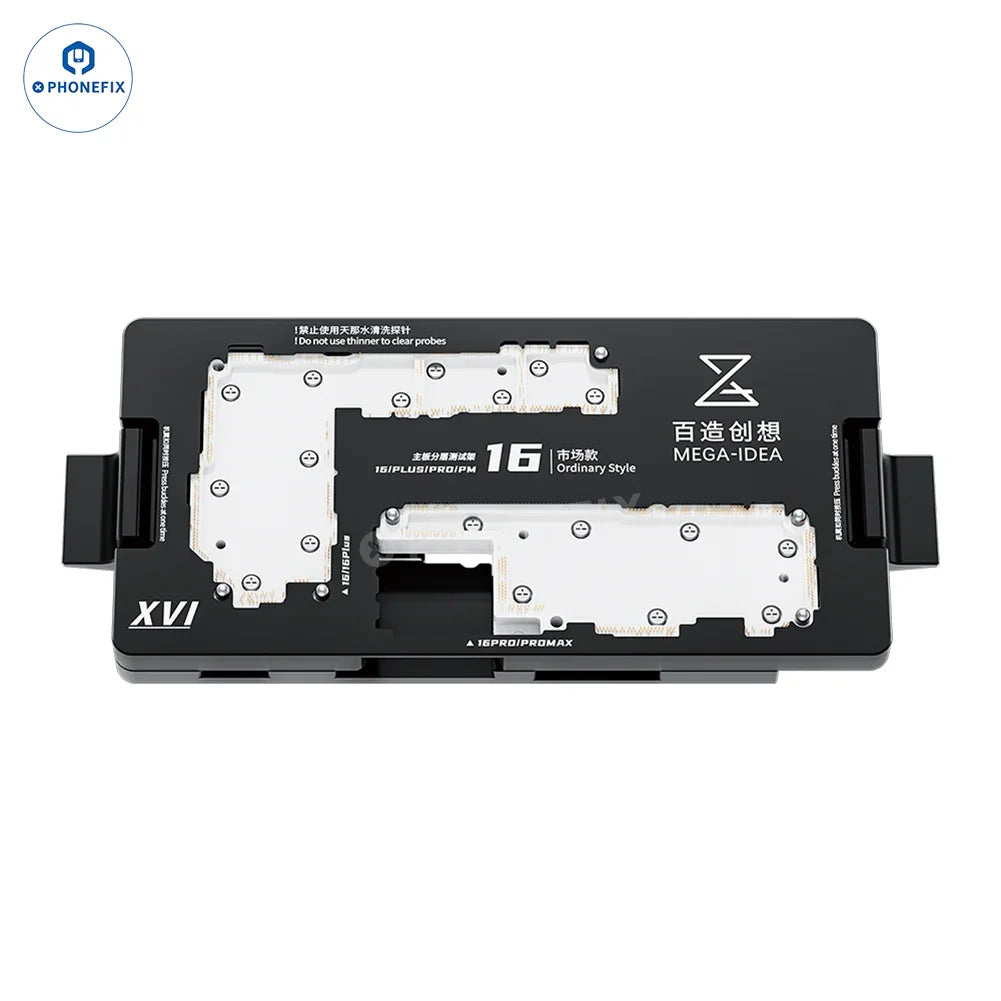

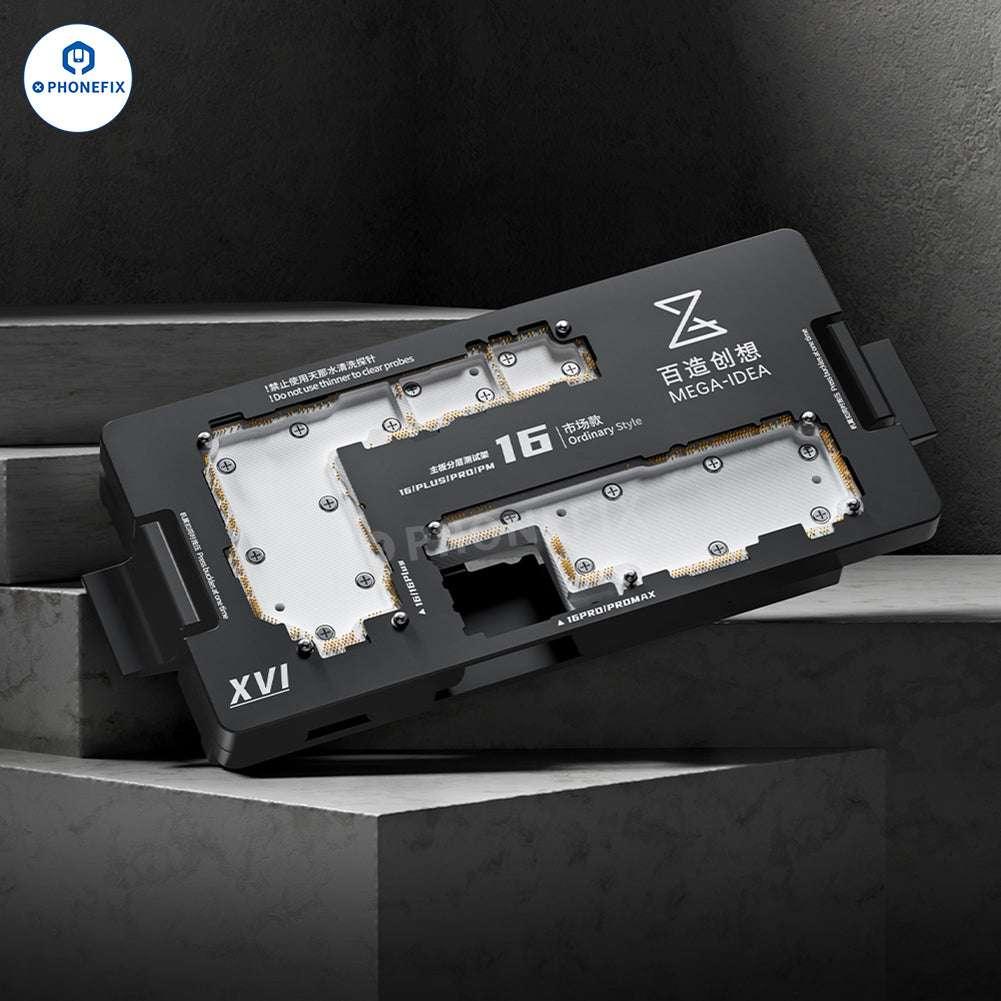

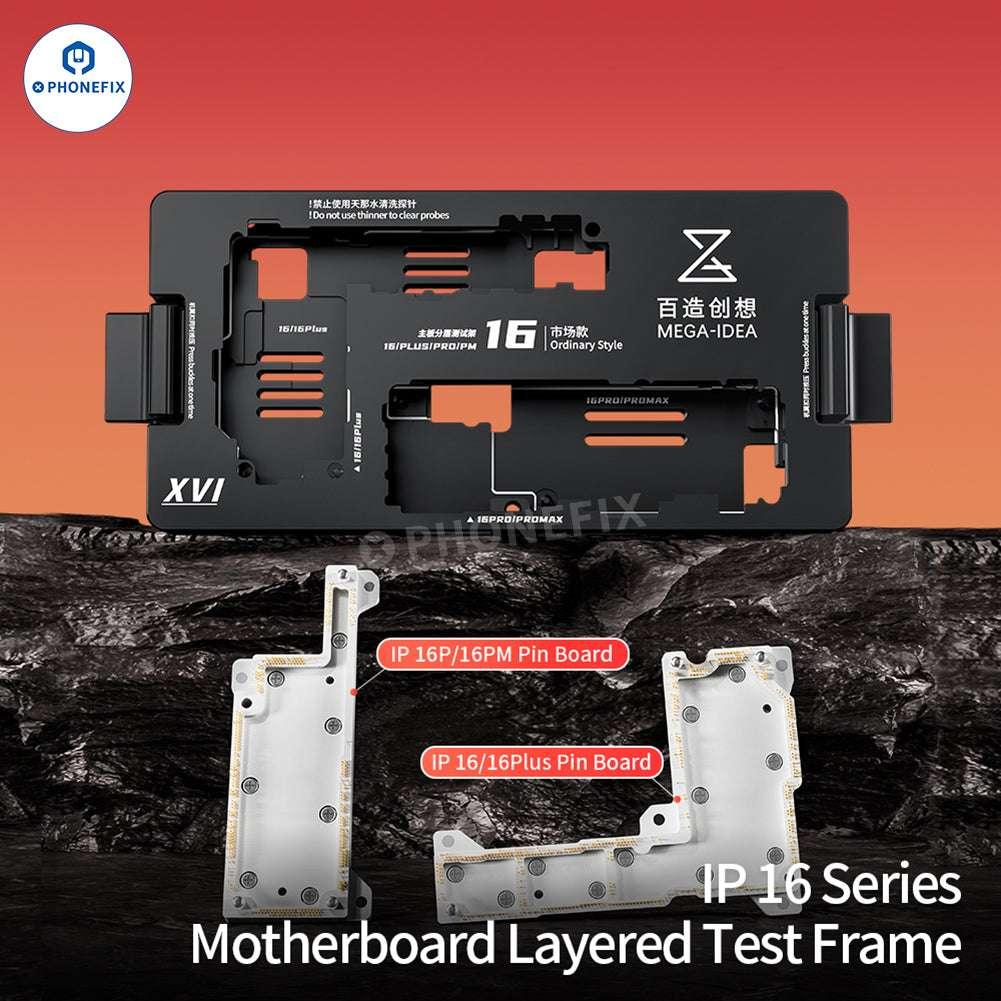

MEGA-IDEA iSocket for functional testing of iPhone 16/16 Plus/16 Pro/16 Pro Max motherboards during PCB layering repairs. MEGA-IDEA iPhone 16 series 4-in-1 motherboard layered test fixture with etched high-quality probes for precise alignment and inspection.
Features:
1. Mega-Idea iSocket four-in-one motherboard layering test stand suitable for iPhone16/16 Plus/16 Pro/16 Pro Max.
2. Made of high-quality aluminum alloy to ensure durability and lightness.
3. Adopting an aluminum alloy shell, CNC processing, can achieve precise alignment.

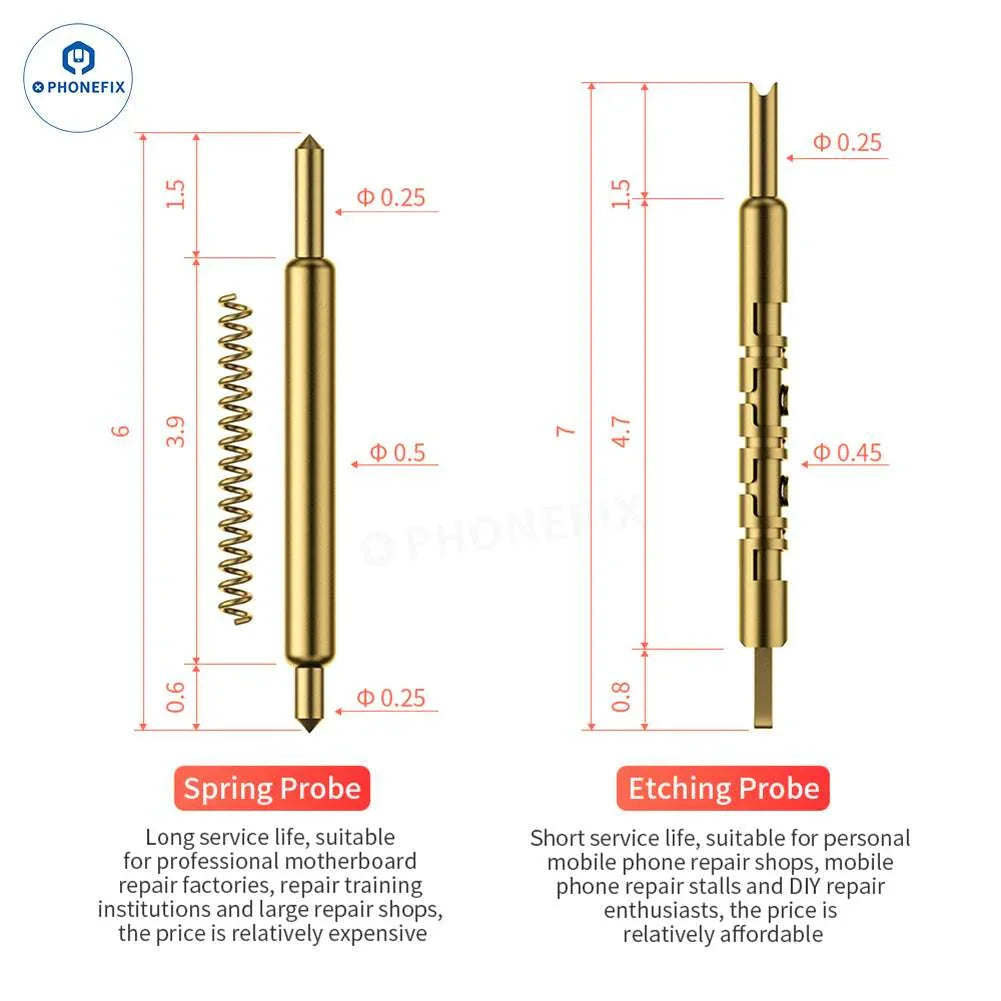

4. Spring probe: long use cycle, suitable for professional motherboard repair factories, repair training institutions and large repair stores.

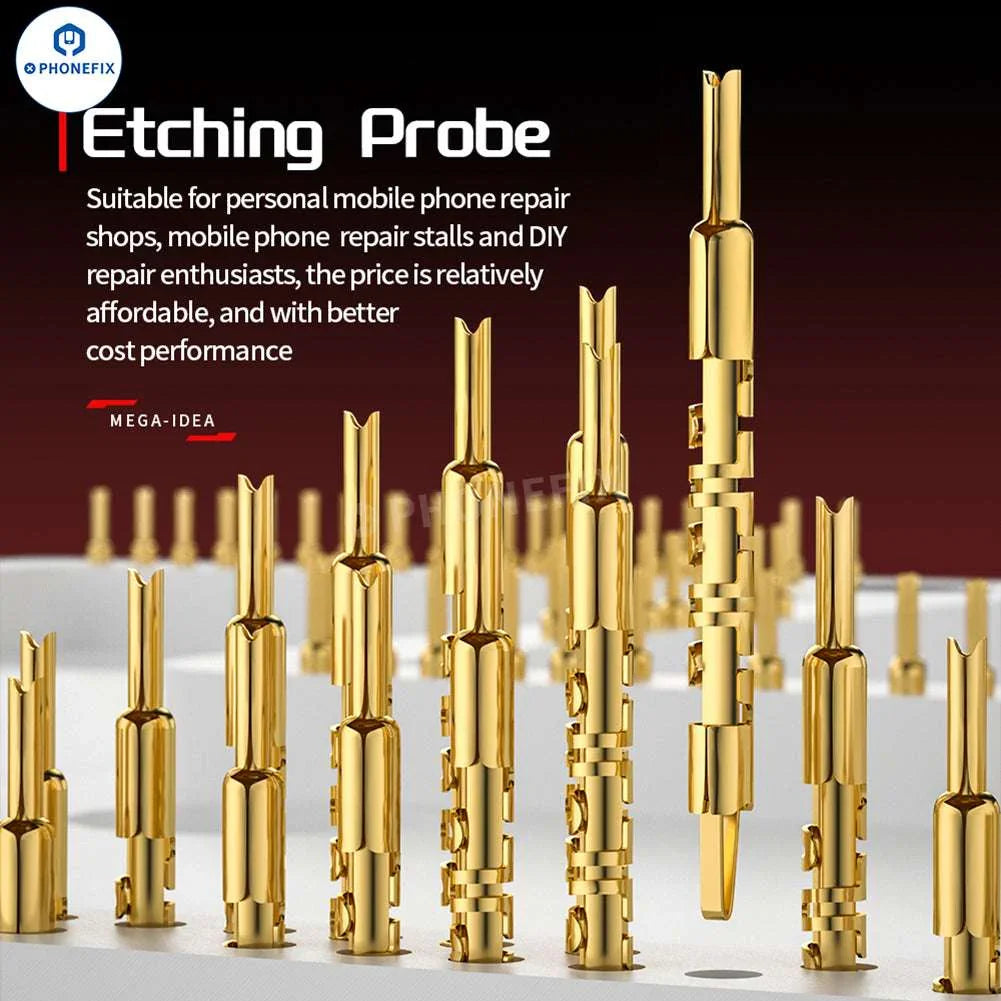

5. Etched probe: short use cycle, suitable for personal mobile phone repair shops, mobile phone repair stalls and DIY repair enthusiasts.
Operation Steps:

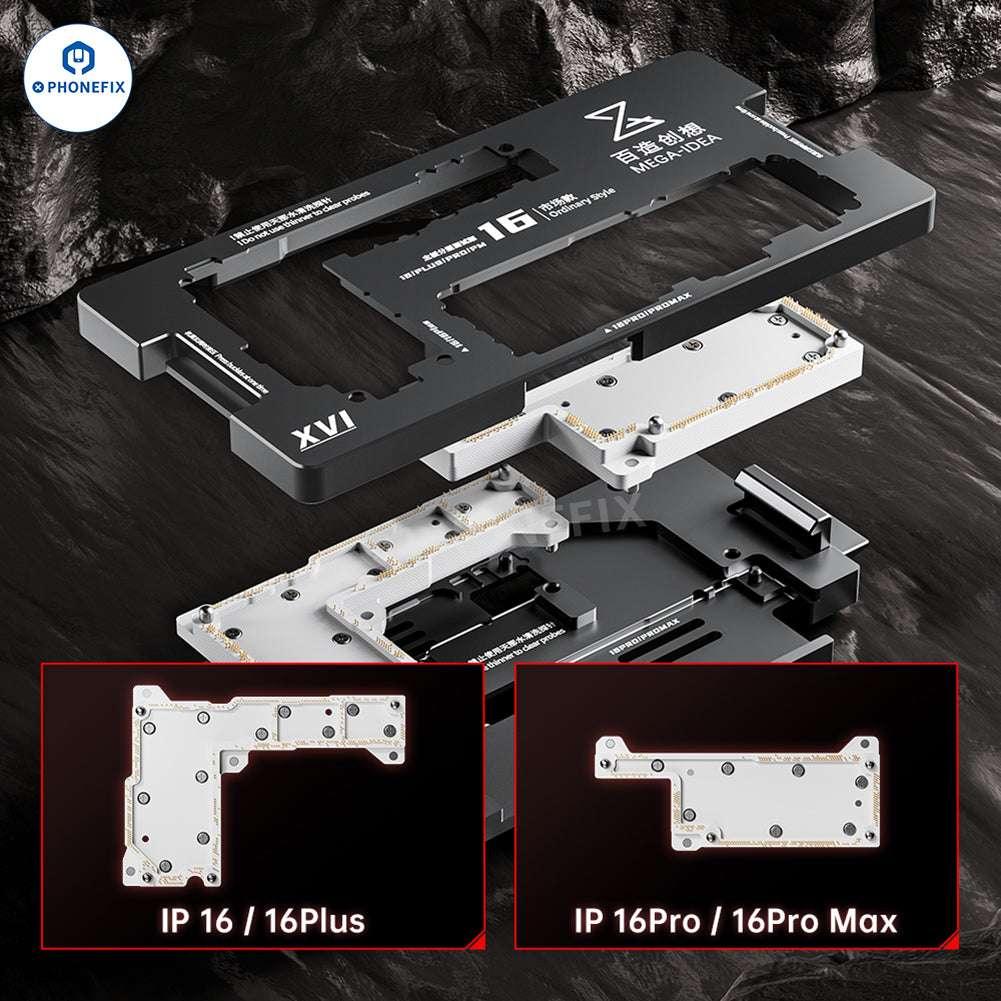

1. Place the lower motherboard on the test stand base.
2. Buckle the needle plate onto the lower motherboard.
3. Then buckle the upper motherboard onto the needle plate.
4. Align the upper cover of the test stand and buckle the two wings.
Product Parameters:
Name: Mega-ldea 16 Serise Motherboard Layered Test Frame.
Material: Alloy Aluminium.
Applicable Models: iPhone 16/16 Plus/16 Pro/16 Pro Max.
Product Weight: 158g.
Packaging weight: 195g.

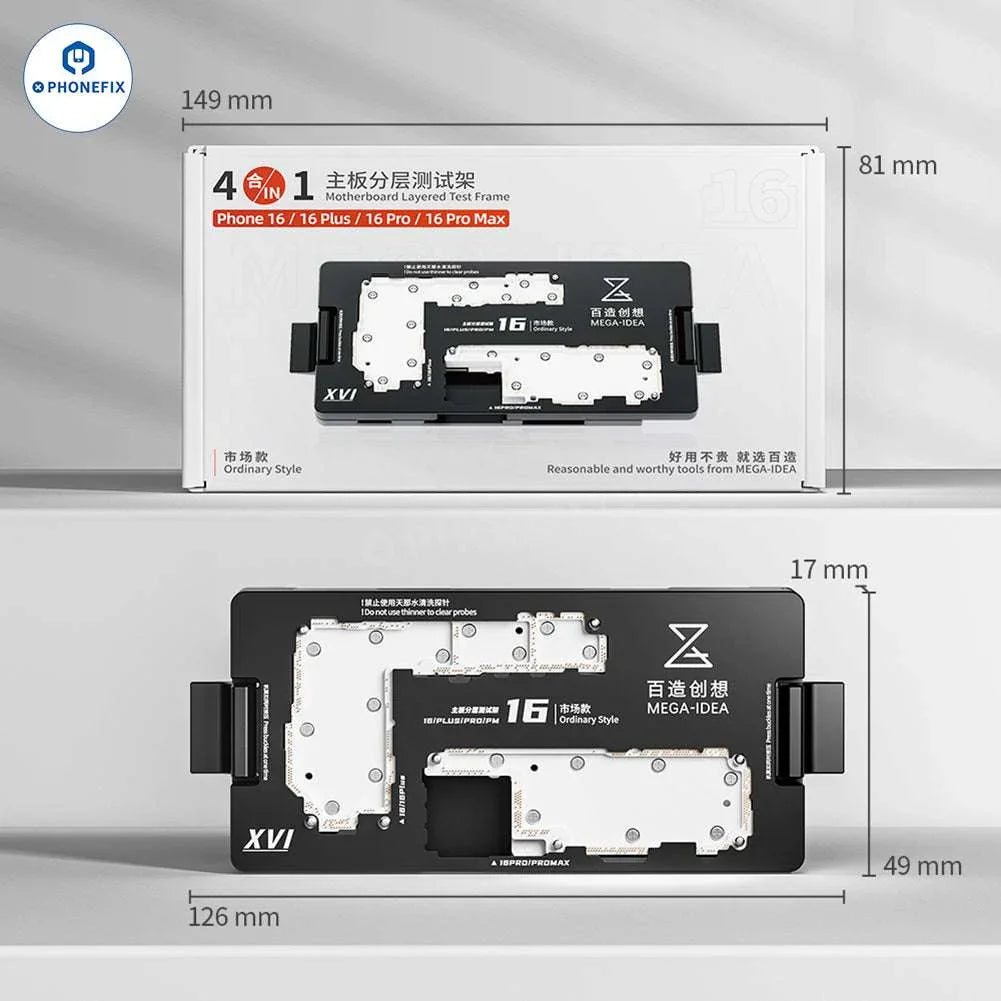

Product size: 126*49*17mm.
Packaging size: 149*81*49mm.
