Mechanic 6X-45X continuous zoom industrial microscope with base holder for Mobile Phone BGA ECU SMD soldering repair. Mechanic MOS300 B11 industrial trinocular stereo microscope. Mechanic MOS260 B11 binocular stereo microscope.
Model:

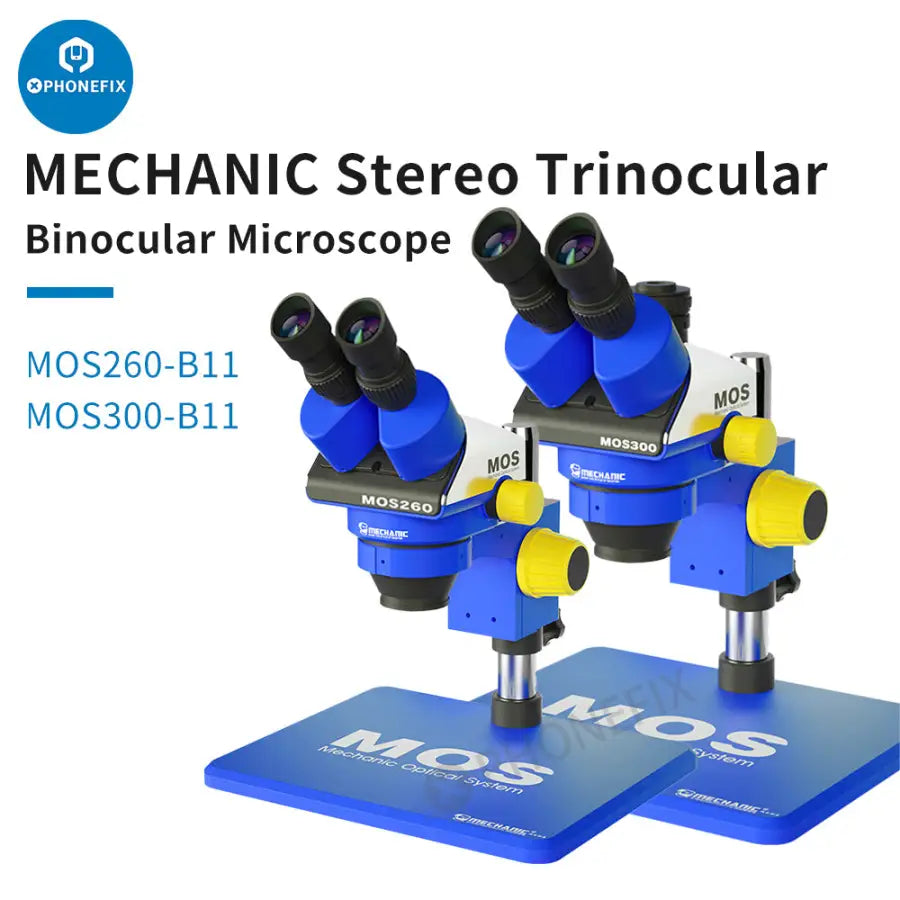

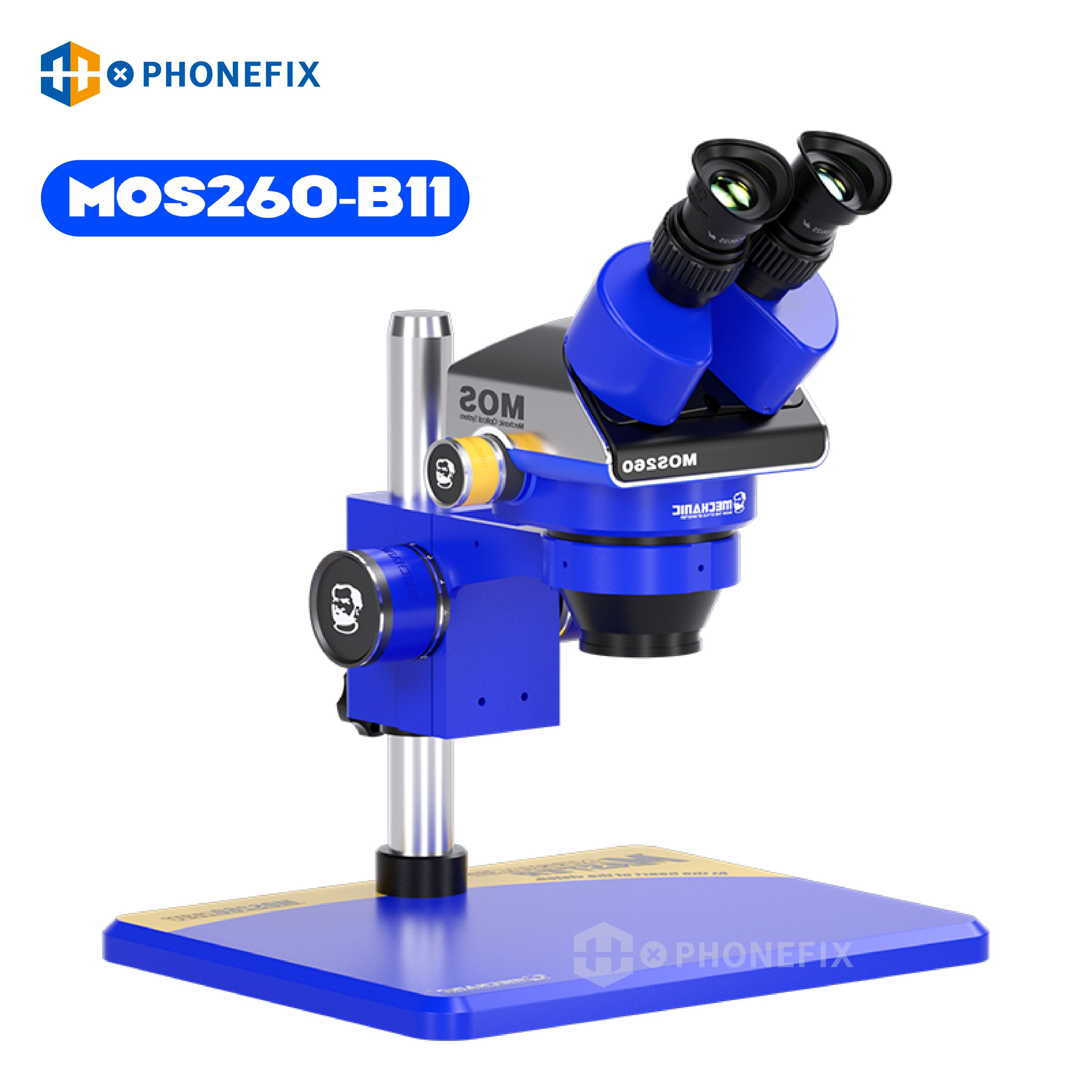

1. Mechanic MOS260-B11: 6-45X binocular stereo microscope + B11 base.

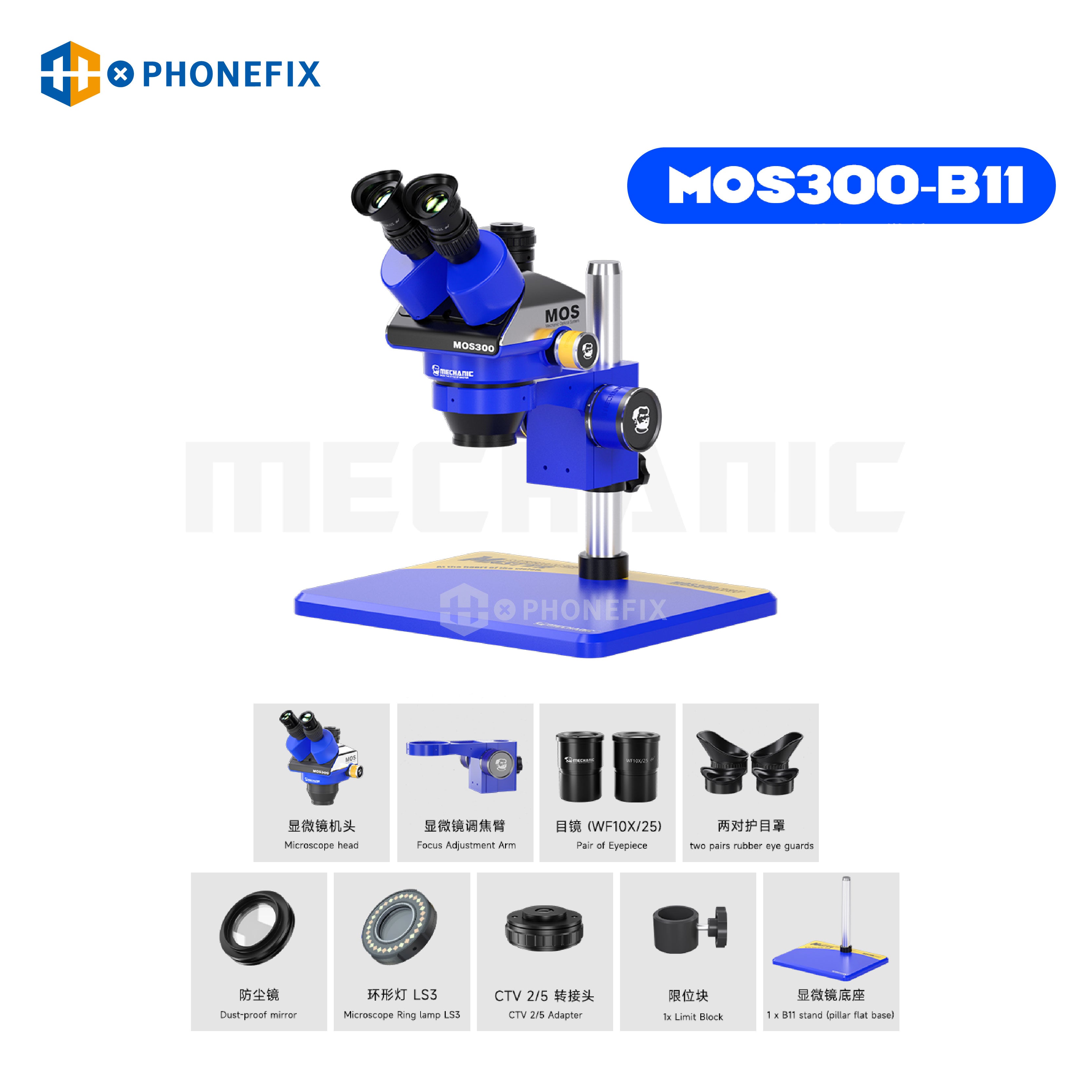

2. Mechanic MOS300-B11: 6-45X trinocular stereo microscope + B11 base.

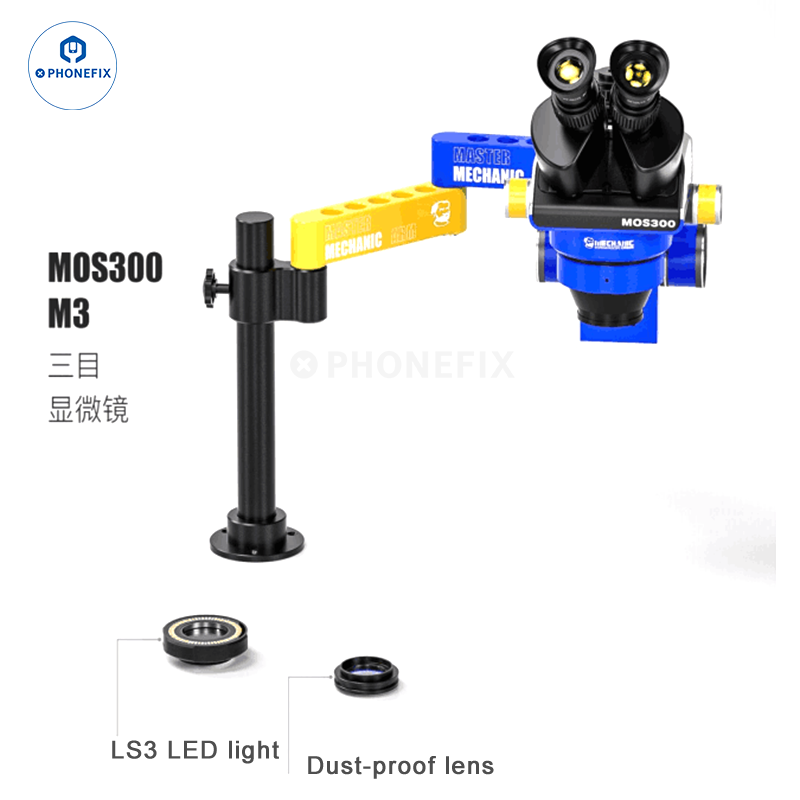

3. Mechanic MOS300-M3: 6-45X Trinocular Stereo Microscope + M3 Adjustable Microscope Arm Stand.

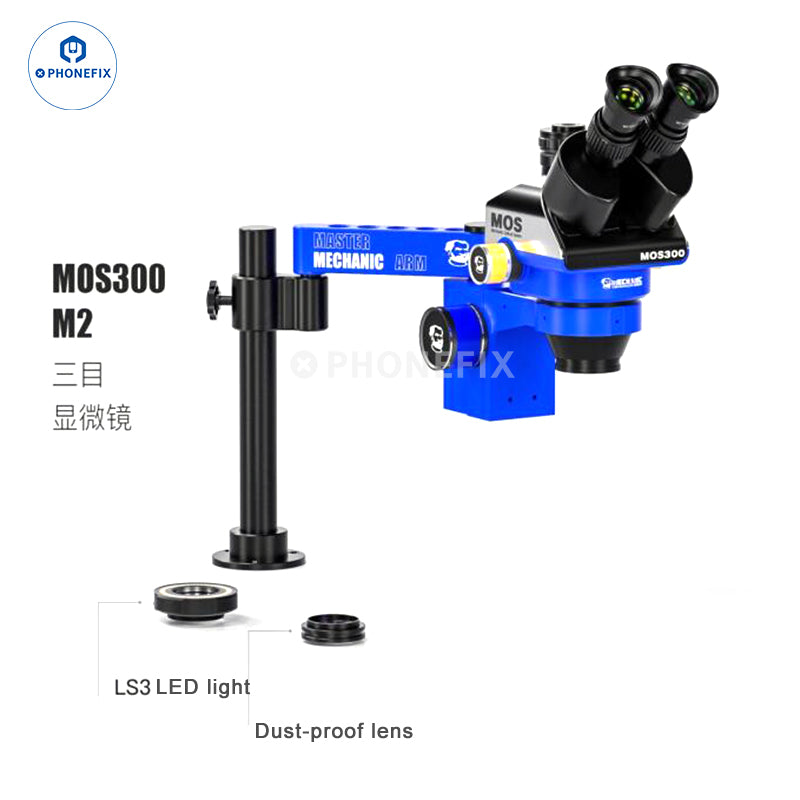

4. Mechanic MOS300-M2: 6-45X Trinocular Stereo Microscope + M2 Adjustable Microscope Arm Stand.

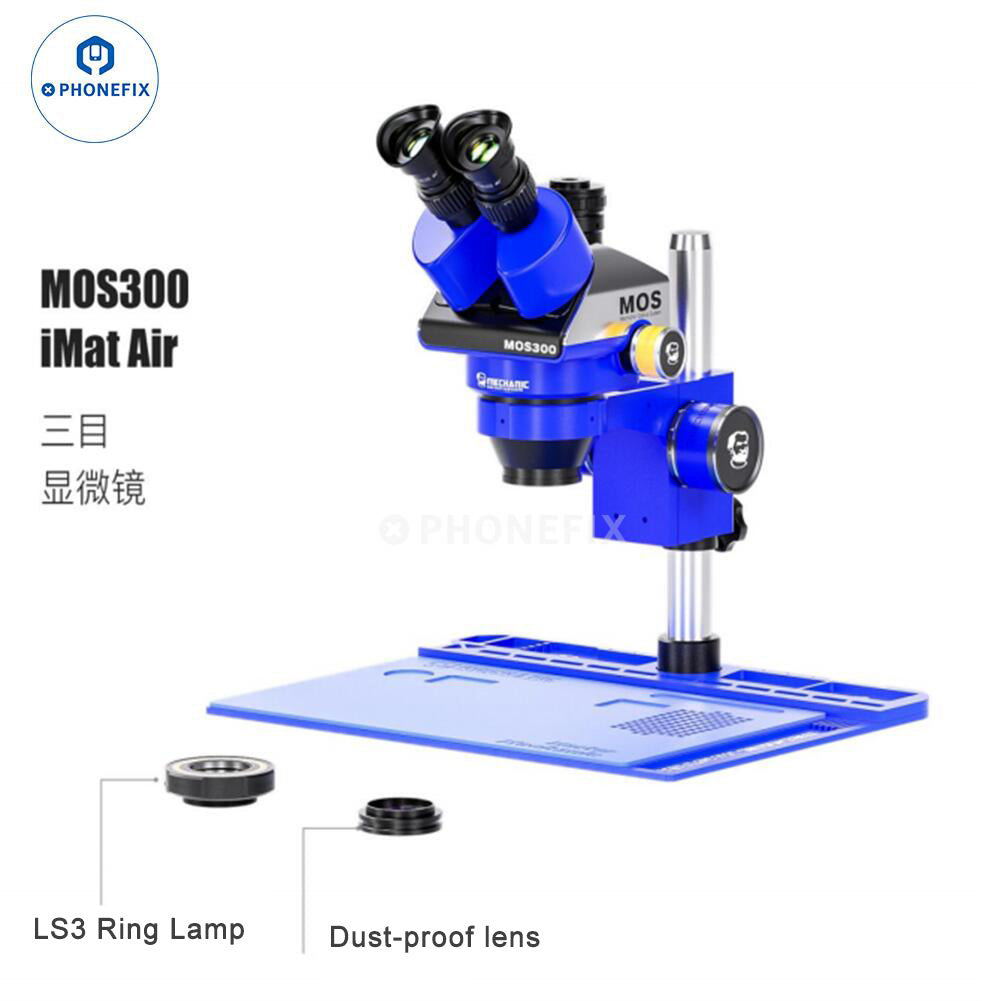

5. Mechanic MOS300-iMat Air: 6-45X trinocular stereo microscope + iMat Air Aluminum Base (380*300*16mm).

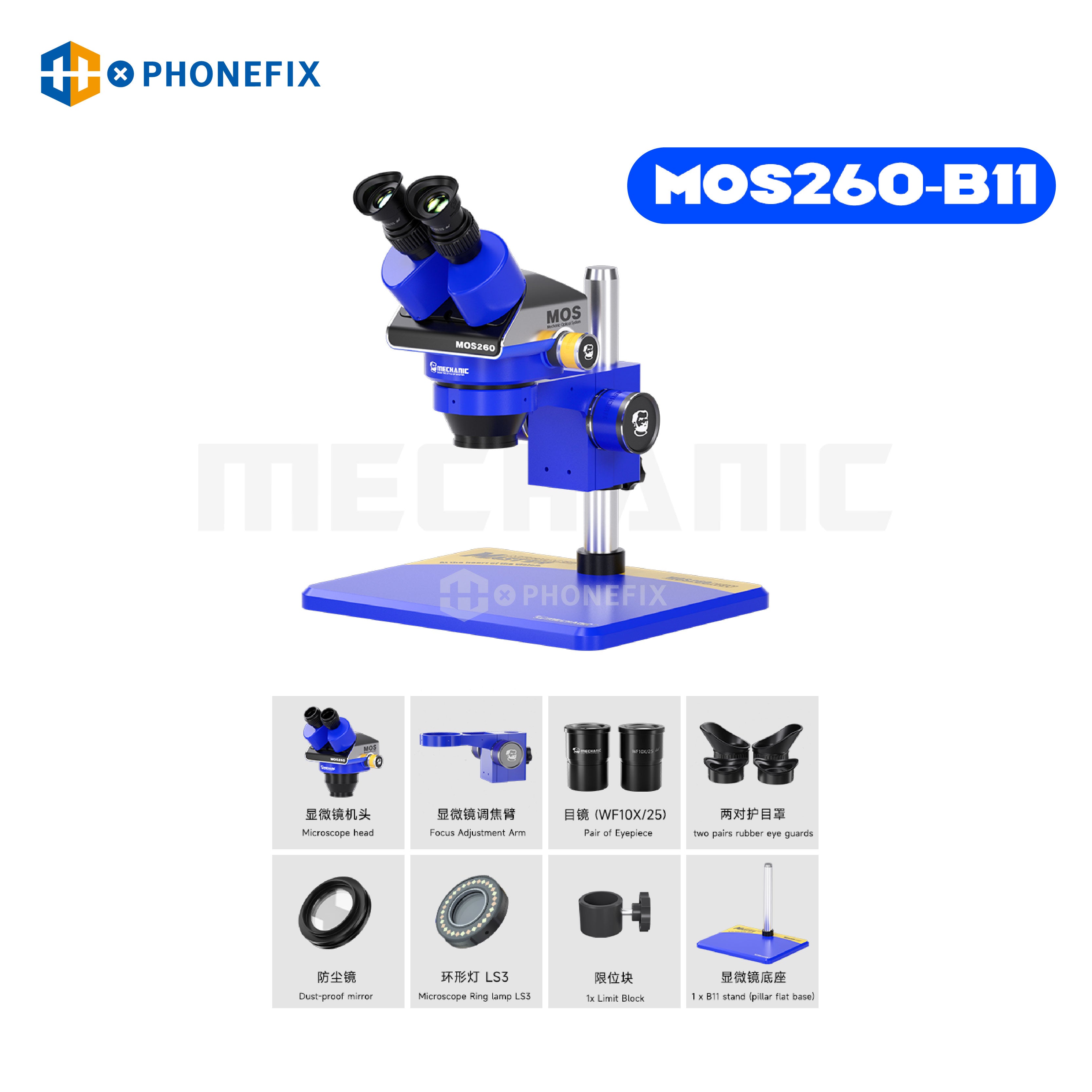

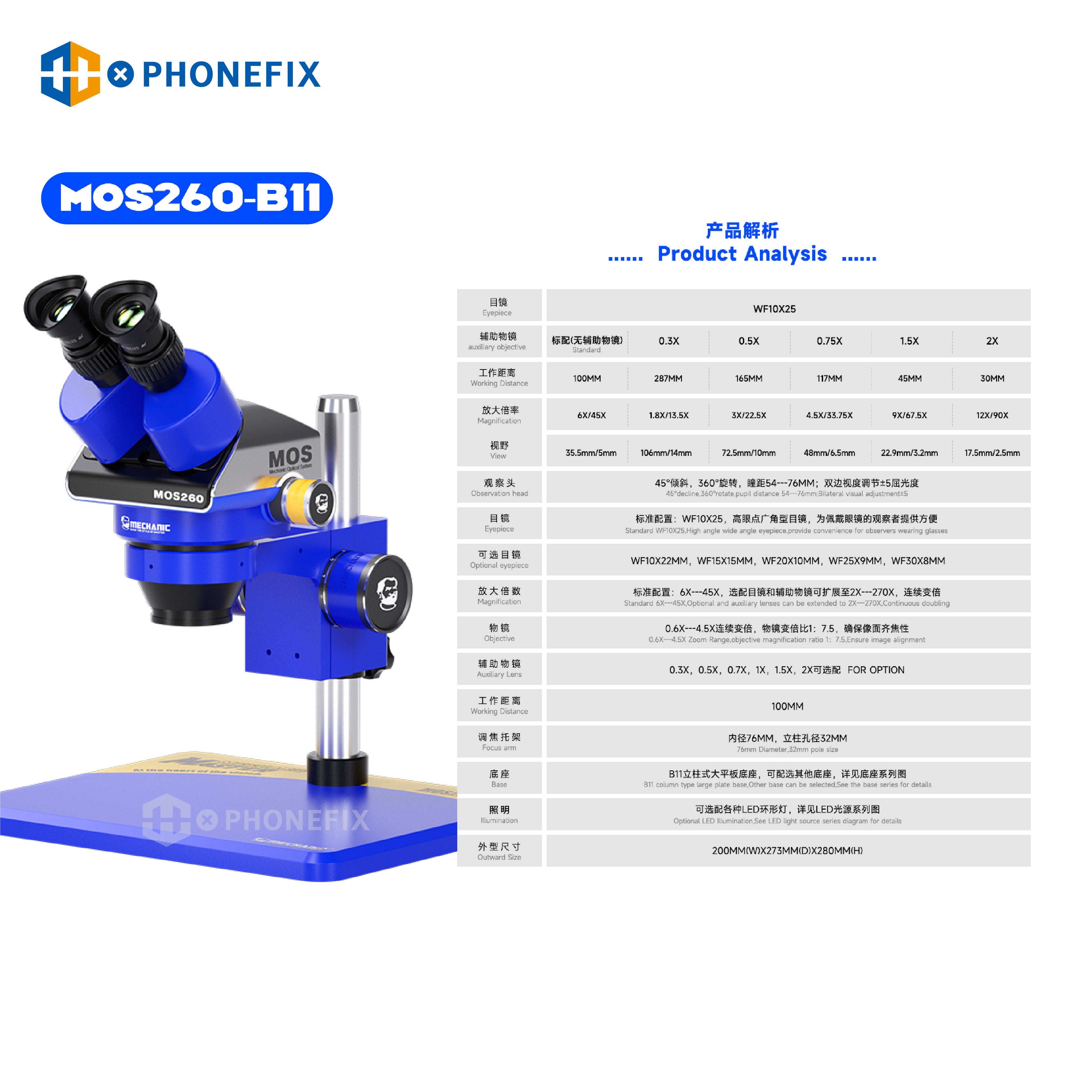

MOS260-B11 specification:
1. Observation head: 45 declines, 360 rotate, pupil distance 54-76mm; bilateral visual adjustment ±5.
2. Adjustable eyepiece: Standard: WF10X/25, high angle wide-angle eyepiece provides convenience for observers wearing glasses.
3. Optional eyepiece: WF10*22mm, WF15*15mm, WF20*10mm, WF25*9mm, WF30*8mm.

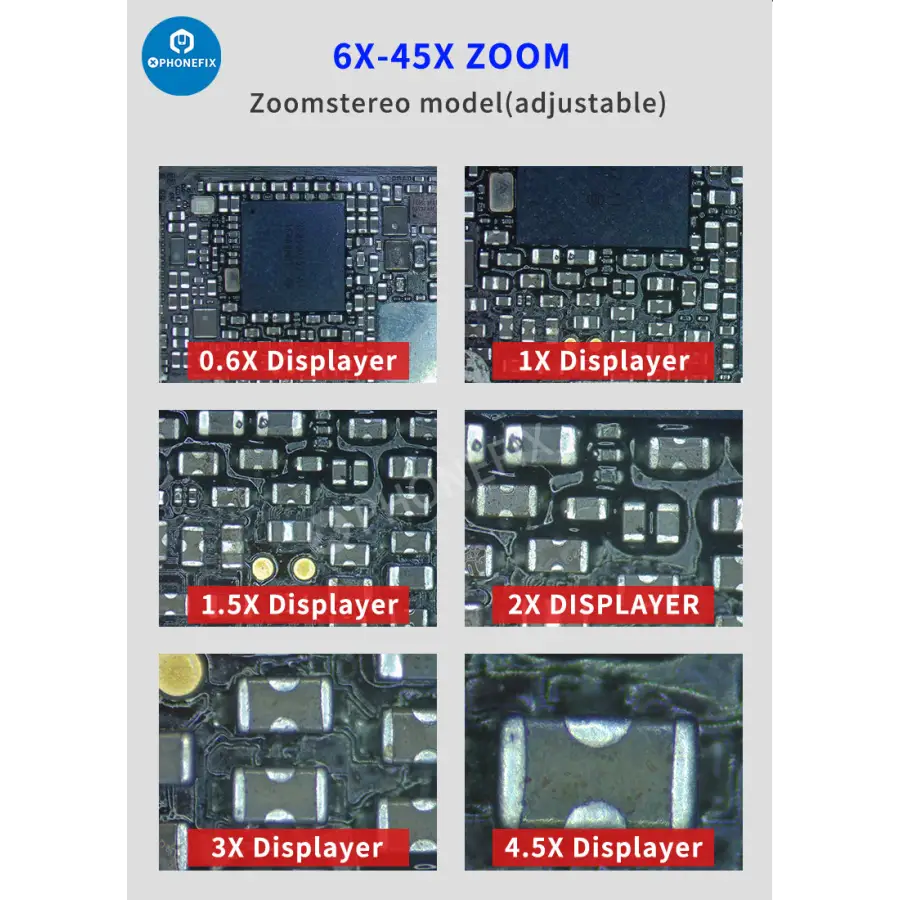

4. Objective: 0.6X-4.5X zoom range,objective magnification ratio 1:7.5., ensure image alignment.
5. Auxiliary Lens: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X for option.
6. Standard: 6X-45X, optional and auxiliary lenses can be extended to 2X-270X magnification continuous doubling.
7. Working Distance: 100mm.
8. Focus arm: 76mm diameter, 32mm pole size.
9. Plate: Black/White plate.
10. Base: B11 column type large plate base.
11. Outward Size: 200mm(W)*273mm(D)*280mm(H).
12. Illumination: Optional LED Illumination, see LED light source series diagram for details.

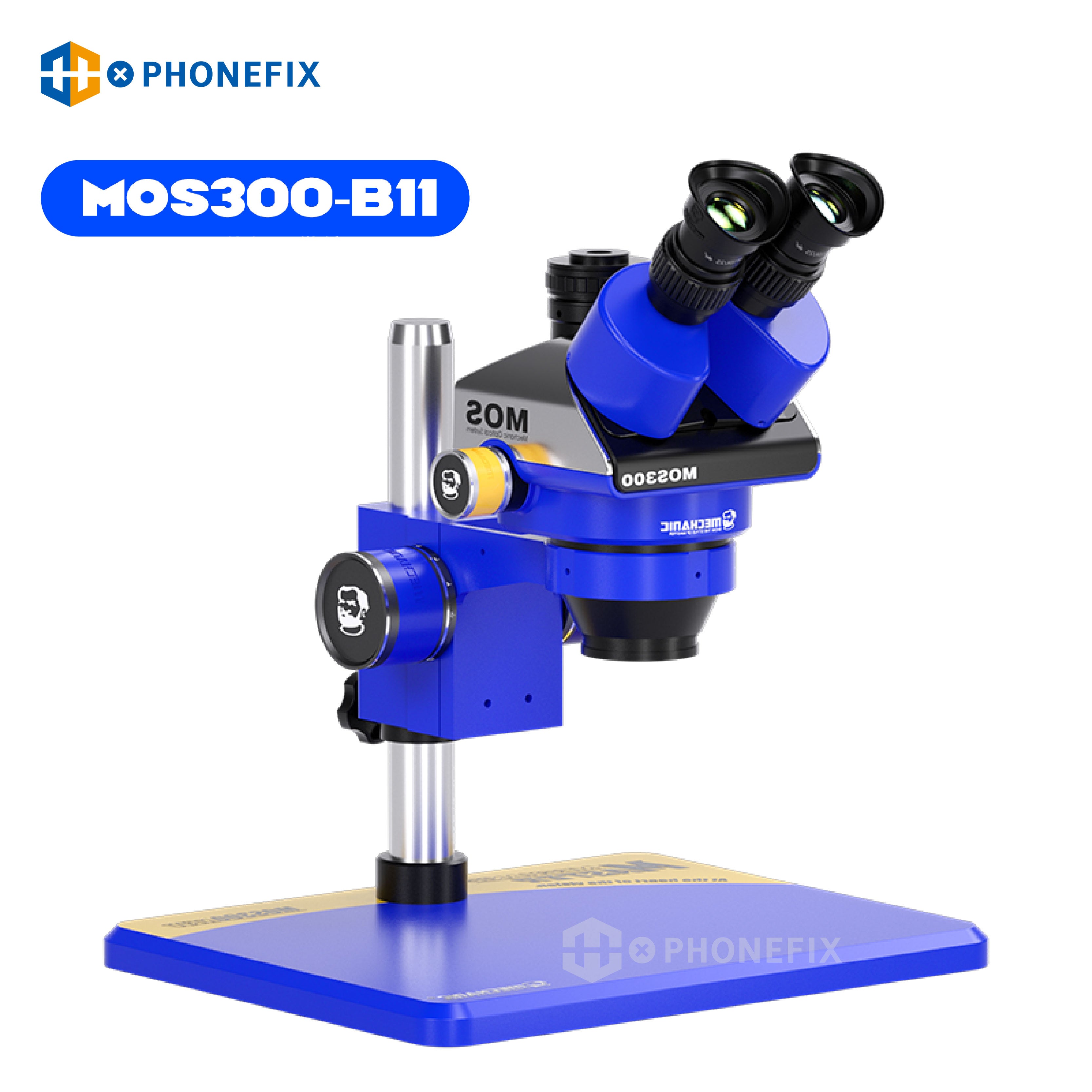

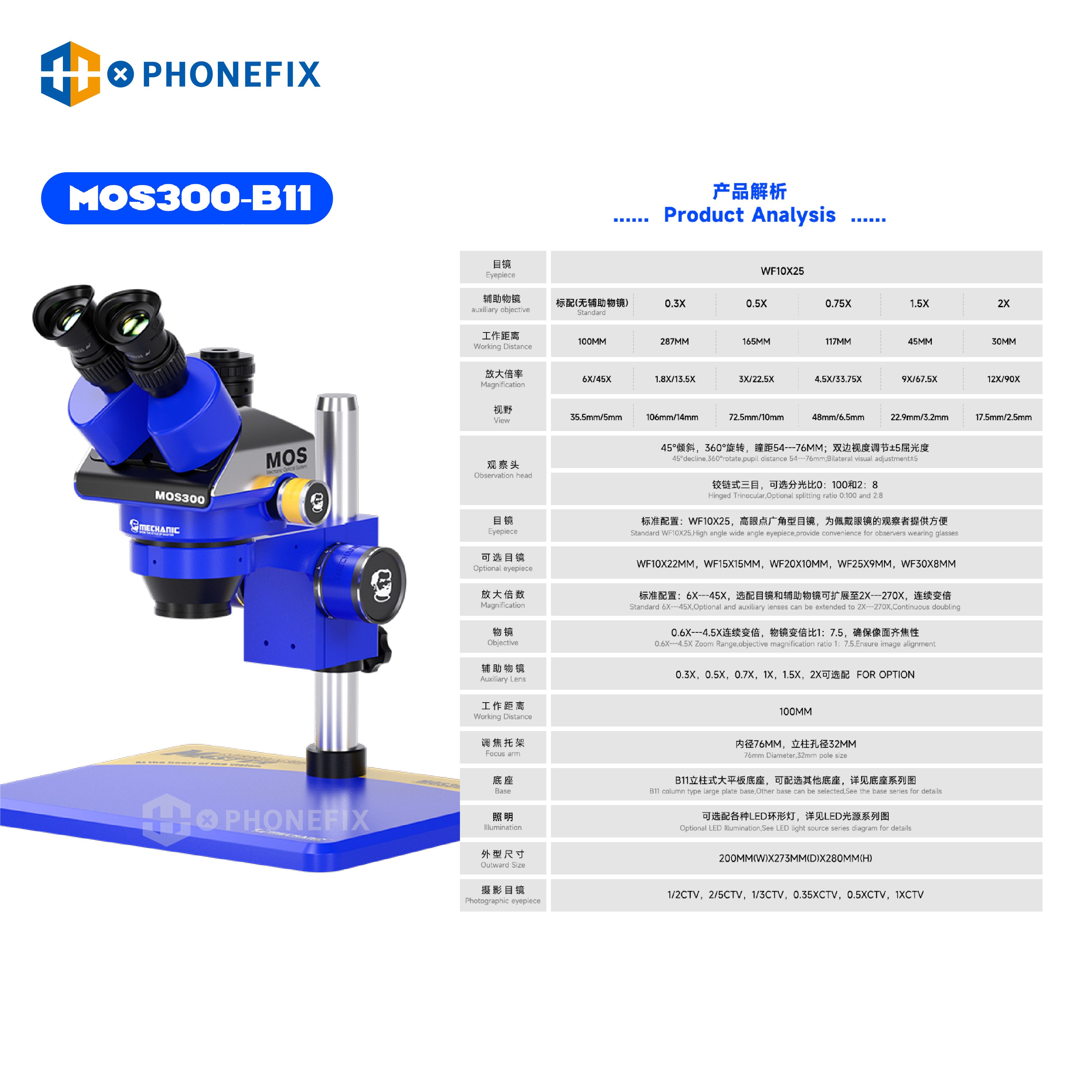

MOS300-B11 specification:
1. Observation head: 45 decline, 360 rotate, pupil distance 54-76mm; bilateral visual adjustment ±5.
2. Adjustable eyepiece: Standard: WF10X/25, high angle wide-angle eyepiece provides convenience for observers wearing glasses.
3. Optional eyepiece: WF10x22mm, WF15x15mm, WF20x10mm, WF25x9mm, WF30x8mm.
4. Objective: 0.6X-4.5X Zoom Range, objective magnification ratio 1:7.5.
5. Auxiliary Lens: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X For option.
6. Magnification: Standard:6X--45X, optional and auxiliary lenses can be extended to 2.0X-270X continuous doubling.
7. Working Distance: 100mm.
8. Focus arm: 76mm Diameter, 32mm pole size.
9. Plate: Black/White plate.
10. Base: B11 column type large plate base, another base can be selected.
11. Outward Size: 200mm(W)*273mm(D)*280mm(H).
12. Illumination: Optional LED Illumination, see LED light source series diagram for details.
13. Camera Connector(C-mount): CTV 2/5 Adapter (Monitor Eyepiece Synchronous Zoom).
14. Optional C-mount adapter: 1/2CTV, 2/5 CTV, 1/3 CTV, 0.35X CTV, 0.5X CTV, 1X CTV.
