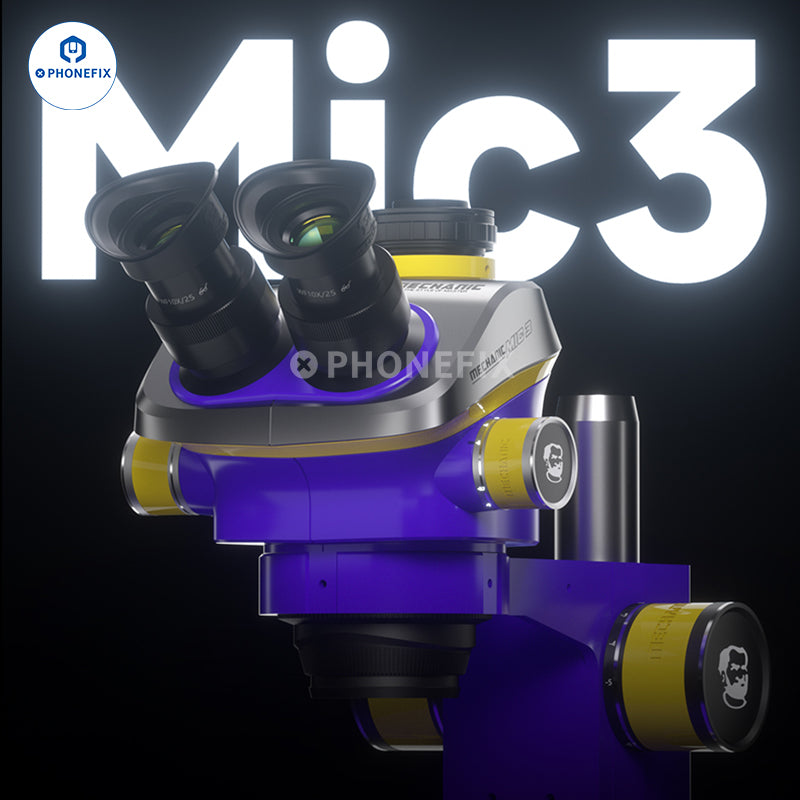

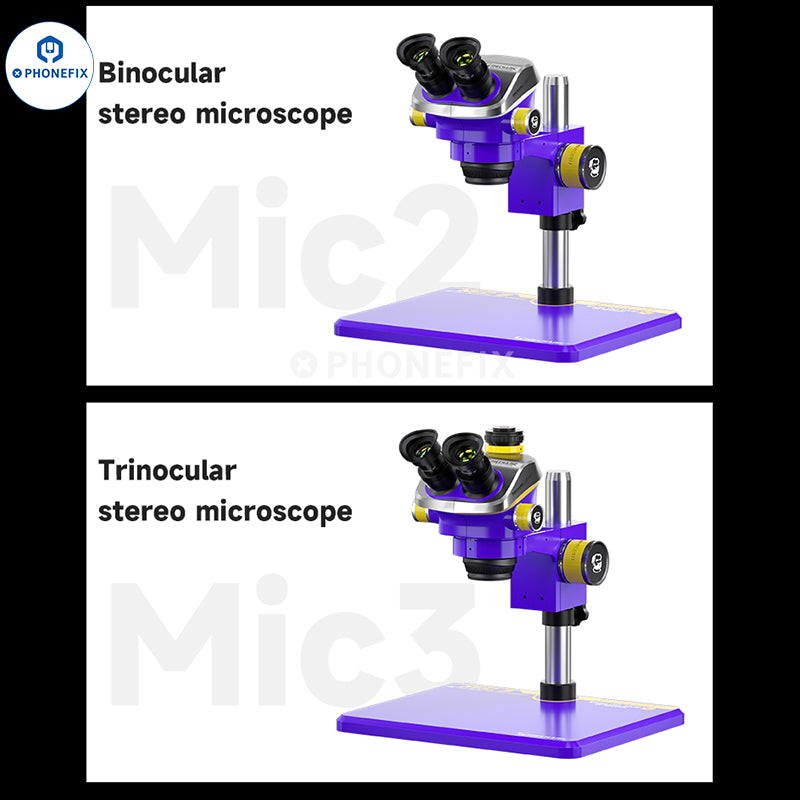

Mechanic Mic series 7X-50X Trinocular Stereo Microscope with WF10X/25mm eyepiece provides a wide field of vision and clear images for mobile phone motherboards, circuit boards, precision small chip soldering repair, object observation and detection, academic research, etc. Mechanic Mic2 Binocular Stereo Microscope and Mechanic Mic3 Trinocular Stereo Microscope with B11 big base.
Option:

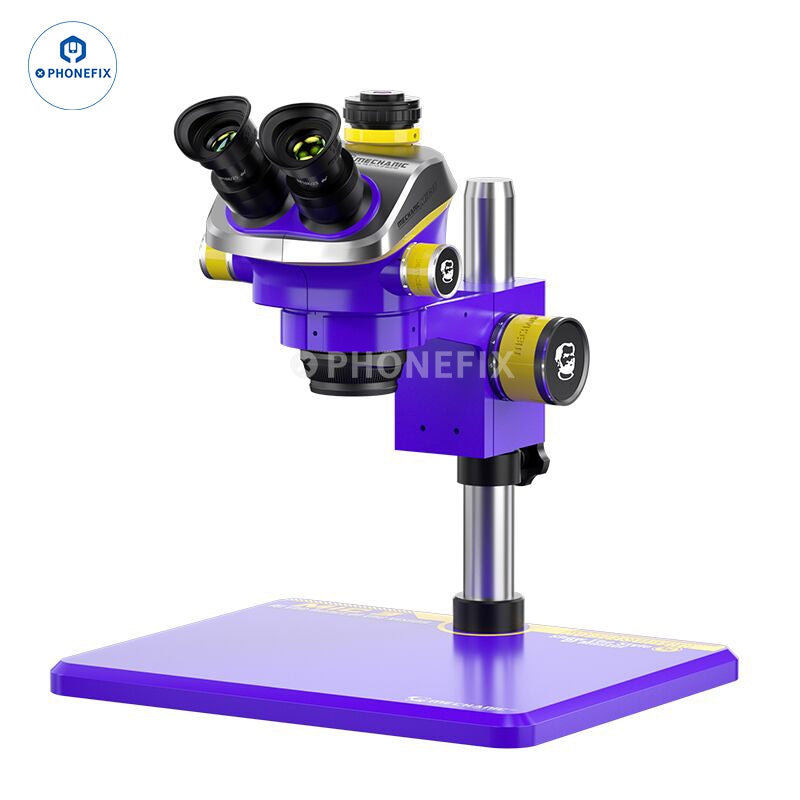

1. Mechanic Mic 3-B11 Set: 7X-50X Trinocular Microscope + B11 base.

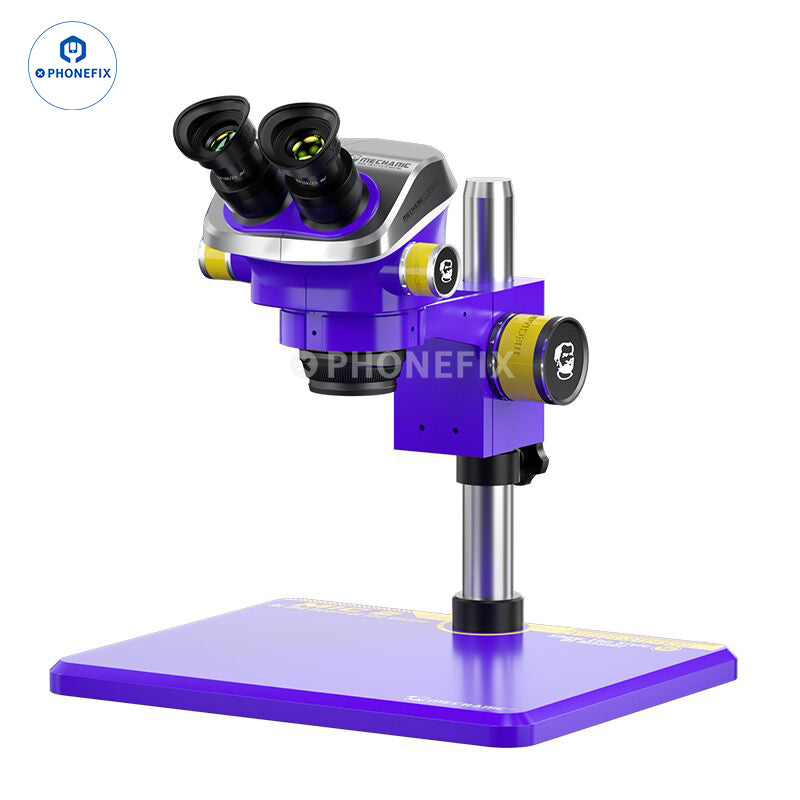

2. Mechanic Mic 2-B11 Set: 7X-50X Binocular Microscope + B11 base.
Features:

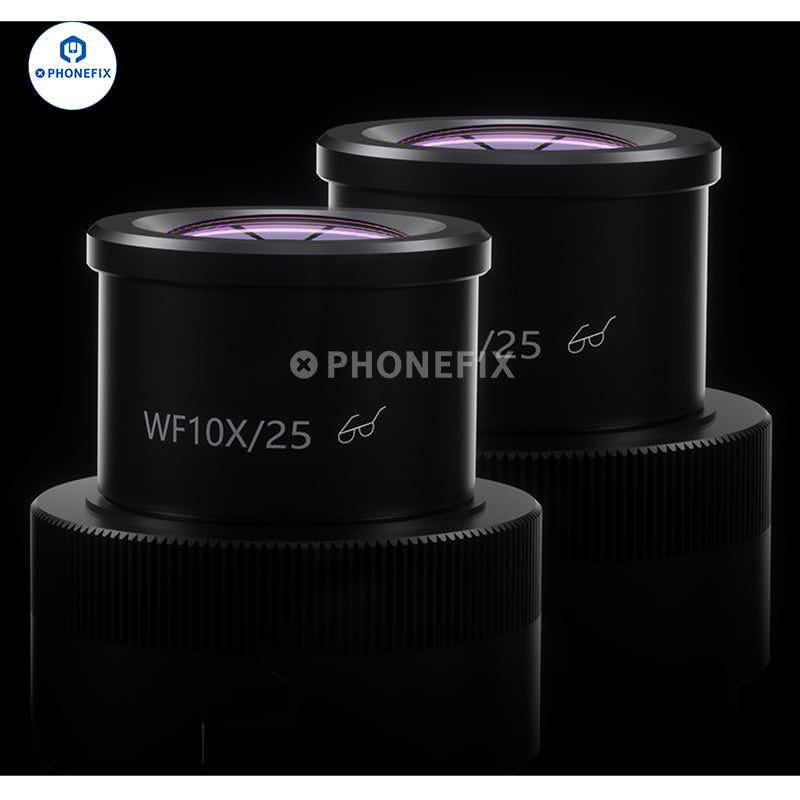

1. Mic 3 microscope with standard WF10X/25MM high field wide-angle eyepiece, the view is wide and the image is clear.

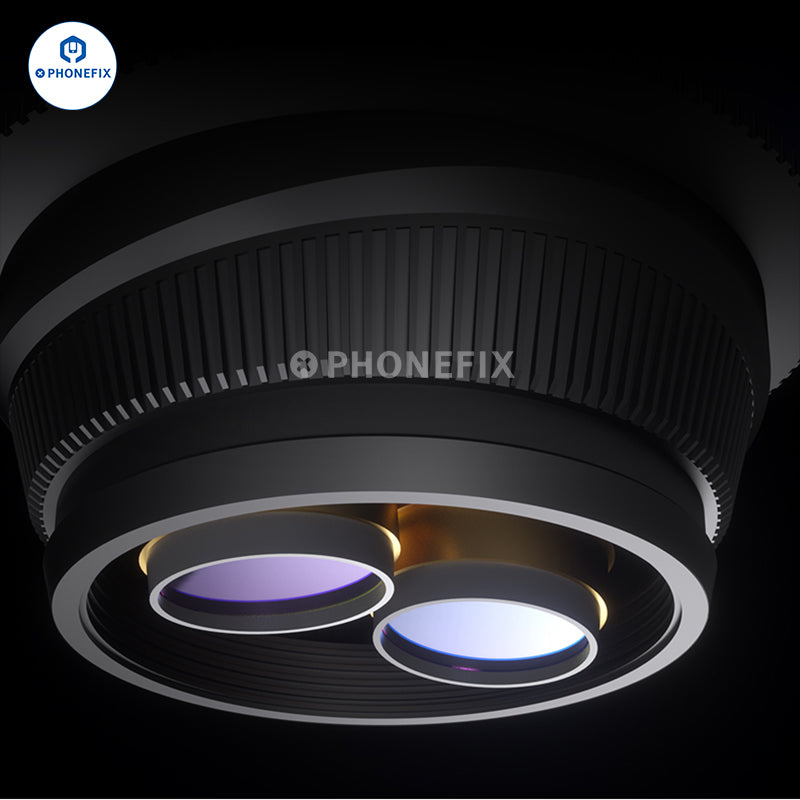

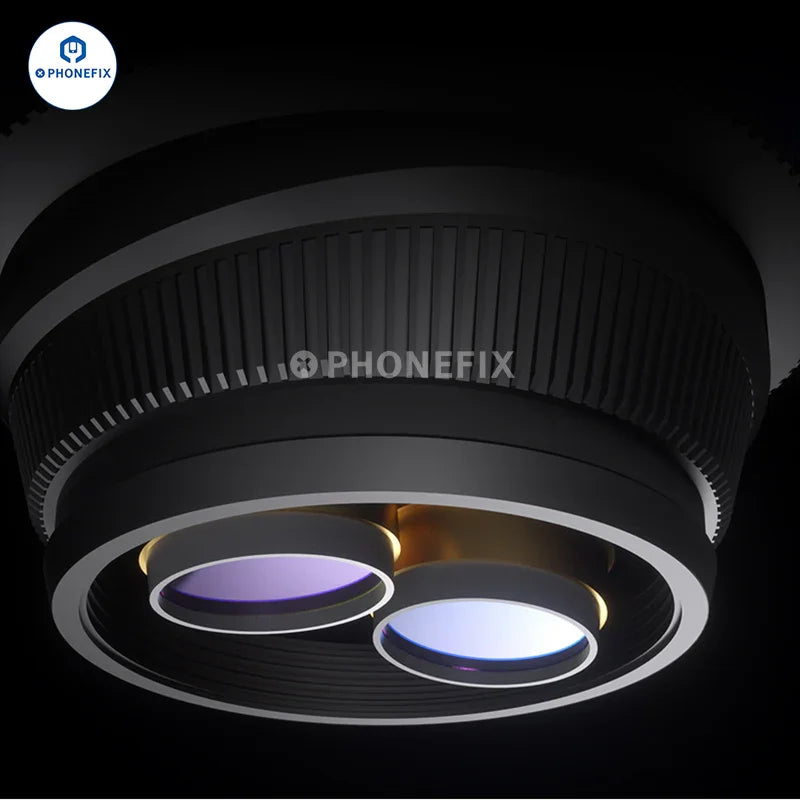

2. The high definition coated objective is one of the core advantages of the Mic 3 trinocular stereo microscope, through advanced coating technology, the objective lens can effectively reduce light scattering and improve image contrast and clarity.

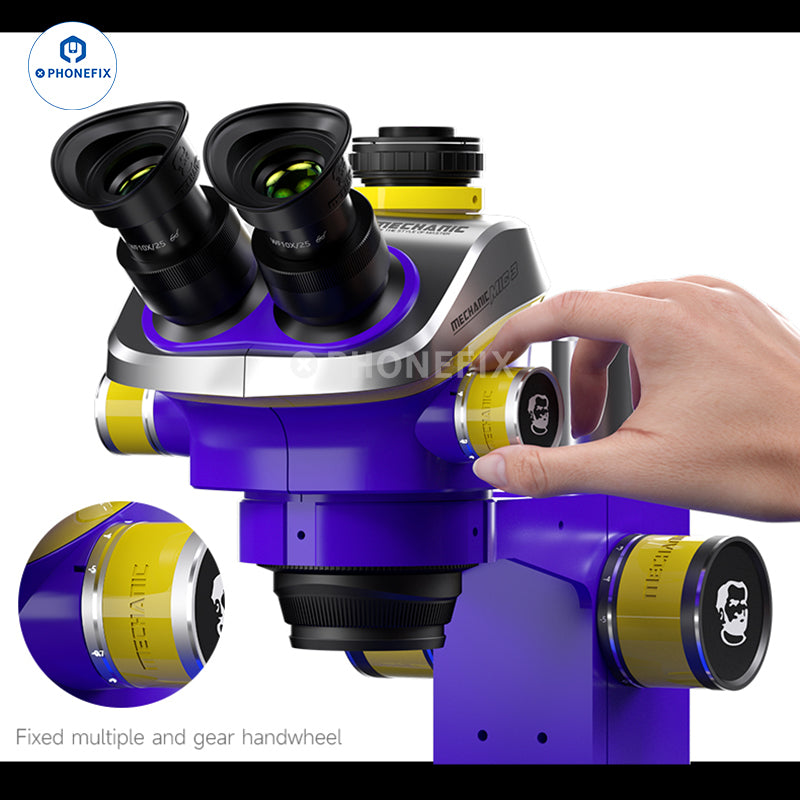

3. Added fixed multiple and fixed gear zoom in, Mic 3 microscope adopts advanced design of variable magnification prism group, realized from 7X-50X large magnification continuous fixed multiple and gear function, accurately lock the magnification you need, the extremely clear image allows you to clearly observe every detail of the sample.

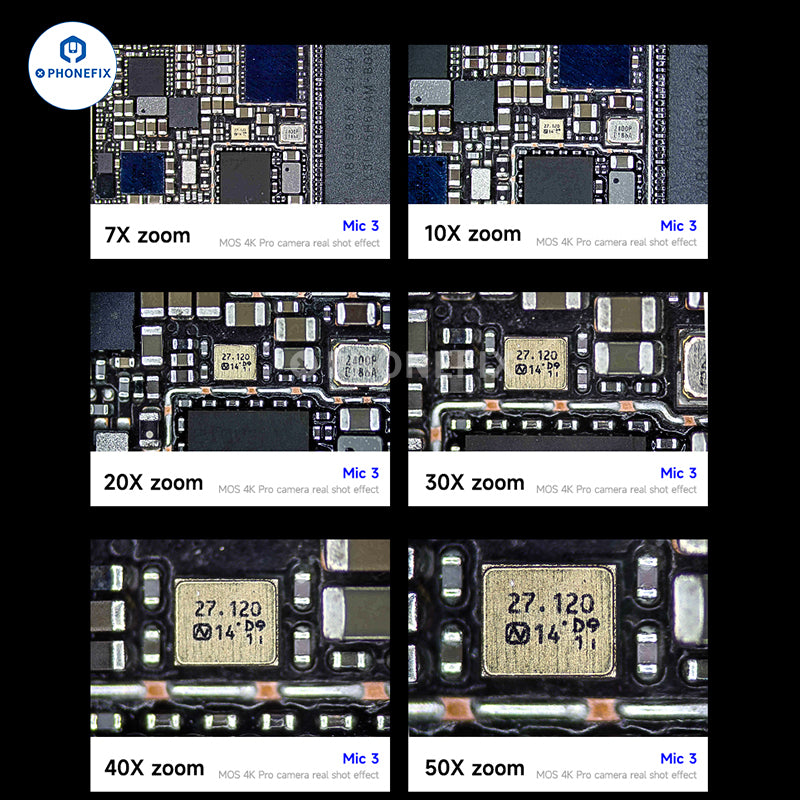

4. Zoom in and zoom in again 7X-50X magnification, 7X zoom, 10X zoom, 20X zoom, 30X zoom, 40X zoom, 50X zoom.
5. CTV 0.45X adapter, the Mic 3 trinocular microscope has set a new benchmark in the field of microscopic observation with its excellent optical properties and stability, with the CTV 0.45X adapter, the imaging effect is significantly improved, this adapter delivers sharper, more detailed images than regular CTV interfaces.
6. Mic 3 trinocular microscope and 4K Pro industrial-grade HD camera perfect combination, this excellent combination not only allows external HD display, to achieve the synchronization of eye observation and screen display content, but also with its high-definition large screen without shadow characteristics.

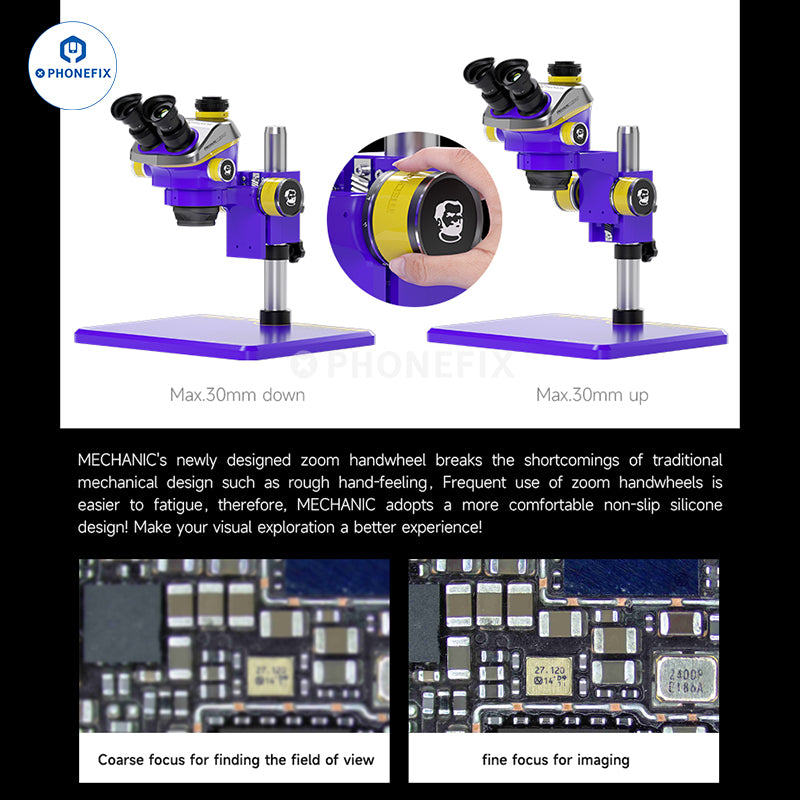

7. The 360° rotation function allows you to adjust the microscope's viewing angle according to your needs, whether it is front observation or side inspection, you can easily cope with it. At the same time, the Mic3 trinocular microscope also has a lifting function with a lifting range of up to 100mm. Whether you need to observe details at close range or view the overall situation from a distance, you can find the most suitable observation position by adjusting the height of the microscope.
Mic 3 Trinocular Stereo Microscope Product Parameters:
Non-adjustable eyepieces: WF 10X/25MM.
Zoom ratio: 1:7.1.
Objective: Default, 0.5X, 0.7X, 1.5X, 2.0X.
Working distance: 100MM, 165MM, 117MM, 45MM, 30MM.
Magnification: 0.7X/5.0X, 3.5X/25X, 5.3X/37.5X, 10.5X/75X, 14X/100X.
Visual field: 30.5mm/4.3mm, 64mm/8.4mm, 41.3mm/5.6mm, 19.7mm/3mm, 14.7mm/2.2mm.
Optional eyepiece: WF 10X22mm / WF 15X15mm / WF 20X10mm.
Not adjustable eyepiece: Standard equipment: WF10X25, high-eyepoint wide-angle eyepiece for the convenience of spectacled observers.
Observation head: 45°inclination, 360°rotation, interpupillary distance 54-76mm bilateral vision adjustment 5 diopters.
Objective: 0.7X-5X continuous zoom, objective zoom ratio 1:7.1 to ensure image surface focus.
Auxiliary objective: 0.5X, 0.7X, 1.5X, 2X are available as options.
Magnification: 7X-50X, optional eyepiece and auxiliary objective can be expanded to 3.5X- 270X, continuous zoom.
Working distance: 100MM.
Focus bracket: The inner diameter is 76mm, and the column bore diameter is 32m.
Work platform: 320MM X 260MM.
Base: B11 column type large plate base, can be equipped with other bases see the base series diagram for details.
Dimensions: 200MM(W)X273MM(D)X280MM(H).
Illuminating: A variety of LED ring lights can be selected see the LED light source series diagram for details.
Product List:
1* Microscope head.
1* Microscope frame.
1* WF10X25 eyepiece.
1* Flat Angle eye mask.
1* Silicone eye mask.
1* Horn eye mask.
1* 0.45X adapter. (only for Mic3).
1* LS3 ring light.
1* 280 *32mm column.
1* limit block.
1* B11 base.
