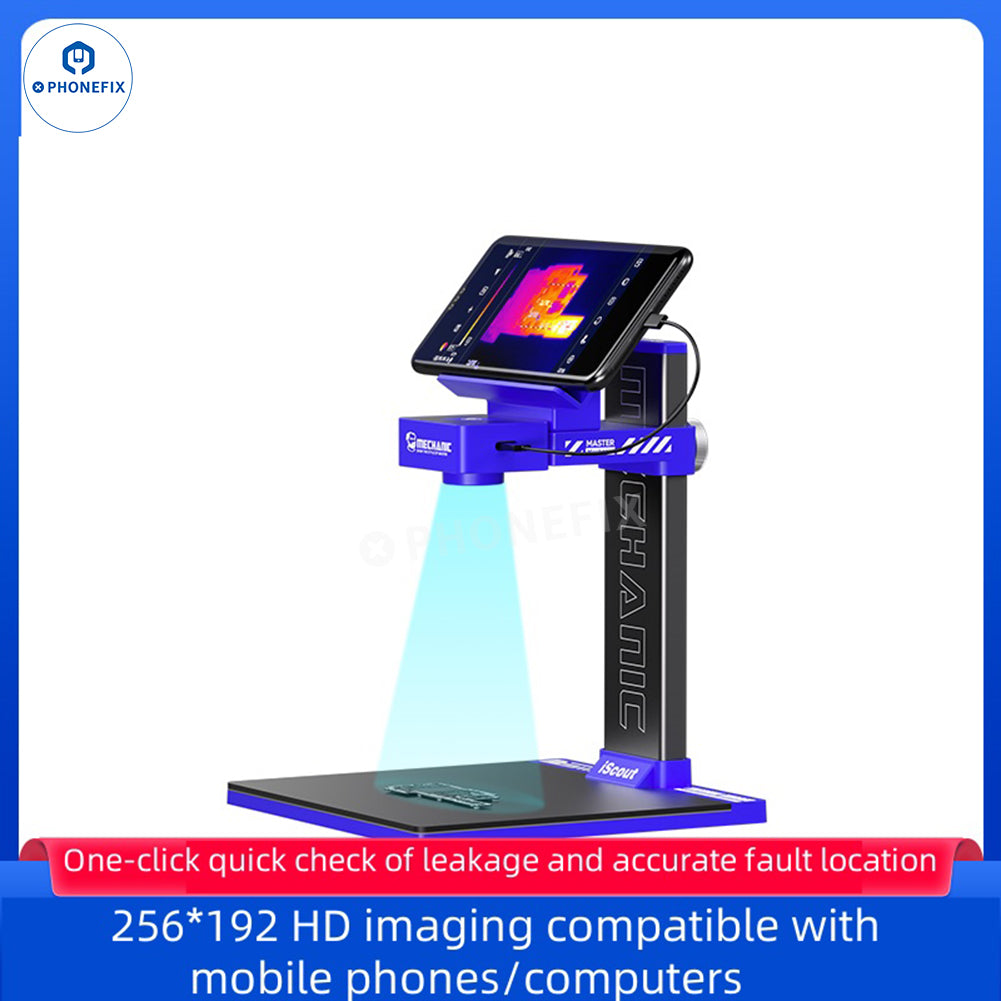

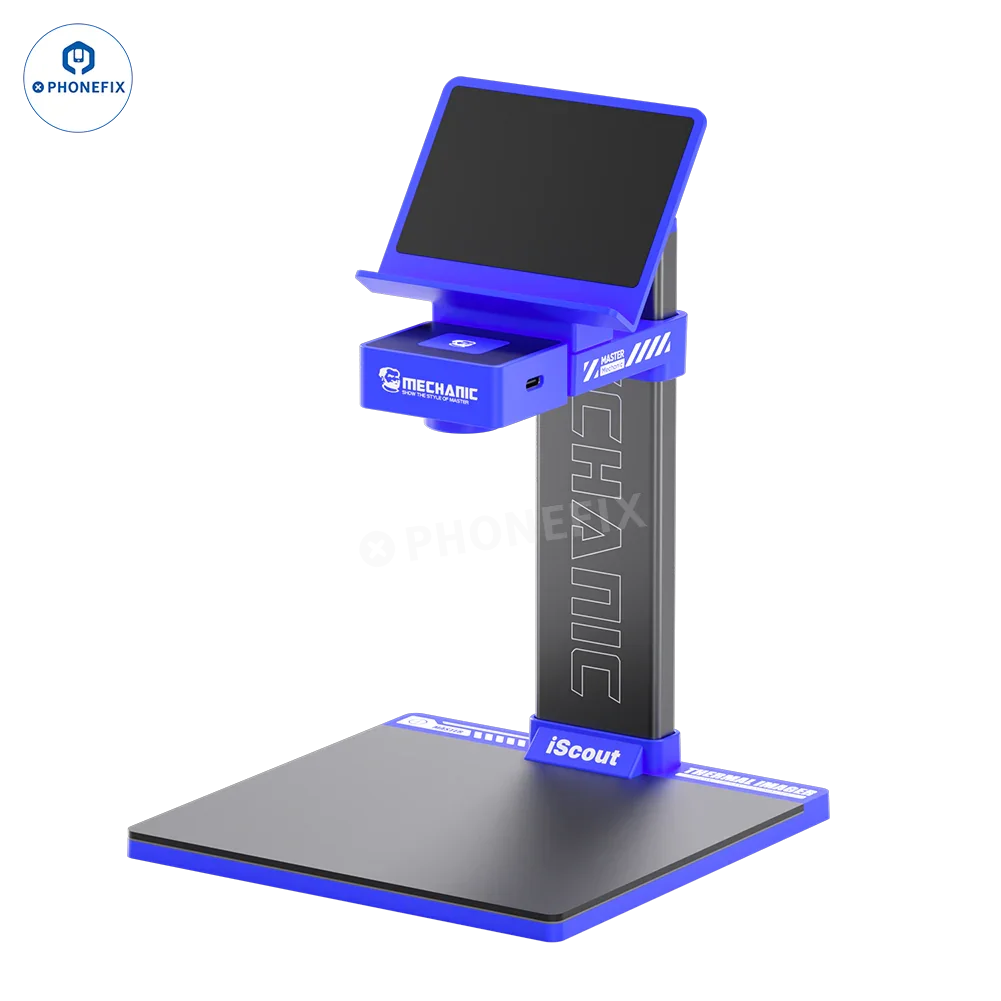

Mechanic iScout infrared thermal imaging camera electronic circuit board fault analyzer for mobile phone/iPhone/iPad/tablets PCB analysis, diagnosis and troubleshooting. Mechanic iScout thermal camera with 256x192 resolution, 3D thermal field distribution, one-key leakage detection, quickly locate the fault point, supports connecting to mobile phone/PC/tablet via Type-C cable.
Features:
1. Mechanic iScout, as an upgraded version of Mechanic STi-08 thermal imager, beyond imagination, fast fault location. Support one-key leakage detection, the minimum can detect 6mA current leakage.
2. Support different areas of the image color change contrast fine check.

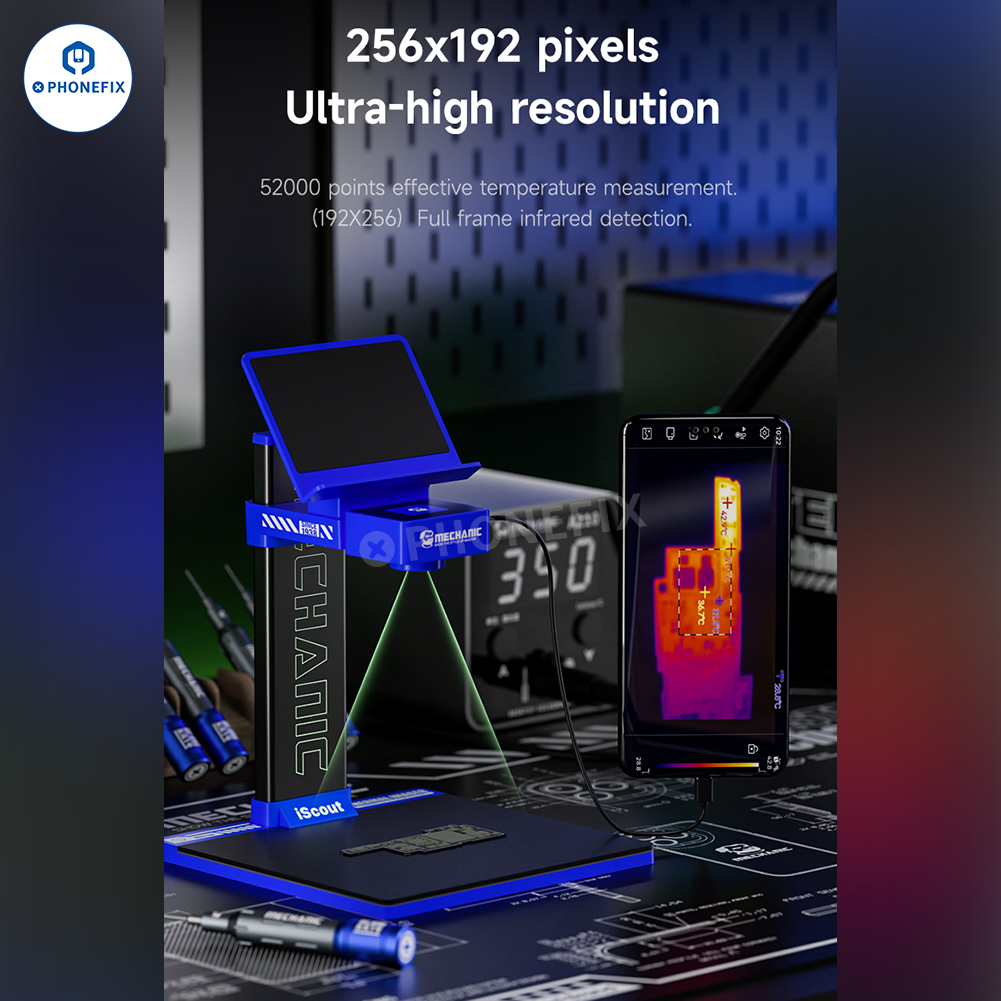

3. 256x192 pixels ultra-high resolution, 52000 points effective temperature measurement.(192X256)Full frame infrared detection.

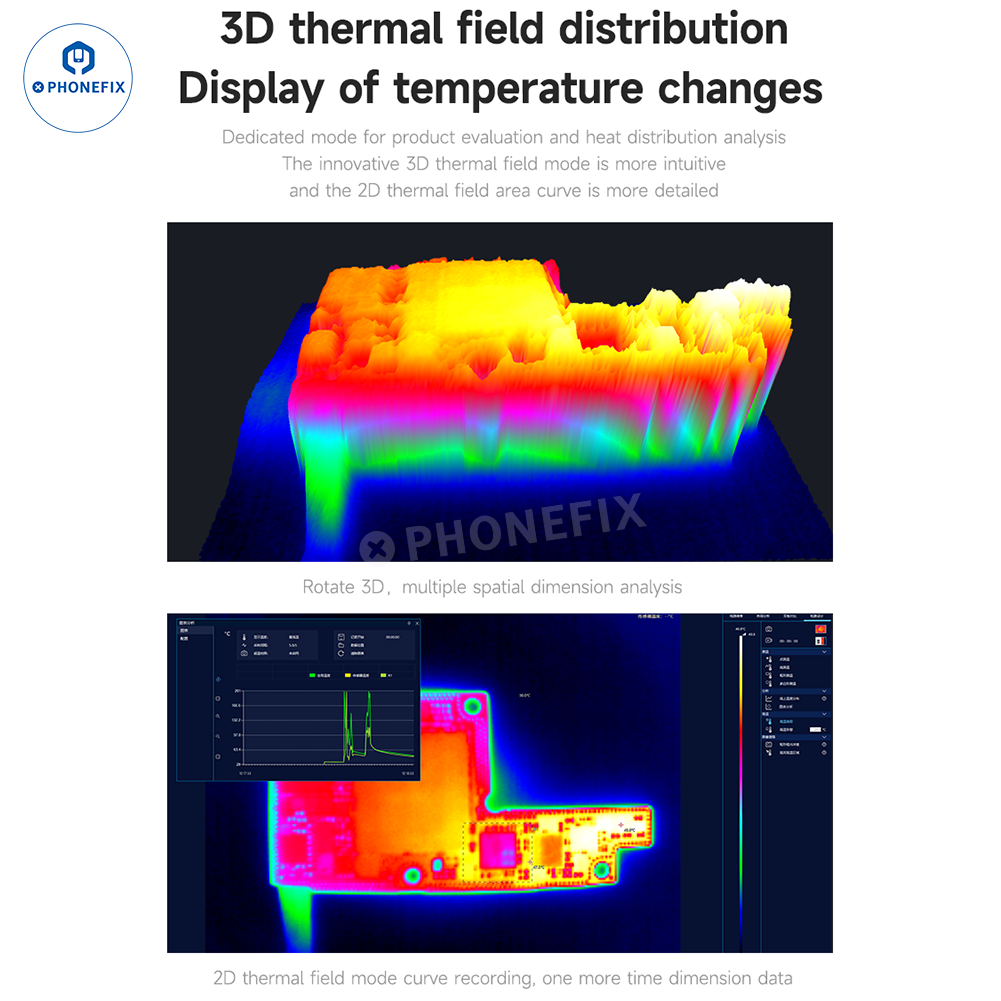

4. 3D thermal field distribution display of temperature changes, dedicated mode for product evaluation and heat distribution analysis. The innovative 3D thermal field mode is more intuitive and the 2D thermal field area curve is more detailed.

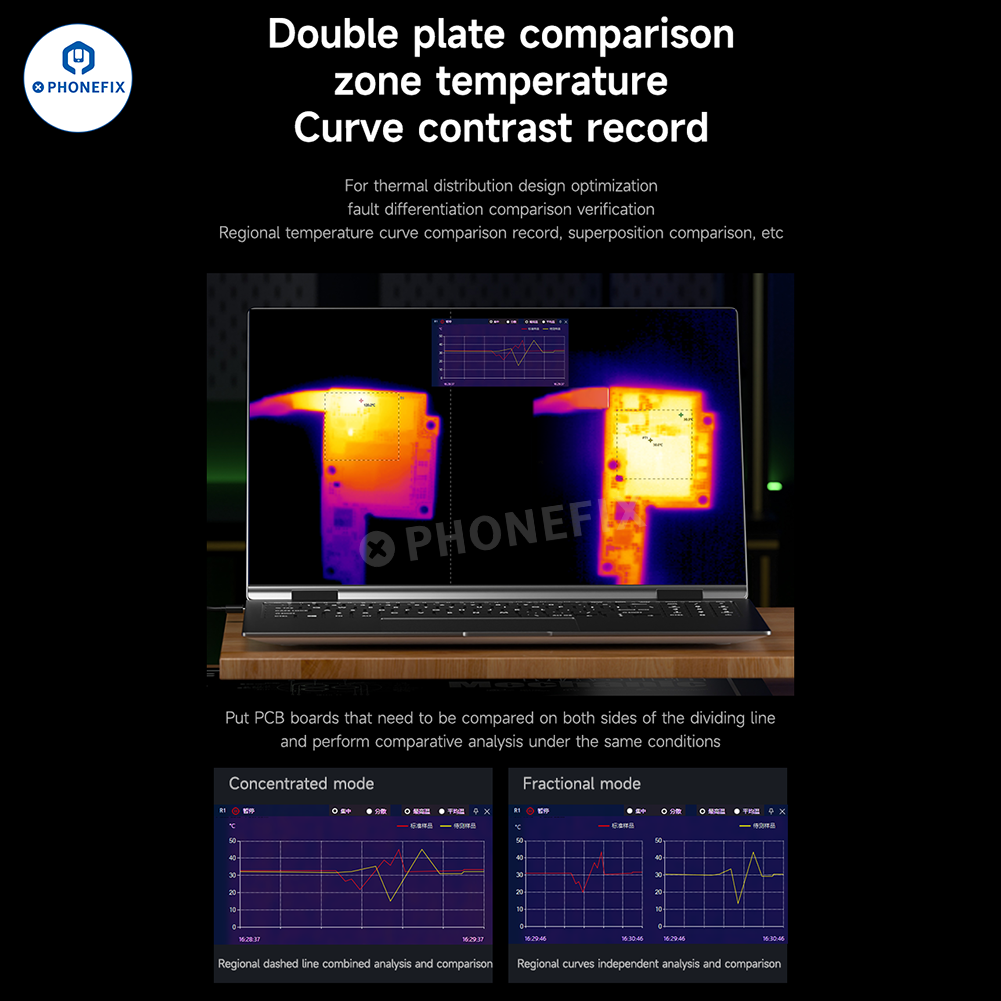

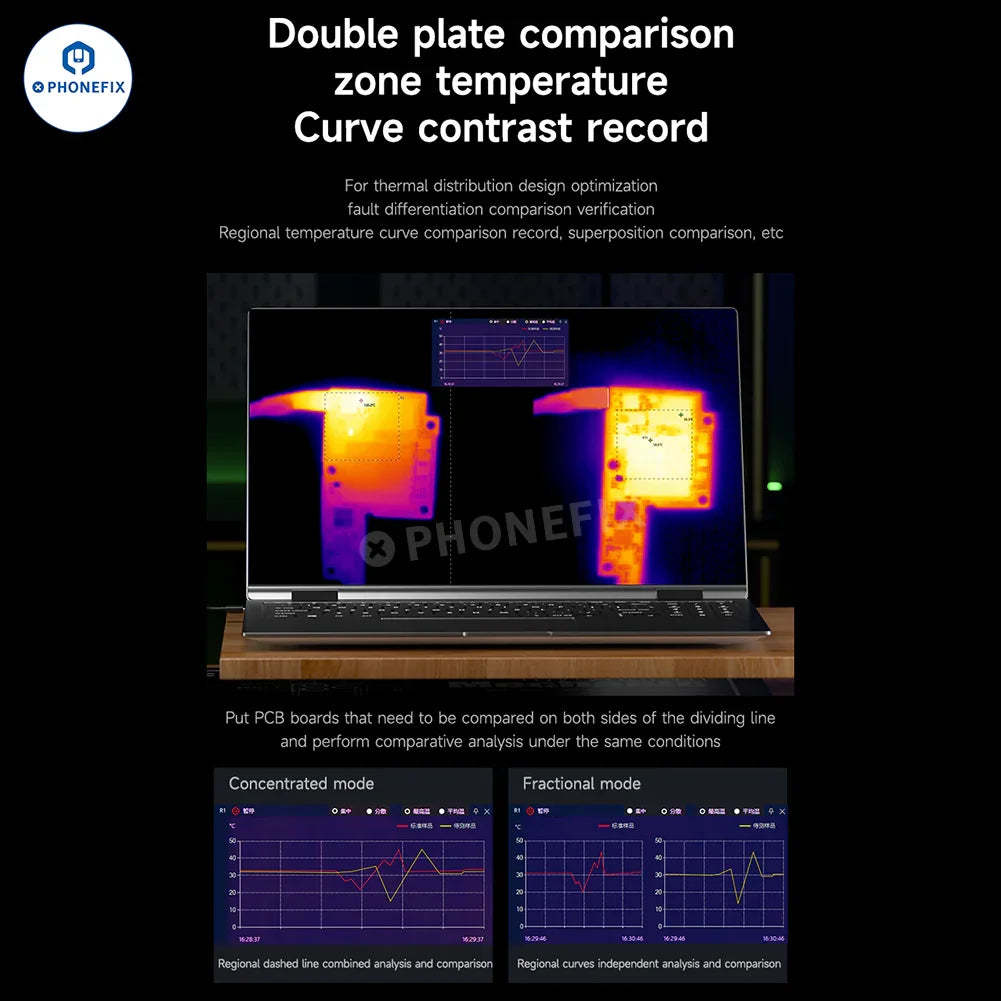

5. Double plate comparison zone temperature, curve contrast record for thermal distribution design optimization fault differentiation comparison verification. Regional temperature curve comparison record, superposition comparison, etc.

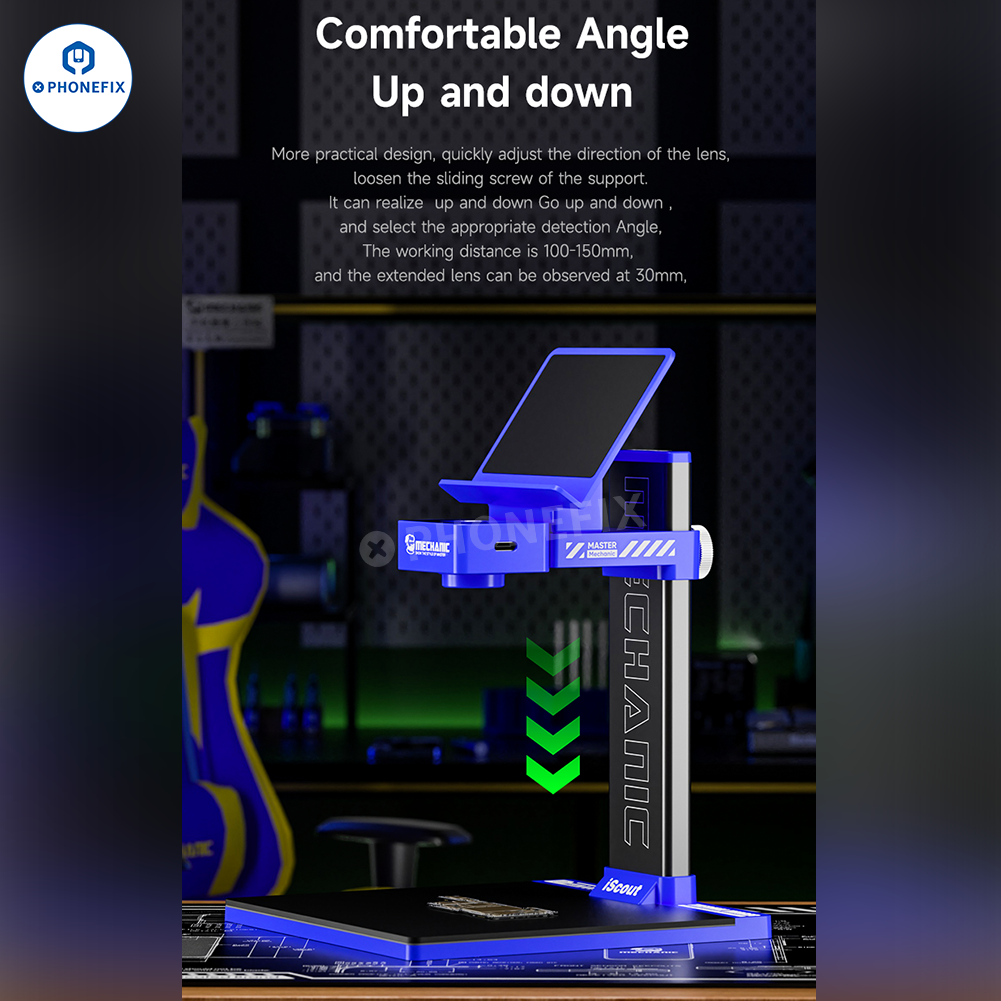

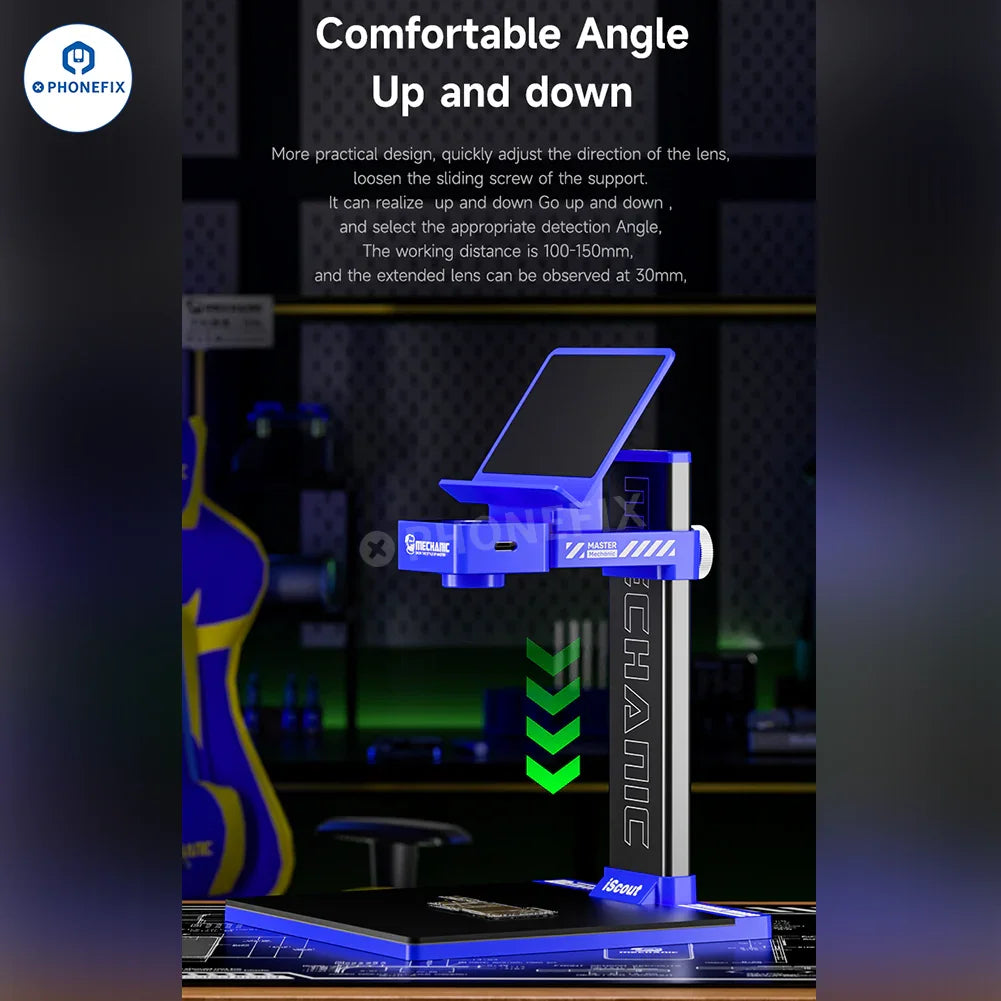

6. Comfortable angle up and down, more practical design, quickly adjust the direction of the lens, loosen the sliding screw of the support. It can realize up and down, go up and down and select the appropriate detection angle, The working distance is100-150mm, and the extended lens can be observed at 30mm.
Software: https://drive.google.com/file/d/1UzFBESYBgZr8d-L7jQaUBJugRHJ5E3AM/view?usp=drive_link

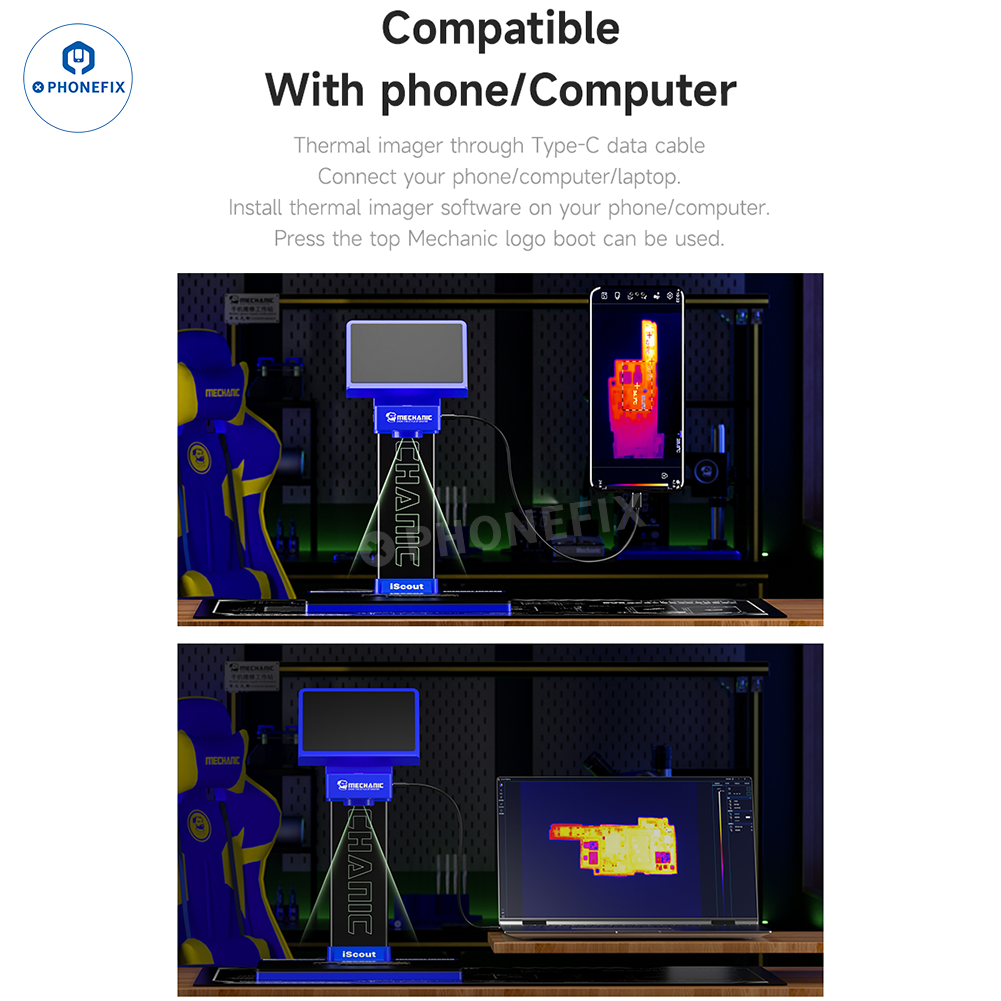

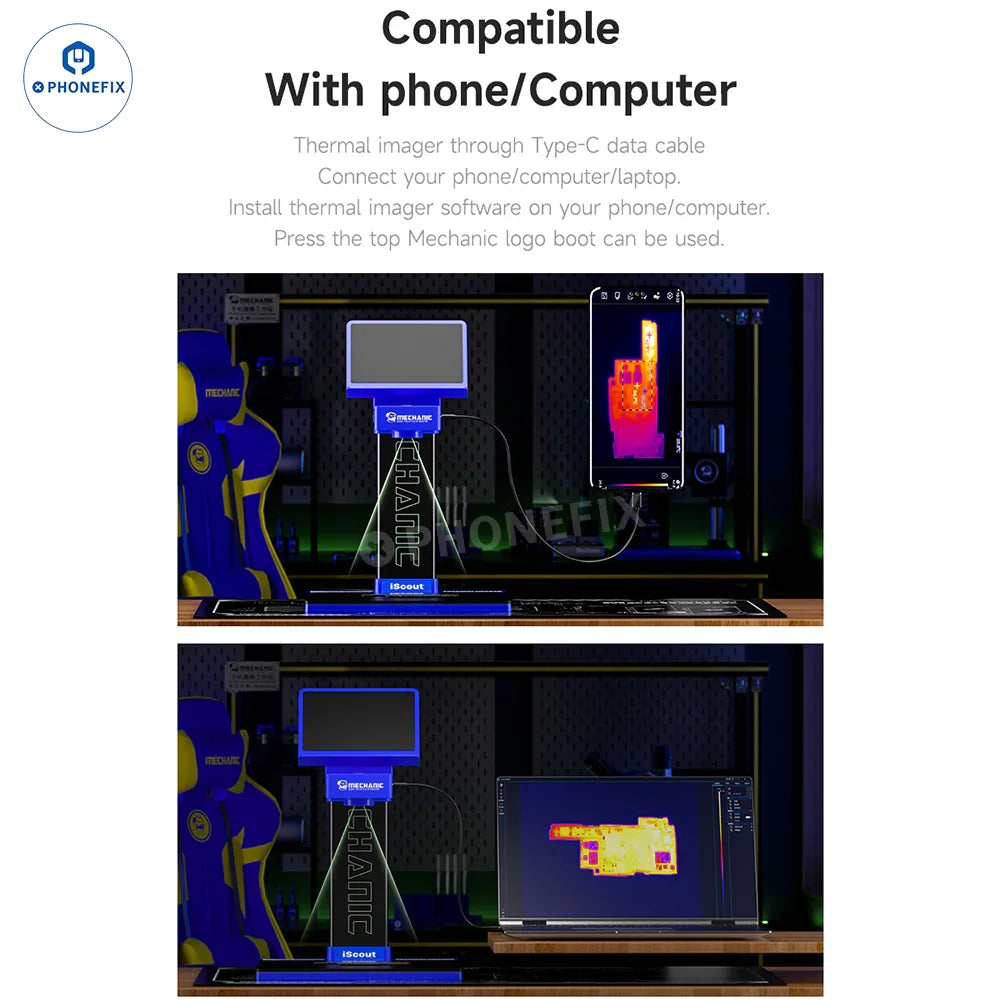

Compatible with phone/computer steps:
1. Thermal imager through Type-C data cable.
2. Connect your phone/computer/laptop.
3. Install thermal imager software on your phone/computer.
4. Press the top Mechanic logo boot can be used.

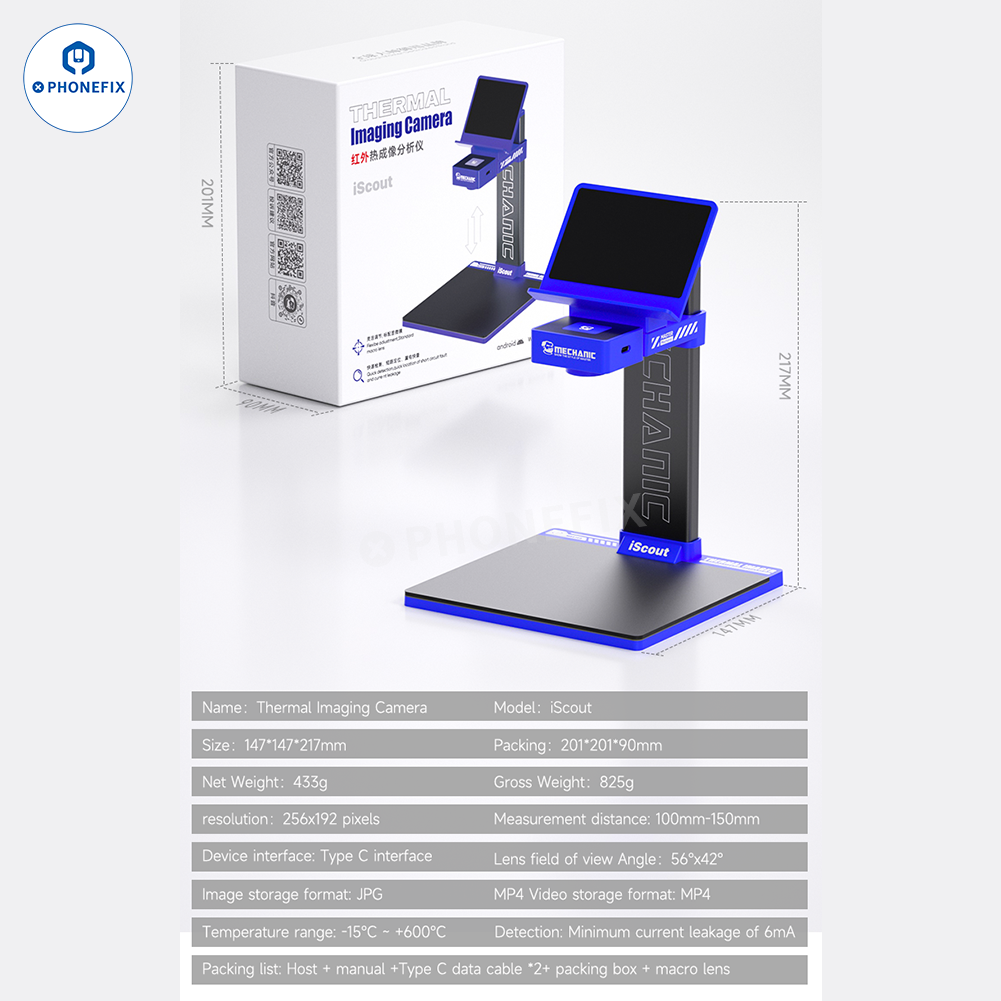

Product Parameters:

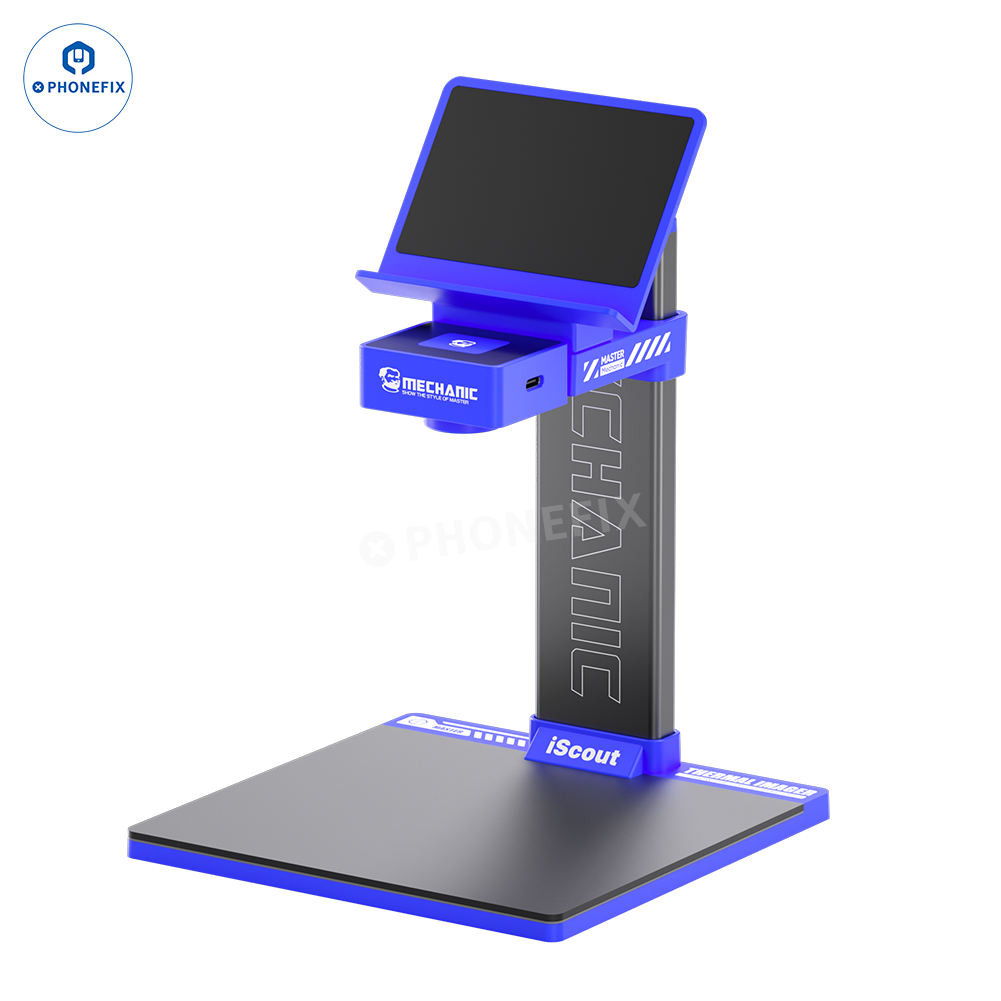

Model: Mechanic iScout Thermal Imaging Camera
Resolution: 256x192 pixels
Measurement distance:100mm-150mm
Device interface: Type C interface
Lens field of view Angle: 56°x42°
Image storage format: JPG
MP4 Video storage format: MP4
Temperature range: -15℃~+600℃
Detection: Minimum current leakage of 6mA.

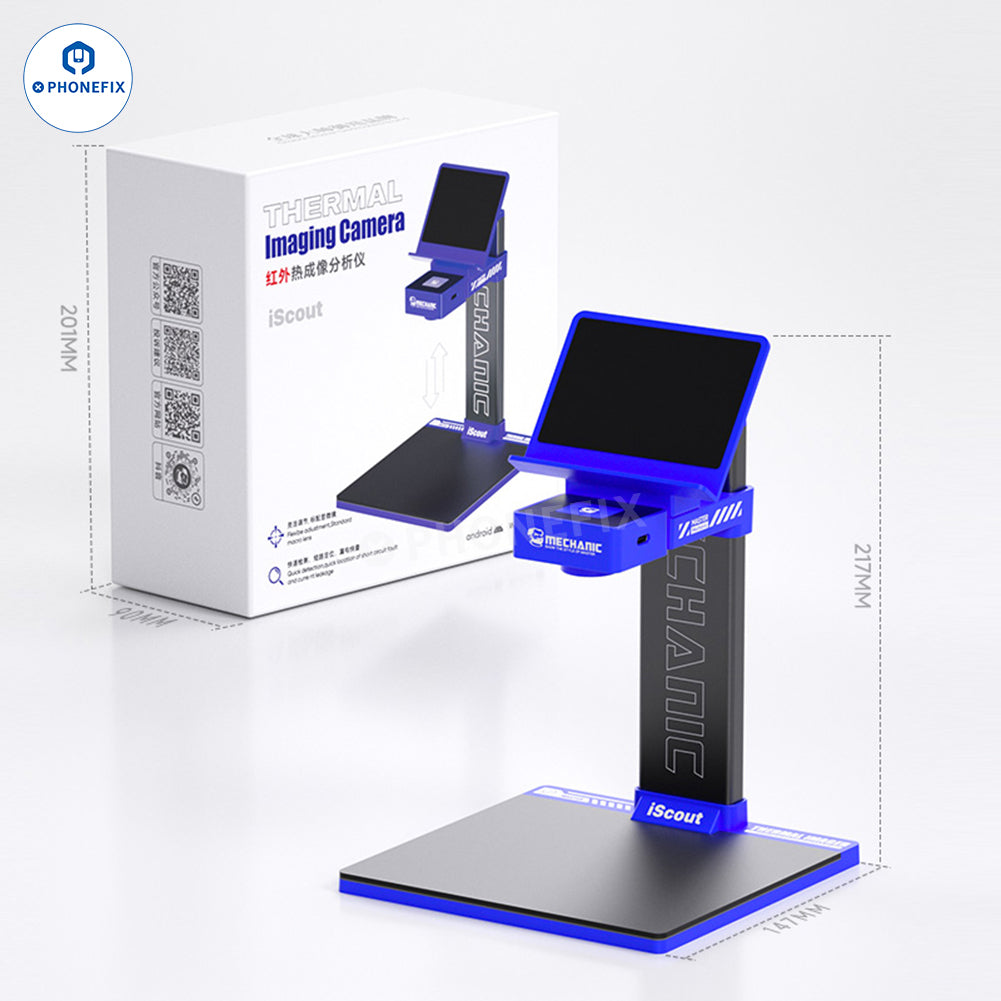

Size: 147*147*217mm
Packing: 201*201*90mm
Net Weight: 433g
Gross Weight: 825g
Packing Lists:
Host x1
Manual x1
Type C data cable x2
Packing box x1
Macro lens x1
