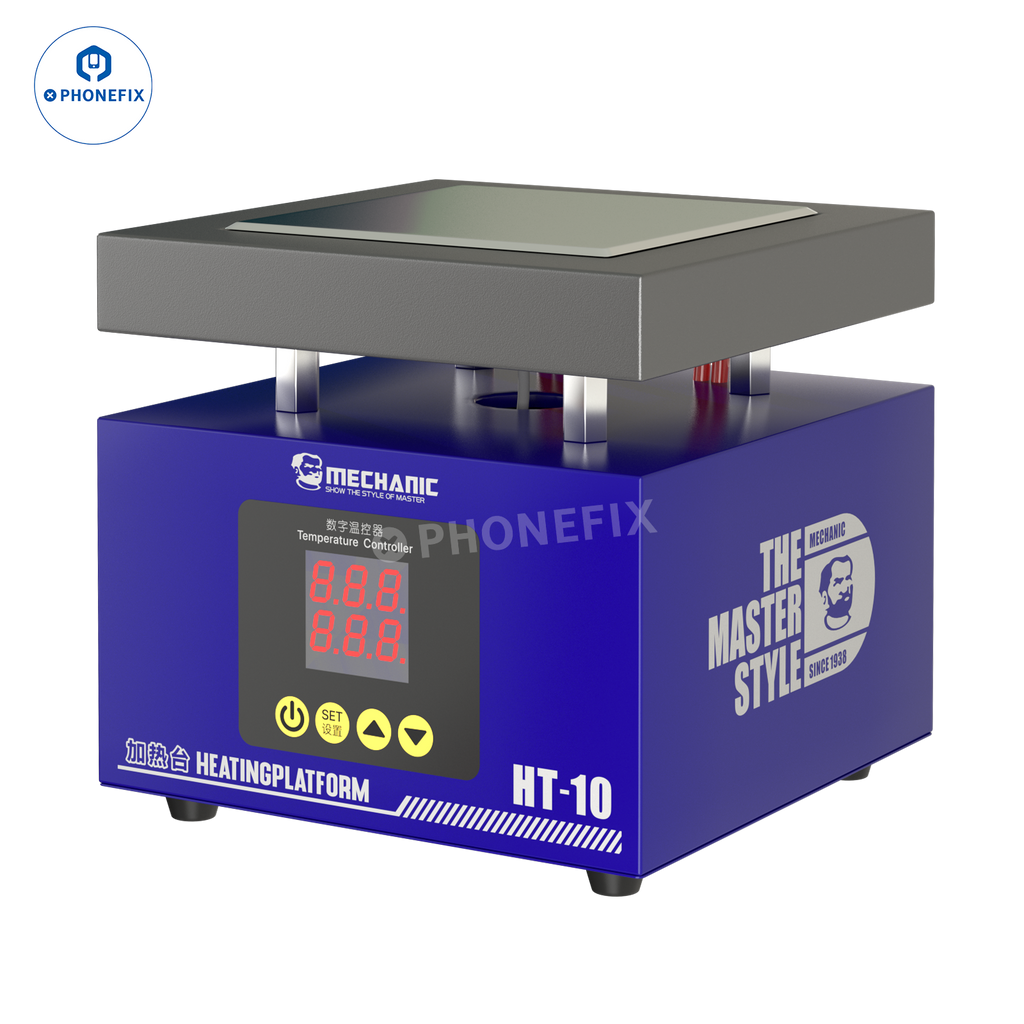

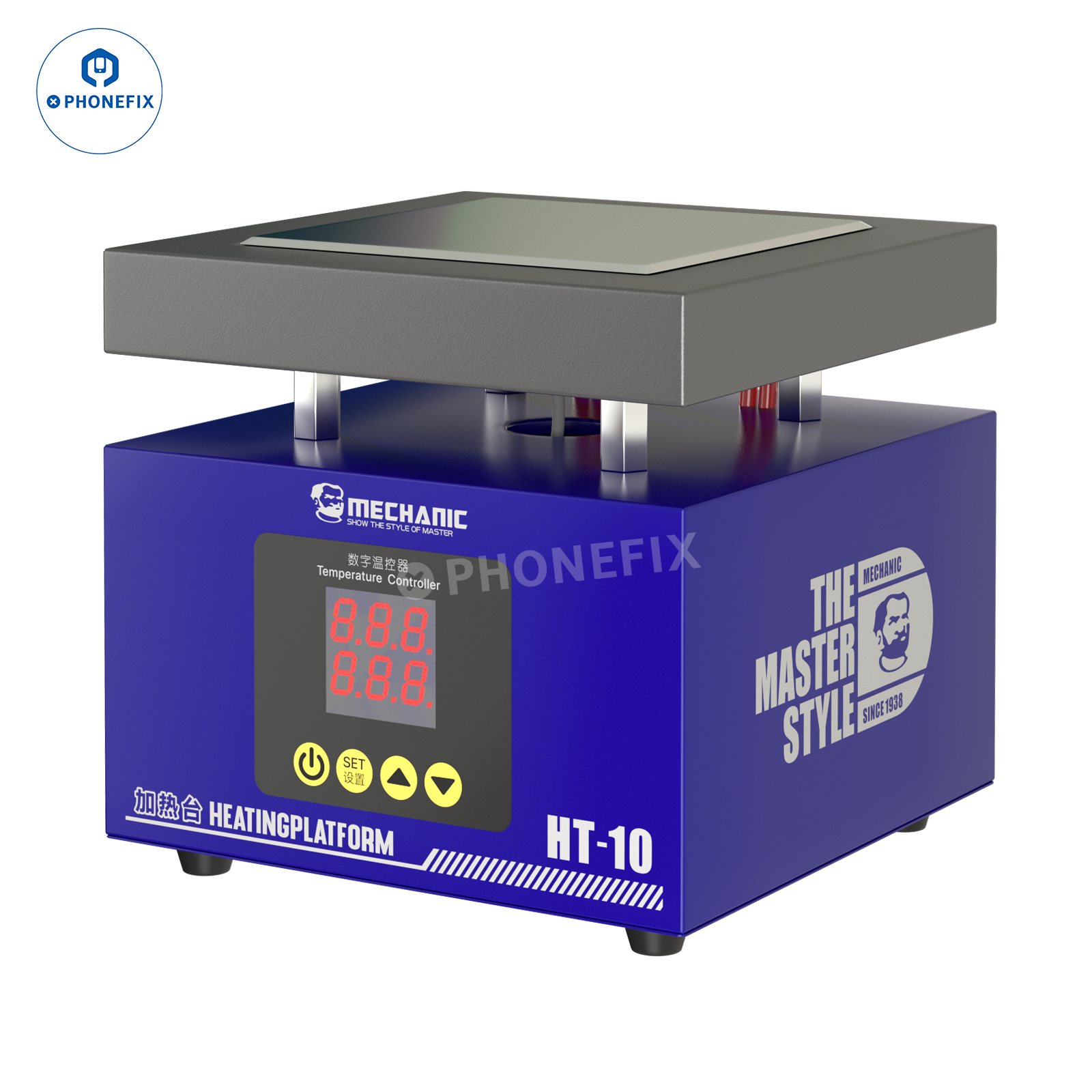

Mechanic HT-10 Intelligent Double Digital Constant Temperature Heating Table For Lamp Bead Welding, Bacterial Cultivate, Liquid Heating, Circuit Board Repair, Remove Screen and Frame. Mechanic HT-10 CNC Constant Temperature Heating Table For BGA PCB SMD Phone LCD Screen Repair.

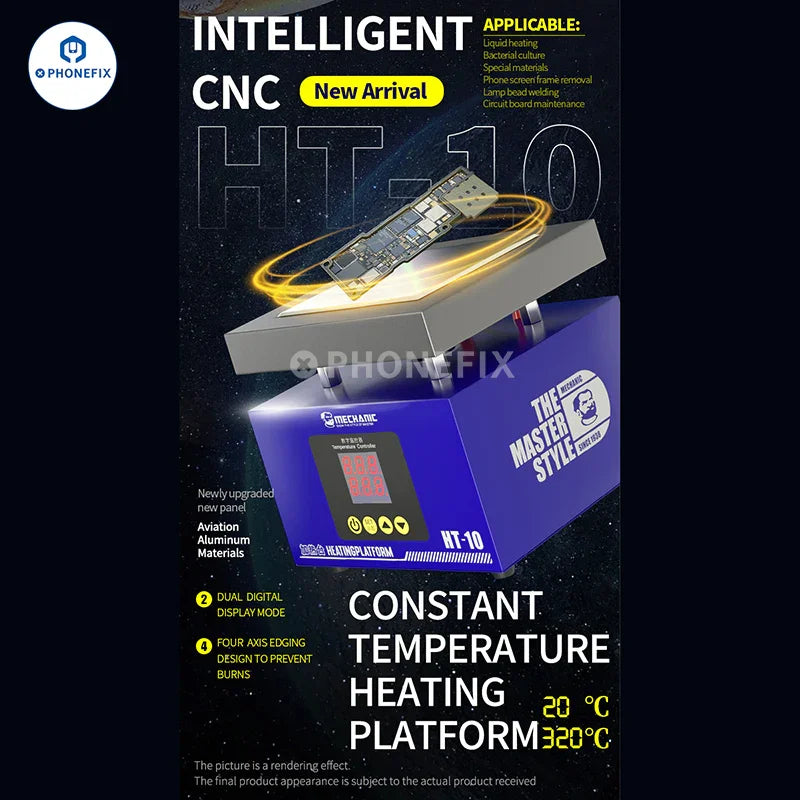

Features:
1. Applicable: Liquid heating / Bacterial culture / Special materials / Phone screen frame removal / Lamp bead welding / Circuit board maintenance.
2. Dual digital display mode, four-axis edging design to prevent burns.
3. Real-time display of the latest temperature, meet the actual setting requirements.
4. Suitable for any application required stable controlled heating, for example, special materials, special areas of mold core heating, chip welding, LED bead welding, PCB preheating repair electronic circuit board, cellphone preheating, chemical experiment ,heat curing etc.
5. 6061 aviation aluminum, high thermal conductivity, rapid temperature, rise uniformly heated, high temperature without deformation.

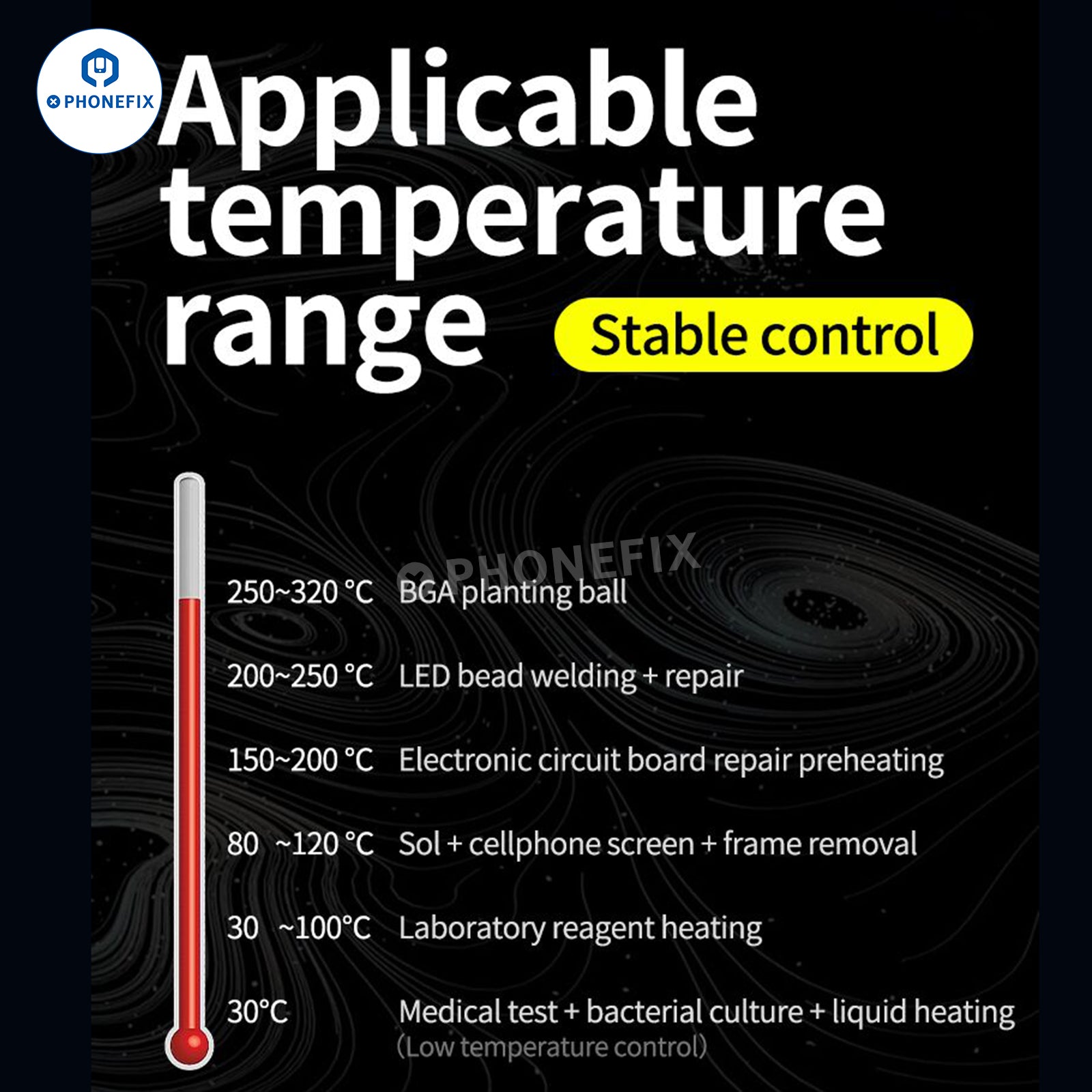

Applicable Temperature Range:
1. 250~320°C: BGA planting ball.
2. 200~250 °C: LED bead welding + repair.
3. 150~200 °C: Electronic circuit board repair preheating.
4. 80~120 °C : Sol + cellphone screen + frame removal.
5. 30~ 100°C : Laboratory reagent heating.
6. 30°C: Medical test + bacterial culture + liquid heating (Low temperature control).
Specifications:
Product name: Intelligent NC Constant Temperature Heating Platform.
Number: HT-10.
Product size: 130*130*115mm.
Voltage: AC230V 50Hz/110V 60HZ(customized).
Power: 200W.
Temperature range: 20~320°C.
Temperature Stability: ±3%.
Packing Includes:

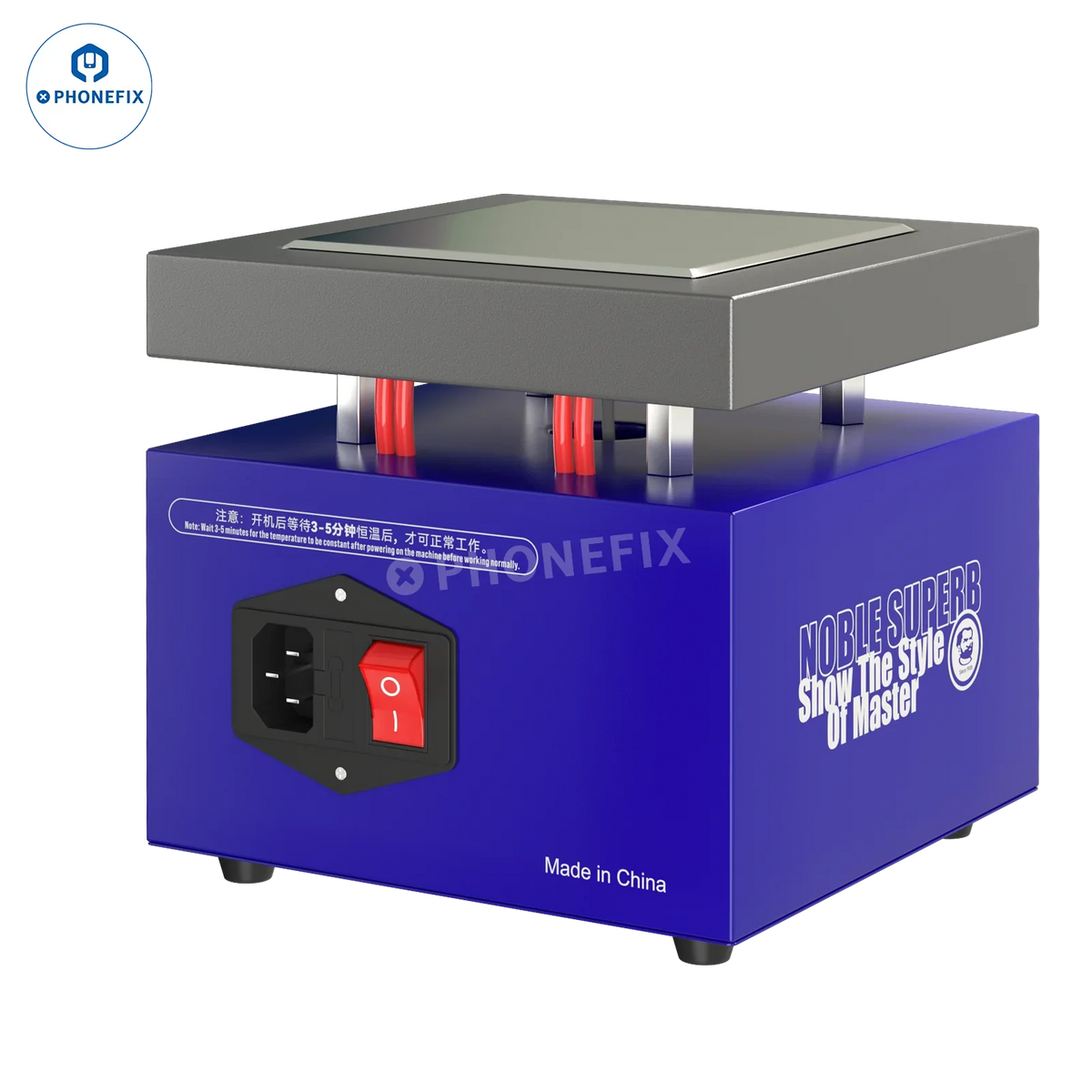

1 x Mechanic HT-10 Host.
1 x Power Cord.
1 x Manual.
Safety instructions:
1. Do not touch the surface of the heating platform and pile up debris to avoid burning or causing fire.
2. Do not drop liquid on the surface of the heating platform, high temperature may cause the liquid to boil and splash injury.
3. The machine should not work in humid, flammable, explosive and high dust environment.
