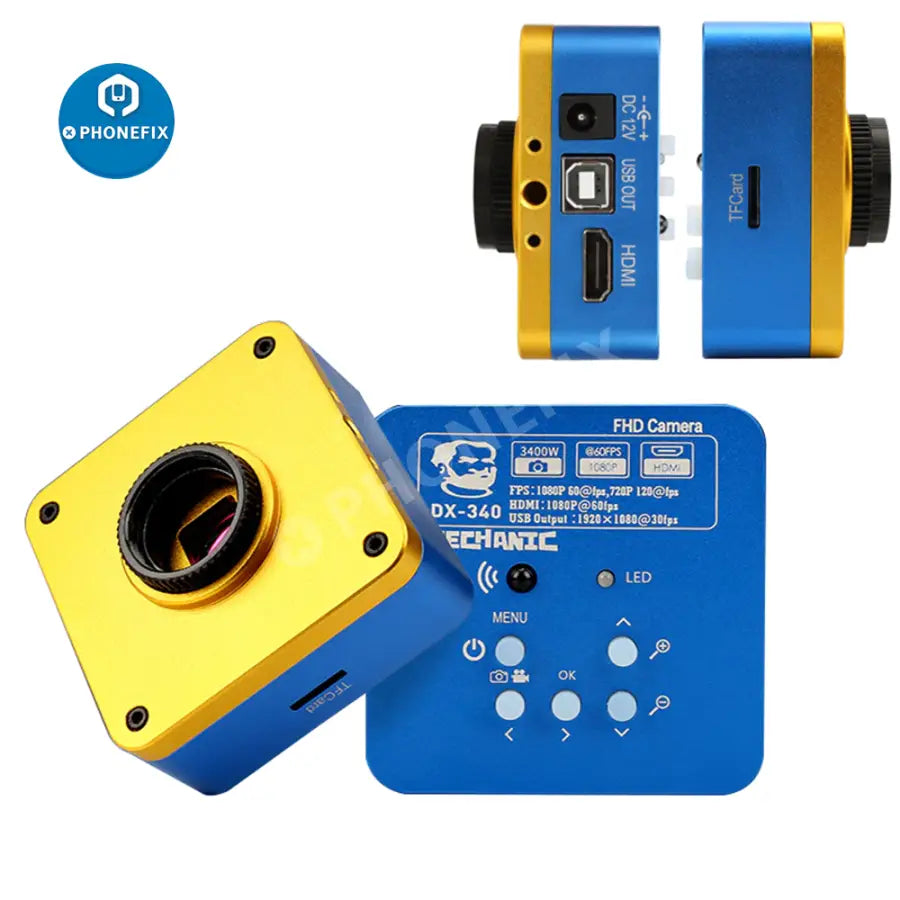

Upgrade Mechanic DX-340 34MP 1080P Microscope HDMI Camera Digital Video Microscope Camera For Phone CPU PCB Soldering Repairing
Product Specifications:
Effective pixels: 34 megapixels
Pixel size: 1.35 * 1.35um
Frame rate: 30 fps
Resolution of the HDMI image: 1920x1080 60FPS
Video format: MP4, MOV (for TF card)
USB video resolution: 1920x1080 @ 30FPS
White balance: Auto / manual
TF card interface: up to 64G
Digital enlargement: 8 times digital zoom
USB interface: standard USB 2.0 interface
iMager Sensor: Panasonic Original 3400W Pixel CMOS Sensor
Sensitive size: 1/2.3 inches, a larger field of view than the usual 1/3
Cell size: 1.335μm x 1.335μm
Output interface: HDMI(Type A), USB(Type B), TF Card
Photo resolution: 23 Mega Pixal2300W pixel
Video resolution: 2K@30frame, 1080P@60frame
HDMI output: Progressive 1920/1080 60frame can be output simultaneously with usb
HDMI output ratio: Support 4:3 16:9 16:10 screen to keep the image not be deformed
USB 2.0 output(free drive): 1920*1080@30 1280*720@30 640*480@30 can be output simultaneously with USB
