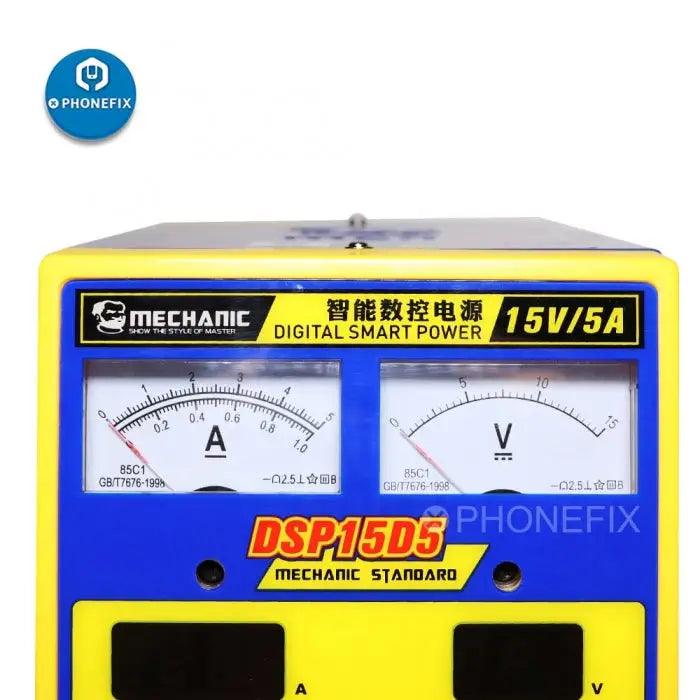

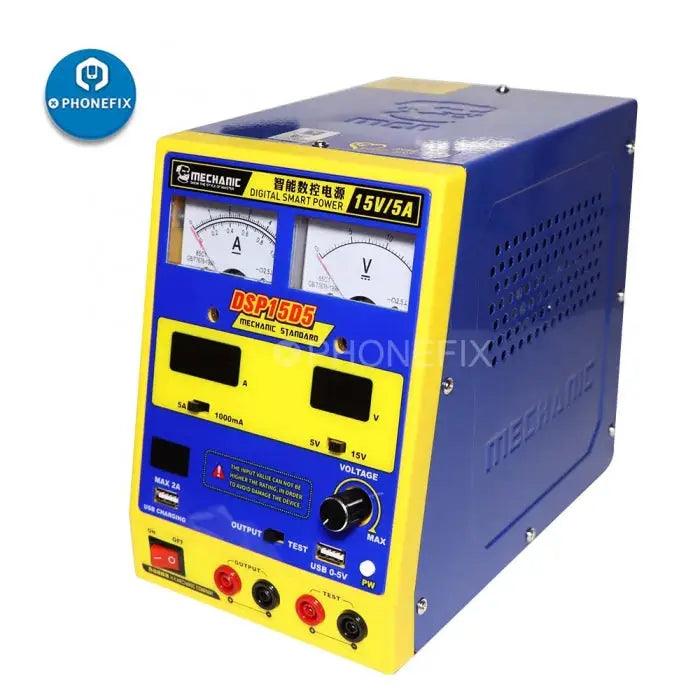

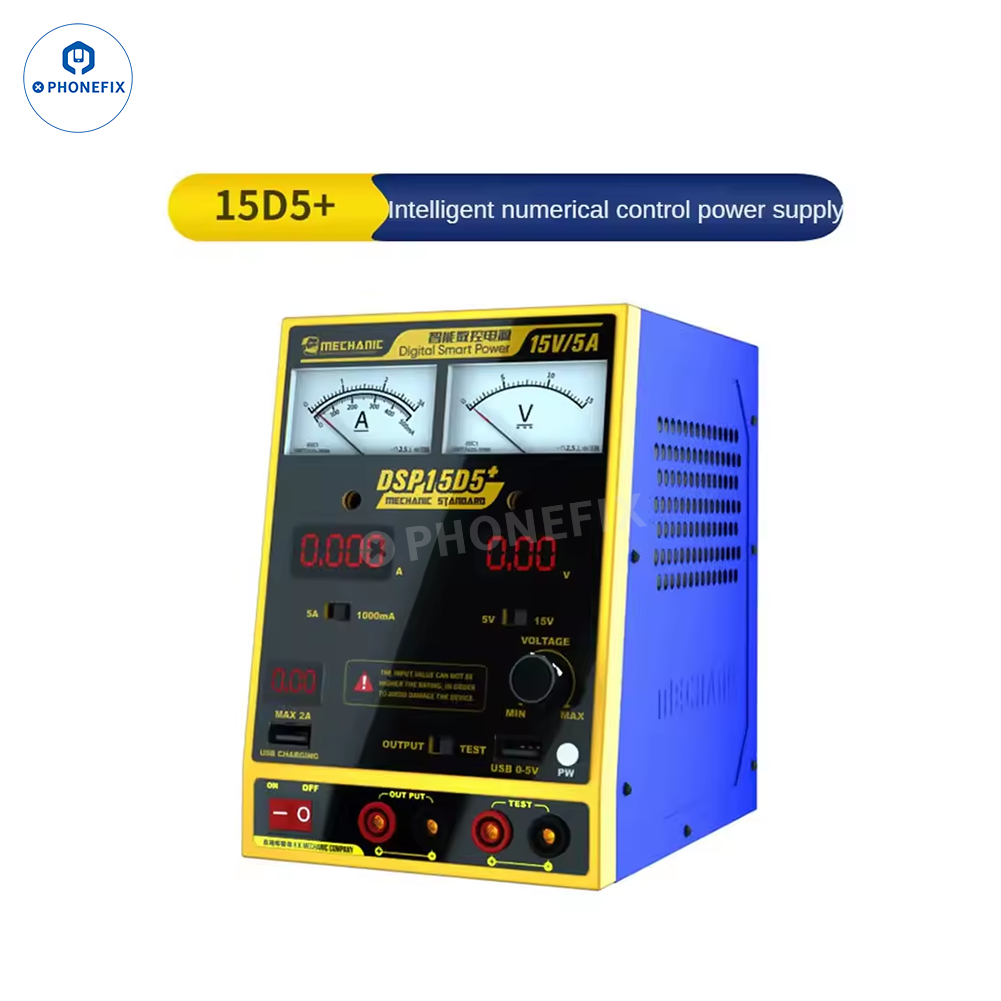

Mechanic DSP15D5 Digital DC Power Supply 15V 5A

Mechanic DPS series digital DC power supply for phone repair, 0-3A/5A current, 0-15V, DSP15D3 DSP15D5 5V USB output led display current, four high-precision current digital display 15V 3A 5A, it is convenient to change mobile phones /tablets and others devices.

Mechanic Digital DC Power Supply -- DSP15D3 : 15V 3A / DSP15D5 : 15V 5A

Product Features :

1. Boot with one click
2. Boot iPhone without battery
3. Adjustable voltage 0-15V
4. Maximum output current 3A / 5A
5. Pointer and digital display
6. Synchronous display output
7. 5V voltage lock
8. 5A & 3A / 1000mA current switch
9. USB output current display
10. Boot with one click
11. 5V voltage lock, adjust the voltage to 4.2V
12. Connect a tail plug boot cable, which can realize the battery-free boot of iPhone
13. Boot cable with tail plug (Configure by yourself)
14. Four high-precision current digital display
15. 0-3A current, 0-15V voltage, when testing current and voltage
16. Pointer and LED screen can display values ??synchronously to meet different needs

Product Advantage:

1. 5V USB output
2. LED display current
3. Convenient to charge mobile phones / tablets and other devices
4. Intelligent induction cooling fan
5. Intelligent temperature-sensitive fan (the higher the temperature, the greater the wind power)
6. Both sides of the panel have heat dissipation holes, built-in thermal conductivity aluminum sheet cooling temperature, double effective protection of internal components
7. Heat dissipation hole / heat dissipation aluminum sheet / heat dissipation fan

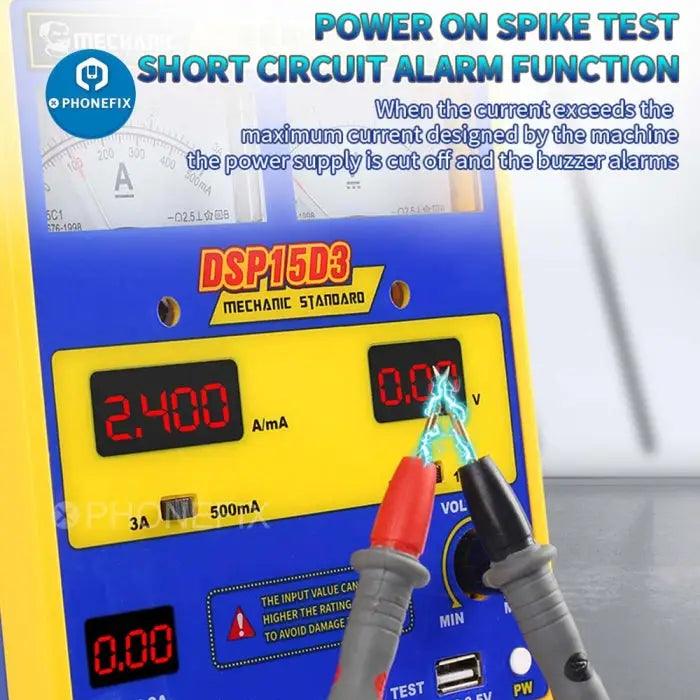

• Short circuit alarm function : When the current exceeds the maximum current designed by the machine, the power supply is cut off and the buzzer alarms
• PCB integrated double-sided motherboard : The overall patch is better than the plugin, Double-panel production with high stability of integrated motherboard
• High-power pure copper transformer: The internal transformer uses pure copper. Full power anti-burning machine

Additional Function:

1. DC 9V output port
2. 9V output port at the rear of the fuselage
3. Can supply the power for the multimeter
4. Digital display and ammeter dual mode
5. Double gear current switching
6. Can be used according to different needs

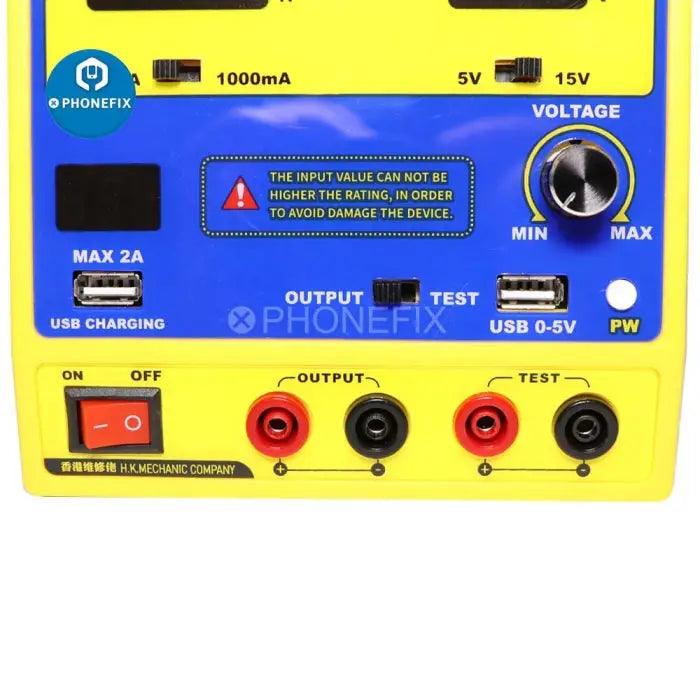

Screen parameter :

1. Model
2. Voltmeter
3. Ammeter
4. Display voltage
5. Display current
6. 5V / 15V transfer switch
7. Display voltage / test voltage conversion switch
8. Output positive
9. Output negative
10. Test voltage positive
11. Test the negative voltage,
12. Power switch
13. USB output
14. Boot iPhone with one click
15. Voltage adjustment knob
16. Range switch of ammeter
17. USB 5V charging port
18. Charging current display

Parameter:

• Voltage regulation parameters
• The output voltage
• Voltage output accuracy
• Voltage stability
• Load stability
• Recovery Time
• Ripple noise voltage
• Temperature Coefficient
• Constant current output parameter
• Constant current value
• Current stability
• Load stability
• Ripple noise current

Product Includes

• 1pcs xDC Power Supply
