Mechanic D65S D65T 6.5-65X Trinocular Stereo Microscope for electronic circuit board, mobile phone motherboard, BGA SMD chip soldering repair. Mechanic D65T-B11 2X-260X industrial trinocular microscope. Mechanic D65S-B11 binocular stereo microscope.
Option:

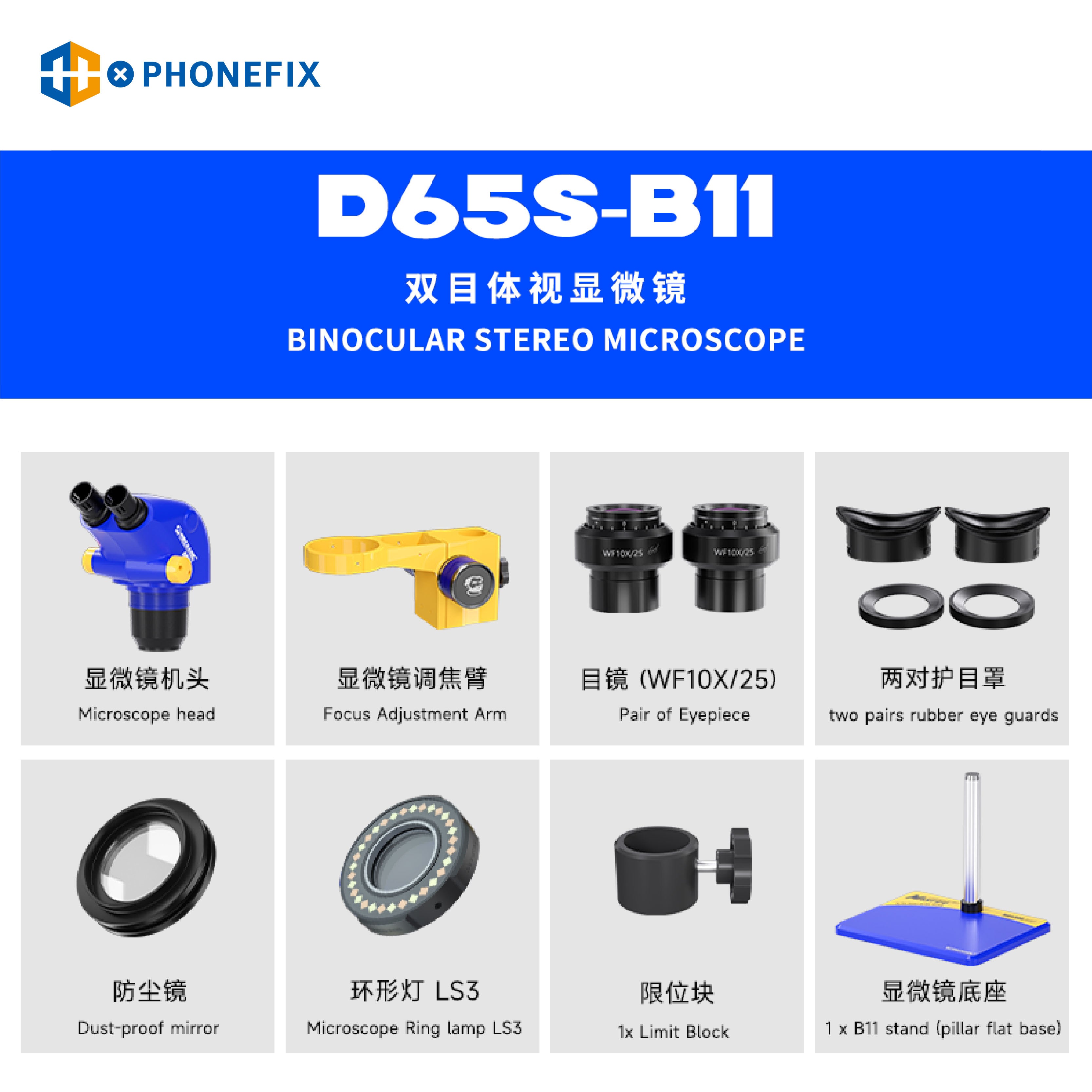

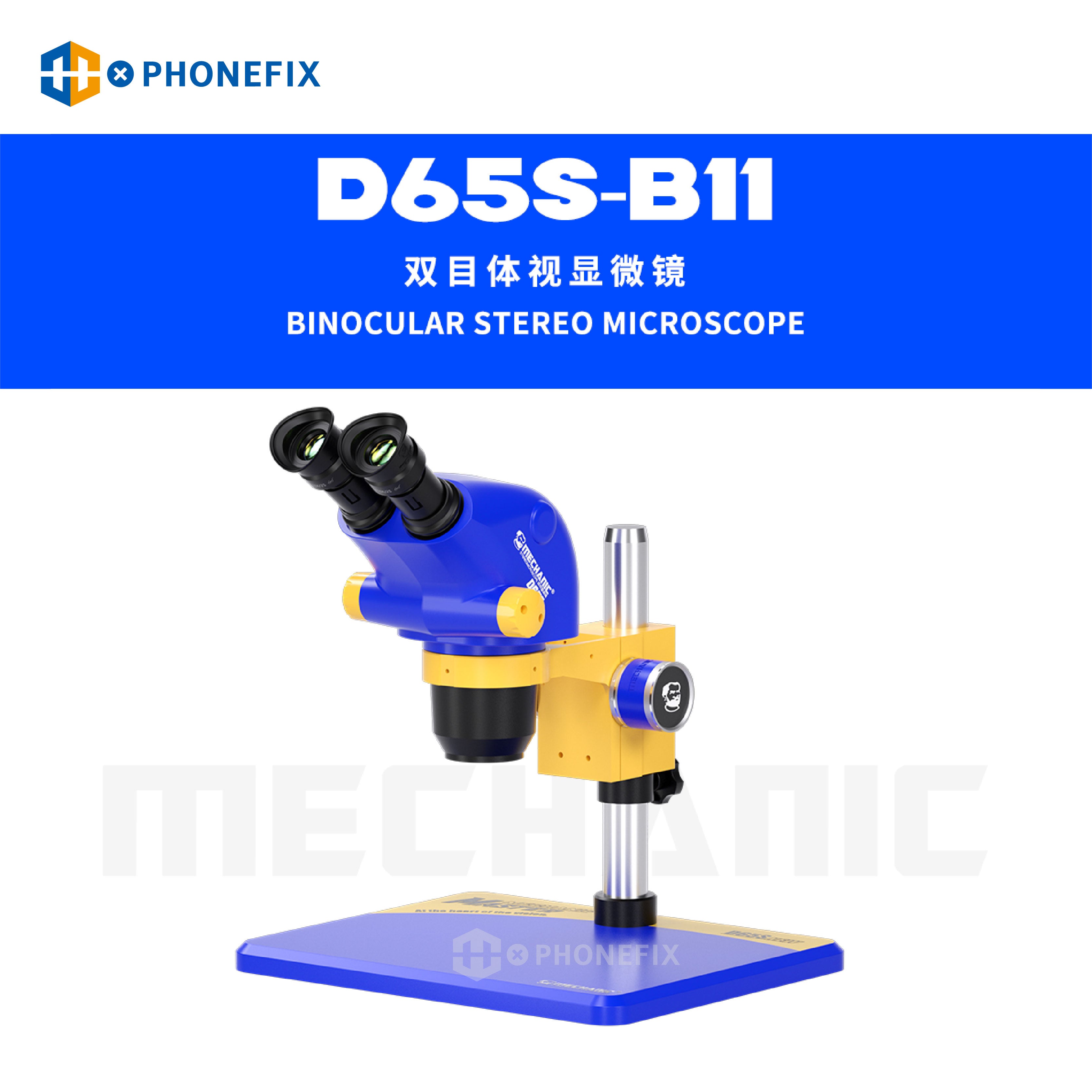

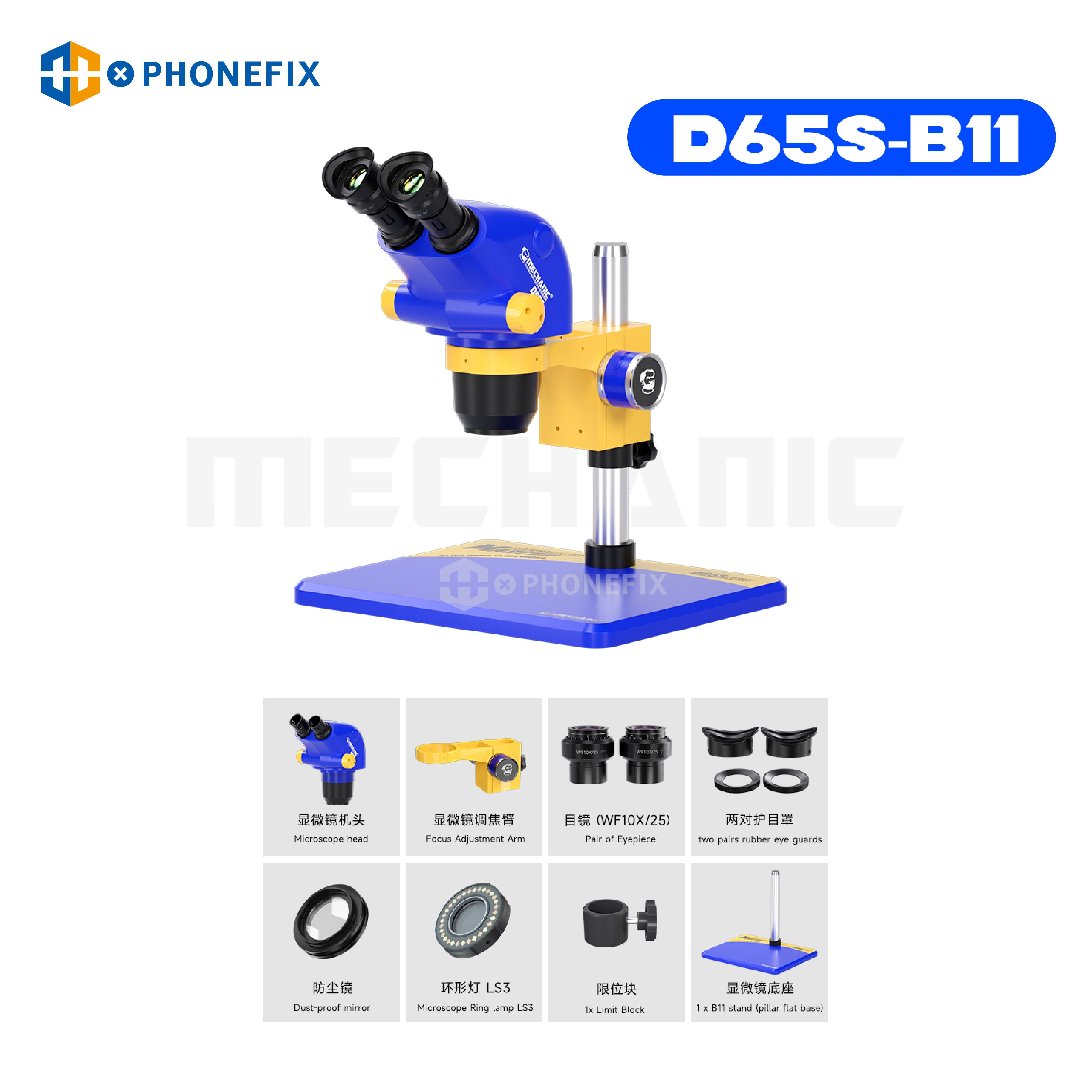

1. Mechanic D65S-B11: 6-65X binocular stereo microscope + B11 base.

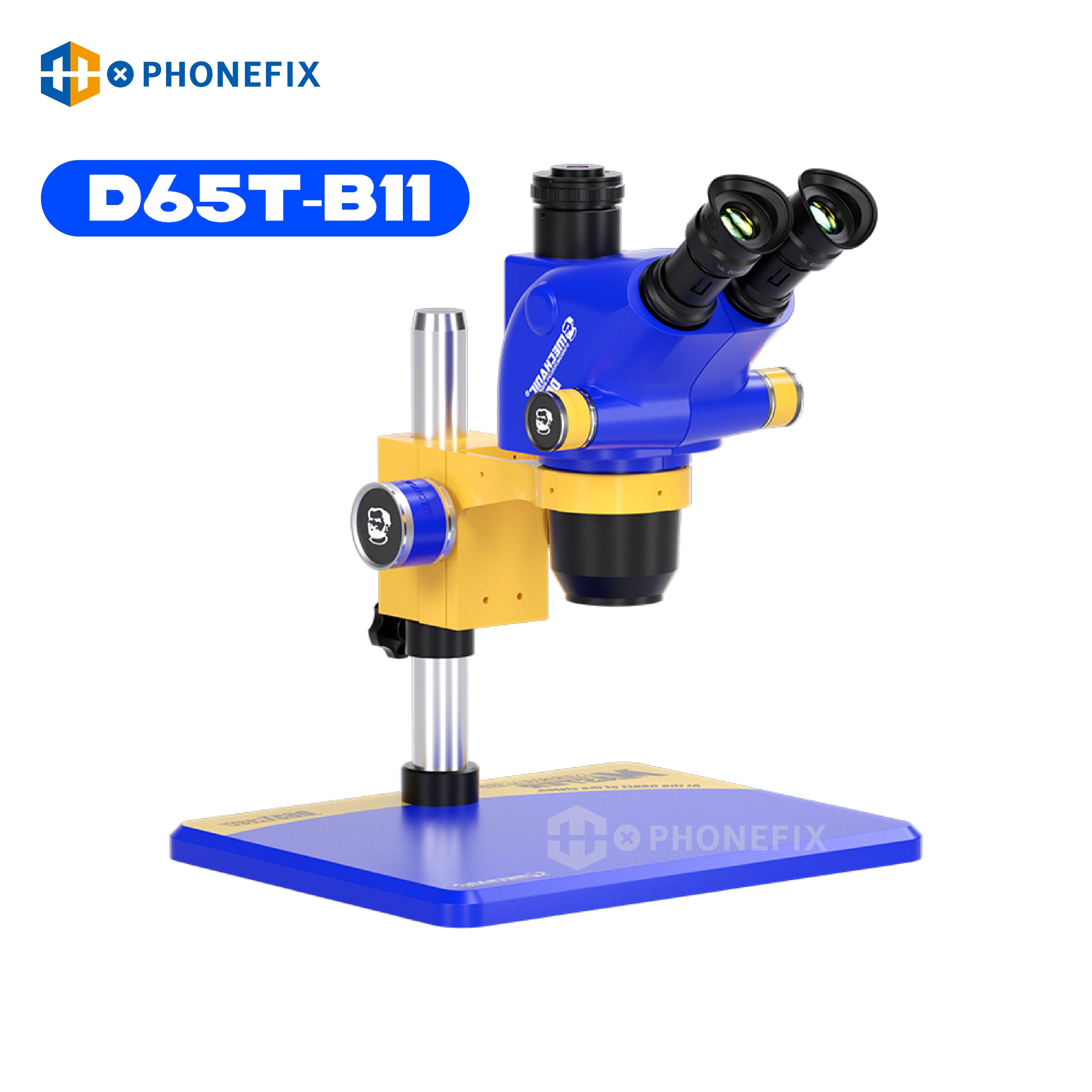

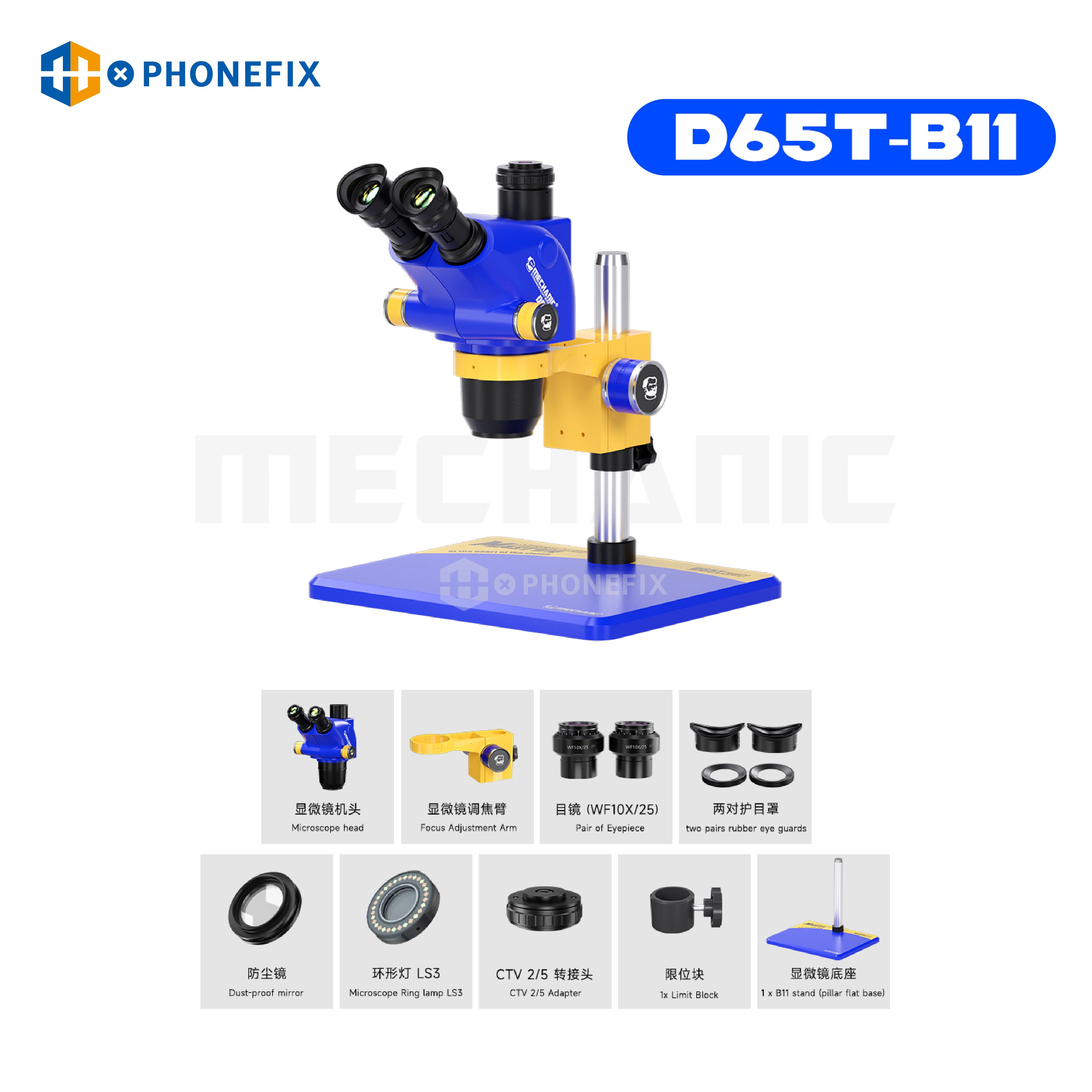

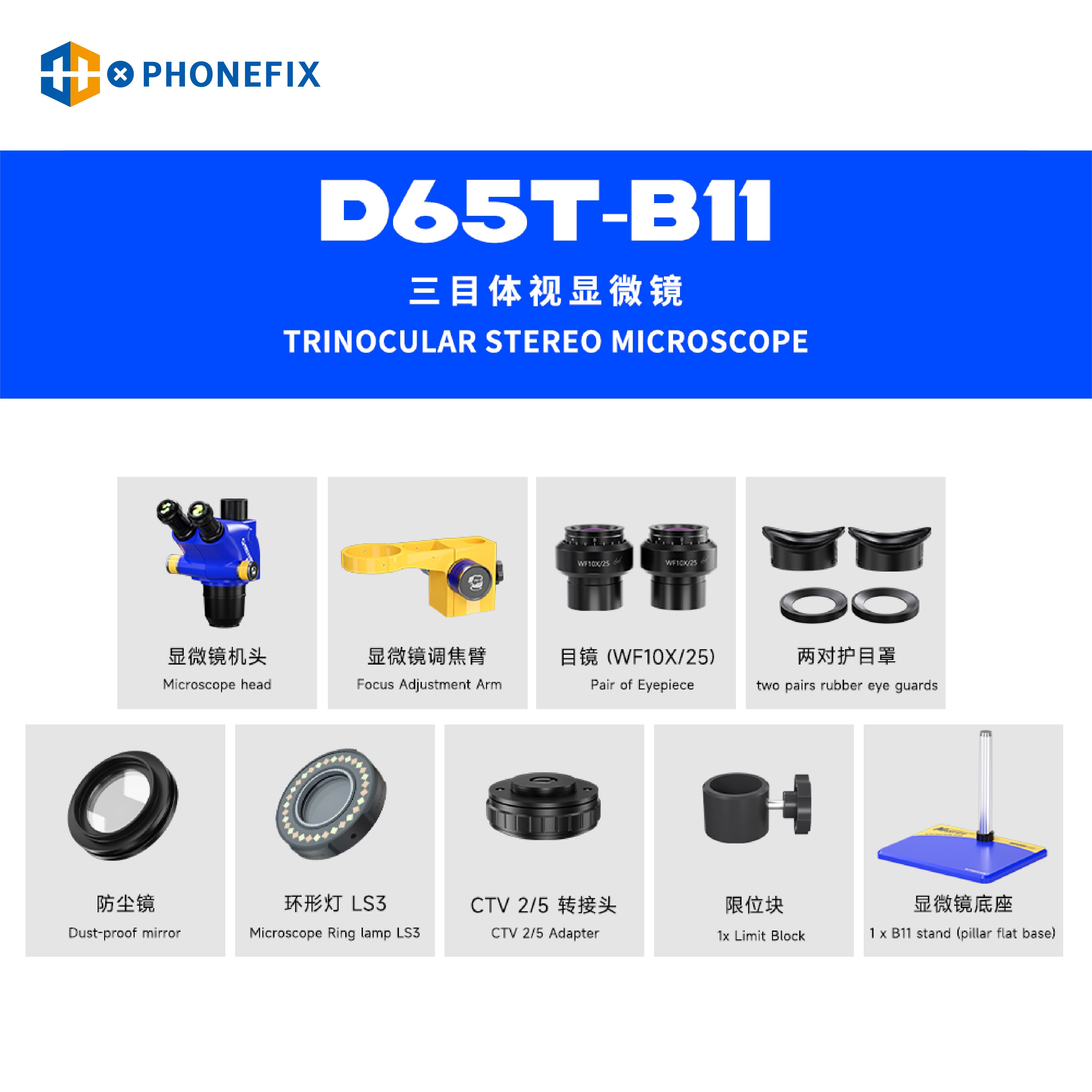

2. Mechanic D65T-B11: 6-65X trinocular stereo microscope + B11 base.

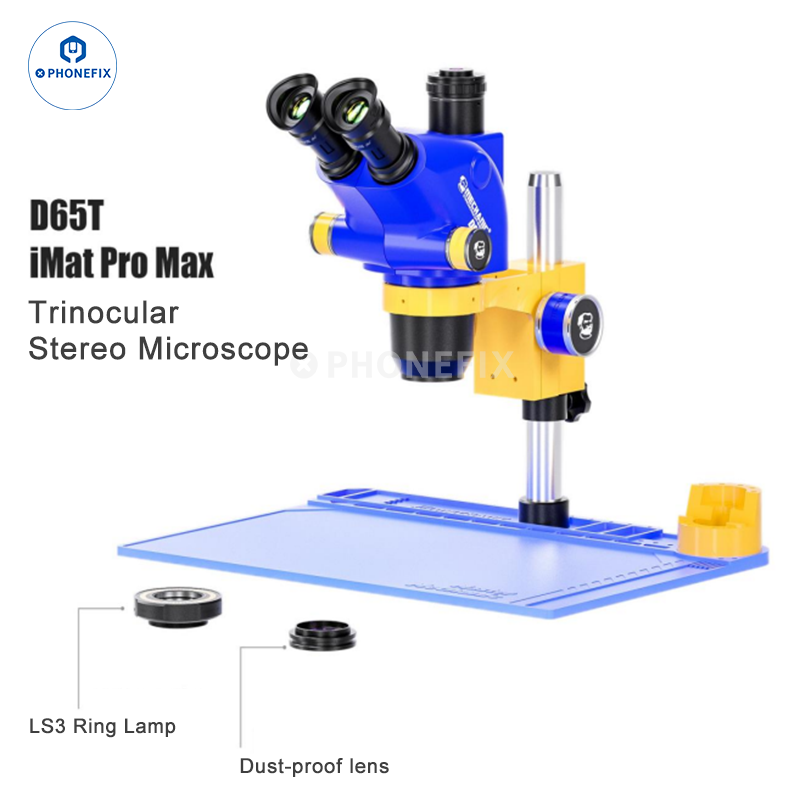

3. Mechanic D65T-iMat Pro Max: 6-65X trinocular stereo microscope + iMat Pro Max base (450*300mm).
Mechanic D65T features:
1. Observation head: Inclined at 45°, 360° rotate, pupil distance 54-76mm, bilateral visual adjustment ±5.
2. Working distance: 110mm, select auxiliary objective, which can be extended to 30mm-287mm.
3. 0.65X-6.5X zoom range, objective magnification ratio 1:10, ensure image alignment.
4. 76mm Diameter focus arm, 32mm pole size. B11 column type large plate base(height-280MM), other base can be selected.
5. Illumination: Optional LED Illumination.
6. Good pixels, high resolution, deep field, and long working distance makes operation convenient and comfortable and can connect to the external display.
7. The high field of view, FMC antireflection coating, high light transmittance, high refractive index, lens diameter of 25mm, clear imaging, and no vignetting.
8. With the newly upgraded electronic eyepiece, the imaging is clearer than the ordinary TV interface, and the field of view is wider.
9. Optical system, continuous zoom with large magnification, the image is sharp without distortion, and high definition; it can correctly focus on the sample with a large concave and convex surface, to obtain a three-dimensional image.
10. Focusing knob, the focusing gear bar is made of metal material, which is durable, and the precise focusing with magnification makes the image clear.
11. High-definition coated dust-proof mirror: Double-sided high-definition coated dust-proof mirror, which can effectively prevent dust, smoke, oil, etc.

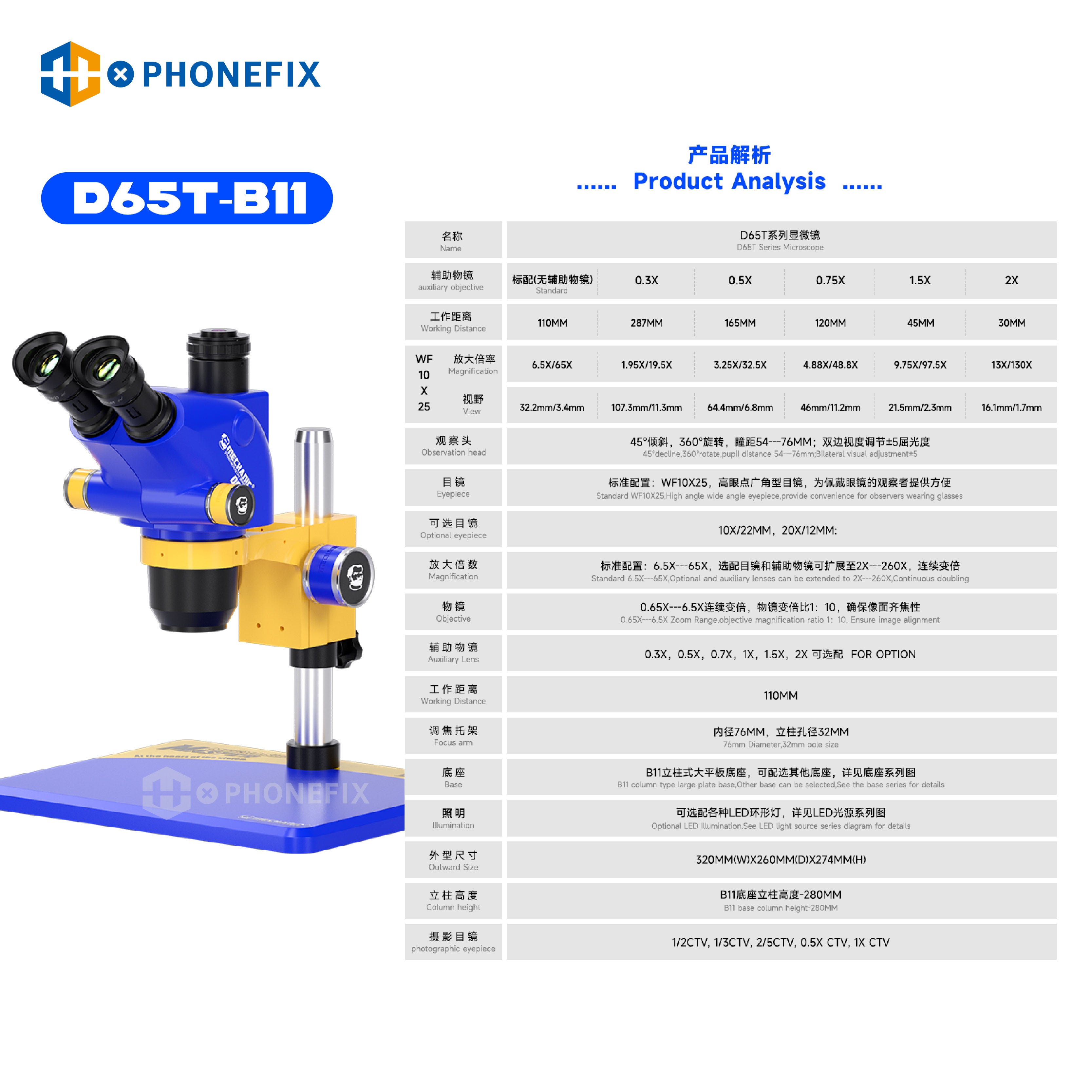

Mechanic D65T Specification:
Model: Mechanic D65T 6.5X-65X Trinocular Stereo Microscope.
Magnification: 6.5X-65X, with other lens/eyepieces: 2X-260X.
Standard eyepiece: WF10X25 (optional: 10X/22MM, 20X/12MM).
Auxiliary lens: 0.3X/287mm, 0.5X/165mm, 0.75X/120mm, 1.5X/45mm, 2X/30mm.
Working distance: 110mm(standard).
Photographic eyepiece: 1/2CTV(standard), 1/3CTV, 2/5 CTV, 0.5X CTV, 1X CTV.
Mechanic D65S features:
1. Observation head: Inclined at 45°, 360° rotate, pupil distance 54-76mm, bilateral visual adjustment ±5.
2. 0.65X-6.5X zoom range, with optional eyepiece and lens can be extended to 2X-260X, objective magnification ratio 1:10, ensure image alignment.
3. Working distance: 110mm, select auxiliary objective, which can be extended to 30mm-287mm.
4. 76mm Diameter focus arm, 32mm pole size. B11 column type large plate base(height-280MM), other base can be selected.
5. Illumination: Optional LED Illumination.
6. Good pixels, high resolution, deep field, and long working distance makes operation convenient and comfortable and can connect to the external display.
7. With the newly upgraded electronic eyepiece, the imaging is clearer than the ordinary TV interface, and the field of view is wider.
10. Focusing knob, the focusing gear bar is made of metal material, which is durable, and the precise focusing with magnification makes the image clear.
11. High-definition coated dust-proof mirror: Double-sided high-definition coated dust-proof mirror, which can effectively prevent dust, smoke, oil, etc.

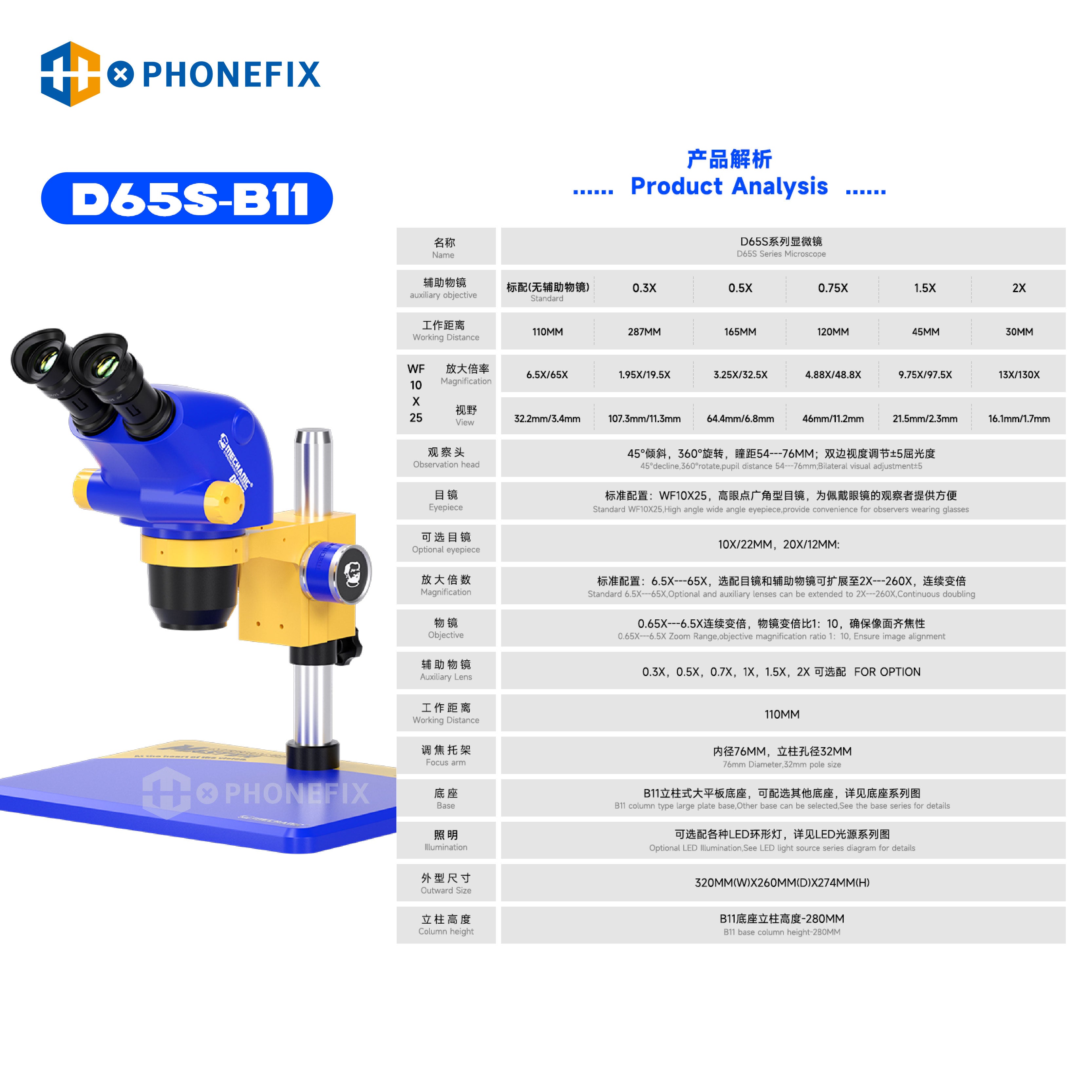

Mechanic D65S Specification:
Model: Mechanic D65S 6.5X-65X Binocular Stereo Microscope.
Magnification: 6.5X-65X, with other lens/eyepieces: 2X-260X.
Standard eyepiece: WF10X25 (optional: 10X/22MM, 20X/12MM).
Auxiliary lens: 0.3X/287mm, 0.5X/165mm, 0.75X/120mm, 1.5X/45mm, 2X/30mm.
Working distance: 110mm(standard).
