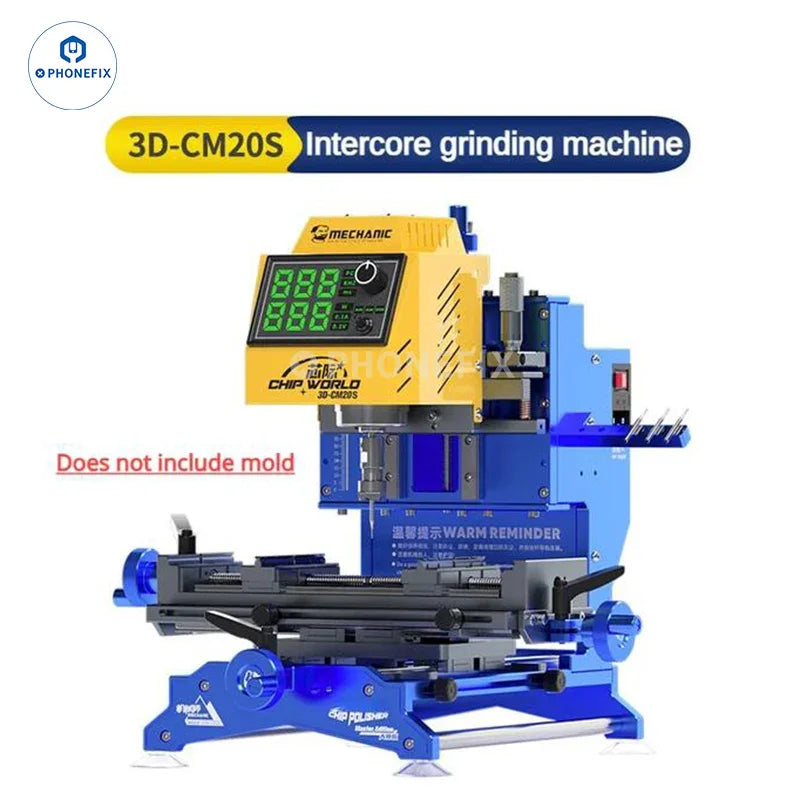

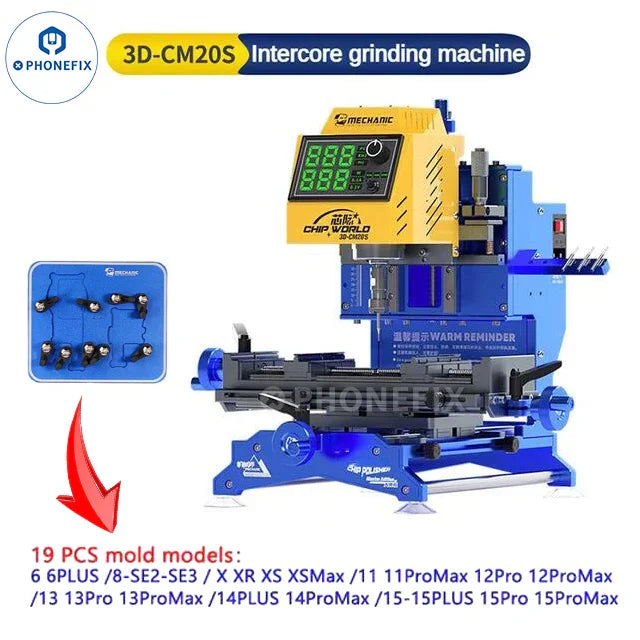

Mechanic 3D-CM20S Chip Grinding Machine Phone PCB IC Grinder

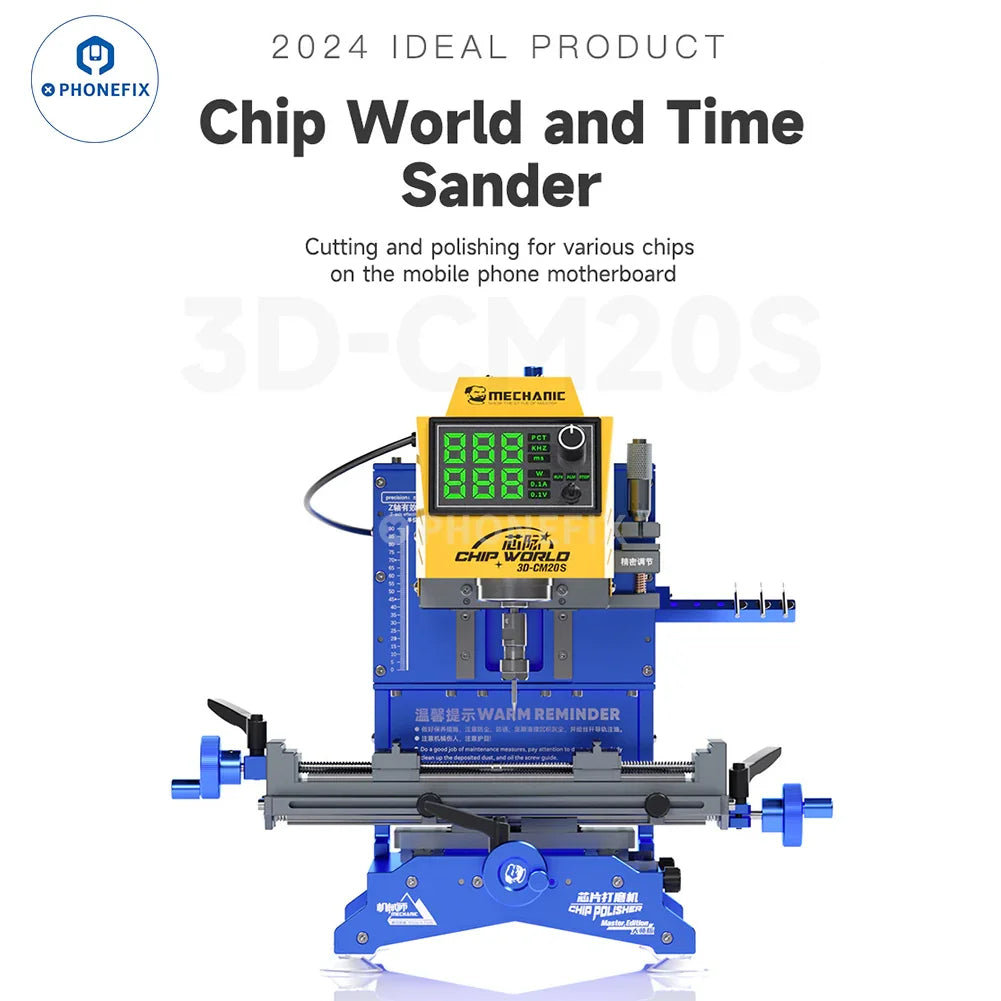

Mechanic 3D-CM20S three-axis linkage precision chip polishing grinder machine for cutting and grinding various chips on the mobile phone motherboard. Mechanic 3D-CM20S smartphone motherboard CNC/CPU chip cutting grinding machine with iPhone X-15 Pro Max positioning mode.

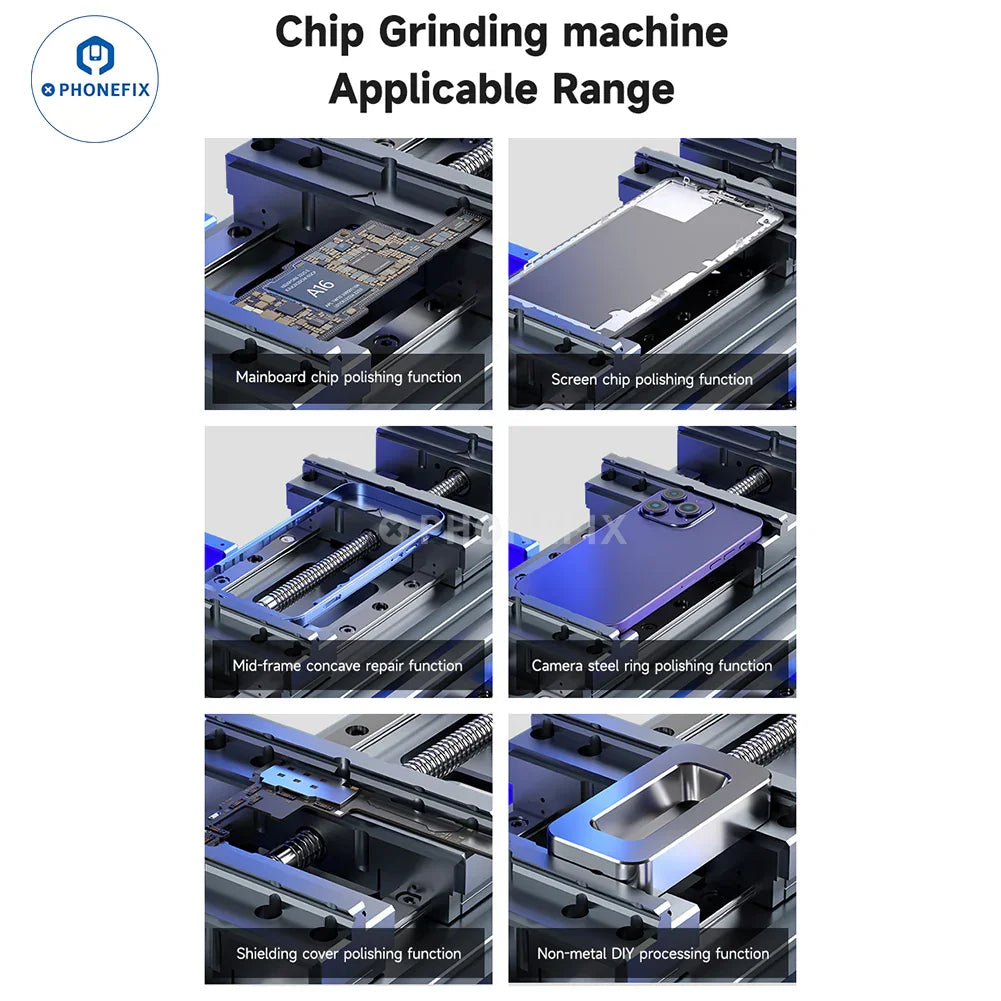

Mechanic 3D-CM20S main functions:
1. Motherboard chip grinding polishing.
2. Phone Screen chip polishing grinding.
3. iPhone Mid-frame concave repair.
4. Shielding cover grinding
5. Camera steel ring polishing grinding
6. Non-metallic DIY processing.

Features:

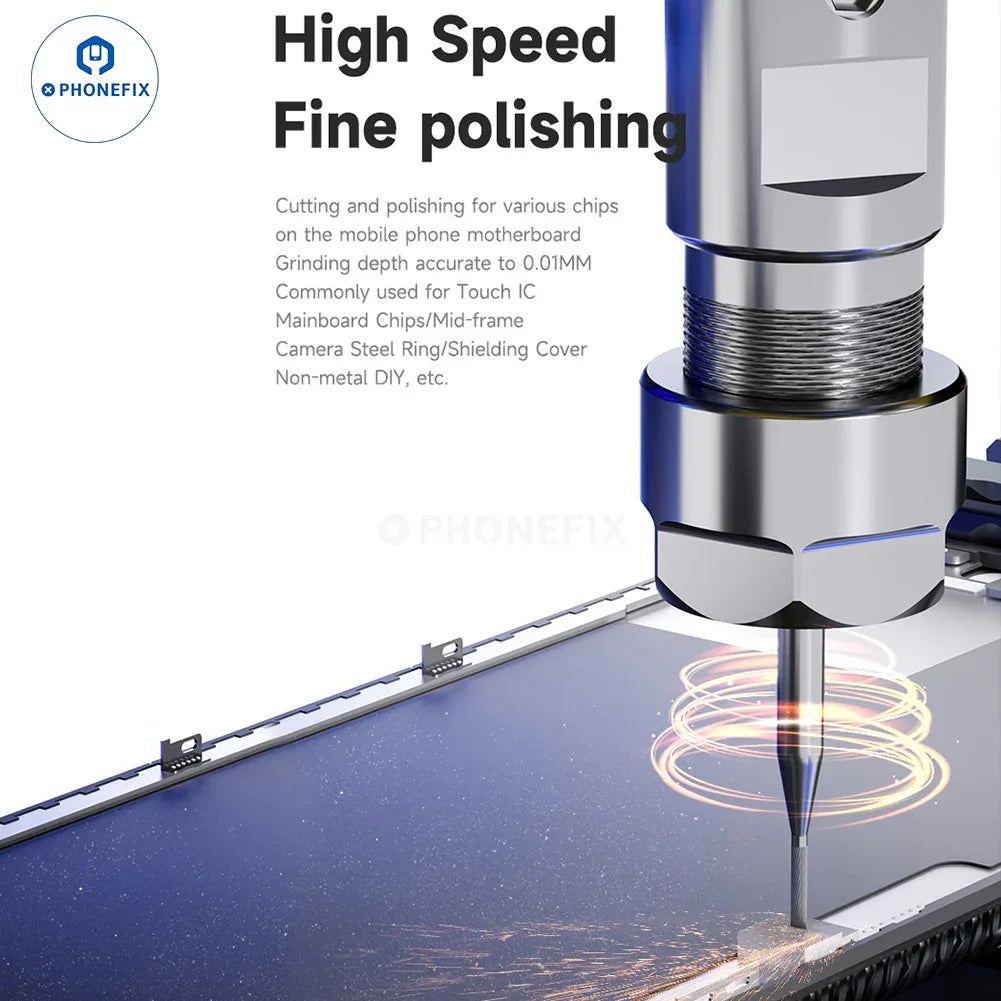

1. Cutting and polishing chips on the mobile phone motherboard, like motherboard chip grinding, phone screen touch IC grinding, phone middle frame repair, camera steel ring grinding, shielding cover grinding, non-metal DIY, ect.

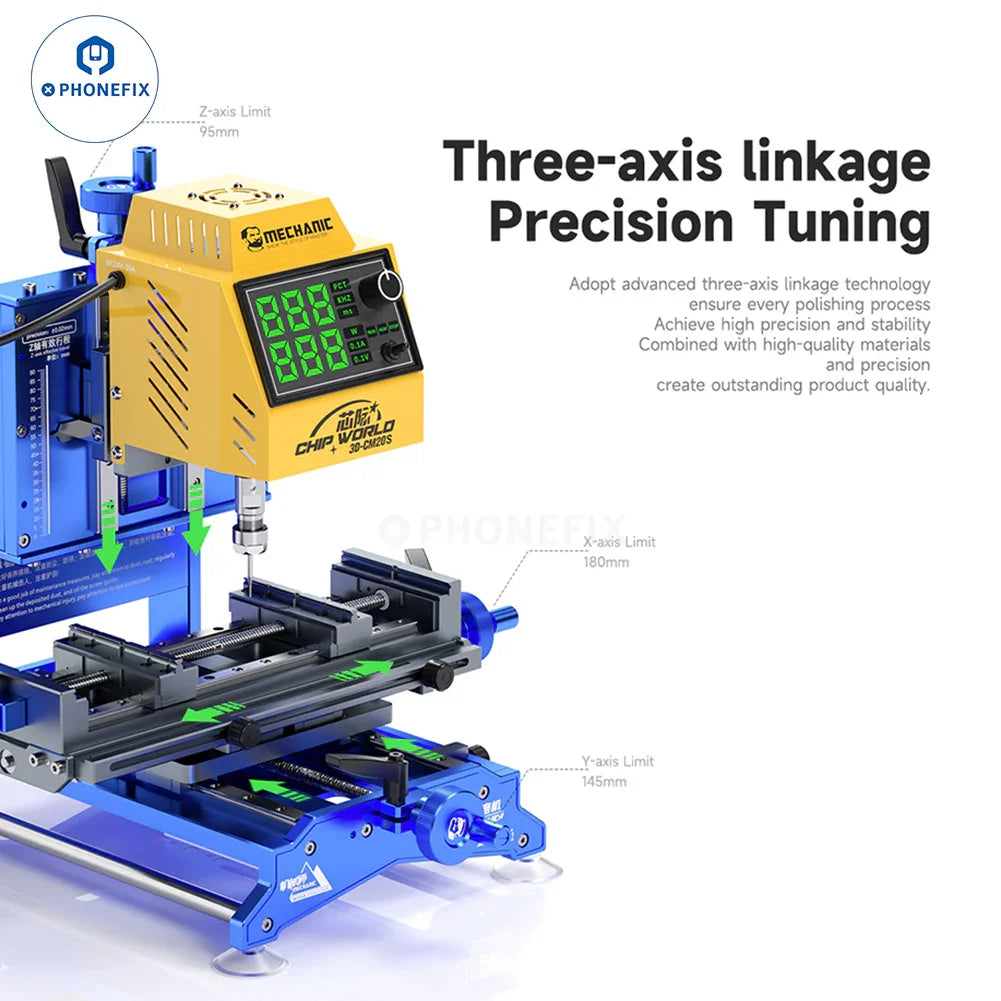

2. Three-axis linkage precision tuning ensures every polishing process, grinding depth accurate to 0.01mm, achieves high precision and stability, combined with high-quality materials and precision to create outstanding product quality.

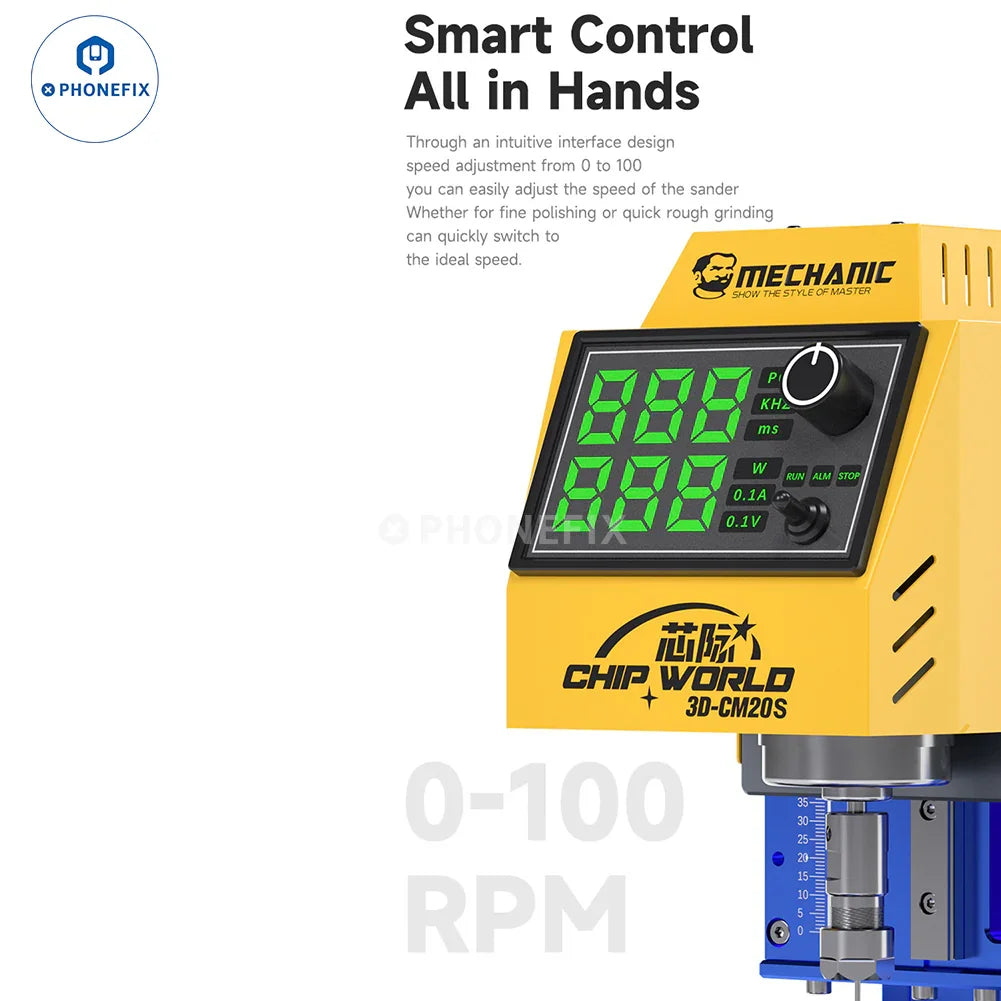

3. Smart control, through an intuitive interface design speed adjustment front 0 to 100, you can easily adjust the speed of the sander, whether for fine polishing or quick rough grinding can quickly switch to the ideal speed.

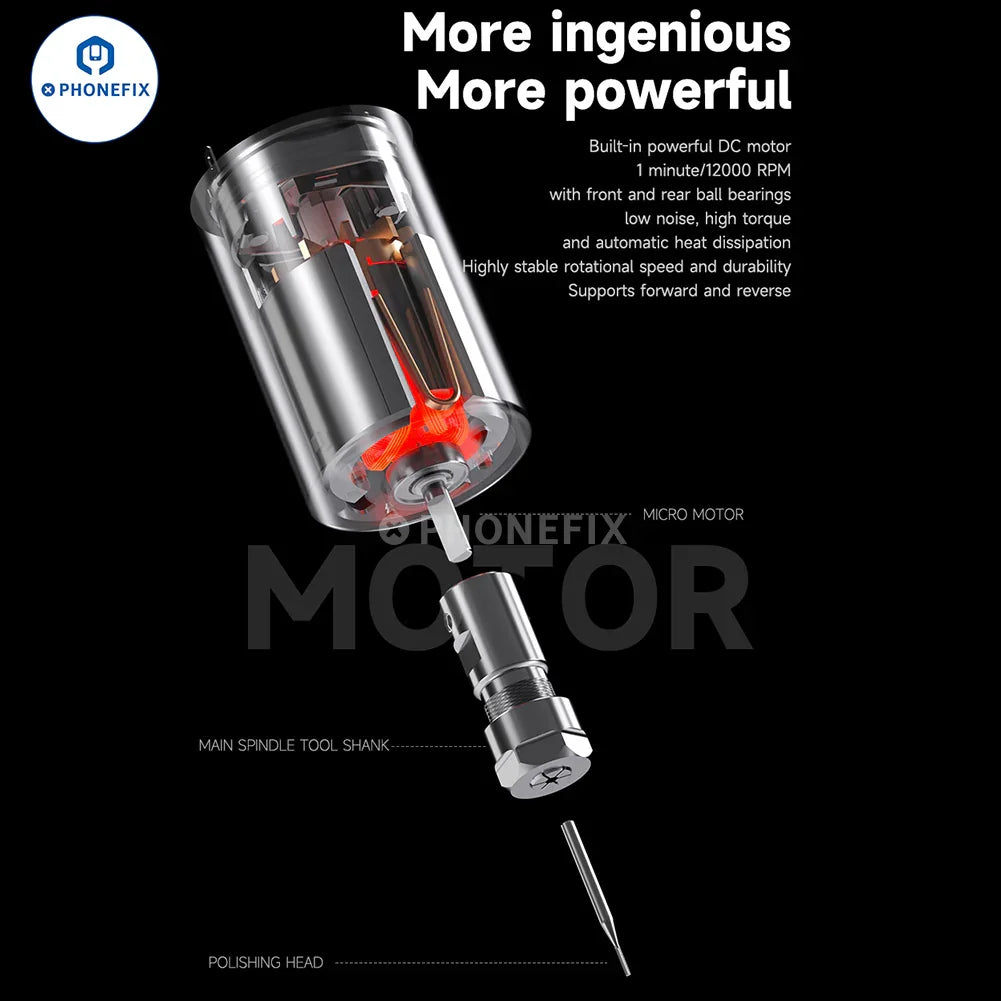

4. Built-in powerful DC motor, 1 minute/12000 RPM with front and rear ball bearings, low noise, high torque and automatic heat dissipation, highly stable rotable rotational speed and durability, supports forward and reverse.

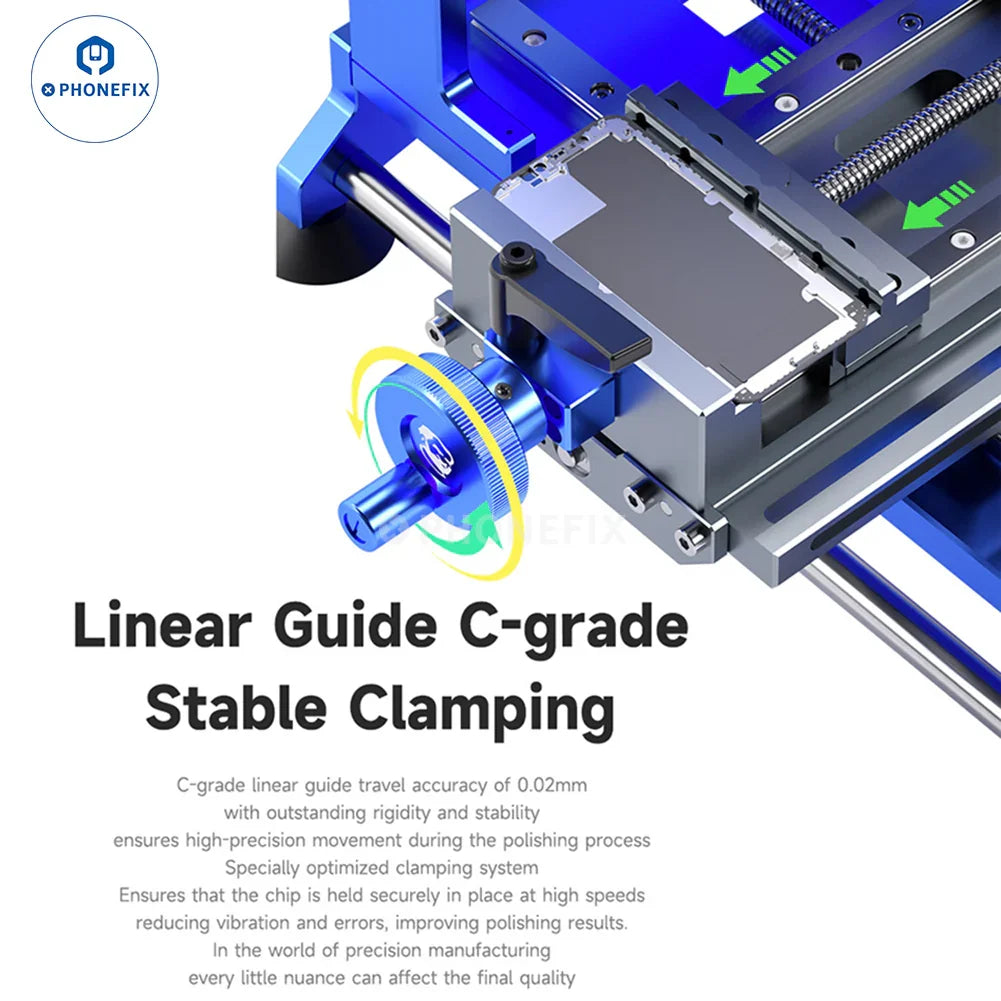

5. C-grade linear guide travel accuracy of 0.02mm with outstanding rigidity and stability ensures high-precision movement during the polishing process. Specially optimized clamping system. Ensures that the ship is held securely in place at high speeds reducing vibration and errors, improving polishing results.

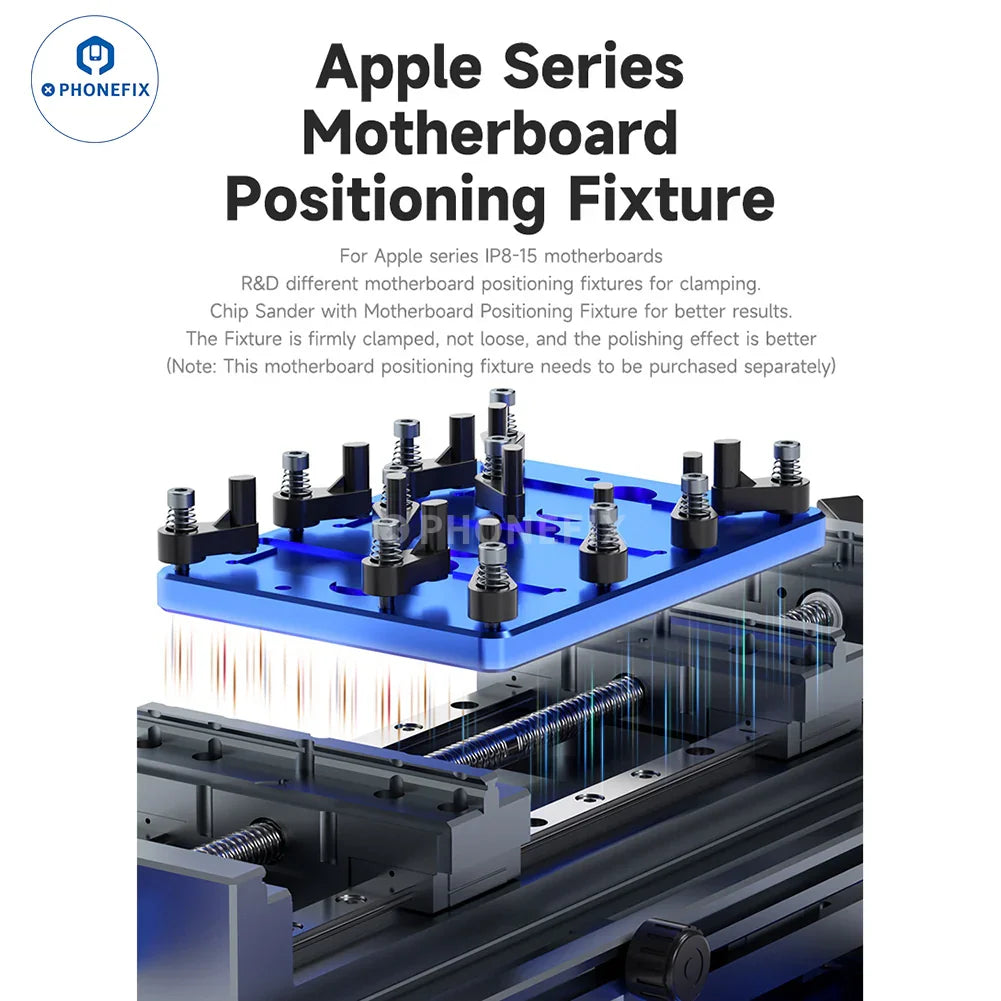

6. Apple iPhone motherboard positioning fixture for clamping iPhone 8-15 Pro Max motherboard. The fixture is firmly clamped, not loose. (Note: the iPhone motherboard positioning fixture needs to be purchased separately).

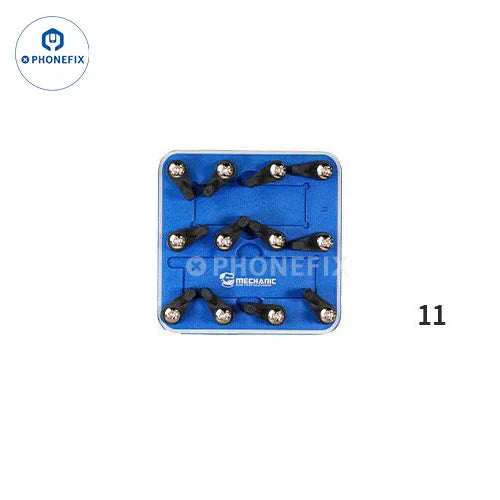

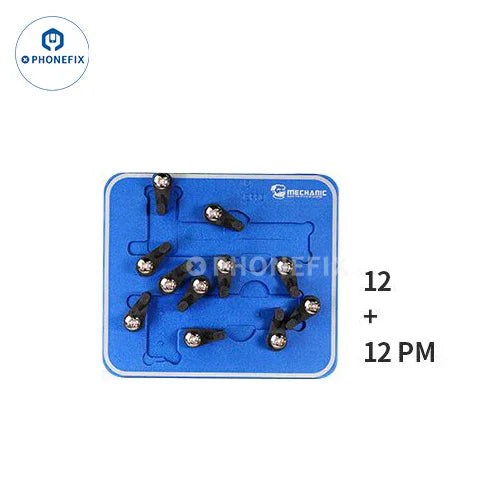

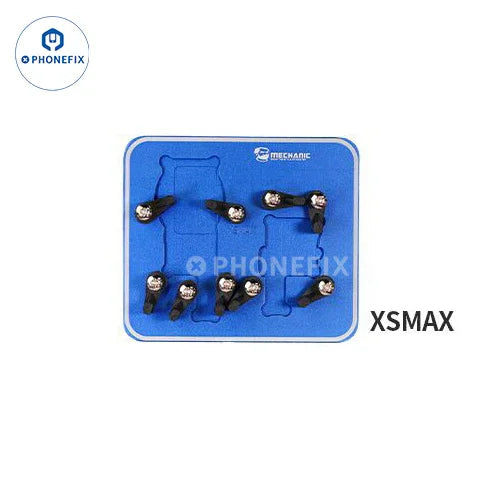

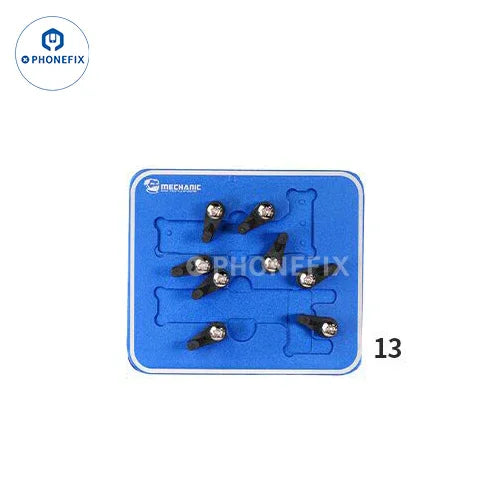

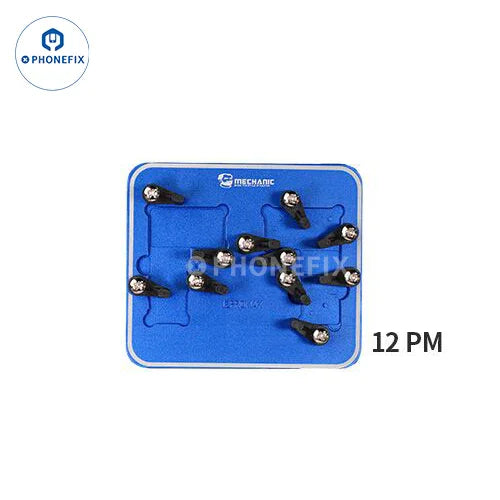

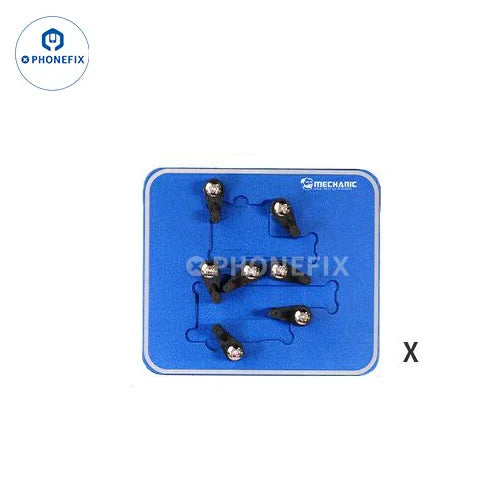

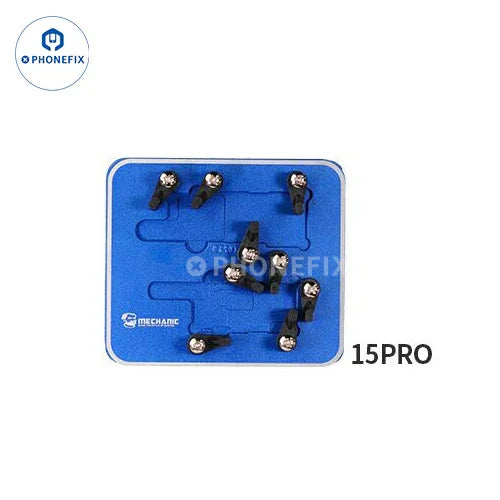

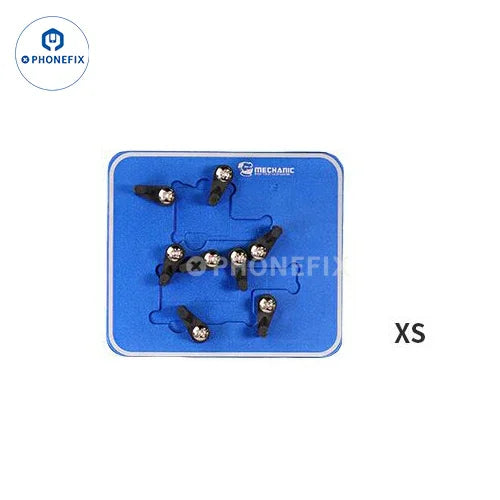

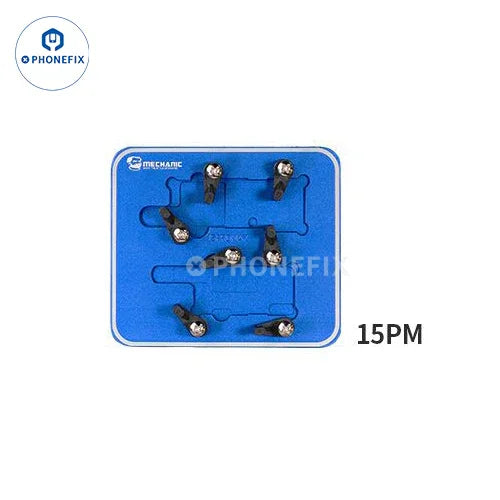

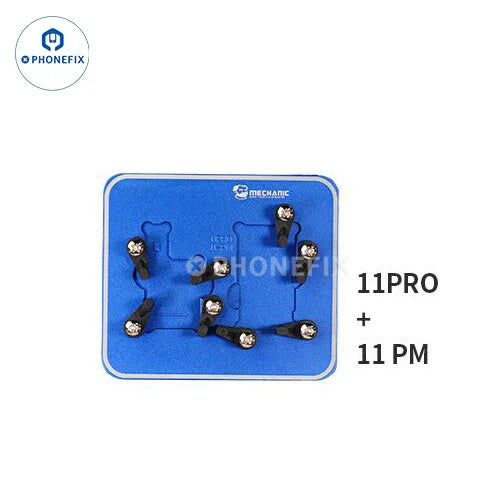

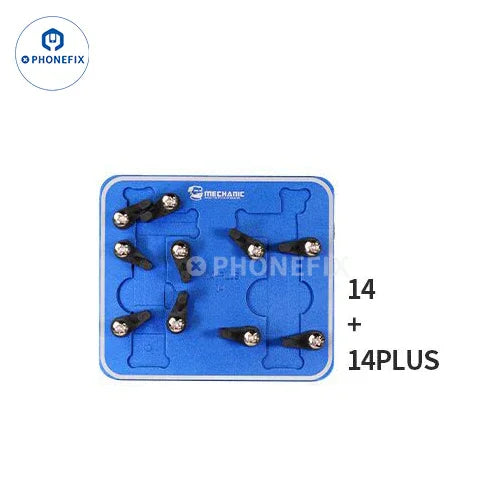

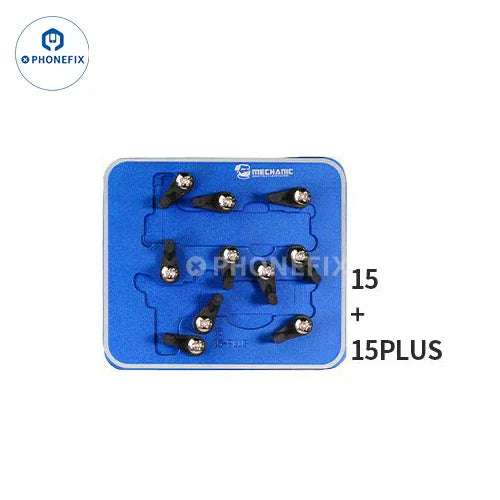

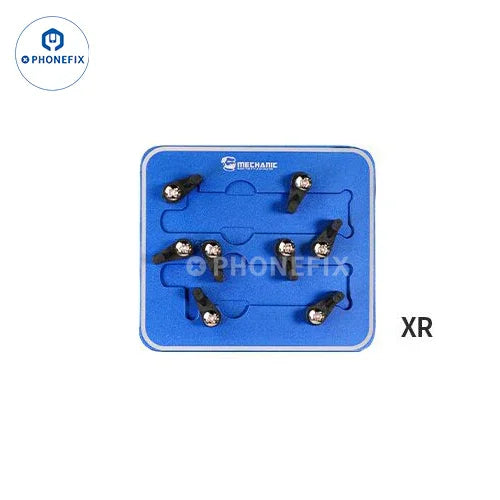

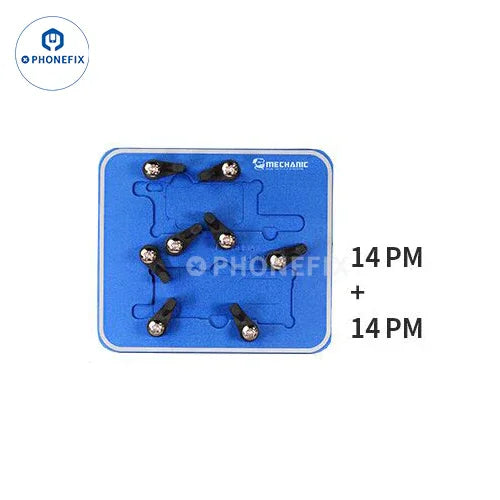

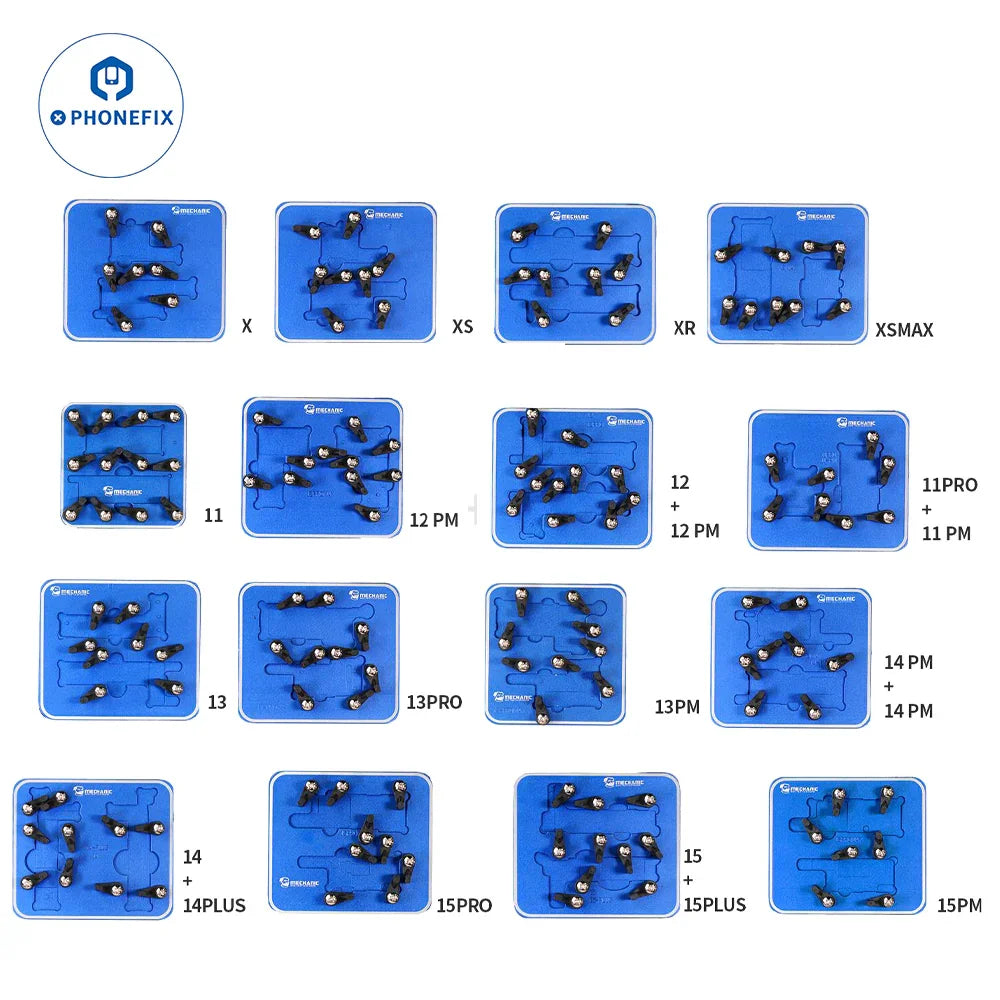

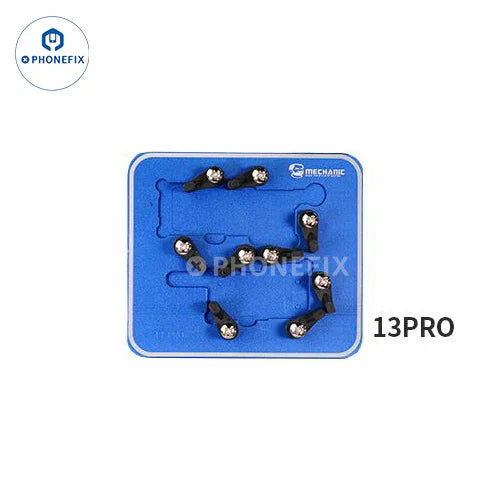

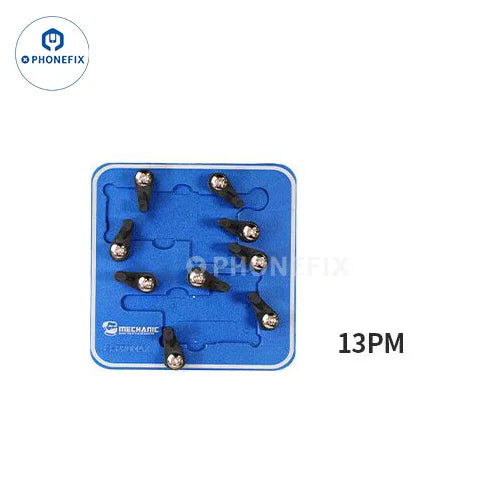

7. Mechanic 3D-CM20S motherboard positioning fixture available for iPhone 6, 6 Plus, 8/SE2/SE3, X, XS, XR, XS MAX, 11, 12 Pro Max, 12/12Pro, 11Pro/11 Pro Max, 13, 13 Pro, 13 Pro Max, 14/14 Plus, 14Pro/14 Pro Max, 15/15 Plus, 15 Pro, 15 Pro Max, will release more models in the future.

Option:

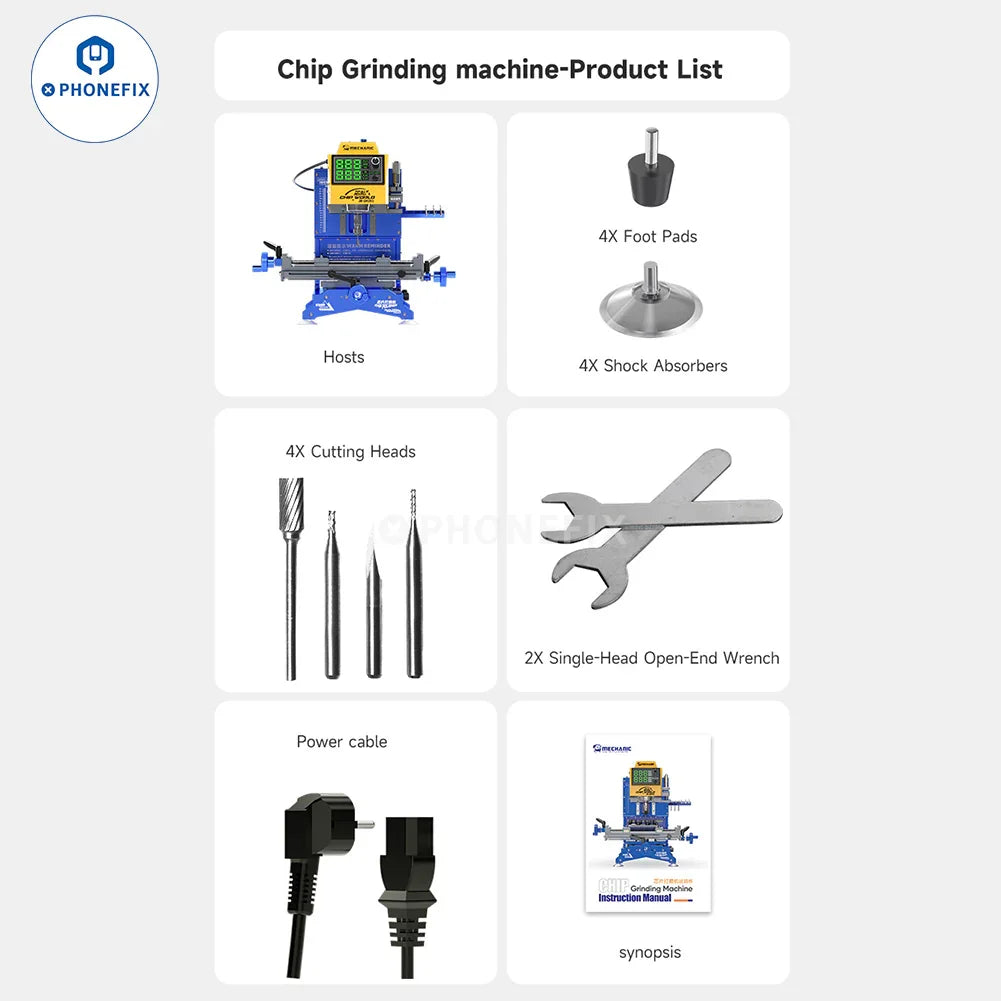

1. Mechanic 3D-CM20S Chip Grinding Machine only (without molds).
2. Different iPhone molds (optional).

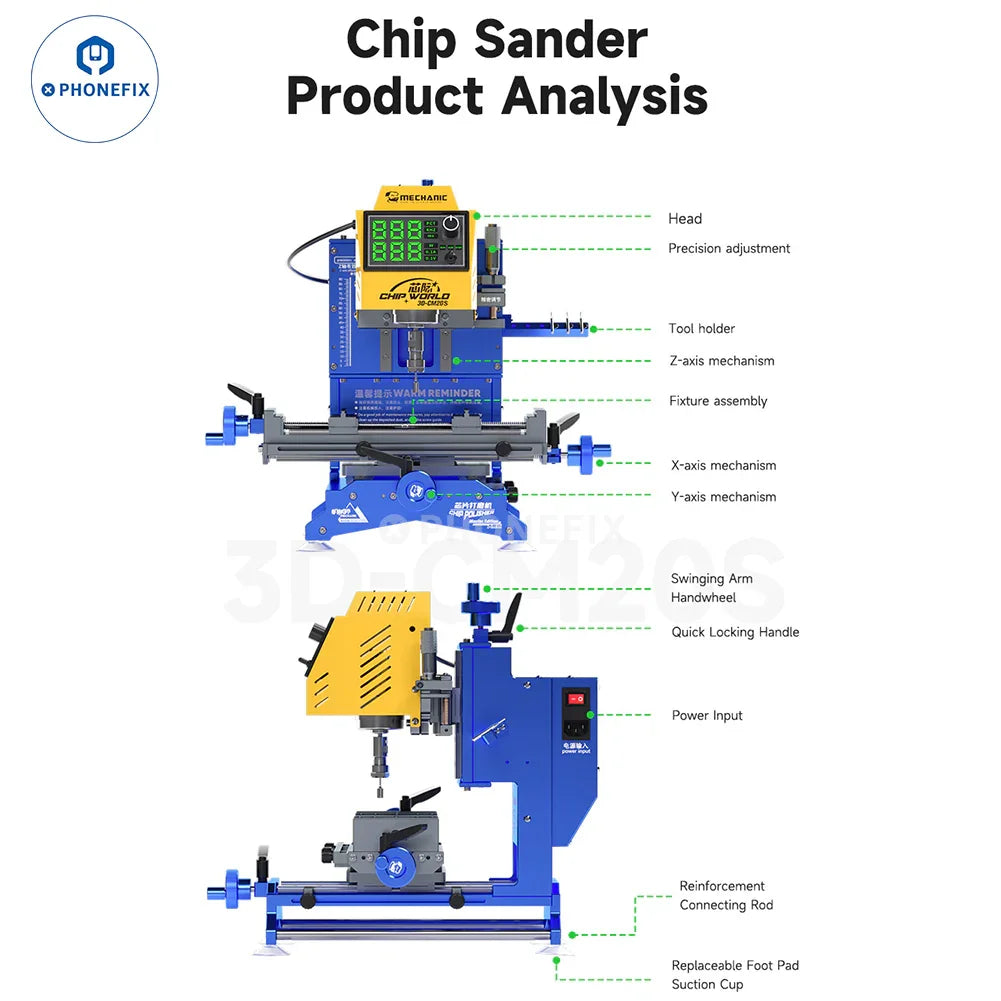

Parameters:
Model: Mechanic 3D-CM20S Chip Grinding Machine.
Input voltage: 100-220V AC.
Power: 60W.
Overall machine accuracy: ±0.02mm.
Vise width: 210mm.
Guideway accuracy: 5um.
Swinging arm handwheel: 2mm(cycle).
Size: 400x420x400mm
Packing: 465x445x455mm.
Gross weight: 14kg.
