10X-150X simul-focal trinocular stereo microscope head with continuous zoom WF10X/20 eyepiece auxiliary objective lens, HD 1080P 5MP integrated trinocular stereo white microscope with LCD display screen, 8 horizontal and vertical grid lines, color thickness adjustable and movable, 1080P 5MP Lab industrial simul-focal trinocular stereo microscope for mobile phone PCB soldering repair

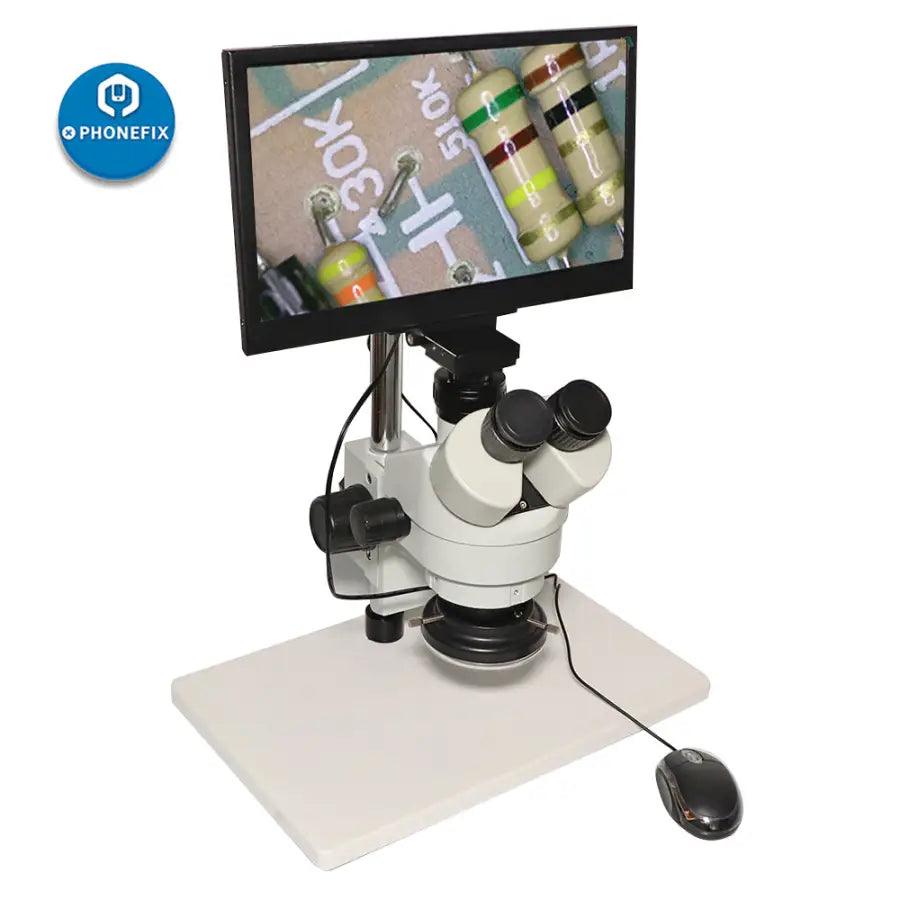

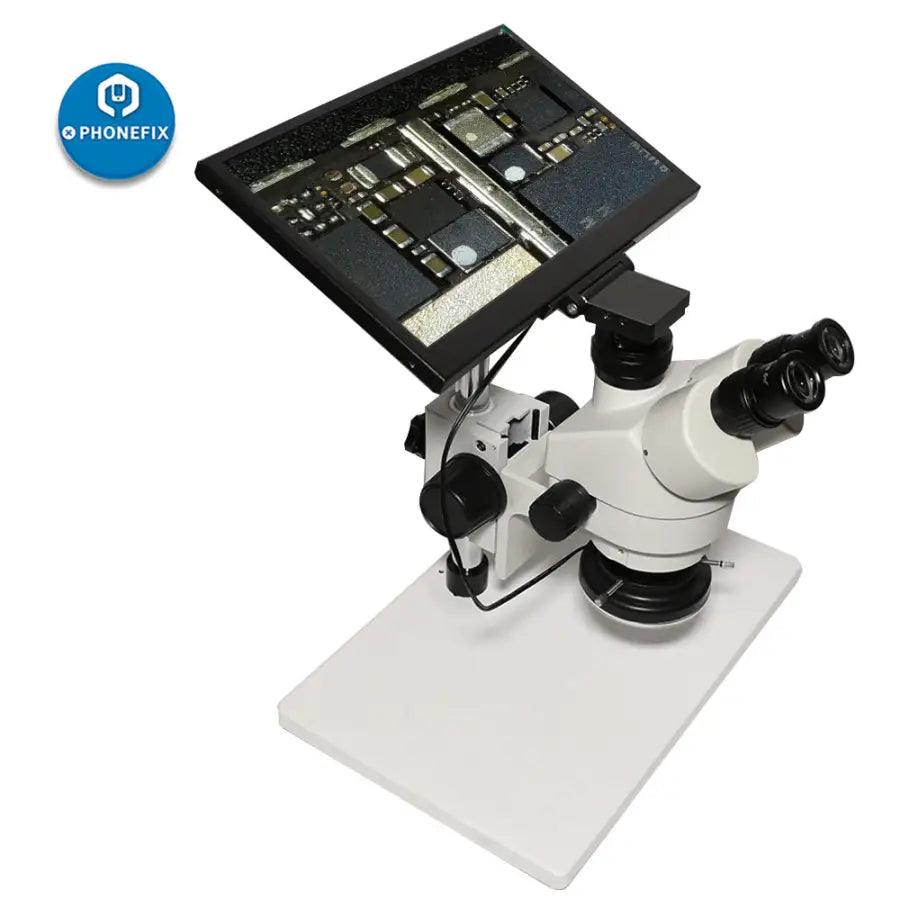

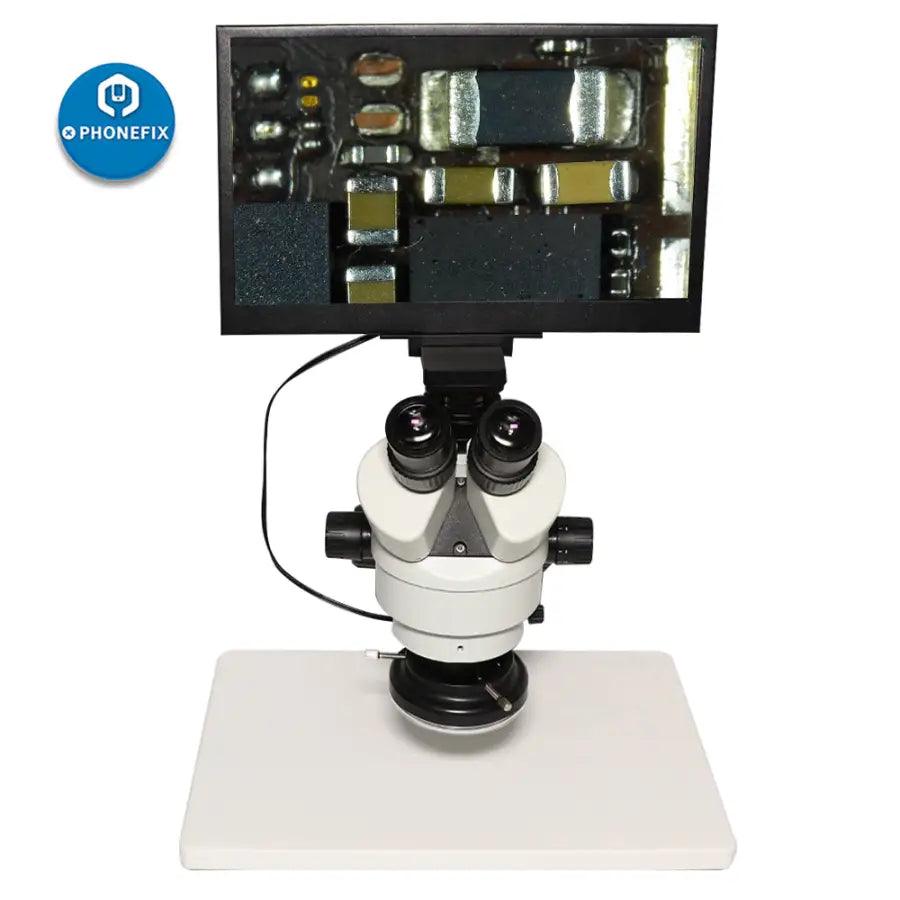

Integrated Trinocular Stereo White Microscope with LCD Display Screen
Product Specification :

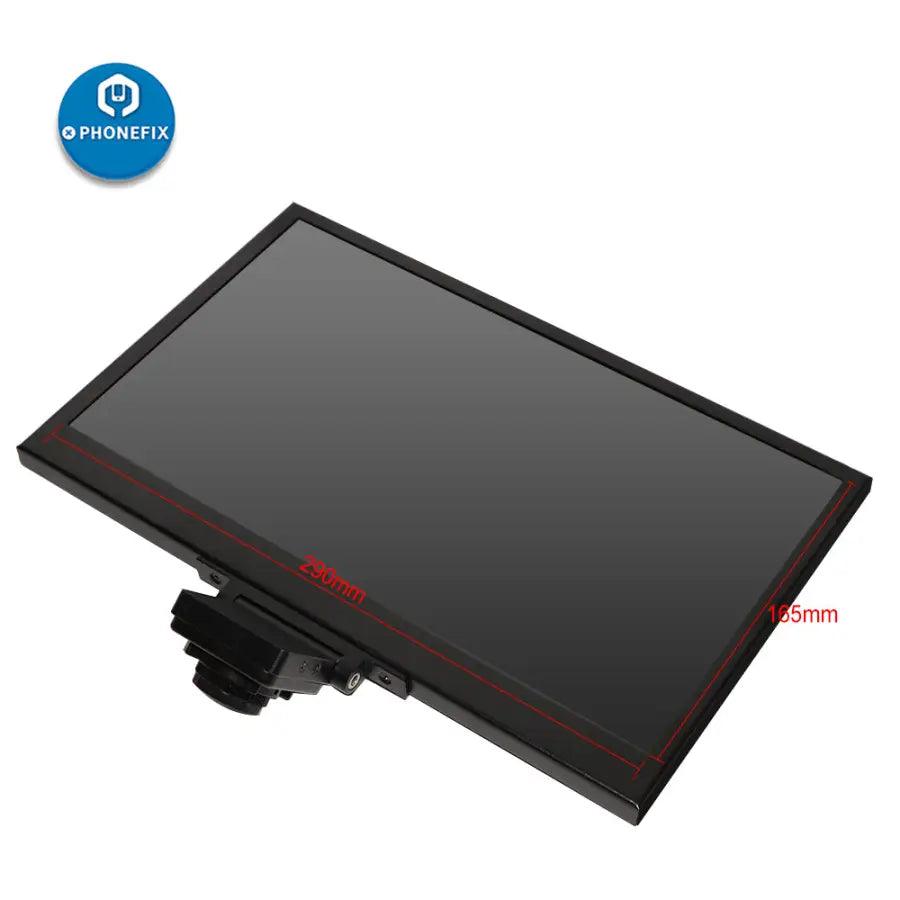

- Display: 13.3 inch

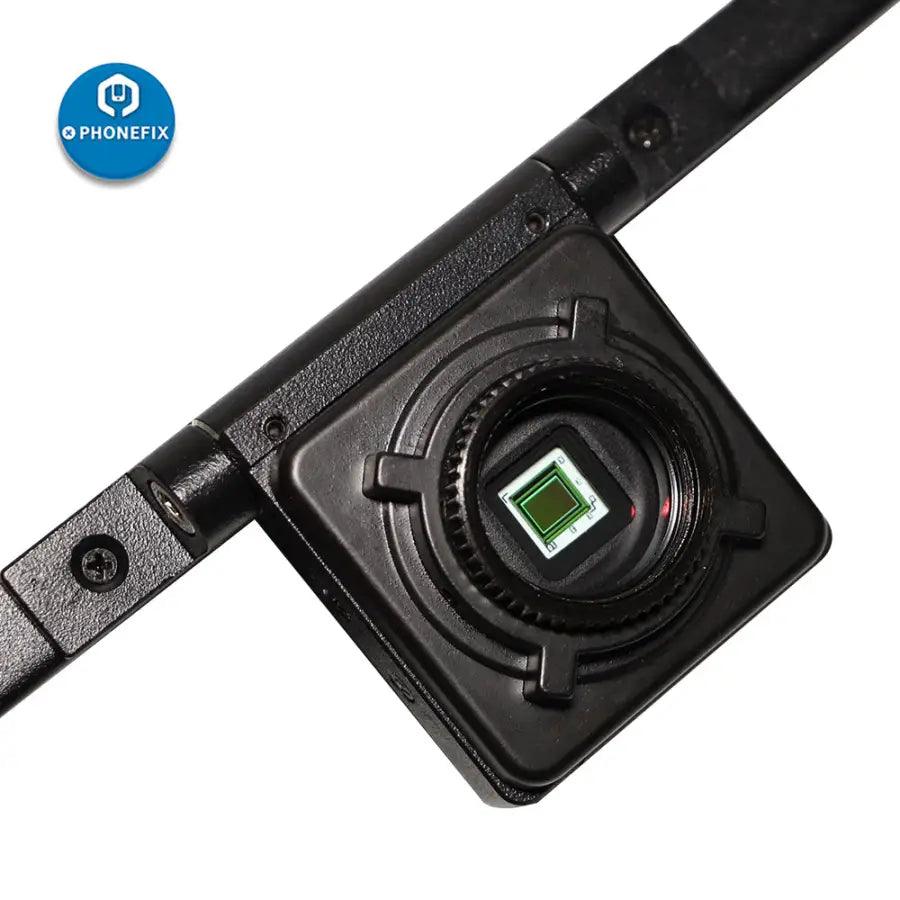

- Digital Camera: HD 1080P 5MP, 10 million pixels
- Image Resolution: 1920* 1080
- Frame Rate: HDIM output, 60 frames/second
- Output interface: HDMI output + USB output
- Optical Magnification: 10X - 150X
- Electronic Magnification 10-150 (standard 13.3 inch) Max 1000X
- Camera Interface Eyepiece: 0.4X (large viewing angle, no vignetting)
- Observation Head: inclined at 45, and the viewing binocular observation head can make 360, the adjustment range of interpupillary distance: 54-76mm, both eyepiecestalk visibility can be adjusted, and adjustable range is ±5 diopters, trinocular spectroscopy imaging
- Eyepiece: wide field, high-point eyepiece WF10X20, it can observe image of observation specimen with glasses
- Continuous Zoom: 1:6.5
- Working Distance: Standard working distance 100mm, but extended range of working distance is 30mm-265mm with auxiliary objectives

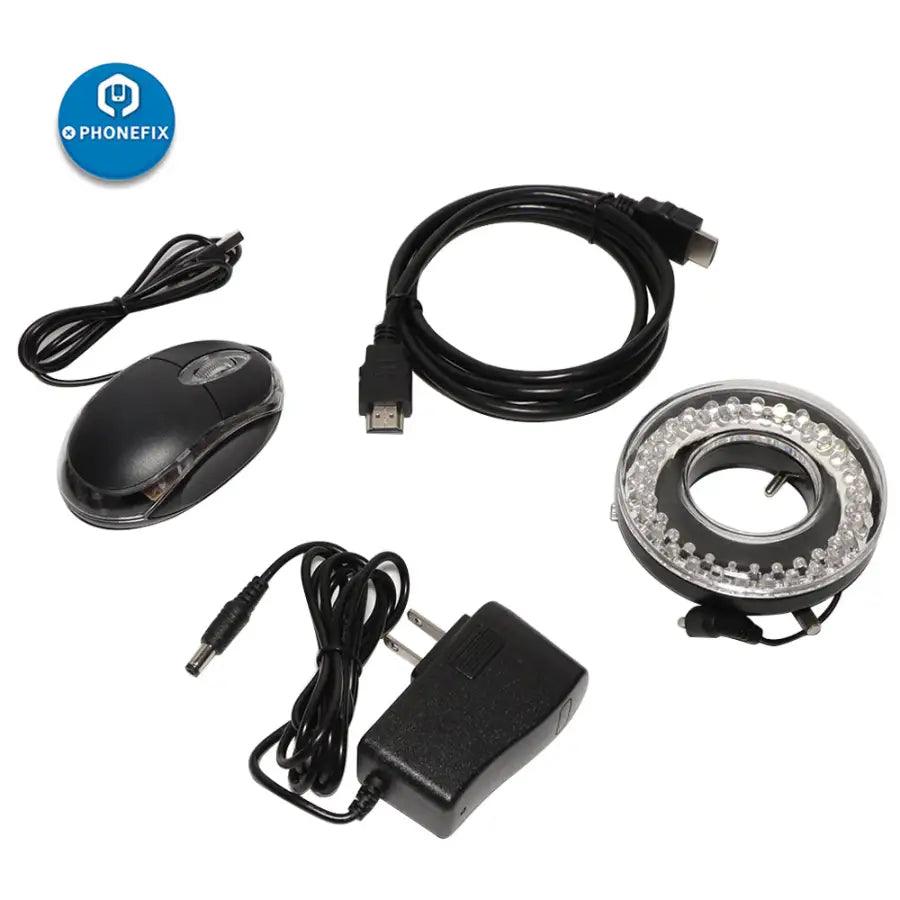

- Auxiliary illuminant: 56 high-brightness ∮5mm LED lamp beads, brightness can be adjusted
- Bracket: Big workbench
- Column Height: 240mm
- Base Size: 380*250mm
- Optional Eyepiece: WF15X15mm, WF20X10mm, WF25X9mm, WF30X8mm
- Optional Accessory Objective: 0.3X.0.5X.0.75X.1X.1.5X.2.0X
- External equipment: external monitor (HDMI output)
- Basic functions: photo, video, measurement, image comparison
- Picture quality adjustment: exposure, color temperature, white balance
- Grid lines: 8 horizontal and vertical, color thickness adjustable and movable
- Picture quality adjustment: exposure, color temperature, white balance
Package Included :
- 1pcs x Trinocular stereo microscope with LED & dimmer, microscope stand

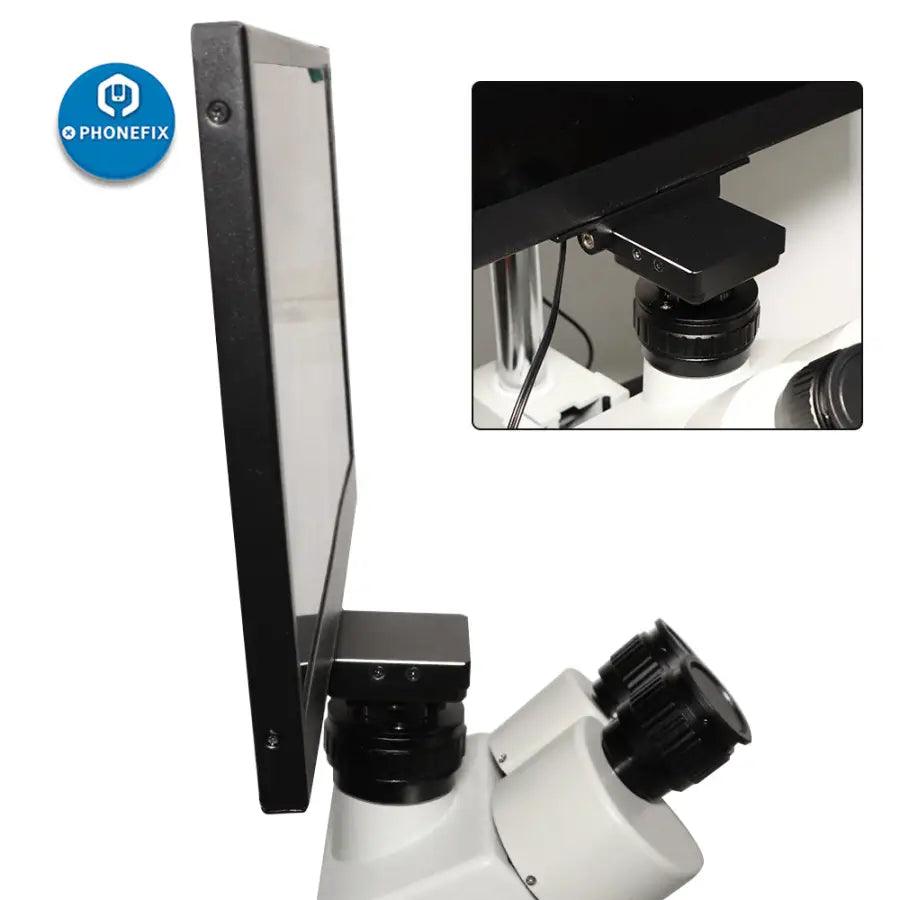

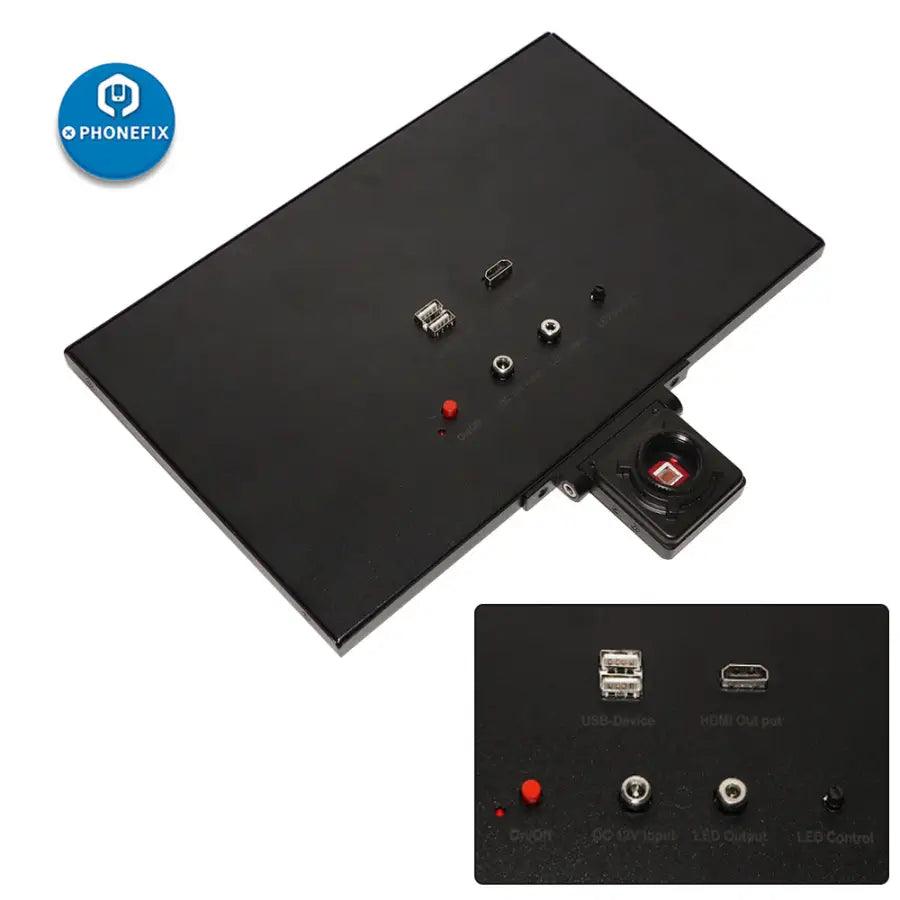

- 1pcs x 13.3" HDMI integrated camera
- 1pcs x Dust cover
- 1pcs x 12V power supply
- 1 pair of WF10X/20mm eyepiece with rubber eye guards
- 1pcs x 0.5X Objective
