ICFRIEND Easy UFS Sockets is used to read and write data of BGA153 BGA254 BGA297 BGA95 chips and needs to be used with Easy Jtag Plus Box.
Option:
1. ICFRIEND Easy UFS 6 in 1: support BGA153 BGA254 BGA297 chipsets.
2. ICFRIEND Easy UFS 3 in 1: support UFS BGA153, UFS/EMMC BGA254, UFS BGA297.
3. ICFRIEND Easy UFS 4 in 1: support BGA153 BGA254 BGA297 BGA95.

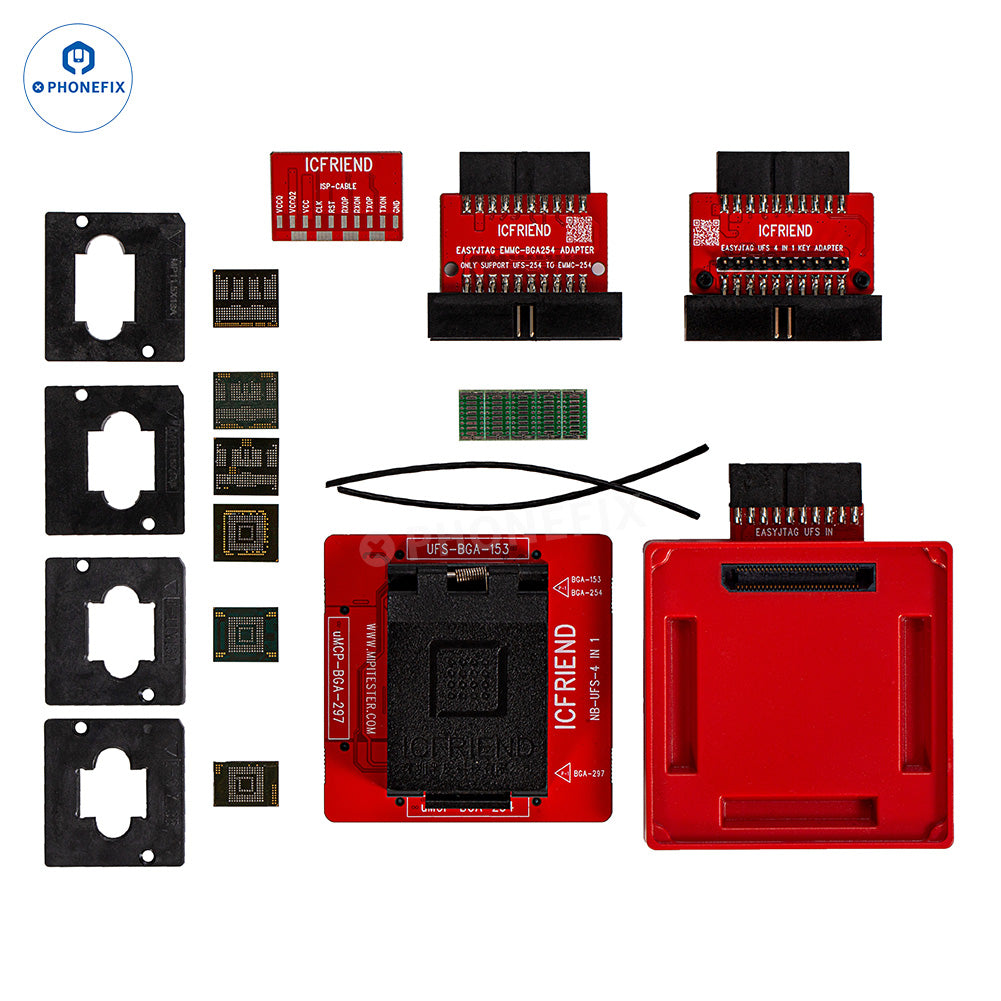

ICFRIEND Easy UFS 6 in 1 list:
1 x ICFRIEND UFS ISP EJ-Cable adapter.
1 x ICFRIEND Easy-jtag UFS 4 in 1 Key Adapter.
1 x ICFRIEND Easy-jtag EMMC-UFS-254 Adapter.

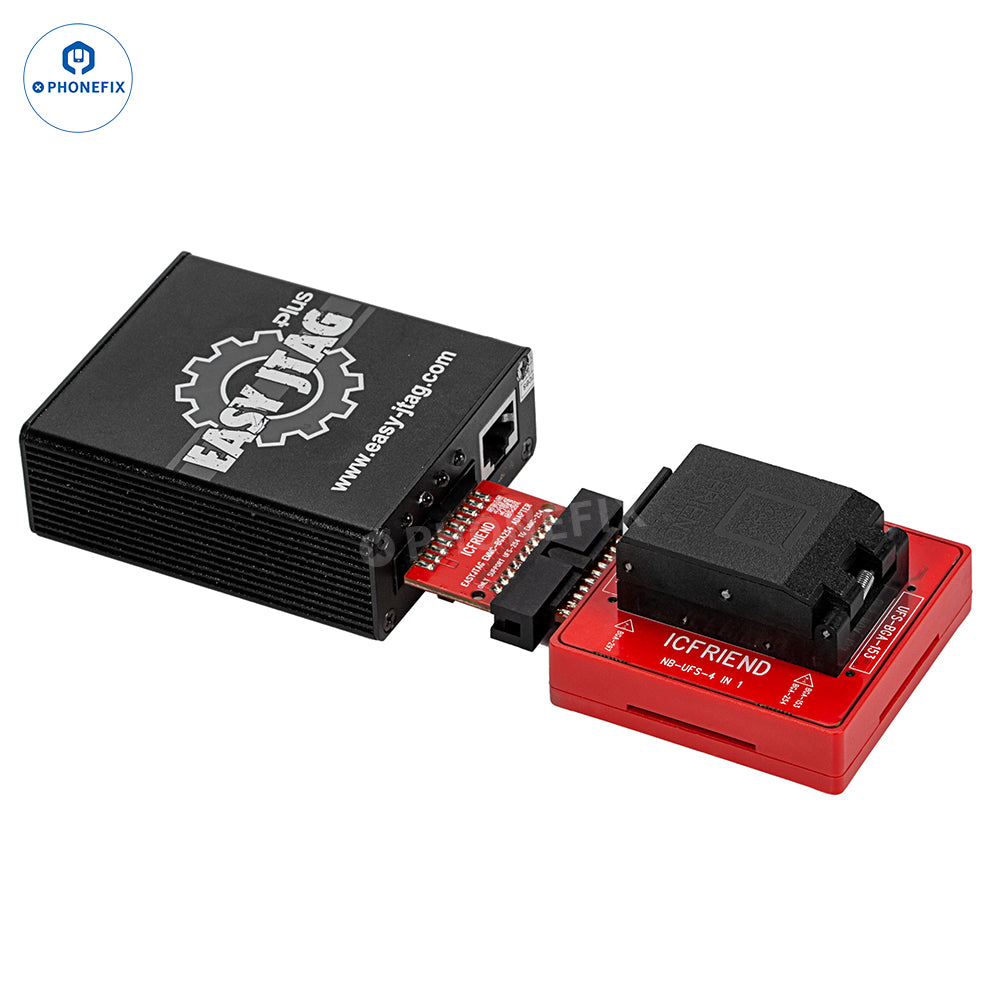

1 x ICFRIEND NB-UFS 4 in 1 socket adapter: UFS-BGA-153, uMCP-BGA-254, uMCP-BGA-297.
4 x Flash Memory Adapters.

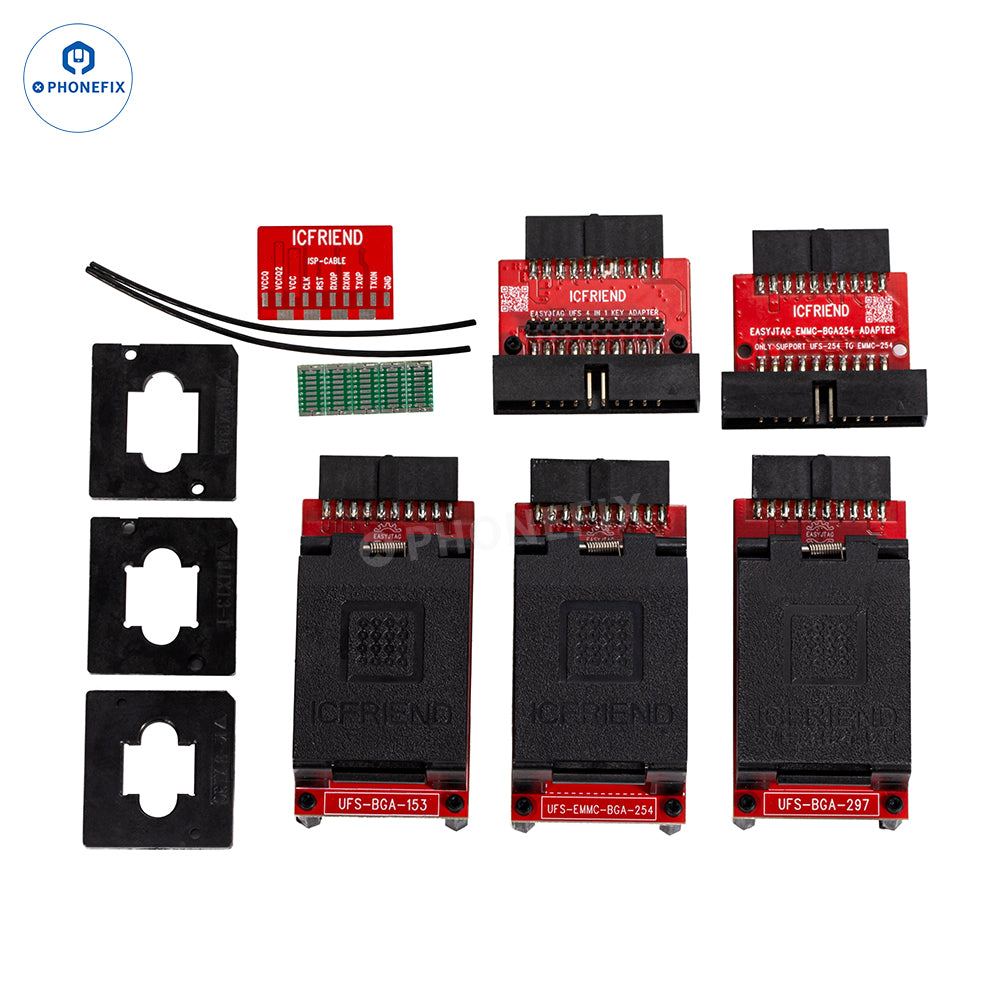

ICFRIEND Easy UFS 3 in 1 list:

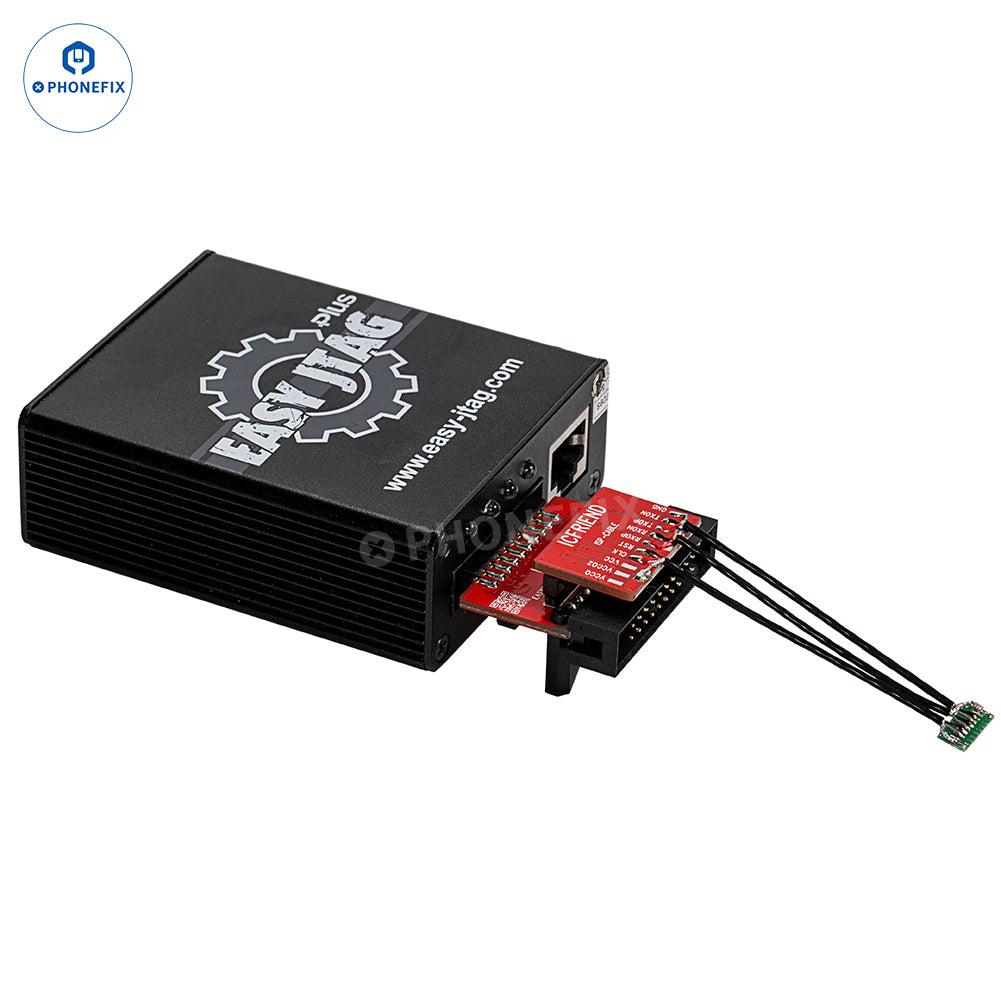

1 x ICFRIEND UFS ISP EJ-Cable adapter.
1 x ICFRIEND Easy-jtag UFS 4 in 1 Key Adapter.

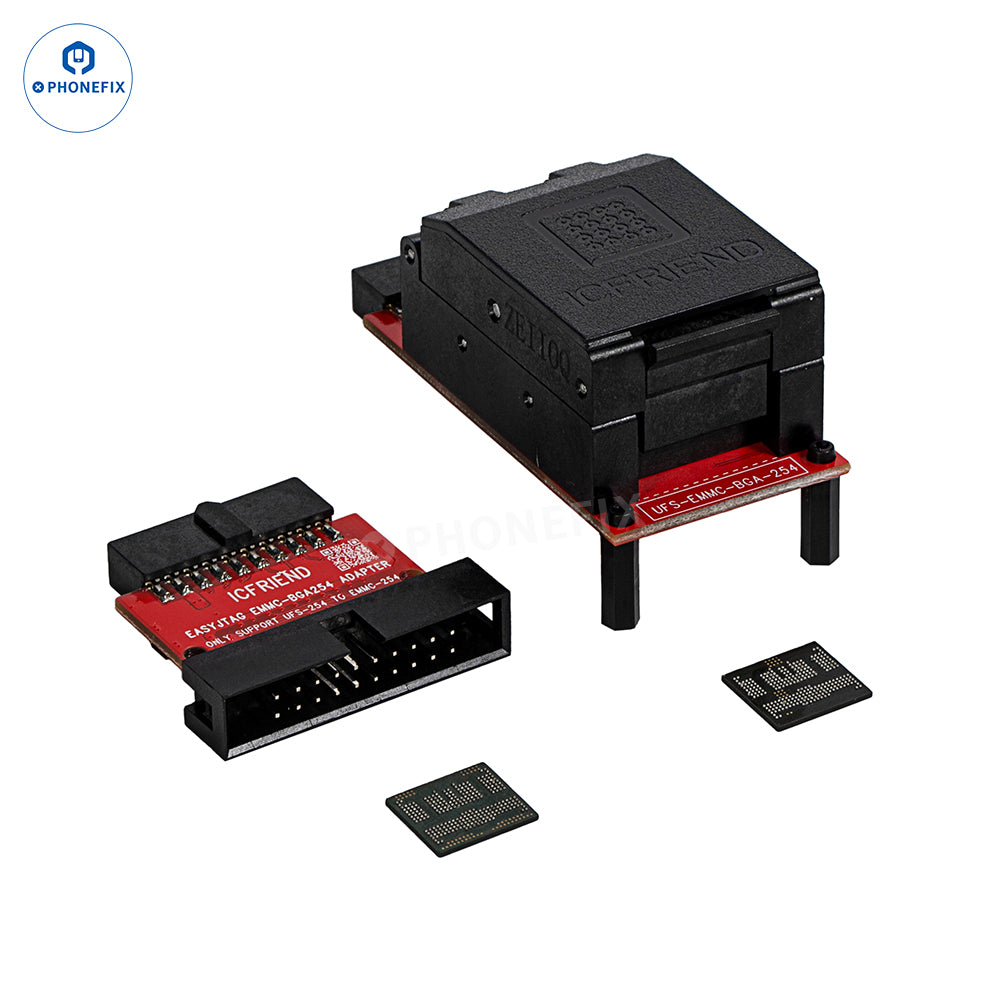

1 x ICFRIEND Easy-jtag EMMC-UFS-254 Adapter.

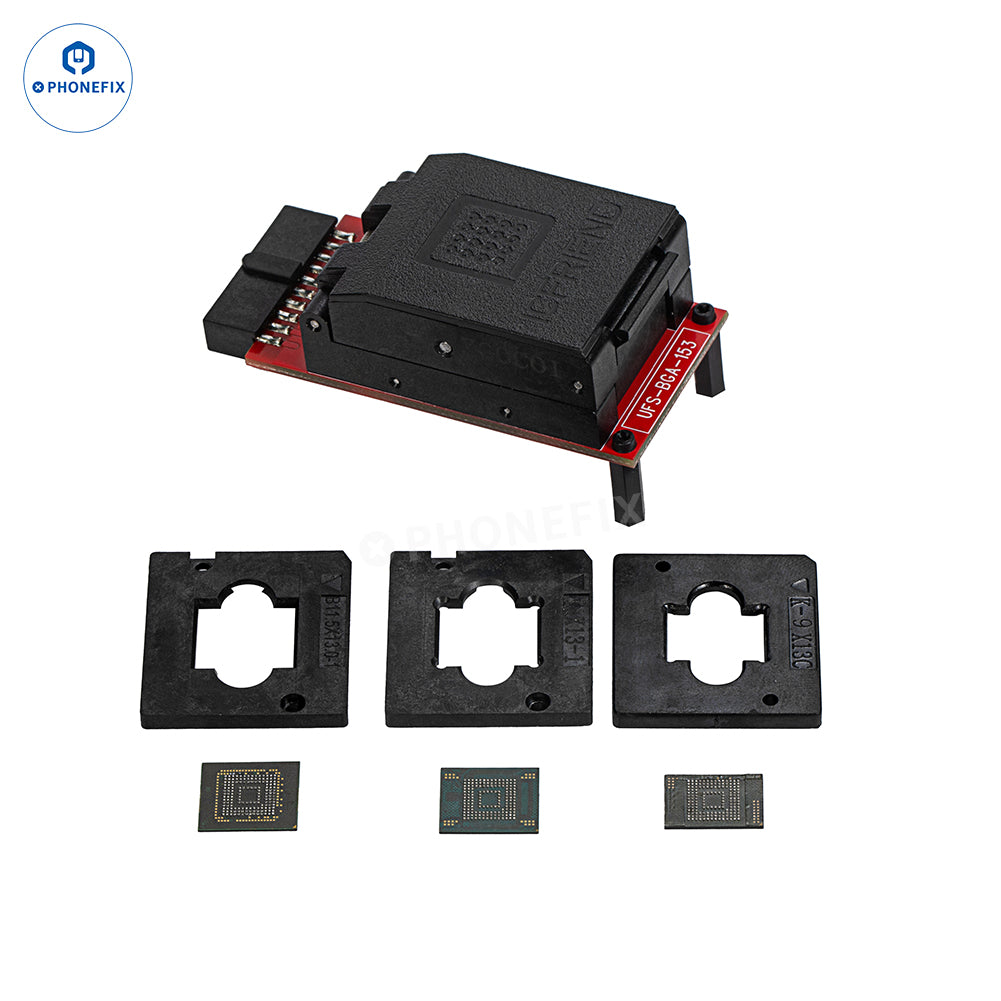

1 x ICFRIEND UFS BGA153 Socket.
1 x ICFRIEND UFS BGA254 Socket.

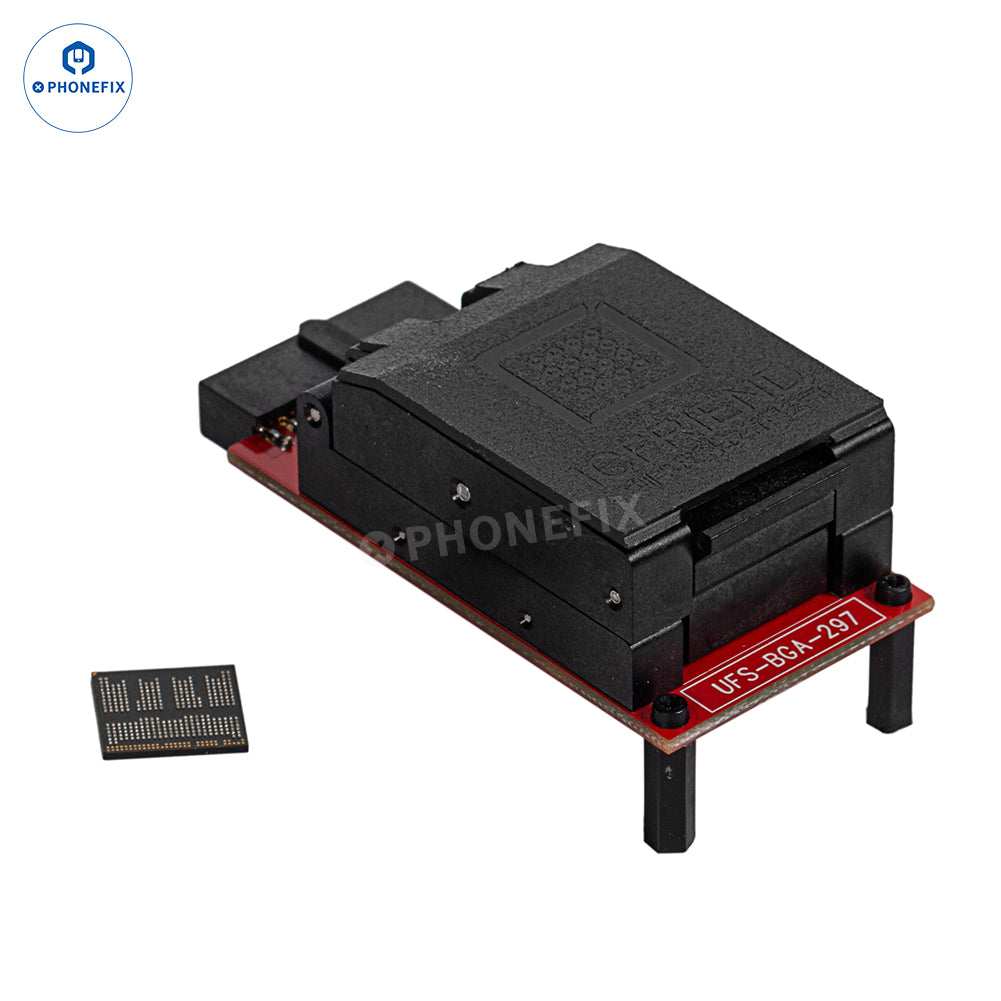

1 x ICFRIEND UFS BGA297 Socket.

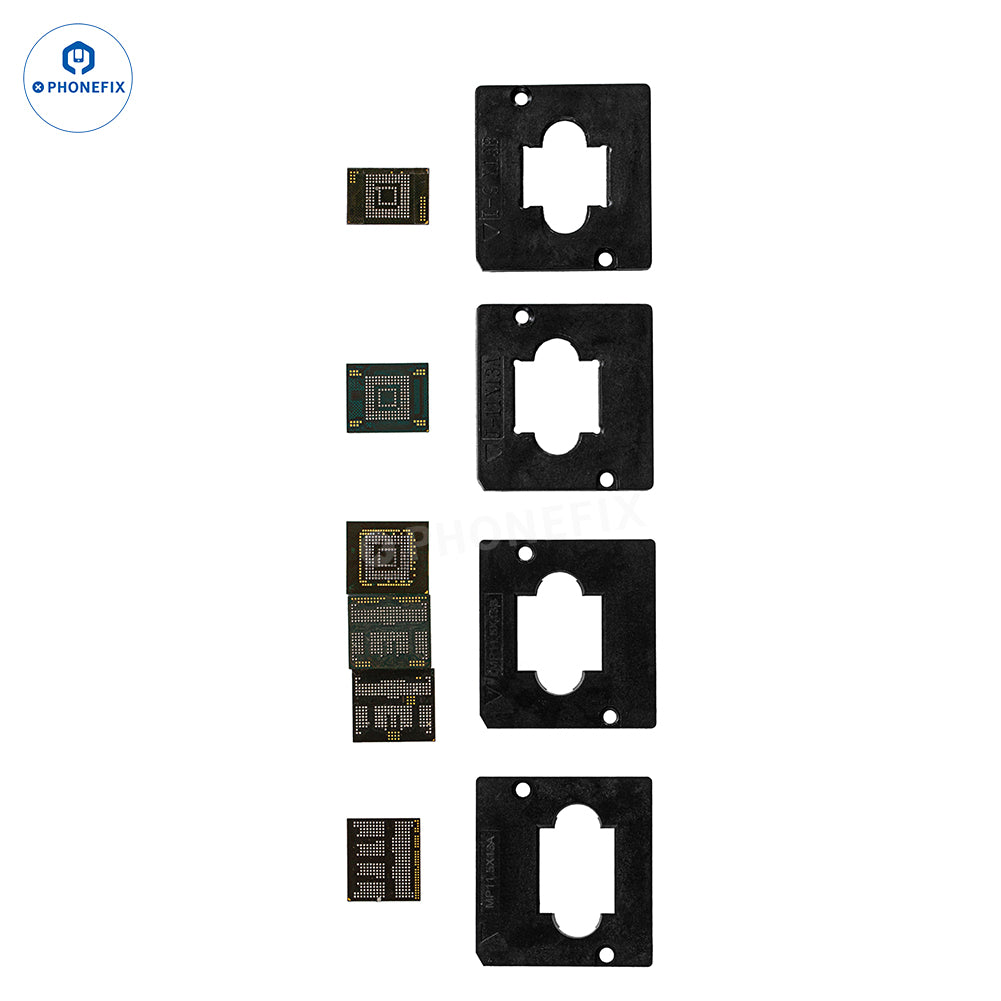

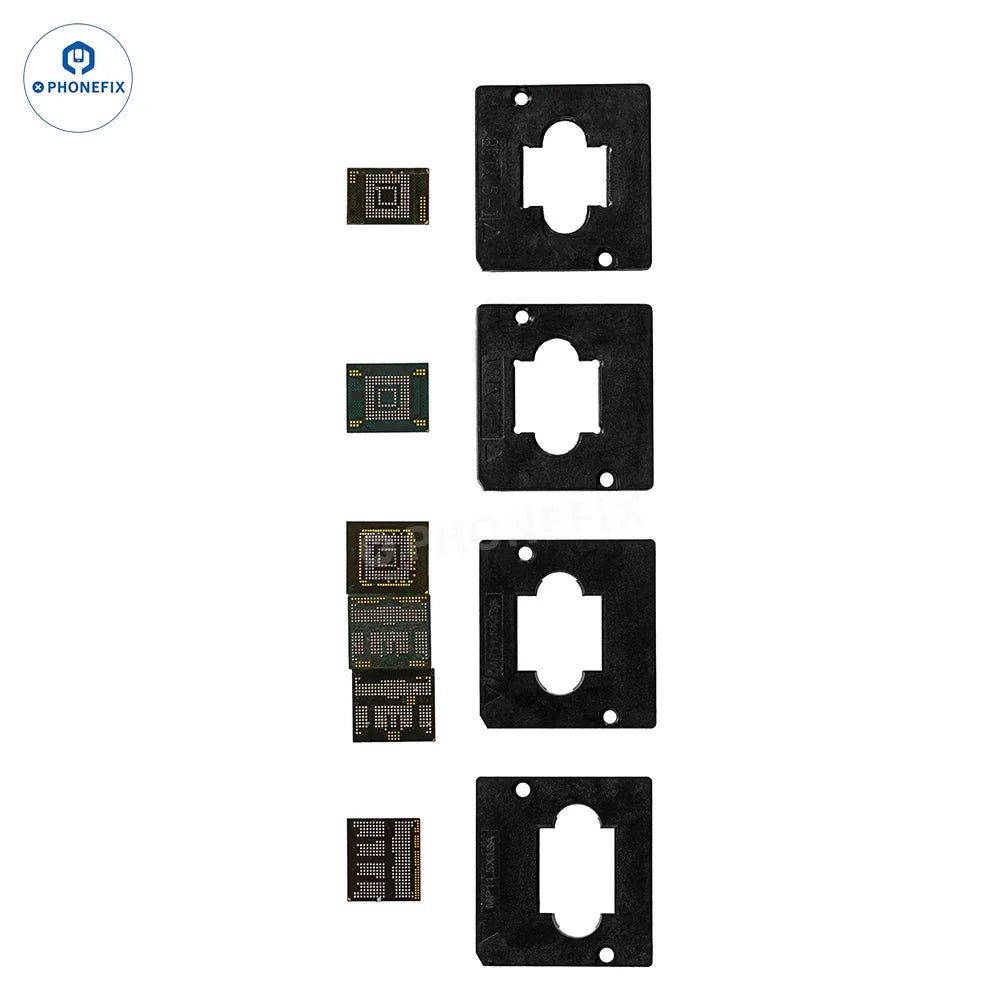

3 x Flash Memory Adapters: 9x13, 11x13, 11.5x13.

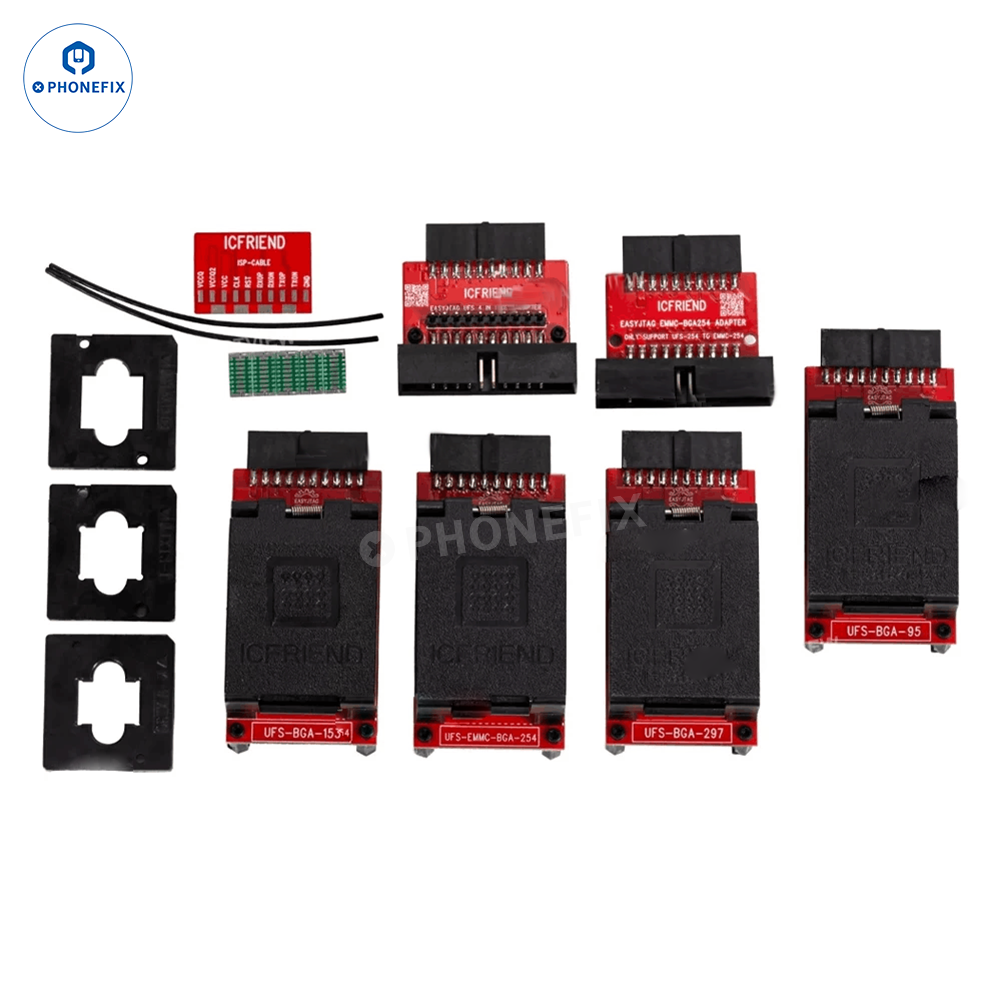

ICFRIEND Easy UFS 4 in 1 list:
1 x ICFriend UFS BGA95 Socket.
1 x ICFriend UFS BGA153 Socket.
1 x ICFriend UFS BGA254 Socket.
1 x ICFriend UFS BGA297 Socket.
1 x Easy Jtag EMMC BGA-254 Adapter.
1 x Easy Jtag UFS 4 IN 1 KEY Adapter.
1 x ICFriend ISP-CABLE.
Please note:

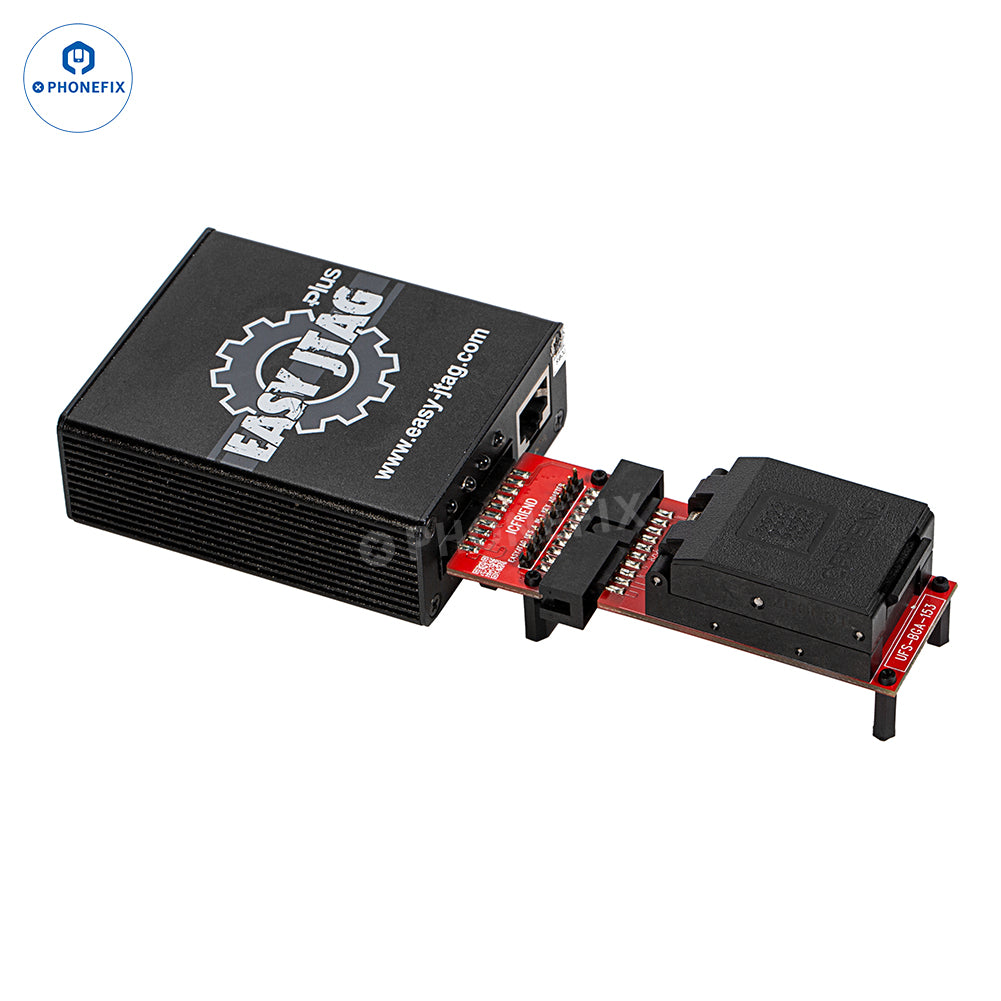

1. Need to be used with Easy Jtag Plus Box.
2. To establish a connection when using UFS, you need to check if the device manager shows port 9008. If not, you cannot establish a connection with the box.
3. Please use a multimeter to test. It is more accurate than relying on visual inspection.
4. Requires professional skills and experience, only for professionals.
5. This product is not covered by warranty and cannot be returned!
