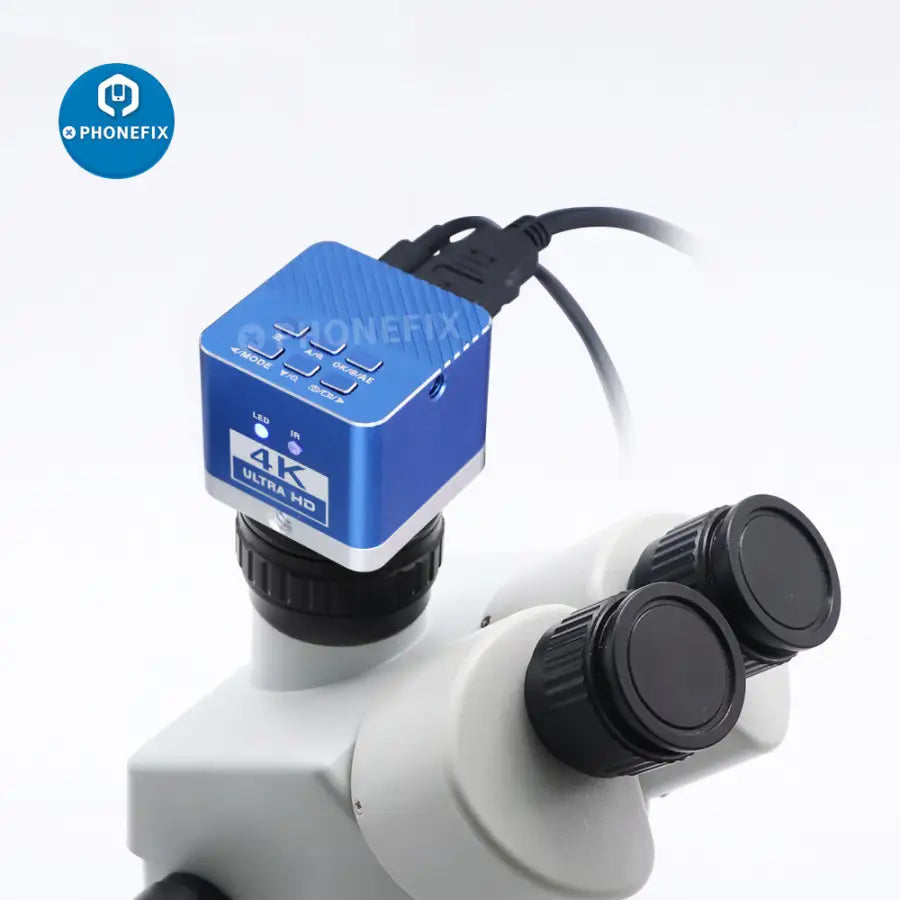

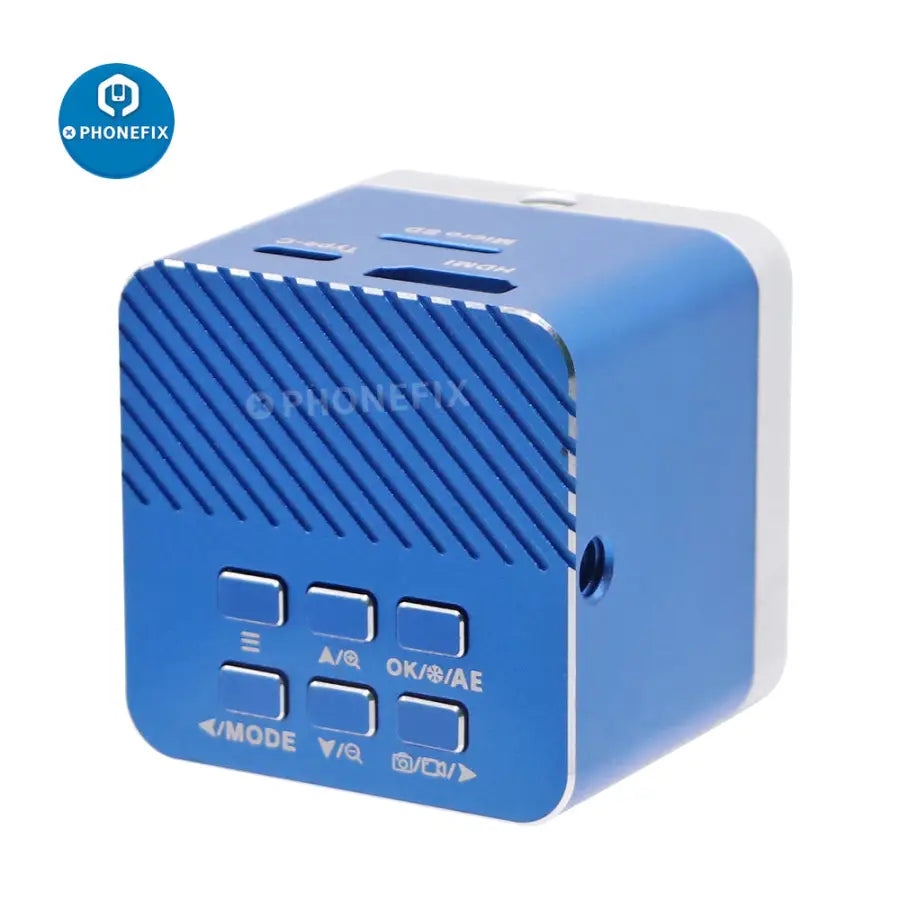

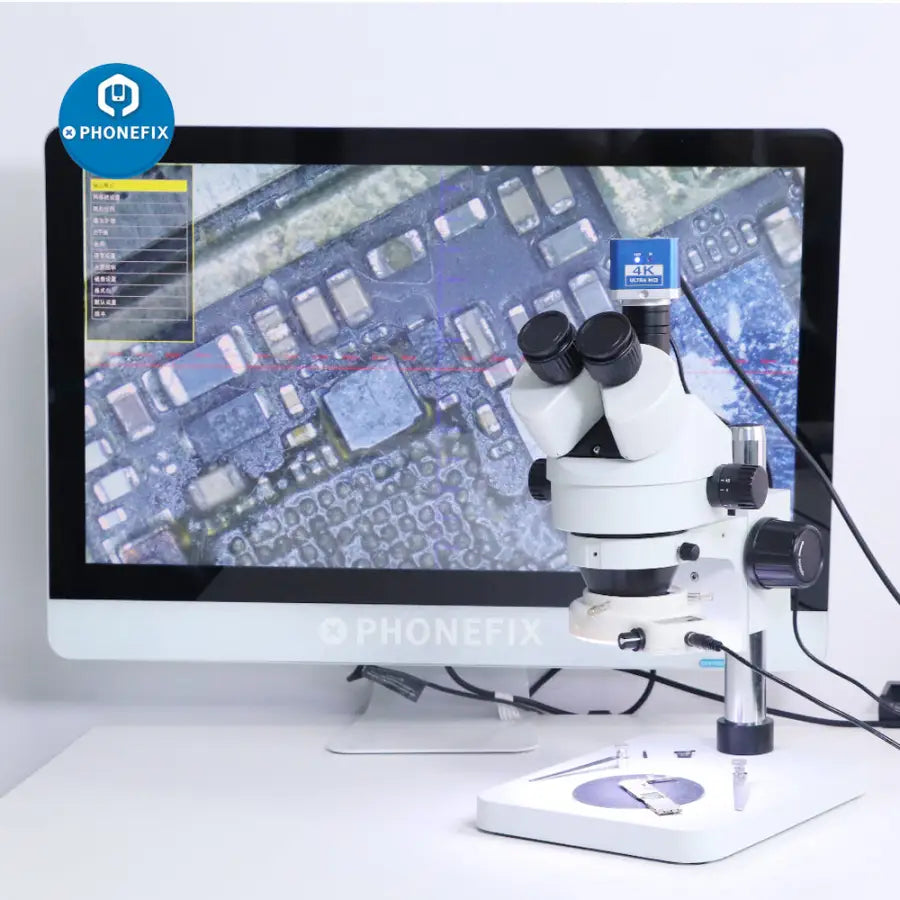

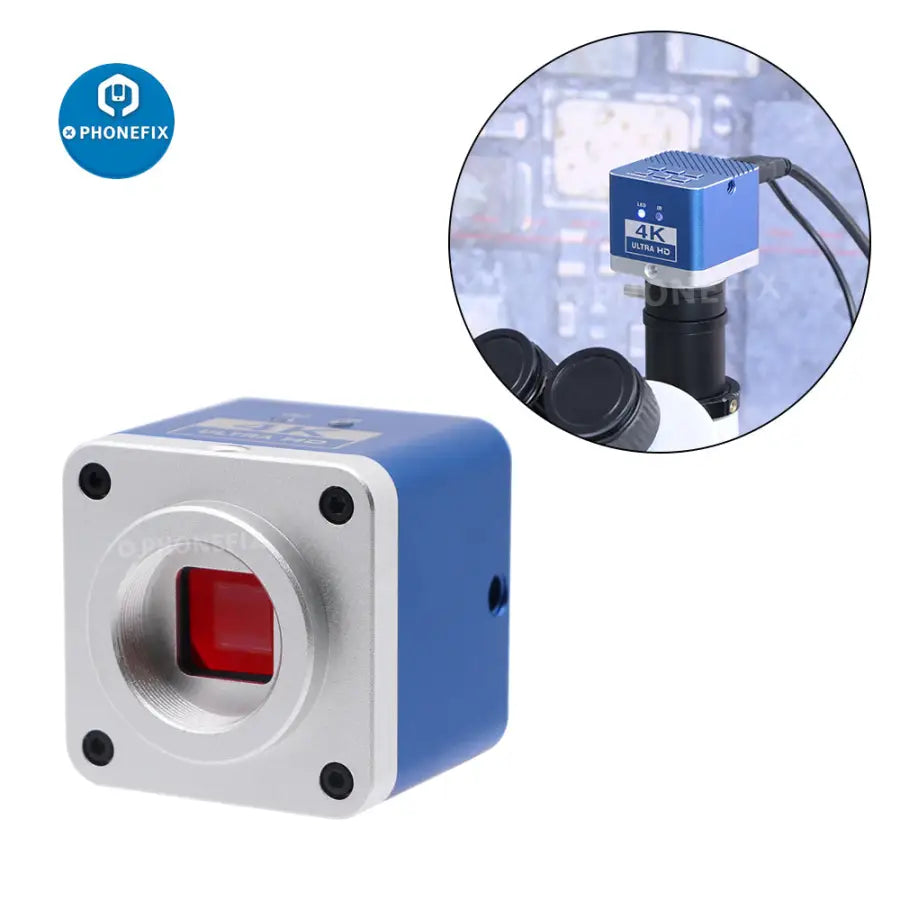

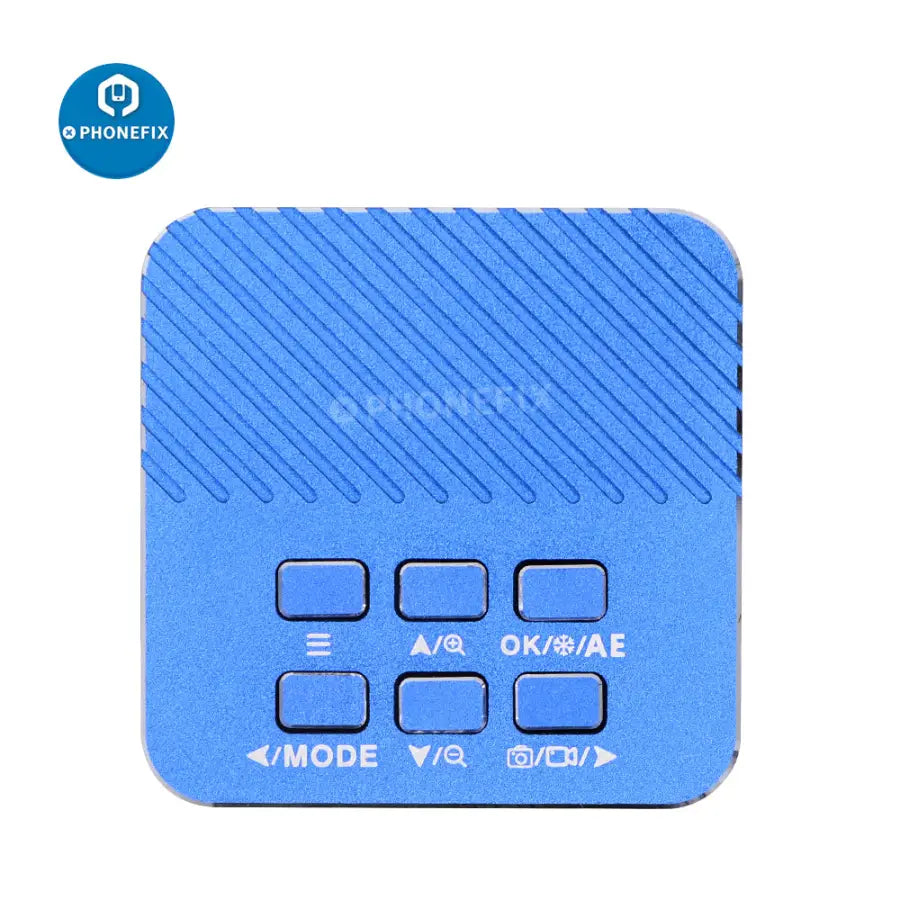

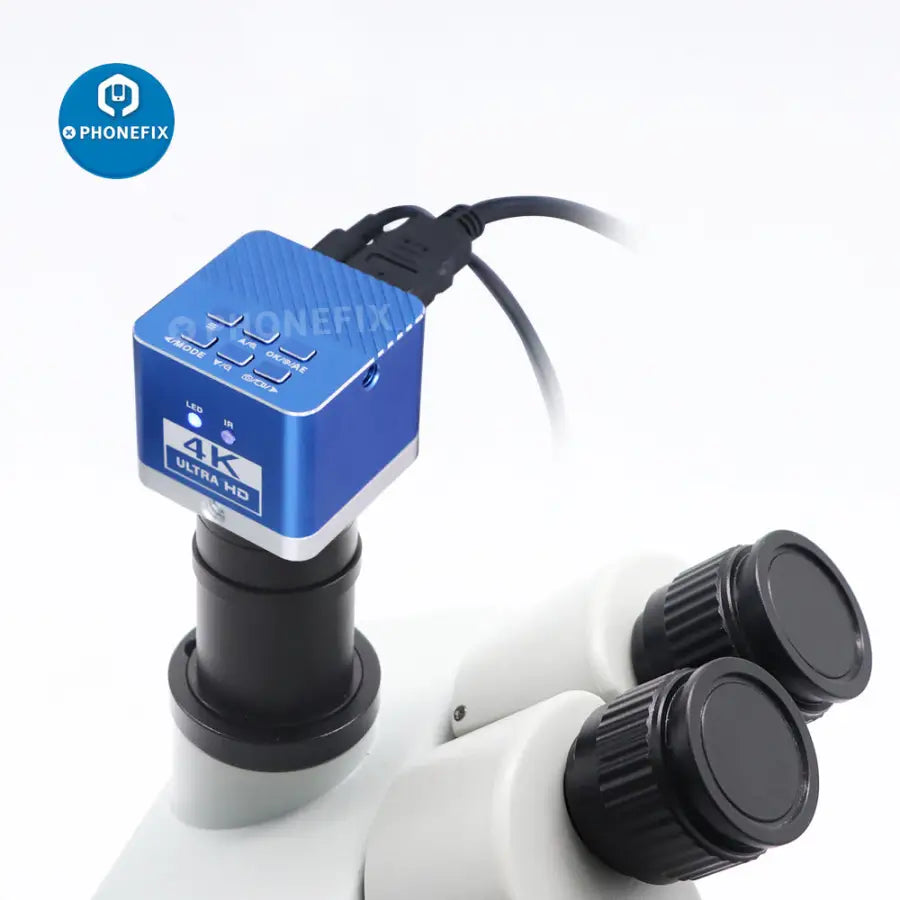

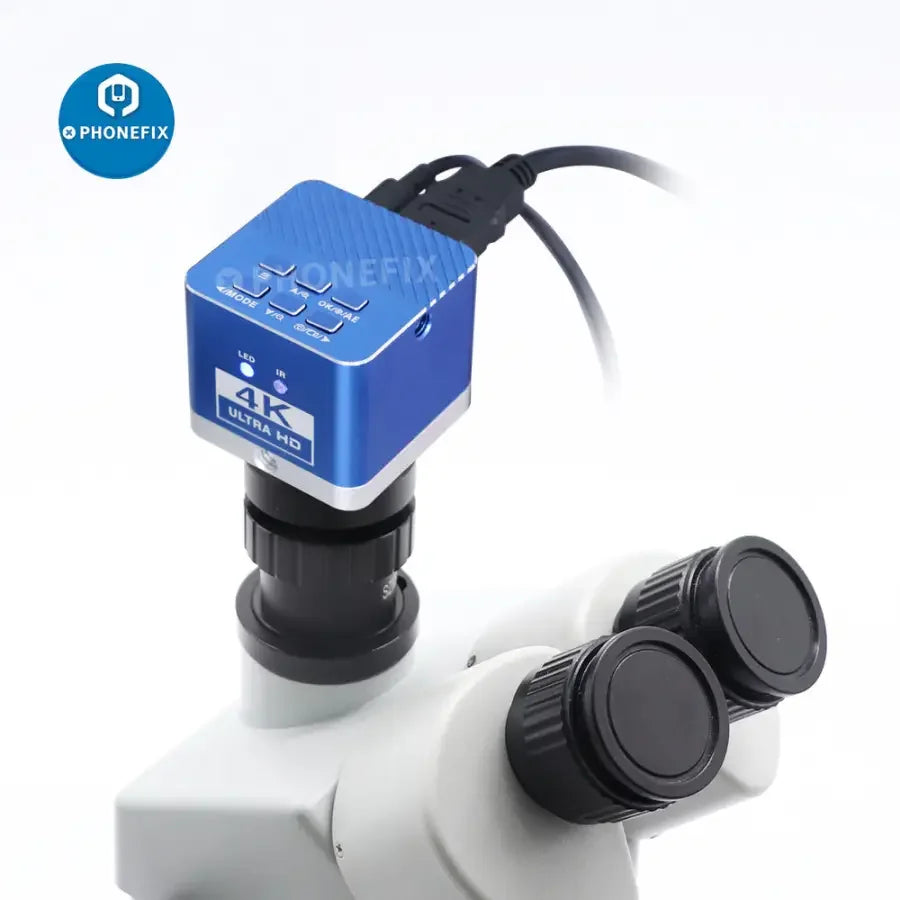

HDMI USB 4K Industrial Camera CCD Digital Detector Video Microscope Camera

HD HDMI USB 4K industrial camera CCD digital detector video electron microscope camera photography video measurement. 4K Trinocular Microscope Camera ULTRA HD Industrial Level CCD Digital Detector,4K Trinocular Microscope Camera ULTRA HD CCD Sony CMOS IMX377 Photography Video Measurement.

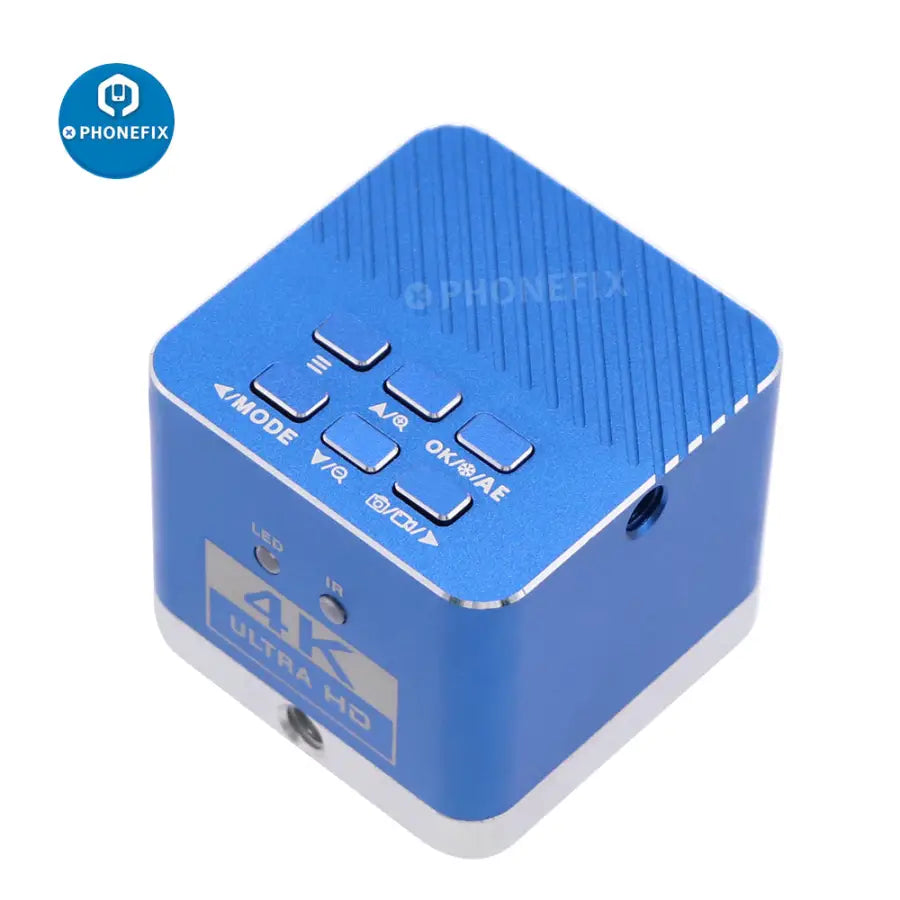

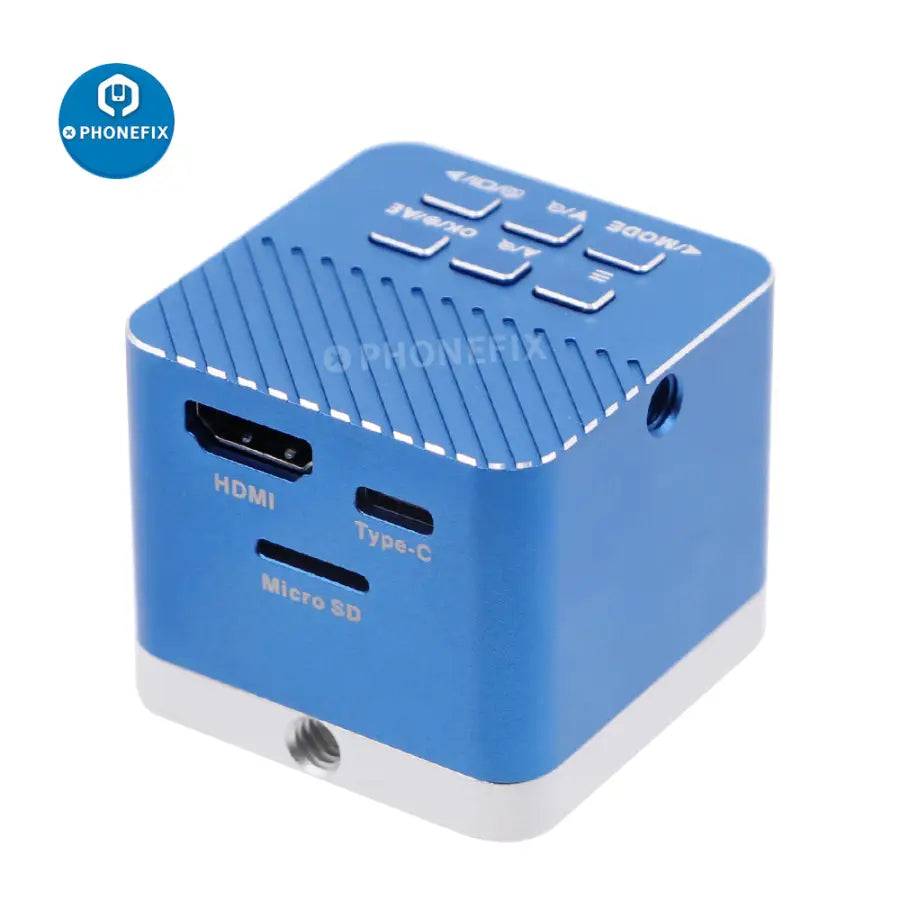

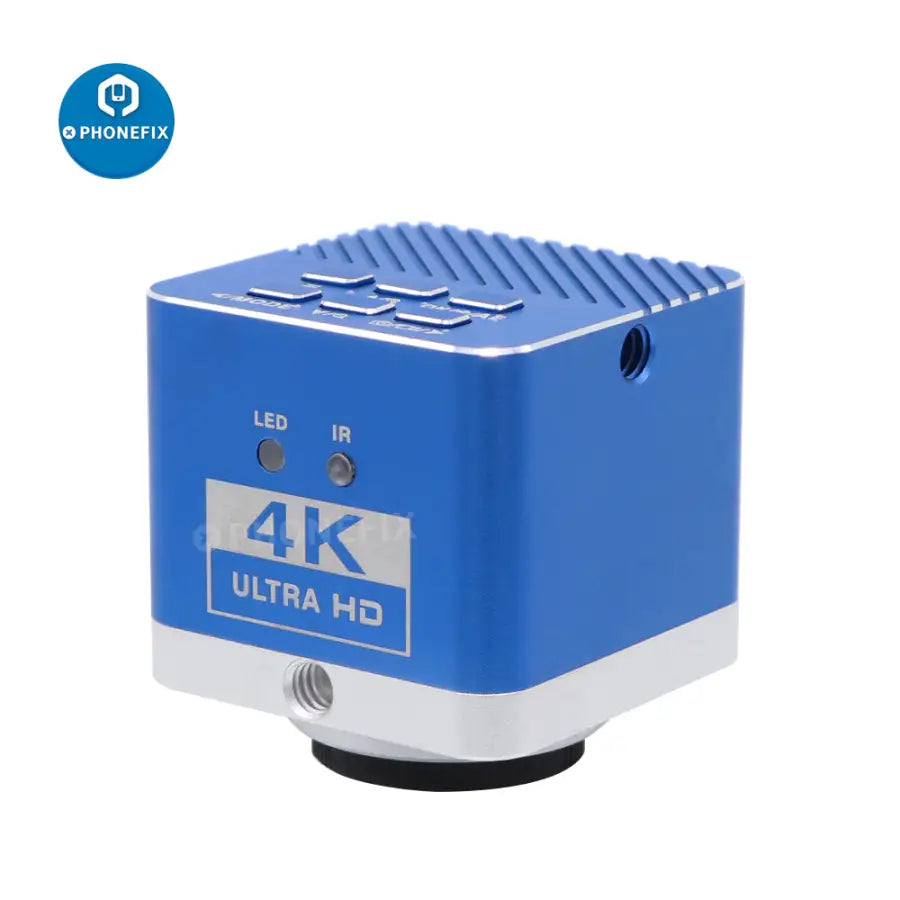

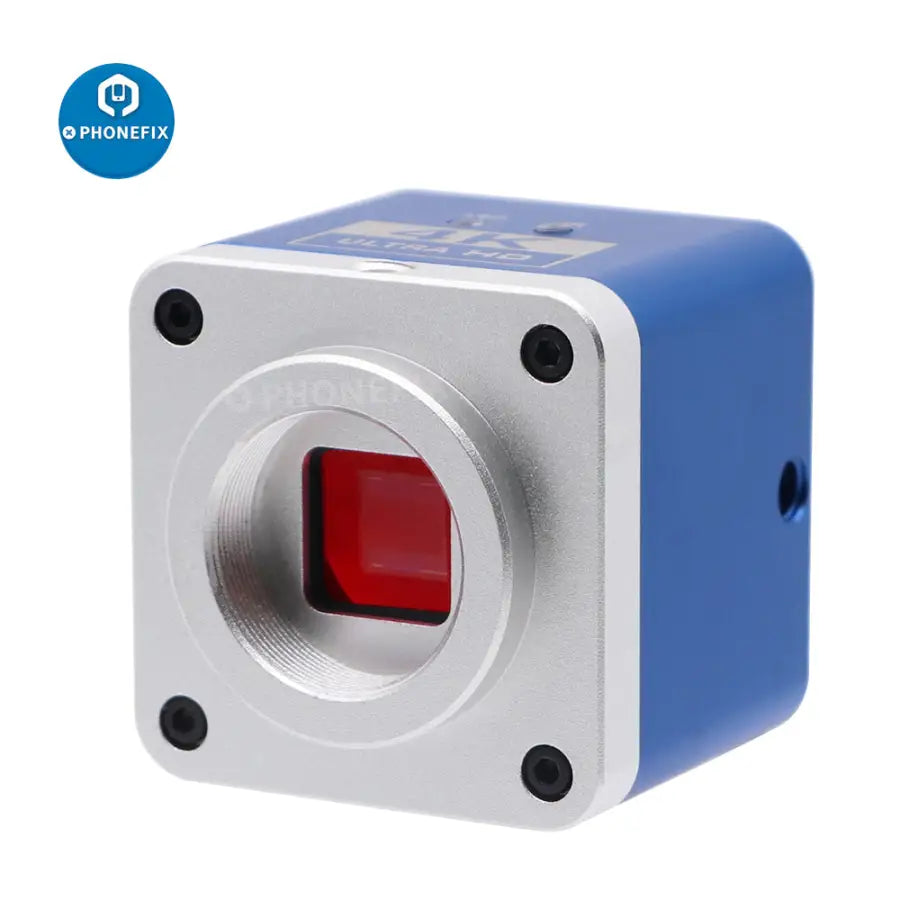

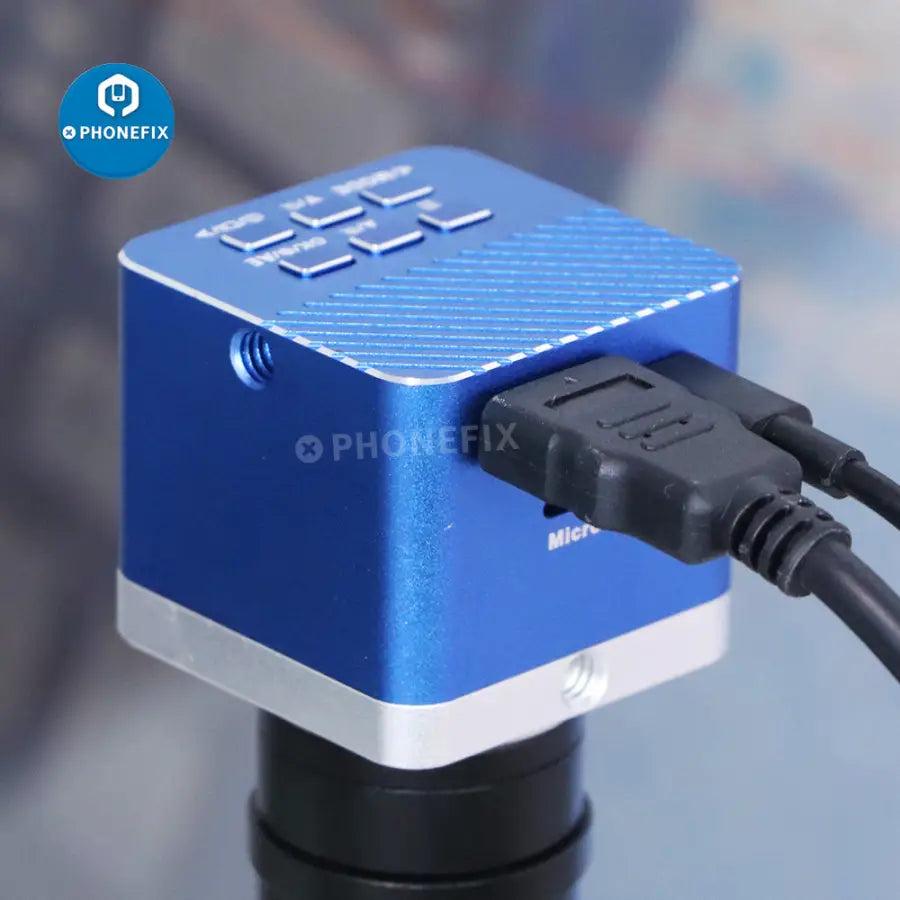

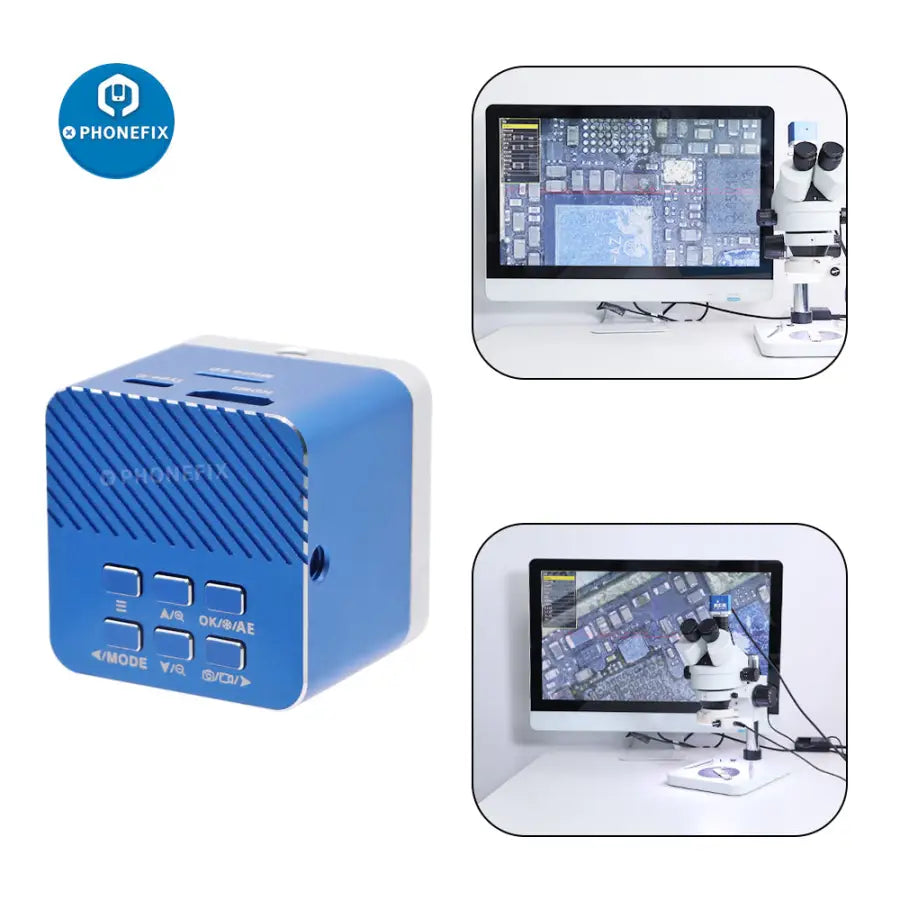

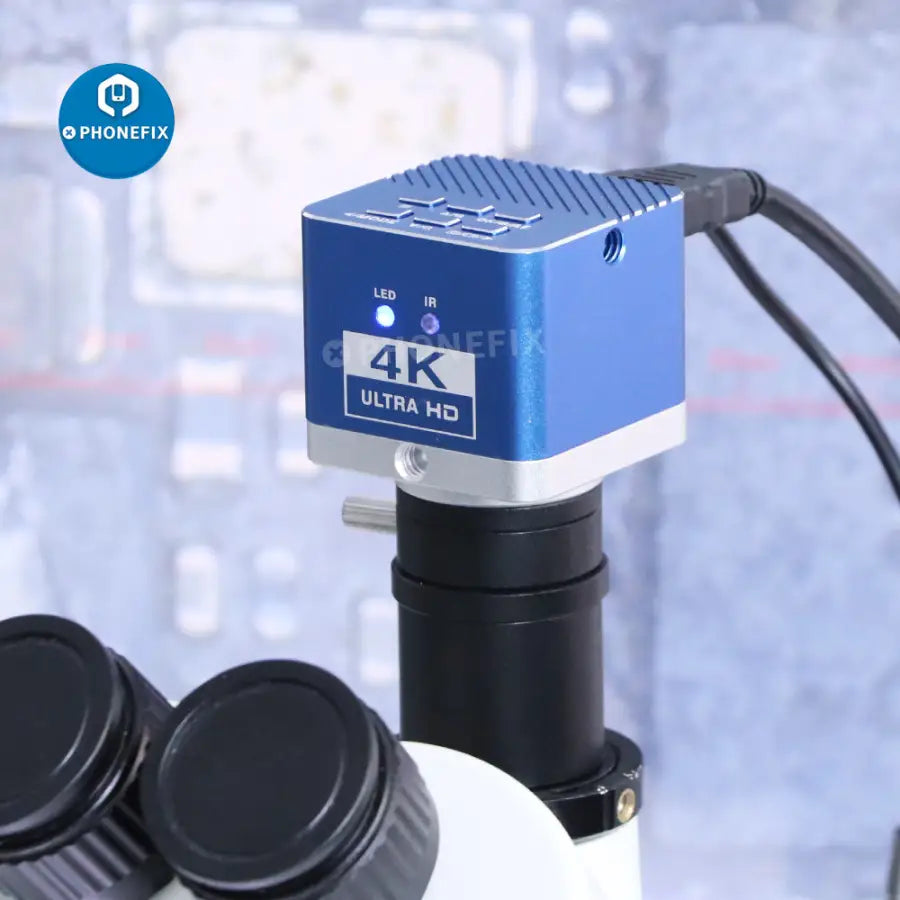

IMX377 4K Camera Specifications/Features:
Model: 4K Industrial Camera
Classification: HDMI industrial camera
sensor: IMX377
Effective pixel: 12 million
Resolution: 3840* 2160@30FPS 1920* 1080@60FPS
Output interface: HDMI
pixel size :1.55UM*1.55UM
Power Supply : DC-12V/1A
function :HDMI 4K output with simple measuring crosshair
Image quality: adjustment Exposure, color
Camera function: Horizontal / vertical mirror image, freezing image, photographing and video recording
Gridlines The color and thickness of the horizontal line, vertical line and center mark can be defined by yourself
resolving power: 3840*2160 1920*1080
packing Appearance size :45.5*42*42mm
weight: 0.11kg
Standard accessories: Dc-12v / 1A power supply

MS1605C industrial camera parameters:
Sensor: A 1/2.8 SONY 2-megapixel import sensor.
Pixel size: 2.9µm X 2.9µm.
HDMI output: 1920*1080 60FPS.
TYPE-C output: 1920*1080/30, 1280*720/30, 640*480/30, 320*240/30(MJPG).

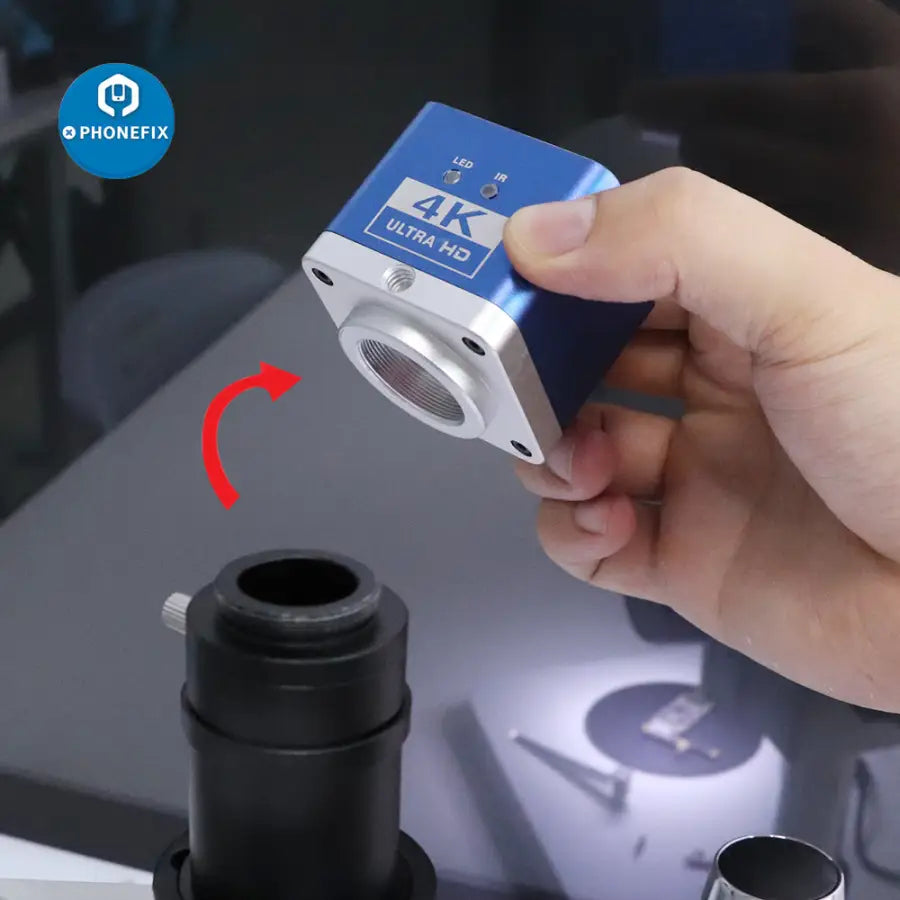

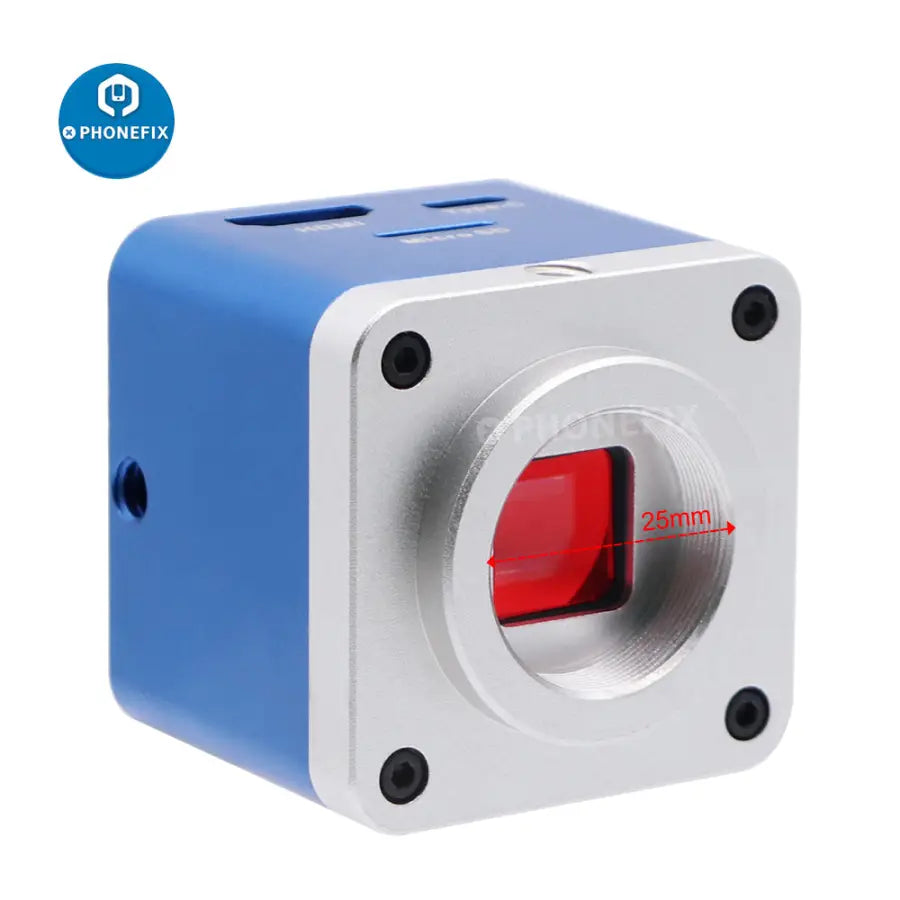

Lens interface: C/CS.
Exposure: Automatic / manual.
Exposure compensation: support.
White balance: Automatic / manual, support for RGB adjustable.
Memory Max: 64GB.
Input voltage: DC: 5V.
Lineation: 16 lines, with adjustable color, thickness, and position.
Centre line: support.
Menu language: English / Chinese.
Telecontroller: Support for the remote control operation.
Net weight: 150g.
Rough weight: 350g.
Product size: 66*66*49mm.
Packing measurement: 145*130*70mm.

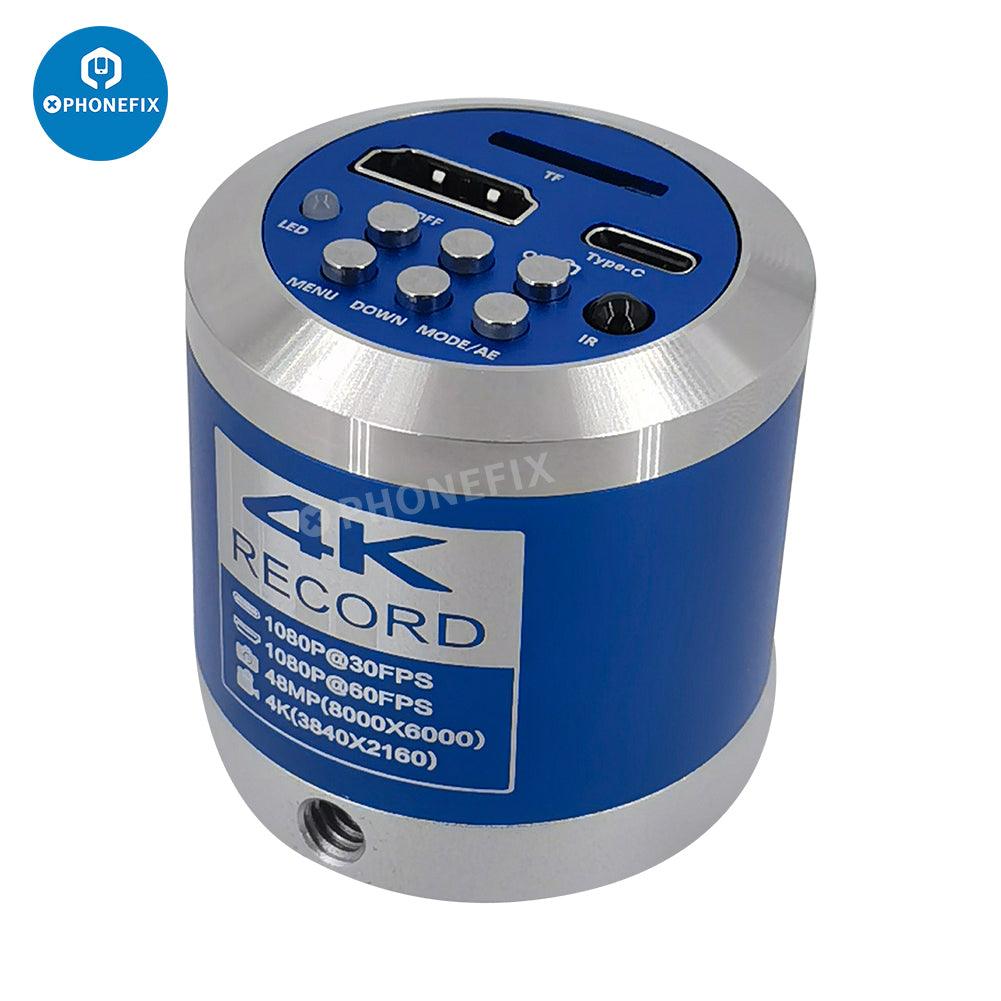

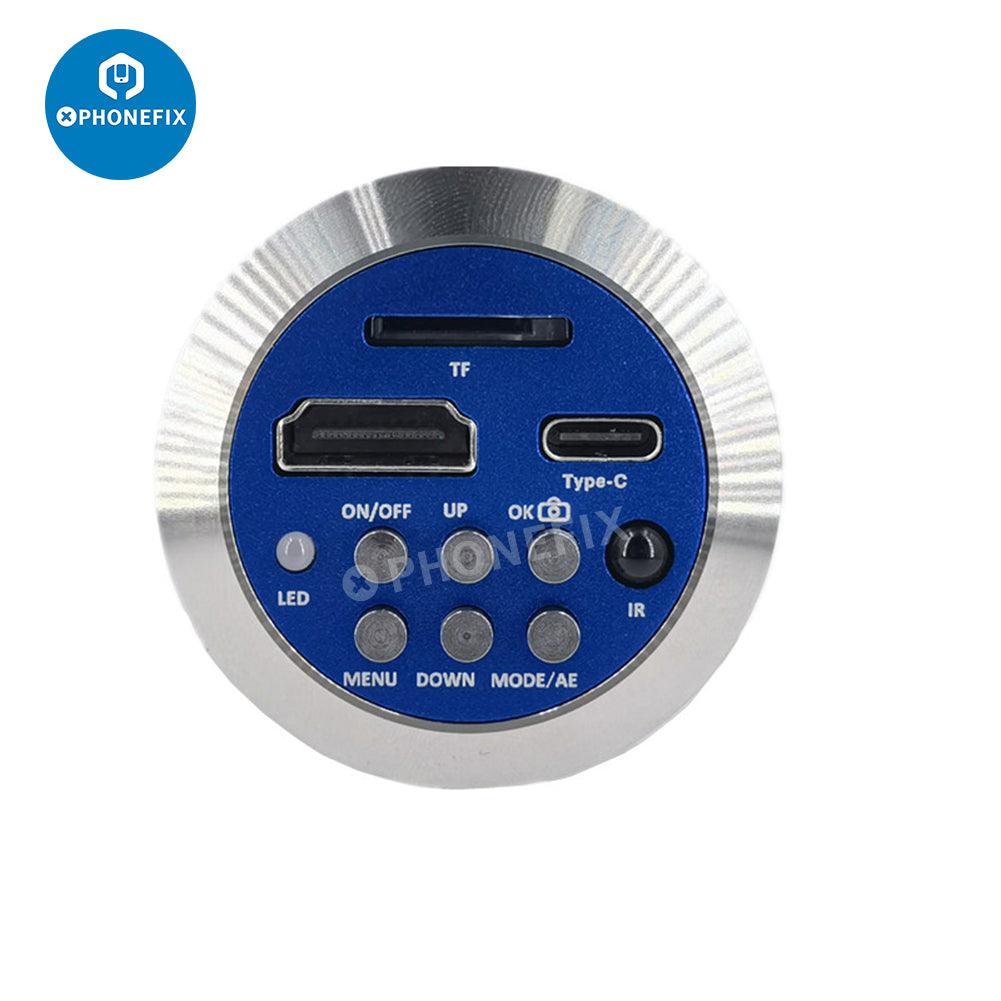

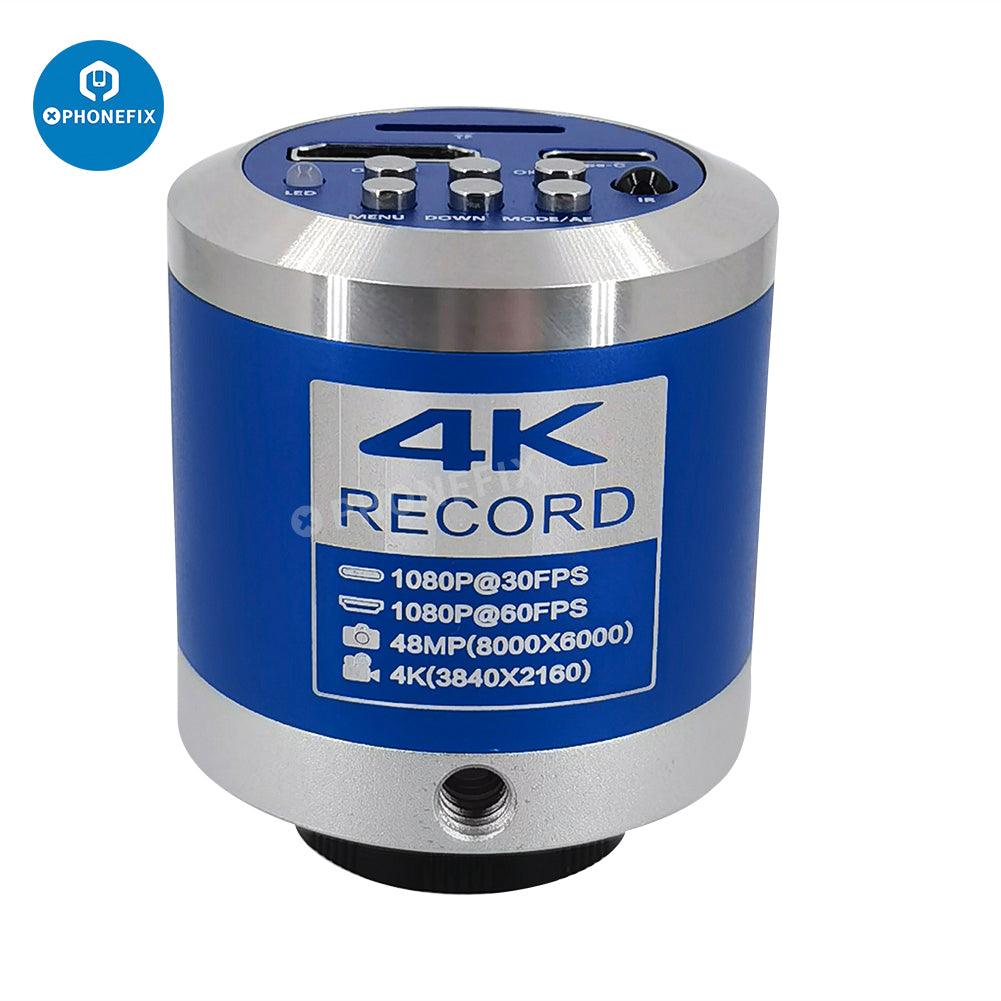

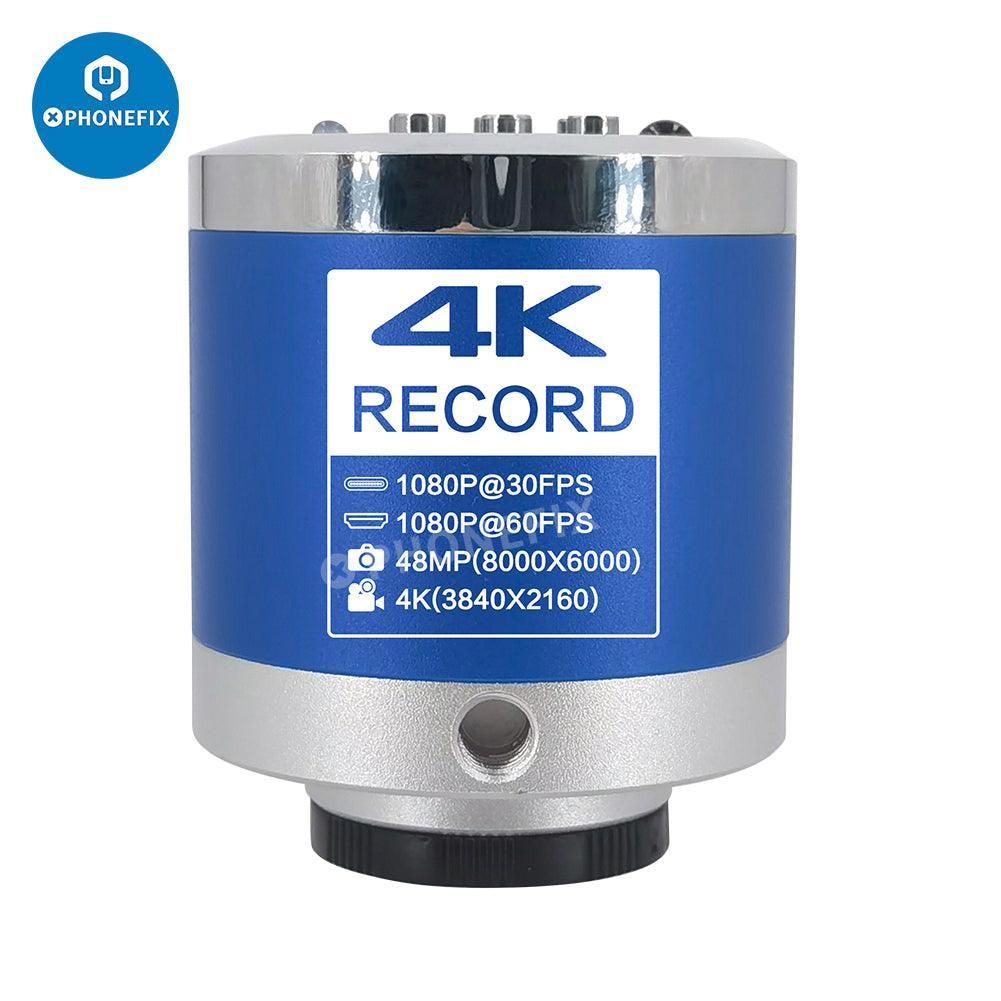

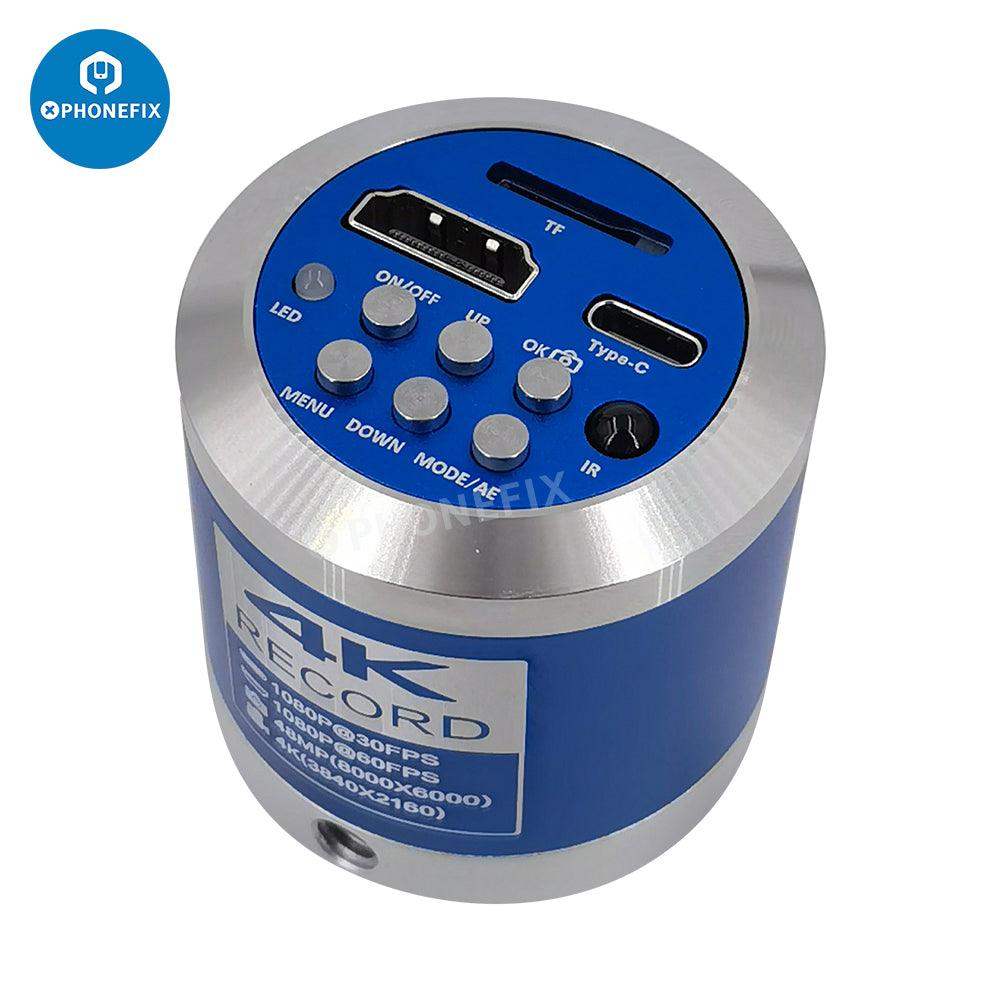

MS1605C 4K camera features:
1. Using a 2-megapixel imported SONY sensor.
2. With a 1 / 2.8 inch image sensor, the perspective is wider than 1 / 3 inch.
3. HDMI 1080P 60FPS image output.
4. TYPE-C no-drive output 1080P 30-frame image output.
5. 4K video recording.
6. 48 Million photos, JPG format, photo size 8000x6000.
7. One-click freeze / thaw function.
8. A 48-megapixel photo recording and a 1080P video recording.
9. Electronic scaling function.
10. automatic exposure / one-click exposure, exposure compensation value adjustment.
11. automatic white balance / one-key white balance, red, green, blue adjustable.
12. Provide 16 line drawing line function, line color, thickness, adjustable position.
13. Provide the center cross-line display / close.
14. Support for TF card storage, up to 64GB support.
15. Support remote control operation, take photos without shaking the image clearer.
16. Support for Chinese and traditional Chinese and English menu languages.
17. Support the shutdown setting parameter saving.
18. Aluminum alloy shell processed by CNC fine milling technology.

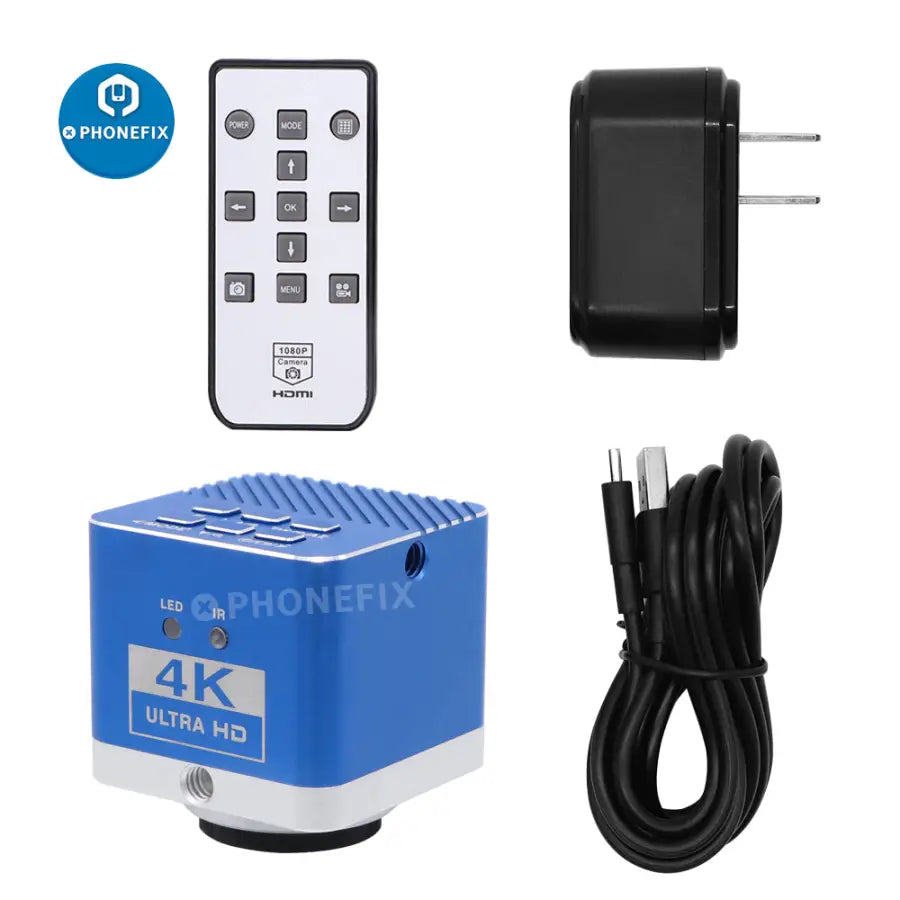

Package incluede:
1 x 4K Camera
1 x Power supply
1 x USB cable
1 x Remote Control
