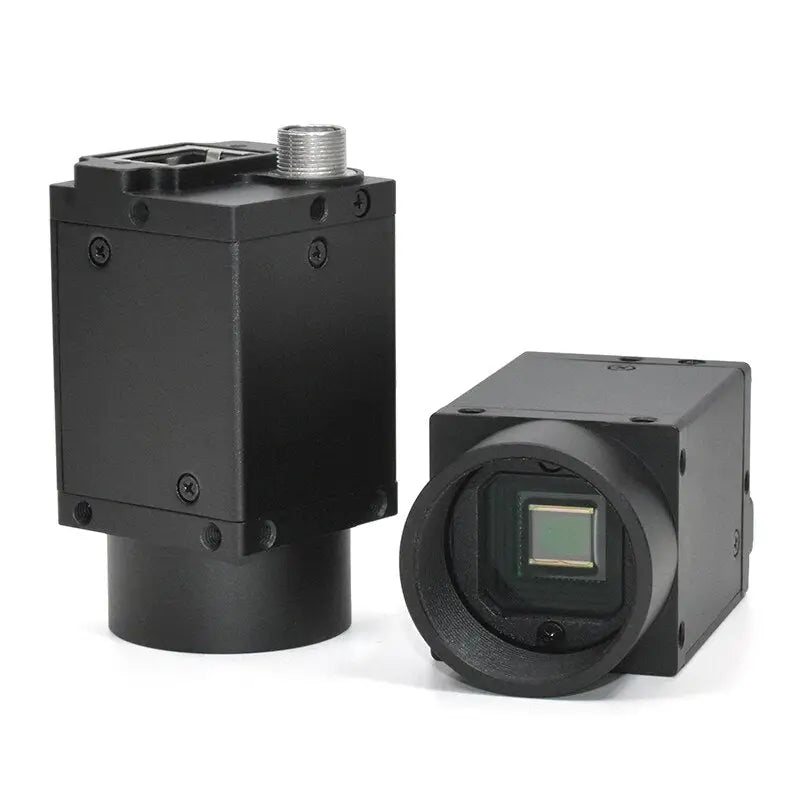

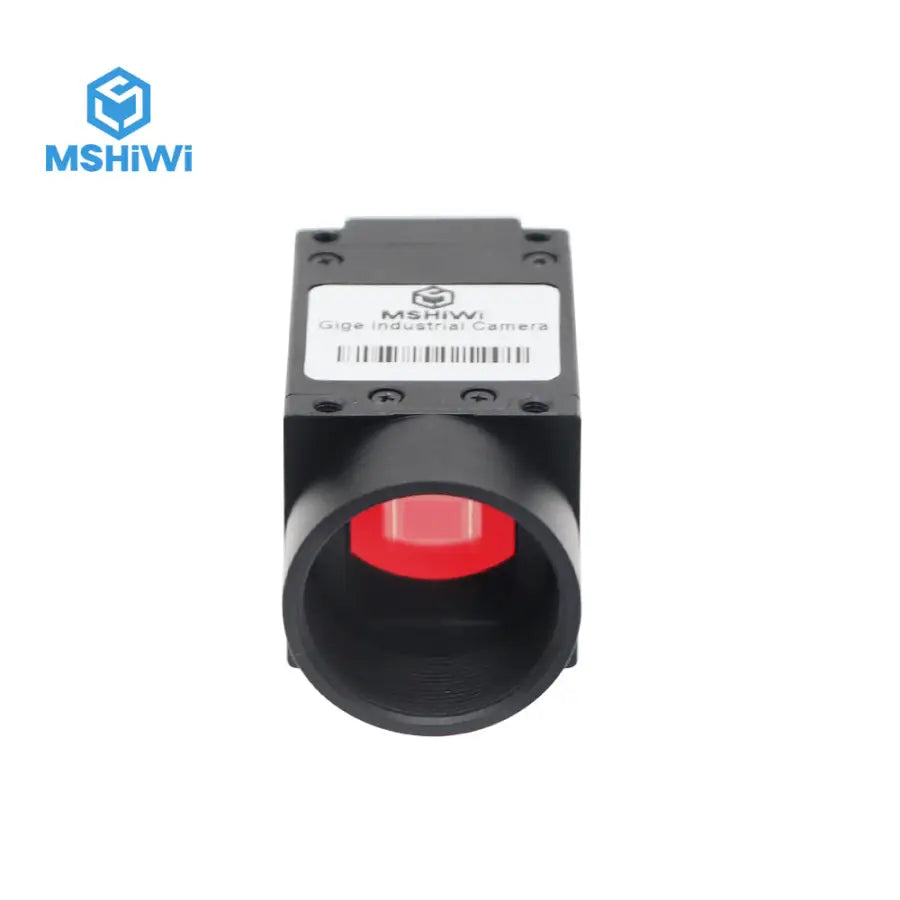

GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono

Name: GigE Industrial Camera, 2/3" CMOS, 2.3MP, Global Shutter, Mono
Brand: PHONEFIX
SKU: HW053
Price: 399.0 USD
Availability: InStock

Save $22.20

PHONEFIXSKU: HW053

Option: Monochrome

Variant

Price:

Login to view price

Shipping calculated at checkout

Stock:

In stock

Quantity:

Share this product

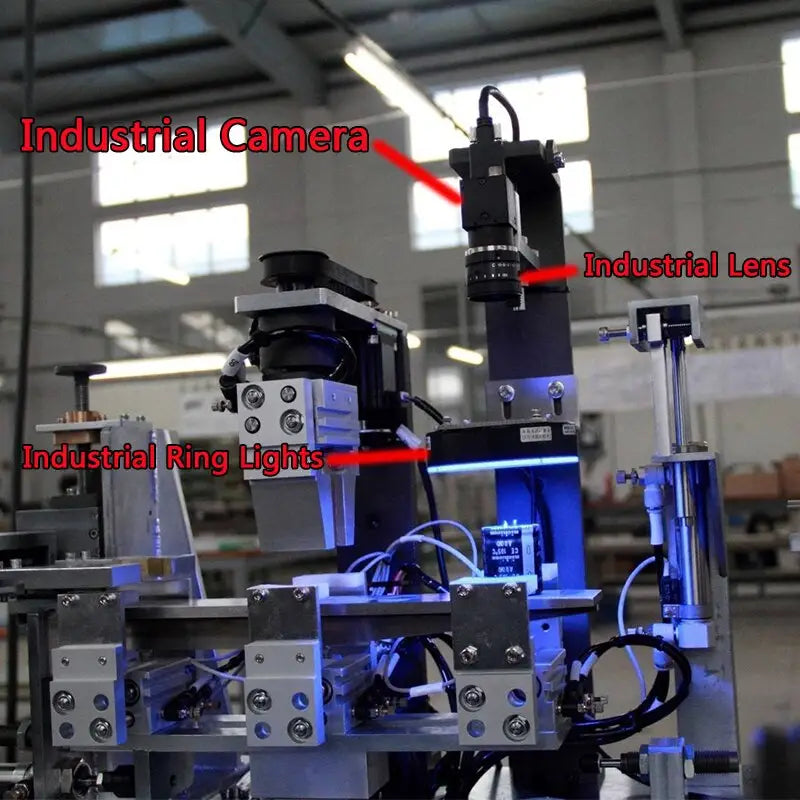

Super-speed GigE Industrial Camera with RJ45 Gigabit Ethernet interface, resolution of 1920*1200(2.3 Megapixel), 2/3" CMOS, pixel size 4.8μmX4.8μm, max. frame rate 51.0fps, Monochrome, Global Shutter, optional 8/10bit depth, GigE interface with long transmission distance, SmartVision Controller Vision Solutions for Automated Inspection Measuring, use advanced indsutrial image sensor, superior image quality and high resolution.
2.3MP Monochrome Global Shutter Camera

GigE Series Features:

1) Support 100 meters transmission or POE (optional).

2) Compatible with gige vision standard.

3) With hardware image processing acceleration.

4) Support multiple cameras to work at the same time.

5) Data packet retransmission technology to ensure reliable data transmission.

6) Provide SDK, easy to use and convenient.

7) Support external trigger and flash.

8) SDK supports Windows and Linux systems.

9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

Product Feature:

1) Camera parameter archive is saved as a file.

2) Camera name can be modified to easily distinguish multiple cameras.

3) With a maximum of 16K bytes of data storage.

4) Support 8bit, 24bit, 32bit image format output.

5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

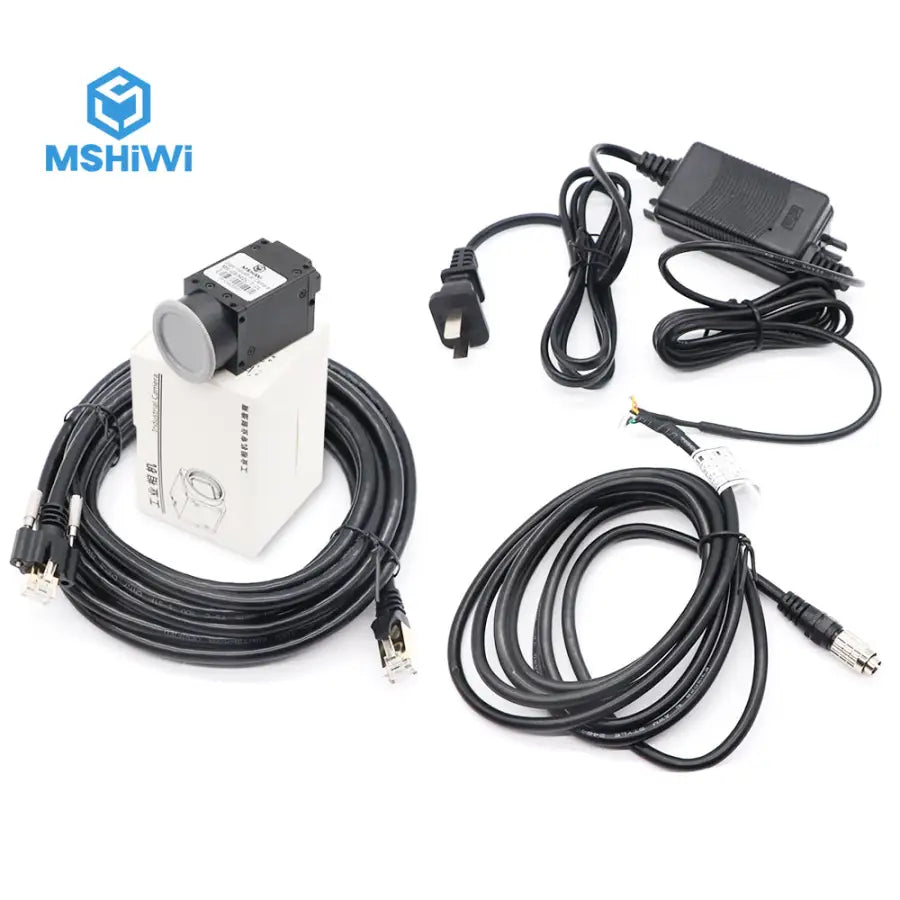

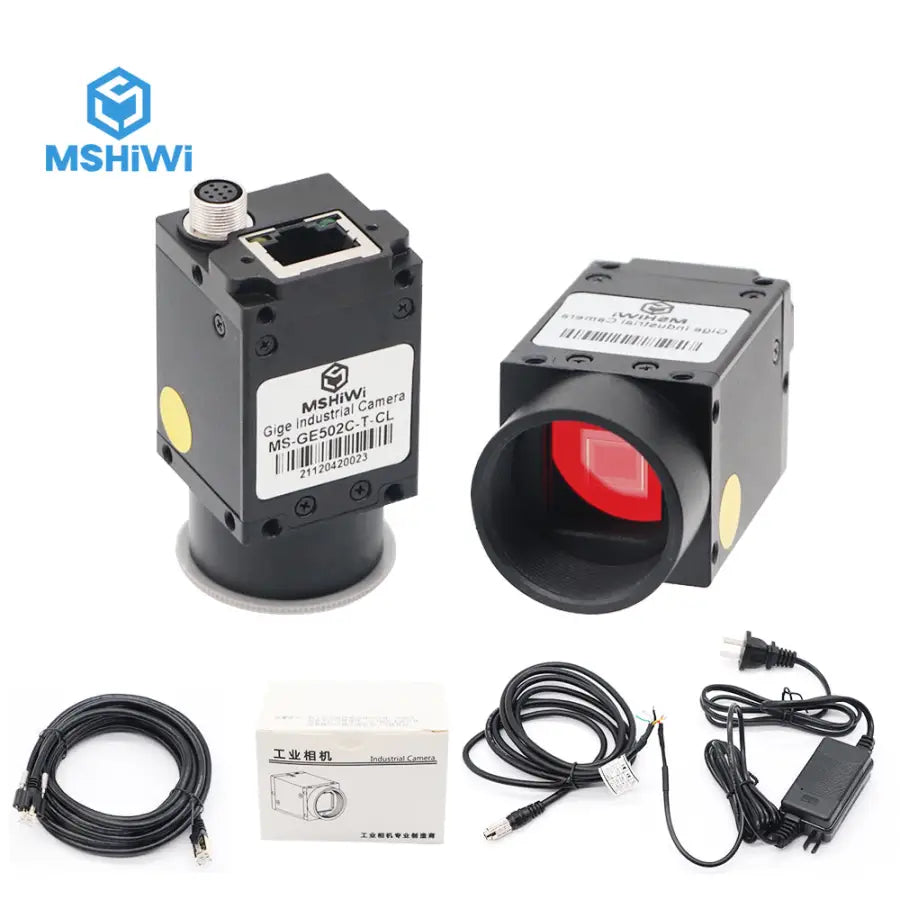

Package Incluede:

1 x Industrial Camera (No Include Lens)

1 x Trigger line

1 x 5 Meters Gigabit Ethernet Cable

1 x 12V Power Supply

Industrial Camera Parameters：

Model	HT-GE202GM-T-CL

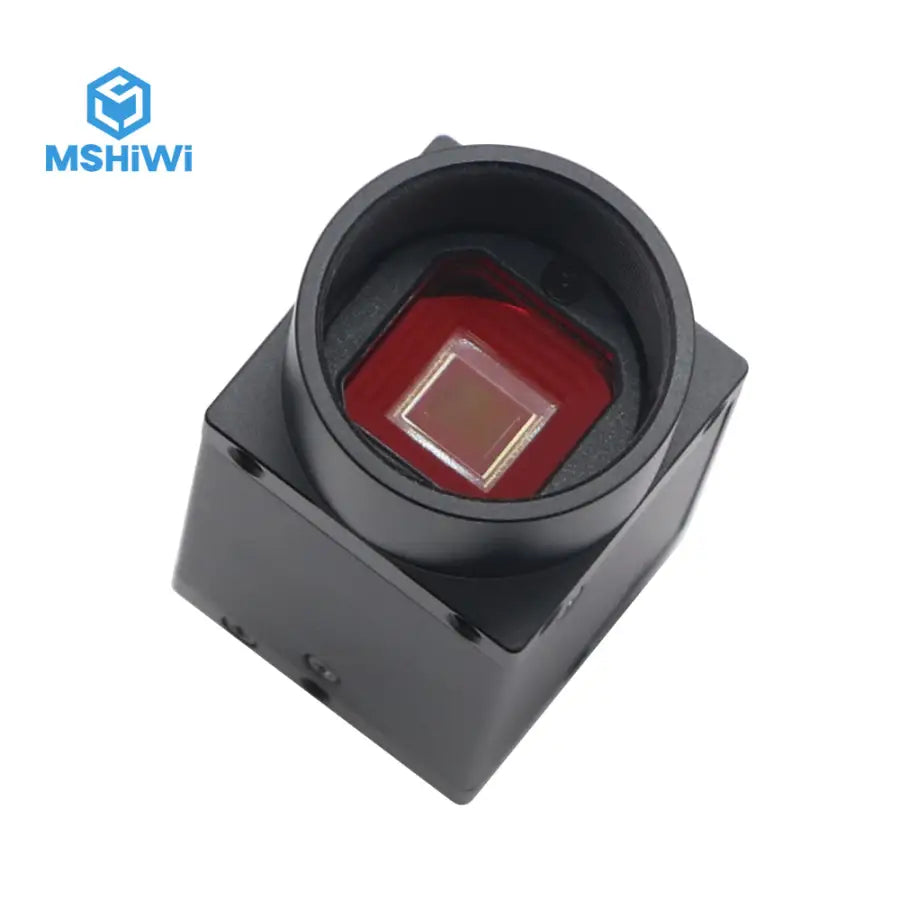

Sensor	2/3" CMOS
Shutter Type	Global Shutter
Camera Type	Monochrome
Pixel Size	4.8*4.8μm
Effective Pixels	2.3 MP
Resolution @FPS
	1920*1200@51FPS

Pixel Bit Depth	10bit
Sensitivity	7.5V/lux-s 550nm

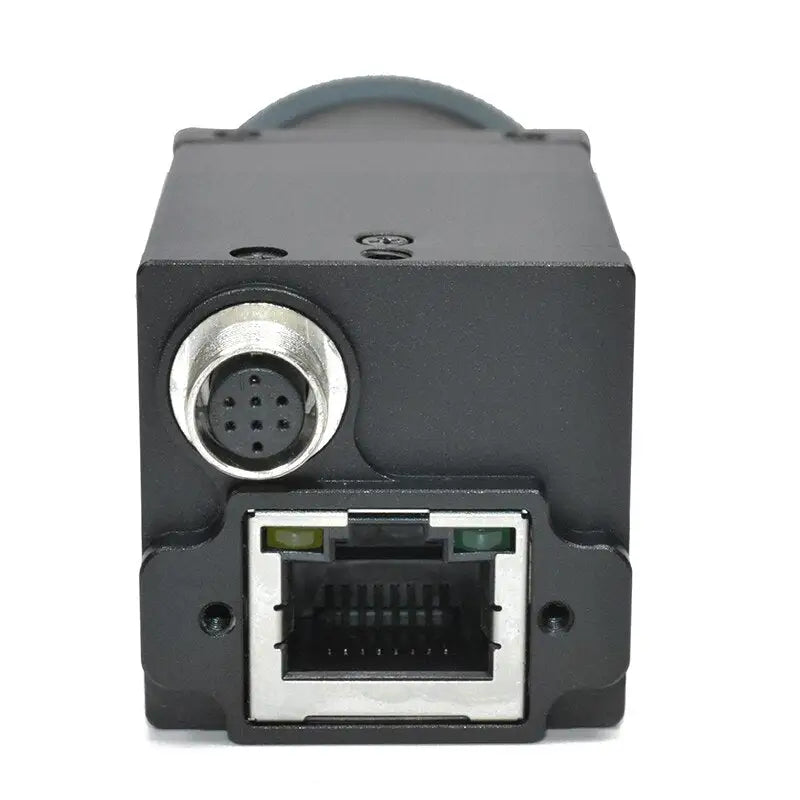

GPIO	6-pin Hirose Connector
Acquisition	Continuity/Soft Trigger/Hard Trigger
Maximum Gain (multiple)	8
Exposure Time (ms)	0.005~327.7
Filters	None
Frame Buffer	32M Bytes
Custom Data	2K Bytes
Video Output Format	Bayer8、Bayer12、Mono8、Mono12、Mono16、RGB8、RGB32、RGB48
Visual Standard Protocol	GigE Vision 、GenICam
Lens Interface	C Mouth

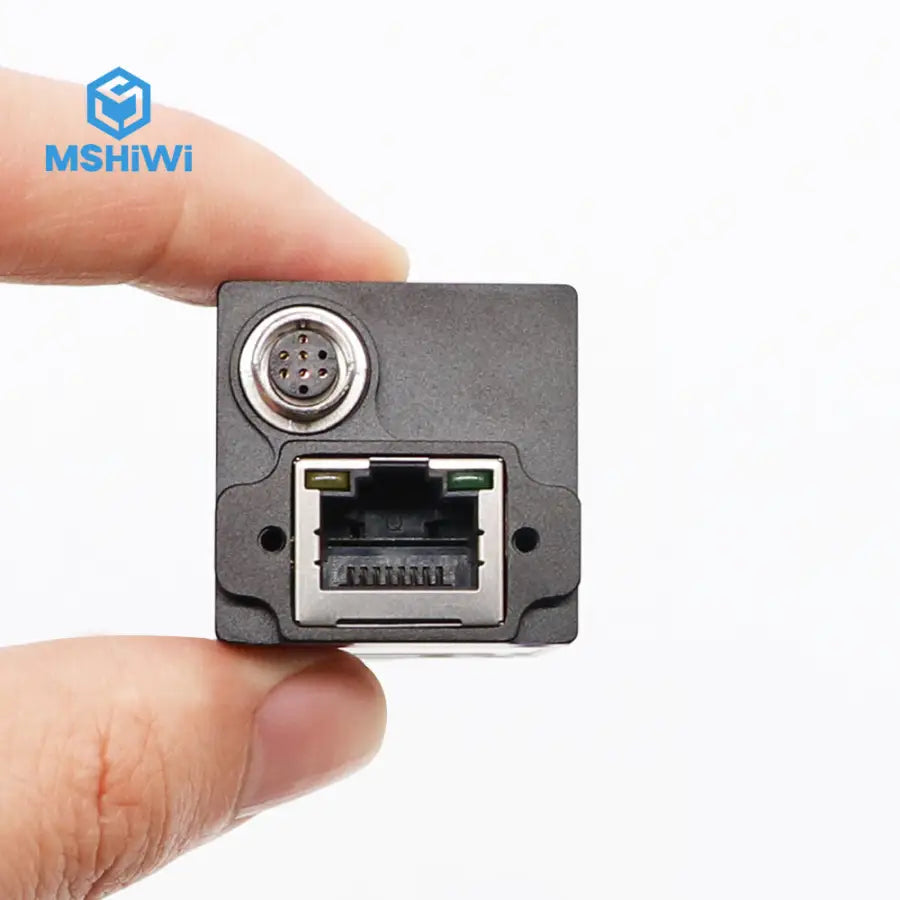

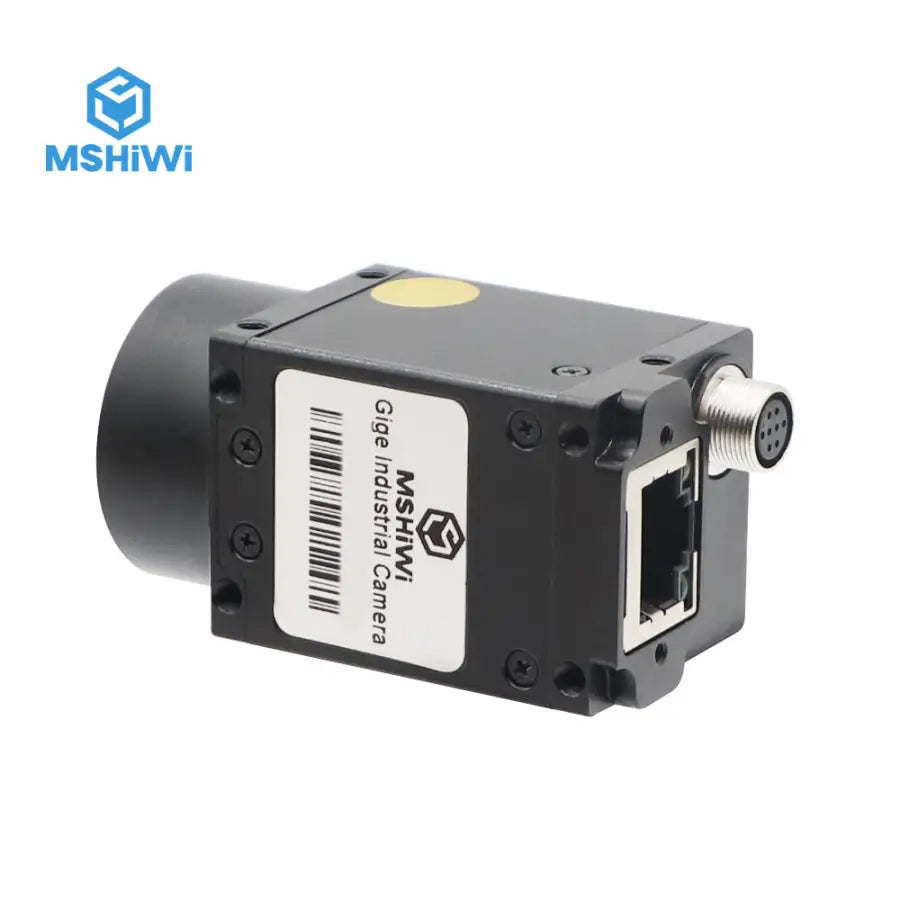

Data Interface	RJ45 Gigabit Ethernet interface
Power Supply	12V(Optional POE Power Supply)
Power	<2.5W

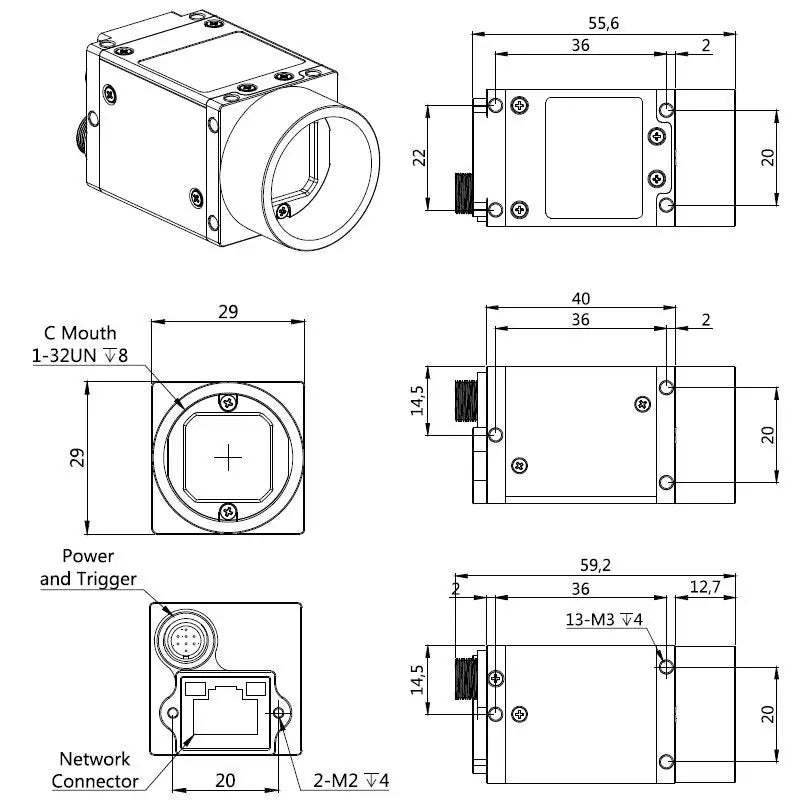

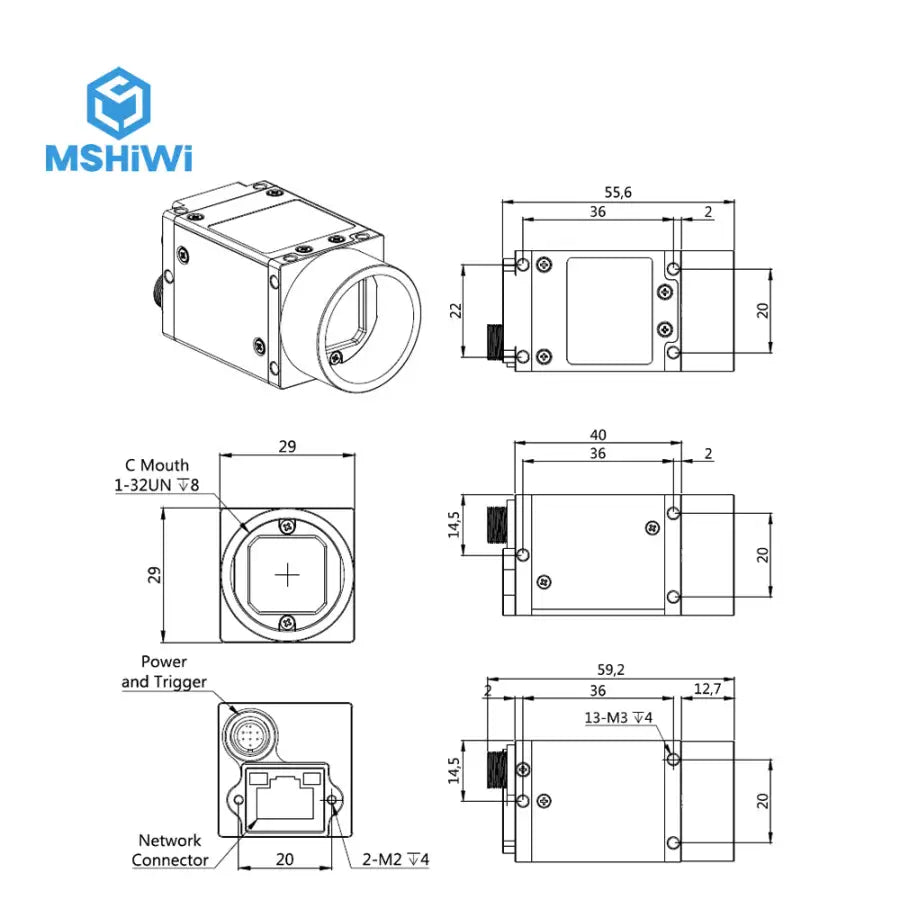

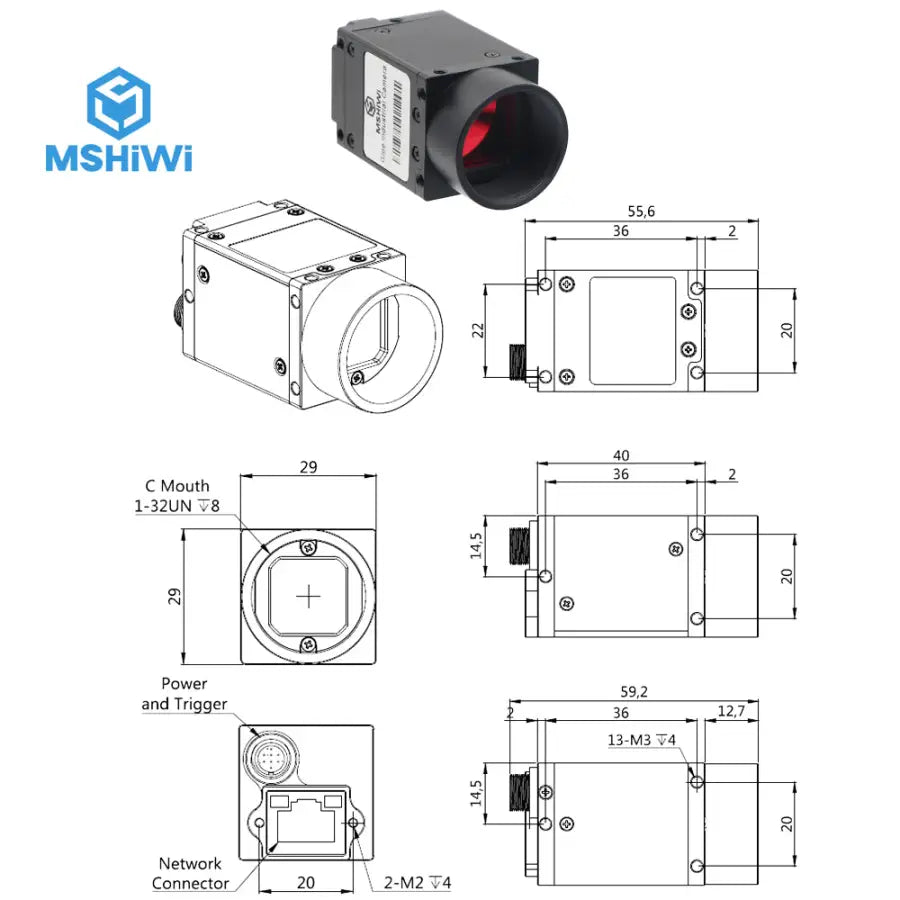

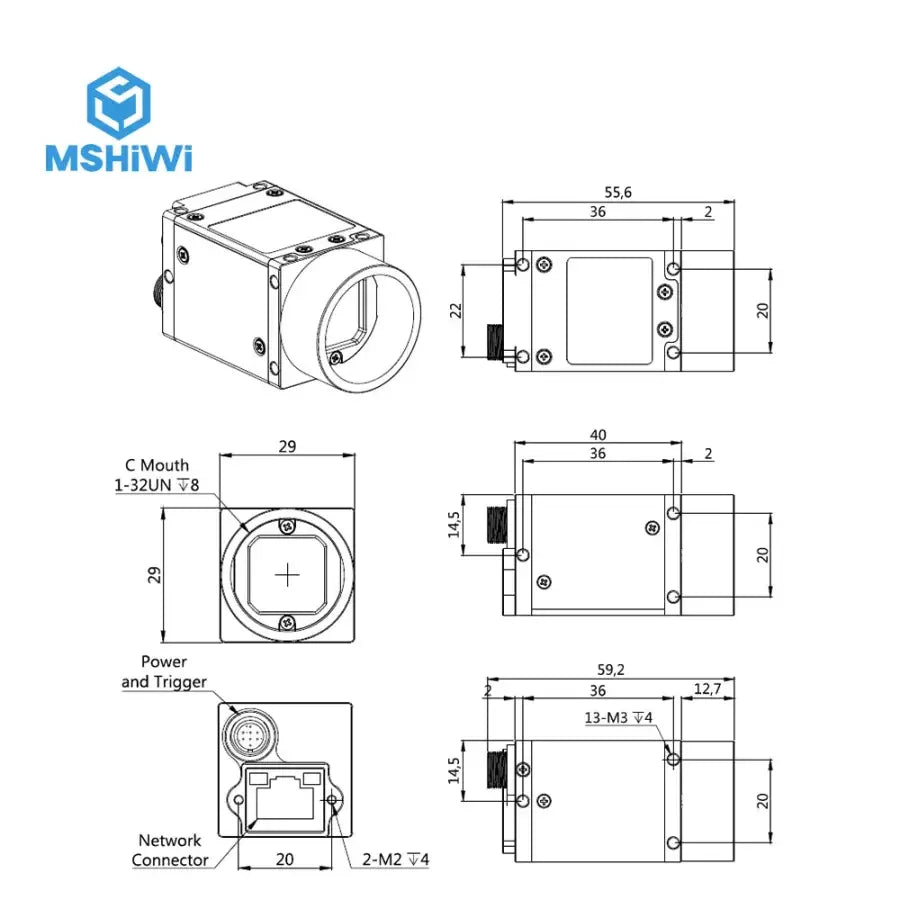

Dimensions	29(mm)X29(mm)X40(mm)
Weight	< 75g
Operating Temperature	0~50 Degrees
Operating System	Support WIN7/8/10 32&64 System; PC Linux System
Driver	Directshow; Halcon; Labview; OCX; TWAIN Component
Programming Ianguage	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV
Other Functions	Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.
