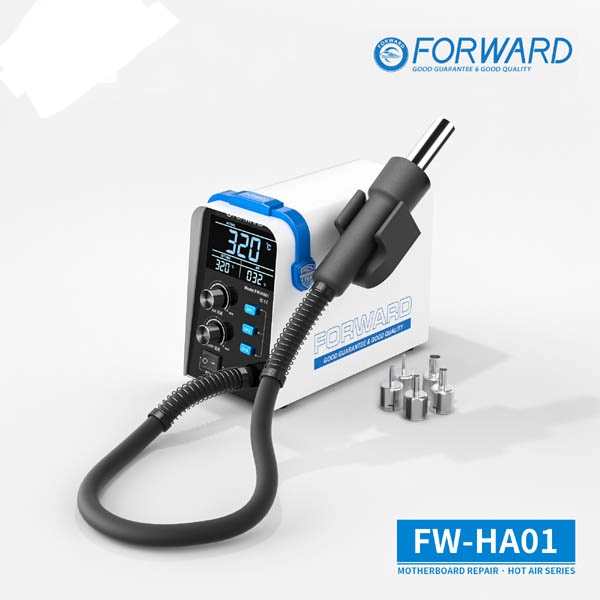

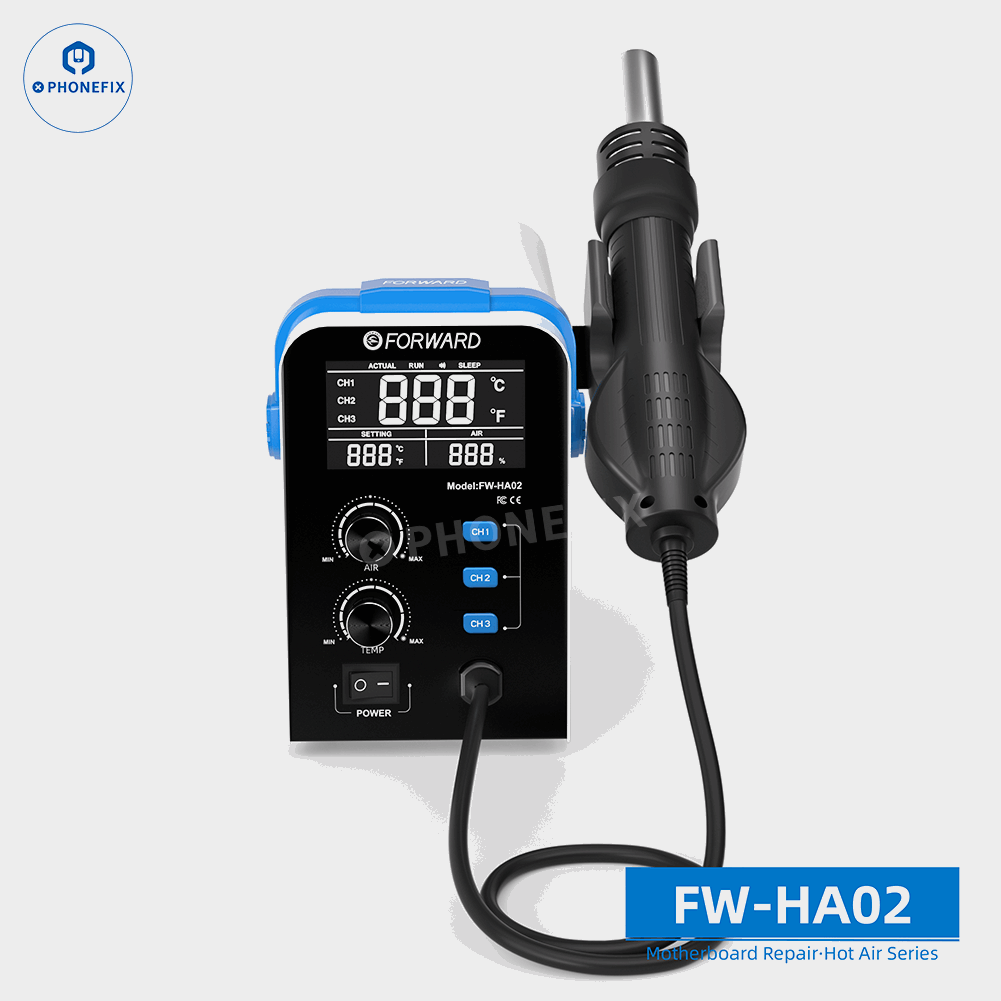

FORWARD FW-HA01 FW-HA02 FW-HA03 FW-HA04 FW-HA05 Helical Wind Desoldering Station 800W Hot Air Gun with Nozzles for mobile phone motherboard and electronic PCB CPU BGA soldering repair. Fast heating, precise temperature control, efficient airflow, temperature calibration, high-definition LCD display. The most commonly used tool in mobile phone repair.
Features:

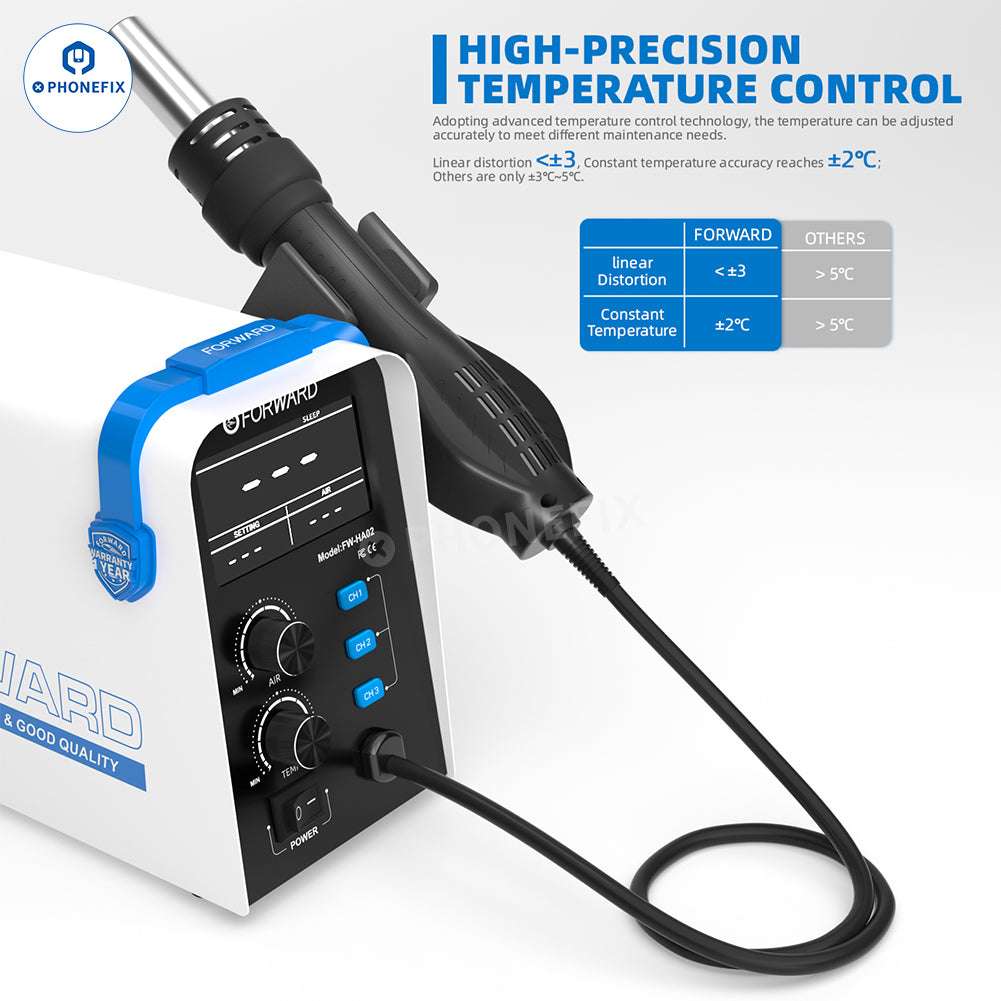

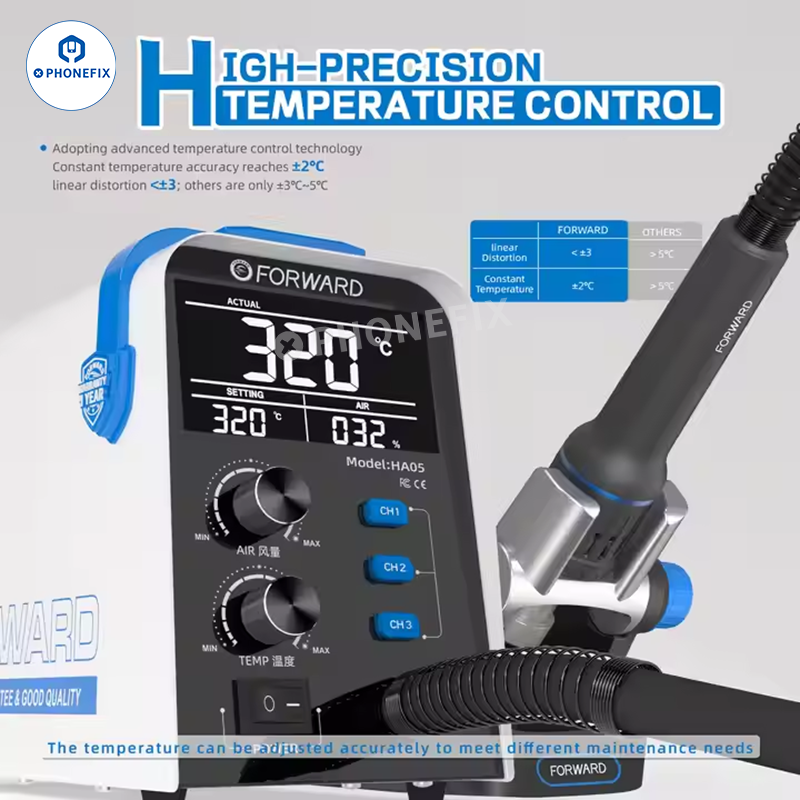

1. High-precision temperature control Using advanced temperature control technology, the temperature can be accurately adjusted to meet different maintenance needs. Linear distortion <±3, constant temperature accuracy reaches ±2℃; others are only ±3℃~5℃.
2. Rapid heating and stable temperature 800W high power, ceramic heating core, heating technology; it only takes 35 seconds to heat from room temperature to 350℃, and 6 seconds for other temperatures, stable temperature, and no damage to components.

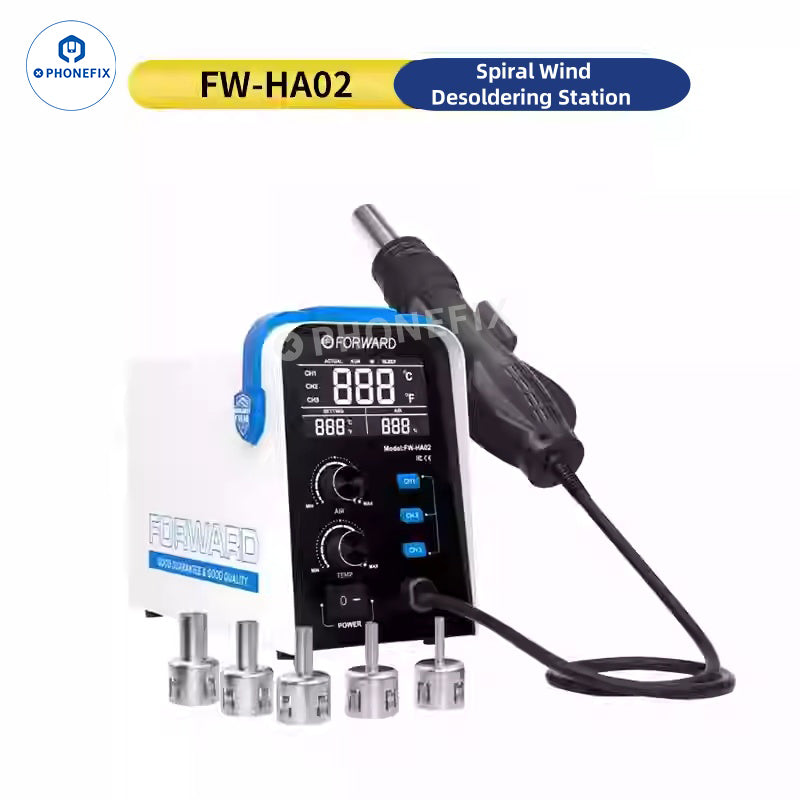

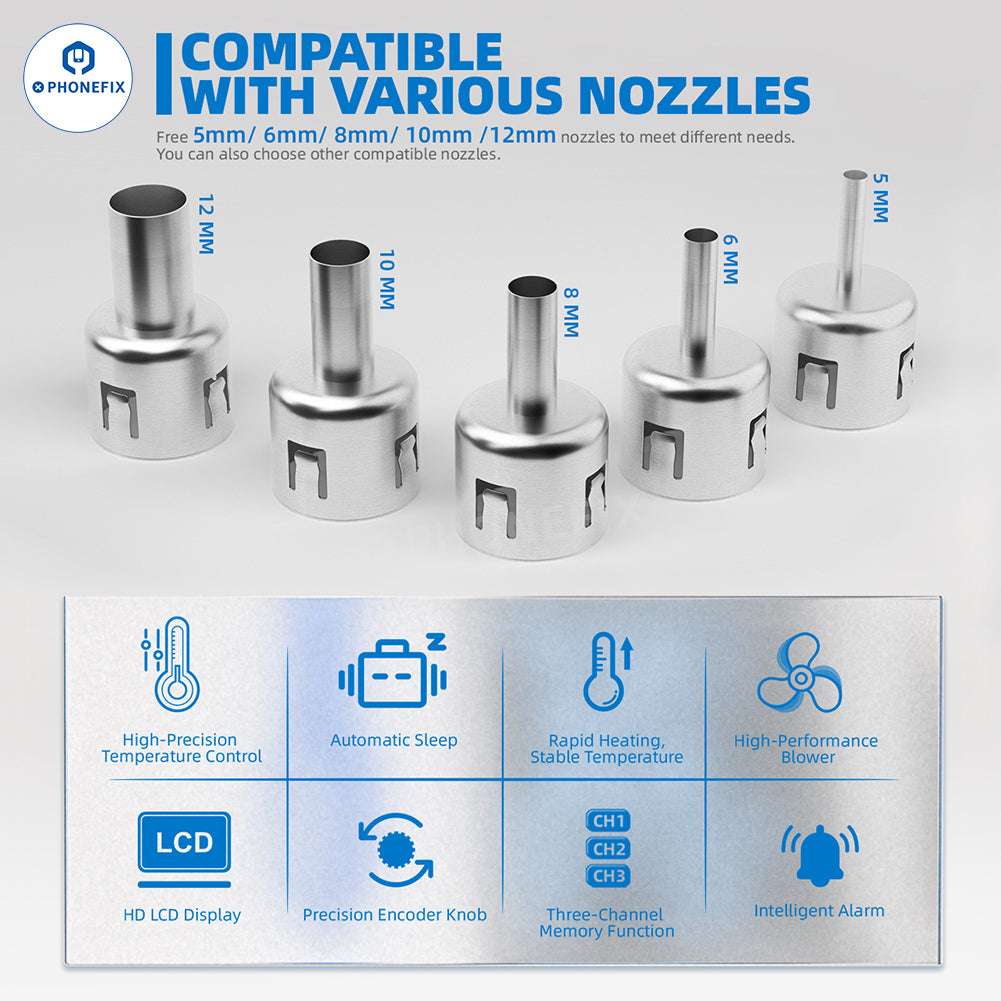

3. Compatible with various nozzles free 5mm/ 6mm/ 8mm/10mm /12MM nozzles to meet different needs.

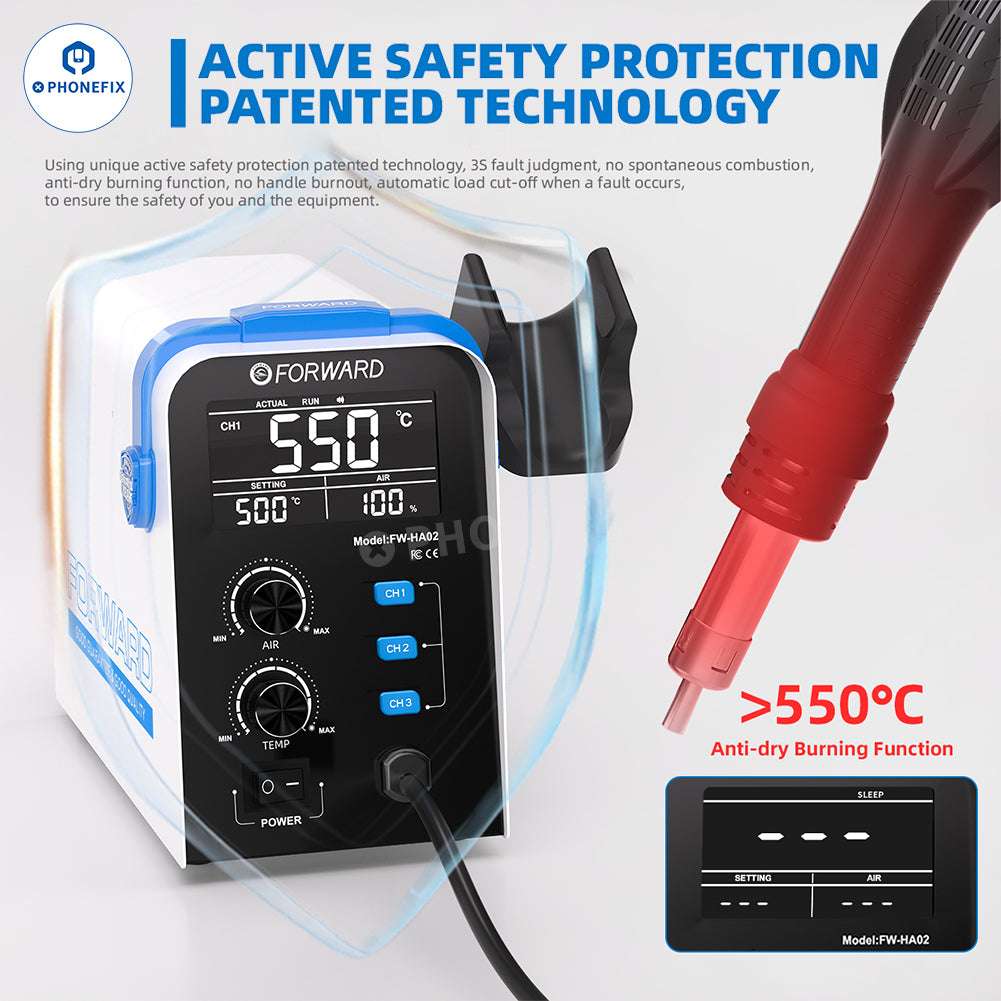

4. Adopts unique active safety protection patented technology, 35 fault judgments, no spontaneous combustion, anti-dry burning function, no handle burning, and automatic load cut-off in case of fault, ensuring the safety of you and your equipment.

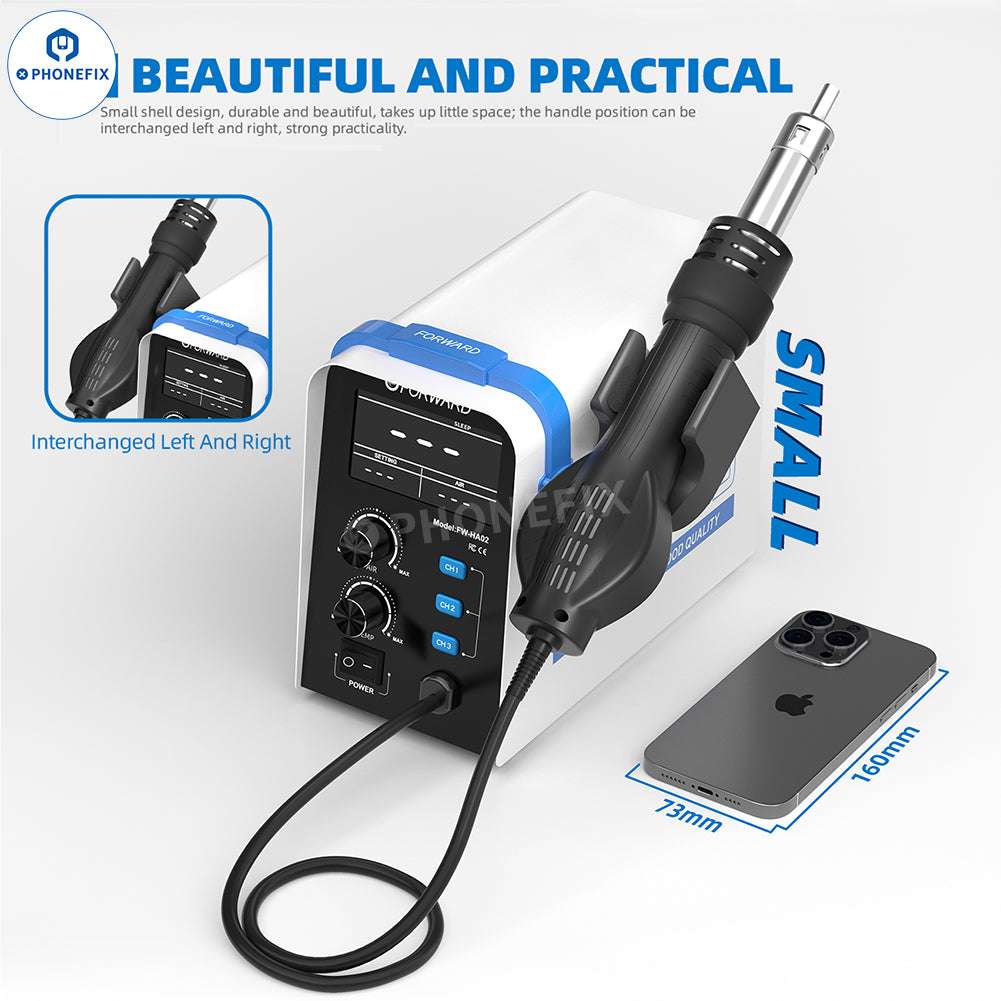

5. Beautiful and practical, small shell design, durable and beautiful, takes up little space; the handle position can be interchanged left and right, which is very practical.

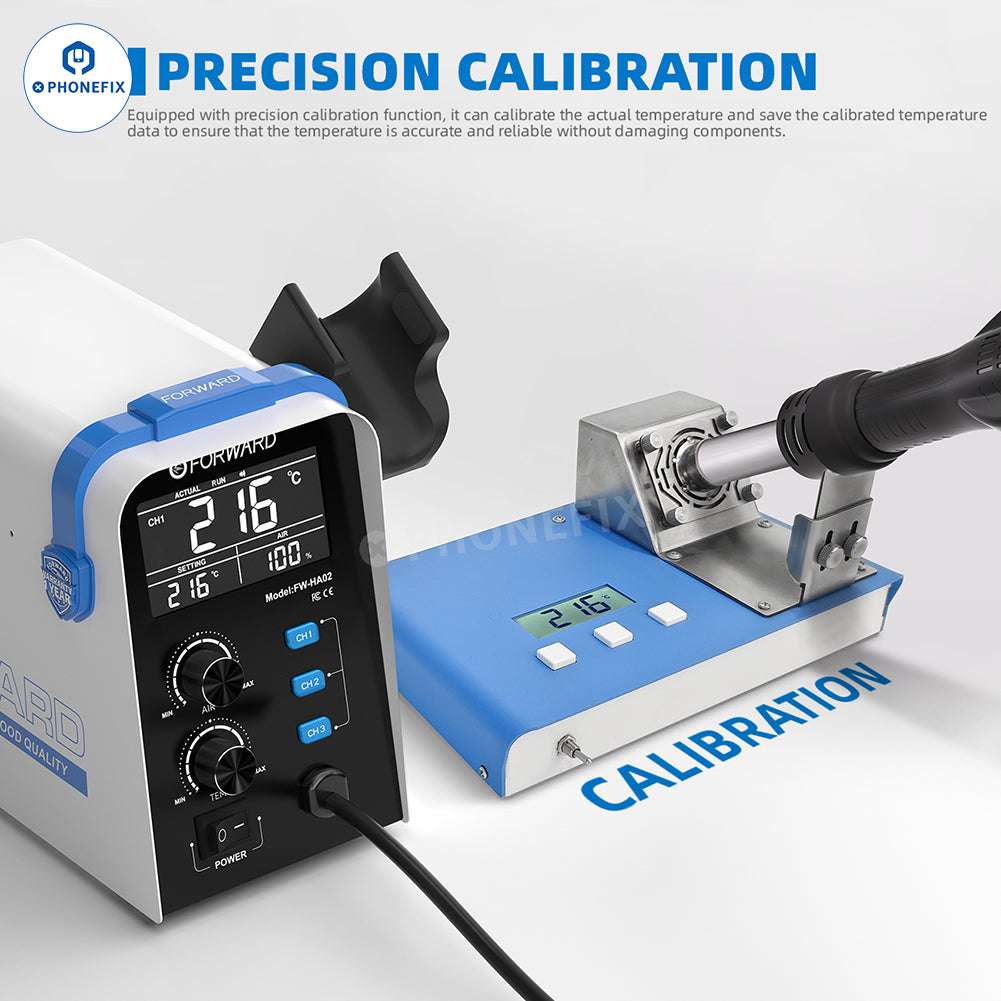

6. Equipped with precision calibration function, it can calibrate the actual temperature and save the calibrated temperature data to ensure that the temperature is accurate and reliable without damaging components.

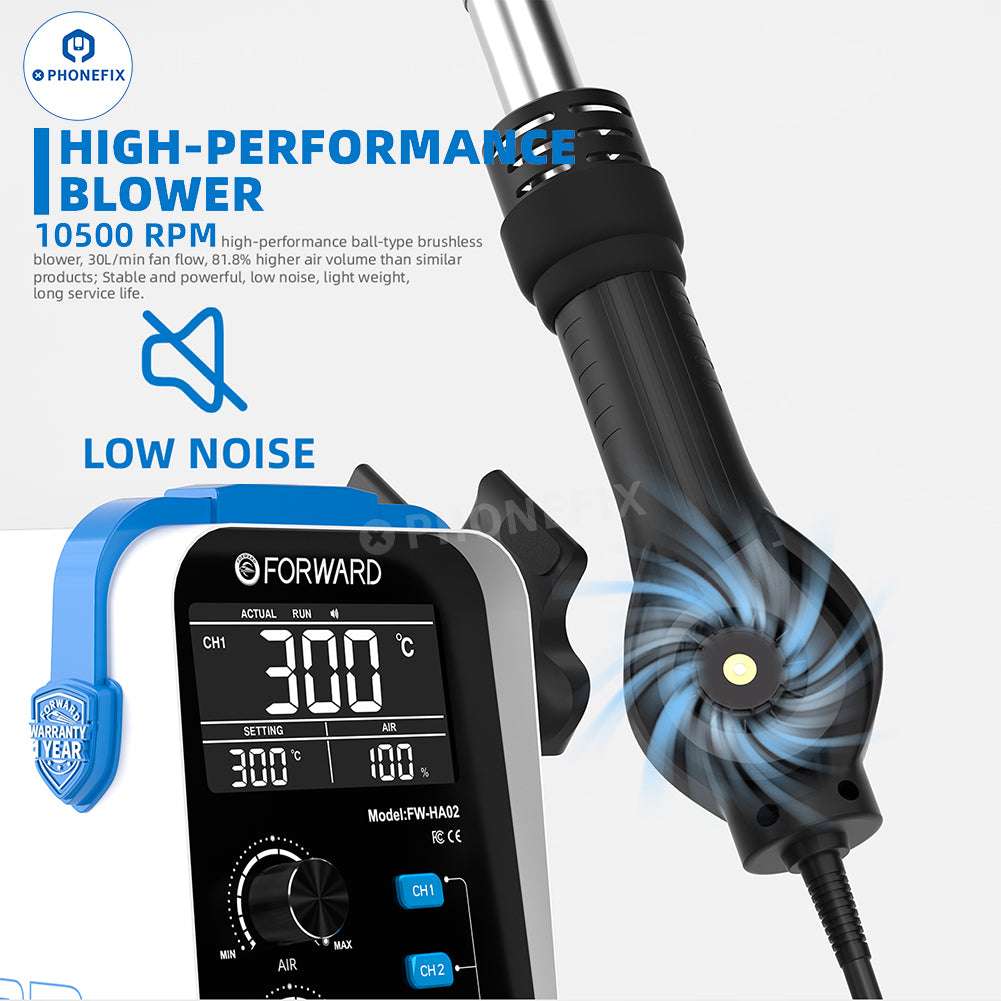

7. High-performance fan, 10500 RPM high-performance ball-type brushless fan, 30L/min fan flow, 81.8% higher air volume than similar products; stable and powerful, low noise, light weight and long service life.
FW-HA03 Features:

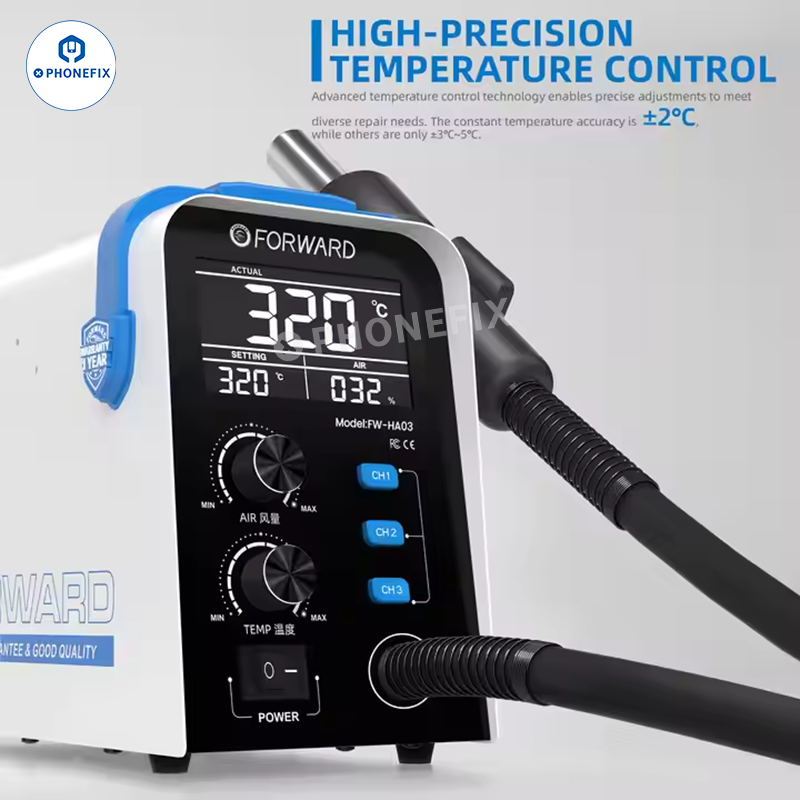

1. High-precision temperature control Advanced temperature control technology can be precisely adjusted to meet different maintenance needs, constant temperature accuracy ±2℃, others are only ±3℃~5℃.

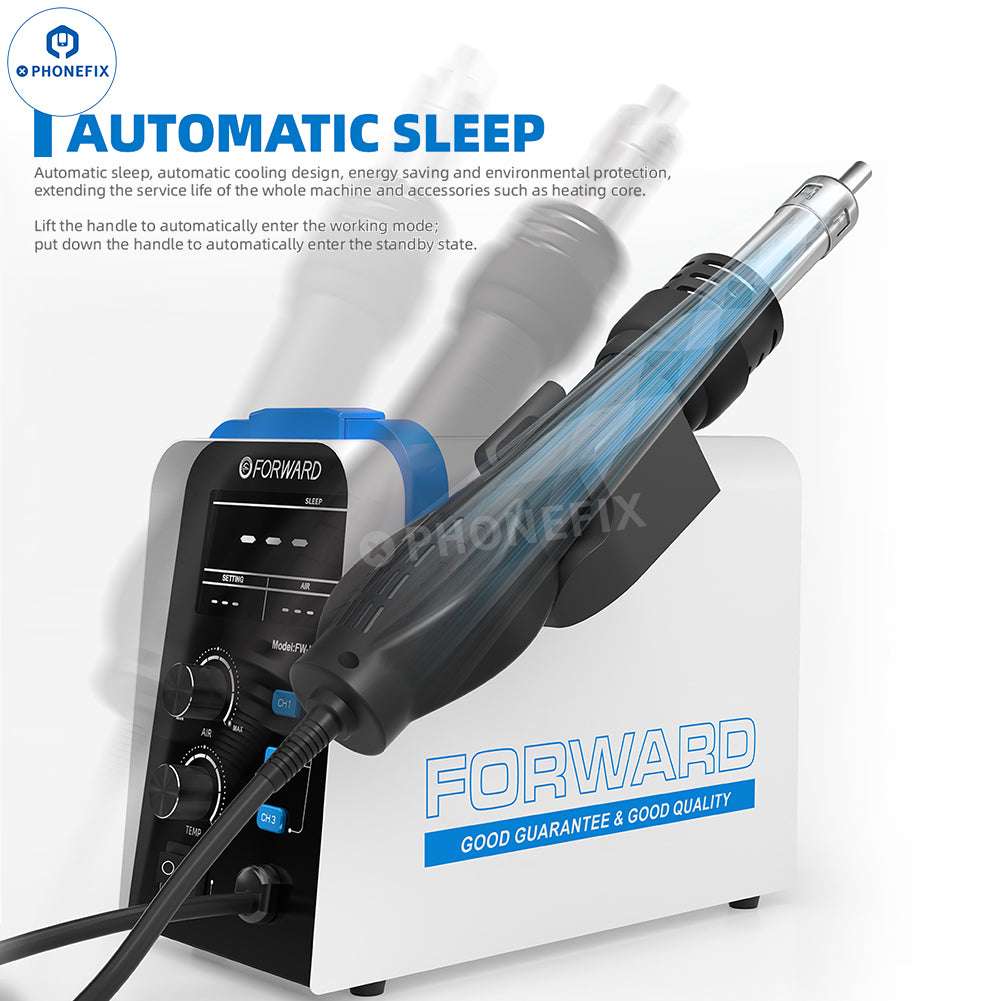

2. Automatic sleep and automatic cooling design, energy saving and environmental protection, extending the service life of the whole machine and accessories such as heating cores. Lift the handle to automatically enter the working mode; put down the handle to automatically enter the standby state.

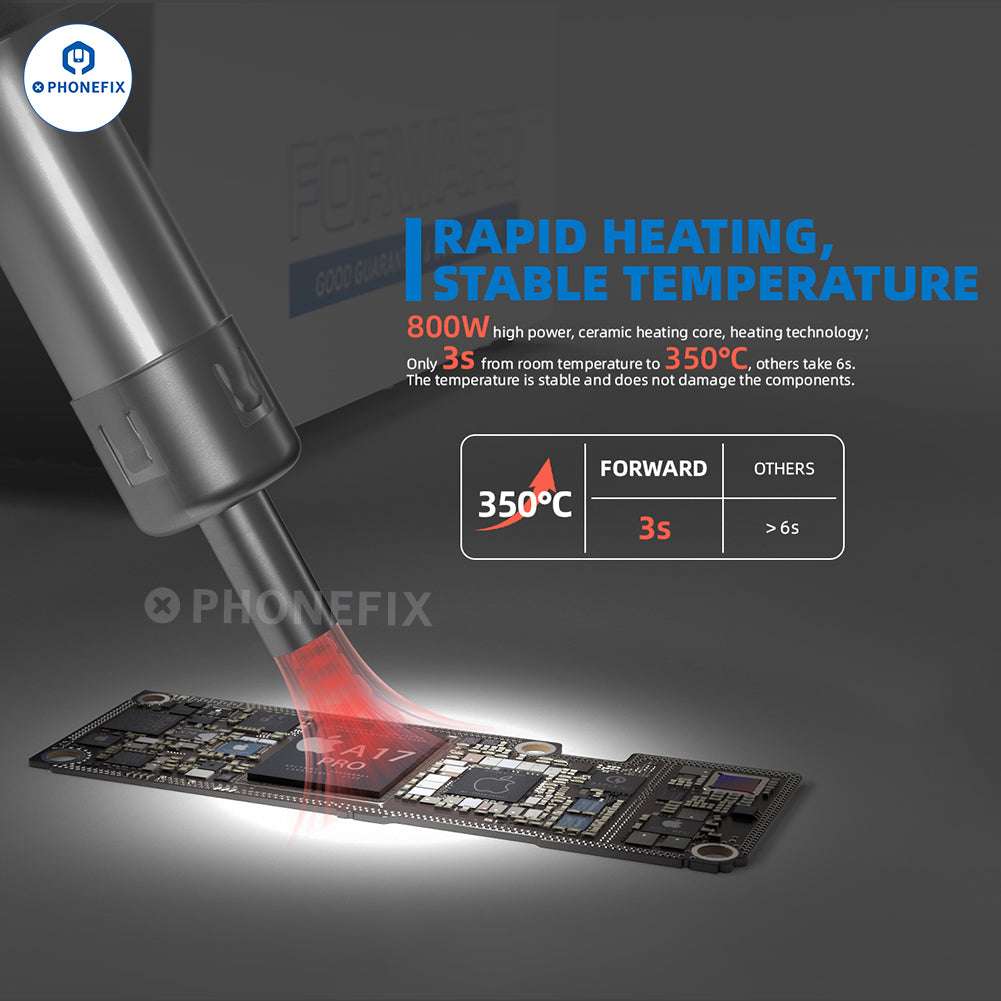

3.800W high power, ceramic heating core, heating technology; it only takes 3 seconds to heat up from room temperature to 350℃, and 6 seconds for others, the temperature is stable and does not damage components.

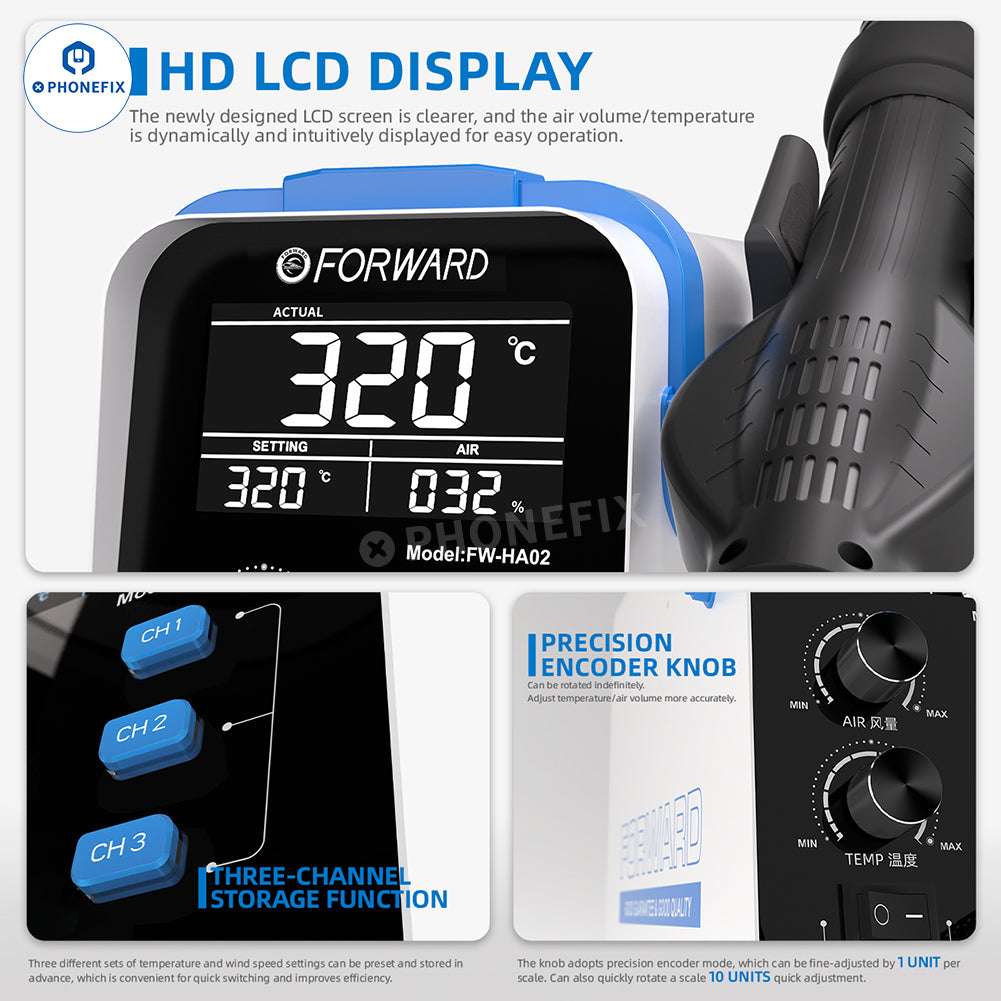

4. High-definition LCD display The newly designed LCD screen is clearer, dynamic air volume/temperature is intuitively displayed, and it is easy to operate.

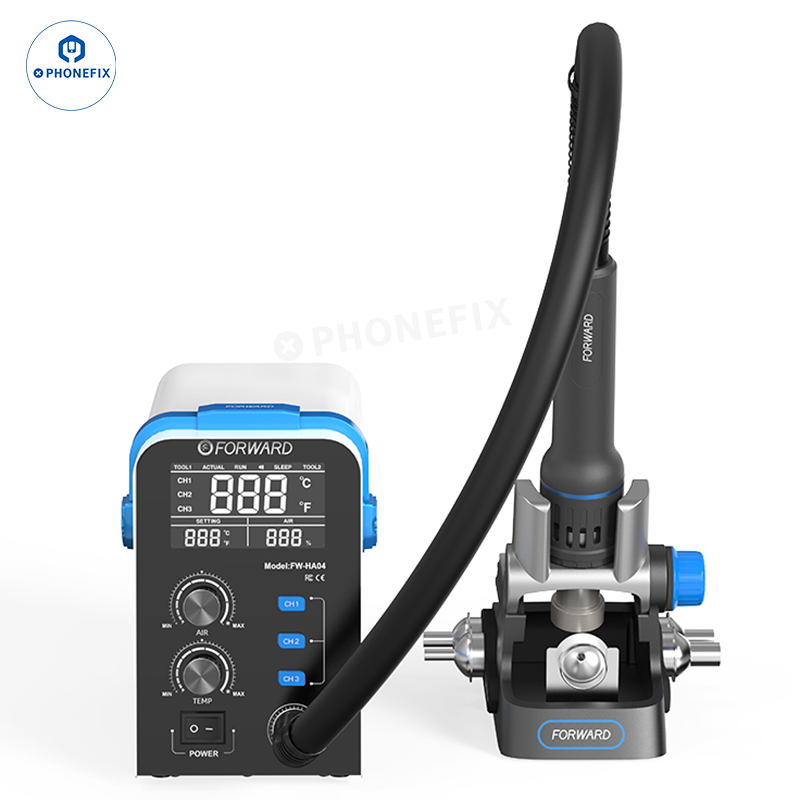

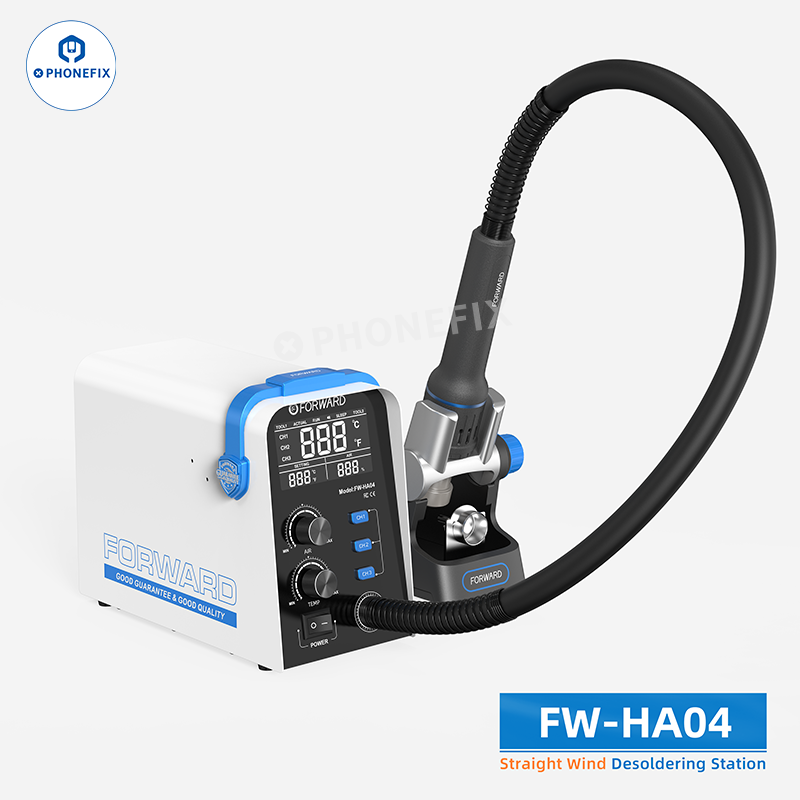

FW-HA04 Features:
1. Precise Temperature Control: Utilizes resistance wire heating and K-type thermocouple sensors with a microcomputer PID system for accurate temperature regulation. Offers ±2°C temperature accuracy and minimal linear distortion.
2. Efficient Airflow: Powered by a high-performance double ball vortex high-pressure fan, offering low noise, light weight, large airflow, high air pressure, and long service life. Air volume is adjustable from 5% to 100%.
3. Convenient Operation: Magnetic switch handle design allows quick entry into working mode when removed from the bracket, and cooling to standby mode when returned, reducing energy consumption and extending heating element lifespan.
4. Active Safety Protection: Features patented active safety protection technology, including 3S fault detection, anti-dry burn, no handle burning, and automatic load cut-off in case of faults.

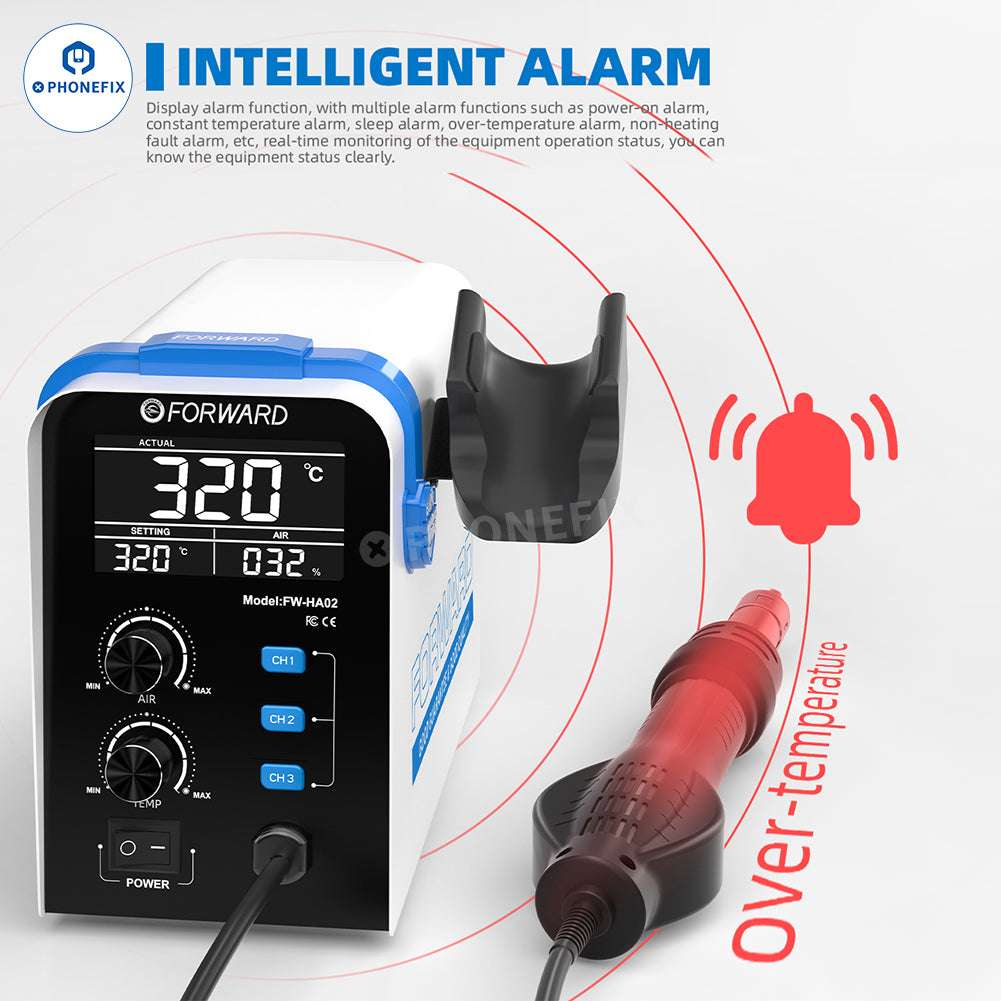

5. Alarm and Alert System: Includes display and sound alarms for power-on, constant temperature, sleep mode, over-temperature, no-heat fault, and handle detachment, ensuring user safety and operational efficiency.
6. Temperature Calibration: Offers temperature calibration function, allowing users to adjust and save the actual temperature for accuracy, with the option for repeated calibration if needed.

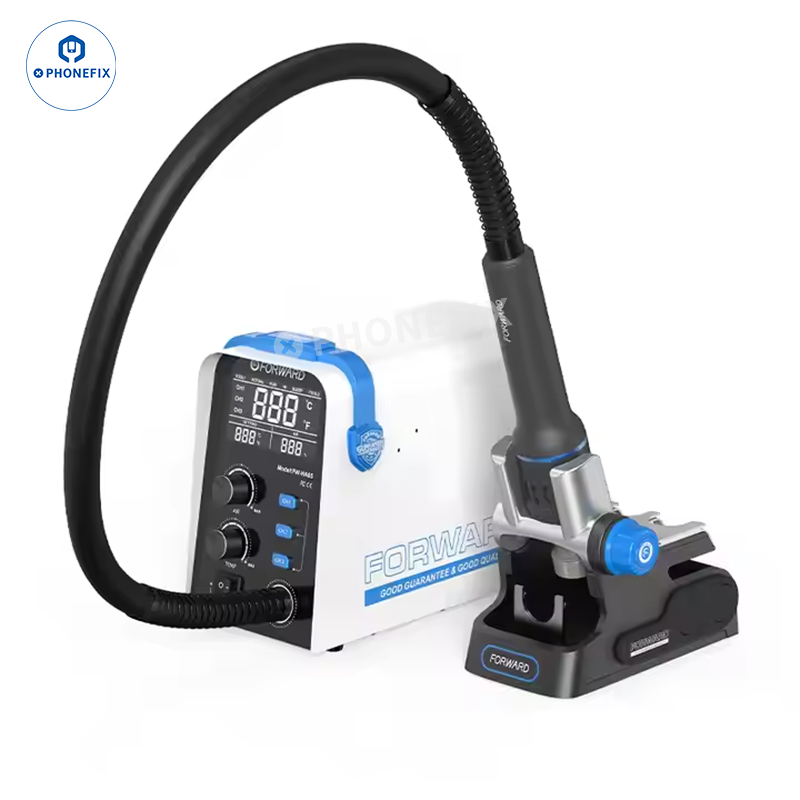

FW-HA05 Features:
1. Soft spiral wind, uniform heating, more stable temperature distribution, less thermal shock to components, suitable for desoldering precision components.
2. Automatic sleep, automatic cold wind design, energy saving and environmental protection, extending the service life of the whole machine and accessories such as heating cores.
3. Pick up the handle to automatically enter the working mode. Put down the handle to automatically enter the standby state.
4. High-precision temperature control adopts advanced temperature control technology. Constant temperature accuracy reaches ±2℃ linear distortion and other only 3℃-5℃.
5. Rapid heating, stable temperature 800W high power, rapid heating. PID temperature control technology. Stable temperature, no damage to components.

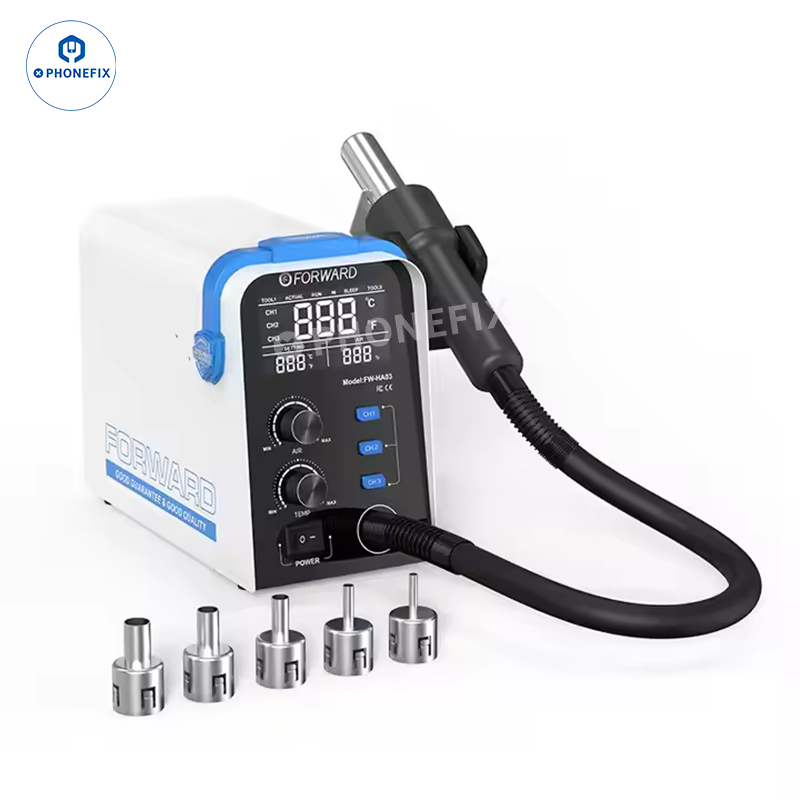

FW-HA03 Product Parameters:
Brand: FORWARD
Applicable scenarios: Mobile phones
Material: Metal
Voltage: 220VAC/110VAC
Model: FW-HA03
Packaging size: 36x22x22cm
Packaging weight: 2.8kg
Product size: 11x21.5x17cm
Product weight: 2.3kg
Power supply: 800W
Temperature range: 100~500℃(212℉~932°F)
Display window: LCD segment code display
Constant temperature accuracy: ±2℃C
Fan speed: 13000 rpm/min
FW-HA05 Product Parameters:
Brand: FORWARD
Applicable scenarios: mobile phones
Material: metal
Voltage: 110V/220V
Model: FW-HA05
Packaging size: 35x21x21cm
Packaging weight: 3.7kg
Product size: 12x22.7x17.5cm
Product weight: 2.2kg
Voltage: 800W
Maximum input current: 7.3A/110V 3.6A/220V
Air gun temperature range: 100°C--500°C (896 F-932F)
Temperature accuracy: ±2℃
Fan speed: 13000 R/min

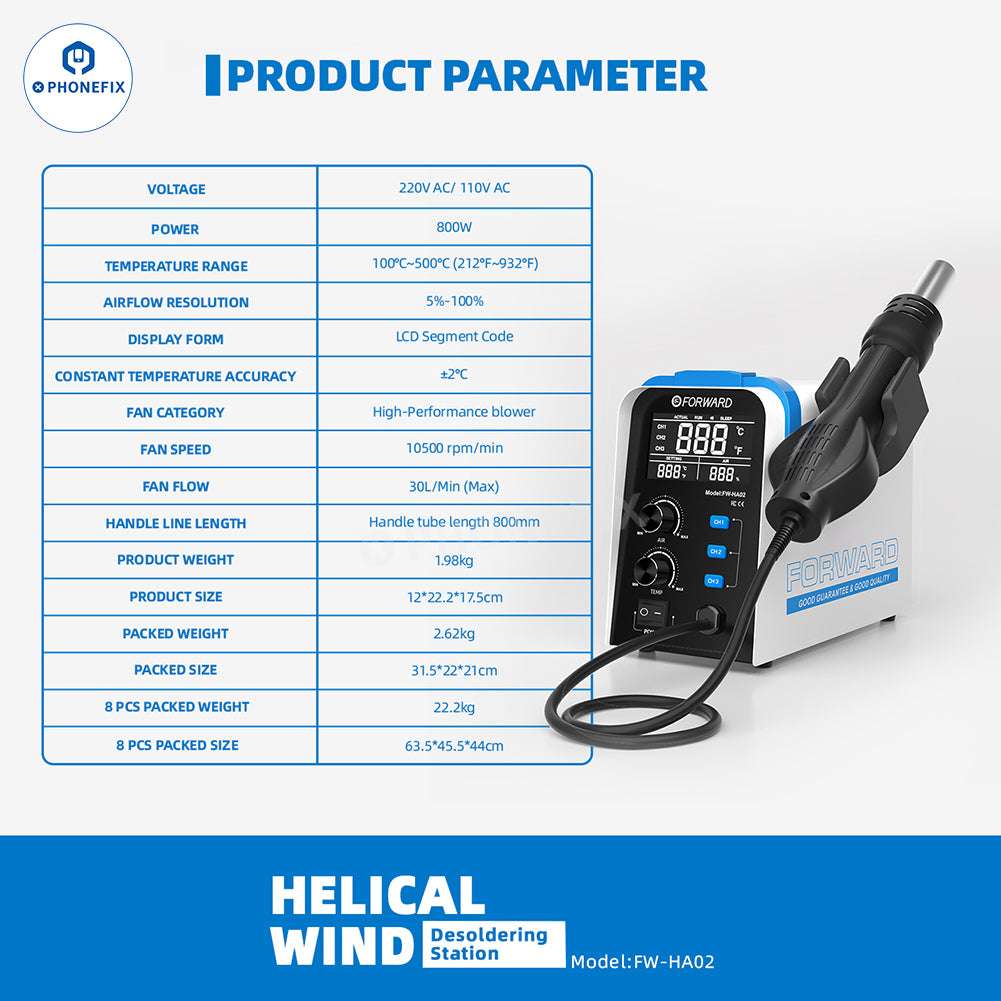

Product Parameters:
Voltage: 220VAC/110VAC
Power: 80OW
Temperature range: 100*℃~500℃(212*F-932*F)
Air volume resolution: 5%-100%
Display format: LCD segment code
Constant temperature accuracy: ±2℃
Fan category: high-performance fan
Fan speed: 10500 rpm/min
Fan flow: 30L/Min (Max)
Handle tube length: handle tube length 800mm
Product weight: 1.98kg
Product size: 12x22.217.5cm
Packaged weight: 2.62kg
Packaged size: 31.5x22x21cm
B PCS packaged weight: 22.2kg
8-piece package size: 63.5x45.5x44cm

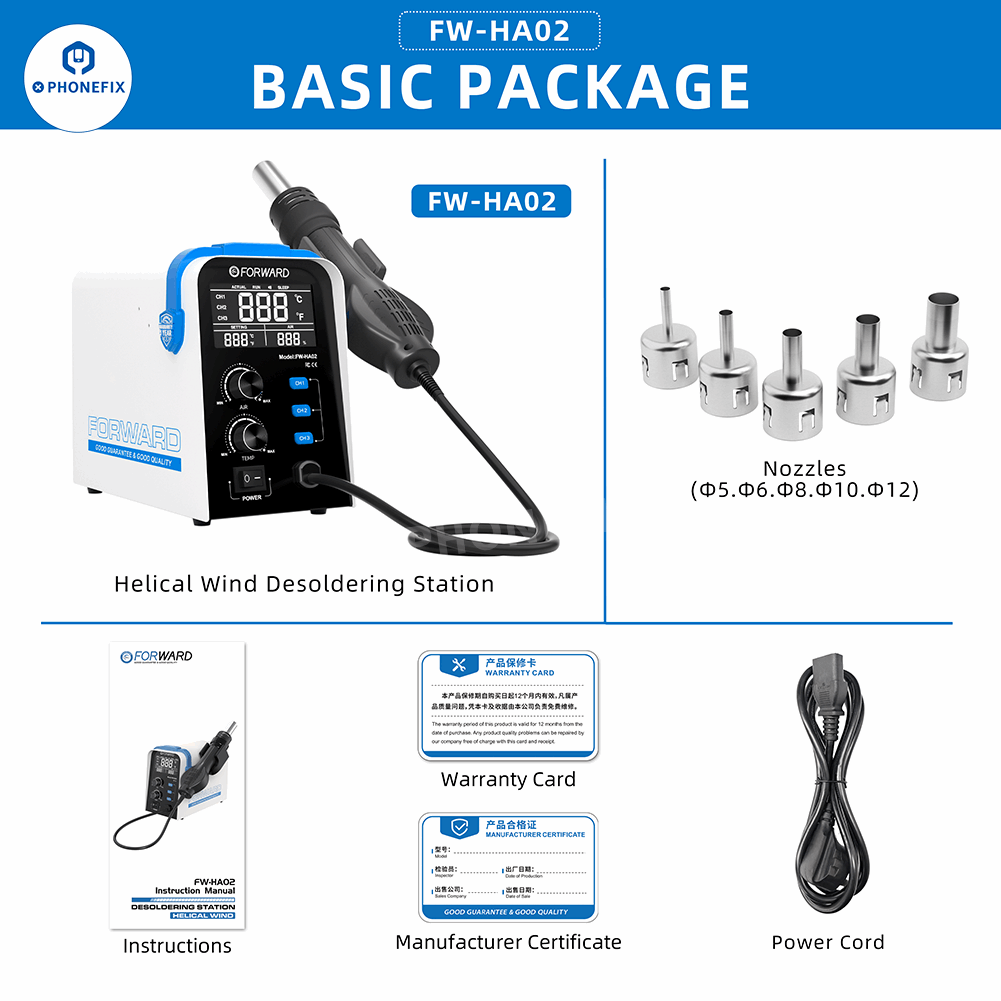

Package Lists:
Nozzles x5
Power Cord x1
Instructions x1
Warranty Card x1
Manufacturer Certificate x1
Helical Wind Desoldering Station x1
