FUME strong suction extractor smoke absorber for phone PCB BGA soldering smoke absorbing purifying, FUME extractor smoke absorber comes with 1.2m bamboo smoke tube, its suction is very strong, can quickly absorb smoke and odor, dust, it can be used for soldering iron station, laser machine, chemical experiments, cosmetic medicine, etc.

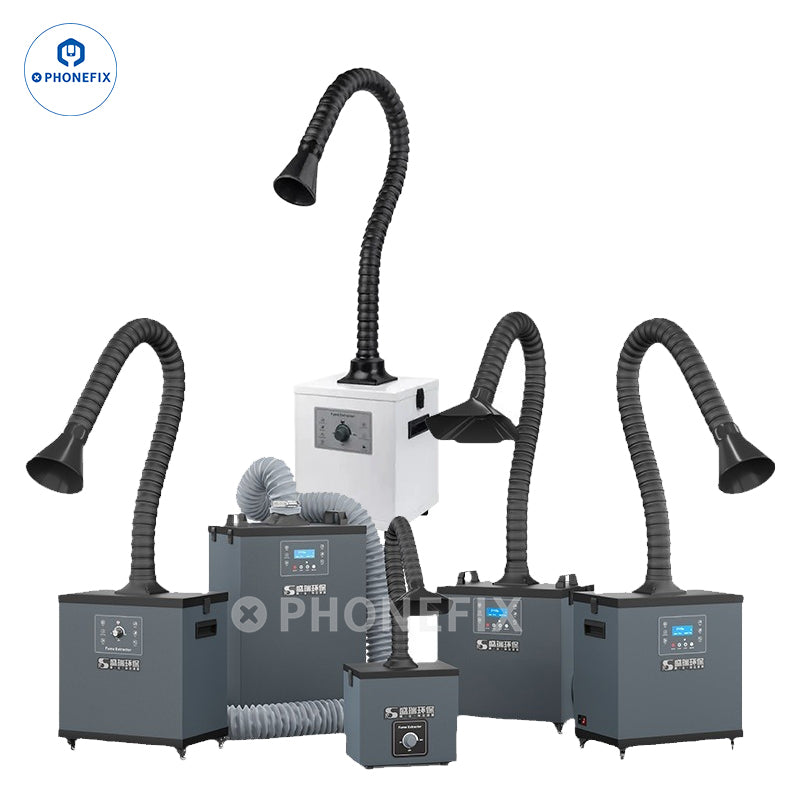

SR-80 80W single tube round / square hood solder smoke filter purifier, SR-190 200W knob single tube / double tube round hood solder smoke knob purifier, SRX-190 200W LCD remote control single tube / double tube round hood laser marking air exhaust machine, suitable for multiple scenes, effectively handle smoke, dust, odor and other harmful substances, widely used in solder smoke purification, laser marking, chemical experiments, mobile phone computer welding repair workbench.
Option:
1. BST-495 150W.

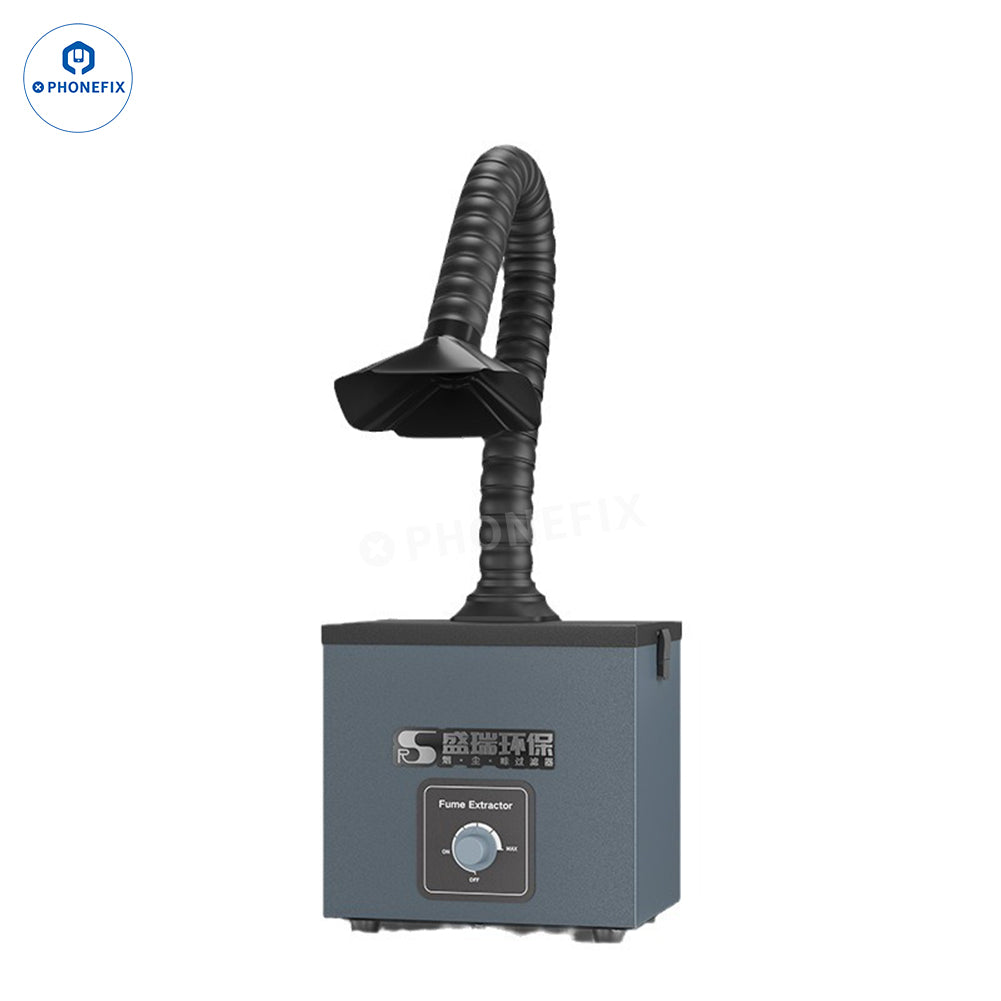

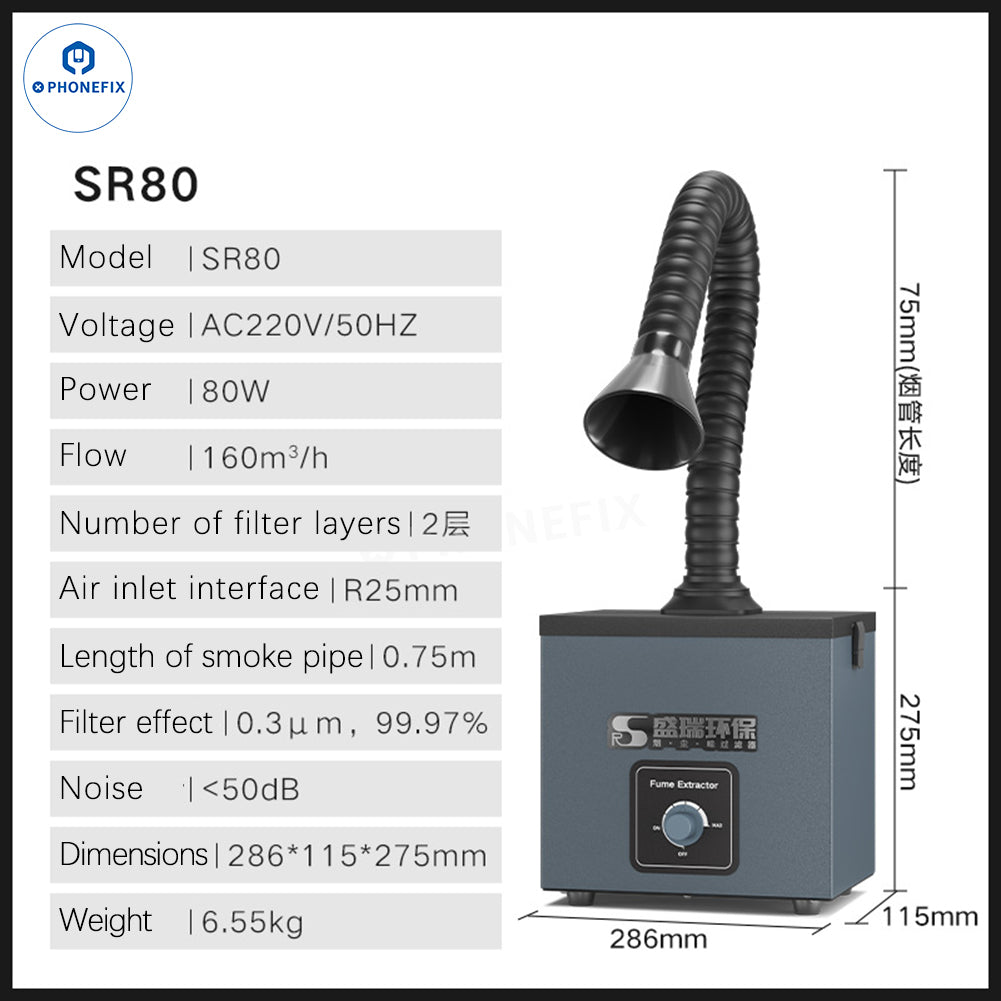

2. SR-80 [80W single tube round hood].
3. SR-80 [80W single tube square hood].

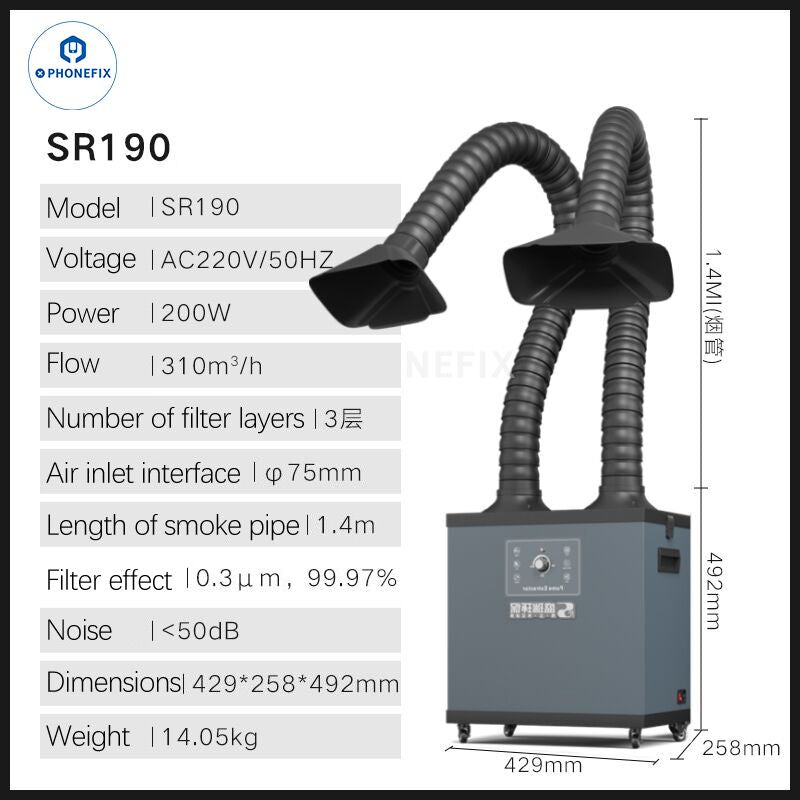

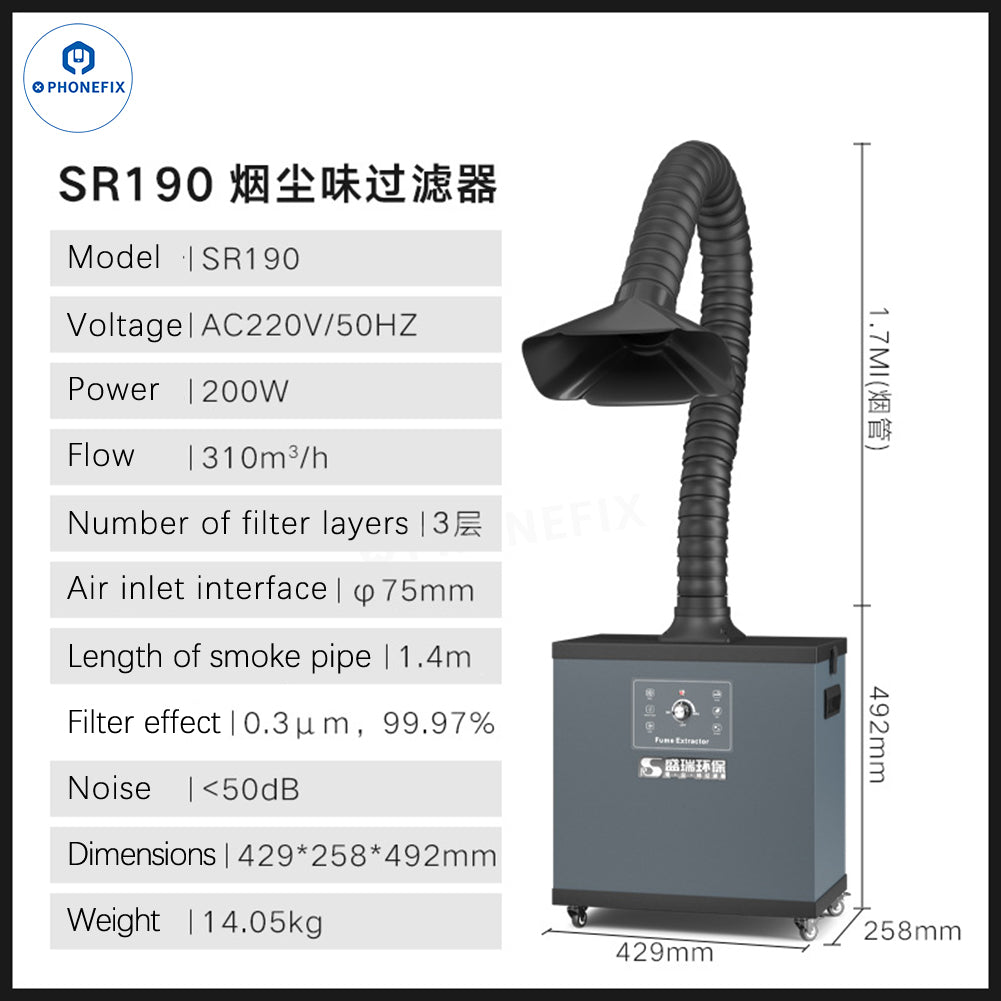

4. SR-190 [200W knob single tube round hood].
5. SR-190 [200W knob double tube round hood].

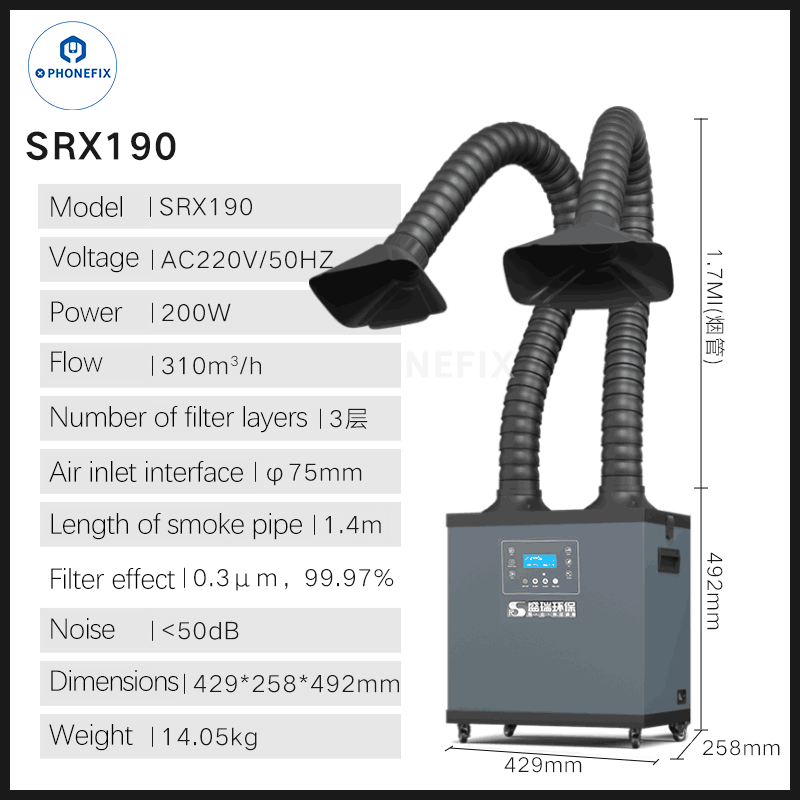

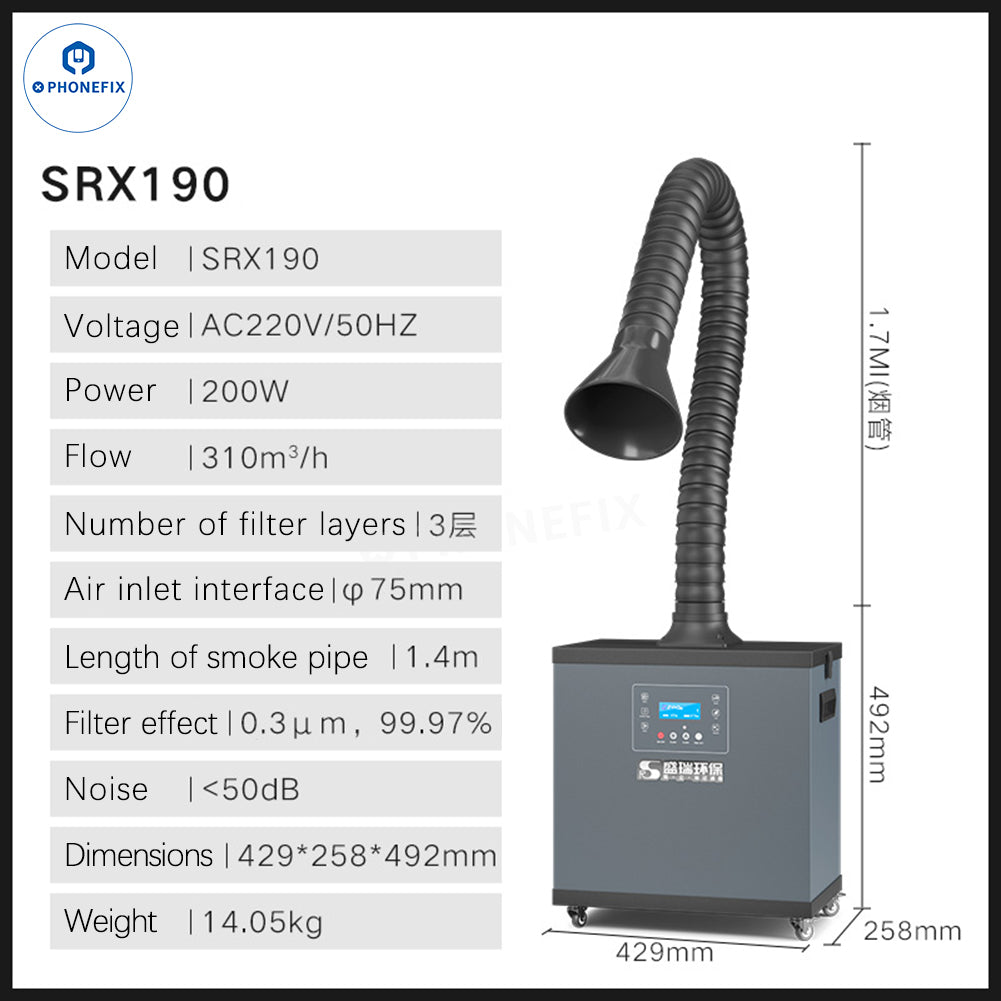

6. SRX-190 [200W LCD remote control single tube round hood].
7. SRX-190 [200W LCD remote control double tube round hood].

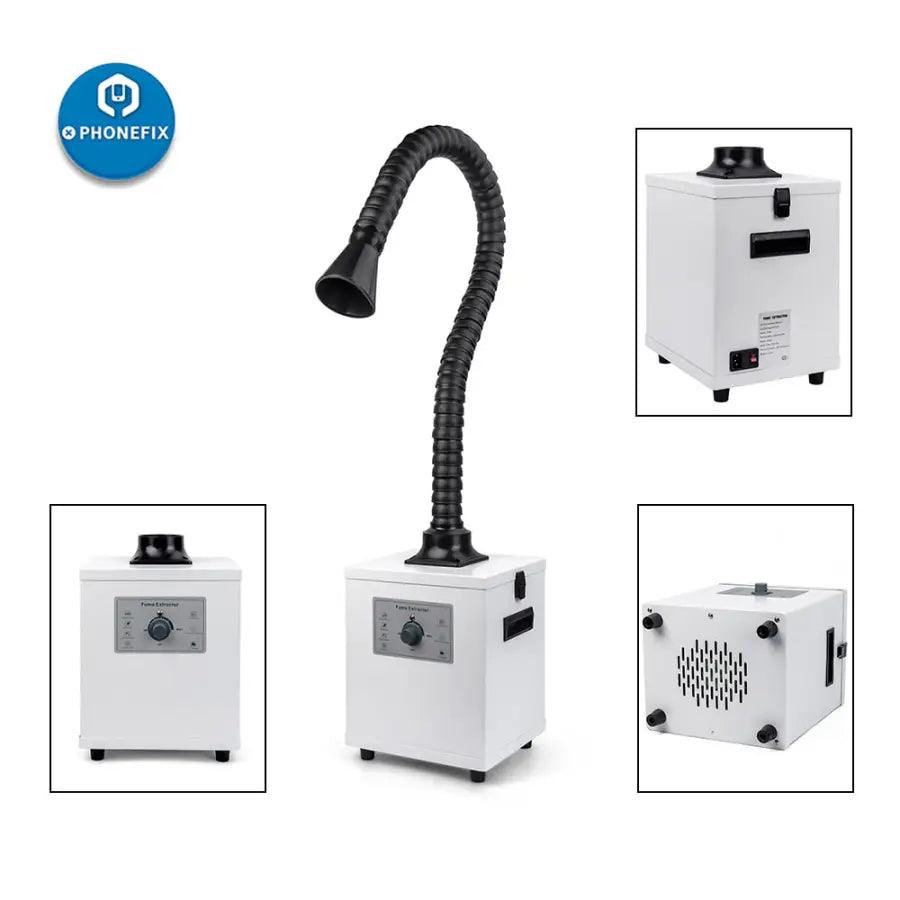

FUME Extractor Smoke Absorber External Configuration :
|
FUME Extractor Smoke Absorber
|
Main Unit
|
Air Intake
|
|
Metal buckles(both sides)
|
|
Recessed handles(both sides)
|
|
Air volume control button
|
|
Silicone non-slip pad(4 corners)
|
|
Smoke Tube
|
Smoking cover
|
|
1.2m bamboo smoking tube
|
FUME Extractor Smoke Absorber Relevant Parameters :
|
Model
|
BST-495
|
Power
|
150W
|
|
Input Voltage
|
AC110V/220V
|
Noise
|
<55dB
|
|
System flow
|
258m³/h
|
Filter level
|
3
|
|
Main unit size
|
345mm*285mm*245mm
|
Main unit weight
|
9.5KG
|
|
Smoking tube
|
φ50*1.2m
|
Control Method
|
Button
|
FUME Extractor Smoke Absorber is a universal smoke exhaust device; it works in many fields, not only for phone repairing soldering, also can be used in Medicine, Beauty, Laser, Chemical Experiments, etc.
FUME Extractor Smoke Absorber Multi-layer Filtration System :
|
Three-layer filtration
|
Item
|
Expiration date
|
|
First layer
|
Filter cotton(Filter 60)
|
7-15 days
|
|
Second layer
|
Filter cotton(Filter PM0.3)
|
3 months
|
|
Third layer
|
Particulate air filter(filter smoke)
|
More than 6 months
|
Operation method :
- Turn on the power button, turn the control button to make machine work according to the required air volume,
- Turn the control button to “OFF”, the machine will stop working;
- Turn the control button to “ON”, the machine will start working;
- Turn the control button to “MAX”, the machine will use the maximum value.
Excellent Technology High Speed Brushless Motor
- DC brushless motor
- Stable performance
- Special materials, long life
- Effectively prevents wind wheel corrosion.
FUME Extractor Smoke Absorber Filter Installation :
- Put in high-efficiency particulate air filter (third layer)
- Put in middle Filter cotton PM0.3 (second layer)
- Put in filter cotton filter 60(first layer)
- Close the cover, tight buckles
Package List :
- FUME extractor smoke absorber main unit
- 1.2m smoke pipe
- Power cable
- Filter cotton filter 60(first layer)
- Middle Filter cotton PM0.3 (second layer)
- High-efficiency particulate air filter (third layer)

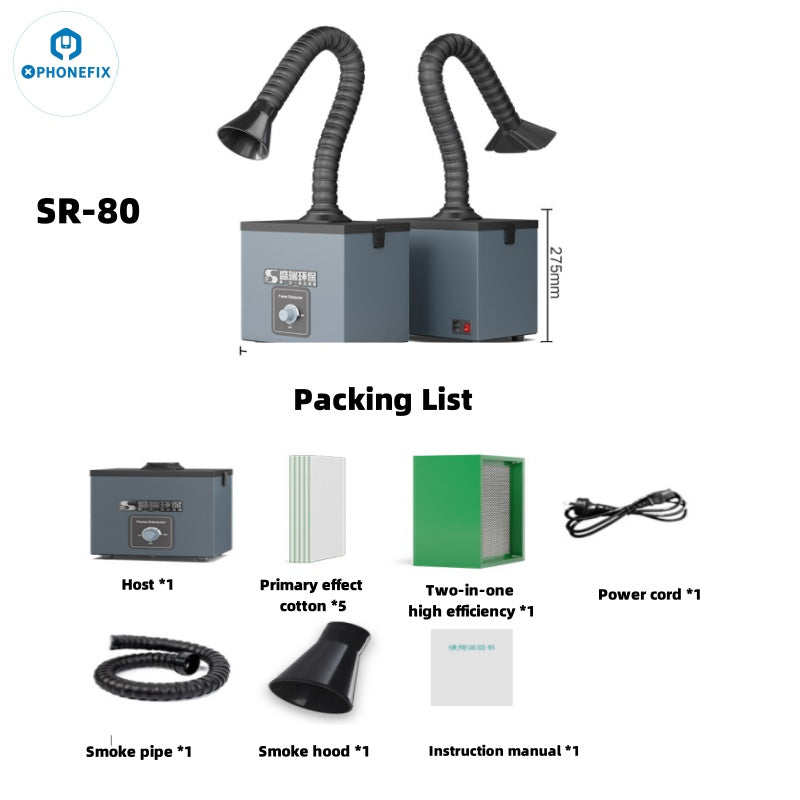

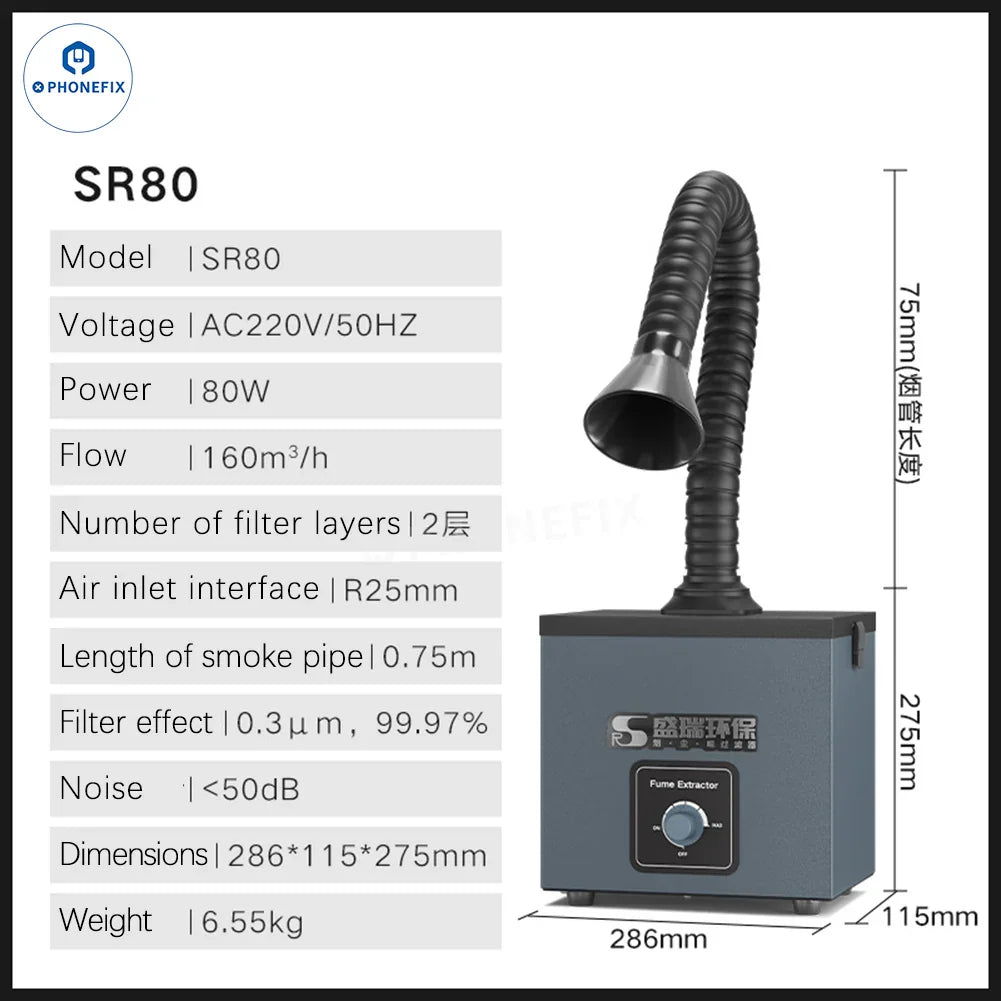

SR-80 two-layer tower filtration is more effective in dealing with smoke and dust odor:
1. Primary effect cotton: further filter larger smoke and dust particles, effectively enhance the use of other filter elements, easy to replace.
2. Two-in-one high efficiency: filter tiny smoke and dust particles, upgraded columnar activated carbon has a higher iodine value, decomposes odor, toxic and harmful gases, has a large capacity and a long service life.

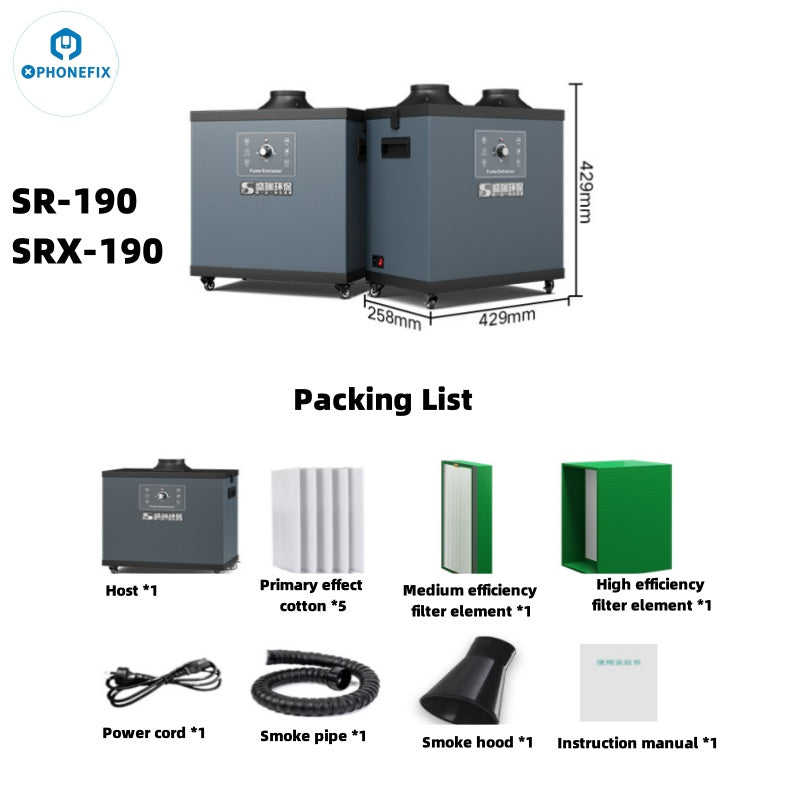

SR-190/SRX-190 three-layer tower filtration is more effective in dealing with smoke and dust odor:
1. Primary effect cotton: further filter larger smoke and dust particles, effectively enhance the use of other filter elements, easy to replace.
2. Medium efficiency filtration: filter tiny smoke and dust particles, large capacity and long service life.
3. High efficiency filtration: upgraded columnar activated carbon, higher iodine value, effectively decompose odor, toxic and harmful gases.
