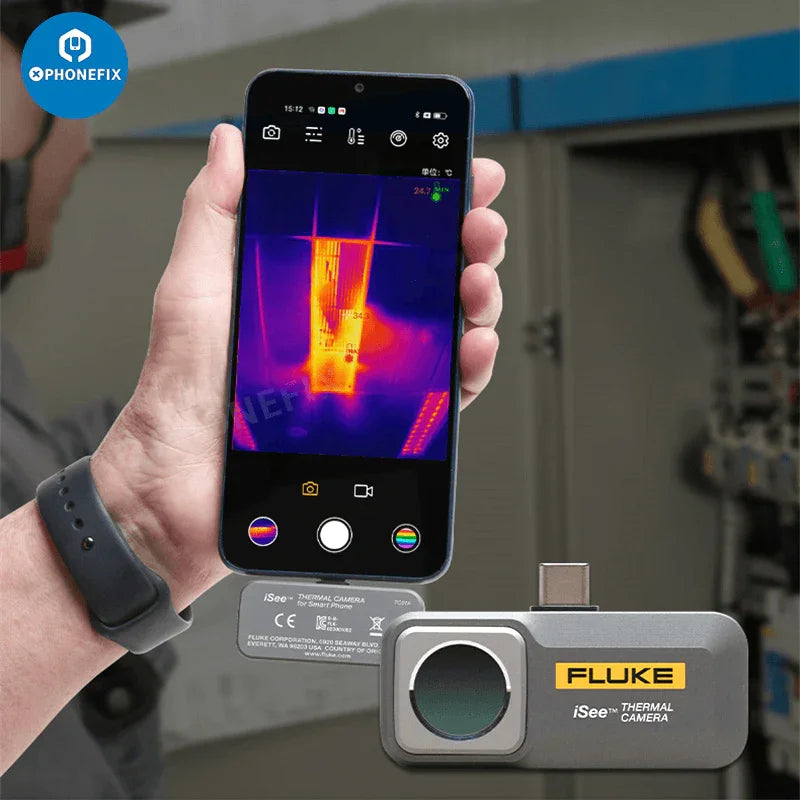

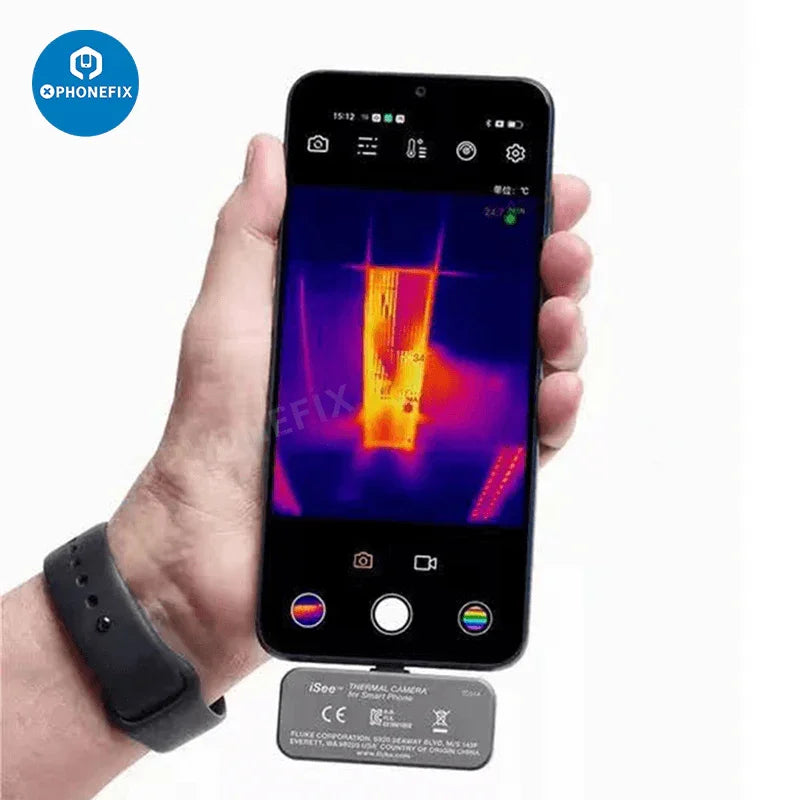

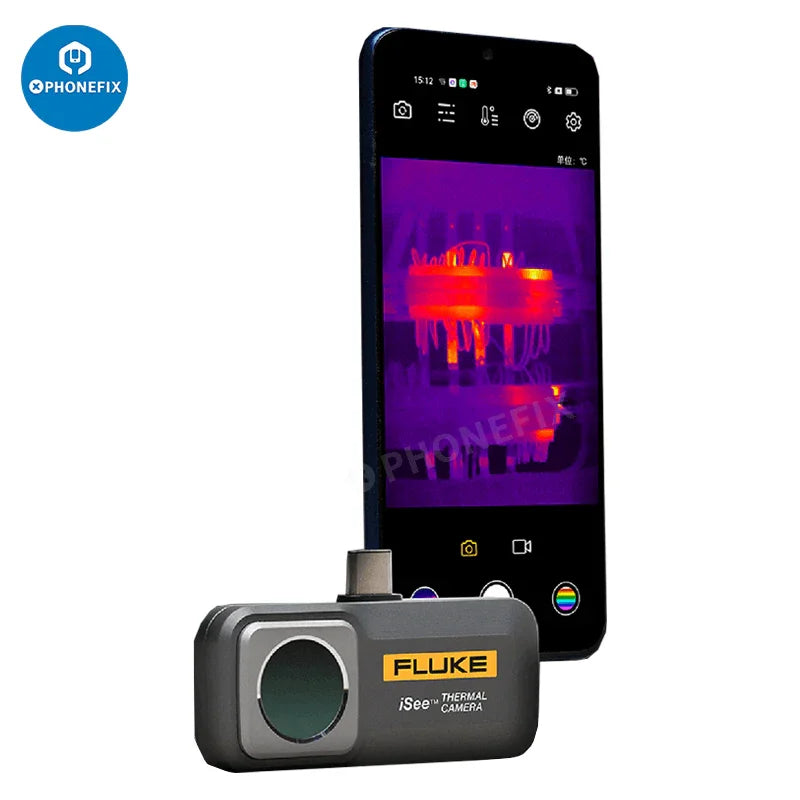

Fluke iSee TC01A Thermal Camera Mobile Phone Android Type-C Infrared Thermal Imager for motherboard fault detection. Fluke iSee powerful diagnostic tool is ideal for troubleshooting issues related to mainboard faults.
Features:
- Fluke iSee TC01A Thermal Cell Phone Camera Delicate images comparable to professional thermal imaging cameras.
- 256 x 192 pixels, delicate picture quality experience.

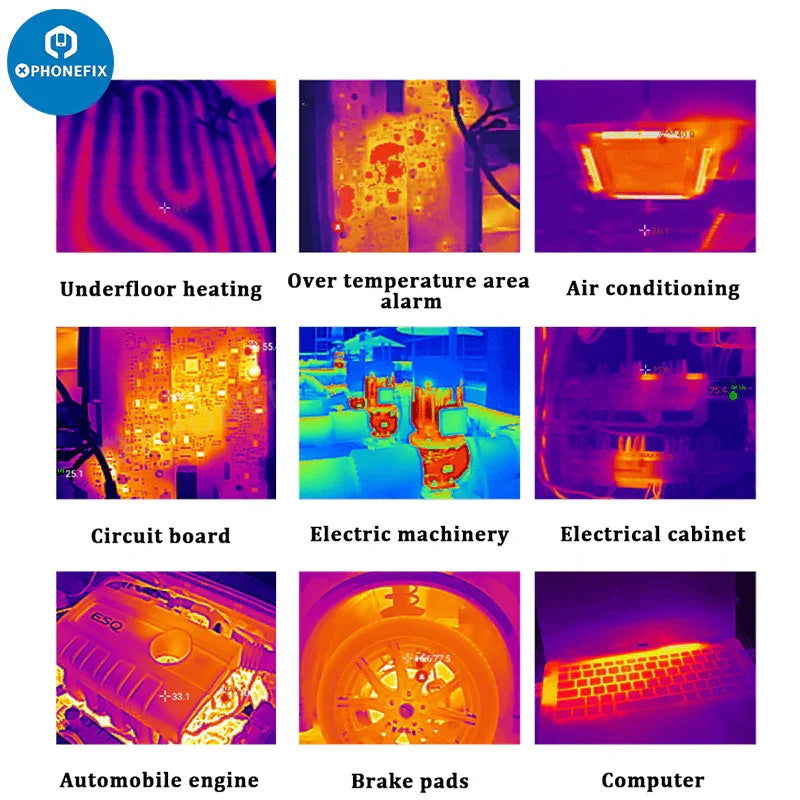

- -10 ~ 550℃ range, covering a wide range of applications.
- 50mk (0.05℃) thermal sensitivity for fine discrimination.
- ±2% or ±2°C accuracy for reliable results.
- 25Hz frame rate, smooth video without stuttering.

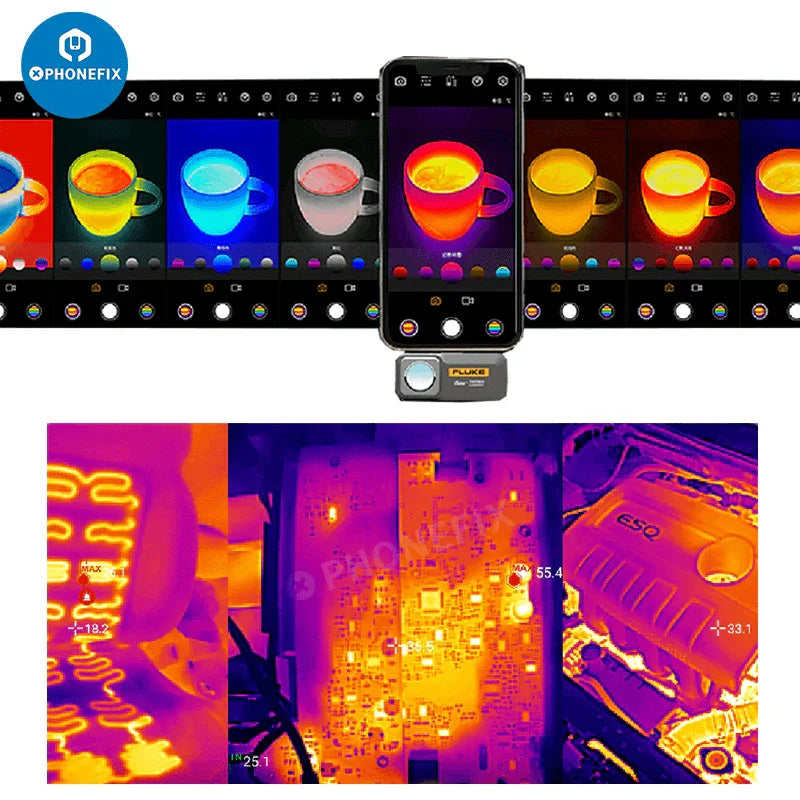

- More than 10 standard color palettes and custom color palettes to achieve a variety of personalized screens.
Powerful full temperature range analysis function:
- Real-time capture of high and low temperature without missing any details.
- Adjustable emissivity for different materials.

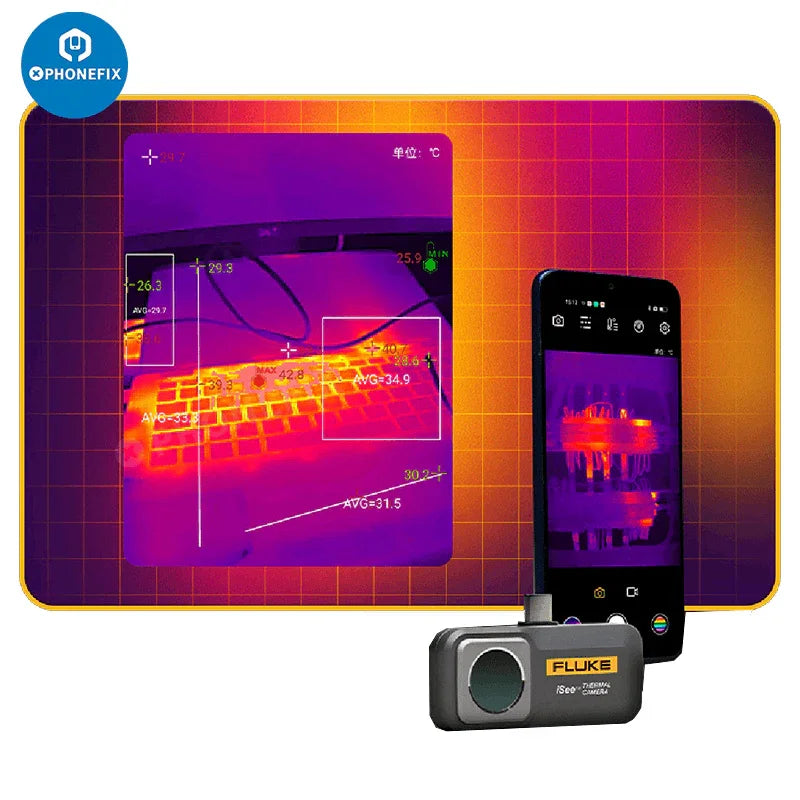

- Point, line and surface comprehensive temperature analysis, professional thermal imager software.
- Real-time temperature alarm, timely response and processing.
- Automatic interval shooting, unattended.
- Infrared and visible light image comparison view, positioning, comparison, archiving.
Share real-time images and communicate without barriers:
- Real-time sharing and management of pictures and videos, fast and efficient communication.
- Convenient picture notes, smooth and barrier-free communication.
Really small and portable, get started in a second:

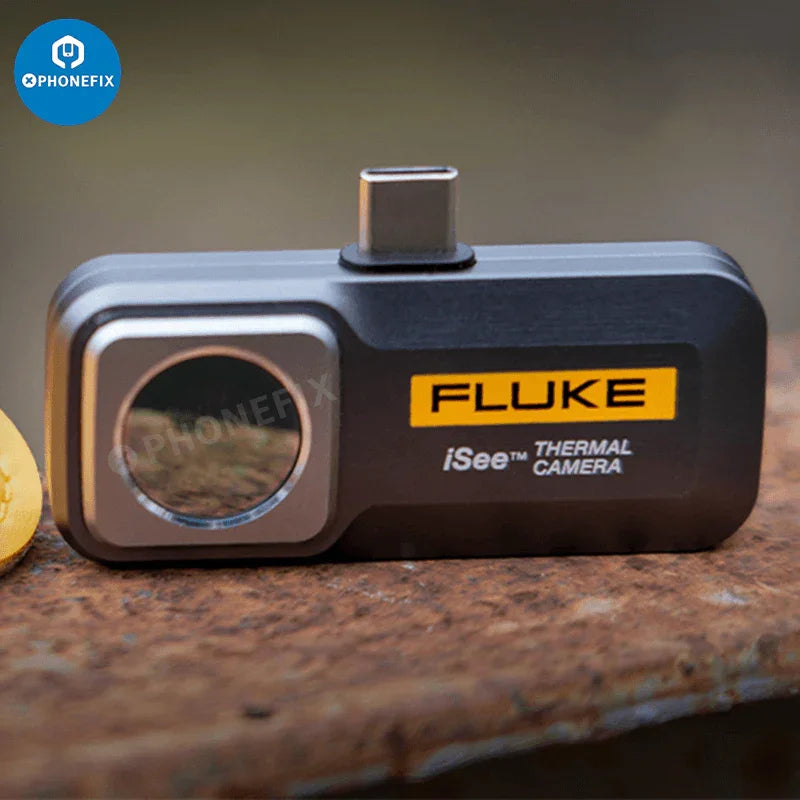

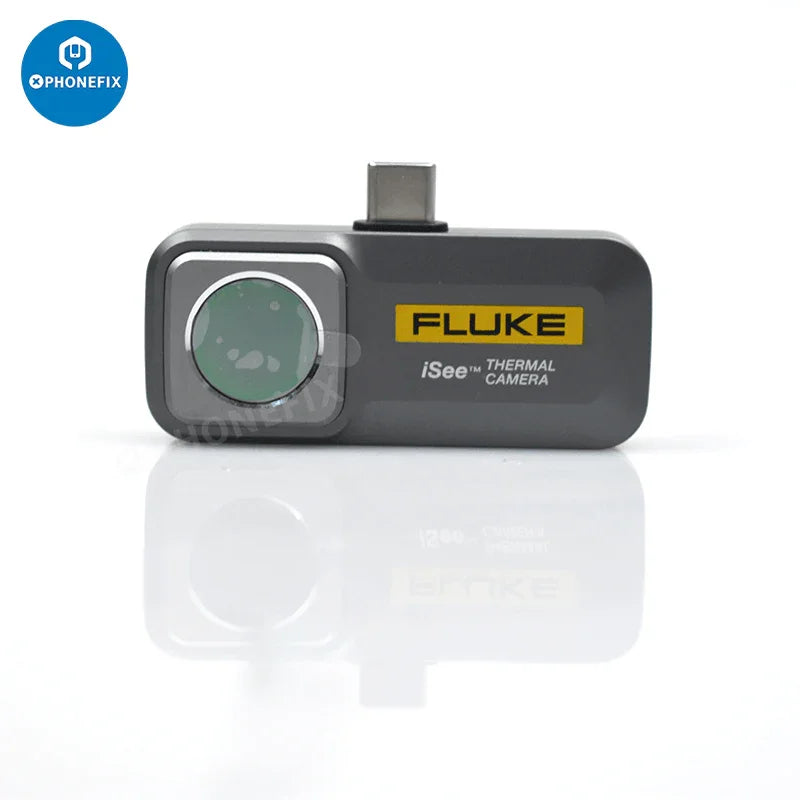

- Compact design as light as 22g, perfectly matched with the size of the mobile phone.

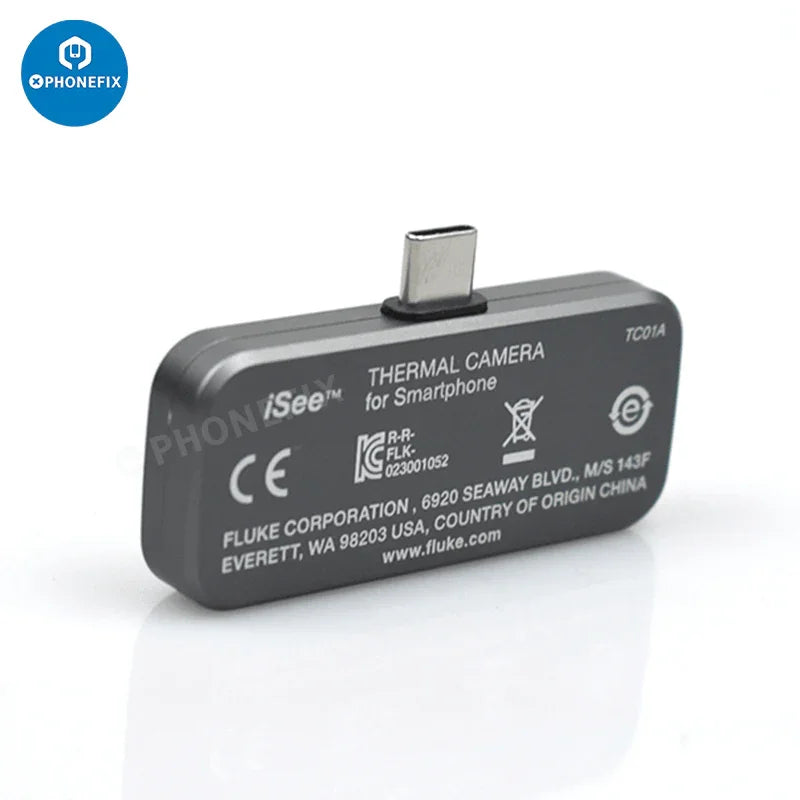

- Each iSee™ uses high-quality aviation aluminum, combined with unique surface treatment and laser etching process.
- 1-meter drop, IP54-rated, built-in Fluke durable quality.
- Optimized Fluke iSee™ application program interface and menu design, enjoy a professional operating experience, easily realize all functions.
Specification:Product model: Fluke iSee TC01A
Infrared resolution: 256x192
Pixel size: 12um
Temperature measurement range: -10℃-150℃,100℃-550℃
Accuracy: ± 2% (or ± 2 ℃)
Temperature measurement distance: 0.25-5M
Frame rate: 25Hz
Focal length: fixed 3.2mm
Thermal sensitivity (NETD): 50mK
Spectra: 8-14um
Field of view angle (HxV): 56 ° x42 °
Spatial resolution: 3.81mrad
USB interface: Type C
Working temperature: 0 ℃ -40 ℃
Storage temperature: -30 ℃ -60 ℃
Working humidity: 10% -90% RH
Power consumption: 350mW
Protection level: IEC 60529, IP54
Size: 59x32x10mm
