DPS series digital input adjustable DC power supply, LED Display Mobile phone repair power test regulated power supply
Due to the voltage value is a digital keyboard input, shorten the voltage setting time, completely overcome the traditional potentiometer adjustment poor contact caused by voltage instability phenomenon. The internal power supply containing electronic switch, can conveniently open the output load.
Input voltage: 110V/220V ±10%50/60Hz
Output power: DPS-305BF 0 to 30V 0-5A DPS-305BM 0 to 30V 0-5A

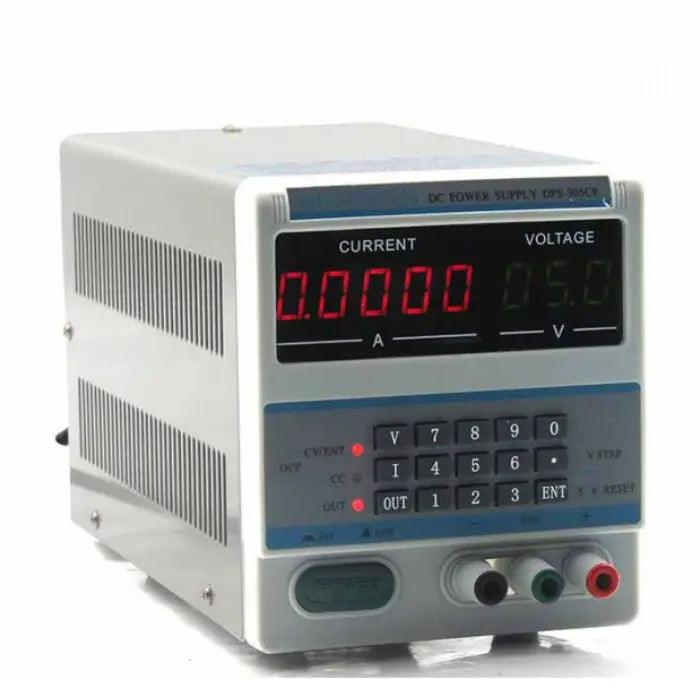

Option 2: DPS-305BF added function: BF: Five digit display，accuracy±0.0001A (0.1mA)
Power sound alarm function Mobile phone signal test More curren digit display
Option 3: DPS-305CF added function: Five-digit display, newer version more than DPS-305BF, added Memory storage and password Memory lock function.

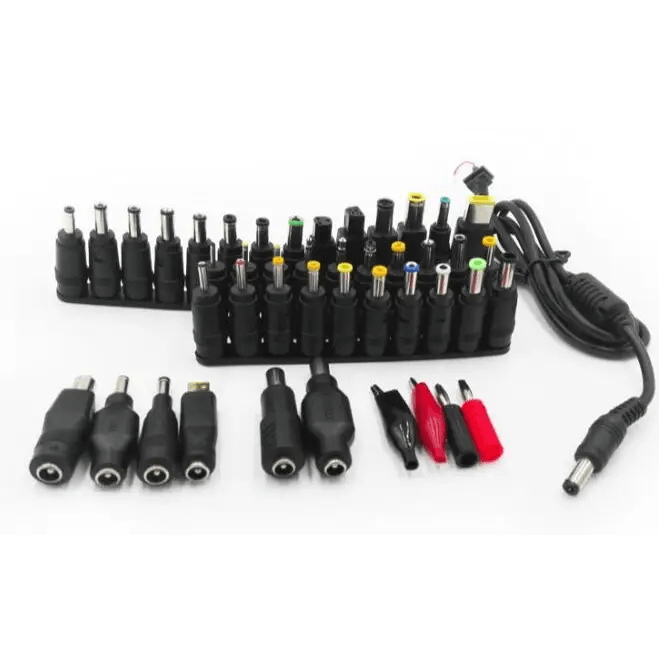

added DC power Cable: 44 pcs power convert cables
Value added function: a quick call 10 groups of voltage and current data and storing the user required 10 groups of voltage and current data, password lock keyboard, prevent misuse or vandalism operation.

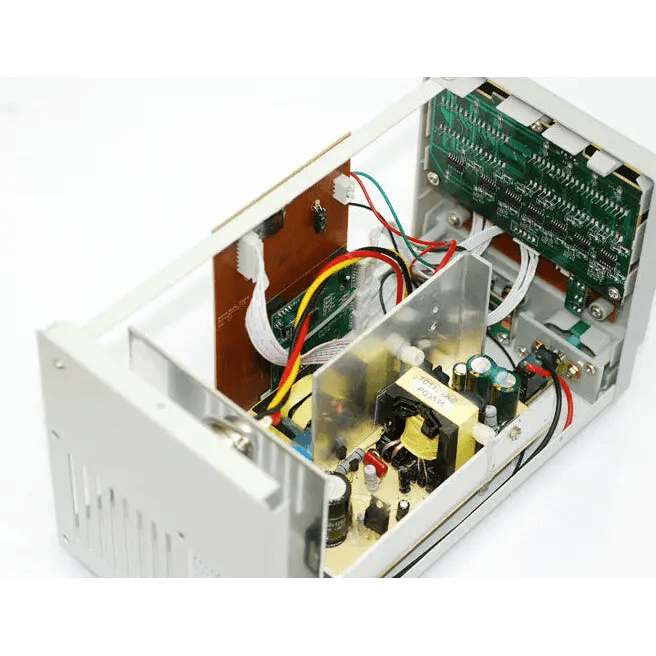

Specification : 1: rated working conditions and dimensions
Power supply voltage 220V + 10%50 / 60Hz (110V need to order) Working conditions: 0-40 temperature relative humidity 80% Storage temperature: - 10-70 C 70% relative humidity Dimensions: 265 x 128 x 150mm (D * W * H)
2: Regulated state parameters
The voltage output from 0 to 30V can be continuously adjusted ( To distinguish the value of 0.1V ) The precision of output voltage: + 0.1V Voltage stability: < 0.01%+3mv Load stability: < 0.01%+3mv Recovery time: 100uS Ripple noise voltage: < 1mVRMS ( 5Hz-1MHz ) Temperature coefficient: < 300PPM / C
3: A constant current state parameters
Constant current value: 305 CM 5A Ma constant current maximum 500 mA 303CM 3A Ma constant current maximum 500 mA Constant current output current from 0 to the nominal value of continuous adjustable ( to distinguish the value of 0.01A ) Constant current output accuracy: + 0.01A ( MA constant current precision: + 1mA) The current stability of the < 0.1%+3mA Load stability < 0.1%+3mA Ripple noise current < 3mARMS
4: Current and voltage display accuracy
Voltage display accuracy: + 0.1V ( constant current state ) Current display accuracy: + 0.01A ( constant pressure ) Ma current display accuracy: + 1mA ( constant pressure )
5: Storage capacity
Storage and call ten current, voltage data ( 305 / CM ) Initial has been deposited in the data: 1 keys ( 3V ) 2 ( 5V ) button button 3 ( 9V ) 4 ( 12V ) 5 button button button ( 13.8V ) 6 ( 15V ) 7 ( 18V ) 8 button button button ( 19V ) 9 ( 20V ) 0 ( 24V ) current key value is 5A, the user can arbitrarily settings change the desired voltage and current.
6: A voltage step range

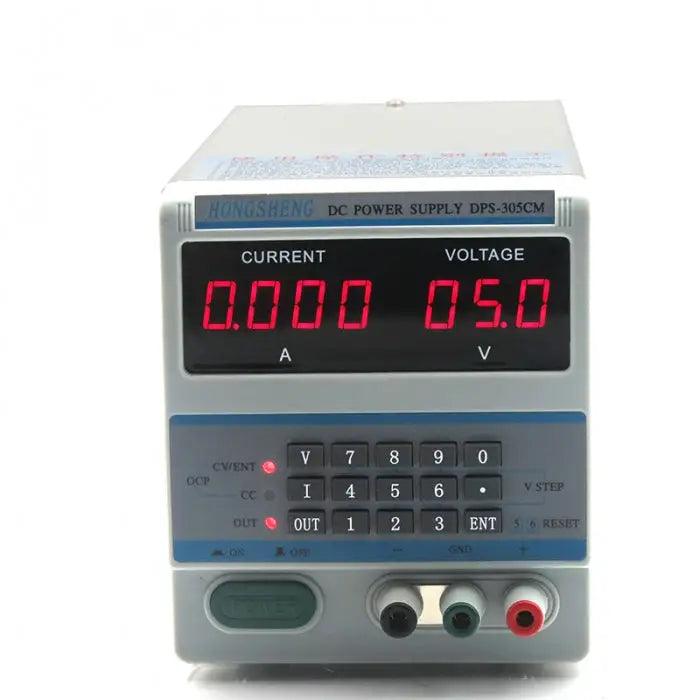

10V / 1V / 0.1V lifting voltage step Three panel features In 1, the front panel Current display window Voltage display window Data entry keyboard ( double function keys are: 0 / mA decimal point / latch / ENT / password 4 / stepper 7 / 8 / 9 step step / step / step 2 / 1 step 3 / step ) Constant voltage / ENT indicating lamp Constant current lamp Output indicator Ma status indicator Power switch Output ports:" -" negative polarity ( black ) GND: ground earthing terminal ( green ) Output ports:" +" the positive ( red )
