DES H95 5 IN 1 comprehensive rework solder preheat DC power station for phone motherboard repair, DES H95 5 IN 1 multi-functional integrated maintenance system, vacuum suction and discharge table & adjustable stabilized voltage supply & welding platform & pull-out platform & preheating platform.
DES H95 5 IN 1 Multifunctional Integrated Preheat Rework Maintenance System DC Power De-Soldering & Rework Station
Equipment features :
- 5 in 1 multi-functional integrated maintenance platform, with functions of welding platform, pull-out platform, preheating platform, vacuum suction and discharge table, adjustable stabilized voltage supply.
- Unique appearance design, 5 in 1 function, working space saving design
- It is equipment which can be set intelligent startup and shutdown. It will be turned off if there is nobody around the welding platform for 15 minutes after intelligent mode is started; the induction will be started automatically and the machine will be on standby if there are people coming.
- Have intelligent sleep function which saves energy.
- Have microcomputer temperature offset value so that temperature error is less than ±5℃.
- Have password management function.
- Have eliminate static design, which is specially safe for sensitive elements.
Soldering Iron Features :
- Light and handy handle, suitable for long time use
- Fast temperature returning in 8 seconds
- Have sleep function which saves energy.
- High quality heating element; platinum, strong temperature sensing
- Two ways of temperature display modes (centigrade ℃, Fahrenheit ℉)
- Have microcomputer temperature offset value so that temperature error is less than ±5℃.
- High, middle, low three levels of fast selection of temperature
- Have LCD display, the contents are clear.

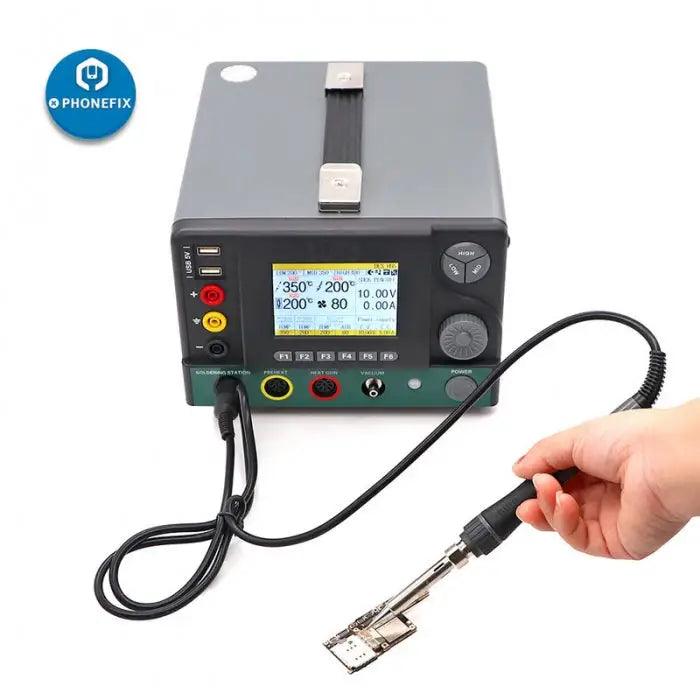

Pull-out Platform Features :
- Cyclone outlet design to reduce temperature irregularity.
- Small and precise design, operation controlled by handle which saves working time
- Adjustable air volume and temperature, suitable for dismantling various kinds of chips such as QFP, SOP, PLCC or SQJ etc.
- Have automatic cooling function, the system will blow cooling air continuously after turning off until the temperature inside nozzle casing reduces below 100℃ to prevent heating element overheating.
- Built-in temperature sensor which outputs temperature stably regardless of air volume size
- Have eliminate static design, which is specially safe for sensitive elements
Preheating Platform Features :
- Fast temperature returning in 8 seconds
- High quality heating element, platinum, strong temperature sending.
- Two ways of temperature display modes (centigrade℃, Fahrenheit℉)
- With LCD display, the contents are clear.

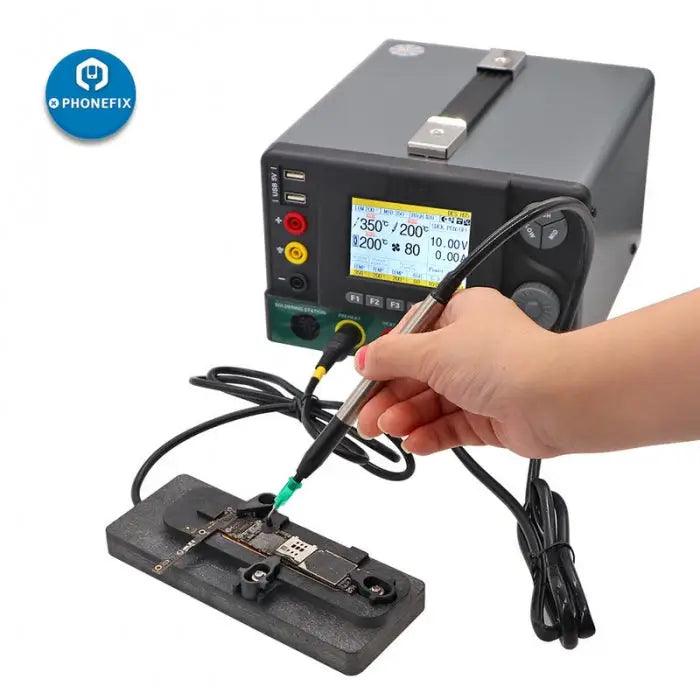

Suction and Discharge Table Features :
- With strong suction, small noise, long life, it can work for long time continuously.
- Able to suck flat integrated circuit, resistance and various kinds of round and small objects
- Built-in diaphragm vacuum pump, no need to connect air system.
- Have strong suction, able to suck objects of which weight is up to 120g.
- Eliminate static design. The suck pen, suction cushion are hose are all made of eliminate static material which are safer for sensitive elements.
Features of adjustable stabilized voltage supply :
- Overvoltage, overcurrent and short circuit protection
- High precision, high resolution, low temperature drift, high stability (temperature drift of the whole machine is less than 50ppm, precision is 0.1%, resolute V = 10MV, I = 10MA).
- CPU real time tracking to make the output value more stable
- LCD four-bit display voltage value, current setting value and output value
- Return function (able to absorb external current upto 500mA). It is able to reduce the voltage on output terminal instantaneously to zero (zero-impact to load), when output is stopped or the machine is turned off.
- Ideal combination of switching power and linear power (with high efficiency of switching power and low ripple of linear power both)
- Unique circuit topological structure. The circuit structure which can adjust and stabilize voltage on both poles makes the power zero-impact to load at the moment of starting.
Features of USB interface: 5V/2.1A
Product Specification :
- Model: H95
- Display: Intelligent LCD display
- Peak power: 1800W
- Voltage: 220VAC/50Hz 110VAC/60Hz
- Main machine dimension: 230(L)*197(W)*140(H)mm
- Machine weight: 2.37KG
Welding Platform :
- Model: S90 handle
- Power consumption: 90W
- Temperature controlling range: 80-500℃
- Resistance between welding nozzle and grounding Below 2Ω
- Potential between welding nozzle and grounding Below 2Mv
- Welding nozzle model Match with T series of soldering bit
- Heating element A1529
- Output voltage: 24V
- High temperature cuff GT04
- Cable length: 1.2m
- Handle weight: 100g

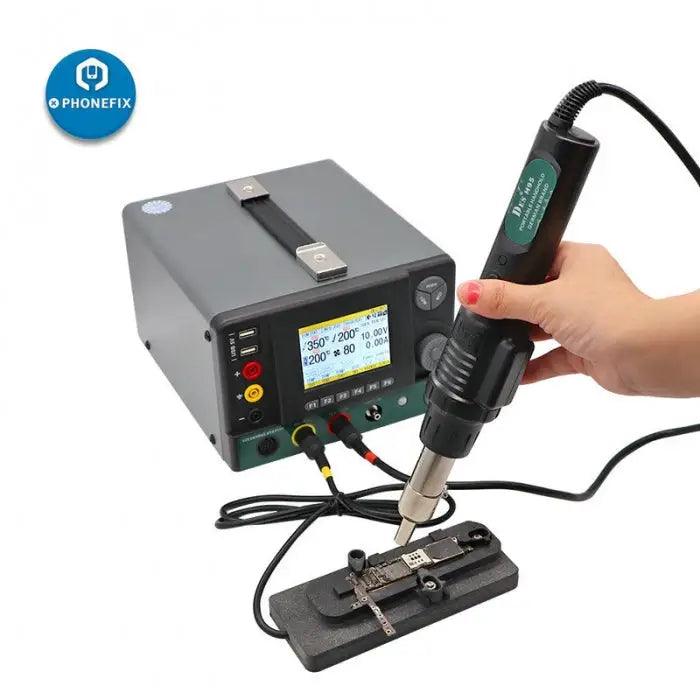

Hot Air Soldering Station :
- Model H95 heat gun
- Peak power 1500W
- Temperature controlling range 80-500℃
- Temperature stabilization ±5℃(when there is no negative charge)
- Air volume Level 10-80
- DC turbine fan 24V/8300rpm
- High temperature cuff GP5/GP6(purchase separately)
- Heating element 220V/A1526 110V/A1525
- Output voltage 220/110V
- Length of handle line 1.2m
- Weight 200g
Removable Accessories :
Model Produce instruction
ZBC00002 FR Removable Connection(S)and(L)Copper Core
WWJ00087 FP Removable Copper Core(S)
WWJ00086 FP Removable Copper Core(L)
Specification of Suck Pen :
- Power consumption: 10W
- Pump Diaphragm type
- Vacuum pressure(max): 280mmHg
- External dimension(mm) Suck pen: 123(L)*10(outside diameter)
- Flexible pipe: 1200(L)*6(outside diameter)
- Weight Such pen: 25g
- Curved nozzle Internal diameter: 0.4mm and 0.1mm
- Outside diameter: 3mm and 10mm
- Suction cushion Material: conductive silicone rubber
Application range and specification of vacuum suction and discharge table
Nozzle/suction cushion Max weight of the item Application
Curved nozzle(0.4mm) 1.2g Small flat resistance and other tiny components
Curved nozzle(1.1mm) 4g Small IC(8-40pin)
Curved nozzle(1.1mm)+suction cushion(φ3mm) 40g IC(more than 40 pin)
Curved nozzle(1.1mm)+suction cushion(φ10mm) 120g Large electrical element
Specification Parameters of Heating Platform :
- Model: P120E
- Temperature range: 80-300℃(176-572℉)
- Power consumption: 90W
- Heating core: A1529
- Impedance to earth:﹤2Ω
- Voltage to earth: ﹤2mv
- Dimension: 165(L)*65(W)*30(H)mm
- Voltage: 24V

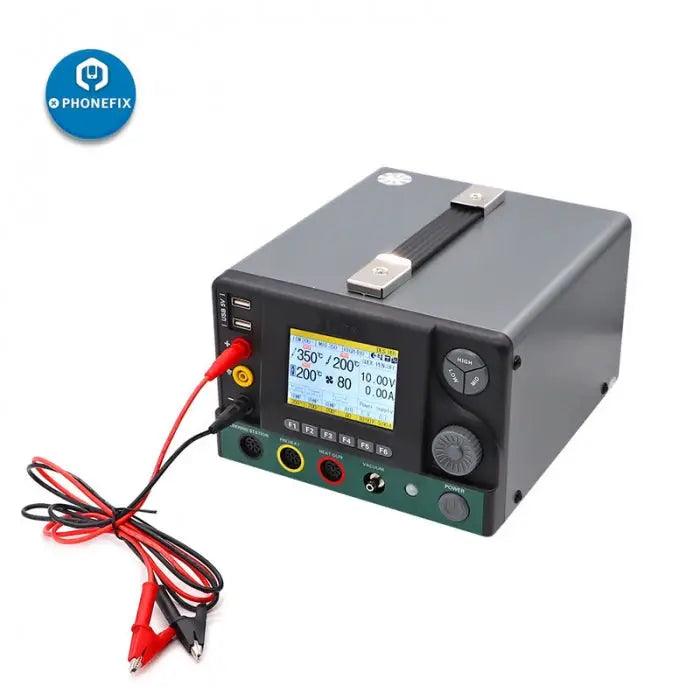

Adjustable Stabilized Voltage Supply :
- Model Adjustable stabilized voltage supply
- Range of rated output voltage: 1.00V-20.00V
- Range of rated output current: 0.01-5.00A
- Output Power: 100W
- Load regulation Voltage: 0.02%+2mV Current 0.02%+2mA
- Precision of set value Voltage: 0.1% Current 0.1%
- Precision of display value Voltage: 0.1% Current 0.1%

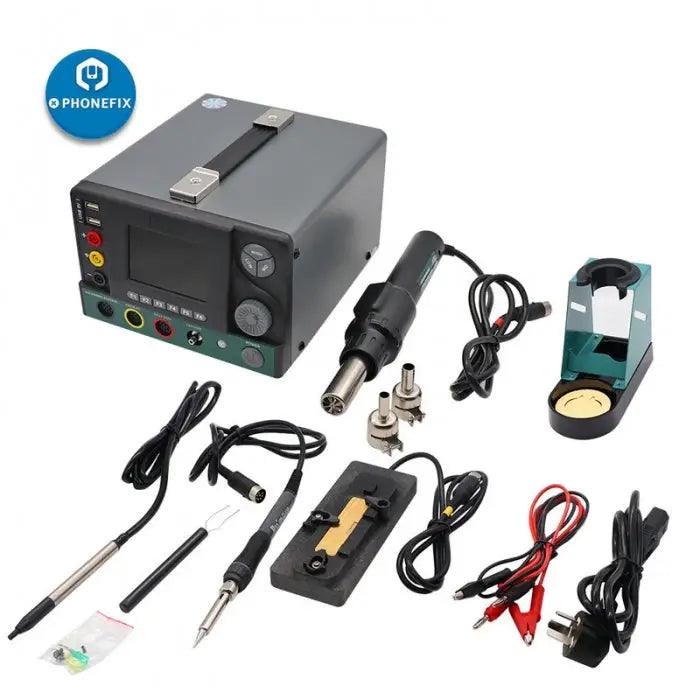

Products includes :
- 1pcs x Soldering iron
- 1pcs x Hot air gun
- 1pcs x SMD anti-static pen
- 1pcs x Desoldering platform
- 1pcs x Regulated power supply
