ATTEN ZT-660-150G 150W and ZT-661-200H 200W Auto-Feed Soldering Station with solder wire automatic tin dispensing system for mobile phone/tablet/electronic circuit board BGA chip welding repair. ATTEN ZT-661-200H single-axis semi-automatic soldering station and ZT-660-150G auto-feed soldering station suitable for PCB soldering and desoldering, one-handed operation, easy welding, improved work efficiency.

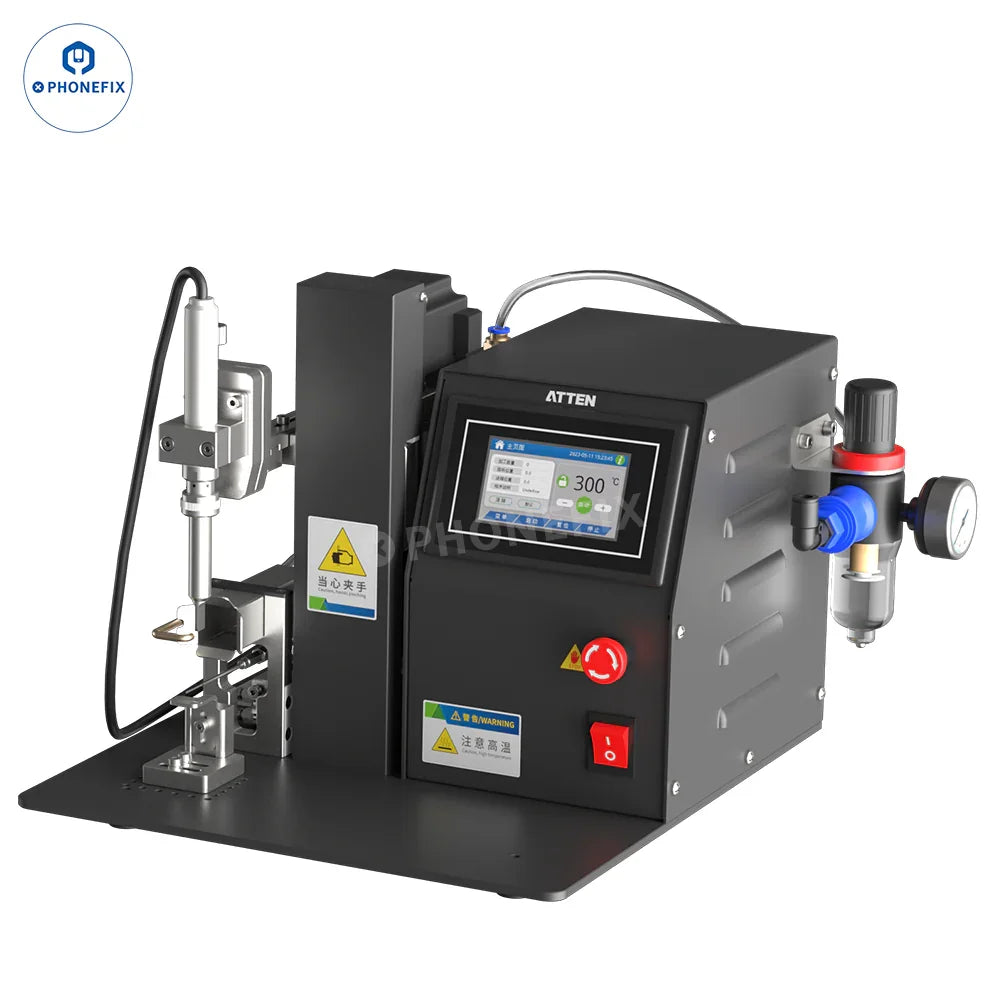

ATTEN ZT-661-200H Features:
1. Soldering iron uses 200W high frequency eddy current heating, rapid heating, accurate control, ESD safe.
2. PLC touch screen control, simple adjustment, easy operation.
3. Metal heating handle, fast heating, heat storage, high temperature, resistance, rust and corrosion prevention, long service life.
4. Automatic cleaning, high eficiency.
5. Change different soldering tools in different occasions.
6. With foot switch control mode and automatic control mode.
7. Support RS-485 communication interface, the host mode can link to the ATTEN'S fume extractor.

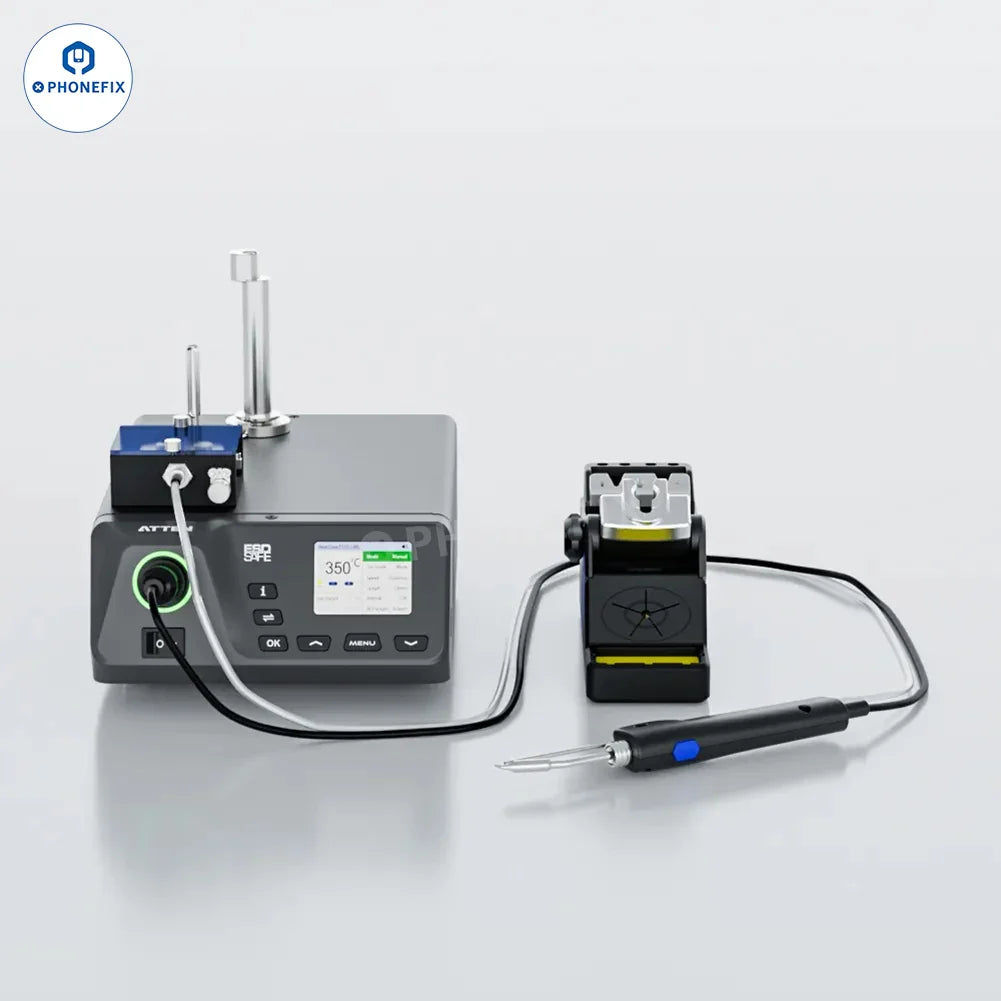

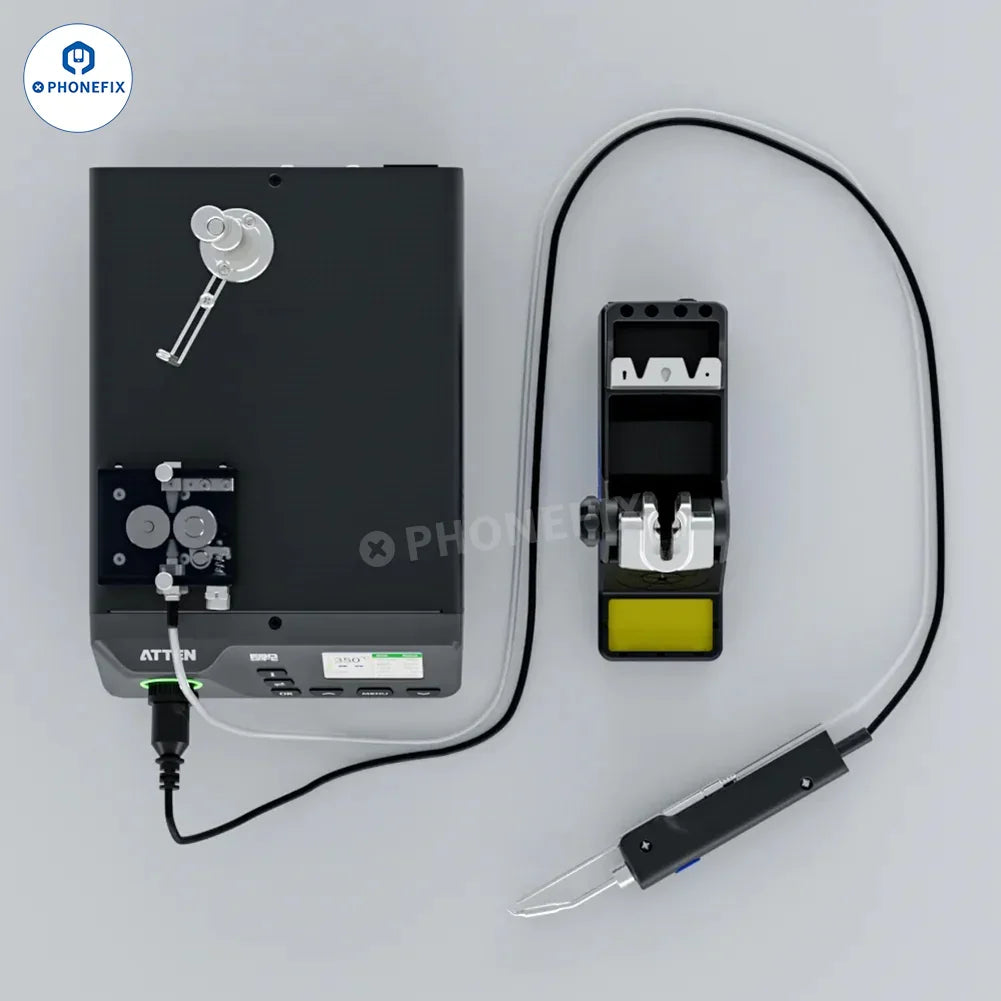

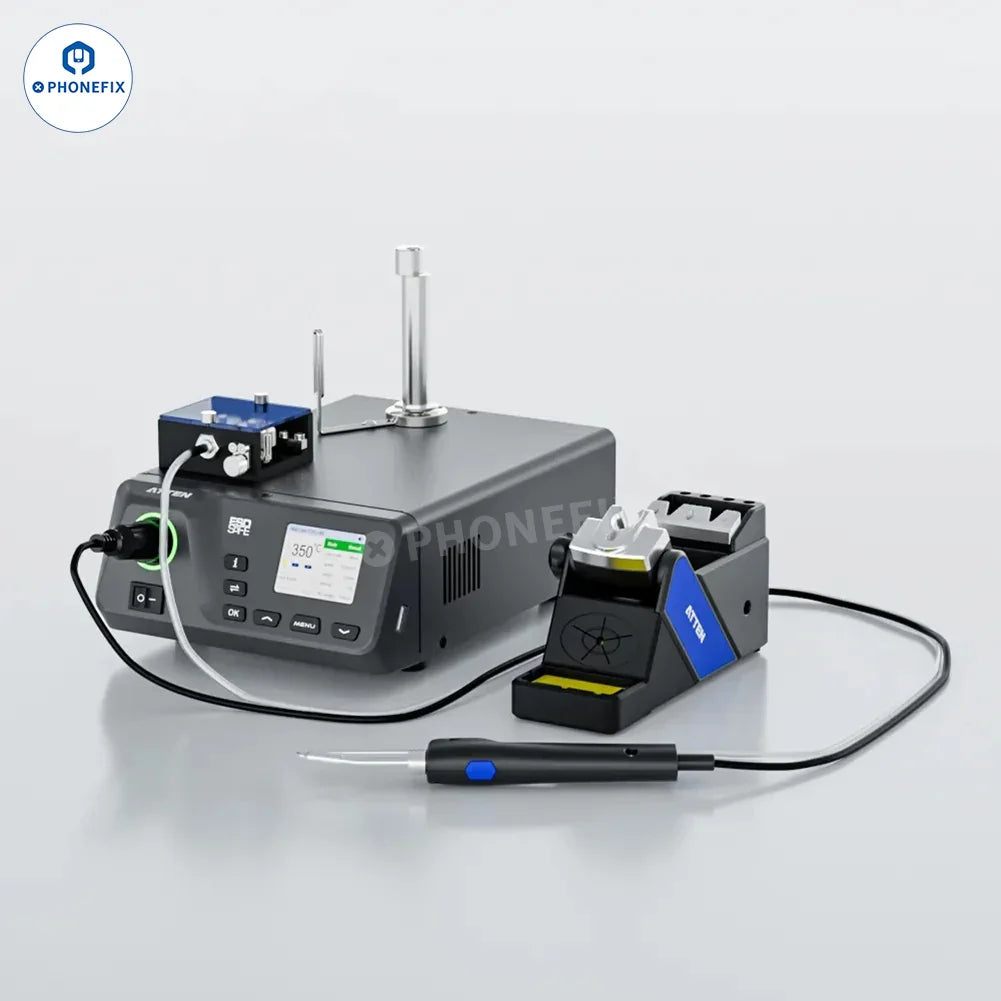

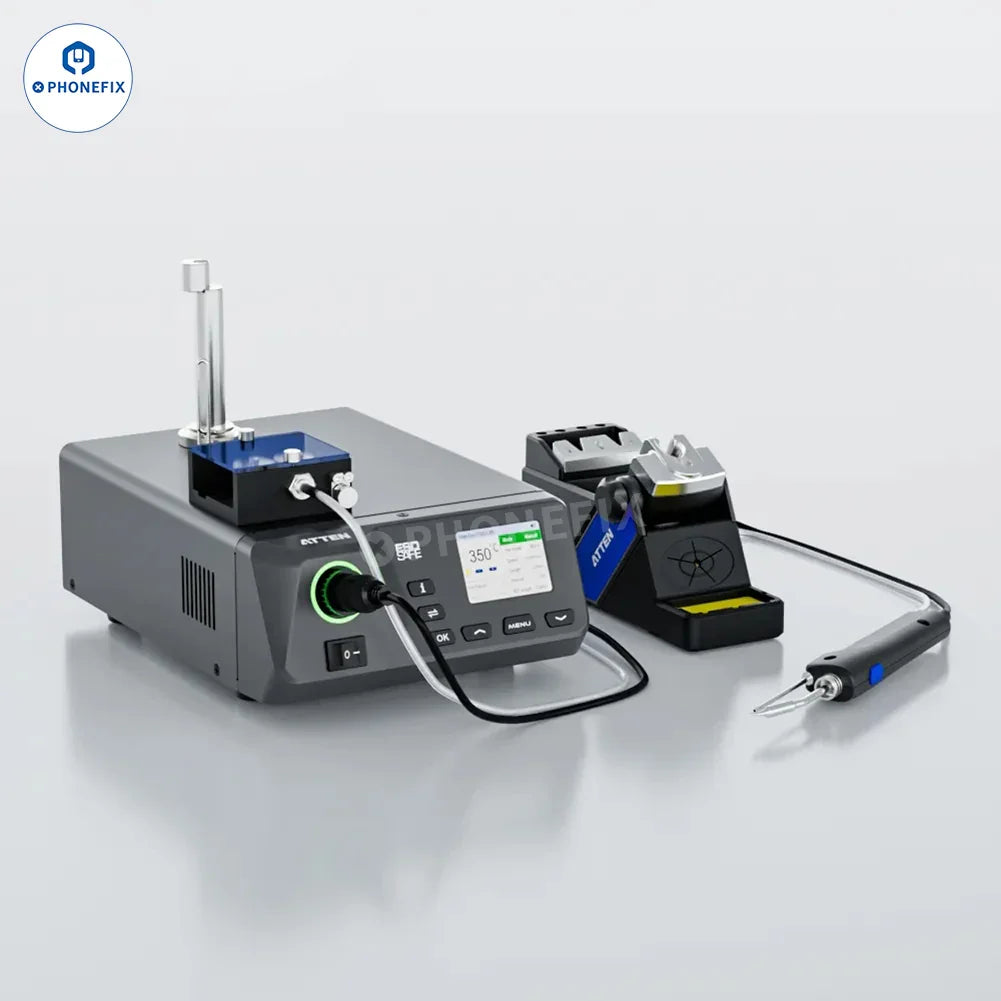

ZT-660-150G Features:
1. Automatic tin dispensing system, single handed operation, simple andeasy welding, improving work efficiency.
2. Temperature control range from 80 °C to 500 °C, stable and accuratetemperature control.
3. Anti static design can prevent damage to sensitive components due tostatic electricity.
4. Adjustable amount of solder return to reduce waste of solder.
5. The tin feeding speed and length can be set.
ZT-661-200H Specification:
Model: ZT-661-200H.
Voltage: AC 220-240V~50/60Hz (AC 110-120V~ 60Hz).
Power: 250W (±10%).
Temperature range: 80°C~500°C/176°F~932°F.
Temperature compensation: ±50°C.
User-defined user parameters: Support 10 groups of user parameter customization.
Work conditions: Temperature: 0°C~40°C; Humidity: < 85%RH.
Solder wire perforation function: Optional (standard without broken tin).
Overall dimension: 320(L)x350(W)x285(L)mm.
Weighe: ≈13.2 kg.
Air source component parameters:
Maximum working pressure: 1.0Mpa ( 10.2kgf/cm2).
Ambient and fluid temperature: -5~60°C (not frozen).
Suggested Oil: No.1 turbine oil/lSOVG32.
Input air pressure: 0.058~0.85Mpa (0.51~8.7kgf/cm2).
Handle parameter:
Item No: ZP-200HG.
Power: ≥200W.
Soldering tip: T511G-U(8.0*2.0).
Heater: HS-200H.
ZT-660-150G Specifications:
Model: ZT-660-150G.
Rated operating voltage: AC 220-240V~50160Hz (AC110-120V~60Hz).
Power: 180W(±10%.
Temperature range: 80℃~500℃.
Temperature compensation: ±50℃.
User parameter customization: Support 10 sets of user parameter customization.
Tin breaking function: Optional (standard without broken tin).
Work conditions: Temperature : 0℃~40℃; Humidity:<85%RH.
Overall dimension: 275*180*117mm.
Weight: ≈4.1kg.
Handle parameter:
Model: ZP-155G.
Power: ≥150W.
Heater type: T155 Series.
Line length: 100cm.
Dimensions: 183*21*30mm.
Weight(Net): ≈0.14kg.
ZT-660-150G Packging List:
1x Main unit.
1x Soldering Iron.
1x Soldering Iron Stand.
1x Solder Wire Stand.
1x Pedal.
1x Stand Cable.
1x Grounding wire.
1x Power cord.
1x User manual.
1x Certificate.
