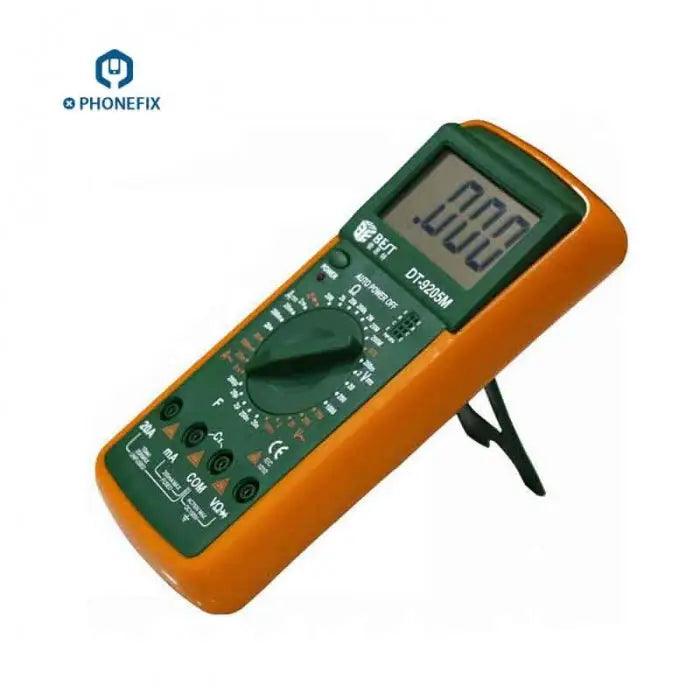

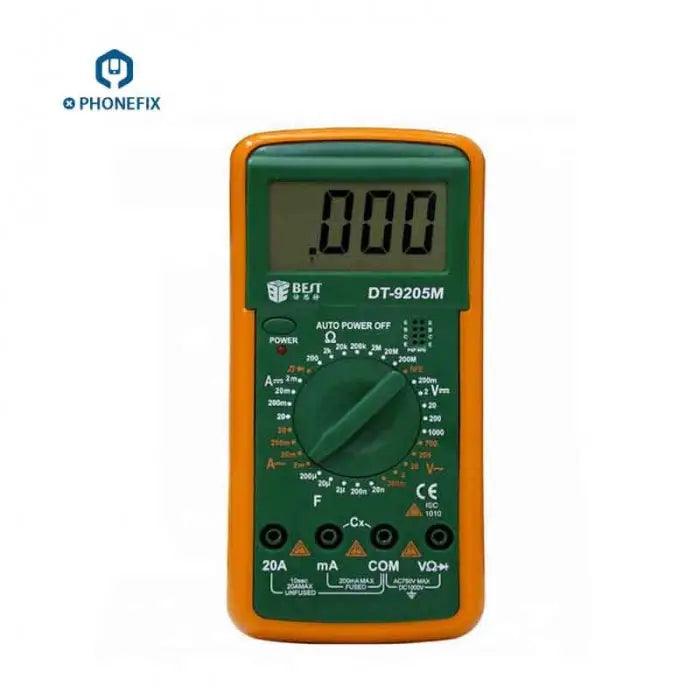

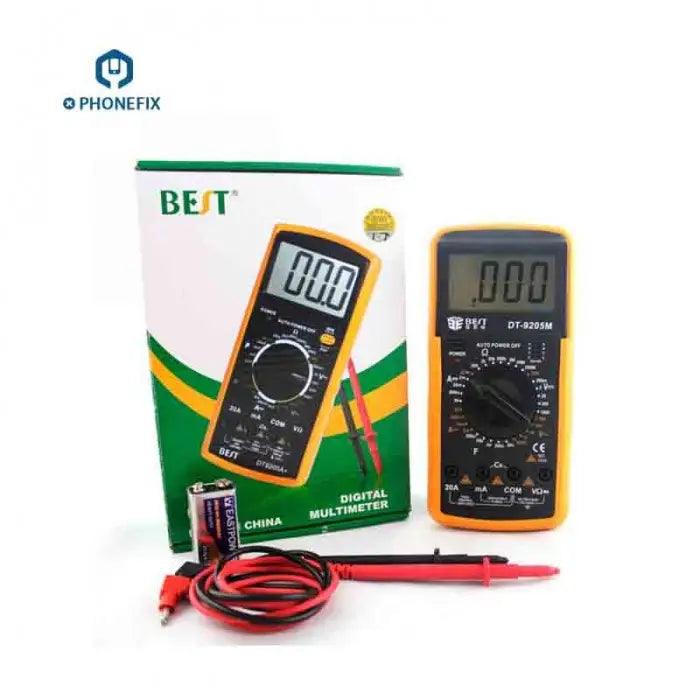

Handheld 9205M LCD Digital Multimeter Mobile Phone Repairing Testing
BEST DT9205M digital multimeter is an easy to operate, accurate readings, full-featured, compact, easy to carry, use battery-powered handheld large screen LCD Multimeter for phone motherboard repair, DT9205M digital multimeter for three and a half, the table can be used to Measure DC voltage / electric, AC voltage / current, resistance, capacitance test, diode test, transistor HFE measurement and circuit off, etc..
Performance:
- DC Voltage: 200mV-1000V ± (0.5% +1)
- AC voltage: 200mV-700V ± (0.8% +3)
- DC Current: 20mA-20A ± (0.8% +1)
- AC Current: 20mA-20A ± (1% +3)
- Resistance of 200?-2000M? ± (2.5% +3)
- Capacitance 2nF-200?F
- Crystal diode test is
- Diode test
- Beeper is
- Automatic shutdown is
- Power supply 9V, 6F22
- Maximum Display 1999
